CAR CREEPER
MODEL NO: CMC60
PART NO: 7630204
ASSEMBLY INSTRUCTIONS
ORIGINAL INSTRUCTIONS
GC0321 REV 1
Page 2
INTRODUCTION
Thank you for purchasing this CLARKE Car Creeper.
Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does not effect your statutory rights.
CONTENTS
•Car creeper
•6 Castors
• 4 Barrel nuts
• 6 Washers
• 9 mm Spanner
• 5 mm Hex key
If any of the parts listed above are missing or damaged, contact your CLARKE
dealer immediately.
2
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 3
SAFETY PRECAUTIONS
1. ALWAYS take care when handling the car creeper, not to get your hands or
fingers caught between the frame and pivot arms, particularly when
raising or lowering the seat.
2. NEVER allow the creeper to be used as a plaything such as a toy or
skateboard. Keep children away at all times...this is NOT a toy.
3. NEVER leave the creeper unattended. When not in use, it should be stored
carefully and not left lying around for others to trip over.
4. ALWAYS use your car creeper on a hard level surface, not in the vicinity of
drains, holes, curbs, cracks etc., as this could cause serious damage to the
castors.
5. ALWAYS check your car creeper regularly for signs of damage, and if any is
apparent, have it repaired before putting back into use. Remember,
broken, worn or missing parts could result in injury.
6. DO NOT modify this creeper in any way. Unauthorized modifications mat
impair the function and/or safety and could effect the life of the product.
7. DO NOT exceed the maximum rated load capacity.
8. DO NOT stand on the car creeper or seat or use as a stepping device.
9. Sit down slowly and carefully onto the seat to avoid shock loading.
10. DO NOT place under a cartyre to move or reposition a vehicle.
11. Make sure the vehicle is properly supported with axle stands and the
wheels are chocked before going under the vehicle.
12. DO NOT use if any part of the frame is damaged, split or cracked.
13. When not in use, store upright in a secure place.
14. DO NOT drop the creeper onto the ground.
3
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 4
ASSEMBLY
Should damage to any of the components have occurred during transit,
please notify your CLARKE dealer immediately.

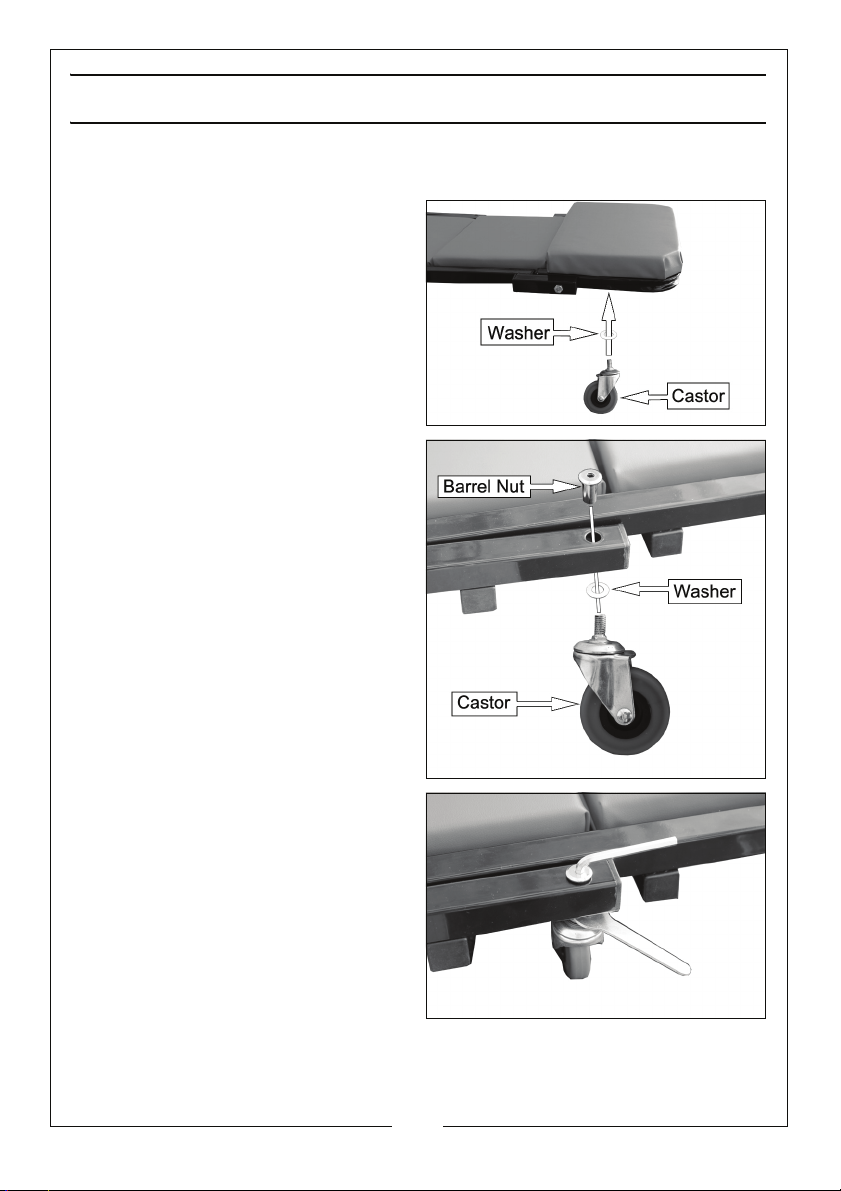

1. Fit the castor and washer to the
“pillow end” of the car creeper as
shown and tighten using the
spanner provided.
2. For the four remaining castors,
insert the castor with washer
attached into the barrel nut and
tighten by hand.
3. Use the hex key supplied and
spanner to tighten up the barrel
nut.
4
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 5
CONFIGURATION CHANGES

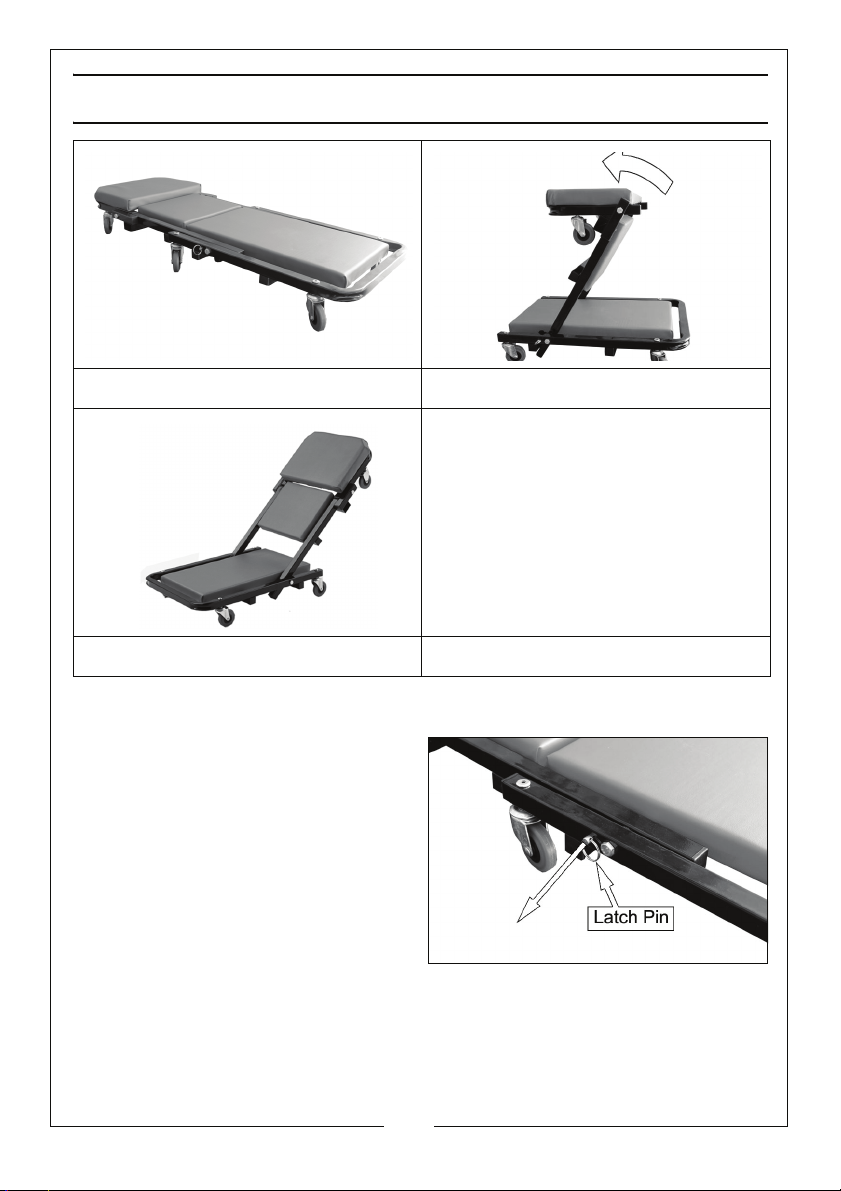

Creeper Configuration Stool Configuration
Back Rest Configuration
STOOL CONFIGURATION
1. Pull out the spring loaded latch
pin in the side of the frame.
5
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 6

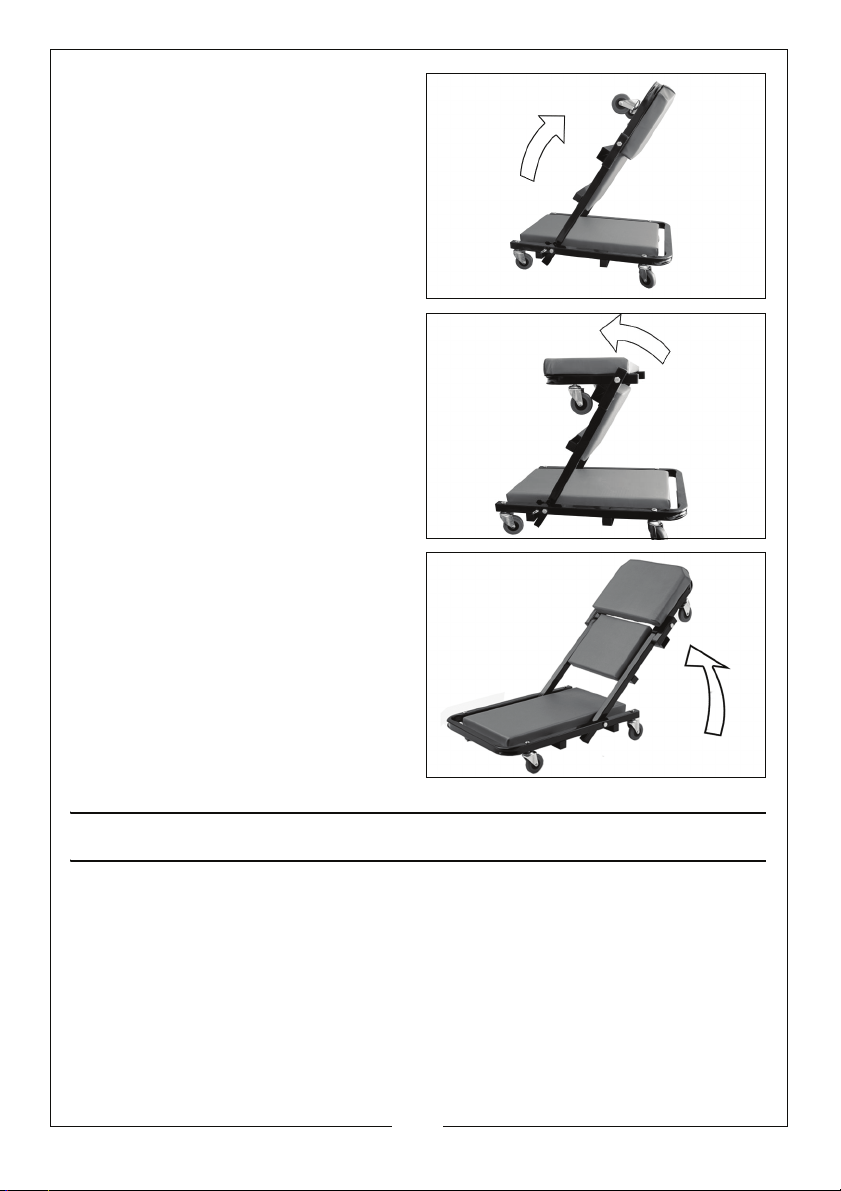

2. Rotate the frame upwards as
shown and allow the latch pin to
re-engage into the bracket.
• Make sure that the latch pin is
fully engaged before use.
3. Rotate the seat down to
horizontal angle as shown.
• Reverse steps 1-3 to revert back
to creeper configuration.
BACKREST CONFIGURATION
1. Pull out the spring loaded latch
pin in the side of the frame.
2. Rotate the frame upwards as
shown and allow the latch pin to
re-engage into the bracket.
• Make sure that the latch pin is
fully engaged before use.
• Reverse steps 1-2 to revert back
to creeper configuration.
MAINTENANCE
• Keep the car creeper clean using a soft damp cloth and a mild
upholstery cleaner if required.
• Keep the castors free from dust and oil.
6
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 7
SPECIFICATION
Dimensions as car creeper: (L x W x H) 1030 x 425 x 150 mm
Dimensions as stool: (LxWxH) 555 x 425 x 510 mm
Underside clearance 55 mm
Maximum load as car creeper 150 kg
Maximum load as stool 150 kg
Weight 8.74 kg
7
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 8
