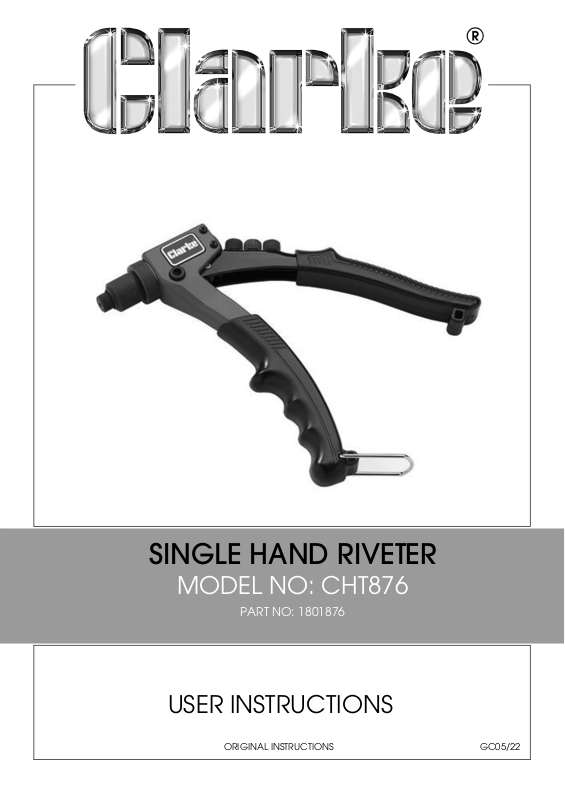

Page 1
SINGLE HAND RIVETER
MODEL NO: CHT876
PART NO: 1801876
USER INSTRUCTIONS
ORIGINAL INSTRUCTIONS GC05/22
Page 2
INTRODUCTION
Thank you for purchasing this CLARKE Rivet Gun. Before attempting to use this
product, please read this manual thoroughly and follow the instructions
carefully. In doing so you will ensure the safety of yourself and that of others
around you and you can look forward to your purchase giving you long and
satisfactory service.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does not effect your statutory rights.

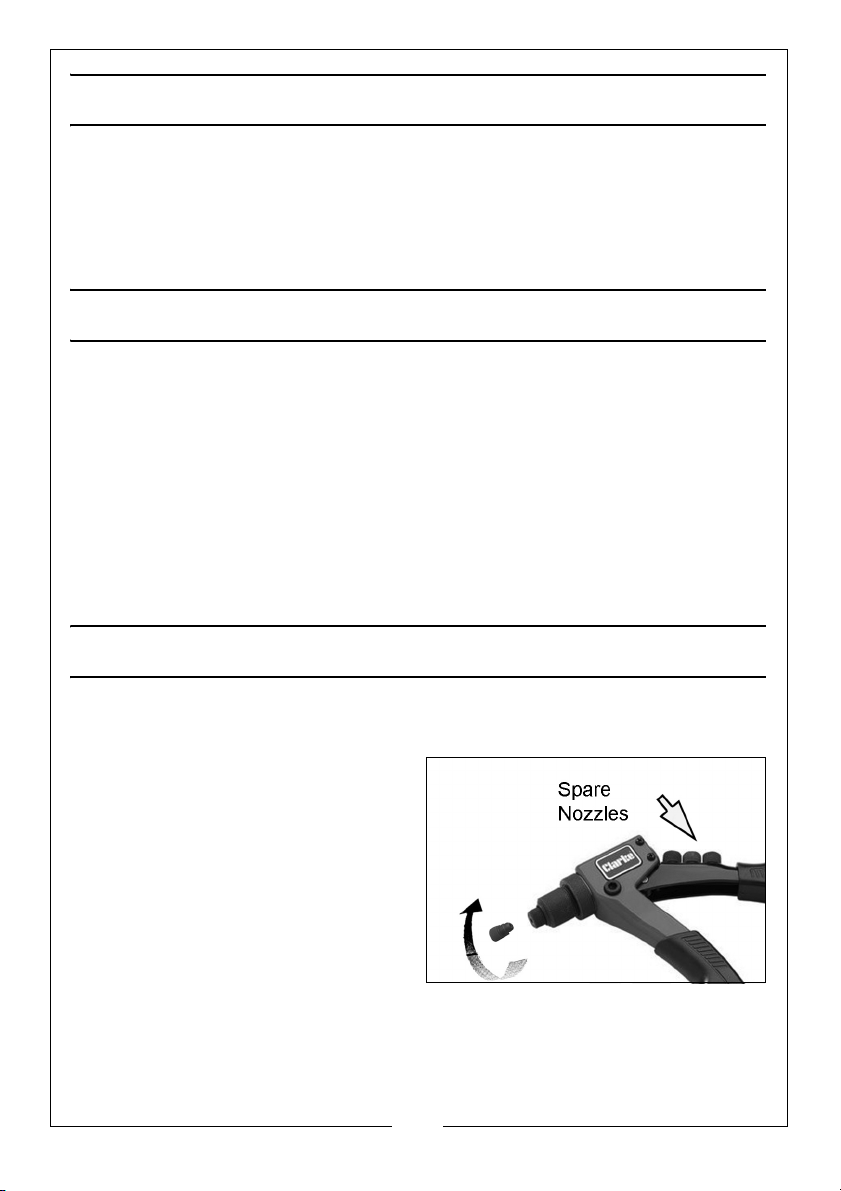

FITTING AND STORING THE NOZZLES
The CHT876 rivet gun is equipped with a choice of 4 different size nozzles to suit
different rivets. Choose the rivet to be used for the job.
The sizes available are:
• 3/32” (2.4 mm)
• 1/8” (3.2 mm)
• 5/32” (4.0 mm)
• 3/16” (4.8 mm)
NOTE: The dimensions are
engraved on each one.
1. Screw your chosen nozzle into the
tip of the rivet gun, finger tight.
2. Always store the unused nozzles by screwing them back into the rivet gun
for safe keeping.
2
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 3

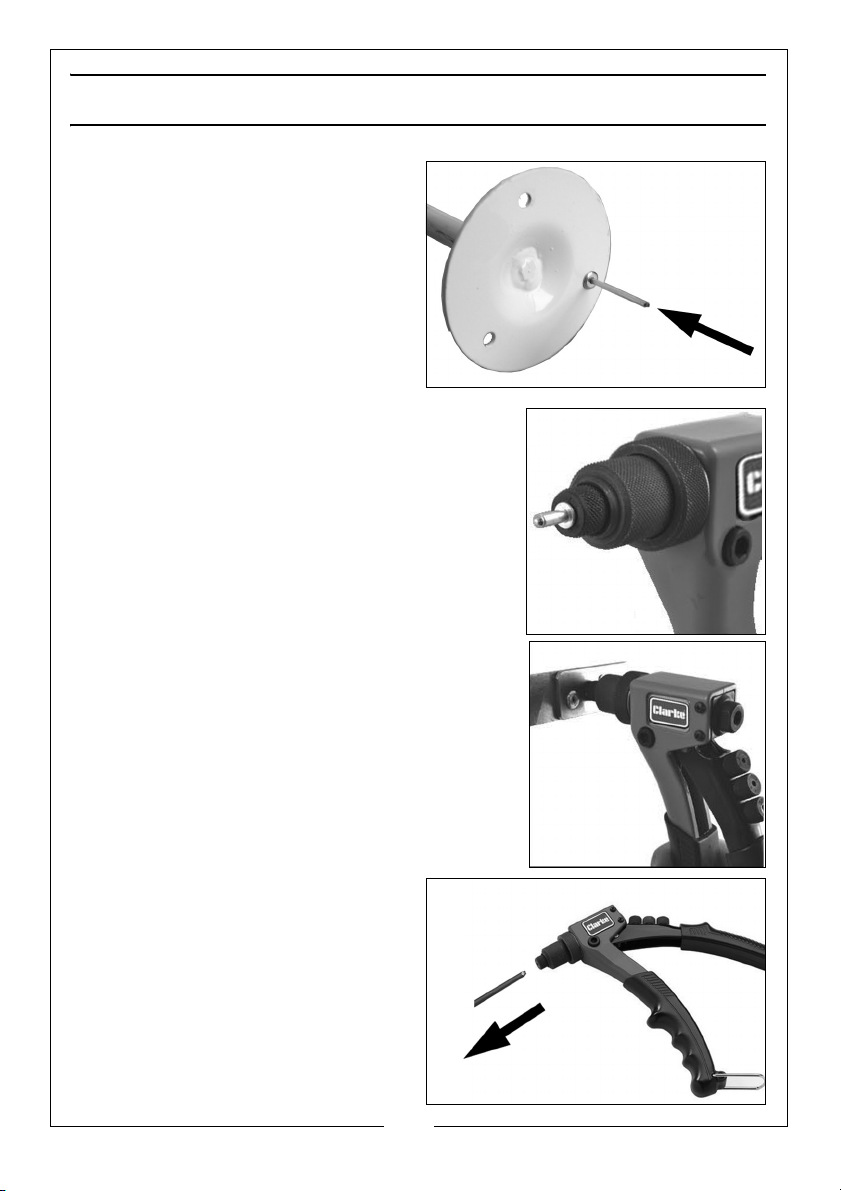

OPERATION
1. When items are to be riveted
together, the hole diameter must
be nominally larger than the outer
diameter of the rivet. Ensure that
the hole is perpendicular with the
surface of the workpiece
components.
2. Insert the rivet into the hole of the
workpiece components.
3. Part the handles to prepare the action of the
gun.
• This will enable the rivet stem to enter the rivet
gun as far as it will go, with the handles fully
extended.
4. Ensure the rivet gun is perpendicular to the
workpiece and the flange of the rivet is
pressed against it.
5. Squeeze the rivet gun handles together to
expand the rivet.
6. If the rivet stem does not break off at the first
stroke, part the handles and repeat step 5.
7. Part the handles again and the
broken rivet stem should be
ejected from the nozzle.
3
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 4

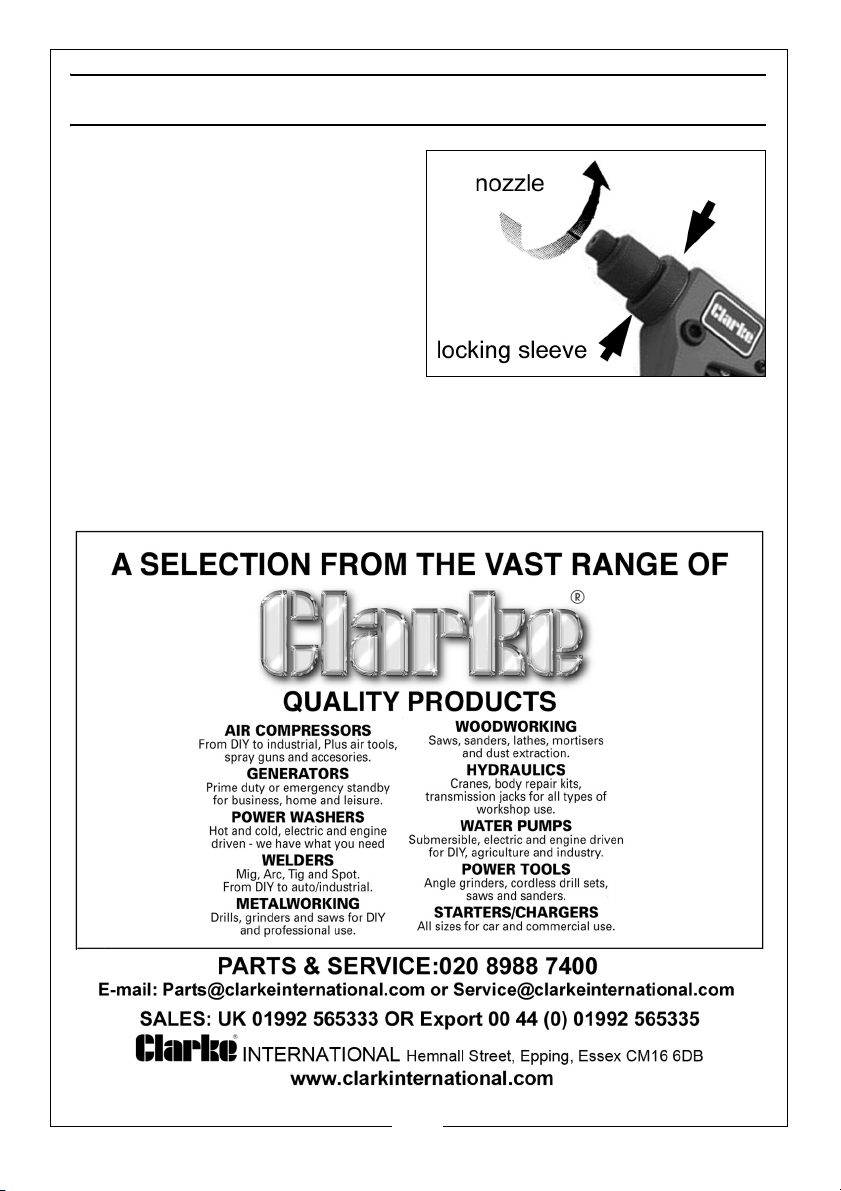

ADJUSTMENT
If the internal claws of the rivet gun
fail to grip the stem of the rivet, the
mechanism will need adjusting.
1. Loosen the locking sleeve and
rotate the nozzle clockwise to
tighten (anti-clockwise to loosen).
2. Part the handles to extend the
riveter and to tighten the internal
claws.
3. Re-tighten the locking nut.
4
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
