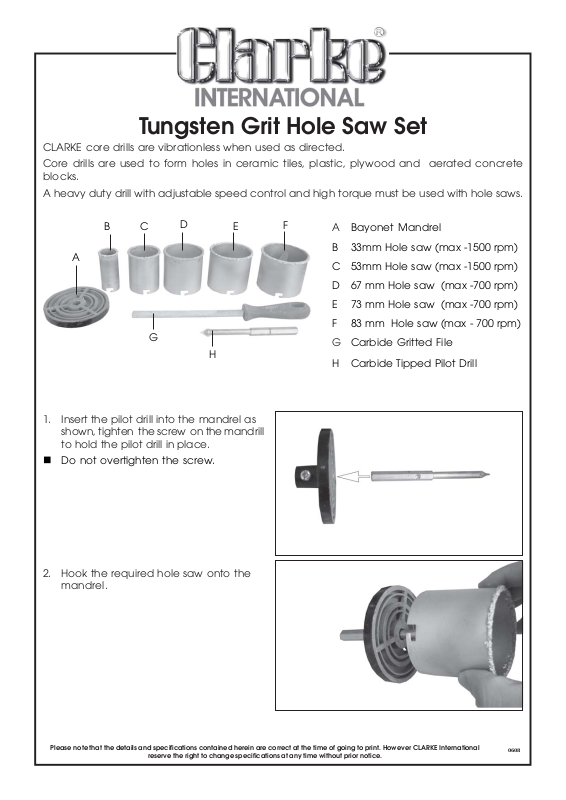

Tungsten Grit Hole Saw Set
CLARKE core drills are vibrationless when used as directed.
Core drills are used to form holes in ceramic tiles, plastic, plywood and aerated concrete
blocks.
A heavy duty drill with adjustable speed control and high torque must be used with hole saws.
BC
A
G

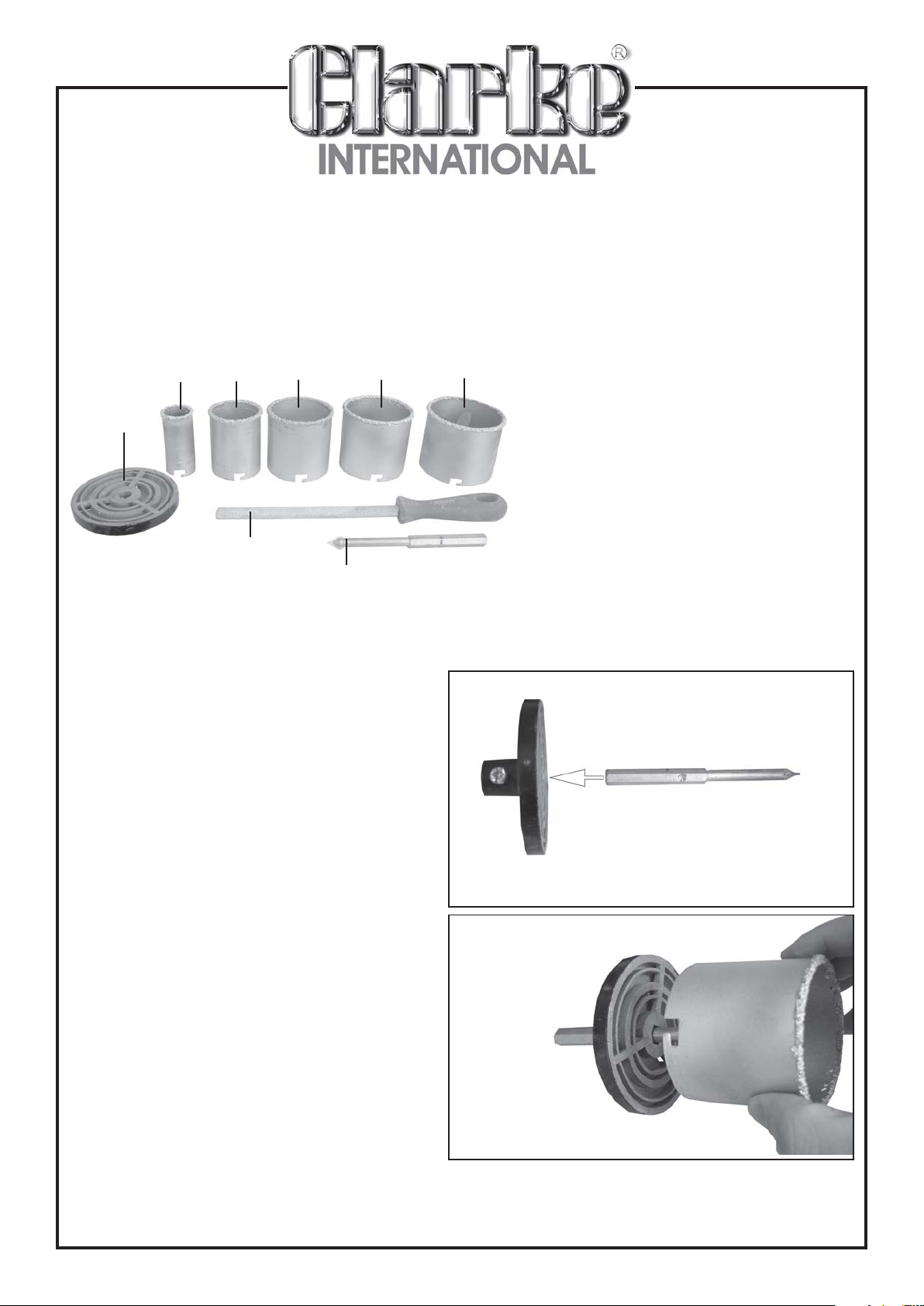

1. Insert the pilot drill into the mandrel as
shown, tighten the screw on the mandrill
to hold the pilot drill in place.
D
E
H
Do not overtighten the screw.
F
Bayonet Mandrel
A
B 33mm Hole saw (max -1500 rpm)
C 53mm Hole saw (max -1500 rpm)
D 67 mm Hole saw (max -700 rpm)
E 73 mm Hole saw (max -700 rpm)
F 83 mm Hole saw (max - 700 rpm)
G Carbide Gritted File
H Carbide Tipped Pilot Drill
2. Hook the required hole saw onto the
mandrel.
Please note that the details and specifications contained herein are correct at the time of going to print. However CLARKE International
reserve the right to change specifications at any time without prior notice.
0608
Page 2
PARTS & SERVICE
SAFETY PRECAUTIONS
For your own safety and that of others around you, please read and observe these safety instructions.
1. ALWAYS learn the specific hazards relating to the tool you are using. Read all operating instructions.
2. ALWAYS wear good quality industrial gloves.
3. ALWAYS wear safety goggles, manufactured to the latest European Safety Standards. Everyday eyeglasses do not
have impact resistant lenses, they are not safety glasses.
4. ALWAYS wear a suitable dust mask.
5. ALWAYS check for damage. Before using the machine, any damaged part, should be properly repaired or the part
replaced. If in doubt, DO NOT use and consult your local dealer.
6. ALWAYS keep work area clean. Cluttered areas invite accidents.
8. ALWAYS ensure that adequate lighting is available. Ensure that lighting is placed so that you will not be working in your own
shadow.
9. ALWAYS keep children away. All visitors should be kept a safe distance from the work area, especially whilst operating
the machine.
10. ALWAYS maintain machine in top condition. Keep tools clean for the best and safest performance.
11. ALWAYS concentrate on the job in hand, no matter how trivial it may seem. Be aware that accidents are caused by
carelessness due to familiarity.
12. ALWAYS keep your proper footing and balance at all times. Don’t overreach. For best footing, wear rubber soled
footwear, keep floor clear of oil, scrap wood, etc.
Directions For Use
1. ALWAYS drill a 8mm pilot hole before attempting to use the hole saw .
2. Assemble the hole saw as directed on the previous page.
3. Insert assembled hole saw into the drill chuck and tighten securely.
4. Set the drill to a reasonably slow speed, plug in and switch ON.
5. Slowly offer the pilot drill into pre-drilled hole, use steady pressure to push the hole saw into the surface of the material.
DO NOT FORCE the drill, allow the drill to do the work.
It may be necessary to adjust the speed of the drill to suit the size of the hole saw being used.
6. To ensure the hole saw doesn’t bind, occasionally withdraw it from the hole whilst it is still turning to clear any waste, keep
repeating this process until the hole is finished.
7. When finished turn the drill OFF and unplug from the main electric supply.
!!! CAUTION !!!
When using hole saws, make sure that you have a firm grip at all times to prevent the drill being snatched from your hands in
the event of a jam. Jamming can be caused for various reasons, such as small pieces of material breaking off and wedging
the hole saw in the hole.
CLARKE GUARANTEE
This CLARKE product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase.
Please keep your receipt as proof of purchase.
This guarantee is invalid if the product is found to have been abused or tampered with in any way, or not used for
the purpose for which it was intended.
Faulty goods should be returned to their place of purchase, no product can be returned to us without prior permission.
This guarantee does not effect your statutory rights.
