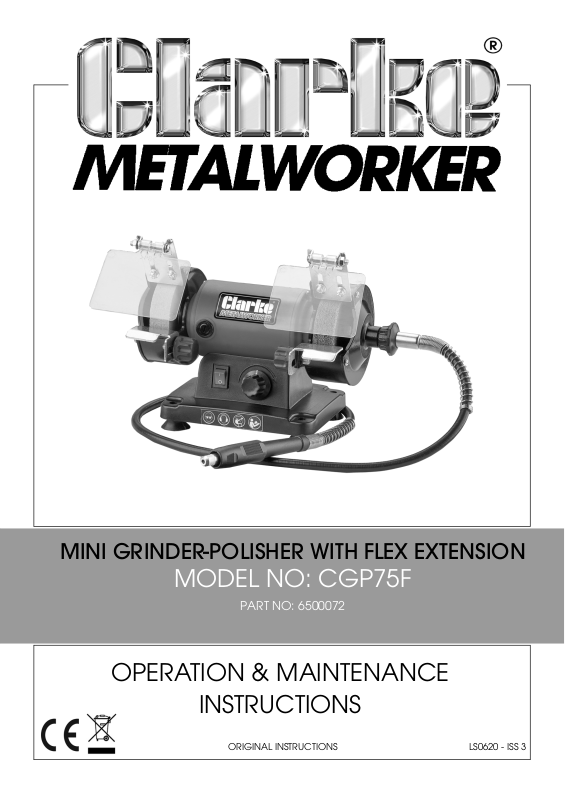

Clarke CGP 75F, 6500072 User guide

MINI GRINDER-POLISHER WITH FLEX EXTENSION

MODEL NO: CGP75F

PART NO: 6500072

OPERATION & MAINTENANCE

INSTRUCTIONS

ORIGINAL INSTRUCTIONS LS0620 - ISS 3

INTRODUCTION

Thank you for purchasing this CLARKE mini grinder-polisher with flex extension.

Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.

Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.

This guarantee does not effect your statutory rights.

ENVIRONMENTAL RECYCLING POLICY

Through purchase of this product, the customer is taking on the
obligation to deal with the WEEE in accordance with the WEEE
regulations in relation to the treatment, recycling & recovery and
environmentally sound disposal of the WEEE.

In effect, this means that this product must not be disposed of with general
household waste. It must be disposed of according to the laws governing
Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal
facility.

If disposing of this product or any damaged components, do not dispose of
with general waste. This product contains valuable raw materials. Metal
products should be taken to your local civic amenity site for recycling of metal
products.

2

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

SPECIFICATIONS

Model Number CGP75F

Part Number 6500072

Dimensions (D x W x H) 127 x 243 x 180 mm

Weight 2.71 kg

Rated Voltage 230 V~ 50 Hz

Rated Input Wattage 120 W

Variable Speed 0 - 9900 rpm

Wheel dimensions Diameter (75 mm) Thickness (20 mm) Bore (10 mm)

Duty Cycle S1 (continuous)

Sound pressure 75.8 dB(A)

Sound power 88.8 dB LpA (measured)

Uncertainty factor K 3.0 dB

SAFETY SYMBOLS

Read instruction manual before use

Wear eye protection

Wear ear defenders

Wear a dust mask

3

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

POWER TOOL SAFETY WARNINGS

1) WORK AREA

1. Keep the work area clean and well lit. Cluttered and dark areas invite accidents.

2. Do not operate power tools in explosive atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools create sparks which may ignite the
dust or fumes.

3. Keep children and bystanders away while operating a power tool. Distractions can
cause you to lose control.

2) ELECTRICAL SAFETY

1. Power tool plugs must match the outlet. Never modify the plug in any way. Do not
use adapter plugs with earthed (grounded) power tools. Unmodified plugs and

matching outlets will reduce the risk of electric shock.

2. Do not expose power tools to rain or wet conditions. Water entering a power tool will
increase the risk of electric shock.

3. Do not abuse the power cable. Never use it for carrying, pulling or unplugging the

power tool. Keep the power cable away from heat, oil, sharp edges or moving parts.

Damaged or entangled cables increase the risk of electric shock.

4. When operating a power tool outdoors, use an extension cable suitable for outdoor
use. Use of a cable suitable for outdoor use reduces the risk of electric shock.

5. If operating the power tool in a damp location is unavoidable, use a residual current

device (RCD) protected supply.

3) PERSONAL SAFETY

1. Stay alert, watch what you are doing and use common sense when operating a
power tool. Do not use a power tool while you are tired or under the influence of

drugs, alcohol or medication. A moment of inattention while operating power tools
may result in personal injury.

2. Use safety equipment. Always wear eye protection. Safety equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate
conditions will reduce personal injuries.

3. Avoid accidental starting. Ensure the switch is in the off position before plugging in.
Carrying power tools with your finger on the switch or plugging in power tools that
have the switch on invites accidents.

4. Remove any wrench before turning the power tool on. A wrench left attached to a
rotating part may result in personal injury.

5. Do not overreach. Keep proper footing and balance at all times. This enables better
control of the power tool in unexpected situations.

6. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and
gloves away from moving parts. Loose clothes, jewellery or long hair can be caught
in moving parts.

4

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

4) POWER TOOL USE AND CARE

1. Do not force the power tool. Use the correct accessories for your application. The
correct power tool will do the job better and safer at the rate which it was designed.

2. Do not use the power tool if the switch does not turn it on and off. Any power tool that
cannot be controlled with the switch is dangerous and must be repaired.

3. Disconnect the plug from the power source before changing accessories or storing
power tools. Such preventive safety measures reduce the risk of starting the power
tool accidentally.

4. Store idle tools out of the reach of children and do not allow persons unfamiliar with
the power tool or these instructions to operate it. Power tools are dangerous in the
hands of untrained users.

5. Maintain power tools. Check for misalignment or binding of moving parts, breakage
of parts and any other condition that may affect the power tool’s operation. If
damaged, have the power tool repaired before use. Many accidents are caused
by poorly maintained power tools.

6. Use the power tool and accessories in accordance with these instructions and in the

manner intended, taking into account the working conditions and the work to be
performed. Use of the power tool for operations different from intended could result

in a hazardous situation.

7. The performance of this tool may vary, depending upon variations in line voltage.
Extension cable usage may also affect performance.

5) SERVICE

1. Have your power tool serviced by qualified service personnel using only identical
replacement parts.

This will ensure that the safety of the power tool is maintained.

5

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

BENCH GRINDER SAFETY WARNINGS

1. Hold the tool or blade being sharpened firmly to prevent loss of control.

2. NEVER install an abrasive flap wheel or sanding disc on this grinder.

3. ALWAYS replace a cracked grinding wheel immediately.

4. NEVER use damaged or incorrect grindstones. The stone and retaining bolt
were specially designed for your grinder, for optimum performance and
safety of operation. Inspect the condition of the grinding stone before use
and do not use if any damage is noticed.

5. Do not use aluminium oxide wheels when grinding non-ferrous metals such
as aluminium or brass. Use silicon carbide wheels (not included) for grinding
non-ferrous metals.

6. ALWAYS use the rests to steady the workpiece. If the rests are not used, the
torque of the spinning grinding/polishing wheel may pull the workpiece
from your hands.

7. NEVER leave the grinder unattended when it is connected to an electrical
power supply. Switch off the grinder and unplug it before leaving.

8. ALWAYS check for damaged parts. Before further use of the grinder, a
guard or other part that is damaged should be carefully checked to
determine if it would operate properly and perform its intended function.
Check for misalignment or binding of moving parts, breakage of parts and
any other condition that may affect the tool's operation. A part that is
damaged should be properly repaired or replaced at you local CLARKE
service department. Following this rule will reduce the risk of electric shock,
fire or serious injury.

9. Eye protection manufactured to the current European safety standards
should be worn when operating grinding equipment.

NOTE: Bench grinders used in industrial environments may be subject to the

requirements of The Provision and Use of Work Equipment regulations
1992 (particularly regarding the training requirement of The Abrasive
Wheels Regulations 1970) or other legislation. If in doubt seek advice.

Please keep these instructions in a safe place for future reference.

6

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

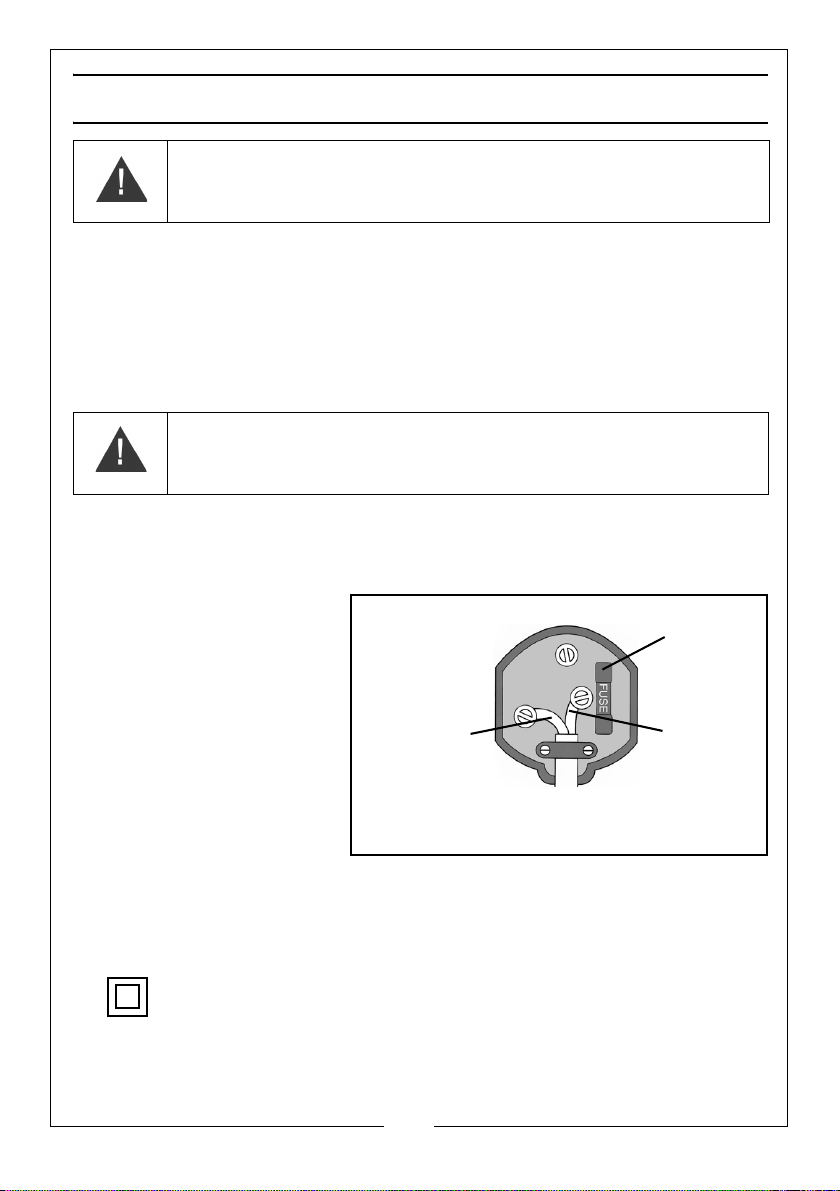

ELECTRICAL CONNECTIONS

Plug must be BS1363/A approved.

Always fit

Ensure that the outer sheath of

Neutral

(Blue)

Live

(Brown)

a 5 Amp

the cable is firmly held by the clamp

fuse.

WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS
THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS
SUPPLY.

Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply
through an approved BS 1363 plug or a suitably fused isolator switch.

If the plug has to be changed because it is not suitable for your socket, or
because of damage, it must be removed and a replacement fitted, following
the wiring instructions shown below. The old plug must be discarded safely, as
insertion into a power socket could cause an electrical hazard

WARNING: THE WIRES IN THE POWER CABLE OF THIS PRODUCT ARE
COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:
BLUE = NEUTRAL BROWN = LIVE

If the colours of the wires in the power cable do not agree with the markings
on the plug.

• Connect the BLUE wire
to the terminal
marked N.

• Connect the BROWN
wire to the terminal
marked L.

.

AN APPROVED RESIDUAL CURRENT DEVICE (RCD) WHICH HAS A TRIPPING
CURRENT OF LESS THAN 30 mA MUST BE USED.

If you are not sure, consult a qualified electrician. DO NOT try to do any
repairs.

This symbol indicates that this is a Class II product, and does not
require an earth connection.

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

7

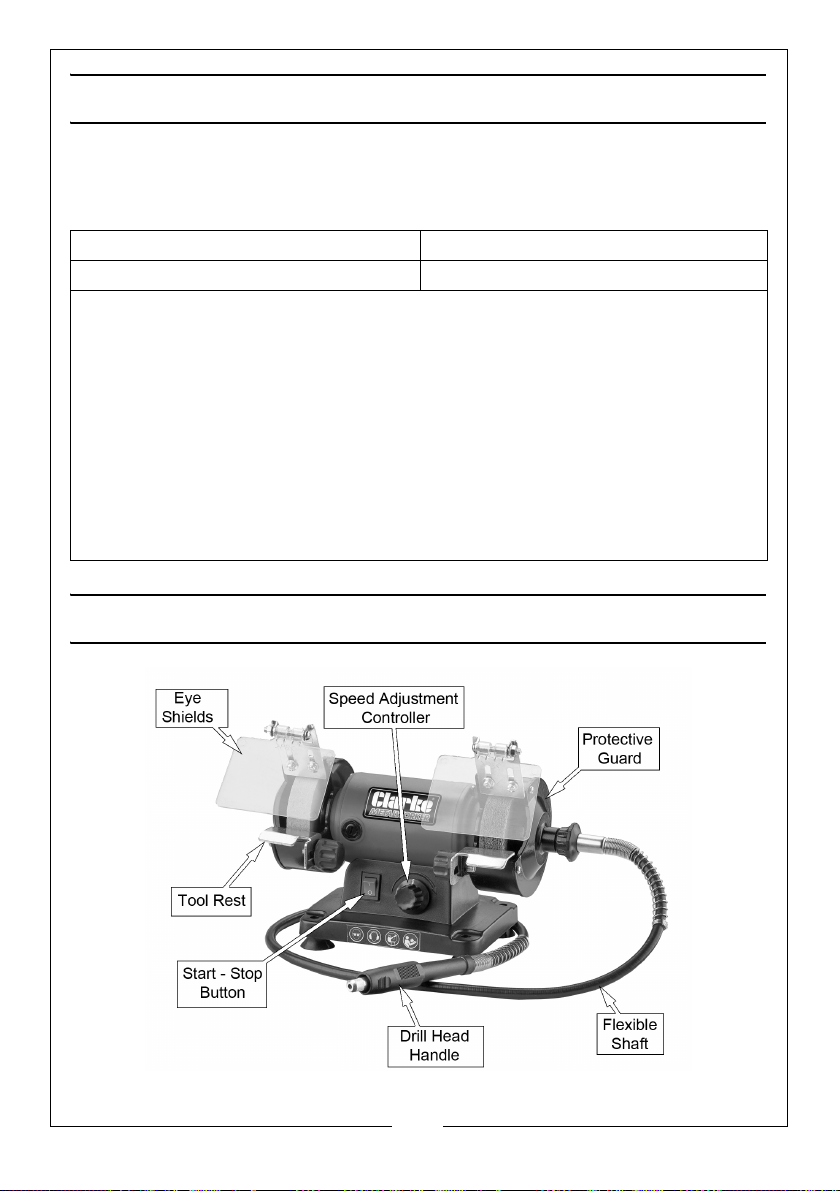

CARTON CONTENTS

The following items should be supplied in the carton. If any parts are missing or
damaged, please contact the CLARKE dealer where you purchased the
Grinder/Polisher.

1 x Grinder/Polisher 2 x Spark Deflector / Eye Shield

1 x Flexible Shaft Attachment 2 x Tool Rests

100-piece Tool Kit (Including)

• 10 x Cutting Discs • 2 x Inserts

• 20 x Sanding Sleeves • 2 x Sleeve Holders

• 25 x Grinding Discs • 5 x Felt Polishing Cones

• 3 x Moulding Cutters • 10 x Felt Polishing Pads

• 3 x Metal Grinding Pins • 1 x Grinding Stone

• 11 x Stone Grinding Pins • 1 x Polishing Paste

• 3 x Brass Wire Brushes • 1 x Clamping Collet

• 3 x Wire Brushes

PART IDENTIFICATION

8

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

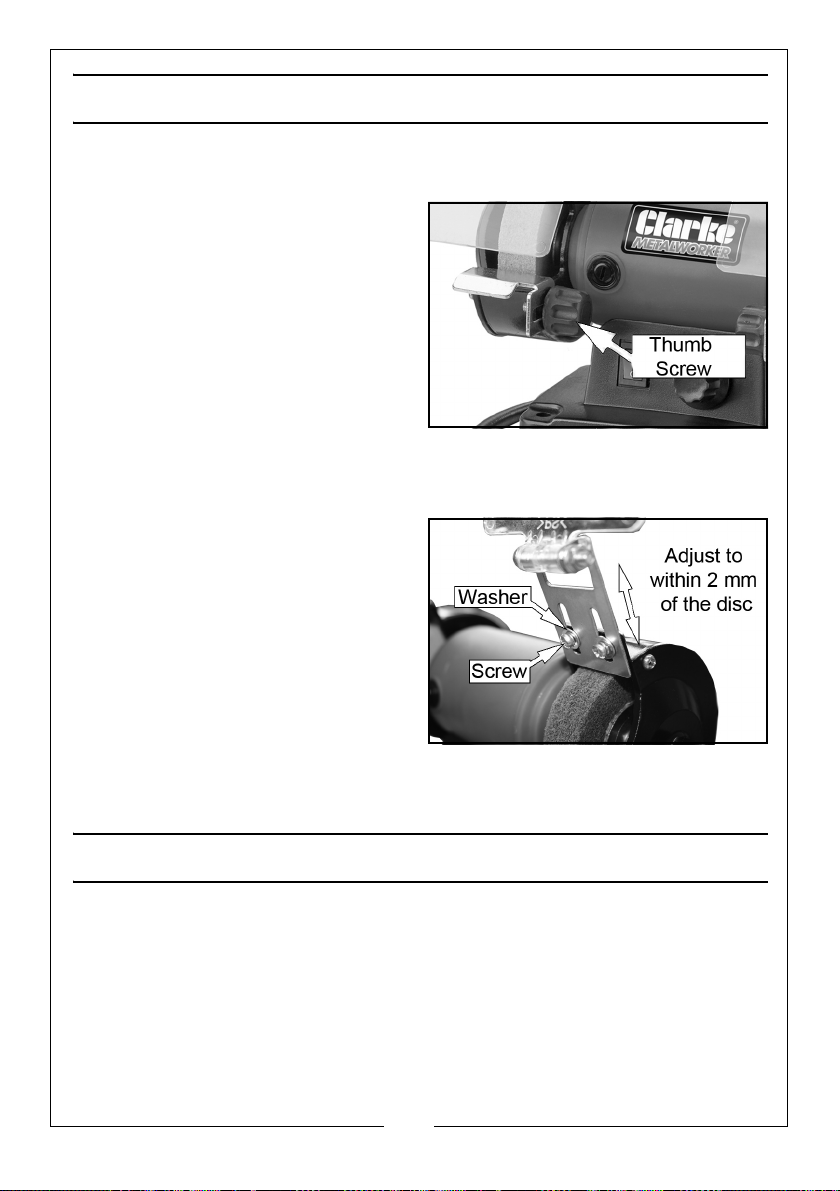

BEFORE USE

INSTALLING THE TOOL RESTS

1. Fix the tool rests in place with the
thumb screw as shown.

• The tool rests are adjustable

and should be positioned less
then 2 mm from the grinding
wheels.

• Ensure that the tool rest is firmly

fixed and horizontal.

INSTALLING THE SPARK DEFLECTORS / EYE SHIELDS

Fit the spark deflector / eye shields to
the wheel guards using the screws
provided.

• Adjust the spark deflector to

compensate for wear of the
wheel. Keep the distance
between the spark deflector
and wheel as small as possible
and never more than 2 mm.

NOTE: Adjust the eye shields to an

appropriate distance from the tool rests avoiding interference during
operation.

BLADE SHARPENING TIPS

SCISSORS

If possible, take scissors apart to make the sharpening operation easier and
safer. Remove material only from the outside surface and work from the heavy
end of the blade toward the tip.

KNIVES

Remove metal from both faces of most knives, working from the large end of
the blade toward the tip.

9

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

OPERATION

CAUTION: KEEP ALL BYSTANDERS AT A SAFE DISTANCE AND NOT IN
DIRECT LINE WITH THE, FRONT OR BACK OF THE GRINDER.

CAUTION: ALWAYS WEAR SAFETY GLASSES.

NOTE: Check that there is approx a 1.5 mm clearance between the tool rest

and the surface of the grinding wheel. Adjust as necessary.

NOTE: Check the gap between the spark deflectors and the surface of the

grinding wheel. These should also be a maximum of 2 mm. Adjust as
necessary.

NOTE: Check that the eyeshields have been secured in the correct position

and that the grinding wheel lock nuts are tight.

1. Stand to the side of the bench grinder and switch it on using the on/off
switch.

• Let the wheels reach full speed before use.

• The wheel rotates in the same direction as the arrow stamped in the

side of the wheel guard.

2. Hold the work piece firmly against the tool rest. Hold very small pieces with
pliers or other suitable clamps.

3. Press the workpiece smoothly and evenly against the grinding wheel.

4. Always keep the workpiece moving across the face of the wheel. Grinding
against the same part of the wheel will cause uneven wear of the wheel
face.

• Grind only on the face of the grinding wheel and never the side of it.

NOTE: Prolonged grinding will cause tools/workpieces to become hot. Take

care when handling hot items.

5. Switch the bench grinder off using the on/off switch when you have
finished.

DRESSING THE GRINDING WHEEL

The grinding wheel may need dressing occasionally. Only dress the wheel with
a proper dressing tool whilst wearing safety goggles or glasses. If in doubt seek
professional advice. Dressing tools are available from your CLARKE dealer.

Grinding wheel dresser model no ET125;- part no 1700225

10

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

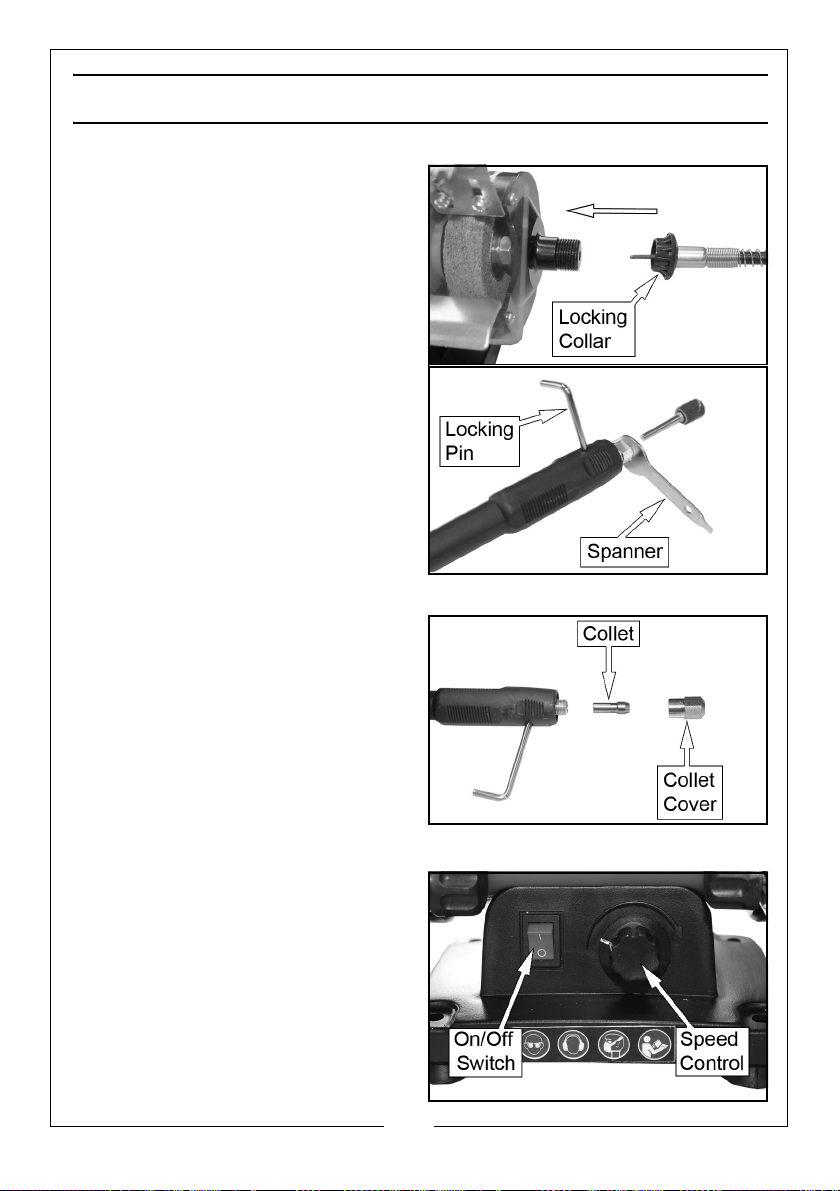

USING THE FLEXIBLE SHAFT ATTACHMENT

CONNECT THE FLEXIBLE SHAFT

1. Insert the flexible shaft into the
right side of the grinder as shown
and tighten the locking collar as
shown.

NOTE: The locking collar has a left

hand thread

FITTING THE BITS

1. Insert the locking pin into the drill
head handle as shown.

2. Use the spanner supplied to loosen
the collet cover.

3. Insert the bit required.

4. Retighten the collet cover.

5. Remove the locking pin.

CHANGING COLLET

1. insert the locking pin into the drill
head handle as shown.

2. Use the spanner supplied to
remove the collet cover.

3. Replace the collet

4. Refit the collet cover

5. Remove the locking pin

ON / OFF - SPEED CONTROL

• Press (I) to turn the grinder on.

• Press (O) to turn the grinder off.

• Vary the speed using the speed

controller.

NOTE: When grinding, set the speed

control to maximum to
prevent stalling.

11

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

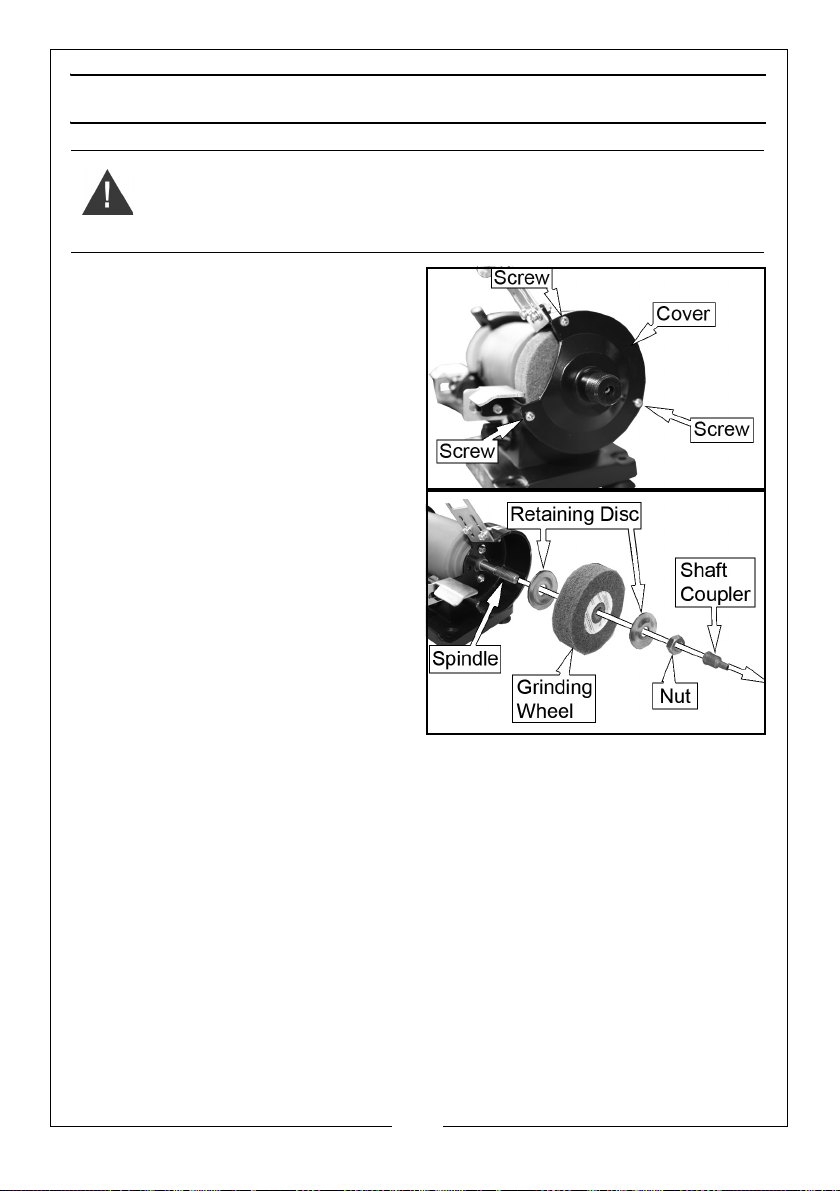

REPLACING THE GRINDING WHEELS

WARNING: DO NOT USE DAMAGED GRINDING WHEELS.

WARNING: SWITCH THE GRINDER OFF AND DISCONNECT THE POWER
SUPPLY BEFORE CHANGING THE GRINDING WHEELS

The grinding wheel must be replaced
whenever the distance between the
external diameter of the wheel and
the edge of the grinding wheel cover
is greater than 6 mm.

1. Remove the screws shown and
remove the cover.

2. Hold the wheel by hand and use a
suitable spanner to remove the
shaft coupler (right wheel only)
and nut.

NOTE: The left hand grinding wheel

locking nut has a left handed
thread.

3. Slide off the retaining disc and
wheel and replace with a new
one.

• Only use grinding wheels recommended by the manufacturer which

have a marked speed rating equal to or greater than the speed
marked on the rating plate of the bench grinder.

• The grinding wheel should have maximum dimensions of 75 mm

diameter, 20 mm thick with a bore size of 10 mm.

• Inspect the wheel for cracks, chips or any other visible damage.

Damaged grinding wheels must be discarded.

4. Replace the outer retaining disc, nut and shaft coupler.

• Do not overtighten as this may damage the grinding wheel.

5. Replace the cover.

• After mounting, the wheel should be test run for approximately 1

minute without load. If you notice excessive vibration, have your
machine checked by the CLARKE service department.

12

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

PARTS DIAGRAM

13

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

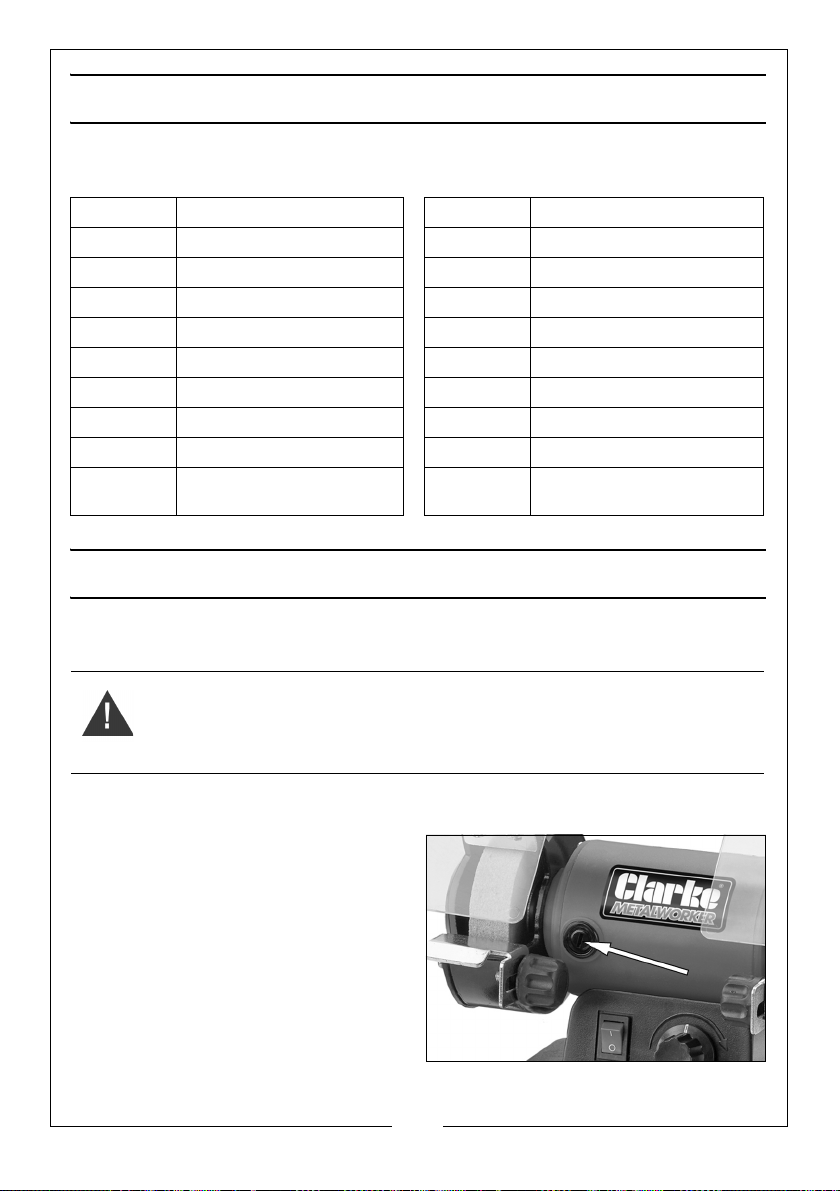

PART LIST

NOTE: Not all parts are available as a spare item.

4 M10 Nut (left hand thread) 26 Toothed Washer

5 Flange 27 Right Tool Rest

6 Buffing wheel 31 Speed Dial controller

19 Grinding wheel 32 On/Off Switch

20 M10 Nut (right hand thread) 37 Baseplate

21 Shaft Coupler 38 Foot

23 Flexible Shaft attachment 41 Brush

24 Thumb Screw 42 Brush cap cover

25 Flat Washer 43 Left Tool Rest

11 + 44 - 48 Spark deflector/eye shield

assembly

MAINTENANCE

CLEANING

WARNING: NEVER USE SOLVENTS OR OTHER HARSH CHEMICALS FOR
CLEANING THE TOOL. YOU SHOULD USE A CLOTH DAMPENED WITH
WATER AND MILD SOAP. NEVER LET ANY LIQUID GET INSIDE THE TOOL;
NEVER IMMERSE ANY PART OF THE TOOL INTO A LIQUID.

CHANGING THE CARBON BRUSHES

1. Remove the brush cover.

2. Remove the worn brush.

3. Replace with the new brush.

4. Repeat on the other side of the
body.

• Both brushes must be replaced

at the same time.

14

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

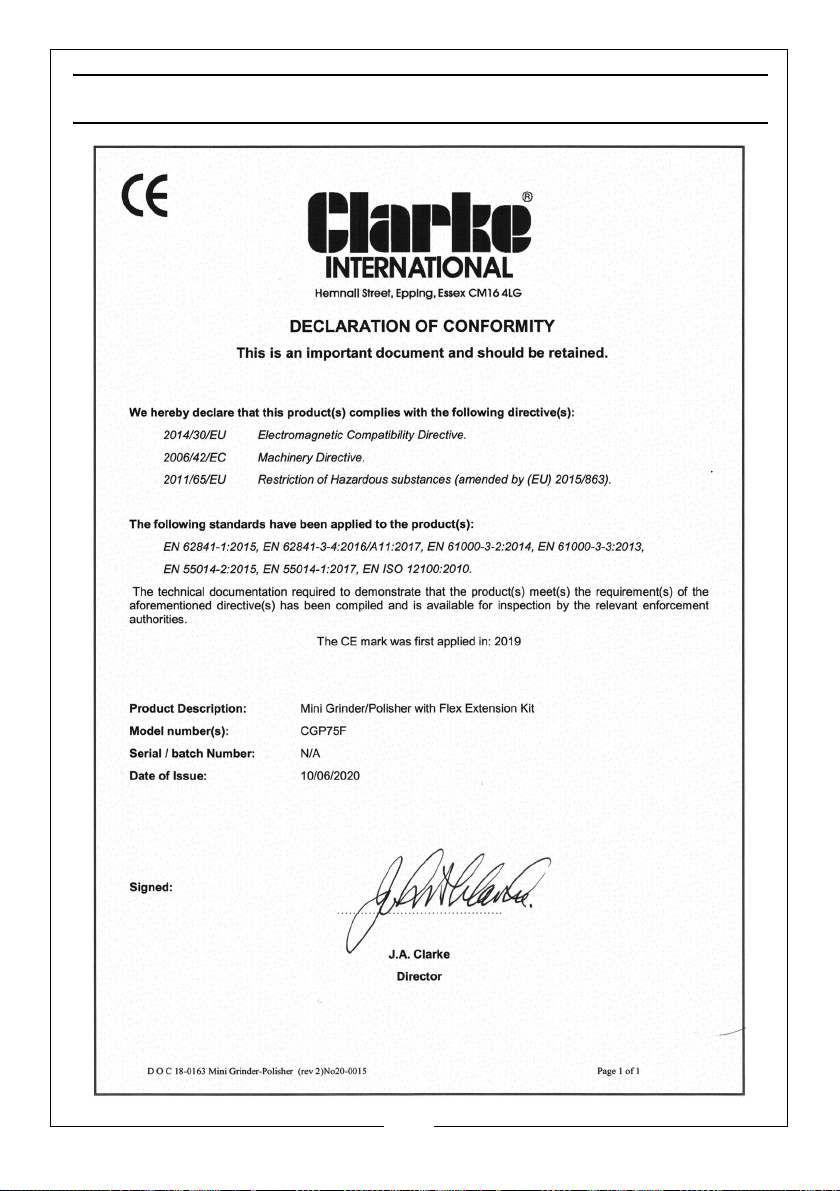

DECLARATION OF CONFORMITY

15

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
