5 TONNE FORKLIFT/TRACTOR
JACK
MODEL NO: CFT5B
PART NO: 7624007
OPERATION & MAINTENANCE
INSTRUCTIONS
DL0122 - ISS 4
INTRODUCTION
Thank you for purchasing this CLARKE jack.
Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does not effect your statutory rights.

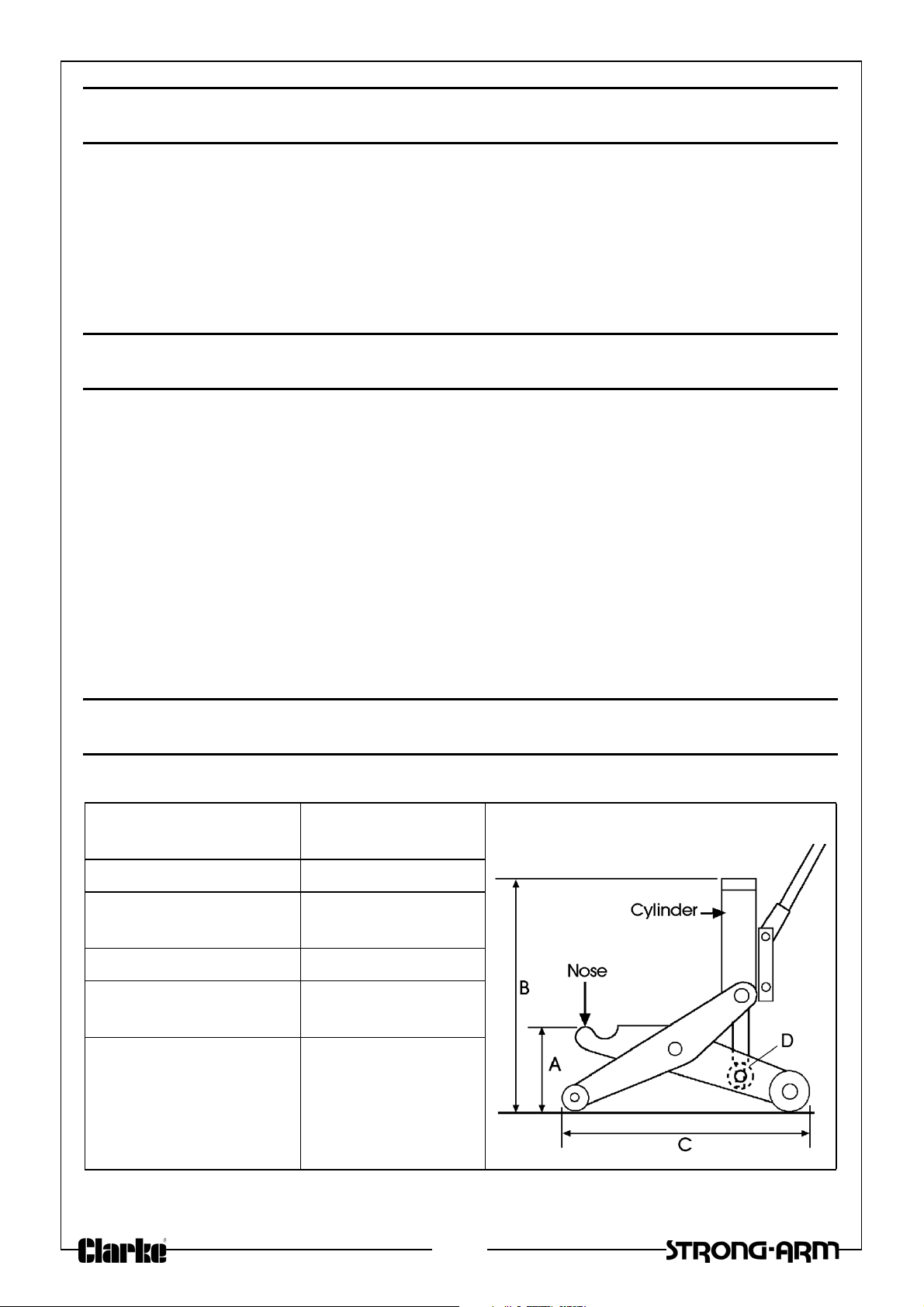

TECHNICAL SPECIFICATIONS
Working Height A Min 70 mm
Max 430 mm
Maximum Load A 4 tonne
Working Height B Min 410 mm
Max 730 mm
Maximum Load B 5 tonne
Overall Length (C
Max)
670 mm
Weight 45 kg
2
SAFETY PRECAUTIONS
WARNING: THE OPERATOR MUST FOLLOW ALL INSTRUCTIONS WITHIN THIS
INSTRUCTION MANUAL AND NOT OPERATE THE JACK UNTIL HAVING
DONE SO.
THE JACK
1. The jack must be maintained and repaired in accordance with the these
instructions. Such maintenance and repair must be carried out by qualified
persons.
2. Ensure that the jack is in good working order. Have any damaged parts
repaired or replaced immediately. Use genuine Clarke parts only. The use
of unauthorised parts may be dangerous and will invalidate the
guarantee.
3. Do not exceed the rated capacity of the jack (4 tonne-scissor/5 tonne
cylinder).
4. Never tamper with the jack or modify it in any way, as this could prove to
be dangerous and will invalidate the guarantee. Only use the product for
the purpose for which it is intended.
5. Do not use the jack if an oil leak is apparent. Consult your Clarke dealer.
6. Check the condition of the labels regularly and replace as required.
WORKPLACE
1. Use the jack in a suitable, well lit work area.
2. Keep the work area clean and tidy and free from unrelated items.
3. Keep all non-essential persons at a safe distance whilst the jack is in use.
4. Use the jack on level and solid ground, preferably concrete. Avoid soft/
unmade ground as the jack may sink in.
5. Use appropriate safety equipment, such as protective footwear, when
using this jack.
OPERATION
1. Ensure the vehicle is securely supported.
2. Ensure there are no personnel or obstructions under the vehicle before
lowering.
3. Ensure when lifting, that the jack and all parts of the load can be clearly
seen. Always watch the jack and the load during operation.
3
4. Never climb on, or attempt to ride on the jack.
5. Take care not to trap fingers in the moving parts of the jack.
6. Ensure that you can see the contact and jacking point throughout the
jacking operation in case there is any relative movement.
7. This jack is for lifting only, do not move a load using the jack as a dolly.
8. Make sure the load is taken by the full surface of thecylinder or nose, and
that the point of lift on the load is strong enough to support the load
adequately.
9. Consult the vehicle handbook to determine the correct lifting points.
10. Do not work under the raised vehicle until it is supported by suitable means
e.g. axle stands, NEVER rely on the jack to support the vehicle by itself.
11. Never push a load off the jack.
LIFTING OPERATIONS AND LIFTING EQUIPMENT REGULATIONS 1998
This jack, depending on use, may fall within the scope of LOLER. It is the
owner’s responsibility to determine whether or not it does, and if so, to comply
with any applicable requirements. It may be necessary to have the jack
regularly inspected.
ENVIRONMENTAL PROTECTION
1. Take care to ensure that any spilt hydraulic oil is cleaned away using sand,
or treated with absorbent granules designed for the purpose.
2. Always make every effort to contain any spillage and prevent ingress into
the local water course.
4
BEFORE USE

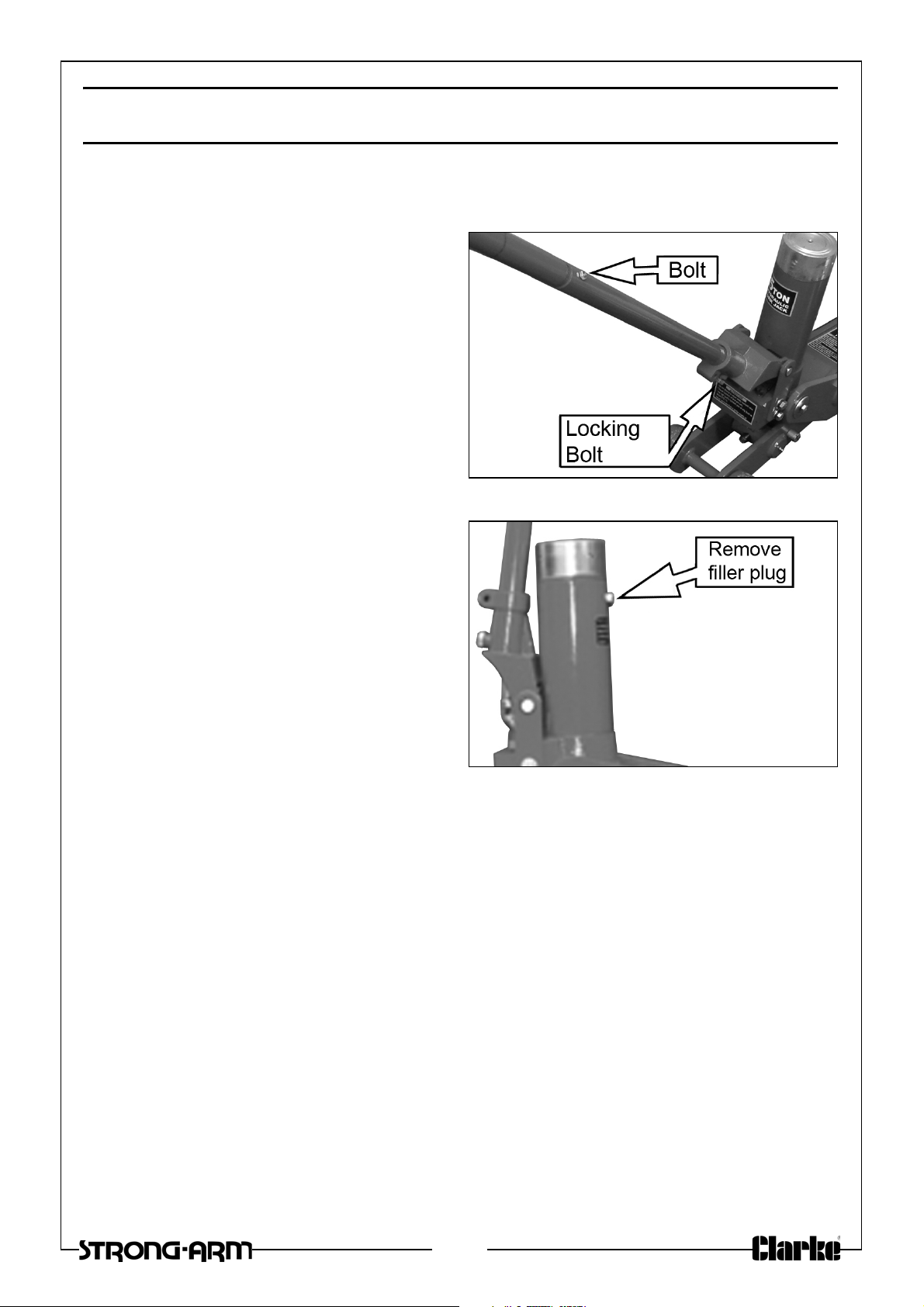

FIT THE HANDLE
1. Insert the lower handle into the
handle socket and tighten the
locking bolt shown to secure the
handle in position.
2. Add the upper handle section
and secure with the bolt shown.
CHECK THE OIL LEVEL
1. Remove the filler plug and check
the oil level.
• Oil should be up to the edge of
the filler hole.
2. Top up if necessary with Clarke
hydraulic oil available from your
local Clarke dealer (part number
3050830).
• Oil grade SAE10, capacity
480ml.
PURGE AIR BUBBLES
During shipment, air bubbles can occur in the hydraulic system which will
cause the jack to feel “spongy” and it may not achieve its maximum lift.
1. Pump the operating handle several times to purge any air from the
hydraulic system.
2. Twist the handle counterclockwise to open the release valve and lower the
jack. Check that the jack descends to its lowest position.
• The jack is now ready to use.
5
OPERATION
RAISING A LOAD
WARNING: BEFORE LIFTING, ENSURE THE SAFETY PRECAUTIONS ARE
STRICTLY FOLLOWED. NO RESPONSIBILITY CAN BE ACCEPTED FOR
INCORRECT USE OF THE JACK.
WARNING: PLEASE NOTE THAT THE SCISSOR ACTION OF THE JACK WILL
CAUSE THE JACK TO MOVE SLIGHTLY AS IT IS RAISED AND LOWERED. IT IS
MOST IMPORTANT THAT THIS MOVEMENT IS NOT RESTRICTED IN ANY WAY.
ENSURE THE GROUND IN THE IMMEDIATE VICINITY OF THE JACK IS FREE
FROM DEBRIS.
1. Before use, check for any damage or worn parts. Do not use the jack
unless it is perfectly serviceable.
2. Ensure the load is chocked and stable, and on firm level ground, before
manoeuvring the jack so that the grooves in the nose or the top of the
cylinder, (whichever is to be used), is directly beneath the lifting point of the
load.
3. Twist the handle clockwise to close the release valve.
4. Put the nose directly below the lifting point of the vehicle (see the
manufacturers handbook for the best locations).
• Make sure that there is no obstruction that will prevent a clear lift
and that all personnel are in a safe position before you lift the
vehicle.
5. Pump the handle to raise the jack until contact is made with the lifting
point.
6. Make one final check to ensure that there are no obstructions to lifting and
that all personnel are well clear before continuing to pump the handle and
lift the load.
7. NEVER allow any individual to get beneath the load until it is firmly chocked
or supported on axle stands or similar supports.
LOWERING THE LOAD
1. With the axle stands/supports removed, check to ensure that there are no
personnel in the immediate vicinity before VERY SLOWLY twisting the lifting
handle anticlockwise and allowing the jack to lower the load.
NOTE: This operation must be done very slowly and in full control. DO
NOT let the load lower suddenly, this could damage internal
components.
6
2. Remove the jack from below the vehicle.
NOTE: The jack can move slightly during operation. It is important that
the area is clean and free from all debris.
MAINTENANCE
1. Remove any corrosion and repaint for protection.
2. Check the piston rod periodically for signs of corrosion. Clean exposed
areas with a clean oiled cloth.
3. Ensure that labels and warning notices are in place and legible.
4. Inspect for distortion of hinge pins and security of all nuts and bolts.
5. Keep all moving parts lightly lubricated to prevent any possibility of
corrosion.
• A grease nipple is provided for occasional lubrication of the main
supporting axle.
6. If an oil leak is seen, check the oil level as described on page 5.
7. In the case of a persistant oil leak which requires the dismantling of the
hydraulic parts to correct, the jack should be taken to your Clarke dealer
for overhaul.
STORAGE
Store in a dry place with the ram fully lowered and the release valve closed.
If stored for long periods, inspect at least once a year, clean and re-oil. For
servicing, contact your CLARKE dealer, or CLARKE International Service
Department.
7
TROUBLESHOOTING
PROBLEM CAUSE SOLUTION
Jack will not lift
the rated load
Jack lowers when
under load
Pump feels
spongy
Jack will not lift
full height
Low oil level Top up oil as described on page 5.
Release valve not
closed
Air bubbles in the
hydraulic system
Release valve not
fully closed
Air in the hydraulic
system
Low oil level Top up oil as described on page 5.
Air in the hydraulic
system
Low oil level Top up oil as described on page 5.
Air in the hydraulic
system
Turn the release knob fully clockwise.
Purge the system as described on
page 5.
Turn the release knob fully clockwise.
Purge the system as described on
page 5.
Purge the system as described on
page 5.
Purge the system as described on
page 5.
Jack will not
lower completely
If any of these remedies fail to restore your jack, consult your Clarke dealer
Control valve may
be faulty
Return to your Clarke dealer for
repair
8

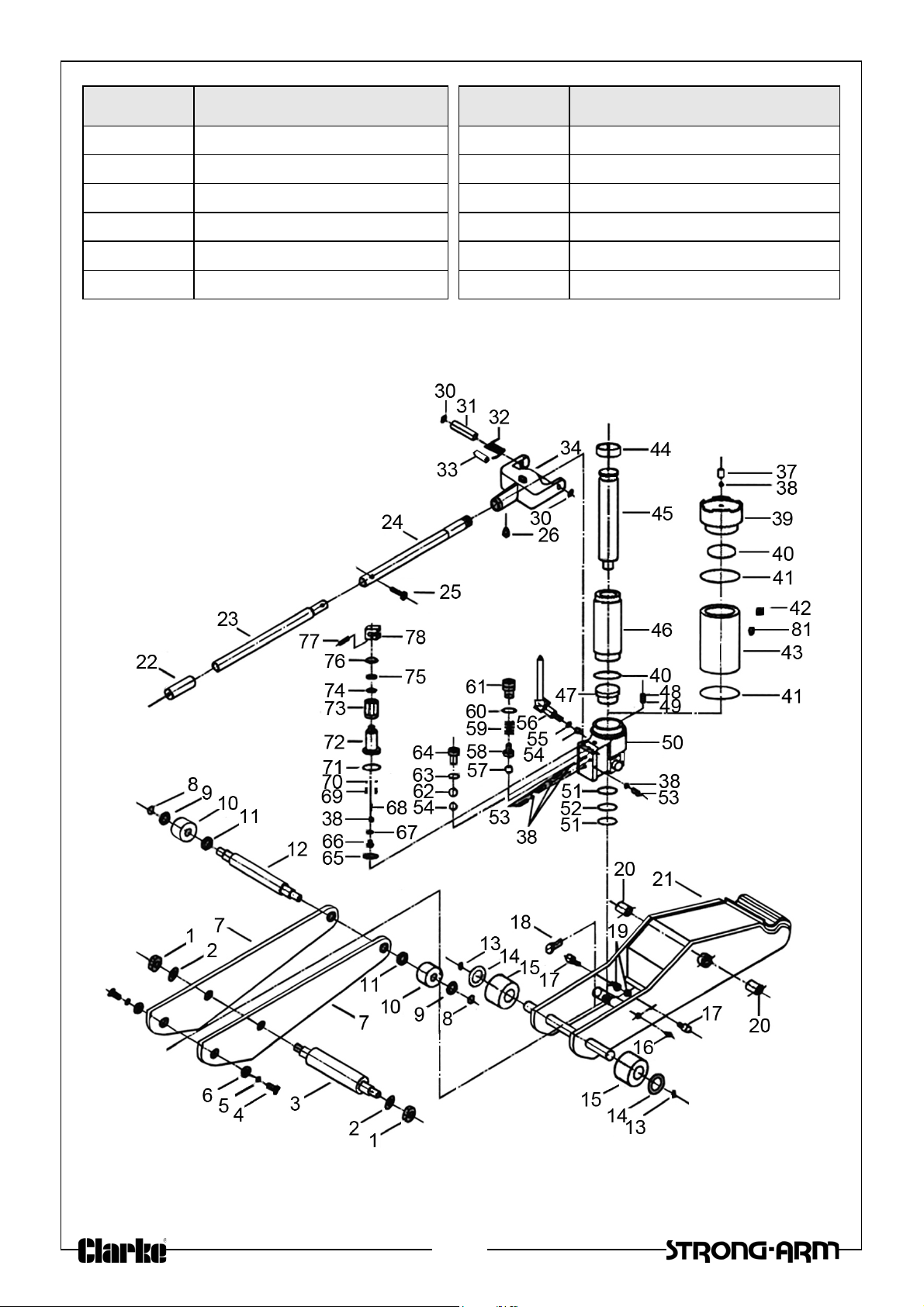

COMPONENT PARTS
PART NO DESCRIPTION PART N O DESCRIPTION
1 Nut M16 35 Not Used
2 Washer 36 Not Used
3 Main Supporting Axle 37 Set Screw
4Screw 38Ball
5Washer 39Cylinder Cap
6 Penny Washer 40 O-Ring
7 Side Plate 41 O-Ring
8 Circlip 42 Screw-in Plug
9 Washer 43 Oil Reservoir
10 Front Wheel 44 Bush
11 Nut 45 Ram Piston Rod
12 Front Wheel Axle 46 Ram Cylinder
13 Circlip 47 Spacer
14 Washer 48 Filter
15 Rear Wheel 49 Magnet
16 Grease Nipple 50 Valve Body
17 Stop Screw 51 O-Ring
18 Screw 52 Nylon Washer
19 Nut 53 Screw
20 Spacing Bush 54 Ball
21 Lifting Arm Assembly 55 Square Ring
22 Handle Grip 56 Actuating Rod c/w U/Joint
23 Upper Handle 57 Ball 4mm
24 Lower Handle 58 Ball Seat
25 Bolt 59 Spring
26 Locking Bolt 60 O-Ring
27 Not Used 61 Screw-in Plug
28 Not Used 62 Ball 9mm
29 Not Used 63 O-Ring
30 Circlip 64 Filler Plug
31 Yoke Pivot Pin 65 O-Ring
32 Retaining Spring 66 Screw
33 Guide Block Pin 67 O-Ring
34 Yoke 68 Spring
9
PART NO DESCRIPTION PART N O DESCRIPTION
69 Spring 75 Back-up Ring
70 Ball 3mm 76 Wiper Ring
71 O-Ring 77 Pin
72 Plunger 78 Not used
73 Piston 80 Not used
74 O-Ring 81 Plug Seal
10

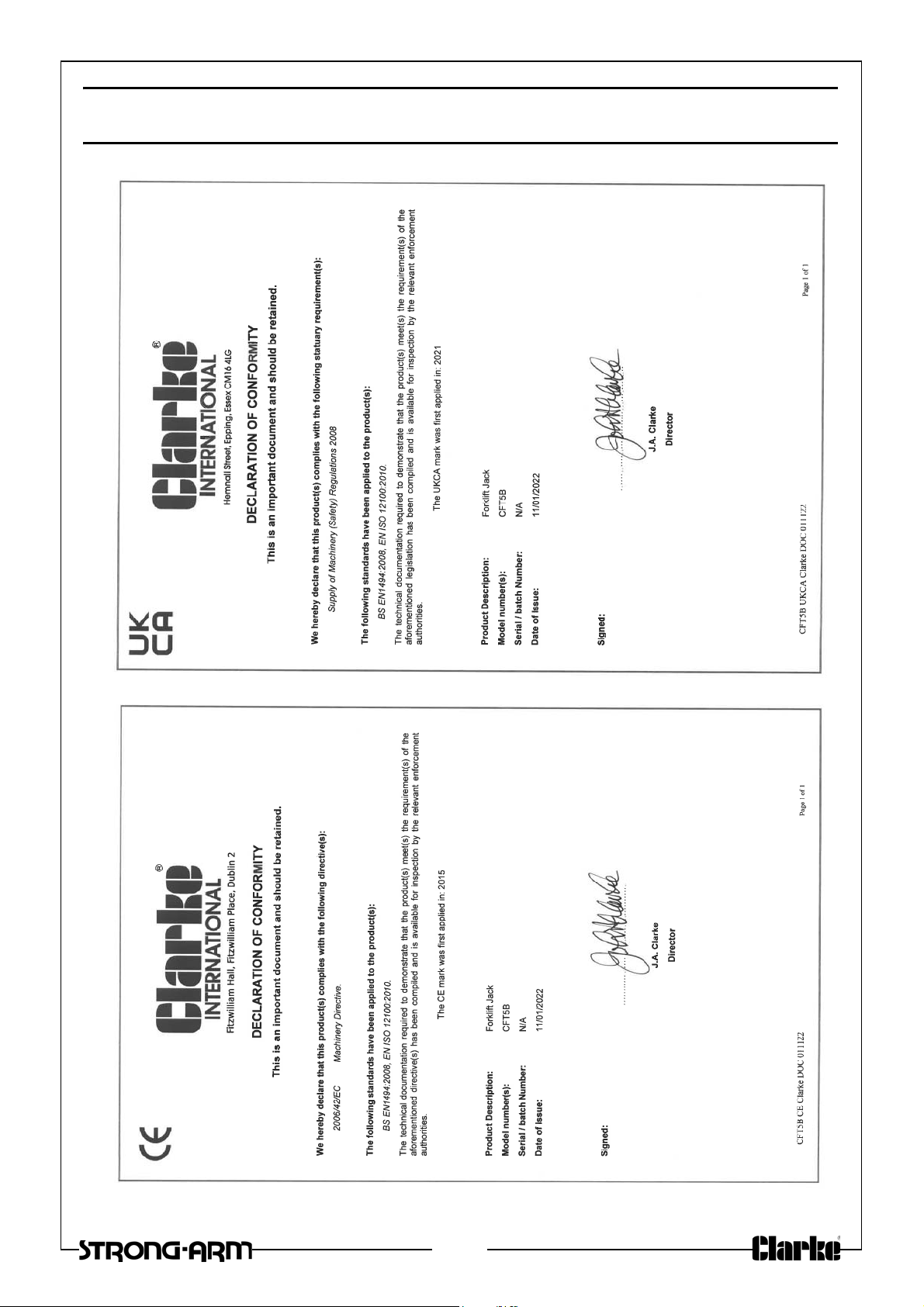

DECLARATION OF CONFORMITY
11
