Thank you for purchasing this CLARKE Folding Crane.
Before attempting to operate the product, it is essential that you read this
manual thoroughly and carefully follow all instructions given. In doing so you
will ensure the safety of yourself and that of others around you, and you can
also look forward to the crane giving you long and satisfactory service.
TECHNICAL SPECIFICATIONS
Max Capacity (SWL)1000 kg (1 Tonne)
Net Weight68.5 kg
Dimensions (Folded Position) L x D x H
Dimensions (Unfolded Position) L x D x H
Number of pump actions from rest to max height 34
Ram Oil Capacity0.46L
Oil GradeISO VG15
Jib PositionsPosition 1
Lift Capacity250 kg (0.25 Tonne)
Jib Length Horizontal1105 mm
Max Lifting Height2050 mm
Position 2
Lift Capacity500 kg (0.5 Tonne)
Jib Length Horizontal1015 mm
Max Lifting Height1990 mm
Position 3
Lift Capacity750 kg (0.75 Tonne)
Jib Length Horizontal925 mm
Max Lifting Height1930 mm
Position 4
Lift Capacity1000 kg (1 Tonne)
Jib Length Horizontal835 mm
Max Lifting Height1870 mm
415 x 480 x 1500 mm
1525 x 1015 x 1400 mm
2
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
SAFETY PRECAUTIONS
Always read instructions before setting up the equipment and before use.
Failure to heed these warnings may result in damage to the equipment, or
serious personal injury.
WORKPL ACE S AFET Y
1. Always inspect the crane before use to ensure it is correctly assembled and
in good condition and replace any damaged or worn parts.
2. Only use the crane on a flat, solid, level surface that is capable of bearing
the weight of the loaded crane, preferably concrete. Never work on soft/
unmade ground as the castors may sink in.
3. Ensure the crane operator is trained in both operation and safety aspects.
4. Do not allow personnel to use the crane unless they have read these safety
precautions.
5. Use the crane in a suitable, well lit work area.which is clean and tidy and
free from unrelated items.
6. Do not use the crane when you are tired or under the influence of alcohol,
drugs or intoxicating medication.
7. Ensure all bystanders keep at a safe distance whilst the crane is in use.
8. Do not over-reach. Keep your proper footing and balance at all times.
9. Safety equipment such as gloves and non-skid safety shoes will reduce
personal injuries.
INSPECTION BEFORE USE
1. Always visually inspect the crane before use, to ensure that all parts are
correctly located and secure. Check for cracks, deformation or other signs
of damage or worn parts and check the castors for damage. Do not use
the crane unless it is totally sound.
2. Check castors to ensure they move freely without undue wear to their
pivots, and that the wheels are not cracked or damaged.
SAFE OPERATING PRACTICE
1. Only use chains, slings, hooks etc. with a rated capacity equal to, or
greater than that of the load. Check that they are secure and will not slip
under load.
2. Never exceed the safe working load capacities specified on the jib for
each position (as marked on the jib).
3
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
3. Always fully lock the jib and legs into position before lifting.
4. Lower the load as much as possible before moving the crane. Do not use
the crane to transport loads over long distances.
5. Do not allow the load to swing or drop suddenly whilst moving or lowering.
6. Do not use this crane to lift people.
7. Do not work under any raised load.
8. Never climb on, or attempt to ride on the crane.
9. Take care not to trap your fingers in the adjustable parts of the crane.
10. Due to the weight of the loaded crane, the help of an assistant will be
beneficial when moving the crane around.
11. This is a heavy item. Take care when moving or folding away.
12. Never attempt to move a loaded crane across a floor having cracks,
pebbles, or other obstacles which might impede its movement.
13. To move a loaded crane, push it from the operators side. DO NOT move
the crane from the handle end and never pull the crane towards yourself.
CARE OF THE CRANE
1. Ensure that the crane is properly maintained at all times, and that no
corrosion is allowed to weaken any components.

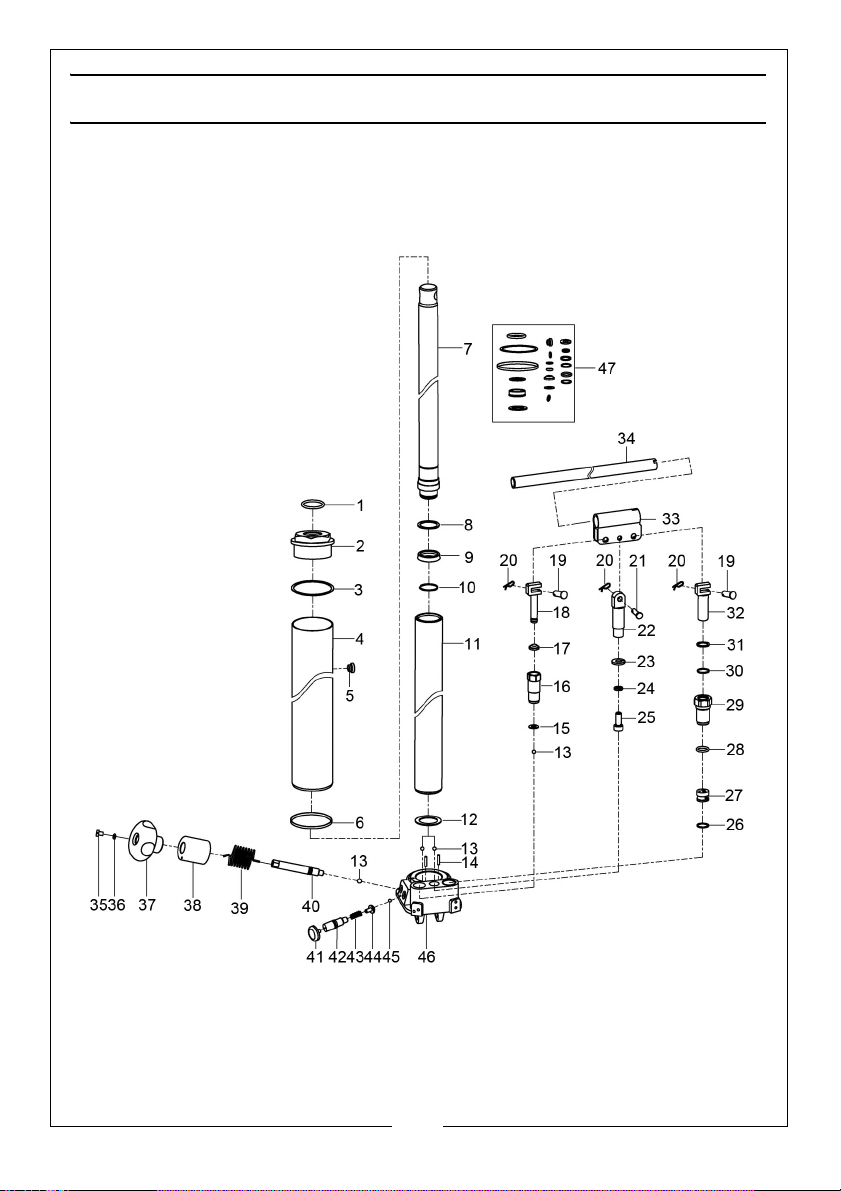

2. When replacing parts, use only those supplied by Clarke International.

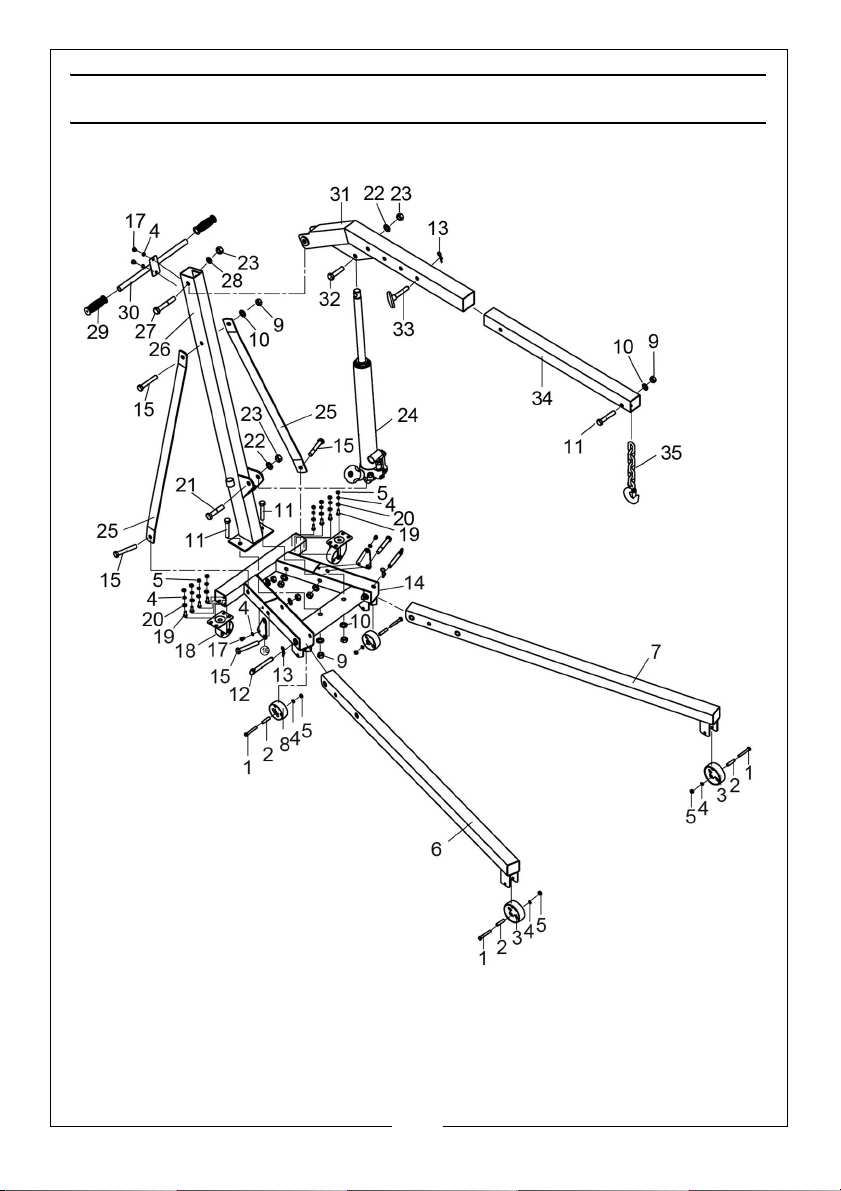

Refer to Parts Lists on pages 16-19.
3. If the crane has been subjected to an abnormal load or shock, it should be
removed from service immediately and fully inspected by qualified
personnel.
4. Never tamper with the crane or modify it in any way, as this could prove to
be dangerous and will invalidate the guarantee. Only use the crane for the
purpose for which it is intended.
5. The components of this crane are designed to withstand the rated
capacity. Do not substitute any other components or exceed the rated
capacity of the crane.
6. If the load capacity decal becomes worn or illegible, contact Clarke Parts
and service department, on 0208 988 7400 for replacement.
4
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

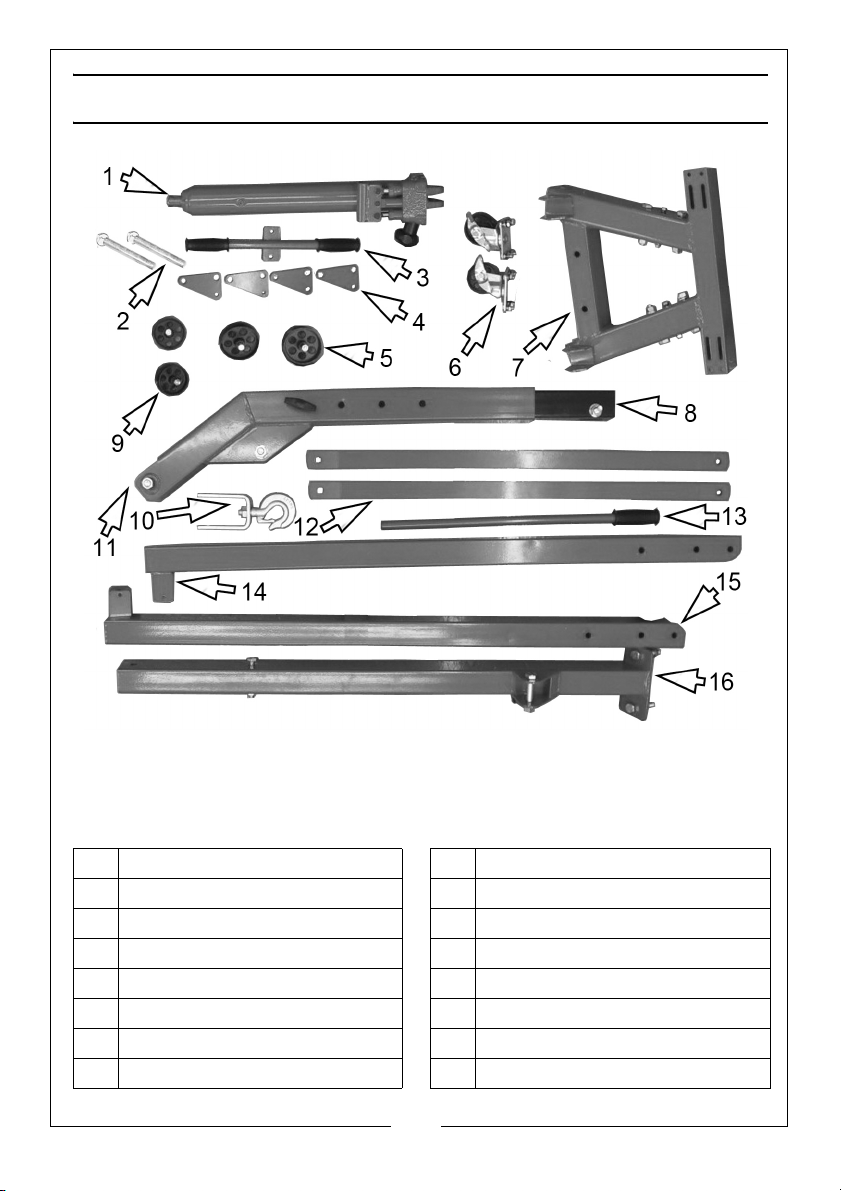

UNPACKING & ASSEMBLY
Unpack the components on a clean flat area of hard standing and ensure
that all parts are present according to the packing list below. Inspect all
components to ensure that no damage was suffered in transit. Any
deficiencies should be reported to your CLARKE dealer immediately.:
11 x Hydraulic Ram Assembly 92 x Small Wheels
22 x Locking Pins101 x Hook
31 x Handle111 x Jib
42 x Side Plates122 x Side Braces
52 x Large Wheels131 x Control Handle
62 x Caster Assemblies141 x Left Arm
71 x Base Frame151 x Right Arm
81 x Jib Extension161 x Main Support Post
5
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
ASSEMBLY
TOOLS REQUIRED
Various wrenches of 13,14, 22 & 24 mm will be required or alternatively two
adjustable wrenches.

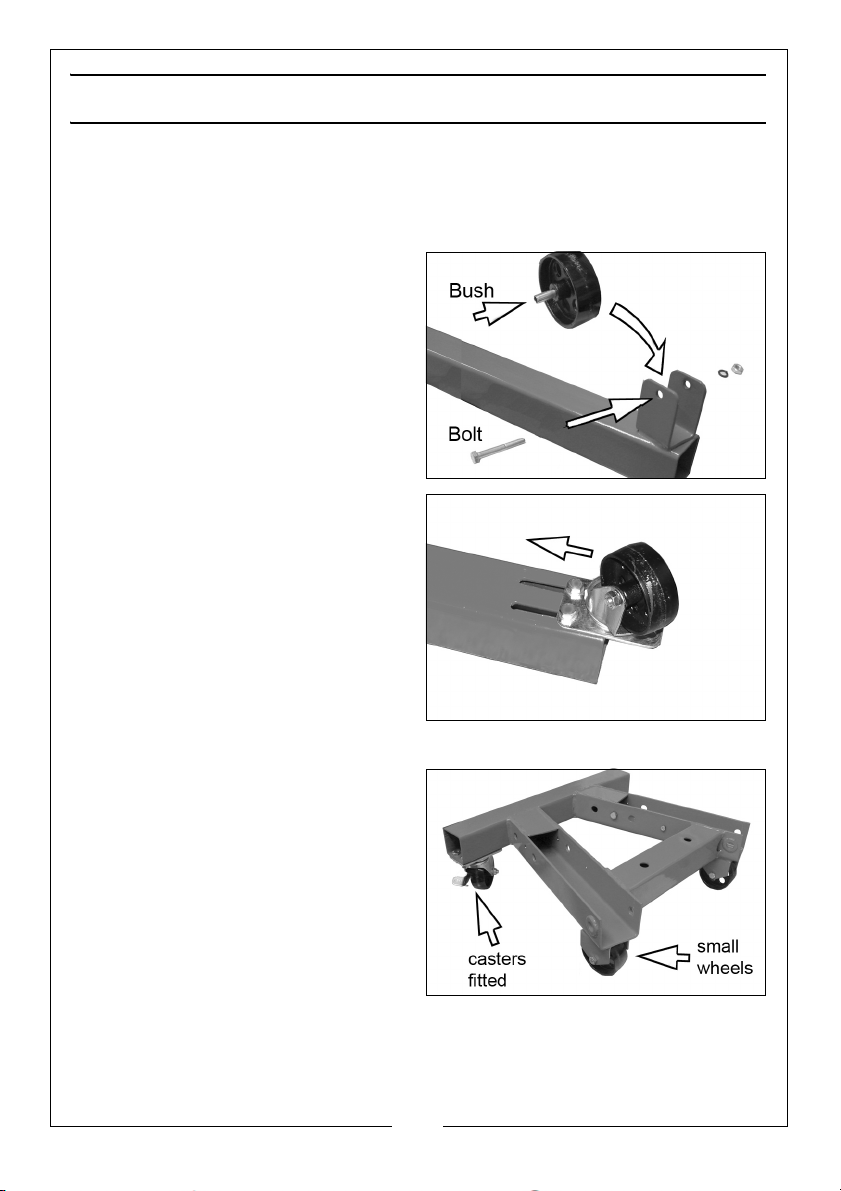

1. Bolt the two larger wheels to the
front arms.
• Note that bushes are to be
fitted inside each wheel.
2. Fit the casters to the frame using 4
bolts, lock washers and nuts.
Loosely fasten the rear 2 bolts &
nuts through the slots before
sliding the caster into position and
adding the other two bolts.
• Assemble with the nuts inside
the frame for better
appearance/caster
clearance.
3. Repeat for both casters.
4. Bolt the two small wheels to the
base frame.
• Note that bushes are also fitted
inside each wheel.
6
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

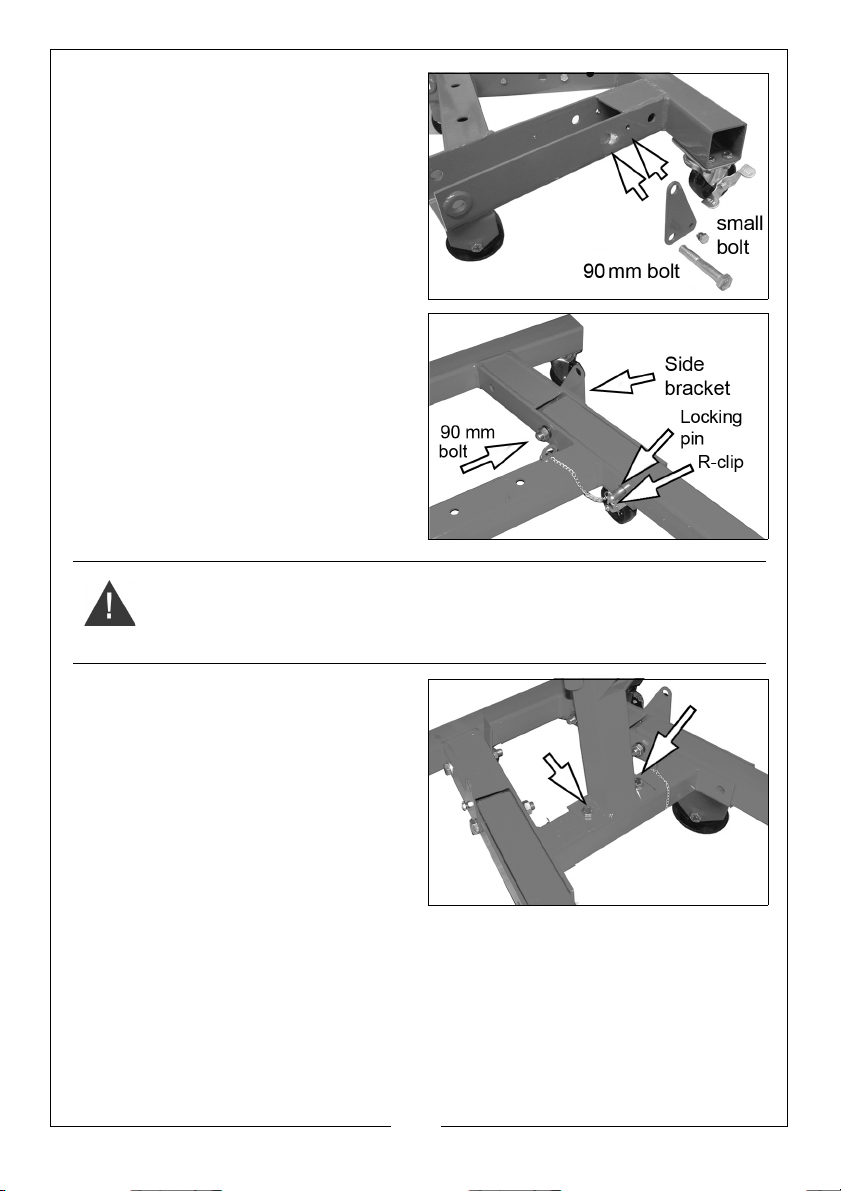

5. Bolt the side brackets to each side
of the base frame with a single
small bolt.
• The 90 mm bolts will be added
at the next step.
6. Slide the right arm into the base
frame as shown. Line up the holes
and secure with a 90 mm bolt,
washers and nut, securing the side
bracket as you do so.
7. Repeat the procedure for the left
arm.
8. Insert the locking pins and secure
the pins using the R-clips attached
to the small chains.
WARNING: IT IS ESSENTIAL THAT THE LOCKING PINS ARE IN PLACE BEFORE
ATTEMPTING ANY LIFTING TASKS. FAILURE TO INSTALL THESE WOULD
RESULT IN THE CRANE TIPPING FORWARD WHEN SUBJECTED TO ANY
LOAD.
9. Attach the main support post
onto the base frame assembly
using two 80 mm bolts with
washers and nuts. Leave the nuts
& bolts loose until step 10.
7
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

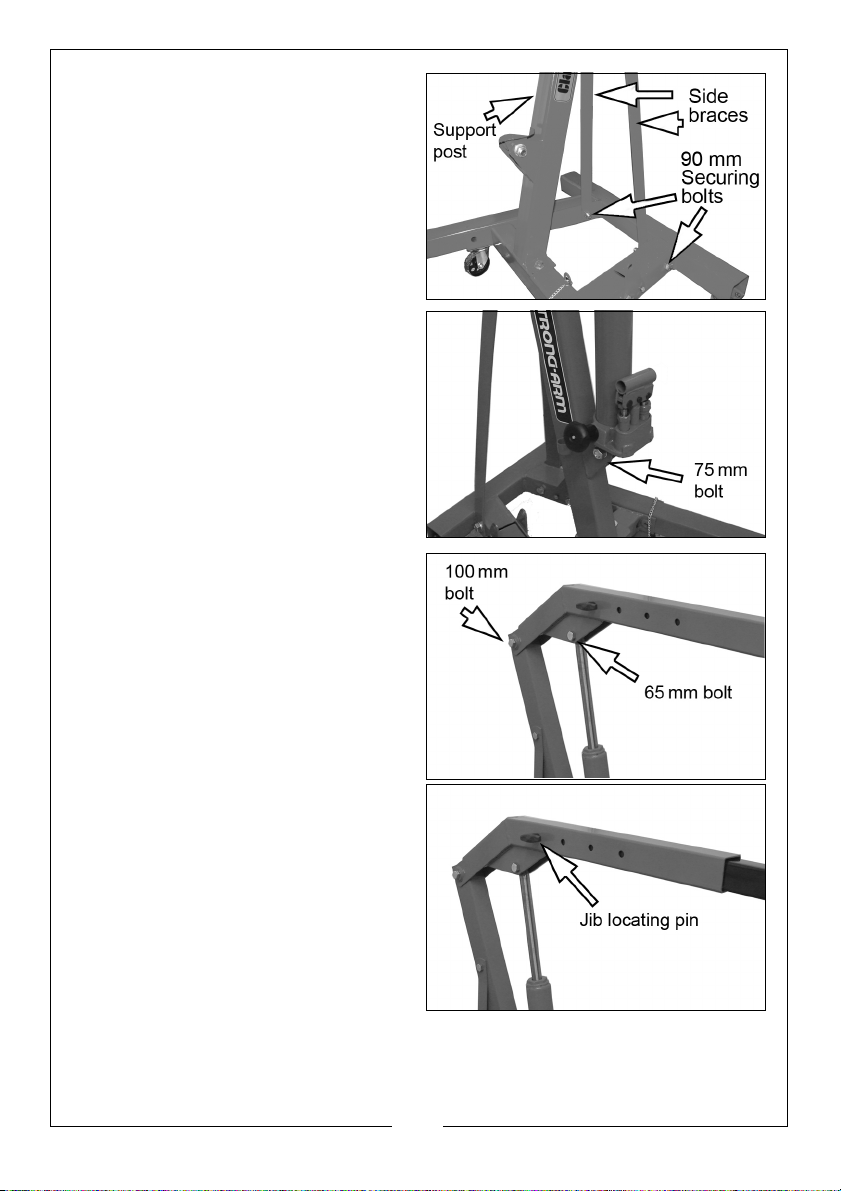

10. Add the two side braces, bolting
them between the base frame
and the main support post. Leave
the bolts loose until they are
aligned with the hole in the main
support post. Once aligned, fully
tighten the side braces to the
base and the support post.
11. Fix the ram to the main support
post using 75 mm bolt, washer
and nut.
12. Attach the jib to the top of the
main support post using the 100
mm bolt, washer and nut.
13. Connect the top of the ram to the
jib as shown using 65 mm bolt,
washer and nut.
NOTE: The ram may require partially
extending to facilitate
assembly.
14. Slide the jib extension into the jib,
using the locating pin to secure it
in the required position.
8
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

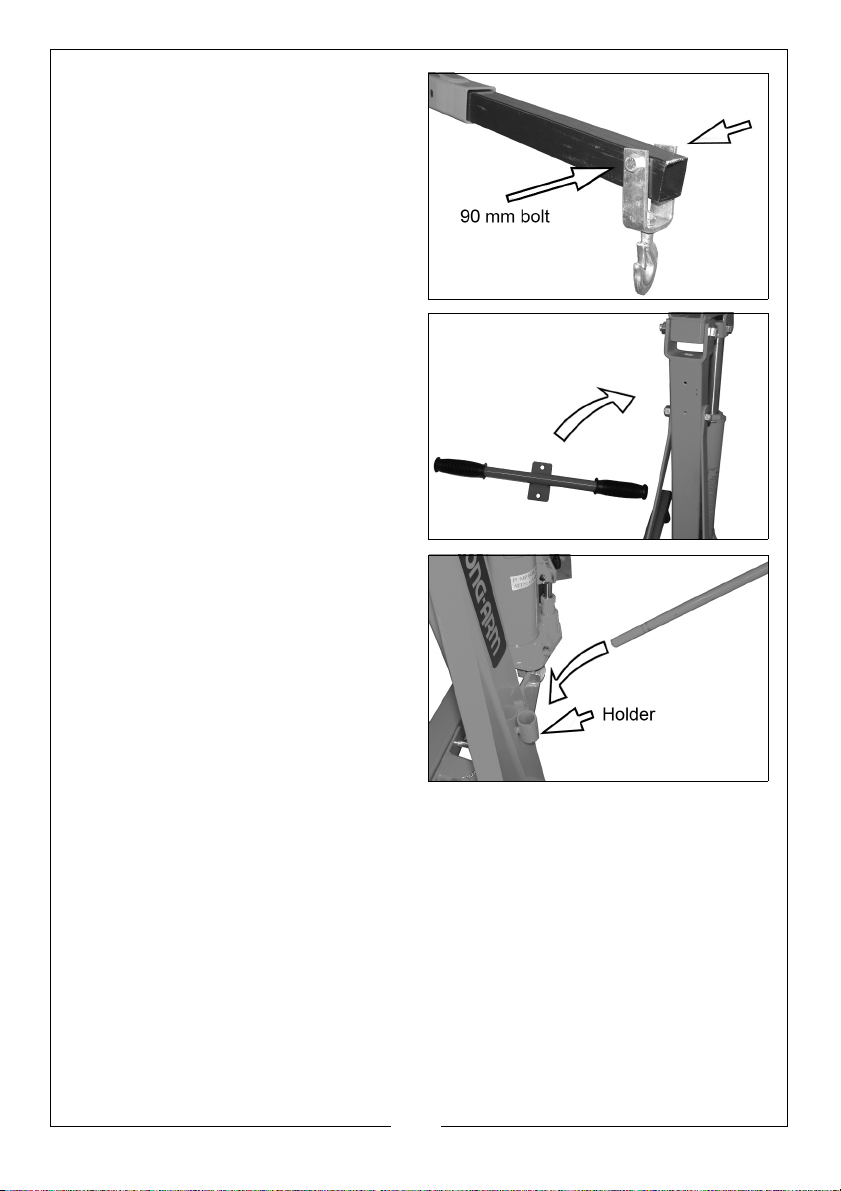

15. Bolt the hook assembly through
the hole on the jib extension using
the 90 mm bolt, washer, lock
washer and nut.
16. Connect the handle to the rear of
the main support post using the
two remaining bolts and lock
washers.
17. Ensure that all weight is spread
evenly across all sections, making
sure that all castors are on level
ground and that the assembly is
sitting square and true. Tighten all
nuts and bolts.
18. Store the operating handle in the
holder on the column.
PURGING THE HYDRAULIC SYSTEM
During transit or storage, it is possible that an air pocket may have developed
within the hydraulic ram and the ram action may therefore appear to be
‘spongy’. As the ram is self bleeding, any air will be dispelled and the ram
action normalised by fully raising and lowering the jib a few times.

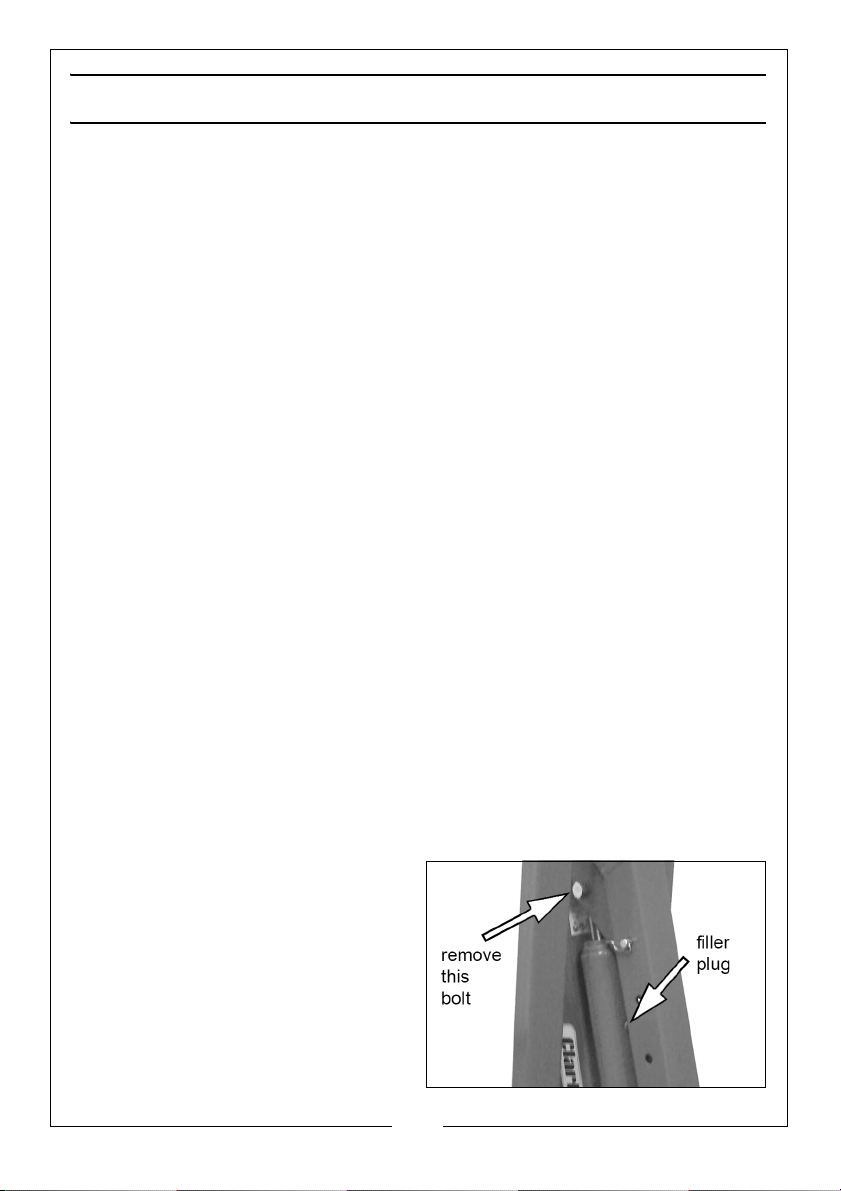

Should the jib not reach its full height, the oil level should be checked, as
described in the Maintenance section.
9
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
OPERATION
WARNING: IT IS ESSENTIAL THAT THE ARM LOCKING PINS ARE IN PLACE
BEFORE ATTEMPTING ANY LIFTING TASKS. FAILURE TO INSTALL THESE
WOULD RESULT IN THE CRANE TIPPING FORWARD WHEN SUBJECTED TO
ANY LOAD.
RAISING THE JIB
IMPORTANT: Make sure that the hook is directly above the point of lift, which
in turn is directly above the centre of gravity of the load.

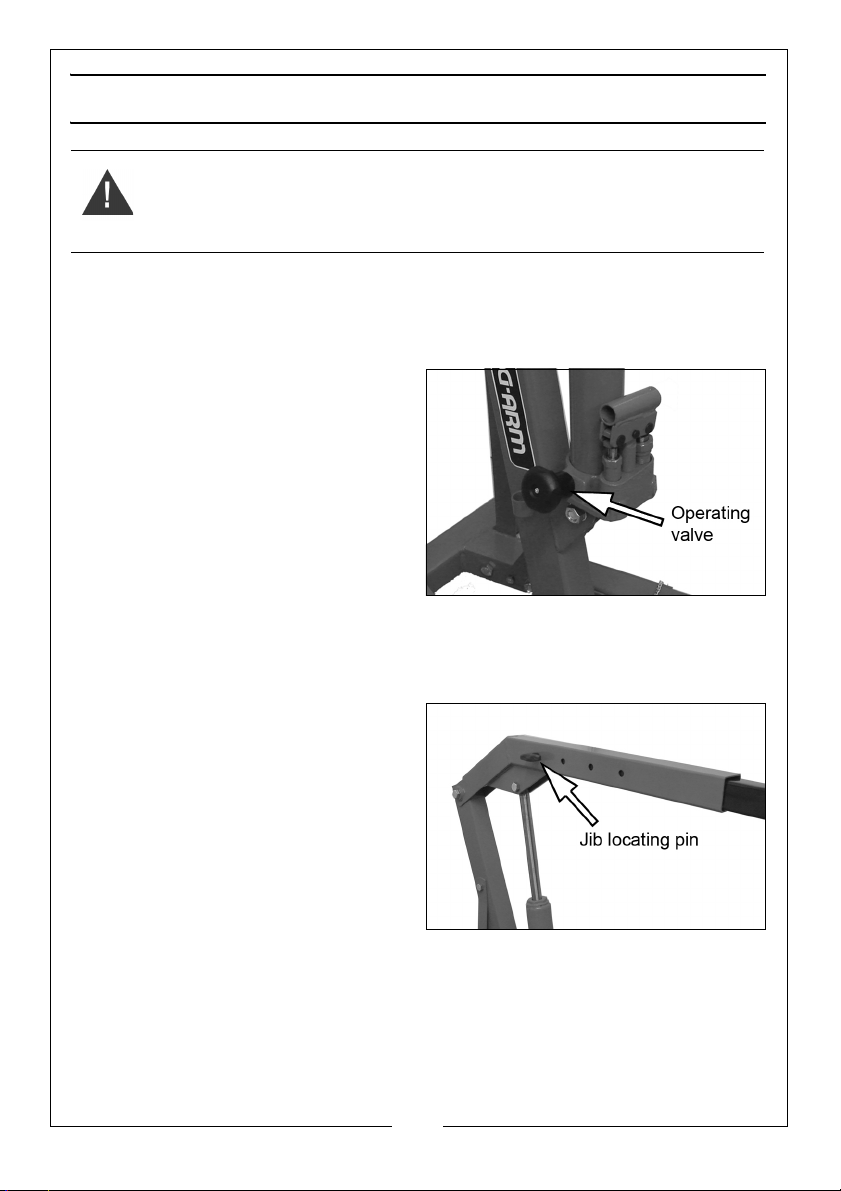

1. Close the operating valve by
turning it fully clockwise.
2. Pump the handle until the crane
reaches the desired height.
LOWERING THE JIB
1. Turn the valve anticlockwise VERY
SLOWLY.
• The speed of lowering is
controlled by how much you
turn the valve.
EXTENDING THE JIB
1. Lift the jib to a horizontal position.
2. Remove the locating pin.
3. Reposition the jib extension to the
desired length.
• The hole near the end of the jib
extension will match the hole in
the jib according to the weight
being lifted. These are clearly
marked.
4. Replace the locating pin.
5. Store the operating handle in the socket provided when not in use.
10
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
STORAGE
1. Remove the bolt and slide the jib
extension back to its shortest
position. Replace the bolt to
secure the jib.
2. Release the control valve to lower
the jib assembly to its lowest
position.

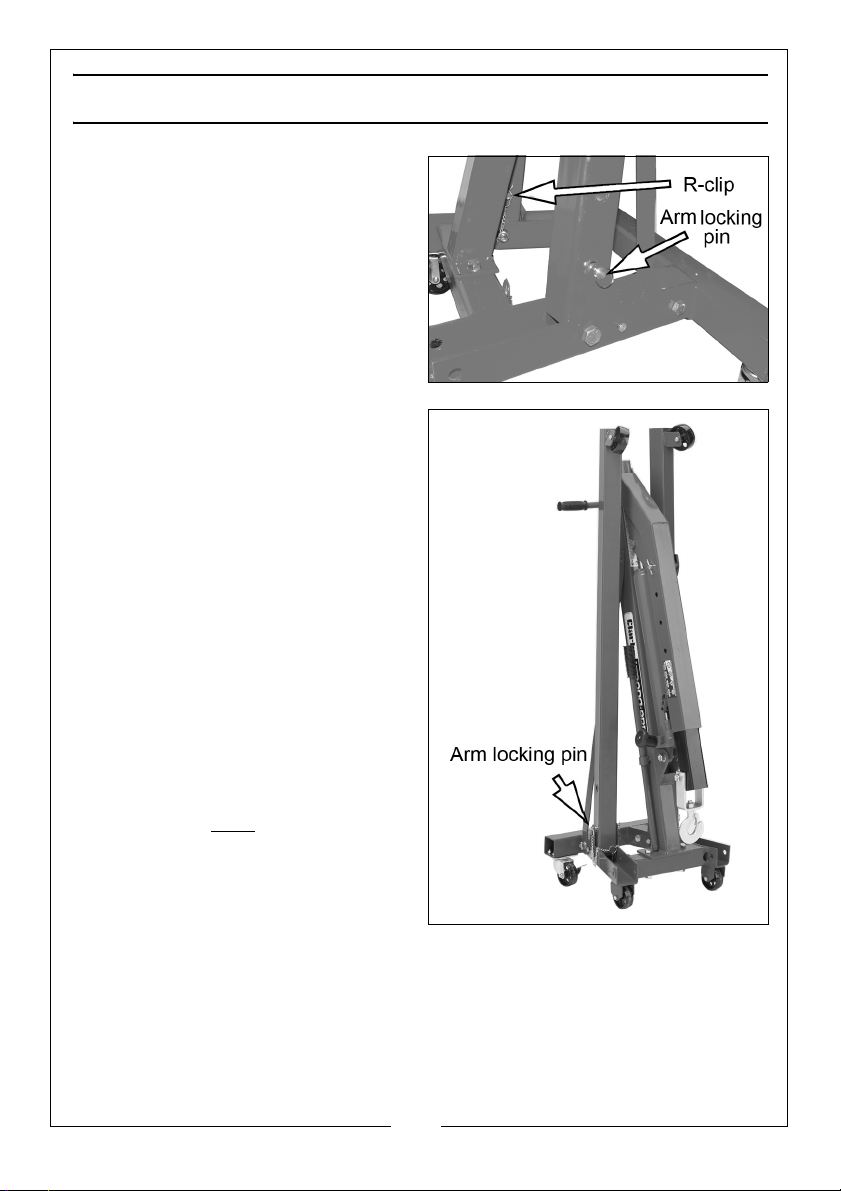

3. Pull out the ‘R’ clip, which secures
the each arm locking pin, then
pull out the lock pin.
4. Raise the arm up to its storage
position.
5. Replace the arm locking pin
through the hole in the frame so
that the arm is locked in the up
position.
6. Replace the retaining clip to
secure the arm locking pin.
7. Store the pump handle in its
bracket on the side of the main
support post.
8. Once the crane is folded use
extreme care when moving it to
the storage location.
STORAGE WARNING
1. The crane MUST be firmly secured
to a wall or fixed location when
not in use.
2. Use a strong strap or chain or
suitable restraint to prevent any
accidental movement.
3. Test that the crane is firmly secured before leaving it in its storage location.
11
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
MAINTENANCE
GENERAL
1. Always store the crane with the jib in its lowest position. This prevents any
possibility of corrosion to the ram.
2. Do not leave the crane in the open or exposed to the elements. Keep
under cover.
3. Do not attempt to adjust or tamper with the ram assembly, there are no
user-serviceable parts. Contact your Clarke service department for any
servicing.
4. Always visually inspect the crane before use, to ensure that all parts are
correctly located and secure. Check for hydraulic leaks, signs of damage
or worn parts and check the wheels and castors for serviceability.
ANNUALLY
1. The crane should be fully inspected annually by a competent person.
2. Each load bearing bolt should be removed and inspected for wear,
deformation or cracks. If any are apparent, the bolt should be renewed.
3. Check the hydraulic ram operation and inspect for oil leaks. A slight
dampness on the ram is normal, but where leakage is apparent, the ram
seals must eventually be renewed and the lost oil be replaced. Consult
your Clarke service department.
4. Check castors to ensure they move freely without undue wear to their
spindles, and that the wheels are not cracked or damaged.
5. Remove any rust and repaint to prevent further corrosion.
6. Ensure that all decals and warning labels are in place and clearly legible.
HYDRAULIC OIL
If any leakage is observed, it may be
necessary to top up the hydraulic oil
level, as follows.
1. Lower the jib to its lowest position,
and remove the bolt that joins the
ram to the jib. This will allow the
ram to fully retract.
12
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
2. Rest the ram against the main support post and raise and prop up the jib.
Use a cable or similar, to ensure the ram does not move.
3. Remove the plug from the side of the ram.
4. Top up the oil until it is level with the hole and replace the plug.
NOTE: Top up using Clarke hydraulic oil (part number 3050830).
• Do not mix different types of oil.
GUARANTEE
This CLARKE product is guaranteed against faulty manufacture for a period of
12 months from the date of purchase. Please keep your receipt as proof of
purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does not effect your statutory rights.
13
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
PARTS DIAGRAM - FRAME ASSEMBLY
14
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
PARTS LIST- FRAME ASSEMBLY
PART NO DESCRIPTIONPART NO DESCRIPTION
1Bolt19Bolt
2Bush20Flat Washer
3Large Wheel21Bolt
4Spring Washer22Spring Washer
5Nut23Nut
6Right Arm24Ram Assembly
7Left Arm25Side Brace
8Small Wheel 26Main Upright
9Nut27Bolt
10Spring Washer28Spring Washer
11Bolt29Handle Grip
12Locking Pin30Handle Bar
13R-Clip31Jib Arm
14Frame32Bolt
15Bolt33Jib Locating Pin
16Side Plate34Jib Extension
17Bolt35Hook/Chain Assembly
18Swivel Castor
15
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
PARTS DIAGRAM - RAM ASSEMBLY
16
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
PARTS LIST - RAM ASSEMBLY
PART NO DESCRIPTIONPART NO DESCRIPTION
1O-Ring25Socket Head Cap Screw
2Top Nut26Copper Washer
3Sealing Ring27Valve Body
4Outer Sleeve28O-ring
5Oil Plug29Large Cylinder
6Sealing Ring30O-ring
7Piston Rod31Retaining Seal
8Circlip32Big Pump Plunger
9Sealing Ring33Handle Socket
10Wire Ring34Handle
11Cylinder35X-head Pan Head Screw
12Cylinder Washer36Spring Washer
136 mm Ball37Control Knob
14Valve Rod38Pressure Spring Sleeve
15Copper Washer39Pressure Spring
16Pump Cylinder40Return Valve Stem
17Dust Ring41Safety Cap
18Small Pump Plunger42Plug Screw
19Hinge Pin43Spring
20R-clip44Spring Base
21Hinge Pin453 mm Ball
22Connecting Rod46Base
23Washer47Seal Repair Kit
24Spring Washer
17
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

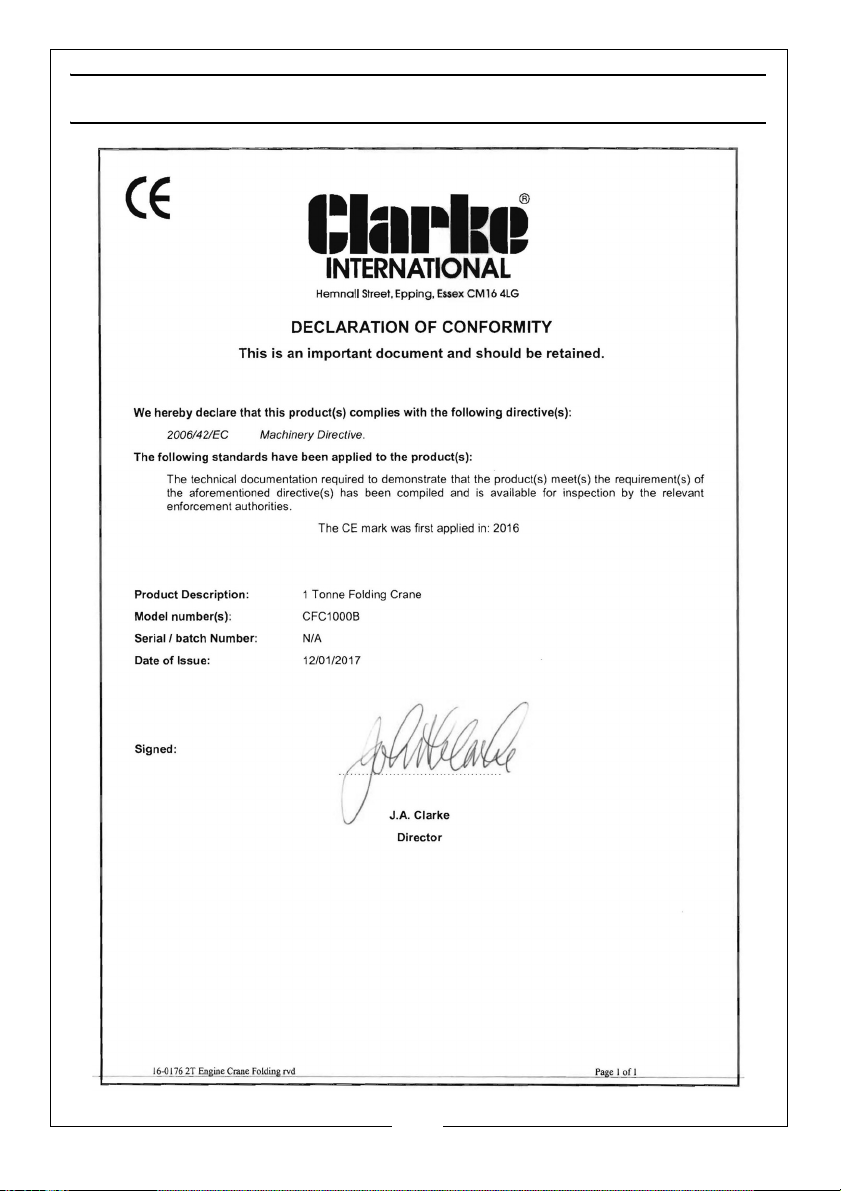

DECLARATION OF CONFORMITY
18
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
FURTHER CLARKE PRODUCTS
19
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
Loading...
+ hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
