Page 1
32A 7.4KW EV CHARGING CABLE
MODEL NO: CEV32CC
PART NO: 6267037
OPERATING & MAINTENANCE
INSTRUCTIONS
ORIGINAL INSTRUCTIONS DL0325
Page 2
INTRODUCTION
Thank you for purchasing this CLARKE Electric Vehicle Charging Cable. Before
attempting to use this product, please read this manual thoroughly and follow the
instructions carefully. In doing so you will ensure the safety of yourself and that of
others around you, and you can look forward to your purchase giving you long and
satisfactory service. Please keep these instructions in a safe place for future
reference.
ENVIRONMENTAL RECYCLING POLICY
Through purchase of this product, the customer is taking on the obligation
to deal with the WEEE in accordance with the WEEE regulations in relation
to the treatment, recycling & recovery and environmentally sound disposal
of the WEEE.
In effect, this means that this product must not be disposed of with general
household waste. It must be disposed of according to the laws governing Waste
Electrical and Electronic Equipment (WEEE) at a recognised disposal facility.

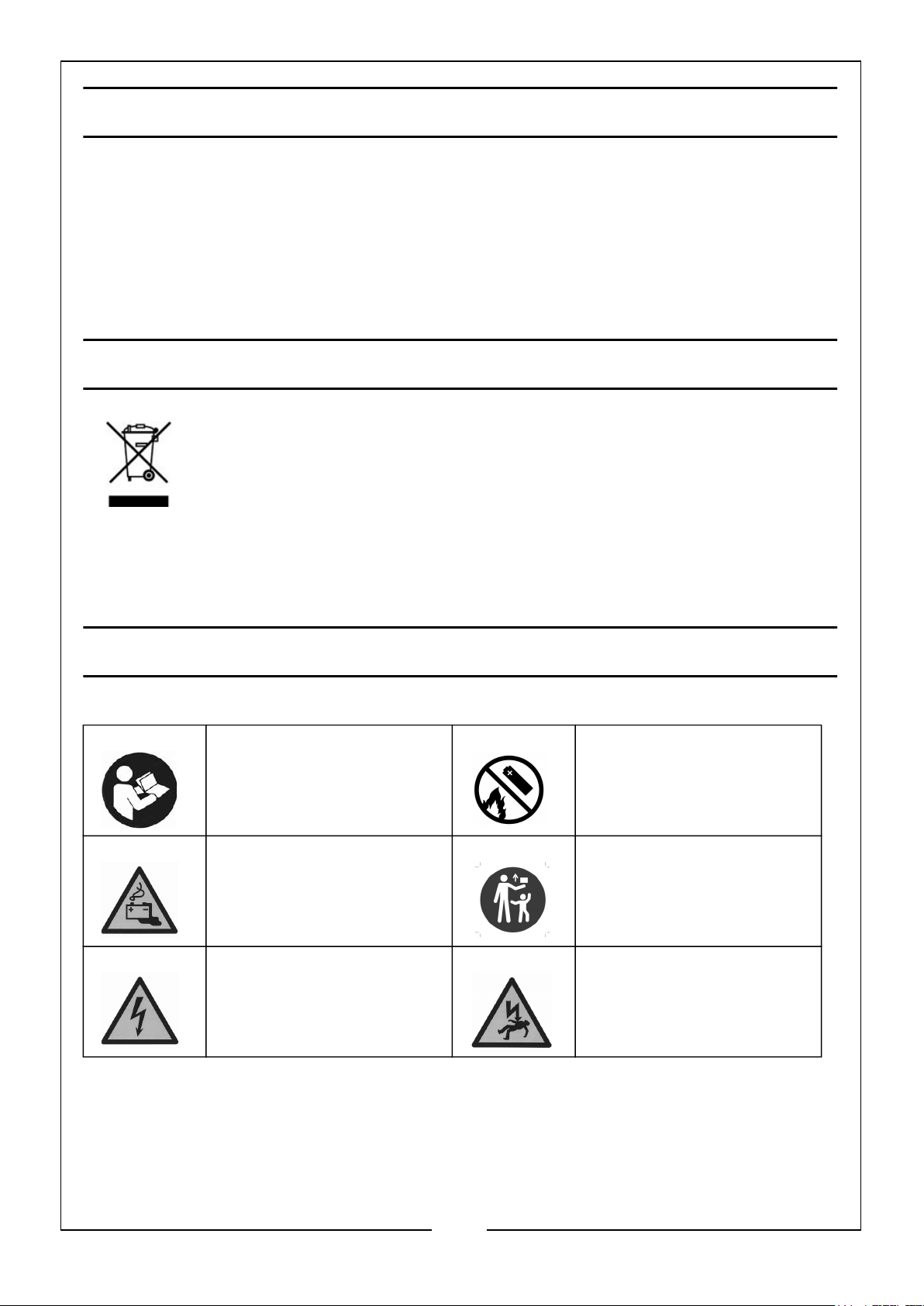

SAFETY SYSMBOLS
Read the instruction
manual
Warning: Battery
Charging
Warning: Risk of
electrical shock if used
incorrectly
DO NOT incinerate
Keep out of reach of
children
Warning: Danger of
death, serious injury or
risk of burns
2
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 3
GENERAL SAFETY
PRECAUTIONS
• DO NOT disassemble or modify this charging cable. If there is a problem
with the charging cable contact your CLARKE dealer.
• DO NOT use this charging cable if it is defective or appears damaged such
as swelling, liquid leakage, burnt smell etc.
• DO NOT put this charging cable in a microwave oven, high pressure
container or vacuum chamber.
• DO NOT immerse this charging cable in liquid or flush it for cleaning.
• The plug must not be in contact with water or heat sources. Before and
after each use check whether the surface of the charging plug is damaged
and whether the cable is broken.
• Keep the charging cable in a dry location.
• DO NOT trap, crush, fold, knot or pull the cable.
• Only turn on the power/charger once both ends of the cable are securely
connected to their appropriate outlets.
PERSONAL SAFETY
• Keep children and animals away from the charging cable when stored or in
use.
• Within the working area, the user is responsible for any damage or injury
to third parties that may be caused by the use of the cable.
• During use, make sure the cable is NOT a trip hazard.
• DO NOT use with wet hands, and take extra care if charging in the rain.
• NEVER put fingers or any implement into the plug sockets, especially if
the cable is connected at the other end.
WORKING WITH THE CHARGING CABLE
• Before first use, check the specifications of your electric vehicle to ensure
compatibility.
• Before using the charging cable, ALWAYS check the cable for any damage
and DO NOT use unless in perfect working order.
• DO NOT use the charging cable while driving the vehicle.
• DO NOT plug cable into damaged, corroded or loose power outlets or car
sockets.
3
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 4
• DO NOT use the charging cable if there is corrosion to the contacts or
pins.
• Before driving the vehicle, ALWAYS make sure that the charging cable
has been disconnected from both the charging station and the vehicle.
• In hot weather, DO NOT leave the charging cable in a vehicle. This could
permanently damage the charging cable.
SPECIFICATIONS
Item Specification
Model CEV32CC
Part Number 6267037
Weight 2.5kg
Size (H x W x D) (Storage Case) 100mm x 410mm x 410mm
Cable Length Relaxed: 1.2m, Full Extension: 3.2m
Operating Temperature -20°C - 50°C / -4°F - 122°F
Nominal Voltage 230V AC
Nominal Frequency 50 - 60Hz
Number of Phases Single Phase
Maximum Charge Current 32A
Maximum Charging Capacity 7.4kW
Ingress Protection Rating (IP) Unmated: IP55, Mated: IP65
Connector Plug Type 2 (In accordance with EN 62196-2)
Please note that the details and specifications contained herein, are correct at the
time of going to print. However, CLARKE International reserve the right to change
specifications at any time without prior notice.
4
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 5

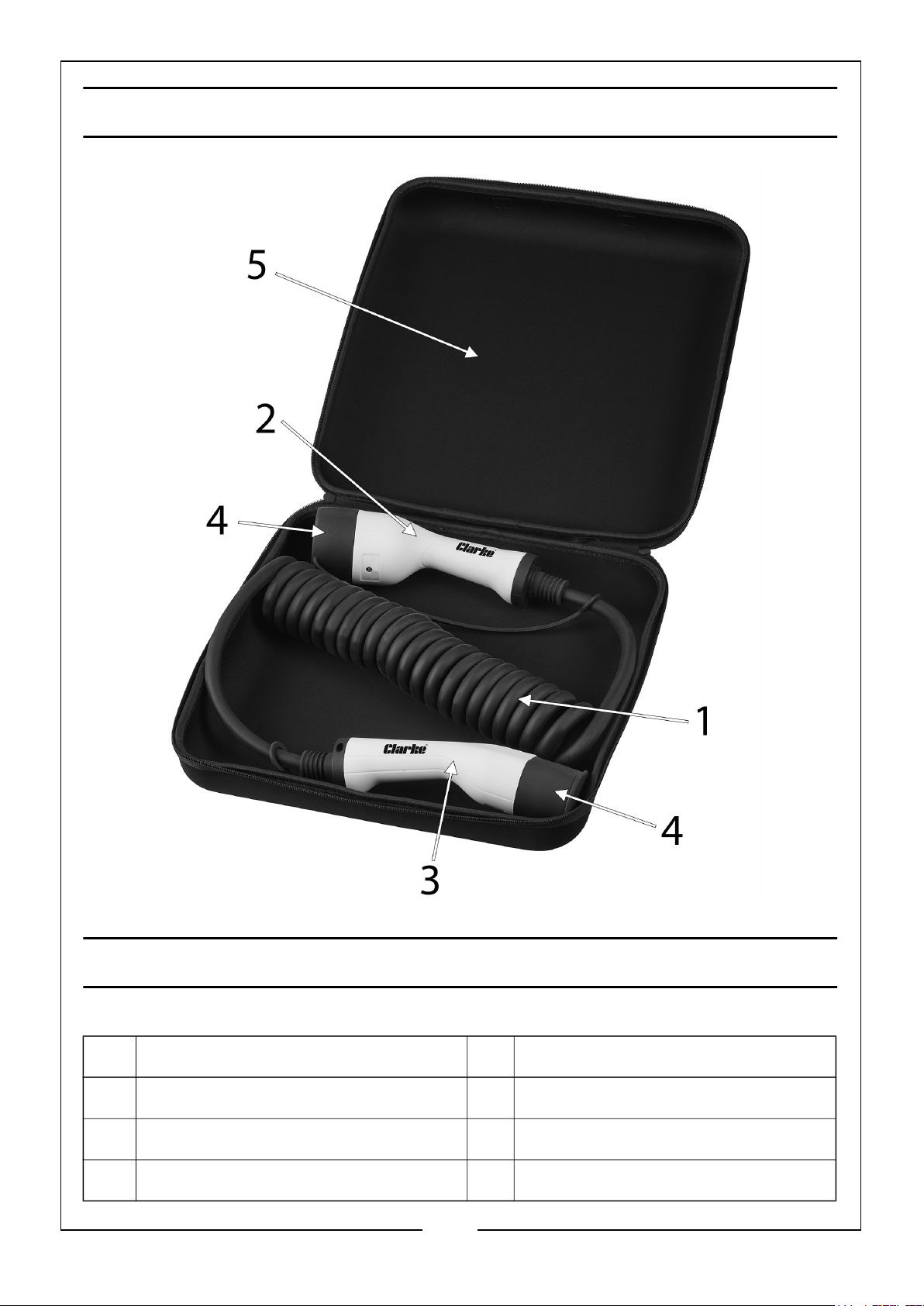

OVERVIEW
OVERVIEW LIST
NO DESCRIPTION NO DESCRIPTION
1 Coiled Charging Cable 4 Rubber Dust Cap
2 Type 2 Male Connector Plug 5 Storage Case
3 Type 2 Female Connector Plug
5
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 6

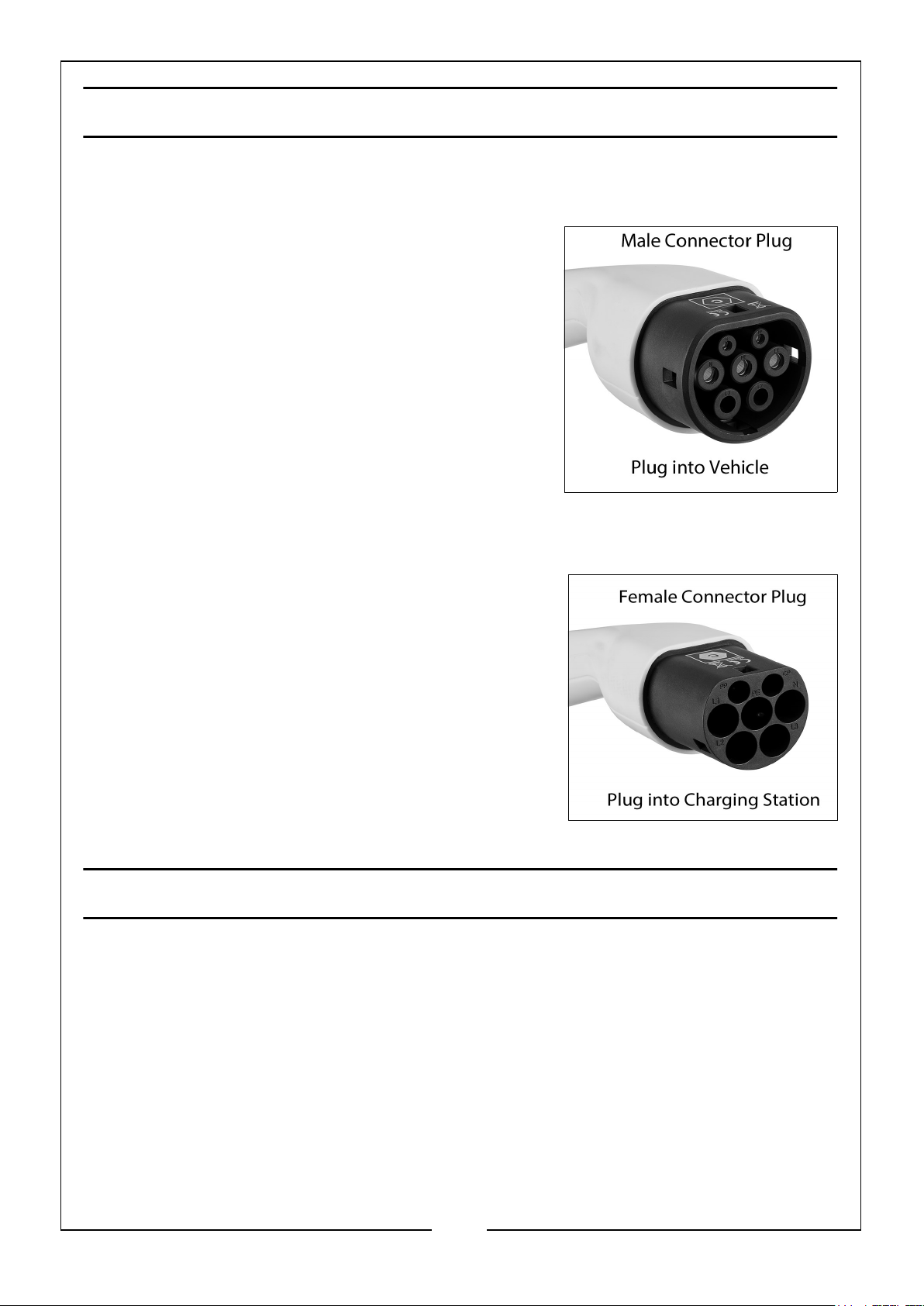

INSTRUCTION FOR USE
START
1. Take the female end of the cable and remove
the rubber dust cap from the plug.
2. Push the plug into the charging station, making
sure the plug is fully inserted.
3. Take the male end of the cable and remove the
rubber dust cap from the plug.
4. Push the plug into the vehicle charging port,
making sure the plug is fully inserted.
5. Activate the charging station to charge the
vehicle.
FINISH
1. Confirm the charging process has been
completed on both the charging station and the
vehicle.
2. Turn off the charging station.
3. Unplug the cable from the vehicle and replace
the rubber dust cap on the plug.
4. Unplug the cable from the charging station and
replace the rubber dust cap on the plug.
5. Replace the cable in the storage case.
STORAGE & MAINTENANCE
1. For safety reasons, DO NOT store the product in an ambient temperature above
45°C or below -10°C for extended periods of time.
2. ALWAYS store with the rubber dust caps on the plugs.
3. NEVER clean the cable when connected to a vehicle or charging station.
4. To clean, wipe surfaces and contacts with a clean dry cloth. DO NOT use any
chemical or abrasive cleaning solutions or materials.
5. DO NOT immerse the cable and/or plugs in liquid.
6
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 7
DECLARATIONS OF CONFORMITY
7
