BOOSTER PUMP
MODEL NO: CBP900
PART NO: 7239201
OPERATION & MAINTENANCE
INSTRUCTIONS
ORIGINAL INSTRUCTIONS GC09/22
Page 2
INTRODUCTION
Thank you for purchasing this CLARKE booster pump.
This non-submersible centrifugal pump is designed to pump clean water for
spraying and irrigation purposes and for pumping water to greenhouses. It can
also be used for boosting running water feed pressure (not drinking water) or
for pumping out wells or ponds. Do not operate with contaminated or salt
water.
Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully.
Please keep these instructions in a safe place for future reference.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does not effect your statutory rights.
ENVIRONMENTAL RECYCLING POLICY
Through purchase of this product, the customer is taking on the
obligation to deal with the WEEE in accordance with the WEEE
regulations in relation to the treatment, recycling & recovery and
environmentally sound disposal of the WEEE.
In effect, this means that this product must not be disposed of with general
household waste. It must be disposed of according to the laws governing
Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal
facility.
If disposing of this product or any damaged components, do not dispose of
with general waste. This product contains valuable raw materials. Metal
products should be taken to your local civic amenity site for recycling of metal
products.
2
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 3
SPECIFICATION
Water Classification Clean
Maximum Delivery 5800 L/hr
Maximum Head 32 m
Operating pressure 3.2 bar
Max Operating Temperature
Max particle size 0.15 mm
Ingress Protection Rating IPx4
Supply 230V ~ 50Hz
Rated Power 900 W
Input Current@ Maximum Head 3 A
Input Current@ Maximum Flow 3.9 A
Outlet Thread Size 1” BSP Female
Weight 8.2 kg
Length x Width x Height 400 x 160 x 300 mm
Sound pressure level 47.5 dB LpA
Sound Power Level 61 dB
Guaranteed sound power level 63 dB
0-35
o
C
3
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 4
GENERAL SAFETY PRECAUTIONS
Before using this equipment it is in your own interest to read and pay attention
to the following safety rules.
WARNING: ALWAYS CONNECT THE PUMP TO AN EARTHED POWER SUPPLY
VIA AN RCD.
1. ALWAYS keep the working area clean and well lit. Floors should always be
kept clear. Cluttered or dark areas invite accidents.
2. NEVER over-reach. Keep your proper footing and balance at all times
when installing or maintaining the pump.
3. NEVER direct any water discharge towards electrical wiring or equipment.
4. ALWAYS thoroughly familiarise yourself with this pump & its operation, and
follow all instructions in this manual. NEVER allow persons unfamiliar with
these instructions to instal or operate the pump.
5. ALWAYS ensure that the pump is properly installed to prevent it from moving
during operation, and that the immediate area surrounding the pump is
kept clear.
6. ALWAYS maintain the pump with care and keep it clean for best / safest
performance.
7. NEVER modify this pump in any way. Use it only for the purpose for which it
is designed.
8. NEVER use for pumping flammable liquids or corrosive chemicals. This
pump is designed to pump clean water only.
9. ALWAYS have the pump serviced by your local CLARKE dealer, using only
identical replacement parts. This will ensure the safety of the pump is
maintained. The use of non standard parts could be hazardous.
10. NEVER use this product if any part is damaged. Have it inspected and
repaired by your local CLARKE dealer. ALWAYS turn the pump off before
carrying out any maintenance.
11. NEVER allow the pump to run dry.
CAUTION: THIS PUMP IS NOT A SUBMERSIBLE PUMP. ON NO ACCOUNT
SHOULD IT EVER BE IMMERSED IN WATER.
4
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 5

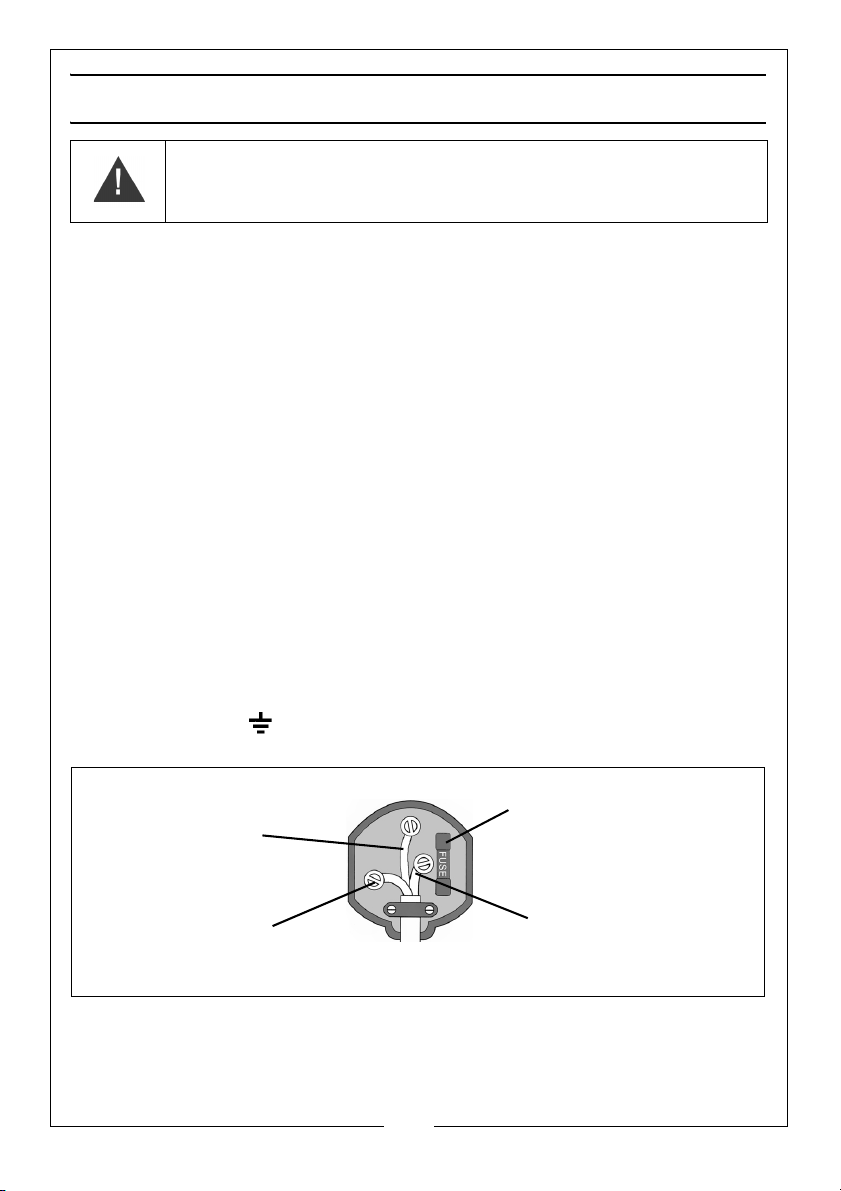

ELECTRICAL CONNECTIONS
Plug must be BS1363/A approved.
Always fit a 13 Amp fuse.
Ensure that the outer sheath of the cable is firmly held by the clamp
Neutral
(Blue)
Live
(Brown)
Earth
(Green and Yellow)
WARNING! READ THESE ELECTRICAL SAFETY INSTRUCTIONS
THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE
MAINS SUPPLY.
Before switching the product on, make sure that the voltage of your electricity
supply is the same as that indicated on the rating plate. This product is
designed to operate on 230VAC 50Hz. Connecting it to any other power
source may cause damage.
This product may be fitted with a non-rewireable plug. If it is necessary to
change the fuse in the plug, the fuse cover must be refitted. If the fuse cover
becomes lost or damaged, the plug must not be used until a suitable
replacement is obtained.
If the plug has to be changed because it is not suitable for your socket, or due
to damage, it should be cut off and a replacement fitted, following the wiring
instructions shown below. The old plug must be disposed of safely as insertion
into a mains socket could cause an electrical hazard.
If the colours of the wires in the power cable of this product do not correspond
with the markings on the terminals of your plug, proceed as follows.
•The Blue wire must be connected to the terminal marked N or
coloured black.
• The Brown wire must be connected to the terminal marked L. or
coloured red
•The Yellow and Green wire must be connected to the terminal
marked E or or coloured Green.
We strongly recommend that this machine is connected to the mains supply
via a Residual Current Device (RCD). If in any doubt, consult a qualified
electrician. DO NOT attempt any repairs yourself.
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
5
Page 6
INSTALLATION OF THE PUMP
IMPORTANT: The pump MUST NOT be connected to the mains power supply
until all hose/pipe installations are completed.
INSTALLATION LAYOUT
The pump must always be installed and operated in a horizontal position using
the fixing holes in the base to secure it in position.

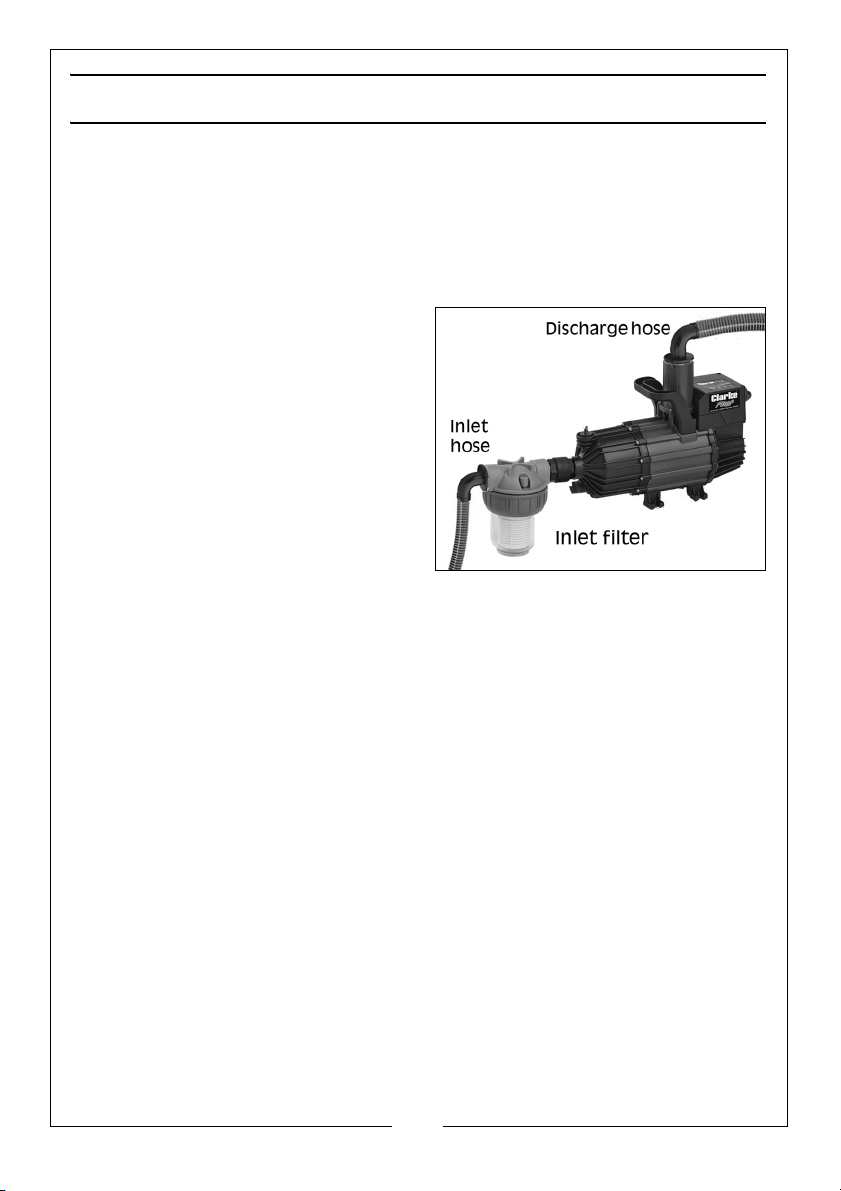

The illustration shows typical pipework
connection including an inlet filter and
hose adapters listed on page 16.
When mounting the pump on a raised
base it will be necessary to allow
clearance for the filter. Mount the
pump securely on blocks or a purpose
built platform to protect it from
flooding.
The suction lift i.e. the vertical distance
between the water level and the
pump, should not exceed the
distance specified.
Where the pump is to be a permanent fixture the fittings to the pump MUST be
flexible, i.e. a short piece of hose should be inserted between any rigid metal
pipework and the pump.
To prevent unnecessary strain or possible distortion to the pump, ensure that
adequate support is provided to the hoses and/or pipes. Remember they will
be considerably heavier when filled with water.
The pump is resistant to splashing from any direction but should on no account
become submerged. Ensure there is adequate air circulation around the
motor. The pump should be installed in a dry, well ventilated enclosure,
sheltered from rain and with an environment temperature not higher than
35°C.
Always place the pump as close as possible to the water to be pumped but
be positioned so as to avoid the possibility of immersion. The power supply
should also be a safe distance away. If in doubt, please contact your
electrician and refer to national regulations.
Ensure the pump & its power cable do not create a safety hazard for people
walking past it. The length of the power cable on the pump limits the distance
from the power source. If an extension cable is required, ensure it is
compatable with the cable supplied.
6
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 7
SUCTION LIFT OR GRAVITY FEED
SUCTION LIFT
It is possible to draw water up from a sunken pool or well.
GRAVITY FEED
The pump can draw water from an above ground tank.

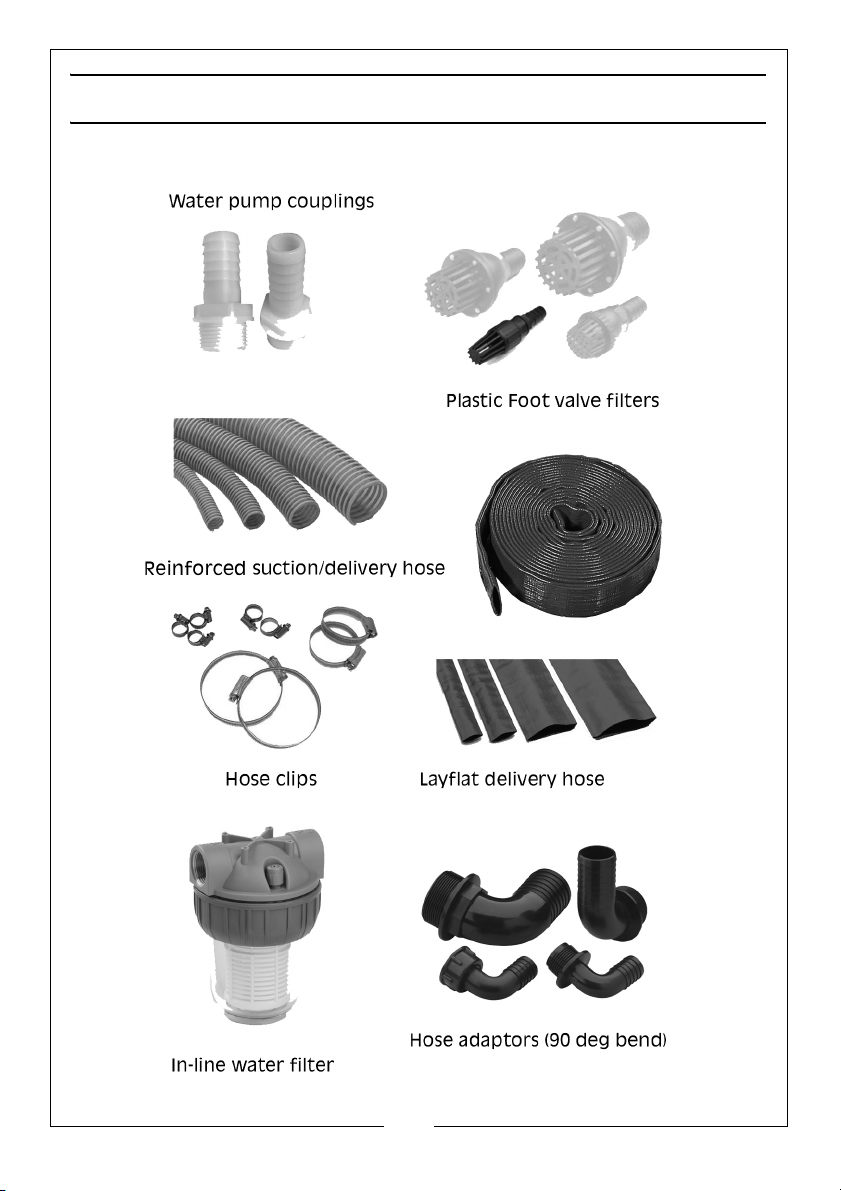

PIPELINE FITTINGS REQUIRED
Because of the variety of possible installations, no plumbing accessories are
supplied with your pump. However, accessories designed specifically for this
pump are available from your CLARKE dealer.
The performance of your pump will be affected by the diameter of the inlet
pipe - any restriction will greatly reduce the flow. We recommend that you use
a diameter which is as large as practicable with a suitable reducer for
connection to the 1” BSP inlet adapter. The delivery hose should be attached
to the outlet adapter (not supplied).
CONNECTIONS AND HOSES
In case of a fixed installation, it is recommended that you fit a non-return valve
on both sides of the pump. This allows closure of the line upstream and/or
downstream from the pump, useful for service and cleaning operations or for
periods in which the pump is not in use.
A 1” BSP hose adapter will be required for connection
to the inlet and outlet ports. These are available from
your CLARKE dealer.

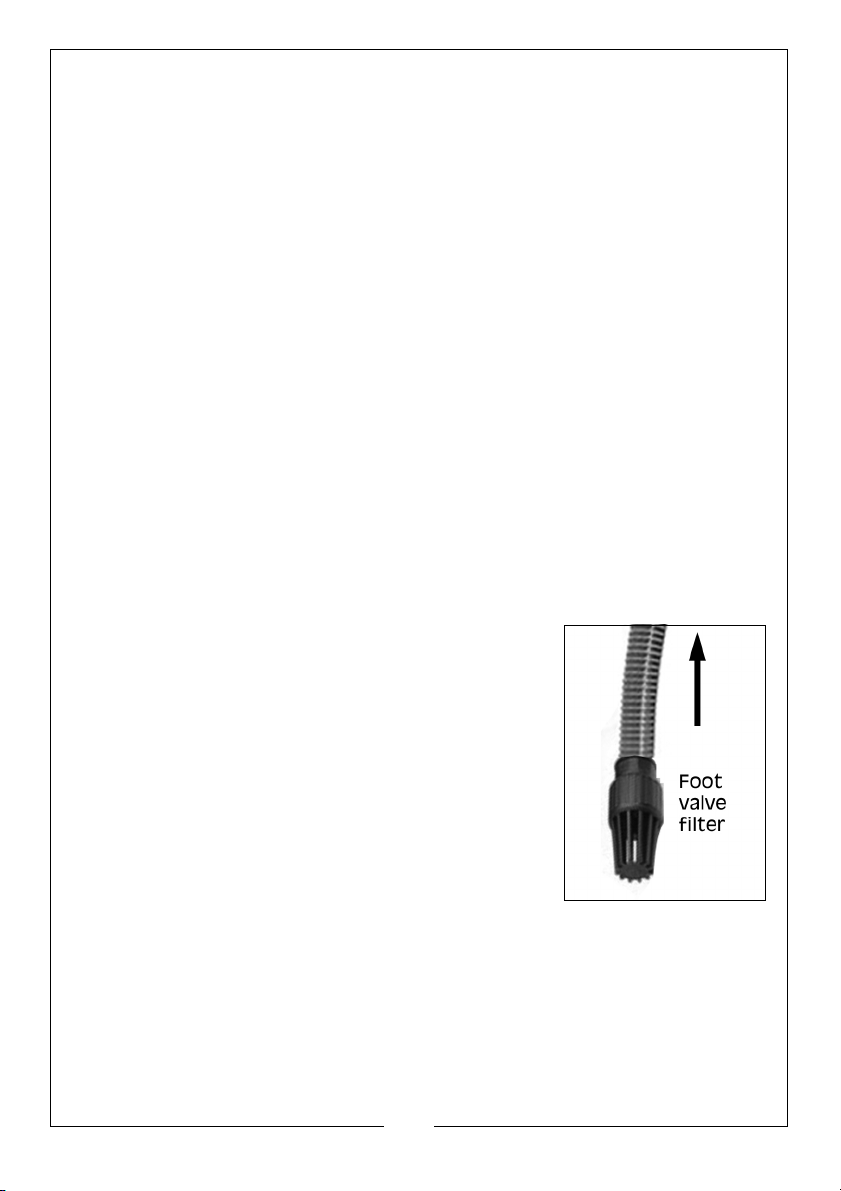

A foot valve and filter should be fitted to the lower
end of the suction hose as illustrated, so as to help
retain water in the suction system and to prevent the
possibility of large foreign bodies arriving at the
pump.
A gate valve may be installed in-line on the outlet
side of the pump which can be set as required to
regulate the flow of water. Do not place any such
restriction on the suction side of the pump unless it is
an isolator valve in a gravity fed system.
7
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 8
PRIMING THE PUMP
When suction lift is used to draw water into the pump it is essential that all
connections and hoses are completely air tight or the system will not work.
It is necessary to completely fill the
inlet side of the pump with water
before being started for the first time
or if the system has been drained for
maintenance/repair. This is carried
out as follows:-

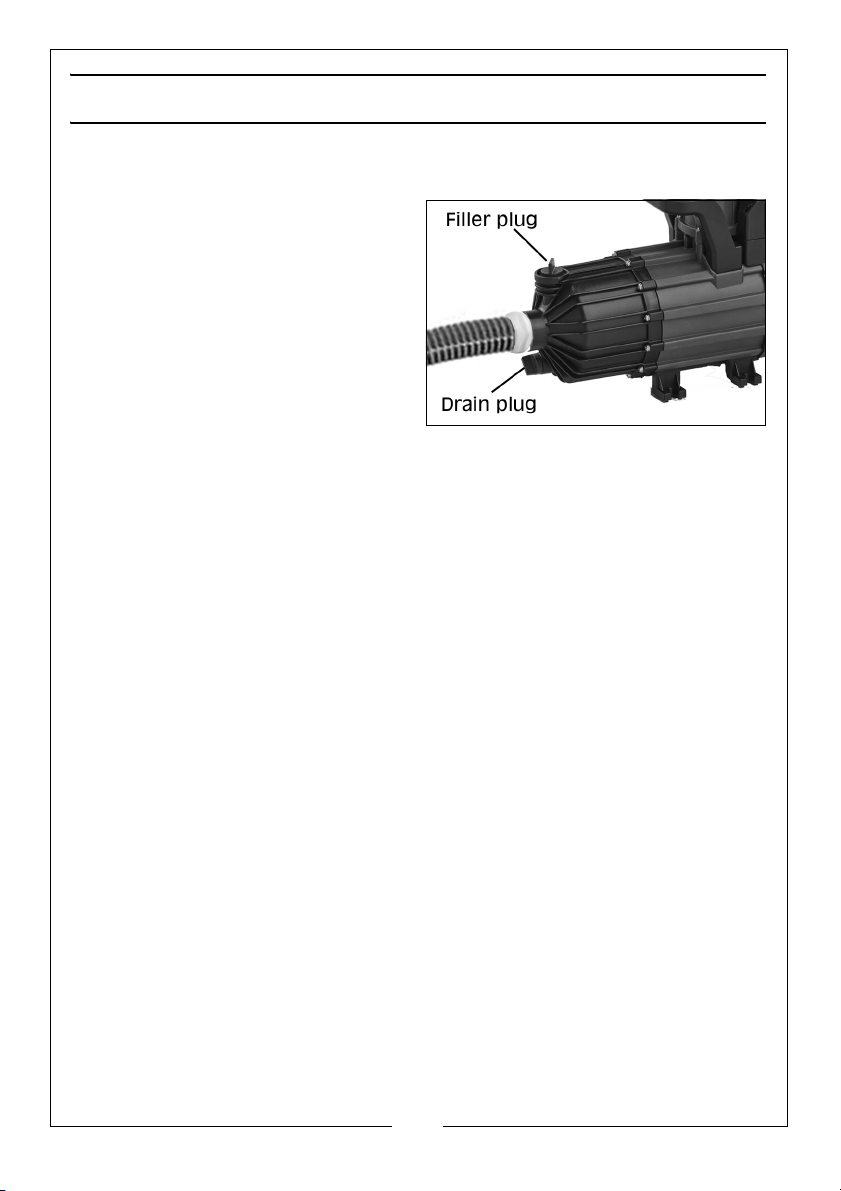

1. Remove the small filler plug on the
top of the pump chamber and fill
the pump with water until all air is
expelled.
2. Adjust any valves which may be fitted to the discharge side of the pump so
as to ensure as great a flow as possible.
3. Switch on the pump and check for leaks. Water should quickly start to flow
through the system. If, depending upon the suction depth, water does not
flow, check to ensure:
• The inlet pipe is secure and free from defects. Even a pin hole could
prevent the pump from drawing water efficiently. This is the most
common problem encountered when operating water pumps.
• The pump body has been primed correctly and is completely filled
with water.
NOTE: If the pump is gravity or pressure fed, priming will not be necessary
as the pressure of water will purge the system of air.
The pump should never be operated with any delivery valve or tap
completely closed.
8
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 9

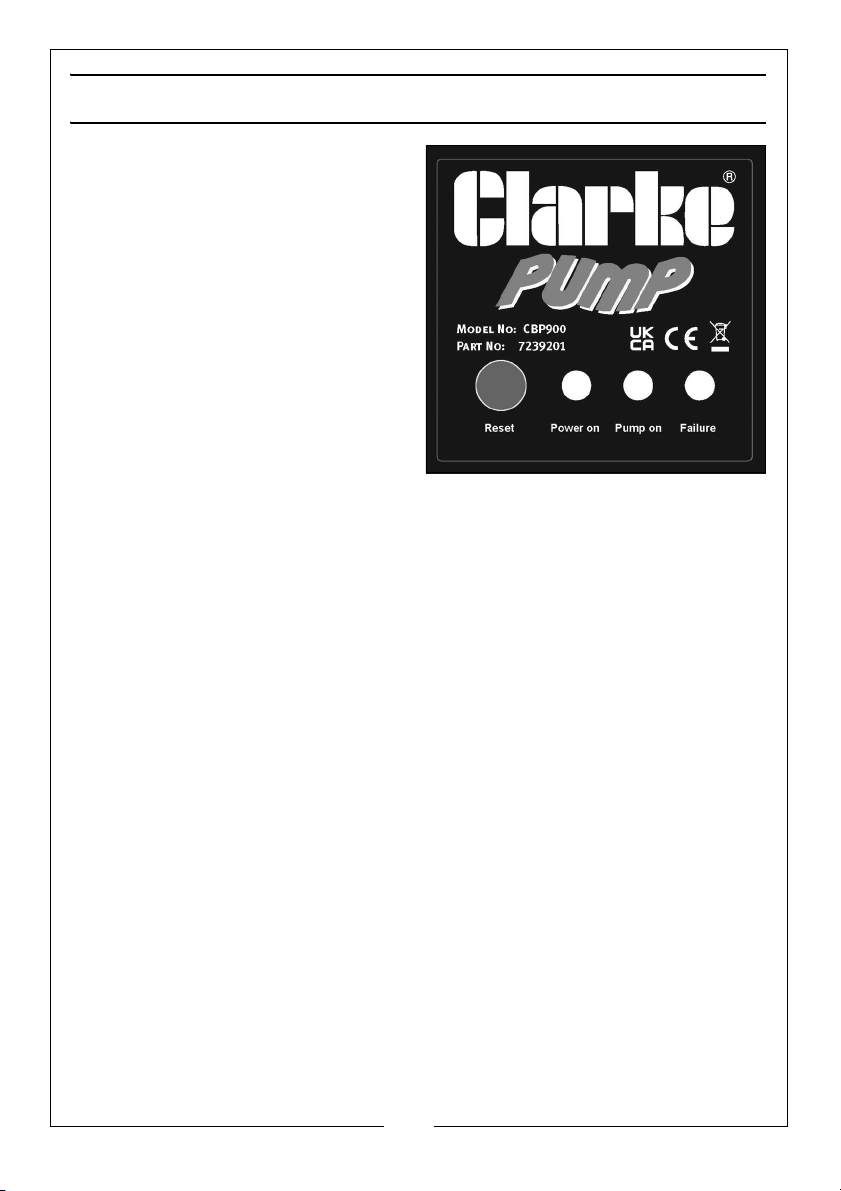

THE CONTROL PANEL
The "Power On" indicator light
indicates that there is power to the
pump.
Press the "Reset" button to start the
pump r unni ng. I t may also be th at the
pump is in pressure holding and
stopped state. When the pressure on
the discharge side is lower than the
starting pressure, the pump will
automatically start pumping.
• The "Power On" indicator lamp
indicates that the pump is
pumping normally.
When the "Power On" indicator
flashes, it indicates that the pump is in the pressurised and stopped state and
there is pressure in the discharge pipeline. Pressing the "Reset" key is invalid.
When the water intake or the resulting pressure drops, the pump will restart.
• "Power On" indicator light will be illuminated.
When the "Pump On" light and "Failure" light are illuminated it shows that the
pump is pumping but there is no water in the pipeline. For example, there will
be no water for about 8 seconds.
• The pump will be in stopping state.
When the "Pump on" light and "Failure" light are illuminated, pressing "Reset"
key will restart the pump again. The pump will stop working because it is
indicated that there is a fault, which may be no water supply, filter mesh
blockage, water supply pipe leakage or pump parts damage. Check and fix
the problem according to "Troubleshooting".
• The "Power On" indicator light is illuminated
• The "Failure" indicator light flashes. (one second each time). At this
time, pressing the "Reset" key will be not work. Only after pulling out
the plug to correct the malfunction, can the power be reinstated to
start the pump. Indicate that there has been a fault and the pump
has stopped working. This may be a leak in the pressure line or the
pump headseal seal is leaking. The machine closes and opens
frequently to start protect the function.
9
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 10
START-UP
CAUTION: DO NOT START THE PUMP WITHOUT HAVING COMPLETELY
FILLED IT WITH WATER,
1. Plug the power cable into a 230 V power socket and switch on.
2. The pump motor will start and water will start to flow through the system.
There may be some delay before water is discharged, depending on the
depth of the water level in the well and the position of the discharge point.
3. Check for any leaks and correct as necessary.
• If the motor fails to start, or the pump does not deliver water, refer to
TROUBLESHOOTING on pages 12-13. Never operate the pump when
not primed with water or if the inlet is blocked.
4. To stop the pump, switch off and remove the plug from the power socket.
CARE DURING USE
1. DO NOT allow the pump to run dry, otherwise the seal between the pump
and motor may be damaged. If a leak occurs at this point, allowing water
to pass from the pump to the motor, contact your Clarke dealer for
overhaul.
2. In the event of a blockage, where debris has entered the suction
chamber, it can be cleaned out as described under MAINTENANCE.
3. Should contaminants come into contact with the pump, flush through with
cold water as soon as possible to prevent damage. DO NOT USE for
pumping chemicals or other corrosive liquids (other than pool purification
chemicals in their correct mix ratio).
4. If the pump is being used to drain a pool or pond, ensure there is adequate
drainage and there is no risk of damage to property as a result of water
being discharged. If a flexible hose must be laid across a roadway, protect
it with wooden planking.
AFTER USE
If the pump will not be used over the winter period, or whenever there is
danger of freezing, always drain the pump body. If the pump has been used
with contaminated or salty water, it should be thoroughly flushed with clean
water following use, both inside and out. It should then be drained and
covered over, if not already installed in a clean, dry environment sheltered
from the weather. In the event that dismantling and overhaul of the pump is
necessary, contact your CLARKE service department.
10
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 11
CARE AND MAINTENANCE
Protect the pump and pipework from freezing as the formation of ice may
cause serious damage.
The only maintenance required is a regular inspection to ensure that debris is
not blocking the passage of water through the pump. Should sand, chemical
or other contaminants come into contact with the pump, flush through with
cold clean water as soon as possible.
Periodically unscrew the filter bowl and clean out the cartridge and interior of
any debris collected.
If you suspect the pump is blocked by debris etc, disconnect it from the power
supply and back-flush to clear any blockage using a garden hose.
• You will need to disconnect the outlet hose to do this.
Always keep the pump in a clean condition, checking regularly for loose
fastenings or a damaged power cable etc.
The pump should not be taken apart by the user if overhaul is required, but
should be taken to your nearest CLARKE dealer for repair.
11
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 12
TROUBLESHOOTING
Problem Cause Solution
Pump does not run. Thermal protection has
been activated.
Faulty power connection Insert plug securely.
No mains supply. Check fused power
Impeller seized/blocked Disconnect pump from
Pump fails to prime Air leaks through suction
hose joints (damaged
hose or damaged
clamp.)
Blocked inlet hose Check pipeline for block-
Pump runs but gives poor
output
Congested material
inside pump
Suction or delivery line
obstructed.
Inlet pipe leakage. Check inlet pipe and
Air leaks through
damaged seal.
Impeller damaged and
making poor seal.
Impeller / mechanical
seal is badly worn.
If the motor has overheated, wait for it to cool
down before trying
again.
supply and replace fuse
if necessary (check fuse
rating). Check circuit
breaker.
power supply.
Investigate cause and
clear blockage
Repair connections/
replace hose as
necessary.
age. Check any inlet
valve fitted is fully open.
Clean out & backflush
pump.
Remove obstruction and
ensure there are no kinks
in delivery line.
connector for leaks.
Tighten as required.
Renew seal.
Return to your CLARKE
dealer for repair.
Return to your CLARKE
dealer for repair.
12
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 13
High friction losses in the
suction line.
Avoid unnecessary
curves, restrictions or
valves
Pump badly sited resulting in suction lift too high
Set pump as close as
possible to the level of
the water to be pumped
Sudden loss of flow. Blockage of inlet pipe Check pipeline for
blockage.
Undue vibration or noise. Excessive flow of water. Decrease flow of water.
by adjusting inlet/outlet
valves in system.
Resistance in inlet pipe
caused by obstruction.
Loose rotating
component
Installation of pump is
unstable.
Air pocket in pump or
pipeline.
Check pipe and clean
out as necessary
Return to your CLARKE
dealer for repairs.
Stop pump and
re-position.
Release plug in impeller
housing to release air.
Damaged impeller Return to your CLARKE
dealer for repair.
13
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 14
Page 15

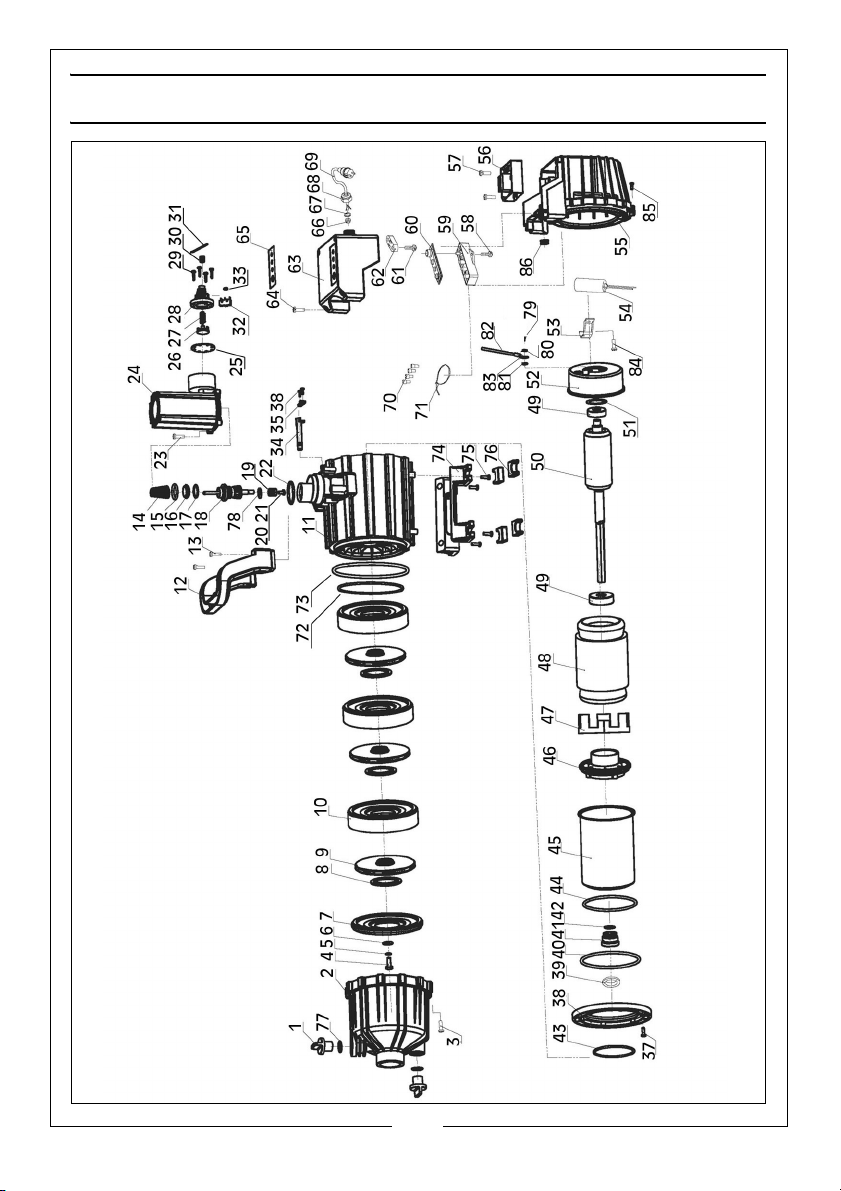

COMPONENT PARTS
ID DESCRIPTION ID DESCRIPTION
1 Valve 31 Signal wire
2 Pump head 32 Micro switch
3 Screw assembly 33 Silica gel
4 Hex bolt 34 Inductive probe
5 Spring washer 35 Cable clamp
6 Flat gasket 36 S/t screw
7 Guide plate cover 37 S/t screw
8 Plastic pad 38 Clamping ring
9 Impeller 39 Thrower
10 Guide plate 40 O-ring
11 Main shell 41 Mechanical seal
12 Handle 42 Gasket
13 S/t screw 43 O-ring
14 Spring 44 O-ring
15 O-ring 45 Motor front cover
16 Sealing ring 46 Lower bearing seat
17 O-ring 47 Spacer
18 Valve element 48 Stator
19 Magnet 49 Bearing
20 Gasket 50 Rotor
21 S/t screw 51 Gasket
22 O-ring 52 Rear cover assembly
23 Bolt 53 Capacitor retainer
24 Outlet connection 54 Capacitor (16uF)
25 Gasket 55 Rear cover
26 Centre block 56 Circuit board holder
27 Spring 57 S/t screw
28 Micro switch frame 58 S/t screw
29 S/t screw 59 LED light circuit board
30 Set screw 60 Sealing strip
15
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 16
ID DESCRIPTION ID DESCRIPTION
61 S/t screw 74 Support legs
62 Cable block 75 St screw
63 Terminal box cover 76 Rubber pad
64 St screw 77 O-ring
65 N/a 78 Gasket
66 Switch seal 79 52-1 screw
67 Washer 80 52-2 Gasket
68 Holding down nut 81 52-3 Cable
69 Power cable 82 52-4 Lug plate
70 Terminal cap 83 52-5 Gasket
71 Cable tie 84 53-1 St screw
72 O-ring 85 55-1 Screw
73 O-ring 86 55-2 Cable grommet
ACCESSORIES
1” BSP Hose adaptor 90 deg bend (male Part No:7950200
1” BSP Plastic Foot Valve Filter FVF10 Part No:7950680
1” dia Reinforced Suction/Delivery Hose Part No:7955010
1” dia Layflat Delivery Hose 5M Part No:7955112
1” dia Layflat Delivery Hose 10M Part No:7955113
1” BSP Male Coupling Part No:7950210
1” BSP Filter assembly Part No:7175105
16
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 17
SUITABLE ACCESSORIES FOR WATER PUMPS
17
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 18

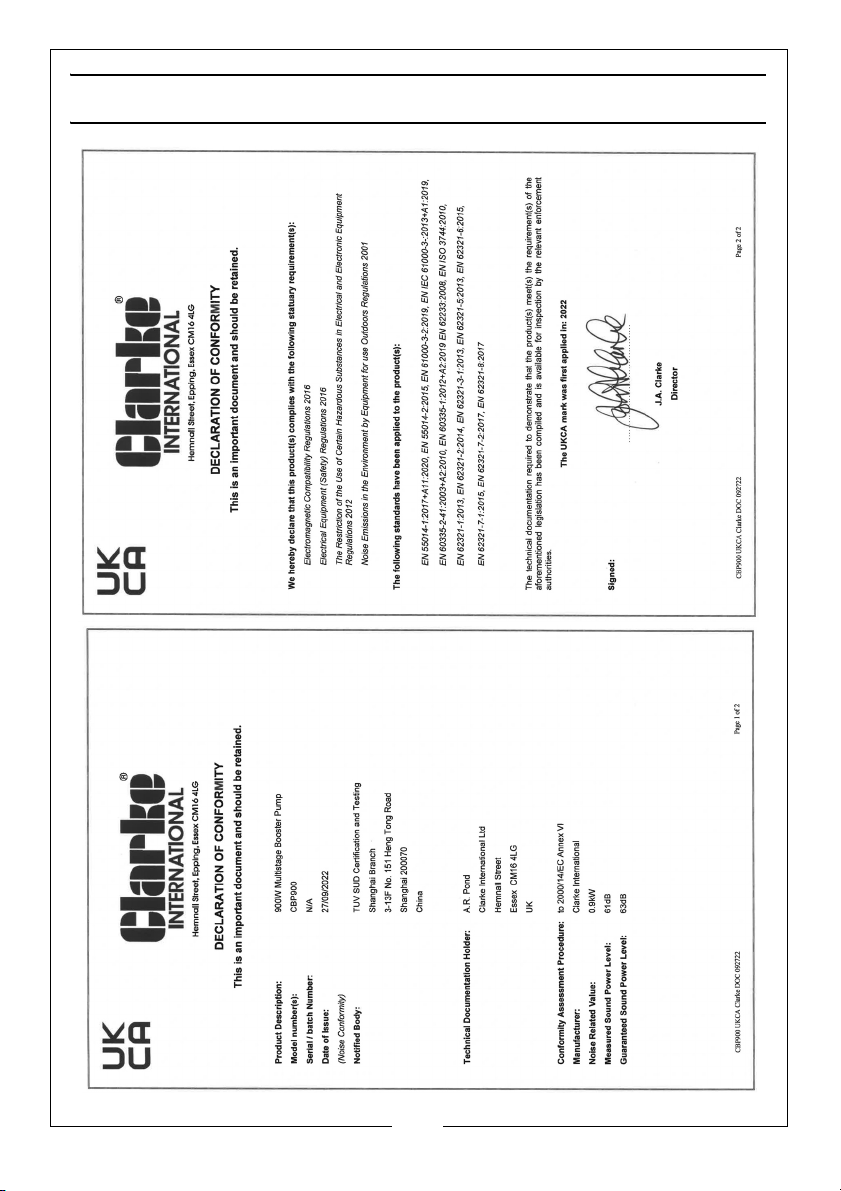

DECLARATION OF CONFORMITY-UK
18
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 19

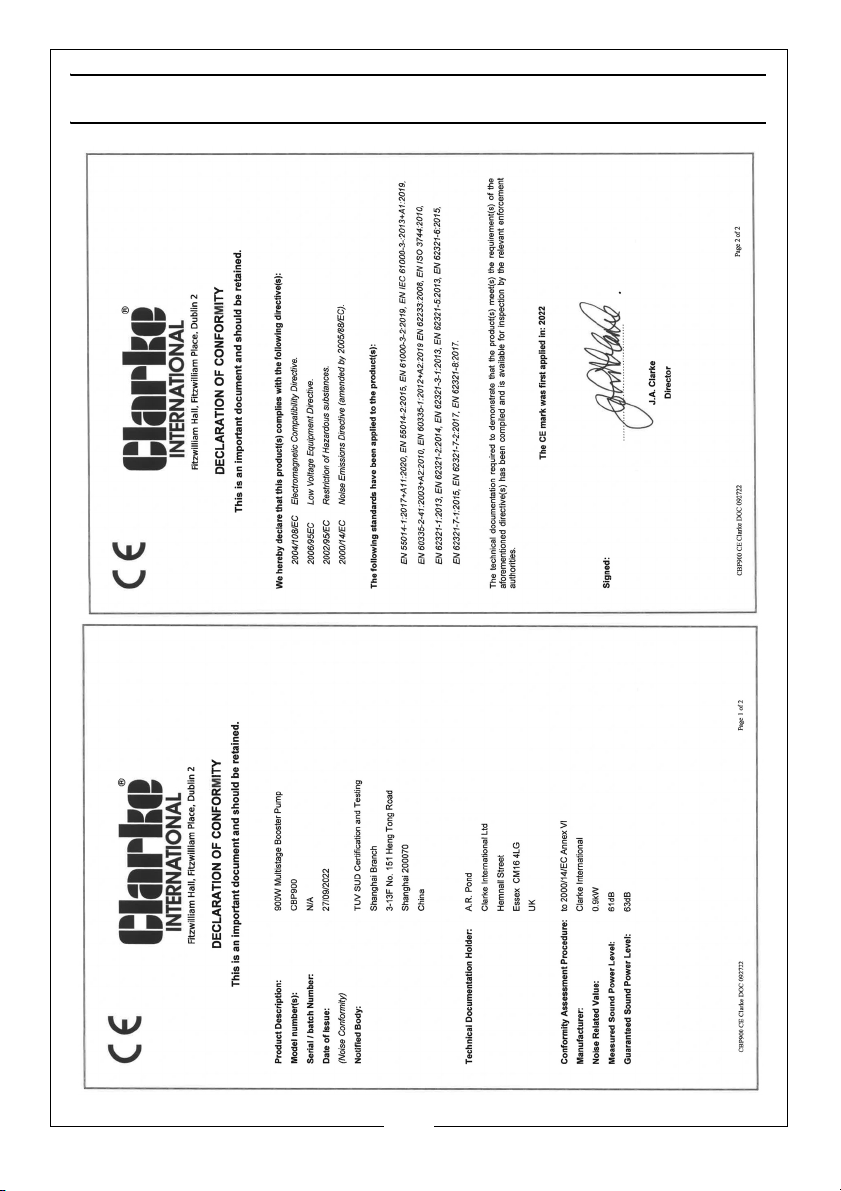

DECLARATION OF CONFORMITY-CE
19
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 20
Loading...
