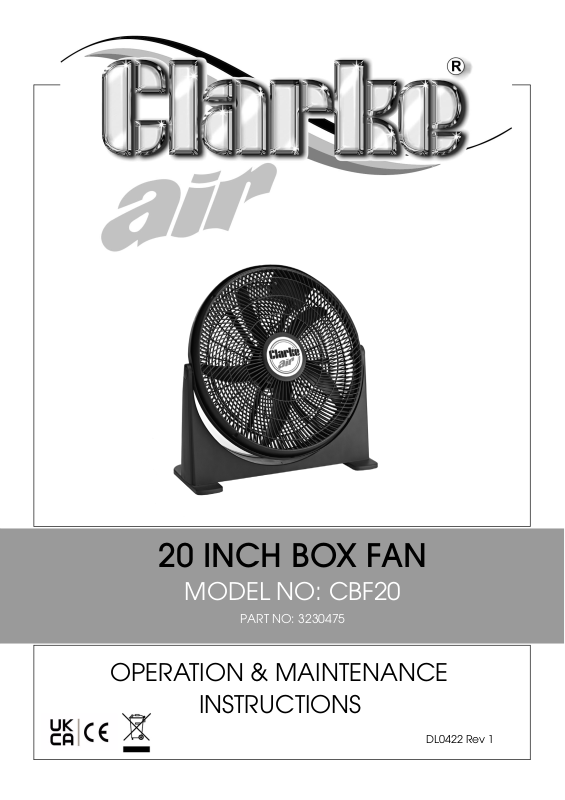

20 INCH BOX FAN

MODEL NO: CBF20

PART NO: 3230475

OPERATION & MAINTENANCE

INSTRUCTIONS

DL0422 Rev 1

INTRODUCTION

Thank you for purchasing this CLARKE 20 inch Box Fan.

Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.

Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.

This guarantee does not effect your statutory rights.

ENVIRONMENTAL RECYCLING POLICY

Through purchase of this product, the customer is taking on the
obligation to deal with the WEEE in accordance with the WEEE
regulations in relation to the treatment, recycling & recovery and
environmentally sound disposal of the WEEE.

In effect, this means that this product must not be disposed of with general
household waste. It must be disposed of according to the laws governing
Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal
facility.

2

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

ELECTRICAL CONNECTIONS

Plug must be BS1363/A approved.

Always fit a 3 Amp fuse.

Ensure that the outer sheath of the cable is firmly held by the clamp

Neutral

(Blue)

Live

(Brown)

WARNING! Read these electrical safety instructions thoroughly
before connecting the product to the mains supply.

Before switching the product on, make sure that the voltage of your electricity supply is
the same as that indicated on the rating plate. This product is designed to operate on
230VAC 50Hz. Connecting it to any other power source may cause damage.

This product may be fitted with a non-rewireable plug. If it is necessary to change the
fuse in the plug, the fuse cover must be refitted. If the fuse cover becomes lost or
damaged, the plug must not be used until a suitable replacement is obtained.

If the plug has to be changed because it is not suitable for your socket, or due to
damage, it should be cut off and a replacement fitted, following the wiring instructions
shown below. The old plug must be disposed of safely, as insertion into a mains socket
could cause an electrical hazard.

WARNING! The wires in the power cable of this product are
coloured in accordance with the following code:
Blue = Neutral Brown = Live

If the colours of the wires in the power cable of this product do not correspond with the
markings on the terminals of your plug, proceed as follows.

• The wire which is coloured Blue must be connected to the terminal which is
marked N or coloured Black.

• The wire which is coloured Brown must be connected to the terminal which is
marked L or coloured Red.

We strongly recommend that this machine is connected to the mains supply via a
Residual Current Device (RCD)

If in any doubt, consult a qualified electrician. DO NOT attempt any repairs yourself.

This symbol indicates that this is a Class II product, and does not require an earth
connection.

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

3

SAFETY PRECAUTIONS

• DO NOT use in dusty environments.

• Indoor use only.

• DO NOT use in environments with high fumes from chemicals etc.

• DO NOT use as an extractor fan.

• DO NOT use in areas of high humidity/water vapour, e.g. bathrooms
etc.

• DO NOT connect fan to a ducting system.

• DO NOT cover the fan with clothing or any material that will restrict
free airflow.

• Never touch the blades with your hand or any other object.

OPERATION

FITTING THE FEET

Insert the feet as shown.

• The feet will snap into place
when secure.

TILTING THE FAN

You can adjust the angle of the fan
by holding the base and grill and
tilting the fan to the required angle.

4

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

ADJUSTING THE SPEED

WARNING: NEVER OPERATE THE FAN WITH EITHER FRONT OR REAR

GRILLS REMOVED.

1. Plug in the power cable to an
appropriate power outlet.

2. Select the desired speed using the
selector switch 0/1/2/3.

0Off

1Low speed

2 Medium speed

3 High speed

MAINTENANCE

• Please observe the safety precautions.

• Remove the plug from the power outlet before cleaning.

• Use a moist cloth and if required, a mild detergent to clean the

surfaces of the fan. Do not use solvents or thinners.

• Store the fan in a cool and dry place.

SPECIFICATIONS

Voltage: 230 VAC (50Hz)

Wattage: 120 W

Fan Speeds Setting 1 900 RPM

Setting 2 1050 RPM

Setting 3 1230 RPM

Dimensions (D x W x H): 250 x 600 x 600 mm

Weight: 3.7 kg

5

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

PART LIST AND DIAGRAM

NO DESCRIPTION NO DESCRIPTION

1 Front Guard 8 Control Box Cover

2 Locking Nut 9 Switch

3 Fan Blade 10 Capacitor

4. Fan Motor 11 Speed Control Switch

5Pivot Pin 12Power Cable

6 Rear Guard 13 Base

7 Control Box 14 Foot

6

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

DECLARATION OF CONFORMITY
