550W BUFFER/POLISHER
MODEL NO: CBB200E
PART NO: 6500560
OPERATION & MAINTENANCE
INSTRUCTIONS
ORIGINAL INSTRUCTIONS GC06/23
Page 2
INTRODUCTION
Thank you for purchasing this CLARKE buffer/polisher.
Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.
SPECIFICATIONS
CBB200E
Rated Motor Power 550W
Fuse Rating 5 Amp
Rated Voltage / Frequency 230V / 50Hz
Ingress protection IP20
Shaft Diameter 16 mm
No Load Speed 2980 rpm
Wheel Diameter 200 mm
Dimensions 200 x 600 x 236 mm
Weight 11.65 kg
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended. Faulty goods should be returned to their place of purchase, no
product can be returned to us without prior permission. This guarantee does
not effect your statutory rights.
ENVIRONMENTAL PROTECTION
Through purchase of this product, the customer is taking on the
obligation to deal with the WEEE in accordance with the WEEE
regulations in relation to the treatment, recycling & recovery and
environmentally sound disposal of the WEEE.
In effect, this means that this product must not be disposed of with general
household waste but according to the laws governing Waste Electrical and
Electronic Equipment (WEEE) at a recognised disposal facility.
2
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 3
POWER TOOL SAFETY WARNINGS
WORK AREA
1. Keep the work area clean and well lit. Cluttered and dark areas invite
accidents.
2. DO NOT operate power tools in explosive atmospheres, such as in the
presence of flammable liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
3. Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.
ELECTRICAL SAFETY
1. Power tool plugs must match the outlet. Never modify the plug in any way.
Do not use adapter plugs with earthed (grounded) power tools. Unmodified
plugs and matching outlets will reduce the risk of electric shock.
2. DO NOT expose power tools to rain or wet conditions. Water entering a
power tool will increase the risk of electric shock.
3. DO NOT abuse the power cable. Never use it for carrying, pulling or
unplugging the buffer/polisher. Keep the power cable away from heat, oil,
sharp edges or moving parts. Damaged or entangled cables increase the
risk of electric shock.
4. When operating a outdoors, use an extension cable suitable for outdoor
use. Use of a cable suitable for outdoor use reduces the risk of electric
shock.
5. If operating in a damp location is unavoidable use a residual current
device (RCD) protected supply.
PERSONAL SAFETY
1. Stay alert, watch what you are doing and use common sense when
operating a power tool. DO NOT use a power tool while you are tired or
under the influence of drugs, alcohol or medication. A moment of
inattention while operating power tools may result in personal injury.
2. Use safety equipment. Always wear eye protection. Safety equipment such
as a dust mask, non-skid safety shoes and hearing protection used for
appropriate conditions will reduce personal injuries.
3. Avoid accidental starting. Ensure the switch is in the off position before
plugging in.
4. Remove any wrench before switching on. A wrench left attached to a
rotating part may result in personal injury.
3
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 4
5. DO NOT overreach. Keep proper footing and balance at all times. This
enables better control of the tool in unexpected situations.
6. Dress properly. Do not wear loose clothing or jewellery. Keep your hair,
clothing and gloves away from moving parts. Loose clothes, jewellery or
long hair can be caught in moving parts.
POWER TOOL USE AND CARE
1. DO NOT force the buffer/polisher. Use the correct accessories for your
application which will do the job better and safer at the rate which it was
designed.
2. DO NOT use the buffer/polisher if the switch does not turn it on and off. Any
power tool that cannot be controlled with the switch is dangerous and
must be repaired.
3. Disconnect the plug from the power source before changing accessories.
Such preventive safety measures reduce the risk of starting the buffer/
polisher accidentally.
4. Store idle tools out of the reach of children and DO NOT allow persons
unfamiliar with the buffer/polisher or these instructions to operate it. Power
tools are dangerous in the hands of untrained users.
5. Maintain power tools. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may affect the power
tool’s operation. If damaged, have the buffer/polisher repaired before use.
Many accidents are caused by poorly maintained power tools.
6. Use the buffer/polisher and accessories in accordance with these
instructions and in the manner intended, taking into account the working
conditions and the work to be performed. Use of the buffer/polisher for
operations different from intended could result in a hazardous situation.
7. The performance of this tool may vary, depending upon variations in line
voltage. Extension cable usage may also affect performance.
SERVICING
1. Have your buffer/polisher serviced by qualified service personnel using
only identical replacement parts. This will ensure that the safety of the
power tool is maintained
.
BUFFER/POLISHER SPECIFIC WARNINGS
1. DO NOT get the buffer/polisher wet or use in damp or wet locations.
2. DO NOT switch the buffer/polisher on whilst the wheel is in contact with the
workpiece.
4
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 5
3. Avoid polishing dissimilar metals with the same buffing wheel; galvanic
corrosion may occur.
4. DO NOT touch the workpiece immediately after polishing as it may be very
hot.
5. DO NOT touch the buffing wheel whilst operating or whilst plugged into the
mains power.
6. DO NOT leave the buffer/polisher running unattended.
7. DO NOT operate the buffer/polisher when you are tired or under the
influence of alcohol, drugs or intoxicating medication.
8. When not in use, switch the buffer/polisher off and remove the plug from
the power supply.
SAFETY SYMBOLS
Read the manual
and safety
instructions before
use
Ear protection
should be worn
Hazard - motor gets
hot
The above symbols may appear on the machine.
Eye protection
should be worn
Dust mask should be
worn
5
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 6

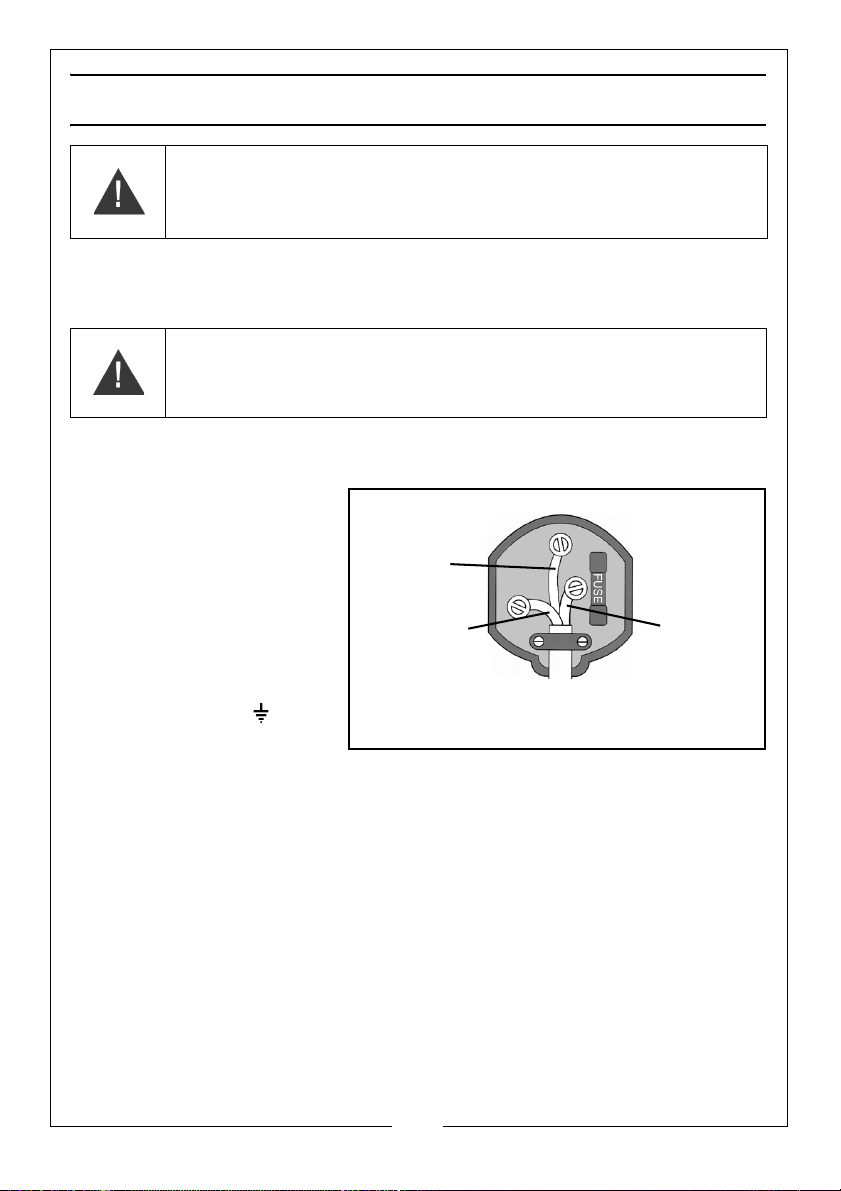

ELECTRICAL CONNECTIONS
Plug must be BS1363/A approved.
make sure that the outer sheath of
Neutral
(Blue)
Live
(Brown)
Earth
(Green and
the cable is firmly held by the clamp
Yel low)
WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS FULLY
BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY.
This product is provided with a standard 13 amp, 230 volt (50Hz), BS 1363 plug,
for connection to a standard, domestic electrical supply. Should the plug
need changing, make sure that a plug of identical specification is used.
WARNING: THE WIRES IN THE CABLE ARE COLOURED AS FOLLOWS:
BLUE = NEUTRAL BROWN = LIVE YELLOW AND GREEN = EARTH
If the colours of the wires in the power cable do not correspond with the
markings on the terminals of your plug, proceed as follows.
• Connect the blue wire
to the terminal which
is marked N.
• Connect the brown
wire to the terminal
which is marked L.
• Connect the yellow
and green wire to the
terminal which is
marked E or .
• See the specification
table for the correct
fuse size.
AN APPROVED RESIDUAL CURRENT DEVICE (RCD) WHICH HAS A TRIPPING
CURRENT OF LESS THAN 30MA MUST BE USED.
If you are not sure, consult a qualified electrician. DO NOT try to do any
repairs.
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
6
Page 7

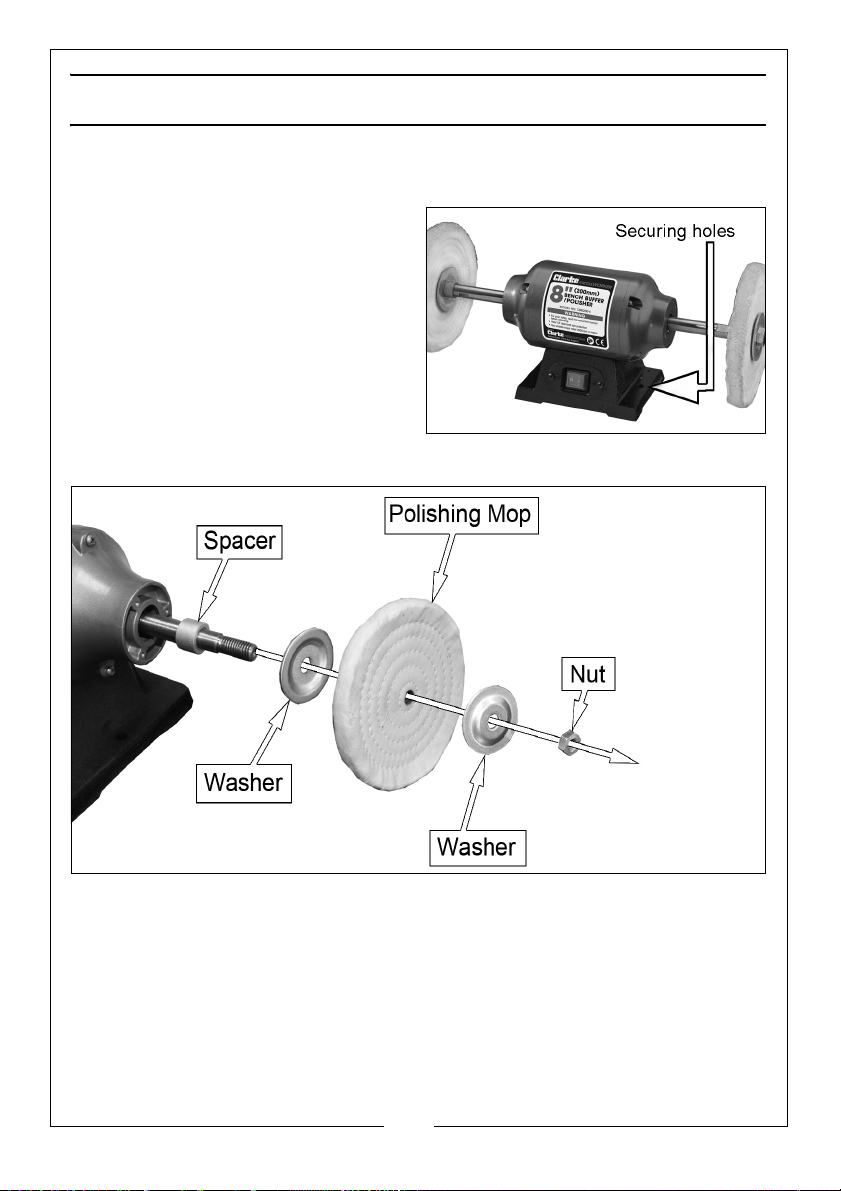

ASSEMBLY
MOUNTING THE MACHINE
1. Bolt the buffer/polisher to a
workbench using the securing holes
shown.
• Check that all assembly nuts
and bolts are secure before
turning the machine on.
FITTING BUFFING/POLISHING PADS
1. Place the spacer over the shaft.
2. Place the polishing mop between the washers and secure with the retaining
nut, hand tight.
• The shaft threaded ends are handed LH and RH.
3. Tighten the nuts enough to grip without crushing the buffing/polishing pad.
NOTE: Wheel rotation, in use, will tighten the retaining nut.
7
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 8

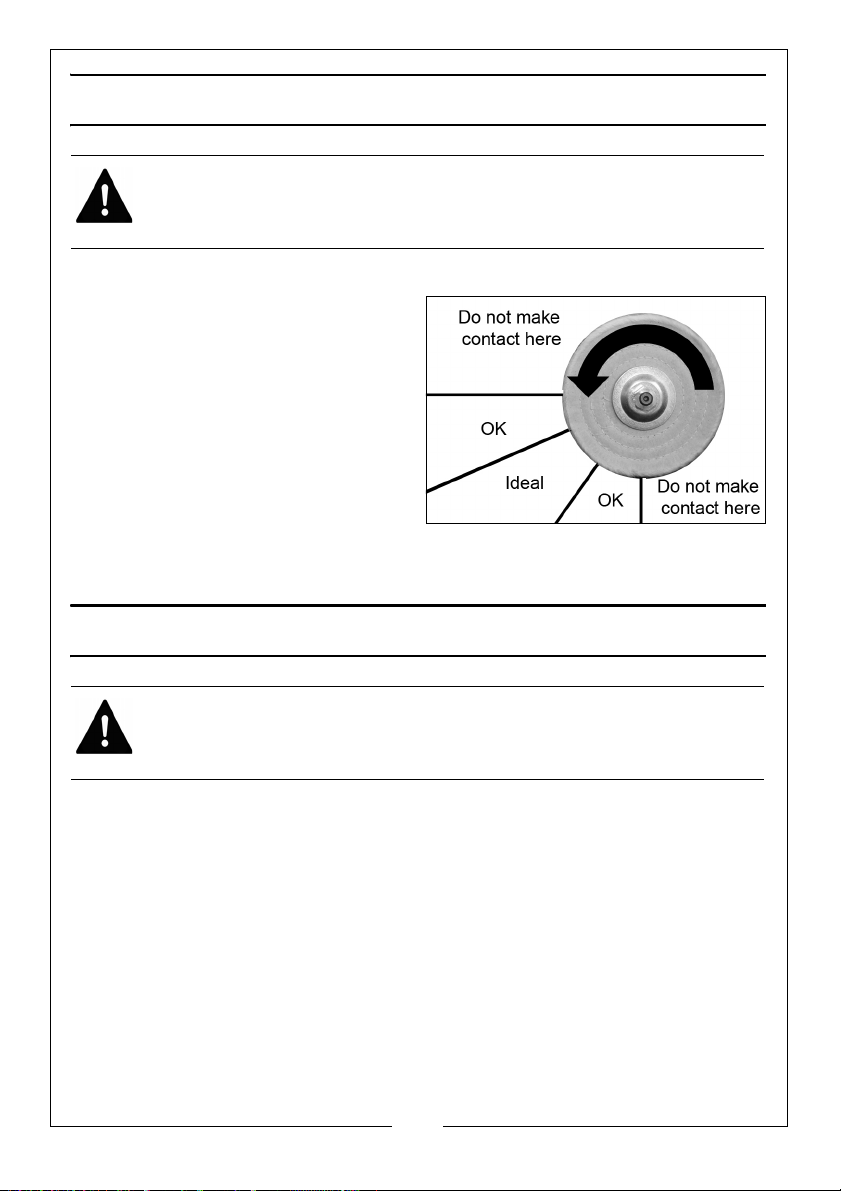

USING YOUR BUFFER/POLISHER
WARNING: BEFORE COMMENCING WORK, ENSURE YOU HAVE READ AND
UNDERSTOOD ALL OF THE SAFETY INSTRUCTIONS
1. Plug the buffer/polisher into the mains power supply.
2. Switch the buffer/polisher on
3. Slowly bring the workpiece into
contact with the polishing mop.
• See the image on the right to
determine the safest and best
position for contact with the
wheel.
• DO NOT contact the wheel
outside of the quadrant.
4. After use, unplug the buffer/polisher from the power supply, and clean the
machine ready for next use.
MAINTENANCE
WARNING: MAKE SURE THAT THE BUFFER/POLISHER IS UNPLUGGED FROM
THE MAINS POWER SUPPLY BEFORE PERFORMING ANY MAINTENANCE.
1. Regularly inspect the buffing/polishing pad and replace when worn.
2. The motor and bearings are sealed units and require no maintenance.
CLEANING
1. Keep the machine clean and dry. DO NOT use abrasives.
2. Clean the exterior the machine if required using a mild detergent or mild
solvent.
3. Never immerse the machine in water.
4. Keep any cooling vents free of debris.
8
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 9

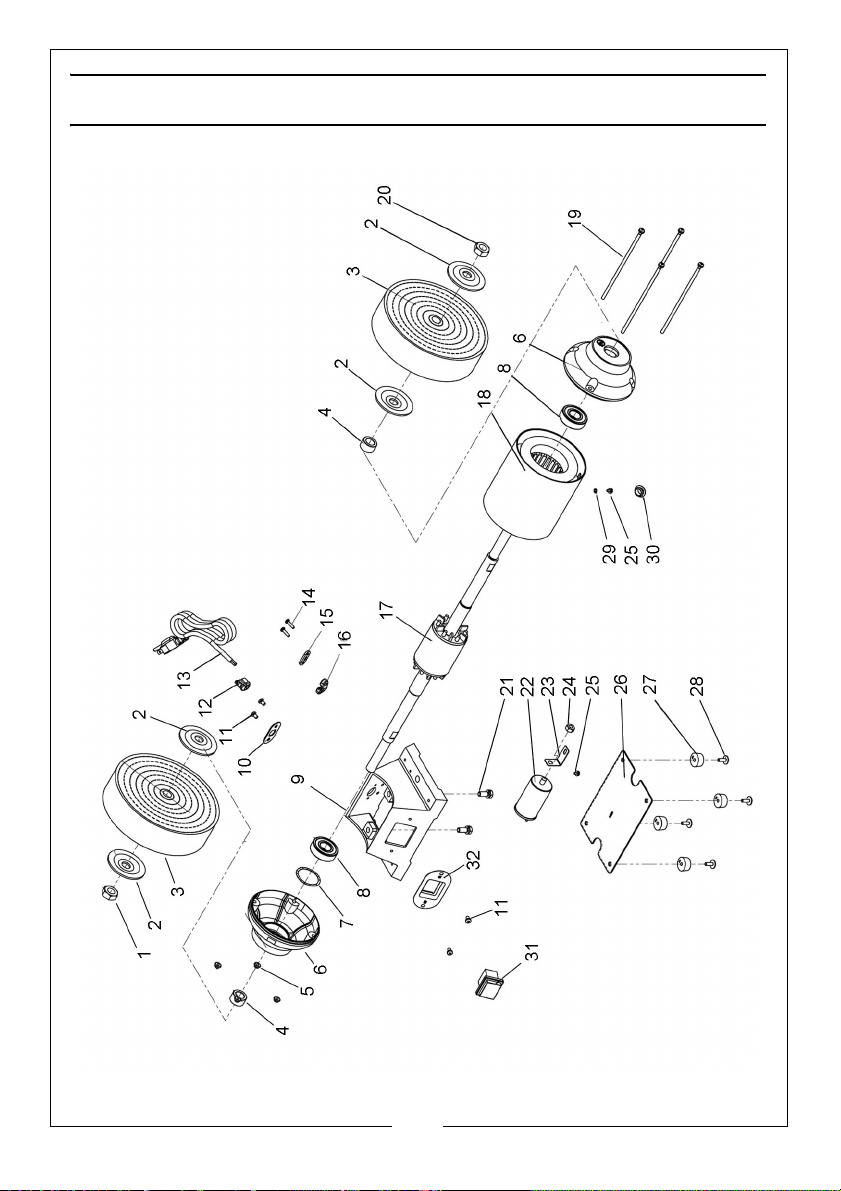

COMPONENT PARTS
1 Nut M16(Left-hand tread) 17 Motor rotor
2 Retaining disc 18 Motor stator cable gland
3 Buffing wheel 19 Philips screw & washer M5x165
4 Spacer bush 20 Nut M16
5 Flanged nut M5 21 Bolt M8x20 c/w washer
6End cap 22Capacitor
7 Corrugated washer 23 Capacitor bracket Nut M8
8 Bearing 6204-2RZ 24 Hex nut M8
9 Base 25 Philips screw & washer M4x7
10 Cable clip baseplate 26 Base plate
11 Screw M5x8 27 Rubber foot
12 Cable clip 28 Philips screw & washer M5x16
13 Power cable & plug 29 Toothed lockwasher
14 Philips screw M4 x 16 30 Cable sheathing
15 Cable joint bolster 31 Switch
16 Cable joint plate 32 Switch baseboard
REPLACEMENT POLISHING MOPS
TYPE PART NUMBER
200 mm REPLACEMENT POLISHING MOP OPEN 6500495
STITCHED 6500496
Replacement mops are available from your CLARKE dealer.
9
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 10
Page 11
DECLARATIONS OF CONFORMITY
11
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
