Page 1
1.5 TONNE AXLE STAND
MODEL NO: CAX3TA
PART NO: 7600030
INSTRUCTIONS
GC0219 - ISS 2
Page 2
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12 months from
the date of purchase. Please keep your receipt which will be required as proof of
purchase.
This guarantee is invalid if the product is found to have been abused or tampered with
in any way, or not used for the purpose for which it was intended.
Faulty goods should be returned to their place of purchase, no product can be
returned to us without prior permission. This guarantee does not effect your statutory
rights

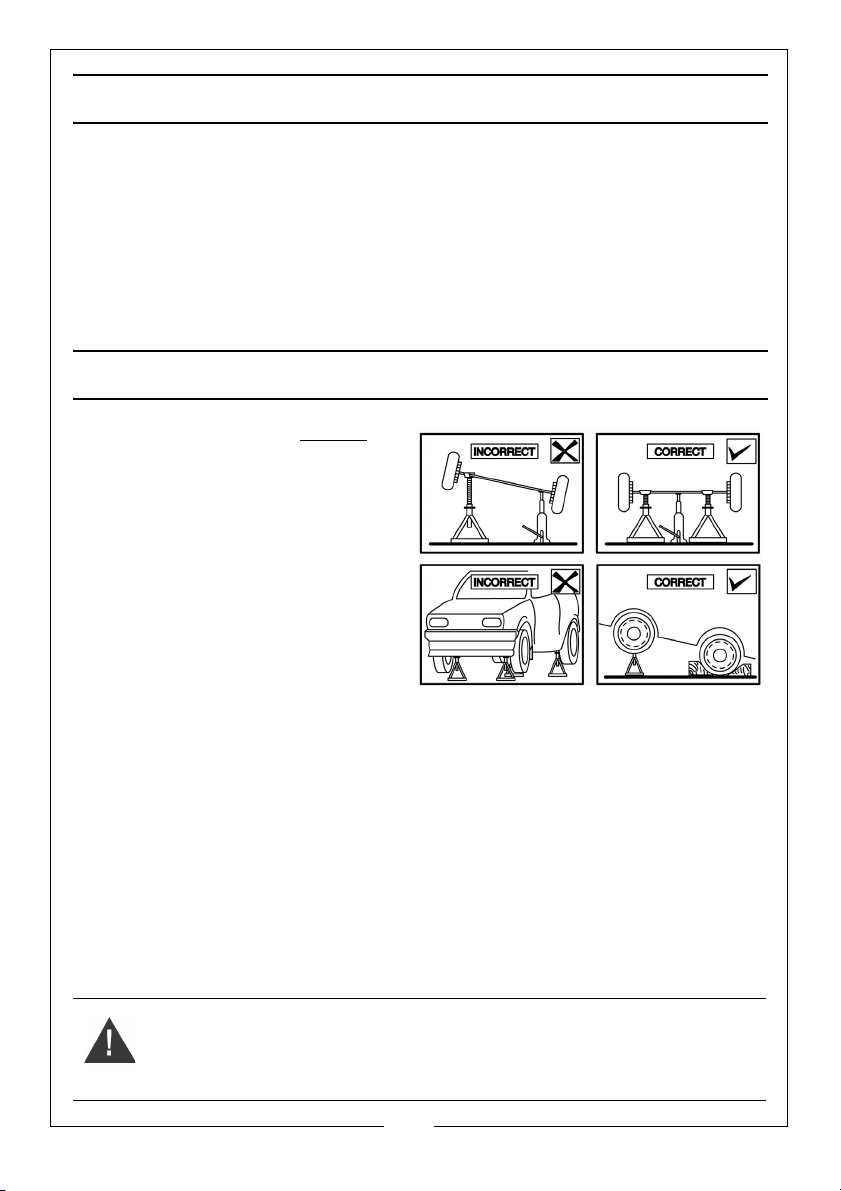

SAFETY WARNINGS
• Read these instructions carefully
before use.
• Do not exceed the axle stands
maximum load (1500 kg each /
3000 kg per pair), The vehicle
weight will be stated in the owners
manual.
• Use only as specified in this manual.
• NEVER let children play in or around
a vehicle that is on axle stands.
• ALWAYS make sure that before you
work below the vehicle, a
responsible person is aware in case of injury or accident.
• Do not use more than one pair of axle stands.
• Replace the warning label if it becomes unreadable.
• Use only on a hard, flat surface, for example concrete.
• Make sure that you chock all the wheels that remain on the ground.
• Make sure that the supported vehicle cannot move.
• Set each axle stand below an appropriate point on the vehicle - See your vehicle
owners manual for advice.
• Take care when using the axle stands on a three-wheeled vehicle or trailer.
• Use stands as a matched pair to support one end of a vehicle only.
• For your safety, do not modify these axle stands.
WARNING: NEVER WORK UNDER A VEHICLE SUPPORTED ONLY BY A JACK.
WARNING: AFTER LIFTING THE VEHICLE, SUPPORT IMMEDIATELY WITH PROPERLY
RATED AXLE STANDS
2
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 3

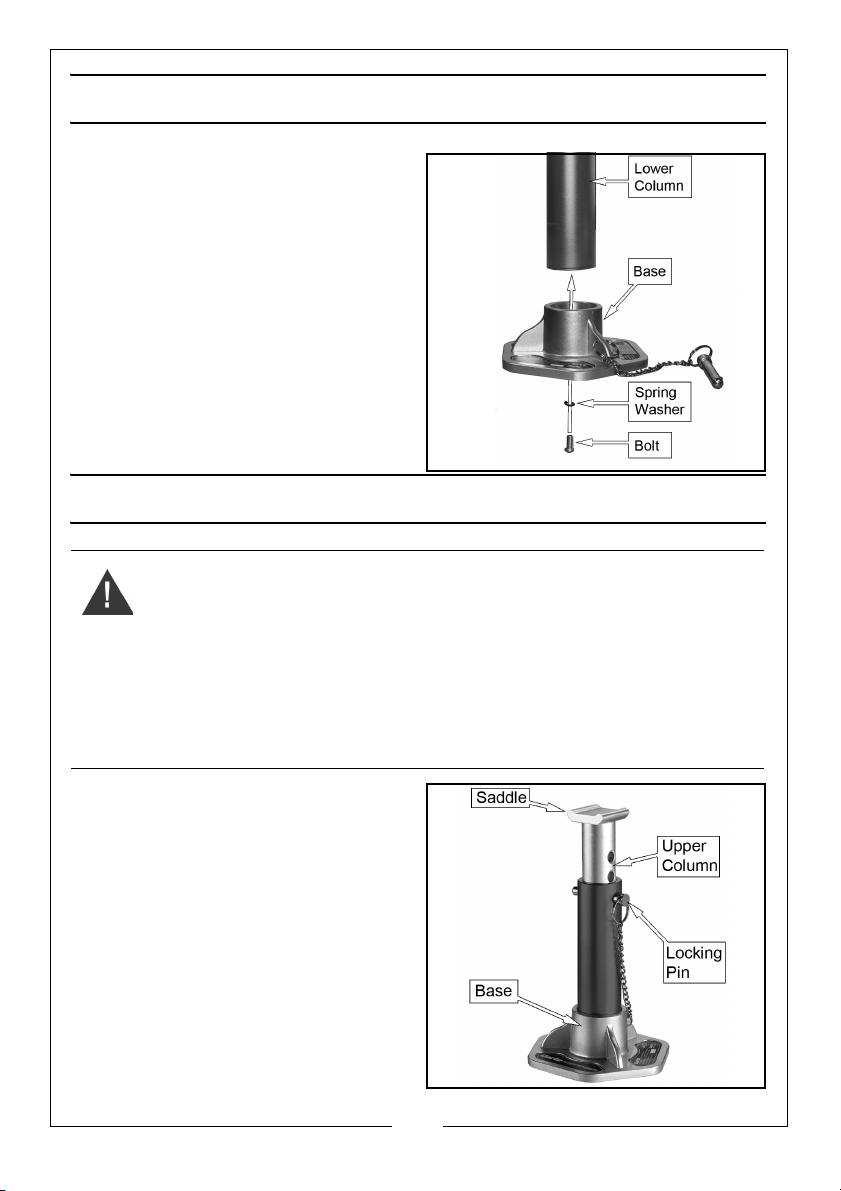

ASSEMBLY
1. Slide the lower column into the base.
2. Secure in place using the spring washer
and bolt as shown on the right.
USING THE AXLE STANDS
WARNING: BEFORE USE, MAKE SURE THAT THERE IS NO DAMAGE TO ANY PART OF
THE AXLE STAND, IF THERE IS, DO NOT USE.
WARNING: DO NOT EXCEED THE RATED LOAD OF 3000 KG PER PAIR OR 1500 KG
PER STAND.
WARNING: USE ONLY ON A HARD, FLAT SURFACE, E.G. CONCRETE.
WARNING: IT MUST BE ENSURED THAT THE VEHICLE/LOAD IS CAREFULLY LOCATED
ONTO THE CENTRE OF THE AXLE STAND SADDLE. FAILURE TO DO THIS CAN RESULT
IN DAMAGE TO THE AXLE STANDS, LOSS OF SUPPORT TO THE LOAD, SERIOUS
PERSONAL INJURY OR LOSS OF LIFE.
1. Refer to the vehicle handbook for the
correct jacking procedure and
location of support points.
2. Raise the vehicle using a suitable lifting
jack.
ADJUST THE AXLE STAND
1. Remove the locking pin (if fitted).
2. Raise the upper column to the required
height and replace the locking pin.
3. Position the axle stand under a suitable
supporting point. See your vehicle
manual for the location.
3
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 4
LOWERING THE VEHICLE
1. Slowly lower the vehicle onto the centre of the saddle.
WARNING: DO NOT LOAD THE STANDS OFF CENTRE. FAILURE TO HEED THIS
WARNING MAY CAUSE DAMAGE, INJURY OR LOSS OF LIFE.
TO REMOVE THE AXLE STANDS
1. Raise vehicle clear of the axle stands.
2. Remove stands.
3. Ensure that all tools, equipment and personnel are clear before carefully
lowering the vehicle to the ground.
SPECIFICATION
Maximum Height 391 mm
Minimum Height 266 mm
Maximum Load 3000 kg per pair or 1500 kg per stand
Product Weight 4.6 kg per pair
4
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
