AIR REGULATOR
MODEL NO: CAT865
PART NO: 3120167
OPERATING & MAINTENANCE
INSTRUCTIONS
GC0316
Page 2
INTRODUCTION
Thank you for purchasing this CLARKE Air Regulator.
Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.
Your Air Regulator has been designed to give long and trouble free service. If,
however, having followed the instructions in this booklet carefully, you
encounter problems, take the unit to your local CLARKE dealer.
SPECIFICATIONS
Dimensions (D x W x H) 113 x 70 x 149 mm
Weight 0.8 kg
Air Inlet /Outlet Size 1/2“BSP (female)
Max Operating Pressure
Max Supply Pressure
Regulating range
Ambient/Media Temperature 5-60 deg C
140 psi / 9.7 bar (9.9 kgf/cm
213 psi /14.7 bar (15 kgf/cm2 )
0.5 - 8.3 bar (7.25-120 psi)
2
)
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does not effect your statutory rights.
2
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 3
GENERAL SAFETY RULES
CAUTION: FAILURE TO FOLLOW THESE PRECAUTIONS COULD RESULT IN
PERSONAL INJURY, AND/OR DAMAGE TO PROPERTY.
WORK ENVIRONMENT
1. Keep the work area clean and tidy.
2. Dress appropriately - do not wear loose clothing or jewellery. Tie long hair
out of the way.
3. Keep children and visitors away - do not let children handle the tools.
4. Do not operate air tools where there are flammable liquids or gases.
USE OF AIRLINE EQUIPMENT
1. Stay alert and use common sense - do not operate an air tool when you
are tired or under the influence of alcohol, drugs or medication.
2. Do not overreach - Keep proper footing and balance at all times.
3. Never use oxygen, CO
a source of power for air tools.
4. Do not exceed the maximum pressure for the airline component stated in
the specification.
5. Check airline hoses for leaks or worn condition before use and ensure that
all connections are secure.
6. Keep the air supply hose away from heat, oil and sharp edges.
7. Avoid damaging the component for example by applying excessive force
of any kind.
8. Always maintain the air tool with care. Keep it clean for the best and safest
performance.
, combustible gasses or any type of bottled gas as
2
3
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 4
OVERVIEW
When opening the carton for the first time, check against the following list that
all the items are present. Any damage or deficiency should be reported to
your CLARKE dealer immediately.

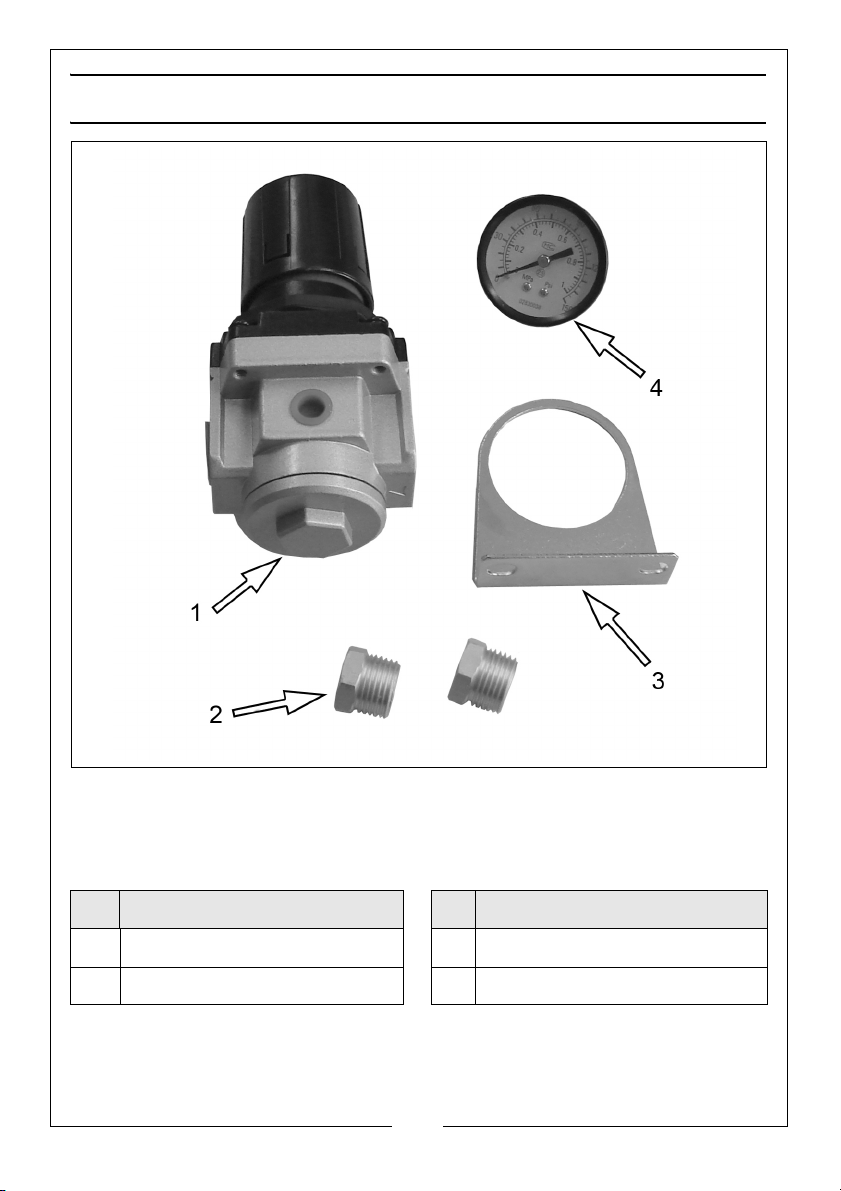

NO DESCRIPTION NO DESCRIPTION
1 In-line Air Regulator
2 2 x 1/2” to 1/4” BSP adaptors
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
3 1 x Wall Bracket
4 1 x Pressure Gauge
4
Page 5
COMPRESSED AIRLINE REQUIREMENTS
WARNING: COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU
ARE FAMILIAR WITH ALL PRECAUTIONS RELATING TO THE USE OF
COMPRESSORS AND COMPRESSED AIR SUPPLY.
• Use only clean, dry, regulated compressed air as a power source.
• Air compressors must comply with the appropriate European
Community Safety Directives.
• A build-up of moisture in the air compressor will accelerate wear
and corrosion in the air tool. Ensure any moisture is drained from the
compressor daily and the airline filter is kept clean.
• If an unusually long air hose is required, (over 8 metres), the line
pressure or the hose inside diameter may need to be increased.
• The air hose must be rated at least 150% of the maximum operating
pressure of the air tool.

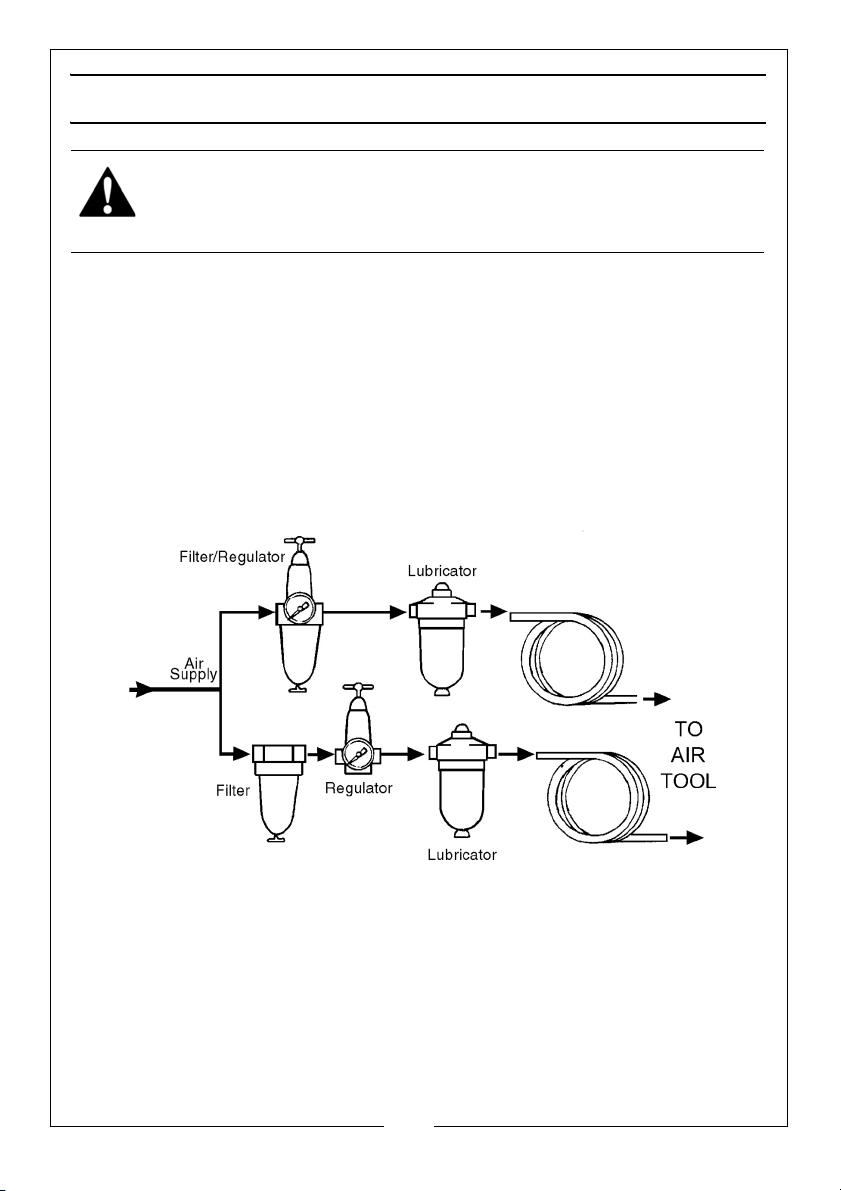

• A typical air line layout is shown above. If an automatic in-line filter/
regulator is used, it will keep the tool in good condition, but should
be regularly checked and topped up with oil. SAE 10 oil should be
used, and the lubricator adjusted to approx 2 drops per minute.
• Never exceed the maximum operating pressure for the air tool.
Ensure that air pressure does not exceed that stated in the
specification for the tool when running. Higher pressures and
contaminated air will shorten the life of the air tool due to faster
wear and is a possible safety hazard.
5
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 6
INSTALLATION
WARNING: COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU
ARE FAMILIAR WITH ALL PRECAUTIONS RELATING TO THE USE OF AIR
COMPRESSORS AND COMPRESSED AIR SYSTEMS.
Ensure the compressor is turned off.

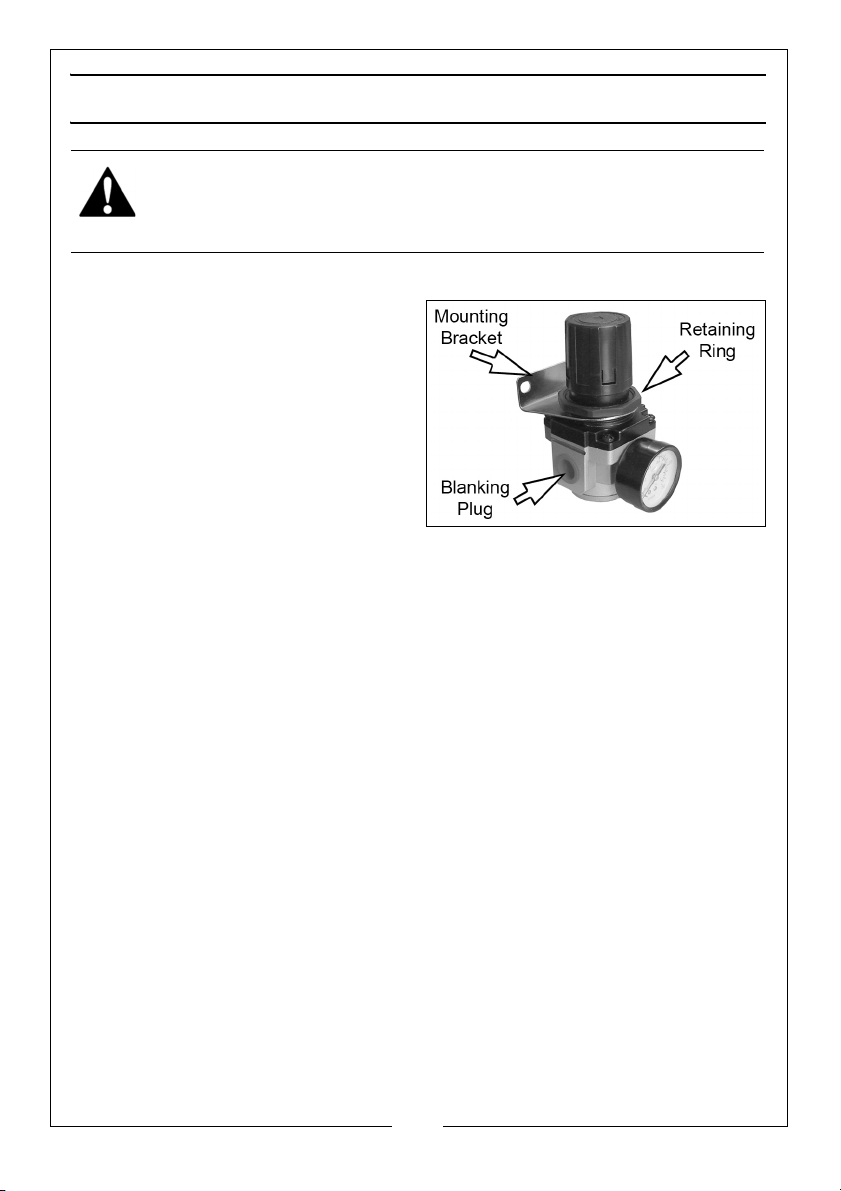

1. Fit the mounting bracket to a
suitable support, situated in line
with the compressed air supply.
• Ensure sufficient free space
above the regulator for future
adjustments.
2. Remove the retaining ring and fit
the regulator to the mounting
bracket.
• Note the arrow mark
underneath the regulator body, indicating the direction of air flow.
3. Fit the pressure gauge to the threaded port on the front of the regulator.
4. Remove the blanking plugs from the connection ports and connect to the
supply and delivery hoses.
NOTE: Note that a pair of 1/2” to 1/4” BSP adaptors are supplied.
5. Use PTFE tape if required, to ensure airtight connections.
6. Your regulator is now ready for use.
SETTING
1. The adjustment knob is of the locking type. Pull the knob away from the
body until the red band is visible. Adjust the air supply as required and push
the knob back down to its locked position to prevent acccidental setting
changes.
• Turning the adjustment knob clockwise increases the pressure.
Turning counter clockwise will reduce the pressure.
• + and - are marked on the knob.
AIRLINE MAINTENANCE
1. Before using the airline, drain water from the air reservoir at the compressor.
2. Check the supply airline filter for blockage and clean if necessary.
6
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 7

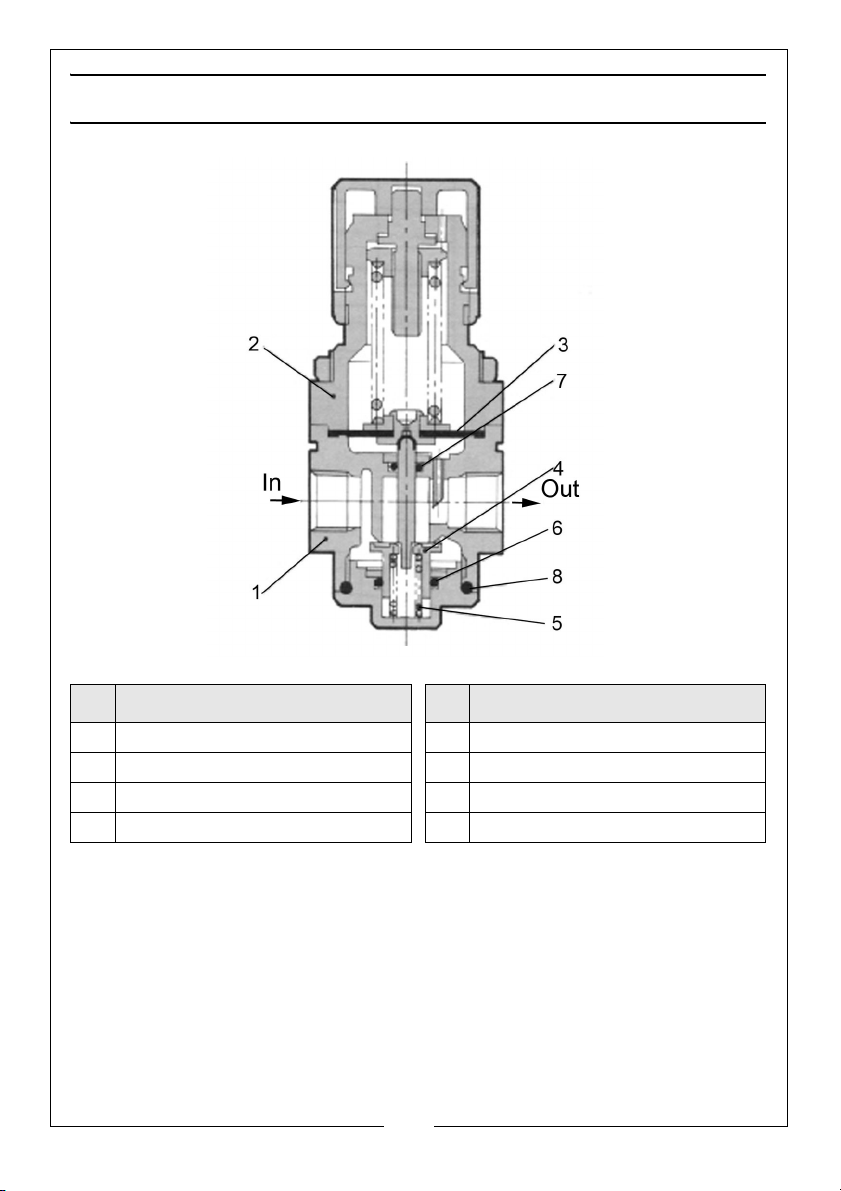

PARTS LIST & DIAGRAM
No Description No Description
1 Body 5 Valve Spring
2 Bonnet 6 Valve O-Ring
3 Diaphragm Assembly 7 O-Ring
4 Valve Assembly 8 O-Ring
ACCESSORIES
A wide range of accessories is available including filter/regulators, lubricators,
high-pressure hoses (5 to 50 metres) etc.
Contact your CLARKE dealer for further information or CLARKE International
Service Department.
7
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 8
