Clarke CAT 78, 3110790 User guide

Page 1
IMPACT WRENCH
MODEL NO: CAT78
PART NO: 3110790
OPERATING & MAINTENANCE
INSTRUCTIONS
GC0813
Page 2
Thank you for purchasing this CLARKE Impact Wrench.
Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service.

IMPORTANT

Please read all of the safety and operating instructions carefully before using this product. Please pay particular attention to all sections of these instructions that display warning symbols and notices.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt which will be required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or tampered with in any way, or not used for the purpose for which it was intended.
Faulty goods should be returned to their place of purchase, no product can be returned to us without prior permission. This guarantee does not effect your statutory rights.
2
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 3

GENERAL SAFETY RULES

CAUTION: FAILURE TO FOLLOW THESE PRECAUTIONS COULD RESULT IN PERSONAL INJURY, AND/OR DAMAGE TO PROPERTY.

WORK ENVIRONMENT

1. Keep the work area clean and tidy.
2. Dress appropriately - Do not wear loose clothing or jewellery. Tie long hair out of the way.
3. Keep children and visitors away - Do not let children handle the impact wrench.
4. Do not operate the impact wrench where there are flammable liquids or gases.
5. Keep the air supply hose away from heat, oil and sharp edges.
6. Do not fit the impact wrench to any stand or clamping device that may damage the wrench.
USE
1. Stay alert and use common sense - do not operate the impact wrench when you are tired or under the influence of alcohol, drugs or medication.
2. Always wear eye protectors when using the impact wrench - eye protectors must provide protection from flying particles from the front and the side.
3. Always wear ear protectors when using the impact wrench.
4. Do not overreach - Keep proper footing and balance at all times.
5. Never use any type of bottled gas as a source of power for the impact wrench.
6. Do not connect the air supply hose with your finger on the trigger of the impact wrench.
7. Do not exceed the maximum pressure for the impact wrench: 90 psi / 6.2 bar.
8. Check hoses for leaks or worn condition before use, and ensure that all connections are secure.
9. Do not use the impact wrench for any other purpose than that described in this manual.
3
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 4
10. Do not carry out any alterations or modifications to the impact wrench.
11. Always disconnect from the air supply when:
• Performing any maintenance
• The impact wrench is not in use.
• The impact wrench will be left unattended.
• Moving to another work area.
• Passing the impact wrench to another person.
12. Never use the impact wrench if it is defective or operating abnormally.
13. The impact wrench should be serviced at regular intervals by qualified service personnel.
14. Avoid damaging the impact wrench for example by applying excessive force of any kind.
15. ALWAYS maintain the tool with care. Keep it clean for the best and safest performance.
16. Quick change couplings should not be located at the tool. They add weight and could fail due to vibration.
17. DO NOT force or misuse the tool. It will do a better and safer job at the rate for which it was designed.
18. Do not remove any labels. Damaged labels should be replaced.
19. This tool vibrates with use. Vibration may be harmful to your hands or arms. Stop using the tool if discomfort, a tingling feeling or pain occurs. Seek medical advice before resuming use.
20. NEVER use standard sockets. These may shatter with serious consequences. Use ONLY impact sockets.

TRANSPORTATION

1. Never carry the impact wrench by the air supply hose.
2. Never carry the impact wrench with your finger on the trigger.

STORAGE

1. When not in use the impact wrench must be disconnected from the air supply and stored in a dry place out of the reach of children (preferably in a locked cabinet).
2. Avoid storing the impact wrench in environments where the temperature is below 0
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
o
C.
4
Page 5

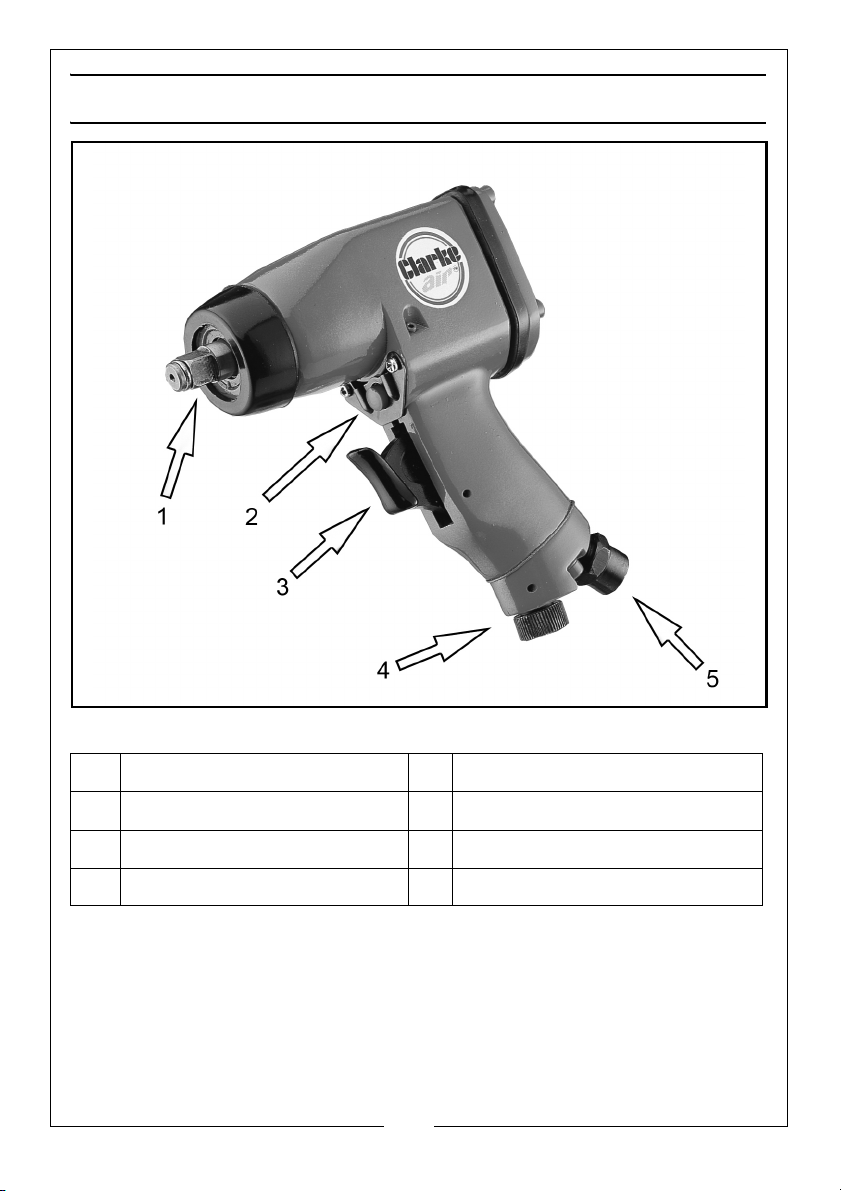

OVERVIEW

NO DESCRIPTION NO DESCRIPTION
1 Anvil 4 Speed Control Regulator
2 Forward/Reverse Valve 5 1/4” BSP (Female Air Inlet)
3Trigger
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
5
Page 6

THE COMPRESSED AIR SUPPLY

AIR SUPPLY REQUIREMENTS

WARNING: COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU ARE FAMILIAR WITH ALL PRECAUTIONS RELATING TO THE USE OF COMPRESSORS AND COMPRESSED AIR SUPPLY.
• Use only clean, dry, regulated compressed air as a power source.
• Air compressors used with the impact wrench must comply with the
appropriate European Community Safety Directives.
• A build-up of moisture or oil in the air compressor will accelerate
wear and corrosion in the impact wrench. ensure any moisture is drained from the compressor daily and the inlet filter is kept clean.
• If an unusually long air hose is required, (over 8 metres), the line
pressure or the hose inside diameter may need to be increased. The minimum hose diameter should be 5/16”(8mm) ID and fittings should have the same internal dimensions.
• Never exceed the maximum operating pressure for the wrench. It is
recommended that air pressure to this tool does not exceed 90 psi at the tool when running. Higher pressures and unclean air will shorten the life of the tool due to faster wear and is a possible safety hazard.
• The air hose must be rated at least 150% of the maximum operating
pressure of the tool.
6
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 7

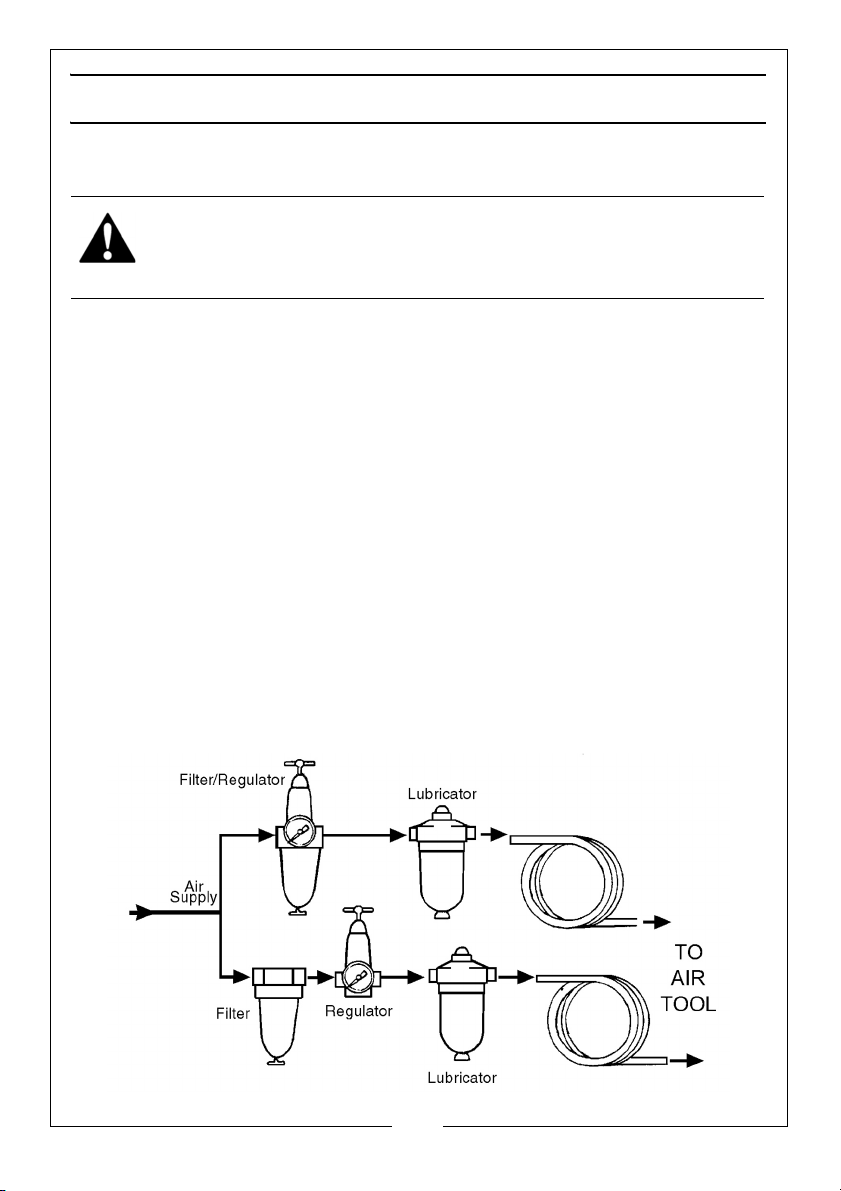

• A typical air line layout is shown above. If an automatic in-line filter/
regulator is used, it will keep the tool in good condition, but should be regularly checked and topped up with oil. SAE 10 oil should be used, and the lubricator adjusted to approx 2 drops per minute.

BEFORE USE

WARNING: COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU ARE FAMILIAR WITH ALL PRECAUTIONS RELATING TO THE USE OF AIR COMPRESSORS AND COMPRESSED AIR SUPPLY.
NOTE: Ensure the compressor is turned off.

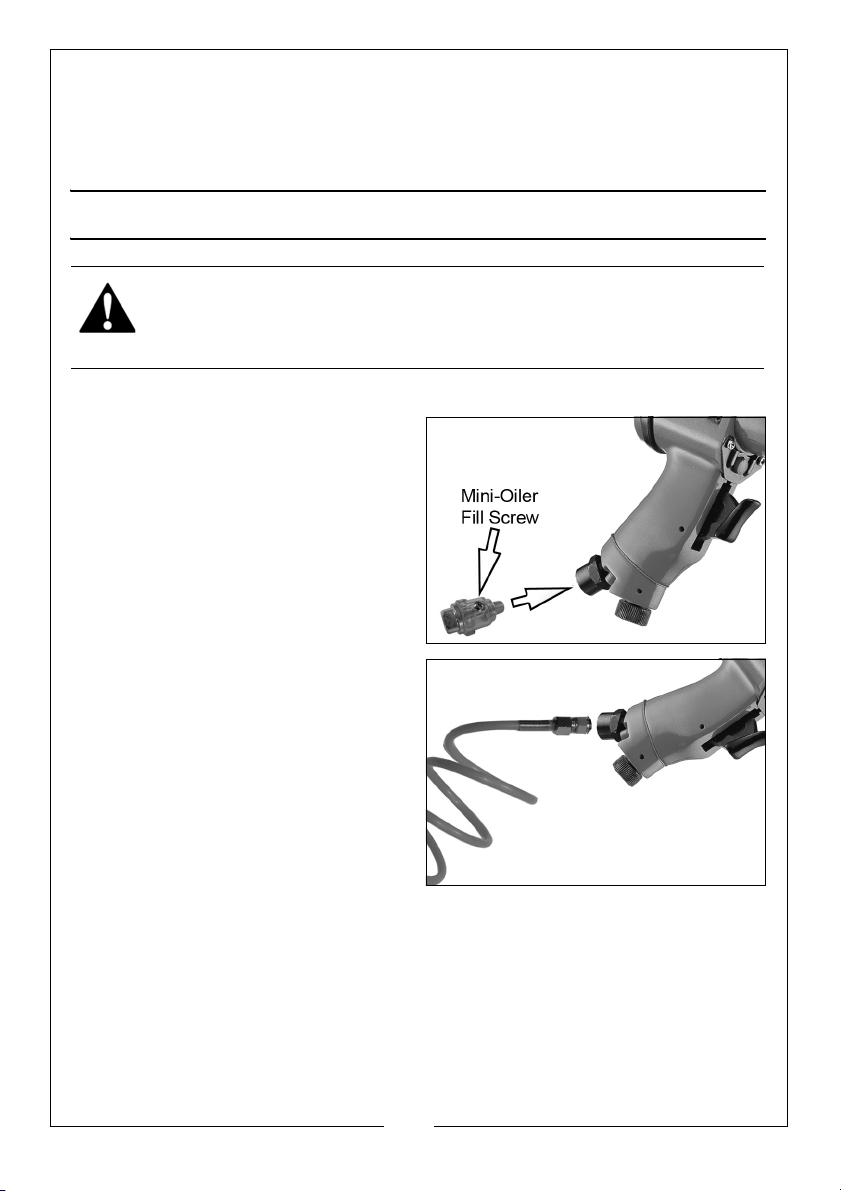

1. If required, connect an in-line mini oiler to the tool.
• A mini oiler helps to prolong the
life of the impact wrench. Remove the oil fill screw from the side of the mini oiler and fill with Air-line Oil available from your CLARKE dealer. Replace the screw before using the wrench.
2. If a mini-oiler is not being used, run a few drops of oil through the tool before use. It can be entered through the inlet strainer or via the hose at the nearest connection to the air supply.
3. Connect a suitable hose as shown.
4. Connect the other end of the hose to the compressor.
5. Your impact wrench is now ready for use.
You can fit a whip hose with a quick fit coupling if required (available from your Clarke dealer.)
7
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 8

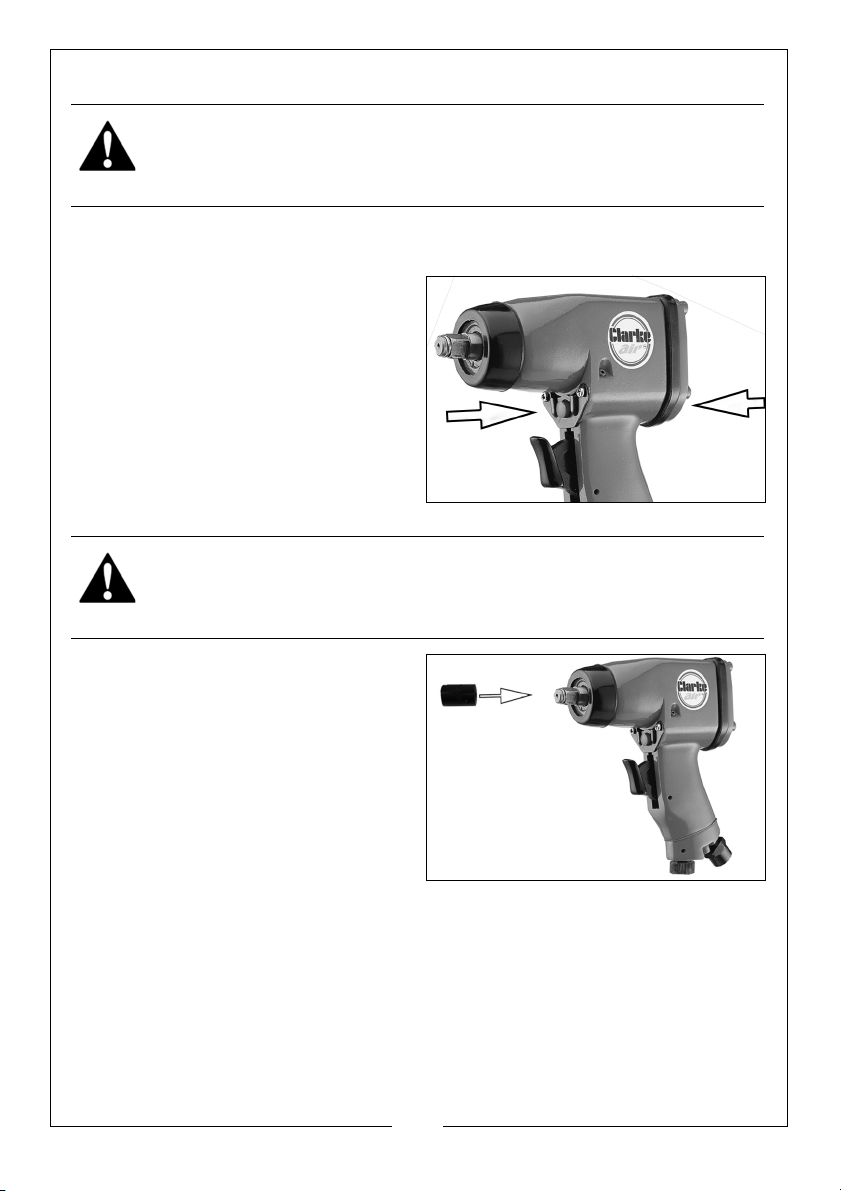

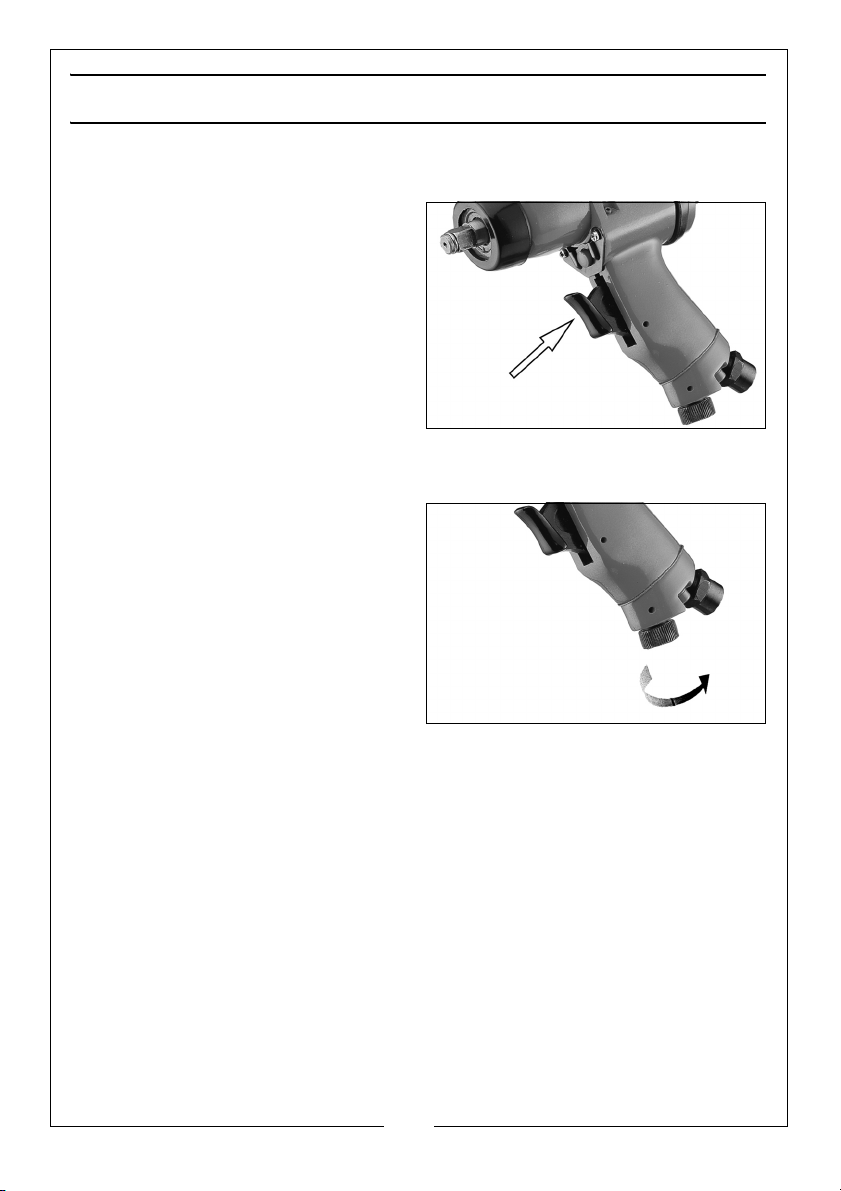

USING THE FORWARD/REVERSE BUTTON

WARNING: WAIT UNTIL THE ANVIL HAS STOPPED ROTATING BEFORE OPERATING THE FORWARD/REVERSE BUTTON.
Forward/Reverse rotation is selected by pushing the Forward/Reverse control forward or backward as required.
1. For normal tightening, the wrench should be operated in the forward direction.
2. For loosening, the wrench should be operated in the reverse direction.

FITTING THE IMPACT SOCKET

WARNING: NEVER USE STANDARD SOCKETS. THESE MAY SHATTER WITH SERIOUS CONSEQUENCES. ONLY USE IMPACT SOCKETS DESIGNED FOR USE WITH IMPACT TOOLS.
1. Select the impact socket you require, which must be in good condition and fit the tool exactly.
Push the socket onto the anvil as shown.
8
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 9

OPERATION

OPERATING THE IMPACT WRENCH

1. Locate the socket over the nut to be tightened or loosened.
2. Squeeze the trigger to start the wrench.
3. Release the trigger switch to stop the wrench.
• The anvil will continue to rotate
very briefly after the trigger has been released.
ADJUSTING THE POWER
1. To adjust the power, set the air regulator to one of the 5 settings available.(Setting 1-Low, 5 -High)
If you start by turning the regulator to its lowest setting and applying the wrench to a nut of known tightness (or torque setting), you can then gradually turn the regulator until the nut or bolt moves very slightly in the direction in which it was set. The wrench is now set to replicate that tightness. Note the setting for future use.
When critical torque values are not required, tighten the nut or bolt until secure, then turn a further quarter to a half turn, assuming no gaskets are being used between surfaces. For additional power on disassembly work, turn the regulator to its highest setting.

DISCONNECTING THE AIR SUPPLY

Do not disconnect the air supply hose until the compressor has been shut down and the compressed air released.
1. Refer to the compressor instruction manual for the procedure to shut down and release the compressed air.
2. Once the pressure has been released, disconnect the air supply hose from the impact wrench.
Store the wrench safely in its box in a dry, secure environment.
9
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 10

MAINTENANCE

WARNING: MAKE SURE THAT THE IMPACT WRENCH IS DISCONNECTED FROM THE AIR SUPPLY BEFORE STARTING ANY CLEANING, OR MAINTENANCE PROCEDURES.

DAILY

• Before use, drain water from the air tank, air line and compressor.
• Pour a few drops of CLARKE airline oil, into the
carried out regardless of whether or not an in-line mini oiler is used. If an in-line mini oiler is not used, this procedure should be repeated after every two to three hours of use.
air inlet. This should be

WEEKLY

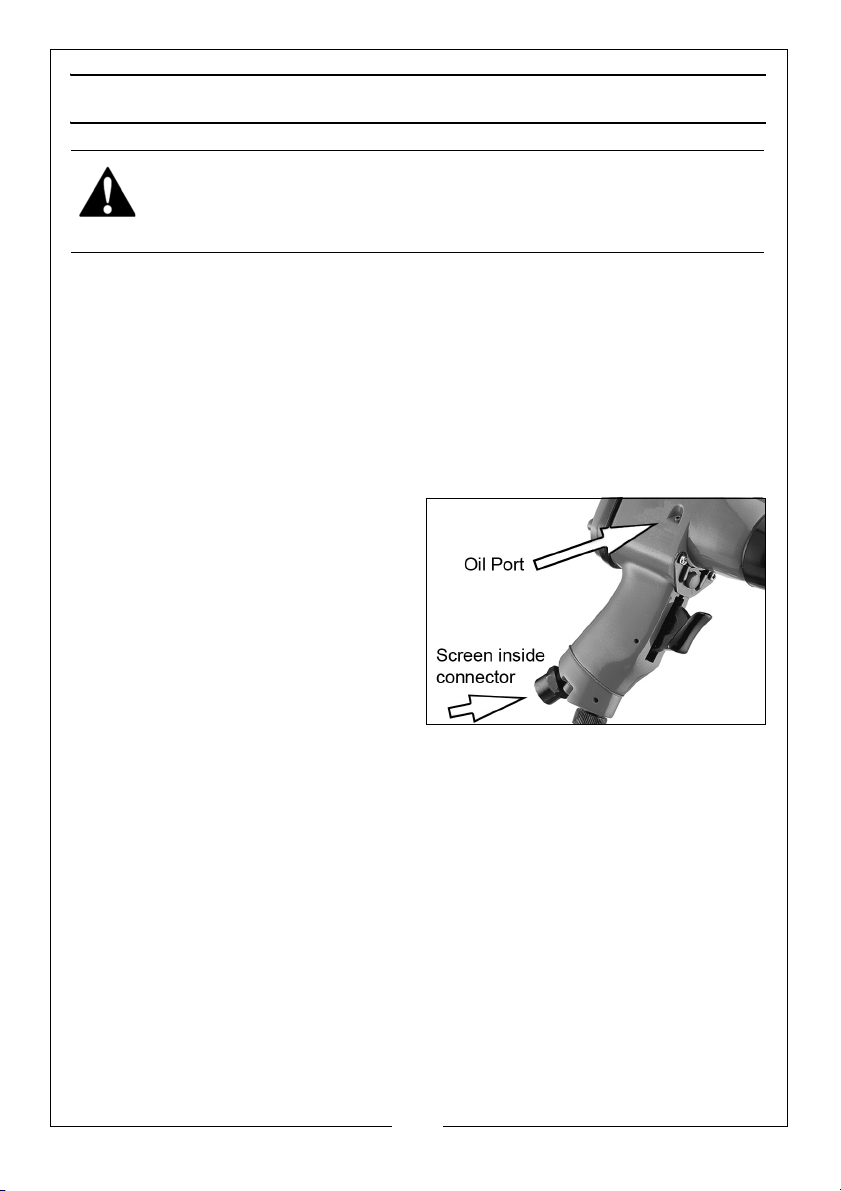

• Check the air inlet screen filter
for blockage and clean if necessary.
• Oil can be added directly into
the internal working parts by way of the oil port located on the right hand side of the tool body.

CLEANING

• Keep the body of the impact wrench clean and free from debris.
Grit or gum deposits in the tool may reduce efficiency.

SERVICE AND REPAIR

If the tool runs erratically or becomes inefficient although the air supply is in good order, it may be necessary to dismantle the air motor and impacting clutch and replace any worn or damaged parts. Such servicing and repair work should be carried out by qualified service technicians.

PERFORMANCE

Please note that factors other than the tool may effect its operation and efficiency such as reduced compressor output, excessive drain on the airline moisture or restrictions in the air-line, or the use of connectors of improper size or poor condition which will reduce air supply.
10
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 11
Grit or gum deposits inside the tool may also reduce its efficiency. This condition can be corrected by cleaning out the air strainer and flushing out the tool with gum solvent or oil, or failing this, the motor may require dismantling.
**Clarke Air Line Oil (part no. 3050825) is available from your CLARKE dealer.

STORAGE

If the tool is to be stored, or is idle for longer than 24 hours, run a few drops of Clarke air line oil into the air inlet, and run the tool for 5 seconds in order to lubricate the internal parts.
When not in use, disconnect from air supply, clean tool and store in a safe, dry place.

SPECIFICATIONS

Model Number CAT78
Part Number 3110790
Anvil Size 3/8”(9.5mm)
Maximum Torque 75 ft/lb
Operating Pressure 90 psi (6.2 bar)
Air Consumption 4.2 cfm
Min Air Inlet Hose Size 5/16“BSP
Sound Pressure Level (LpA dB) 85 dB(A)
Sound Power Level (LwA dB) 96.8 dB(A)
Vibration Levels
2.8 m/s Uncertainty Value 1.4 m/s
2
at the main handle
2
Highest measured reading in a single plain
3.18 m/s
2
Weight 1.3 kg
Please note that the details and specifications contained herein are correct at the time
of going to print. However CLARKE International reserve the right to change specifications at any time without prior notice.
11
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 12

TROUBLESHOOTING

SYMPTOM PROBLEM SOLUTION
Tool runs at normal speed but slows down under any load.
Tool runs slowly. Air flows weakly from exhaust.
Tool will not run. Air flows freely from exhaust.
1. Excessive pressure on tool.
2. Motor parts worn.
3. Worn or sticking mechanism due to lack of lubricant.
1. Motor parts jammed with gum/dirt.
2. Regulator in closed position.
3. General airflow blocked by dirt.
1. Motor vanes stuck due to buildup of foreign material.
1. Reduce the force applied to the tool.
2. Return to Clarke dealer for repair.
3. Drip air tool lubricating oil into air inlet. Allow oil to soak moving parts before using.
1. Examine inlet air filter for cleanliness.
2. Adjust regulator to open position.
3. Operate tool in short bursts.
1. Disconnect air supply and rotate tool assembly manually.
2. Try operating tool in short bursts.
3. Tap motor housing gently with a rubber mallet.
4. Drip a few drops of air tool lubricating oil into air inlet to soak moving parts.
Tool will not shut off. 1. Throttle O-rings
damaged or ill-fitting in seat.
1. Return to Clarke dealer for repair.

ACCESSORIES

A wide range of accessories is available including filter/regulators, lubricators, high-pressure hoses (5 to 50 metres) etc.
Contact your CLARKE dealer for further information or CLARKE International Service Department on 01992 565333.
12
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 13

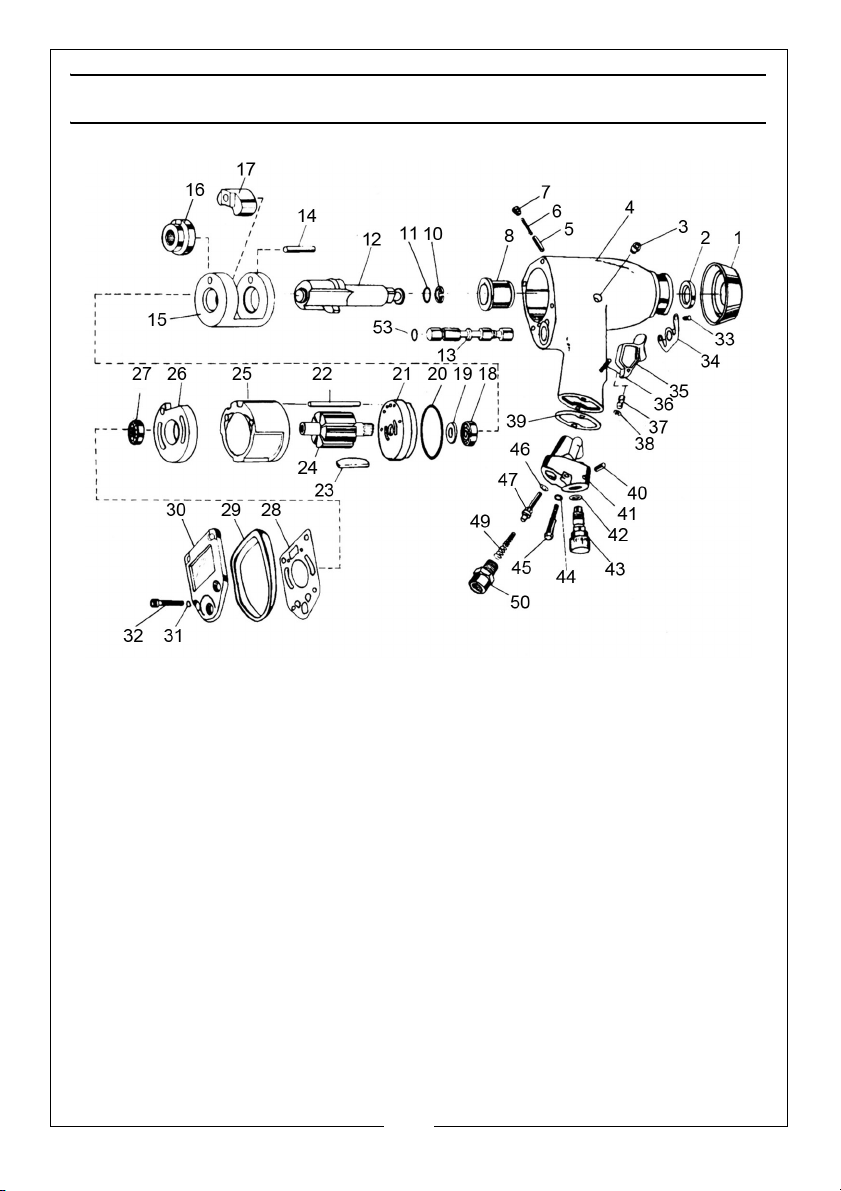

PARTS LIST & DIAGRAM

13
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 14

PARTS LIST & DIAGRAM

No Description No Description
1 Rubber Nose Guard 27 Ball Bearing
2 Oil Seal 28 N/A
3 Oiler Screw 29 Housing Band
4 Motor Housing 30 Rear End Cap
5 Reverse Valve Pin 31 Spring Washer
6 Reverse Valve Spring 32 Set Screw
7 Set Screw 33 Screw
8 Housing Bush 34 Exhaust Cover
9 N/A 35 Throttle Lever
10 Socket Retaining Ring 36 Pin
11 O-Ring 37 Push Pin
12 Anvil 38 O-Ring
13 Reverse Valve 39 Gasket
14 Hammer Cage Pin 40 Pin
15 Hammer Cage 41 Valve Block
16 Cam 42 O-Ring
17 Dog 43 Regulator Valve
18 Ball Bearing 44 Spring Washer
19 Oil Seal 45 Set Screw
20 O-Ring 46 O-Ring
21 Front End Plate 47 Throttle Valve
22 Motor Pin 48 N/A
23 Rotor Blade (Set) 49 Throttle Valve Spring
24 Rotor 50 Hose Adaptor
25 Cylinder 51 N/A
26 Rear End Plate 53 O-Ring
14
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 15

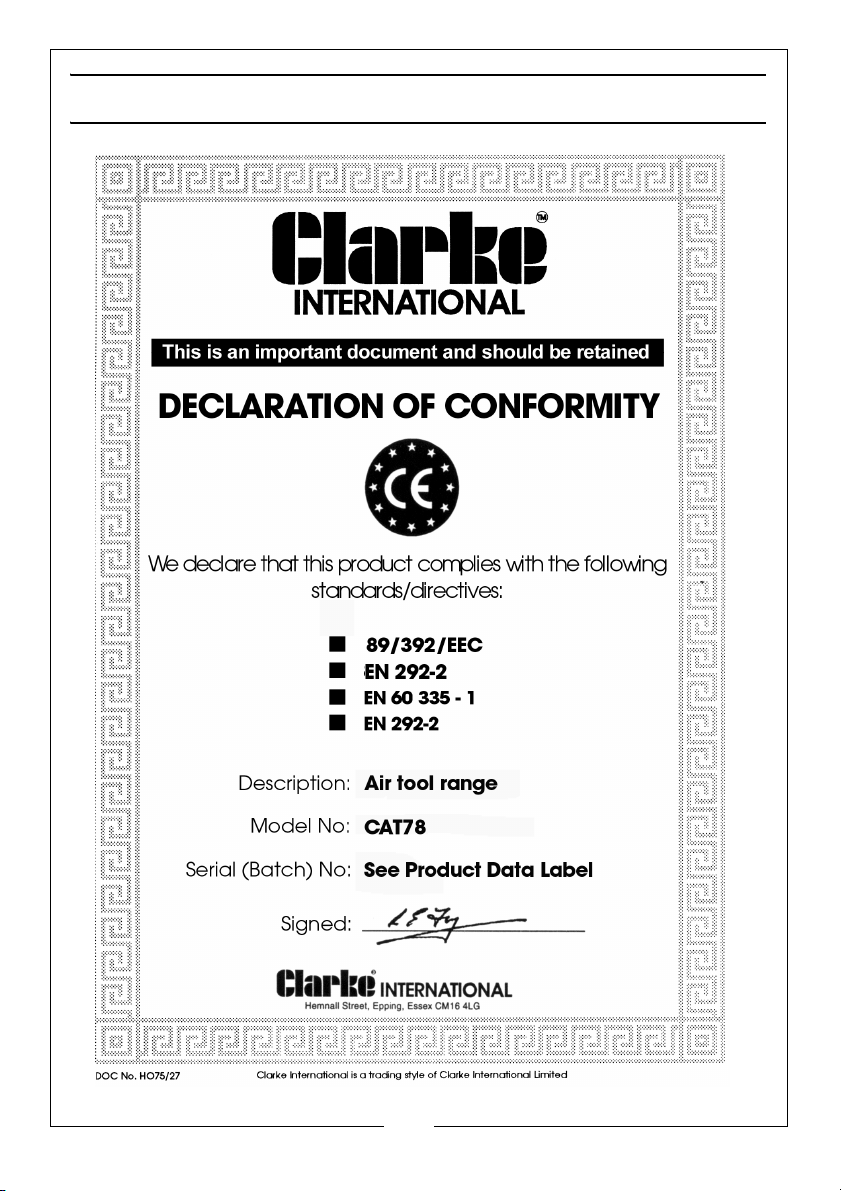

DECLARATION OF CONFORMITY

15
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
