Clarke CAT 65, 3110725 User guide

ANGLE DIE GRINDER SET

MODEL NO: CAT65

PART NO: 3110725

OPERATING & MAINTENANCE

INSTRUCTIONS

GC0614

INTRODUCTION

Thank you for purchasing this CLARKE Angle Die Grinder Set.

Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.

Your tool kit has been designed to give long and trouble free service. If,
however, having followed the instructions in this booklet carefully, you
encounter problems, take the unit to your local CLARKE dealer.

IMPORTANT

Please read all of the safety and operating instructions carefully before using

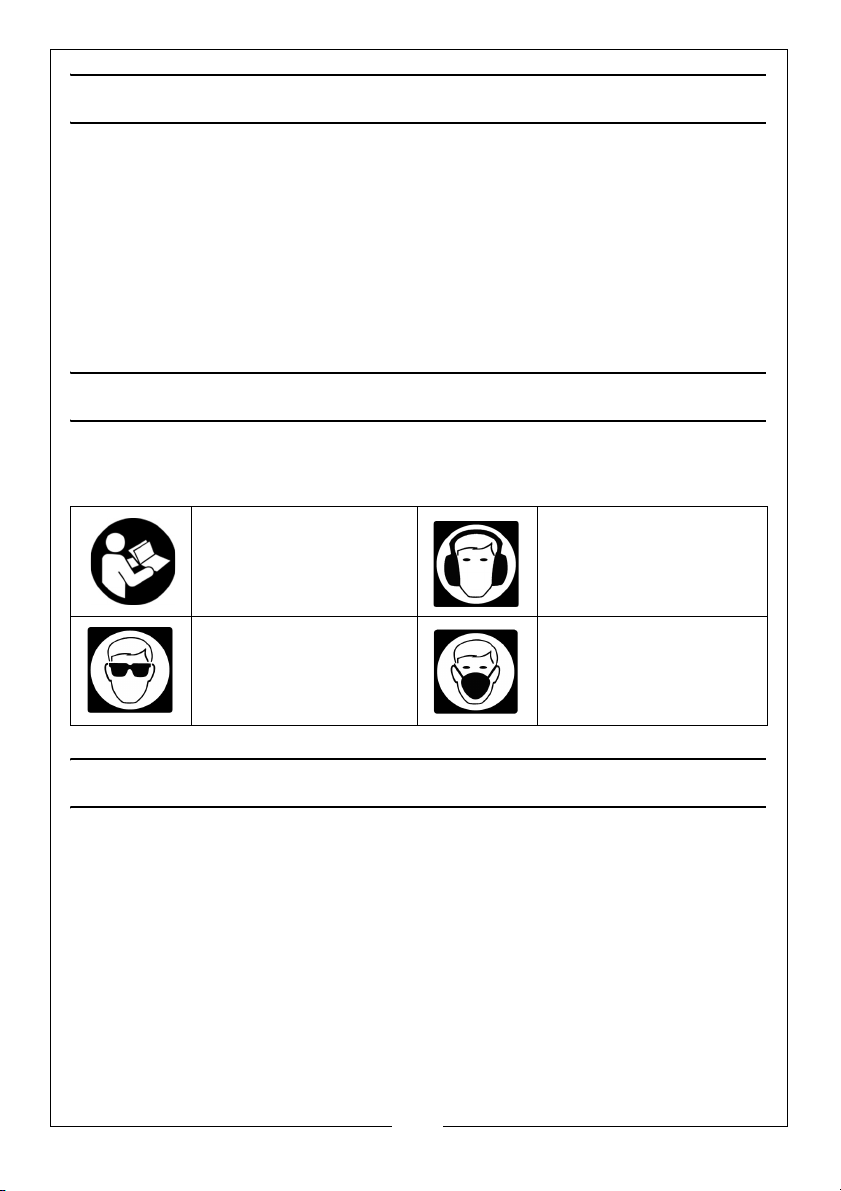

this product. The following safety symbols may be found on the air tools.

Read this instruction
booklet carefully
before use.

Wear eye protection. Wear dust mask.

Wear ear protection.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.

Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.

This guarantee does not effect your statutory rights.

2

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

GENERAL SAFETY RULES

CAUTION: FAILURE TO FOLLOW THESE PRECAUTIONS COULD RESULT IN
PERSONAL INJURY, AND/OR DAMAGE TO PROPERTY.

WORK ENVIRONMENT

1. Keep the work area clean and tidy.

2. Dress appropriately - Do not wear loose clothing or jewellery. Tie long hair
out of the way.

3. Keep children and visitors away - Do not let children handle the tool.

4. Do not operate the tool where there are flammable liquids or gases.

PERSONAL SAFETY

1. Stay alert and use common sense - do not operate the air tool when you
are tired or under the influence of alcohol, drugs or medication.

2. Always wear eye protectors when using the tool - Eye protectors must
provide protection from flying particles from the front and the side.

3. Always wear ear protectors when using the air tool.

4. Always wear a dust mask when operating this type of tool.

5. Do not overreach - Keep proper footing and balance at all times.

6. Remove any wrench before turning the power tool on. A wrench left
attached to a rotating part of the power tool may result in personal injury.

USE OF AIR POWERED TOOLS

1. Never use oxygen, CO2, combustible gases or any type of bottled gas as a
source of power for the tool.

2. Do not connect the air supply hose with your finger on the trigger.

3. Do not exceed the maximum pressure for the tool of 90 psi / 6.2 bar.

4. Check hoses for leaks or worn condition before use, and ensure that all
connections are secure.

5. Do not use the tool for any other purpose than that described in this
manual.

6. Keep the air supply hose away from heat, oil and sharp edges.

7. Do not fit the tool to any stand or clamping device that may damage it.

3

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

8. Do not carry out any alterations or modifications to the tool.

9. Always disconnect from the air supply when:

• Performing any maintenance.

• The tool is not in use.

• The tool will be left unattended.

• Moving to another work area.

• Passing the tool to another person.

10. Never use the tool if it is defective or operating abnormally.

11. The tool should be serviced at regular intervals by qualified service
personnel.

12. Avoid damaging the tool by applying excessive force of any kind.

13. Always maintain the tool with care. Keep it clean for the best and safest
performance.

14. Quick change couplings should not be located at the tool. They add
weight and could fail due to vibration.

15. Do not force or misuse the tool. It will do a better and safer job at the rate
for which it was designed.

16. Do not remove any labels. Damaged labels should be replaced.

17. This tool vibrates with use. Vibration may be harmful to your hands or arms.
Stop using the tool if discomfort, a tingling feeling or pain occurs. Seek
medical advice before resuming use.

TRANSPORTATION AND STORAGE

1. Never carry the tool by the air supply hose.

2. Never carry the tool with your finger on the trigger.

3. When not in use the tool should be disconnected from the air supply and
stored in a dry place out of the reach of children (preferably in a locked
cabinet).

4. Avoid storing the tool in environments where the temperature is below 0

4

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

o

C.

OVERVIEW

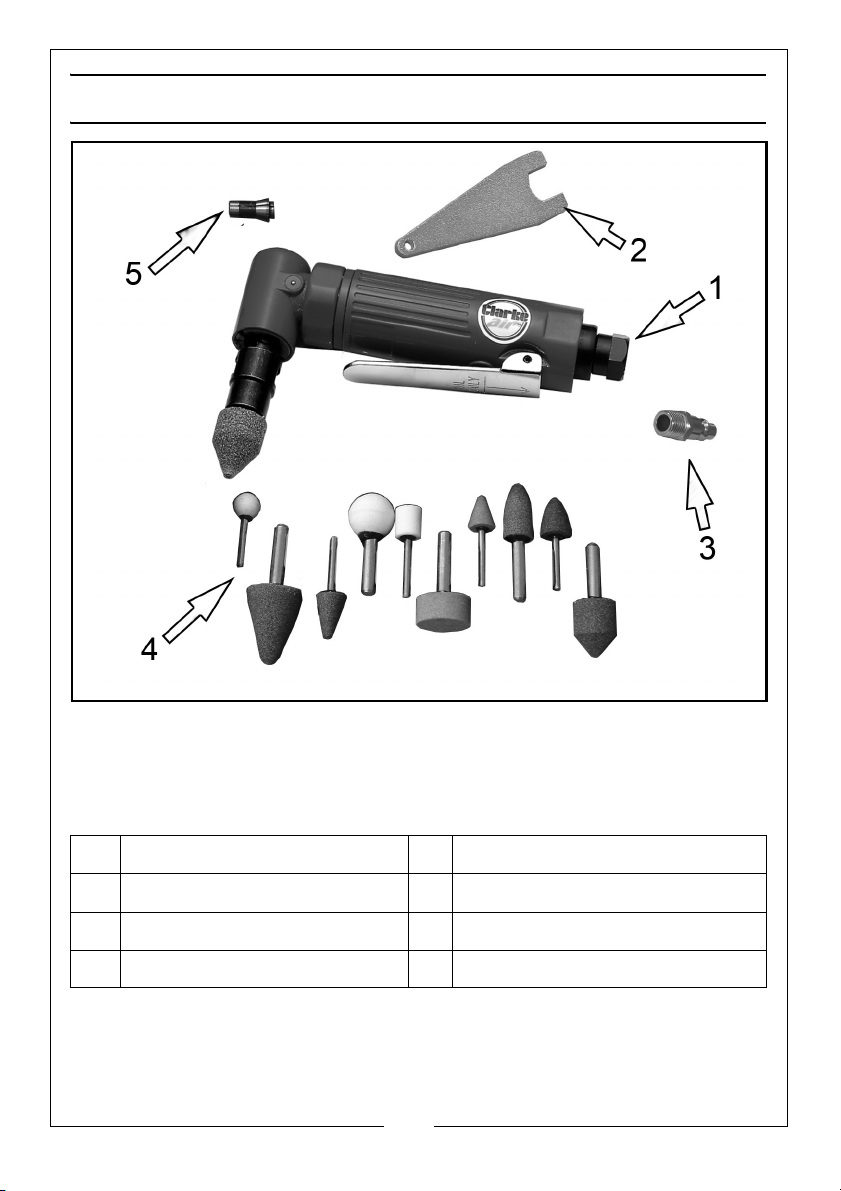

The CAT65 Die Grinder Set includes the accessories shown. When opening the
case for the first time, check against the following list that all the items are
present. Any damage or deficiency should be reported to your CLARKE dealer
immediately.

NO DESCRIPTION NO DESCRIPTION

1 Die Grinder Tool 4 10 Grinding Stones

2 2 x Wrenches 5 2 x Collets (1 already fitted to tool)

3 Male Snap Connector

5

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

SPECIFICATIONS

Model Number CAT65 Angle Die Grinder

Weight 0.5 kg

Air Inlet Size 1/4“BSP (female)

Collet Sizes 1/8” and 1/4”

Operating Pressure 90 psi (6.2 bar)

Air Consumption 8 cfm average

No Load Speed 18000 rpm @ 90psi

Sound Pressure Level (LpA dB) 93 dB(A)

Sound Power Level (LwA dB) 105 dB(A)

Vibration Levels

2.5 m/s

2

Please note that the details and specifications contained herein are correct at
the time of going to print. However CLARKE International reserve the right to
change specifications at any time without prior notice. Always consult the
machine’s data plate.

6

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

COMPRESSED AIR REQUIREMENTS

WARNING: COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU
ARE FAMILIAR WITH ALL PRECAUTIONS RELATING TO THE USE OF
COMPRESSORS AND COMPRESSED AIR SUPPLY.

• Use only clean, dry, regulated compressed air as a power source.

• Air compressors used with the tool must comply with the appropriate

European Community Safety Directives.

• A build-up of moisture or oil in the air compressor will accelerate

wear and corrosion in the tool. ensure any moisture is drained from
the compressor daily and the inlet filter is kept clean.

• If an unusually long air hose is required, (over 8 metres), the line

pressure or the hose inside diameter may need to be increased.

• The air hose must be rated at least 150% of the maximum operating

pressure of the tool.

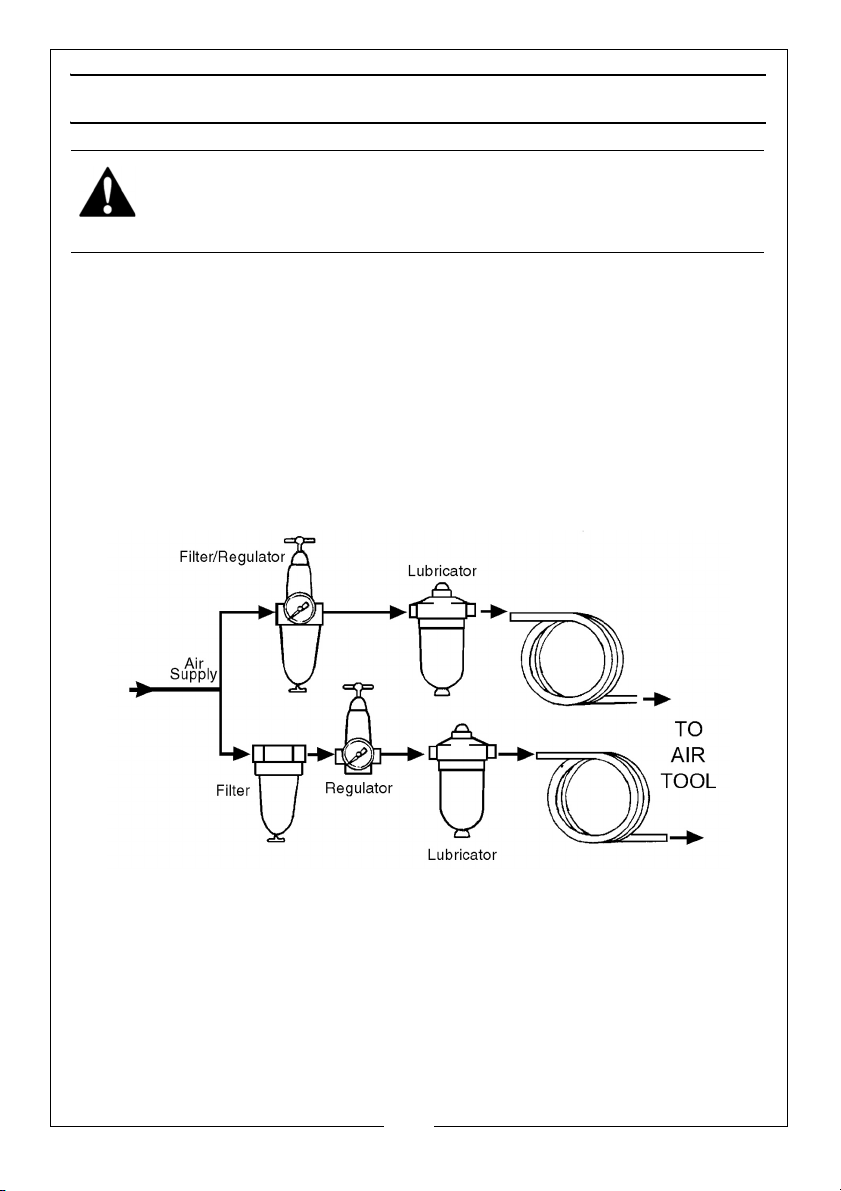

• A typical air line layout is shown above. If an automatic in-line filter/

regulator is used, it will keep the tool in good condition, but should
be regularly checked and topped up with oil. SAE 10 oil should be
used, and the lubricator adjusted to approx 2 drops per minute.

• Never exceed the maximum operating pressure for the tool. It is

recommended that air pressure to this tool does not exceed 90 psi
at the tool when running. Higher pressures and unclean air will
shorten the life of the tool due to faster wear and is a possible safety
hazard.

7

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

BEFORE USE

WARNING: COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU
ARE FAMILIAR WITH ALL PRECAUTIONS RELATING TO THE USE OF AIR
COMPRESSORS AND COMPRESSED AIR SUPPLIES.

NOTE: Ensure the compressor is turned off.

1. Remove the blanking plug from the inlet connection of the tool.

2. If required, connect an in-line mini oiler to the tool.

• A mini oiler helps to prolong the life of the air tool.

3. If a mini-oiler is not being used, run
a few drops of oil through the tool
before use. It can be entered
through the air inlet or via the hose
at the nearest connection to the
air supply.

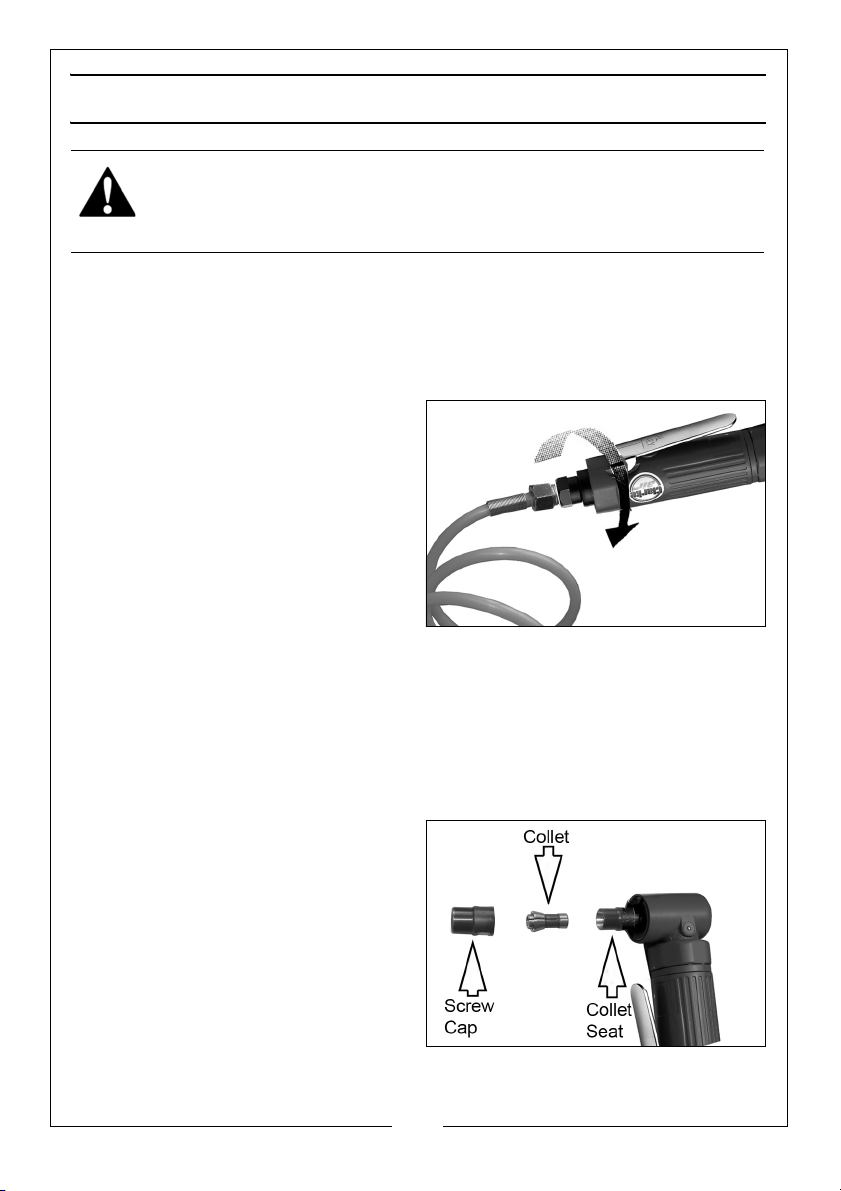

4. Connect a suitable hose to the air
inlet as shown.

5. Connect the other end of the hose
to the compressor.

Your air tool is now ready for use.

You can fit a whip hose with a quick fit coupling if required (available from
your Clarke dealer).

INSTALLING THE COLLET TO THE DIE GRINDER

1. Select the grinding stone you require.

2. Two collets of different sizes are
provided. Select whichever fits
the shank of the stone you have
chosen.

• The larger collet is probably

already installed in the grinder.

3. If the other collet is to be used,
undo the screw cap completely
and pull out the collet from the
collet seat. Replace it with the
new collet and screw the cap loosely back on.

8

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

FITTING THE GRINDING STONE INTO THE DIE GRINDER

IMPORTANT: Never use chipped or cracked grindstones. Never use

grindstones not rated to operate at a speed equal to, or greater than, the
full operating speed of the air tool.

1. Slip the shank of the chosen stone
into the collet and tighten the
screw cap finger tight.

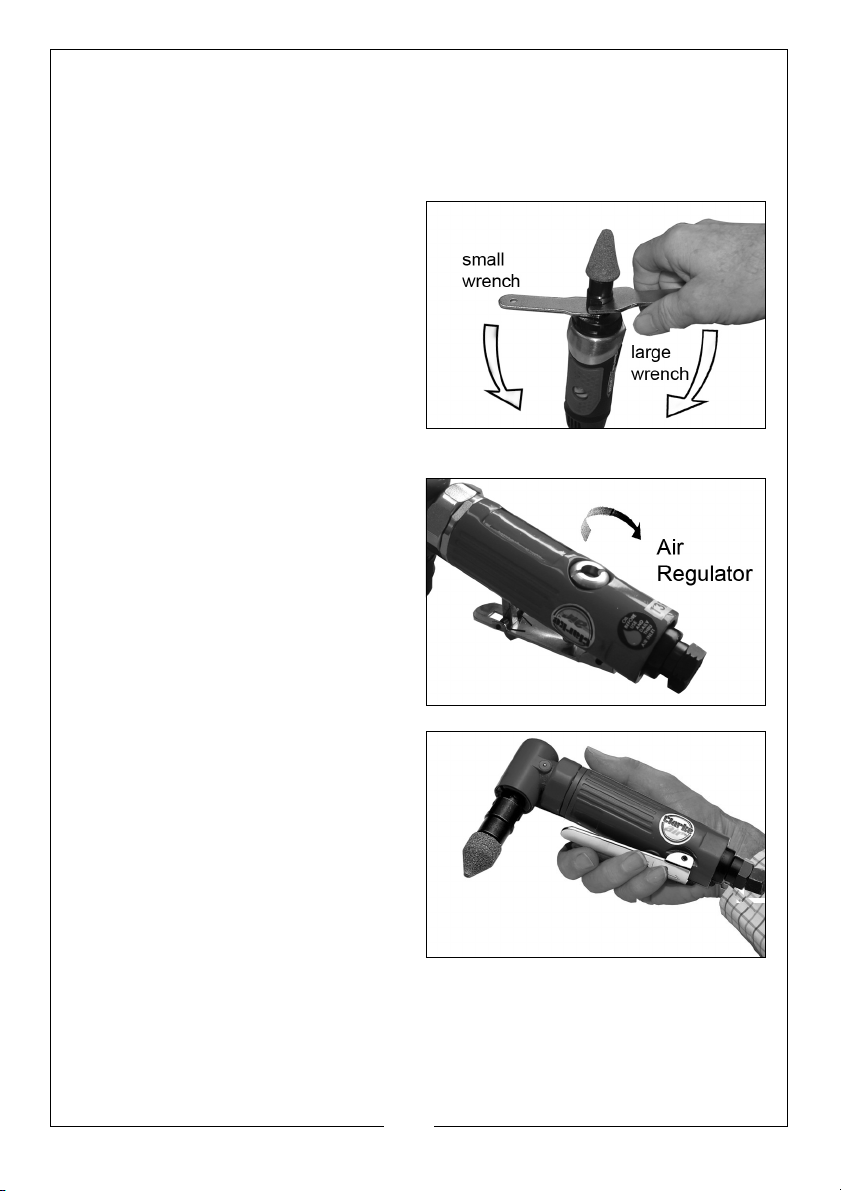

2. Place the smaller of the two
wrenches over the collet seat to
stop the tool from rotating.

3. Use the larger wrench to fully
tighten the collet and grip the
stone in position as shown.

SETTING THE SPEED

1. Adjust the tool speed by setting
the air regulator on top of the tool
body using a suitable screwdriver.

OPERATING THE TOOL

1. Use your thumb to slide the
throttle locking lever forward while
squeezing the trigger against the
body of the tool.

2. Do not use excess pressure on the
grinding stone as this will shorten
its life.

3. Release the trigger to stop the
tool.

• The tool will continue to rotate

very briefly after the trigger has been released.

4. Always ensure the tool has stopped before putting it down.

9

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

GRINDING TIPS

• The key to efficient grinding is to control the pressure and surface

contact between the grinding tool and the workpiece.

• Allow the tool to reach full speed before grinding.

• Avoid overloading the die grinder. If it becomes hot during use, rest

for a few minutes while it cools down.

DISCONNECTING THE AIR SUPPLY

1. Do not disconnect the air supply hose until the compressor has been shut
down and the compressed air released.

2. Refer to the compressor instruction manual for the procedure to shut down
and release the compressed air.

3. Once the pressure has been released, disconnect the air supply hose from
the tool.

MAINTENANCE

WARNING: MAKE SURE THAT THE AIR TOOL IS DISCONNECTED FROM THE
AIR SUPPLY BEFORE STARTING ANY CLEANING OR MAINTENANCE
PROCEDURES.

PERFORMANCE

Please note that factors other than the tool may effect its operation and
efficiency such as reduced compressor output, excessive drain on the airline
moisture or restrictions in the air-line, or the use of connectors of improper size
or poor condition which will reduce air supply.

**Clarke Air Line Oil (part no. 3050825) is available from your CLARKE dealer.

DAILY

1. Before use, drain water from the air tank, air line and compressor.

2. Pour a few drops of CLARKE airline oil, into the air inlet. This should be
carried out regardless of whether or not an in-line mini oiler is used. If an in­line mini oiler is not used, this procedure should be repeated after every
two to three hours of use.

10

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

WEEKLY

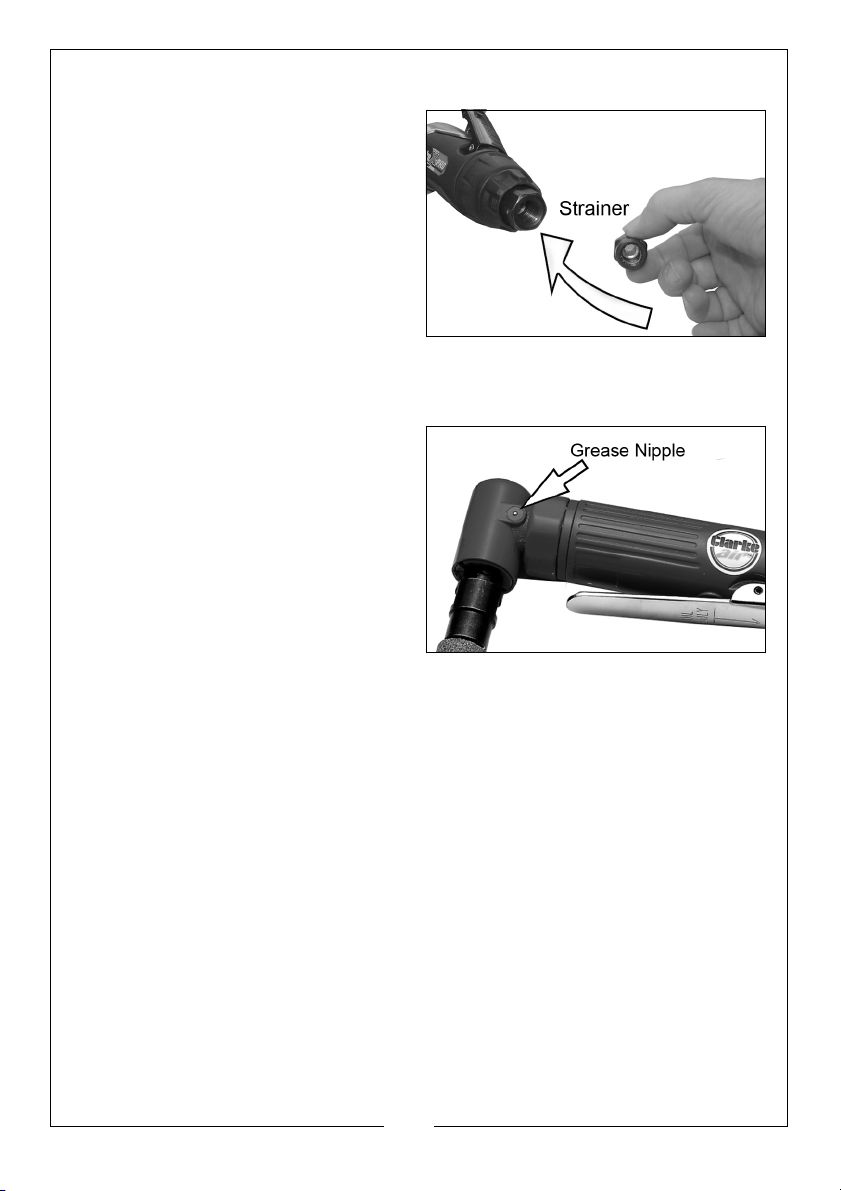

1. Check the air inlet strainer for
blockage and clean if necessary.

1. Keep the body of each tool clean
and free from debris.

2. Grit or gum deposits inside the tool
may also reduce its efficiency. This
condition can be corrected by
cleaning out the air strainer and
flushing out the tool with gum
solvent or oil, or failing this, the
motor may require dismantling. This is better left to your Clarke dealer.

LUBRICATION

The right-angle drive is fitted with a
grease nipple to provide a facility for
lubrication of the drive gears.

After extensive use, apply a shot of
general purpose grease using a
suitable grease gun.

SERVICE AND REPAIR

If the tool runs erratically or becomes
inefficient although the air supply is in
good order, it may be necessary to dismantle the air motor and replace any
worn or damaged parts. Such servicing and repair work should be carried out
by a qualified service technician.

STORAGE

If the tool is to be stored, or is idle for longer than 24 hours, run a few drops of
Clarke air line oil into the air inlet, and run the tool for 5 seconds in order to
lubricate the internal parts.

When not in use, disconnect from air supply, clean tools and store in the
moulded case provided. When storing, ensure the blanking plug is replaced
on the airline connector once the airline is disconnected.

ACCESSORIES

A wide range of accessories is available including filter/regulators, lubricators,
high-pressure hoses (5 to 50 metres) etc.

Contact your CLARKE dealer for further information or CLARKE International
Service Department.

11

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

TROUBLESHOOTING

SYMPTOM PROBLEM SOLUTION

Tool runs at normal
speed but slows down
under any load.

Tool runs slowly. Air flows
weakly from exhaust.

Tool will not run. Air flows
freely from exhaust.

Tool will not shut off. 1. Throttle O-rings

1. Excessive pressure on
tool.

2. Motor parts worn.

3. Worn or sticking
mechanism due to
lack of lubricant.

1. Motor parts jammed
with gum/dirt.

2. Regulator in closed
position.

3. General airflow
blocked by dirt.

1. Motor vanes stuck
due to buildup of
foreign material.

damaged or ill-fitting
in seat.

1. Reduce the force
applied to the tool.

2. Return to Clarke dealer
for repair.

3. Drip air tool lubricating
oil into air inlet. Allow oil
to soak moving parts
before using.

1. Examine inlet air filter for
cleanliness.

2. Adjust regulator to open
position.

3. Operate tool in short
bursts.

1. Disconnect air supply
and rotate tool assembly
manually.

2. Try operating tool in
short bursts.

3. Drip a few drops of air
tool lubricating oil into air
inlet to soak moving
parts.

1. Return to Clarke dealer
for repair.

12

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

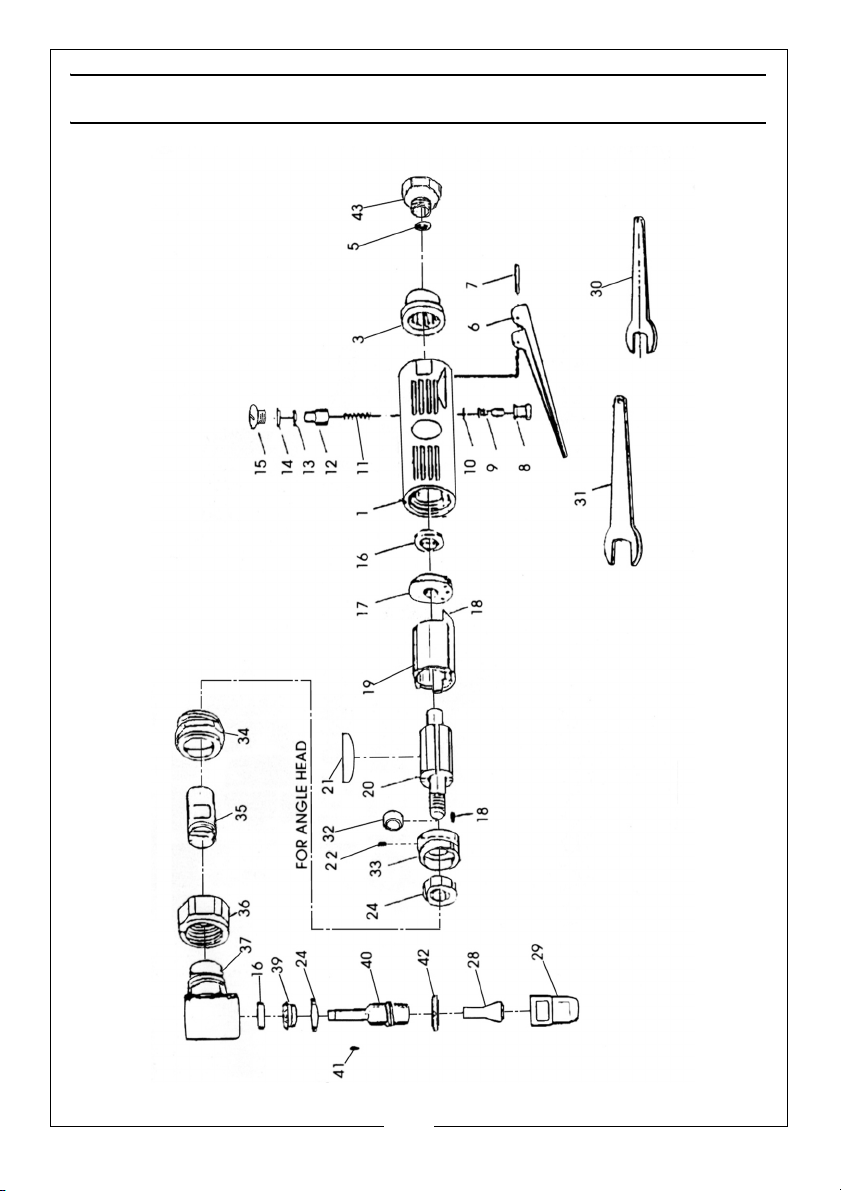

PARTS DIAGRAM - DIE GRINDER

13

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

PARTS LIST - DIE GRINDER

No Description No Description

1 Main Body 22 Steel Ball

2 ////////////////////////////////// 23 ///////////////////////////////////

3 End cap 24 Ball Bearing

4 ////////////////////////////////// 25 ////////////////////////////////////

5 Strainer 26 ////////////////////////////////////

6 Throttle Lever 27 ///////////////////////////////////

7 Hinge Pin 28 Collet

8 Bush 29 Collett Chuck

9 Valve 30 Spanner

10 O-Ring 31 Spanner

11 Spring 32 Bush

12 Speed Control Valve 33 Front Plate

13 O-Ring 34 Housing End

14 O-Ring 35 Bevel Gear Drive

15 Throttle Valve Screw Cap 36 Nut

16 Ball Bearing 37 Angle Head

17 End Plate 38 ///////////////////////////////////

18 Spring Pin 39 Bevel Gear

19 Cylinder 40 Chuck Casing

20 Rotor Body 41 Key

21 Rotor Blades 42 Bearing Cap

43 Air Inlet

14

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

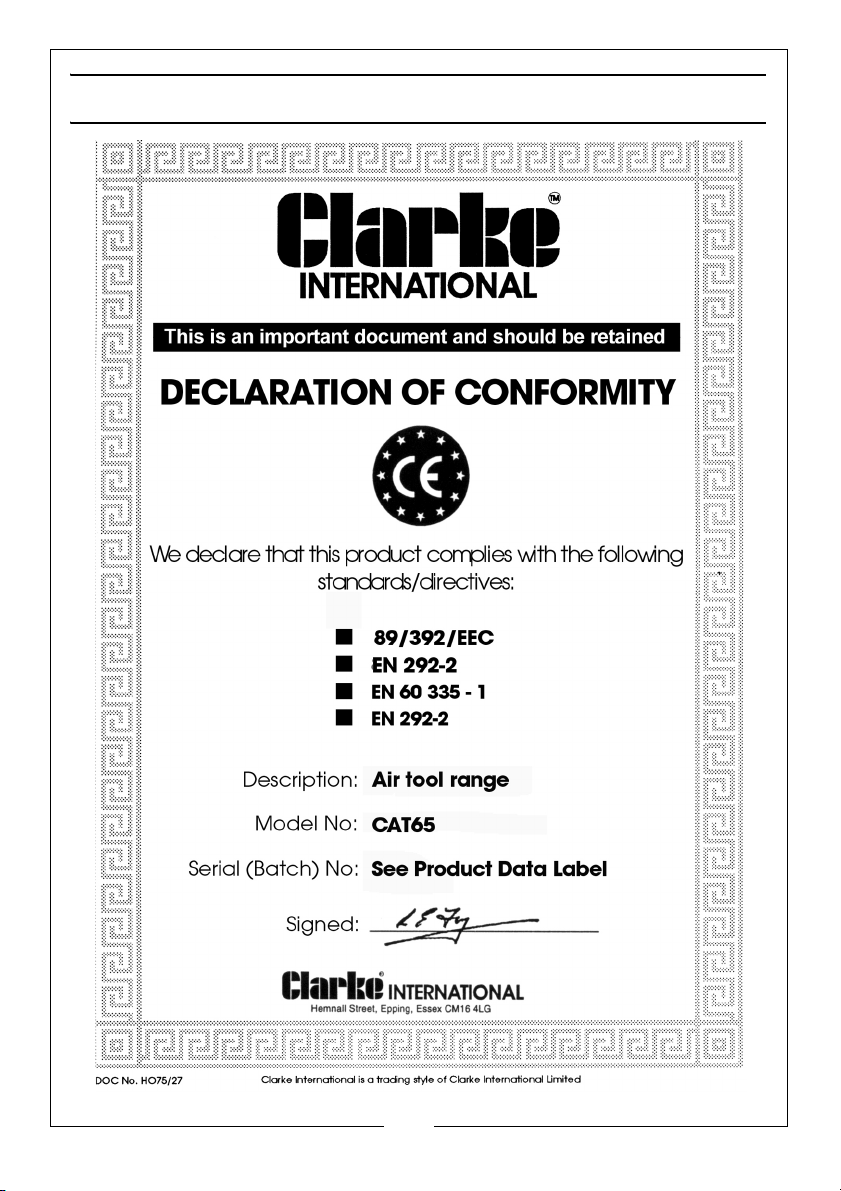

DECLARATION OF CONFORMITY

15

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
