3/8”ANGLED AIR DRILL
MODEL NO: CAT61
PART NO: 3110461
OPERATING & MAINTENANCE
INSTRUCTIONS
GC0914
Page 2
INTRODUCTION
Thank you for purchasing this CLARKE Angled Air Drill.
Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.
MPORTANT
Please read all of the safety and operating instructions carefully before using
this product. The following safety symbols are to be found on the machine.
Read this instruction
booklet carefully
before use.
Wear eye protection. Wear dust mask.
Wear ear protection.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does not effect your statutory rights.
2
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 3
GENERAL SAFETY RULES
CAUTION: FAILURE TO FOLLOW THESE PRECAUTIONS COULD RESULT IN
PERSONAL INJURY, AND/OR DAMAGE TO PROPERTY.
WORK ENVIRONMENT
1. Keep the work area clean and tidy.
2. Dress appropriately - Do not wear loose clothing or jewellery. Tie long hair
out of the way.
3. Keep children and visitors away - Do not let children handle the tool.
4. Do not operate the tool where there are flammable liquids or gases.
USE OF POWER TOOLS
1. Stay alert and use common sense - do not operate the drill when you are
tired or under the influence of alcohol, drugs or medication.
2. Always wear eye protectors when using the drill - Eye protectors must
provide protection from flying particles from the front and the side.
3. Always wear ear protectors when using the drill.
4. Do not overreach - Keep proper footing and balance at all times.
5. Never use any type of bottled gas as a source of power for the drill.
6. Do not connect the air supply hose with your finger on the trigger of the
drill.
7. Do not exceed the maximum pressure for the drill 90 psi / 6.2 bar.
8. Check hoses for leaks or worn condition before use, and ensure that all
connections are secure.
9. Keep the air supply hose away from heat, oil and sharp edges.
10. Do not use the tool for any other purpose than that described in this
manual.
11. Do not fit the tool to any stand or clamping device that may damage it.
12. Do not carry out any alterations or modifications to the tool.
13. Always disconnect from the air supply when:
• Performing any maintenance
• The drill is not in use.
3
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 4
• The drill will be left unattended.
• Moving to another work area.
• Passing the drill to another person.
14. Never use the tool if it is defective or operating abnormally.
15. The drill should be serviced at regular intervals by qualified service
personnel.
16. Avoid damaging the drill for example by applying excessive force of any
kind.
17. ALWAYS maintain the tool with care. Keep it clean for the best and safest
performance.
18. Quick change couplings should not be located at the tool. They add
weight and could fail due to vibration.
19. Do not force or misuse the tool. It will do a better and safer job at the rate
for which it was designed.
20. Do not remove any labels. Damaged labels should be replaced.
21. This tool vibrates with use. Vibration may be harmful to your hands or arms.
Stop using the tool if discomfort, a tingling feeling or pain occurs. Seek
medical advice before resuming use.
TRANSPORTATION
1. Never carry the drill by the air supply hose.
2. Never carry the drill with your finger on the trigger.
STORAGE
1. When not in use the drill must be disconnected from the air supply and
stored in a dry place out of the reach of children (preferably in a locked
cabinet).
o
2. Avoid storing the drill in environments where the temperature is below 0
4
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
C.
Page 5

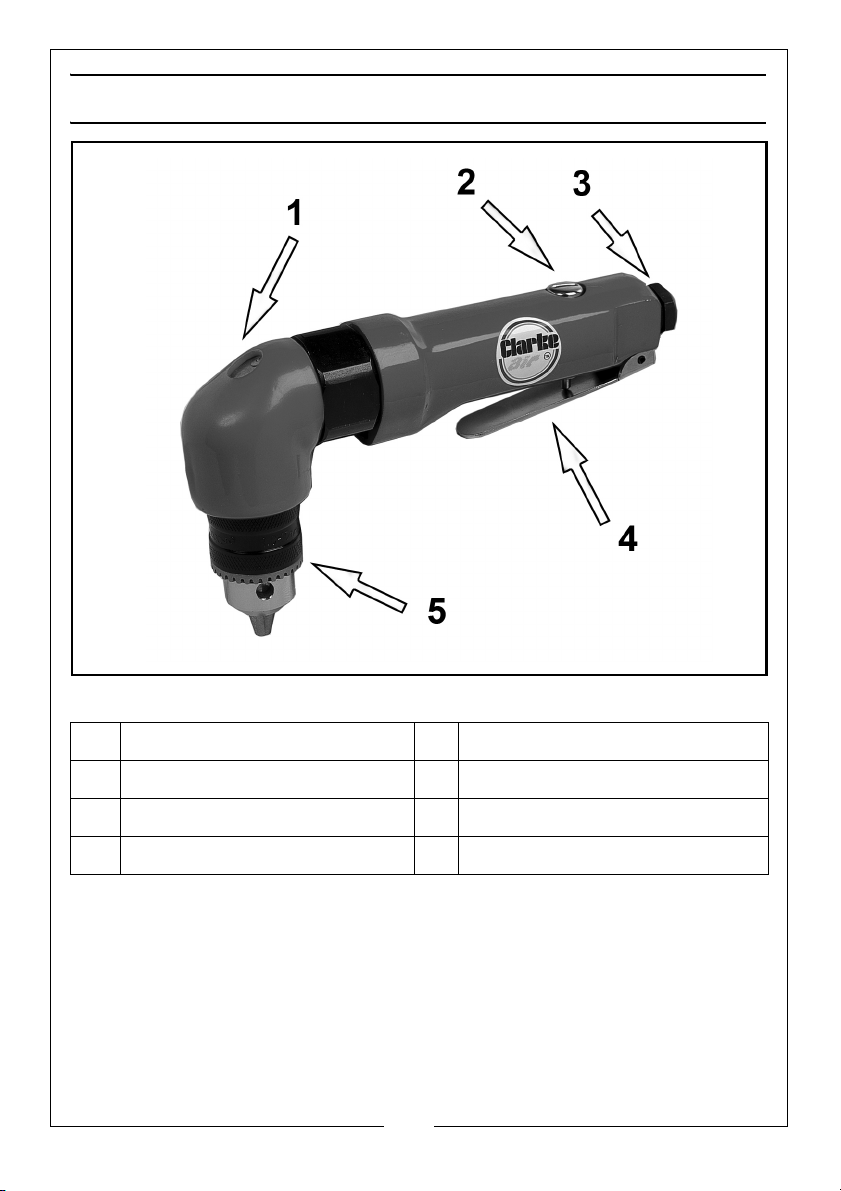

OVERVIEW
NO DESCRIPTION NO DESCRIPTION
1 Lubrication Point 4 Trigger
2 Regulator Valve 5 Chuck
3 1/4” BSP female air inlet
5
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 6
THE COMPRESSED AIR SUPPLY
AIR SUPPLY REQUIREMENTS
WARNING: COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU
ARE FAMILIAR WITH ALL PRECAUTIONS RELATING TO THE USE OF
COMPRESSORS AND COMPRESSED AIR SUPPLY.
• Use only clean, dry, regulated compressed air as a power source.
• Air compressors used with the impact wrench must comply with the
appropriate European Community Safety Directives.
• A build-up of moisture or oil in the air compressor will accelerate
wear and corrosion in the impact wrench. ensure any moisture is
drained from the compressor daily and the inlet filter is kept clean.
• If an unusually long air hose is required, (over 8 metres), the line
pressure or the hose inside diameter may need to be increased.
• The air hose must be rated at least 150% of the maximum operating
pressure of the tool.

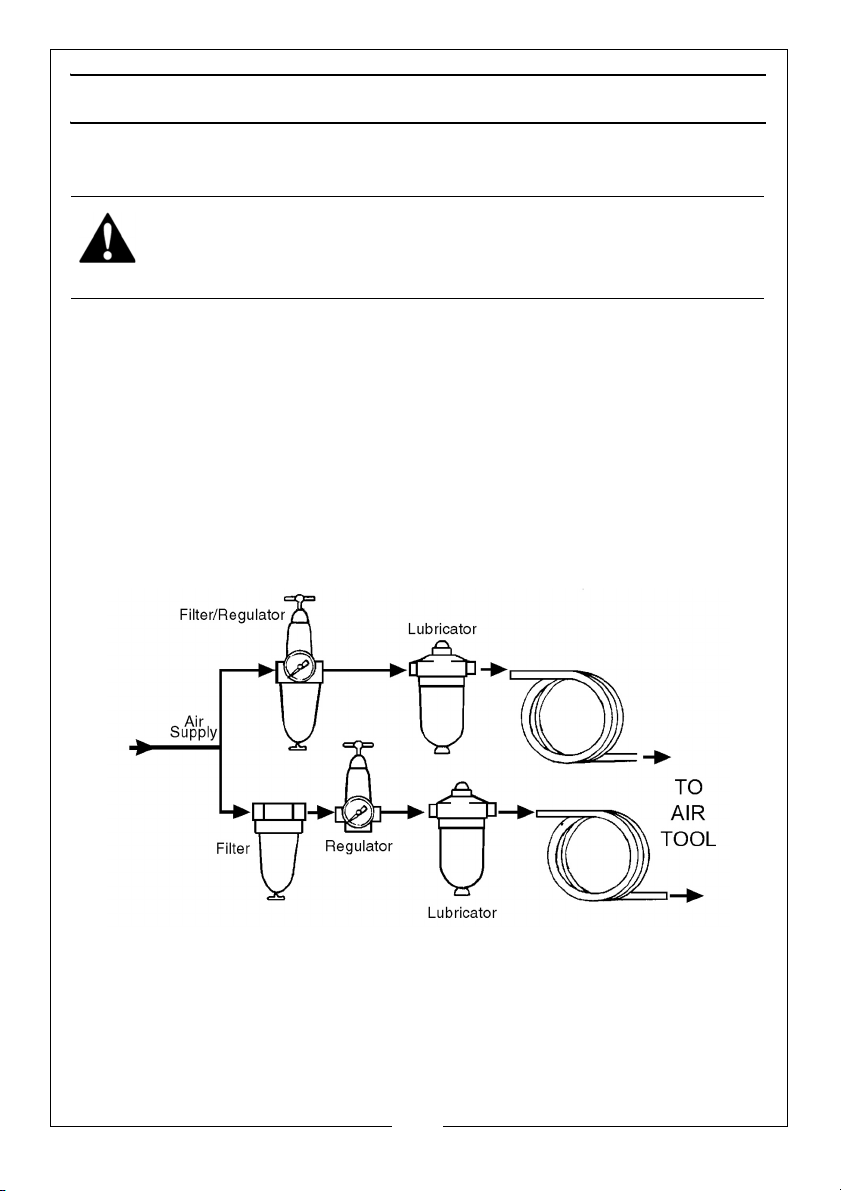

• A typical air line layout is shown above. If an automatic in-line filter/
regulator is used, it will keep the tool in good condition, but should
be regularly checked and topped up with oil. SAE 10 oil should be
used, and the lubricator adjusted to approx 2 drops per minute.
• The minimum hose diameter should be 5/16”(8mm) ID and fittings
should have the same internal dimensions.
6
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 7
• Never exceed the maximum operating pressure for the tool. It is
recommended that air pressure to this tool does not exceed 90 psi
at the tool when running. Higher pressures and unclean air will
shorten the life of the tool due to faster wear and is a possible safety
hazard.
BEFORE USE
WARNING: COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU
ARE FAMILIAR WITH ALL PRECAUTIONS RELATING TO THE USE OF AIR
COMPRESSORS AND COMPRESSED AIR SUPPLY.
NOTE: Ensure the air supply is turned off.
1. If required, connect an in-line mini oiler to the tool.
• A mini oiler helps to prolong the life of the air tool. Remove the oil fill
screw from the side of the mini oiler and fill with Air-line Oil available
from your CLARKE dealer. Replace the screw before using the tool.
2. If a mini-oiler is not being used, run a few drops of oil through the tool
before use. It can be entered through the air inlet.

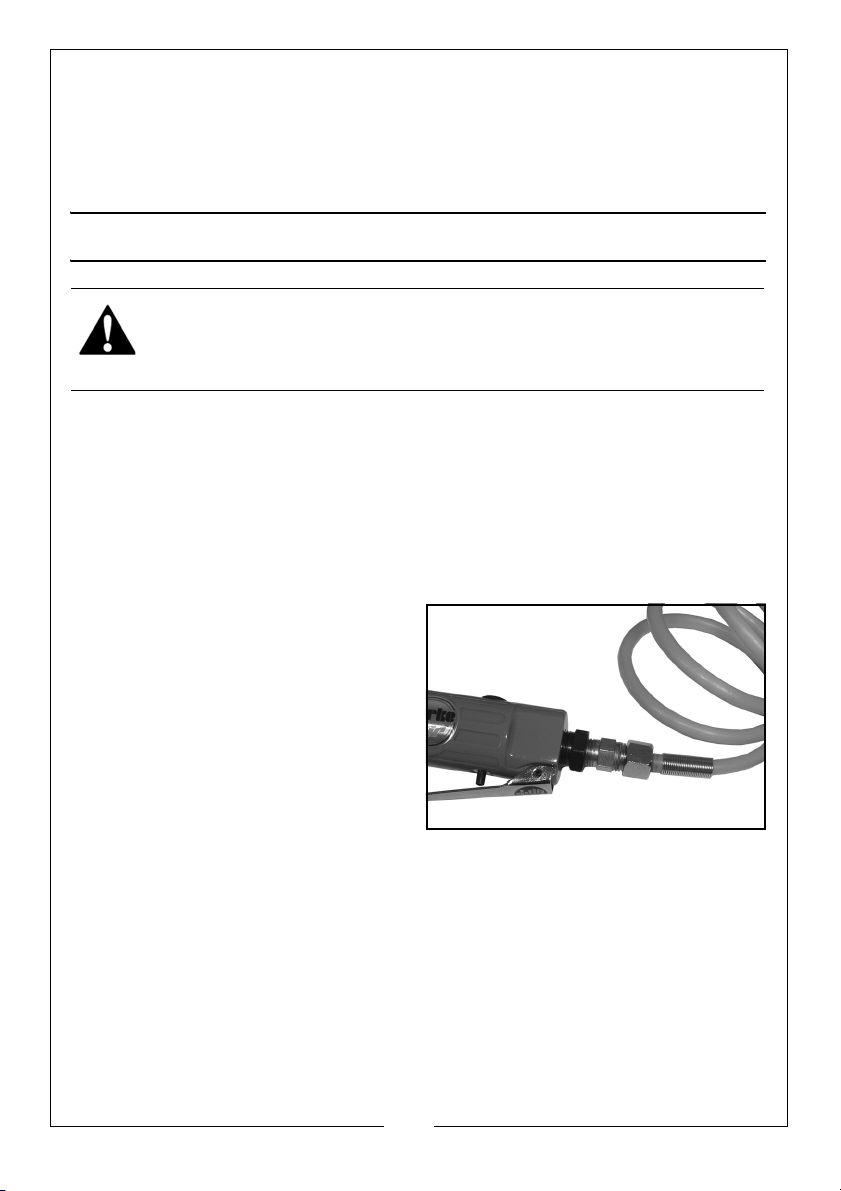

3. Connect a suitable hose to the
female air inlet as shown.
4. Connect the other end of the hose
to the air supply.
5. Turn on the air supply and check
for air leaks.
• Rectify any found before
proceeding.
Your air tool is now ready for use.
You can fit a whip hose with a quick fit coupling if required (available from
your Clarke dealer.)
7
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 8
INSERTING/REMOVING THE DRILL BIT
Drill bit
Chuck jaws
Close
Open
Chuck
key
jaws
jaws
Barrel

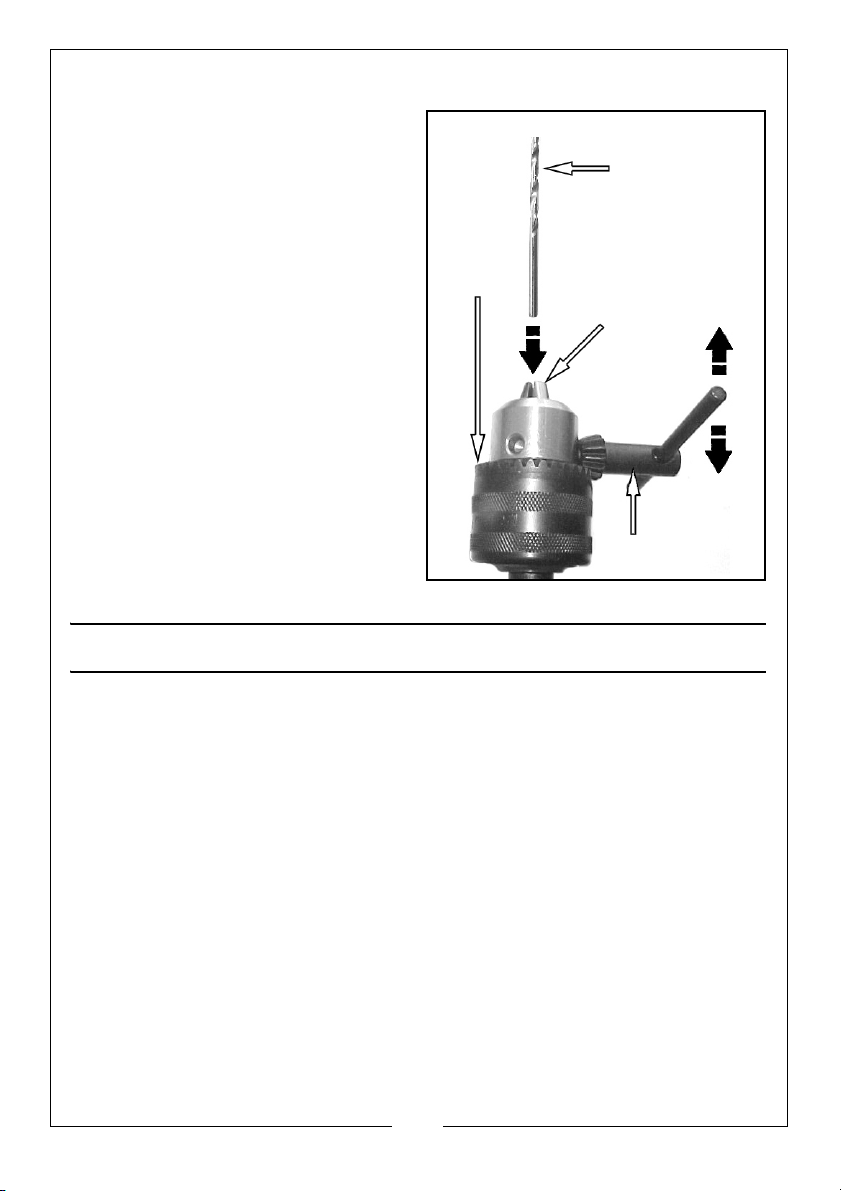

1. Open the chuck jaws by inserting
the chuck key in one of the holes
in the chuck and turning it as
shown.
2. Make sure that the head of the
chuck key is located on the barrel
of the chuck.
3. Turn the chuck key until the chuck
jaws are open sufficiently to take
the drill bit.
4. Place the drill bit in the jaws of the
chuck as far as it will go.
5. Close the chuck jaws and tighten
to grip the drill bit by turning the
chuck key as shown.
6. Make sure that the chuck jaws are
fully closed and that the drill bit is
held firmly.
7. Your air drill is now ready for use.
OPERATION
OPERATING THE AIR DRILL
1. Squeeze the trigger to start the drill.
2. Release the trigger to stop the drill.
3. Always ensure the drill has stopped before putting it down.
DISCONNECTING THE AIR SUPPLY
Do not disconnect the air supply hose until the air supply has been shut down
and the compressed air released.
1. Refer to the compressor instruction manual for the procedure to shut down
and release the compressed air.
2. Once the pressure has been released, disconnect the air supply hose from
the air drill.
Store the tool safely in its box in a dry, secure environment.
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
8
Page 9
MAINTENANCE
WARNING: MAKE SURE THAT THE DRILL IS DISCONNECTED FROM THE AIR
SUPPLY BEFORE STARTING ANY CLEANING, OR MAINTENANCE
PROCEDURES.
DAILY
1. Before use, drain water from the compressed air supply.
2. Pour a few drops of CLARKE airline oil, into the air inlet. This should be
carried out regardless of whether or not an in-line mini oiler is used. If an
inline mini oiler is not used, this procedure should be repeated after every
two to three hours of use.
WEEKLY

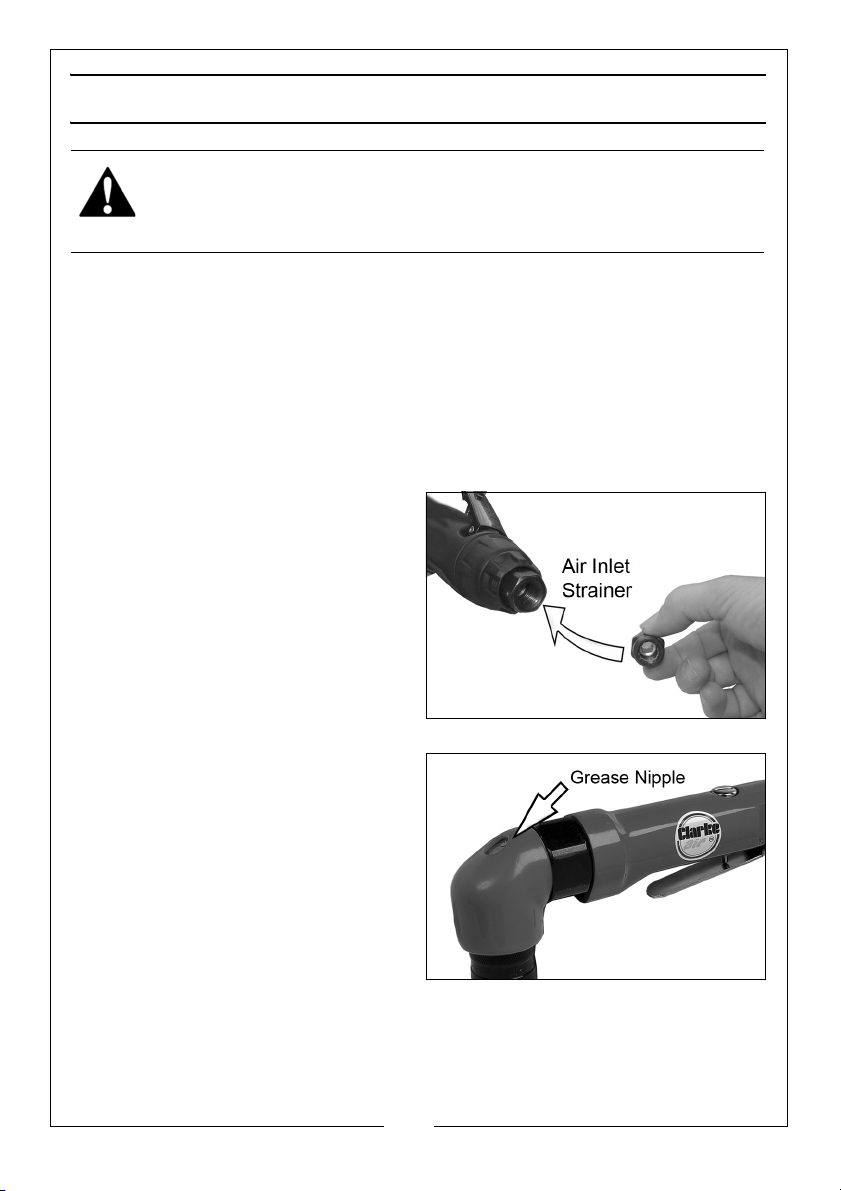

1. Check the air inlet screen filter for
blockage and clean if necessary.
1. Keep the body of the tool clean
and free from debris. Grit or gum
deposits in the tool may reduce
efficiency.
LUBRICATION
The right angle drive is fitted with a
grease nipple to provide a facility for
lubrication of the drive gears.
2. After extensive use, apply a shot
of general purpose grease using a
suitable grease gun.
SERVICE AND REPAIR
If the tool runs erratically or becomes
inefficient although the air supply is in
good order, it may be necessary to dismantle the tool. Such servicing and
repair work should be carried out by qualified service technicians.
9
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 10
PERFORMANCE
Please note that factors other than the tool may effect its operation and
efficiency such as reduced compressor output, excessive drain on the airline
moisture or restrictions in the air-line, or the use of connectors of improper size
or poor condition which will reduce air supply.
Grit or gum deposits inside the tool may also reduce its efficiency. This
condition can be corrected by cleaning out the air strainer and flushing out
the tool with gum solvent or oil, or failing this, the motor may require
dismantling.
**Clarke Air Line Oil (part no. 3050825) is available from your CLARKE dealer.
STORAGE
If the tool is to be stored, or is idle for longer than 24 hours, run a few drops of
Clarke air line oil into the air inlet, and run the tool for 5 seconds in order to
lubricate the internal parts.
When not in use, disconnect from air supply, clean tool and store in a safe, dry
place.
ACCESSORIES
A wide range of accessories is available including filter/regulators, lubricators,
high-pressure hoses (5 to 50 metres) etc.
Contact your CLARKE dealer for further information or CLARKE International
Service Department on 01992 565333.T
10
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 11
TROUBLESHOOTING
SYMPTOM PROBLEM SOLUTION
Tool runs at normal
speed but slows down
under any load.
Tool runs slowly. Air flows
weakly from exhaust.
Tool will not run. Air flows
freely from exhaust.
1. Excessive pressure on
drill.
2. Motor parts worn.
3. Worn or sticking
mechanism due to
lack of lubricant.
1. Motor parts jammed
with gum/dirt.
2. Regulator in closed
position.
3. General airflow
blocked by dirt.
1. Motor vanes stuck
due to buildup of
foreign material.
1. Reduce the force
applied to the drill.
2. Return to Clarke dealer
for repair.
3. Drip air tool lubricating
oil into air inlet. Allow oil
to soak moving parts
before using.
1. Examine inlet air filter for
cleanliness.
2. Adjust regulator to open
position.
3. Operate tool in short
bursts.
1. Disconnect air supply
and rotate tool assembly
manually.
2. Try operating tool in
short bursts.
3. Tap motor housing gently
with a rubber mallet.
4. Drip a few drops of air
tool lubricating oil into air
inlet to soak moving
parts.
Tool will not shut off. 1. O-rings damaged or
ill-fitting in seat.
11
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
1. Return to Clarke dealer
for repair.
Page 12
Page 13

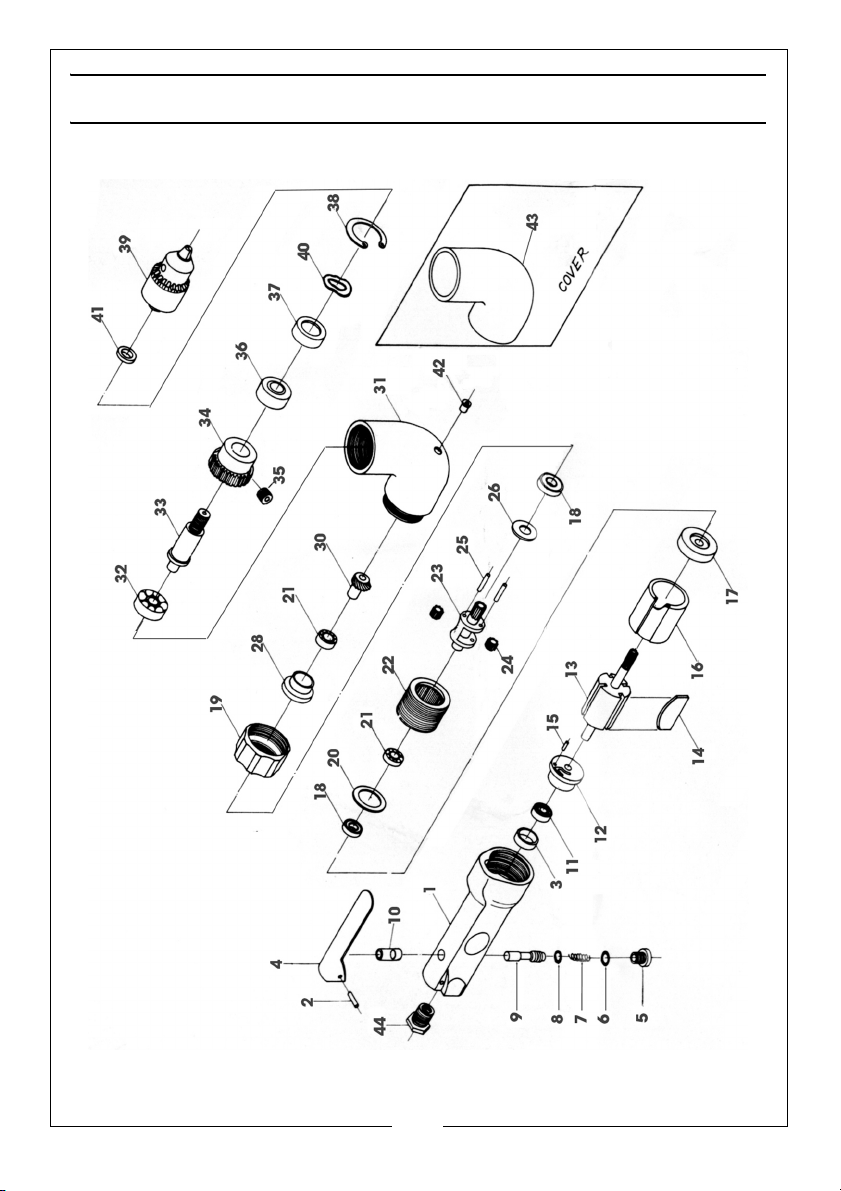

PARTS LIST
No Description No Description
1 Housing 23 Planet Cage
2 Pin 24 Planet Gear
3 Bearing Cap 25 Pin
4 Throttle Lever 26 Washer
5 Valve Screw 27 n/a
6 O-Ring 28 Bearing Cap
7Spring 29n/a
8 O-Ring 30 Pinion
9 Throttle Valve 31 Angle Housing
10 Valve Bushing 32 Ball Bearing
11 Ball Bearing 33 Spindle
12 Rear End Plate 34 Gear
13 Rotor 35 Set Screw
14 Rotor Blade 36 Ball Bearing
15 Pin 37 Bearing Cap
16 Cylinder 38 Retaining Ring
17 Front End Plate 39 3/8” Drill Chuck
18 Ball Bearing 40 Wave Washer
19 Clamp Nut 41 Spacer
20 Washer 42 Grease Cup
21 Ball Bearing 43 Cover
22 Ring Gear 44 Air Inlet
13
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 14
SPECIFICATION
Model Numbers CAT61
Part Number 3110461
Min. Hose Size (ID) 8 mm (5/16”)
Chuck Size 1.5 - 10 mm (3/8”)
Operating Pressure 90 psi (6.2 bar)
Air Consumption 4 cfm
No Load Speed 1900 rpm @ 90psi
Air Inlet Size 1/4“ BSP Female
Sound Pressure Level (LpA dB) 86dB(A)
Sound Power Level (LwA dB) 98 dB(A)
Vibration Levels
Vibration Uncertainty K 1.5
Weight 1 kg
Please note that the details and specifications contained herein are correct at
the time of going to print. However CLARKE International reserve the right to
change specifications at any time without prior notice. Always consult the
machine’s data plate.
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
1.38 m/s
14
2
Page 15

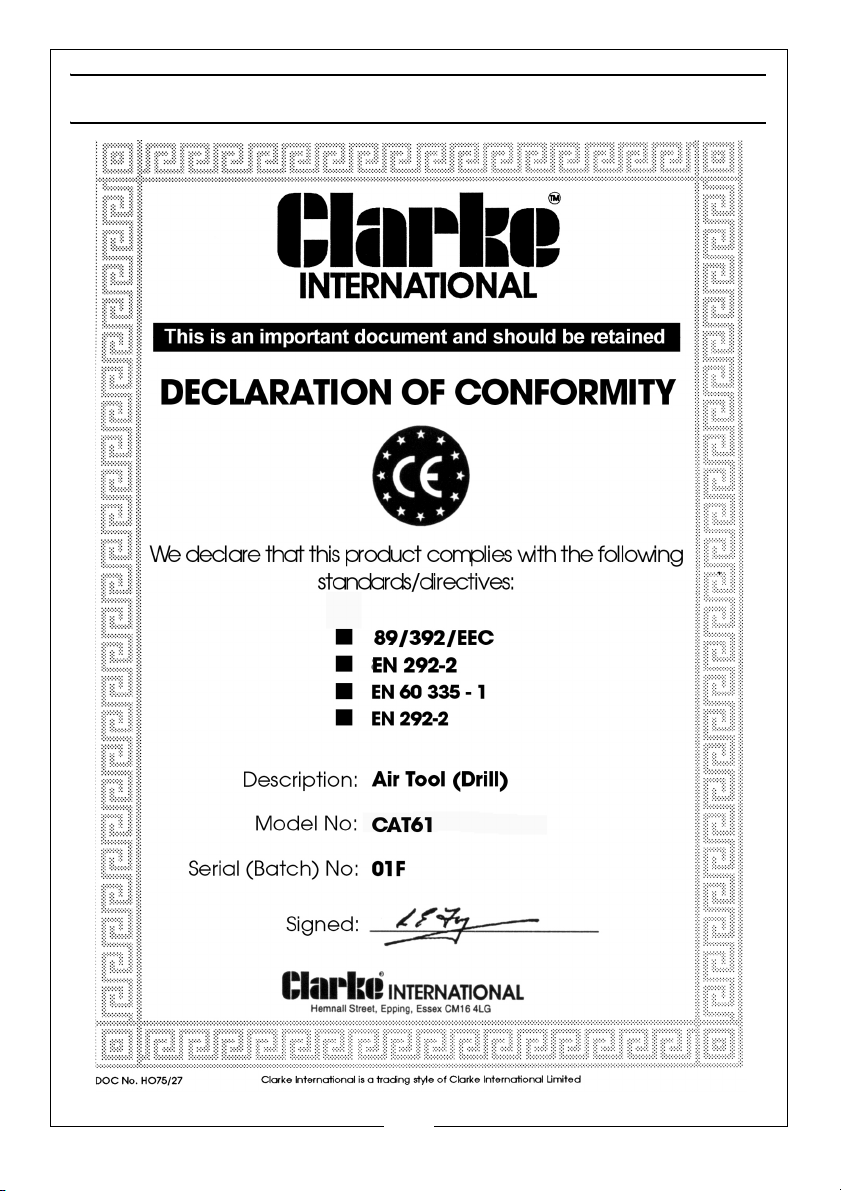

DECLARATION OF CONFORMITY
15
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 16
Loading...
