Clarke CAT 33B, 3110433 User guide

GREASE GUN

MODEL NO: CAT33B

PART NO: 3110433

OPERATING & MAINTENANCE

INSTRUCTIONS

GC04/15

INTRODUCTION

Thank you for purchasing this CLARKE Grease Gun.

Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.

Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission. This guarantee does not effect your
statutory rights.

SPECIFICATION

Model Numbers CAT33B

Part Numbers 3110433

Input Pressure Range 60-150 psi

Recommended Operating Pressure 90 psi (6.2 bar)

Capacity 400 gram cartridge

Air Inlet Size 1/4” BSP thread

Vibration Levels

Weight 1.5 kg

2

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

<2.5m/s

2

GENERAL SAFETY RULES

CAUTION: FAILURE TO FOLLOW THESE PRECAUTIONS COULD RESULT IN
PERSONAL INJURY, AND/OR DAMAGE TO PROPERTY.

WORK ENVIRONMENT

1. Keep the work area clean and tidy.

2. Dress appropriately - Do not wear loose clothing or jewellery. Tie long hair
out of the way.

3. Keep children and visitors away - Do not let children handle the tool.

4. Keep the air supply hose away from heat, oil and sharp edges.

5. Do not fit the tool to any stand or clamping device that may damage it.

USING THE PRODUCT

1. Stay alert and use common sense - do not operate this tool when you are
tired or under the influence of alcohol, drugs or medication.

2. Always wear eye protectors when using air tools. Eye protectors must
provide protection from flying particles from the front and the side.

3. Do not overreach - keep proper footing and balance at all times.

4. Never use oxygen, CO2, combustible gasses, or any bottled gas, as a
source of power for the grease gun. This product should only be used with
a suitably rated compressed air supply.

5. Do not connect the airline with your finger on the trigger of the gun.

6. Do not exceed the maximum pressure for the gun of 90 psi / 6.2 bar.

7. Check hoses for leaks or excessive wear before use and ensure that all
connections are secure.

8. Do not use the tool for any other purpose than described in this manual.

9. Do not carry out any modifications to the tool.

10. Always disconnect from the air supply when:

• Performing any maintenance.

• The tool is not in use.

• The tool will be left unattended.

• Moving to another work area.

3

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

• Passing the tool to another person.

• Never use the tool if it is defective or operating abnormally.

11. This tool should be serviced regularly by qualified service personnel.

12. Avoid damaging the tool for example by applying excessive force.

13. Always maintain the tool. Keep it clean for the safest performance.

14. Do not force or misuse the tool. It will do a better and safer job at the rate
for which it was designed.

TRANSPORT

1. Never carry an air tool by the air supply hose.

2. Never carry an air tool with your finger on the trigger.

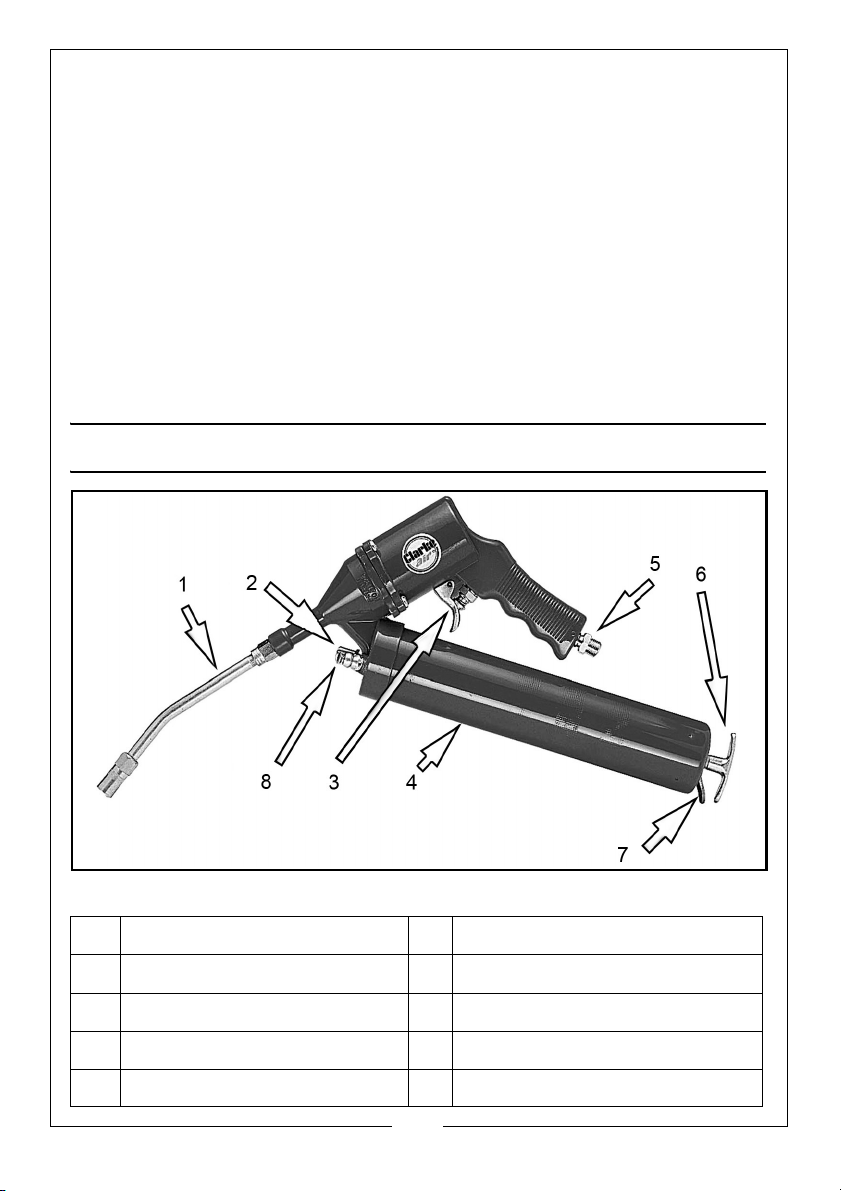

OVERVIEW

NO DESCRIPTION NO DESCRIPTION

1 Nozzle 5 Air Inlet Fitting

2 Filler Plug 6 Plunger Handle

3Trigger 7Catch Plate

4 Grease Container 8 Air Vent Valve

4

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

COMPRESSED AIR REQUIREMENTS

WARNING: COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU
ARE FAMILIAR WITH ALL PRECAUTIONS RELATING TO THE USE OF
COMPRESSORS AND A COMPRESSED AIR SUPPLY.

• Use only clean, dry, regulated compressed air as a power source.

• Air compressors used with the tool must comply with the appropriate

European Community Safety Directives.

• A build-up of moisture or oil in the air compressor will accelerate

wear and corrosion in the tool. ensure any moisture is drained from
the compressor daily and the inlet filter is kept clean.

• If an unusually long air hose is required, (over 8 metres), the line

pressure or the hose inside diameter may need to be increased.

• The air hose must be rated at least 150% of the maximum operating

pressure of the tool.

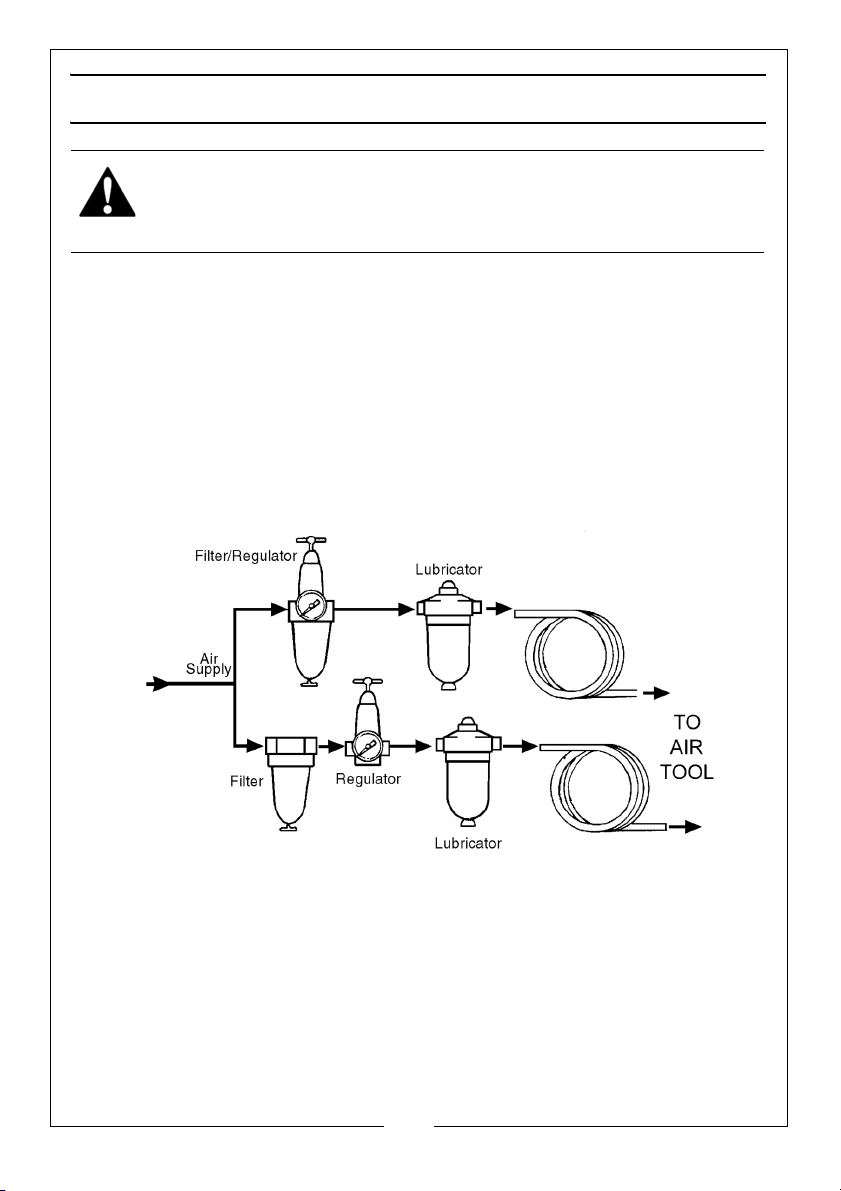

• A typical air line layout is shown above. If an automatic in-line filter/

regulator is used, it will keep the tool in good condition, but should
be regularly checked & topped up with oil. Clarke air-line oil should
be used, and the lubricator adjusted to approx 2 drops per minute.

• Never exceed the maximum operating pressure for the tool. It is

recommended that air pressure to this tool does not exceed 90 psi
at the tool when running. Higher pressures and unclean air will
shorten the life of the tool due to faster wear and is a possible safety
hazard.

5

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

BEFORE USE

NOTE: Ensure the compressor is turned off.

1. If required, connect an in-line mini oiler to the tool.

• A mini oiler helps to prolong the life of the air tool.

2. If a mini-oiler is not being used, run a few drops of oil through the tool
before use. It can be entered through the inlet connector or via the hose
at the nearest connection to the air supply.

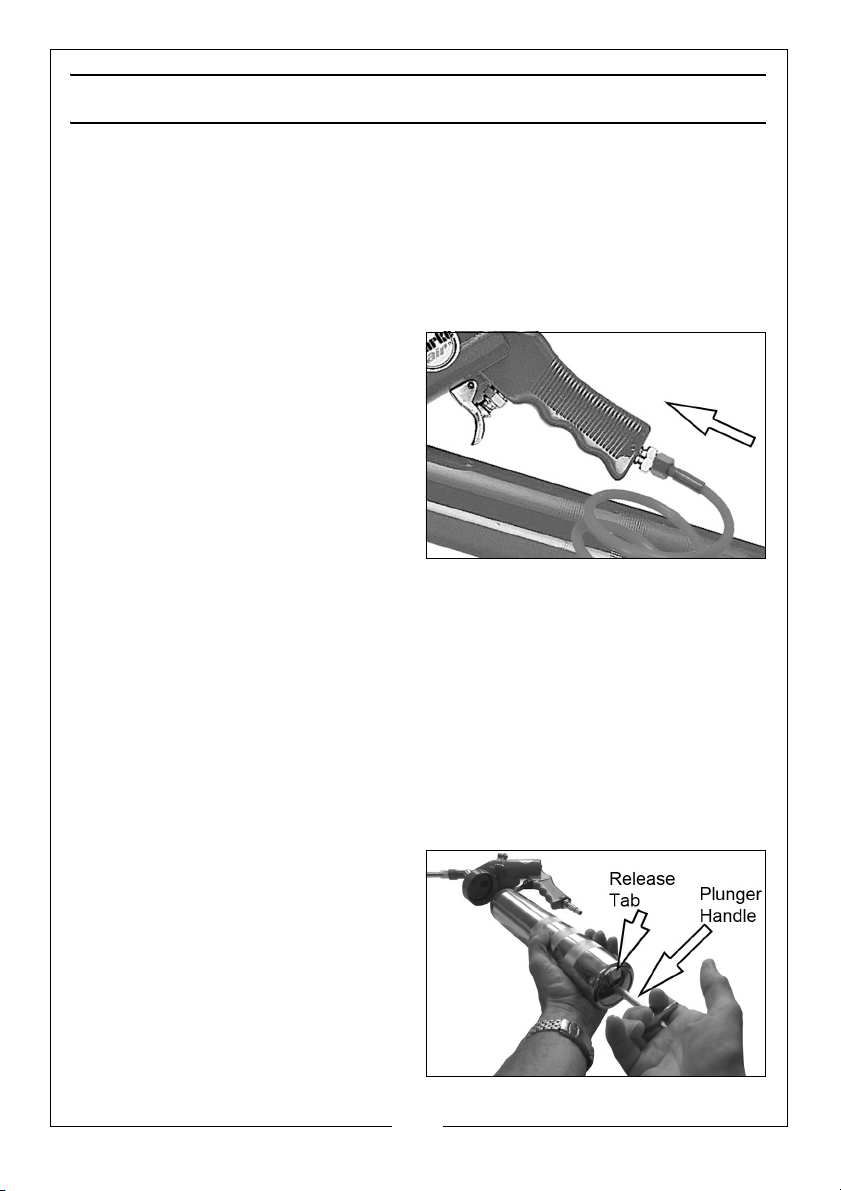

3. Connect a suitable hose as shown.

4. Connect the other end of the hose
to the compressor.

5. Turn on the air supply and check
for air leaks. Rectify any found
before proceeding. PTFE tape may
be helpful for sealing threaded
connections.

6. Your air tool is now ready for use.

You can fit a whip hose with a quick fit coupling if required (available from
your Clarke dealer).

LOADING WITH GREASE

This air driven grease gun is designed to be loaded in one of three ways:

• Using a standard 400 gram grease cartridge.

• Loading the container with a filler pump.

• Loading the container by bulk filling.

CARTRIDGE LOADING

1. Unscrew the container from the
head of the grease gun.

2. Pull the plunger handle on the
container completely out.

3. Remove any seal or end cap from
the end of the grease cartridge.

4. Insert the grease cartridge all the
way into the container.

6

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

5. Re-fit the container to the head of the grease gun.

6. Press the handle release tab to release the plunger handle.

7. Press the air vent valve to release any excess air trapped inside the gun.

LOADING USING A FILLER PUMP (IF AVAILABLE)

1. Pull the plunger handle on the container completely out.

2. Fit the filler pump to the grease gun inlet valve.

3. Fill the container by pumping the filler pump handle.

4. Disconnect the grease gun inlet valve from the filler pump.

5. Press the handle release tab to release the plunger handle.

6. Press the air vent valve to release any excess air trapped inside the gun.

BULK FILL LOADING

1. Remove the container from the head of the grease gun.

2. Pull the plunger handle on the container completely out.

3. Fill the container with bulk grease.

4. Re-fit the container to the grease gun.

5. Press the handle release tab to release the plunger handle.

6. Press the air vent valve to release any excess air trapped inside.

OPERATING THE GREASE GUN

1. Connect the gun to the air hose.

NOTE: It is recommended that a whip hose with a swivel (not included)

be used to prevent twisting, kinking and resultant wear to the air
hose.

2. Squeeze the trigger completely to operate the grease gun.

• The grease is applied in shots, not in a continuous flow.

3. Release the trigger after each shot.

DISCONNECTING THE AIR SUPPLY

Do not disconnect the air supply hose until the compressor has been shut
down and the compressed air released.

1. Refer to the compressor instruction manual for the procedure to shut down
and release the compressed air.

2. Once the pressure has been released, disconnect the air supply hose from
the air tool.

7

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

MAINTENANCE

WARNING: MAKE SURE THAT THE AIR TOOL IS DISCONNECTED FROM THE
AIR SUPPLY BEFORE STARTING ANY CLEANING, OR MAINTENANCE
PROCEDURES.

DAILY

1. Before use, drain water from the air-line and compressor.

2. This air tool should be lubricated before use. Turn the tool upside down and
pour 1-2 drops of Clarke air-line oil into the air inlet. This should be carried
out regardless of whether or not an in-line mini oiler is used. If an in-line mini
oiler is not used, this procedure should be repeated after every two to
three hours of constant use.

CLEANING

1. Keep the body and nozzle of the tool clean.

2. Deposits in the tool may also reduce efficiency. This can be corrected by
cleaning the air inlet and flushing out the tool with gum solvent oil, or failing
this, the tool should be disassembled, thoroughly cleaned, dried and
reassembled.

3. If the tool becomes inefficient and the air supply is of good quality, it may
be necessary to replace worn or damaged parts. You may prefer to take
the tool to your Clarke dealer if internal maintenance is required.

Your Clarke air tool has been designed to give long and trouble free service. If,
however, having followed the instructions in this booklet carefully, you
encounter problems, take the unit to your local Clarke dealer.

PERFORMANCE

Please note that factors other than the tool may effect its operation and
efficiency such as reduced compressor output, excessive drain on the airline,
moisture or restrictions in the air-line, or the use of connectors of improper size
or poor condition which will reduce air supply.

**Clarke Air-line Oil (part no. 3050825) is available from your Clarke dealer.

STORAGE

If the tool is to be stored, or is idle for longer than 24 hours, run a few drops of
Clarke air-line oil into the air inlet, and depress the trigger in order to lubricate
the internal parts.

8

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

When not in use, disconnect from air supply, clean and store in a safe, dry
place.

ACCESSORIES

Multi-purpose grease (high melting point Lithium based), 400g cartridge;- part
no 3050875 is available from your Clarke dealer.

A wide range of airline accessories is available including filter/regulators,
lubricators, high-pressure hoses (5 to 50 metres) etc.

Contact your Clarke dealer for further information or Clarke International
Service Department on 01992 565333.

TROUBLESHOOTING

SYMPTOM PROBLEM SOLUTION

Grease gun fails to work
or is slow.

Gun will not shut off. O-rings damaged or ill-

Air pockets in the gun Remove the spout from the

Air hose leaks. Tighten and seal hose

Low air pressure. Adjust compressor

Plunger is sticking. Lubricate plunger.

Cartridge is empty Refill the container tube.

Grease gun is too cold. The gun needs to be at

fitting in seat.

gun head.
Unscrew the container tube
1-3 turns fro the gun head.
Press the trigger around 6-8
times untill grease comes
out.
Screw container tube
tightly ready for priming. If
no grease comes out,
repeat steps 1-3.

fittings with teflon tape.

regulator to 90 psi.

o

room temperature(65-80

Return to Clarke dealer for
repair.

F)

9

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

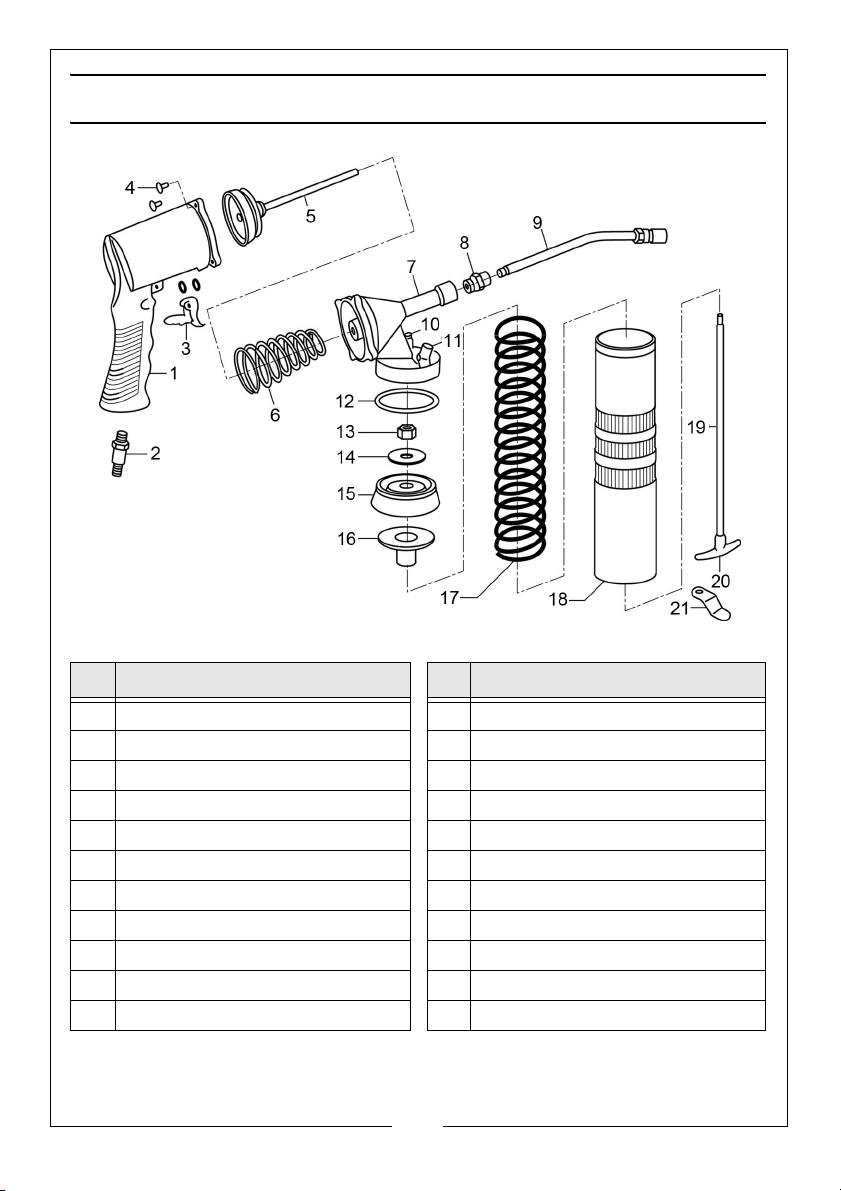

PARTS LIST & DIAGRAM

No Description No Description

1 Main Housing 12 Gasket

2 Air Connector 13 Nut

3Trigger 14Flat Washer

4Screw 15Plunger

5 Air Plunger 16 Plunger Holder

6 Short Spring Kit 17 Long Spring Kit

7 Housing Cap 18 Grease Container

8Adaptor 19Plunger Rod

9 Extension with nozzle 20 Plunger Handle

10 Air Vent Valve 21 Catch Plate

11 Filler Plug

10

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

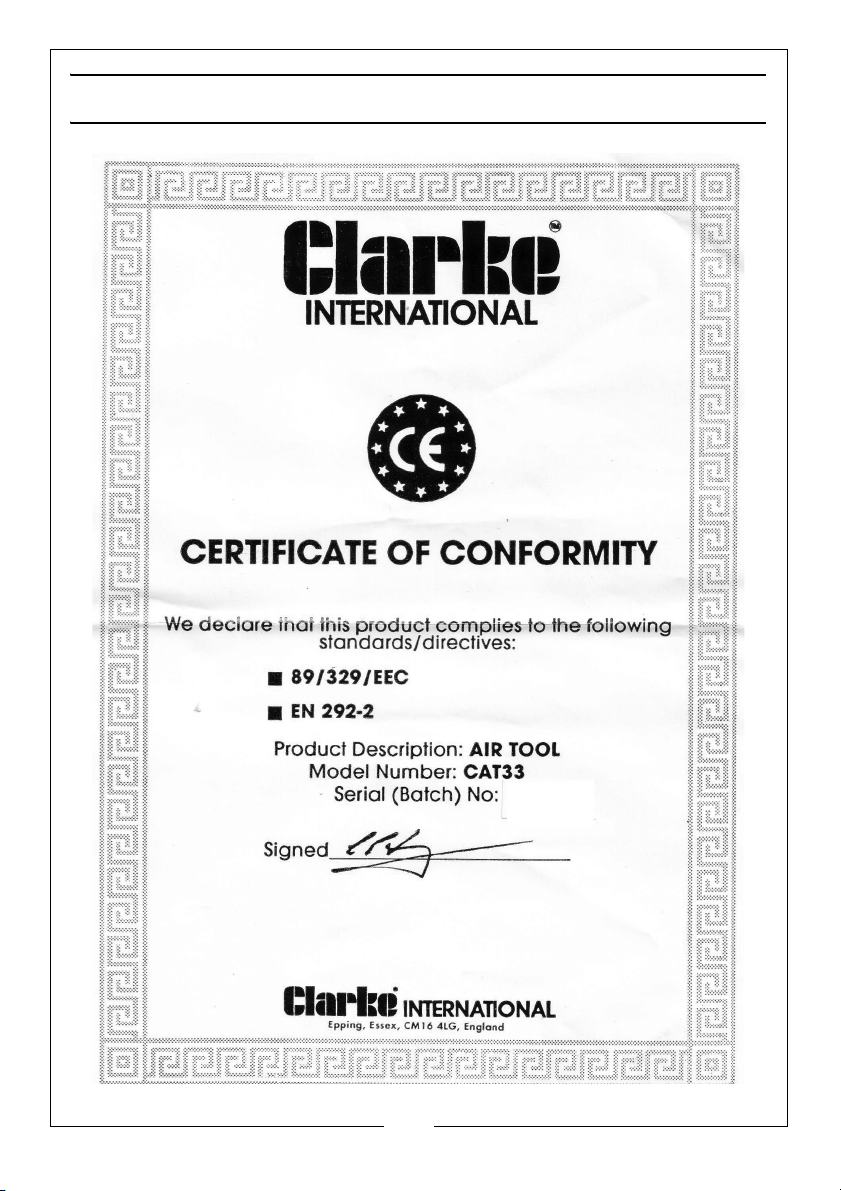

DECLARATION OF CONFORMITY

11

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
