Page 1
AIR BLOW GUN WITH HOSE
MODEL NO: CAT210
PART NO: 3120527
OPERATING & MAINTENANCE
INSTRUCTIONS
ORIGINAL INSTRUCTIONS GC1019 - ISS 1
Page 2
INTRODUCTION
Thank you for purchasing this CLARKE Blow Gun.
Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.
Please keep these instructions in a safe place for future reference.
SPECIFICATION
Dimensions - Blow Gun (L x W x H) 248 x 17 x 120 mm
Dimensions - Hose PU 6.5 X10mm WP 120PSI x 2.5m
Weight 297 g
Max Operating Pressure 90 psi (6.2 bar)
Air Inlet Size 1/4“BSP Female
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does not affect your statutory rights.
2
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 3
COMPRESSED AIR REQUIREMENTS
WARNING: COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU
ARE FAMILIAR WITH ALL PRECAUTIONS RELATING TO THE USE OF
COMPRESSORS AND COMPRESSED AIR.
Use only clean, dry, regulated compressed air as a power source.
Air compressors used with the tool must comply with the appropriate
European Community Safety Directives.
A build-up of moisture or oil in the air compressor will accelerate wear and
corrosion in the tool. Ensure any moisture is drained from the compressor daily
and the inlet filter is kept clean.
If an unusually long air hose is required, (over 8 metres), the line pressure or the
hose inside diameter may need to be increased.
The air hose must be rated at least 150% of the maximum operating pressure of
the air tool.

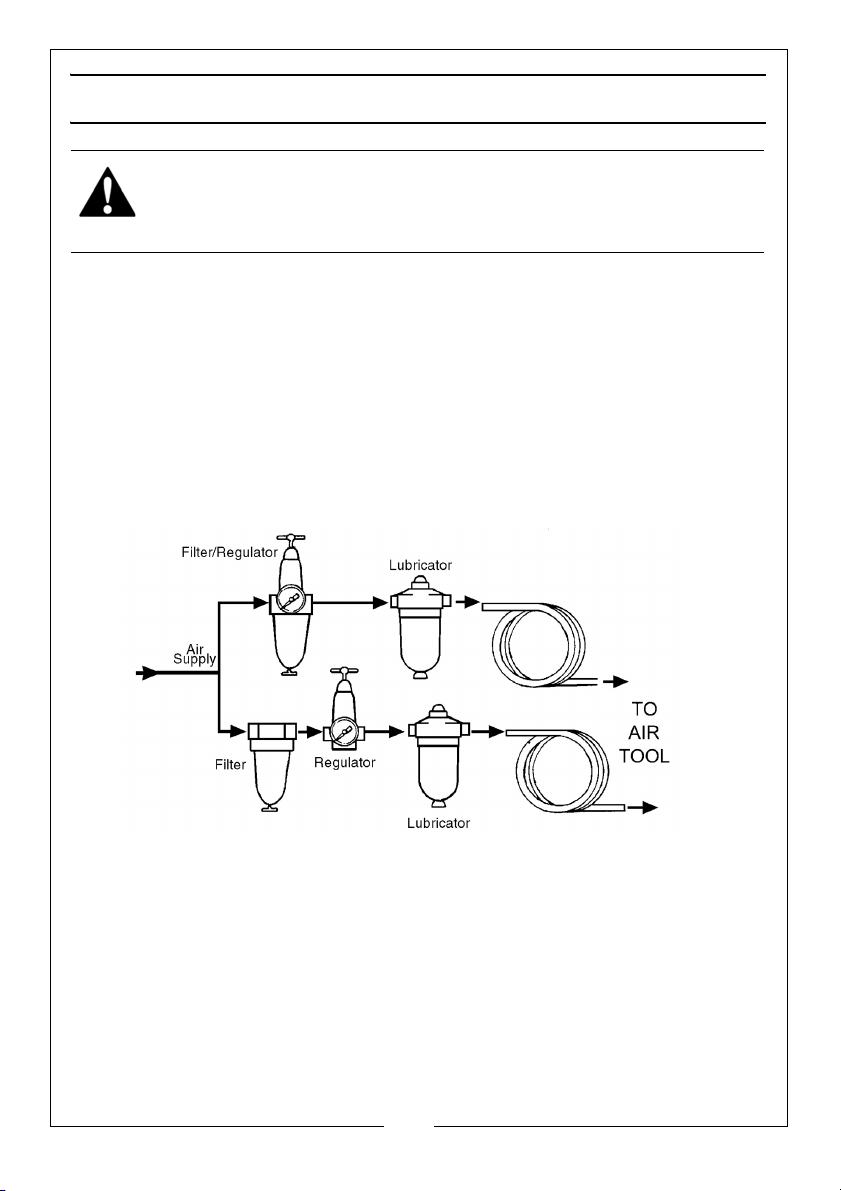

A typical air line layout is shown above. If an automatic in-line filter/regulator is
used, it will keep the air tool in good condition, but should be regularly
checked.
For optimum performance it is recommended that a 3/8” ID hose is used.
DO NOT exceed the maximum operating pressure. It is recommended that air
pressure does not exceed 90 psi (6.2 bar). Higher pressures and dirty air will
shorten the life of the blow gun due to faster wear and is a possible safety
hazard.
3
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 4
GENERAL SAFETY RULES
CAUTION: FAILURE TO FOLLOW THESE PRECAUTIONS COULD RESULT IN
PERSONAL INJURY AND/OR DAMAGE TO PROPERTY.
WORK ENVIRONMENT
1. ALWAYS keep the work area clean and tidy.
2. ALWAYS dress appropriately - Do not wear loose clothing or jewellery. Tie
long hair out of the way.
3. ALWAYS keep children and visitors away - Do not let children handle the
blow gun.
4. DO NOT operate the blow gun where there are flammable liquids or gases.
USE OF AIR POWERED TOOLS
1. ALWAYS stay alert and use common sense - do not operate this blow gun
when you are tired or under the influence of alcohol, drugs or medication.
2. ALWAYS wear eye protectors when using the blow gun. Eye protectors must
provide protection from flying particles from the front and the side.
3. DO NOT use the blow gun when other persons or animals are nearby or
may be hit by flying debris caused by the blow gun.
4. DO NOT overreach - Keep proper footing and balance at all times.
5. DO NOT use oxygen, CO
as a source of power for this blow gun.
6. DO NOT connect the air hose with your finger on the trigger.
7. DO NOT exceed the maximum pressure of 90 psi / 6.2 bar.
8. ALWAYS keep the air hose away from heat, oil and sharp edges.
9. DO NOT fit the blow gun to any stand or clamping device that may
damage it.
10. ALWAYS check air hoses for leaks or worn condition before use and ensure
that all connections are secure.
11. DO NOT use the blow gun for any purpose than that described in this
manual.
12. DO NOT discharge this blow gun at any persons or animals.
13. DO NOT insert into any part of yours or anyone else’s body.
2
, combustible gasses or any type of bottled gas
4
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 5
14. DO NOT point directly at a person’s skin or at a fire.
15. DO NOT carry out any alterations or modifications to the blow gun.
16. ALWAYS disconnect from the air supply when performing maintenance.
17. DO NOT use the blow gun if it is defective or operating abnormally.
18. ALWAYS maintain the blow gun with care. Keep it clean for the best and
safest performance.
TRANSPORT & STORAGE
1. DO NOT carry the blow gun by the air hose or with your finger on the
trigger.
2. When not in use the blow gun must be disconnected from the air supply
and stored in a dry place out of the reach of children.
3. Avoid storing a blow gun where the temperature is below 0oC.
BEFORE USE
CONNECTING THE AIRLINE
Ensure the air supply is isolated from
the airline at a shut-off valve.

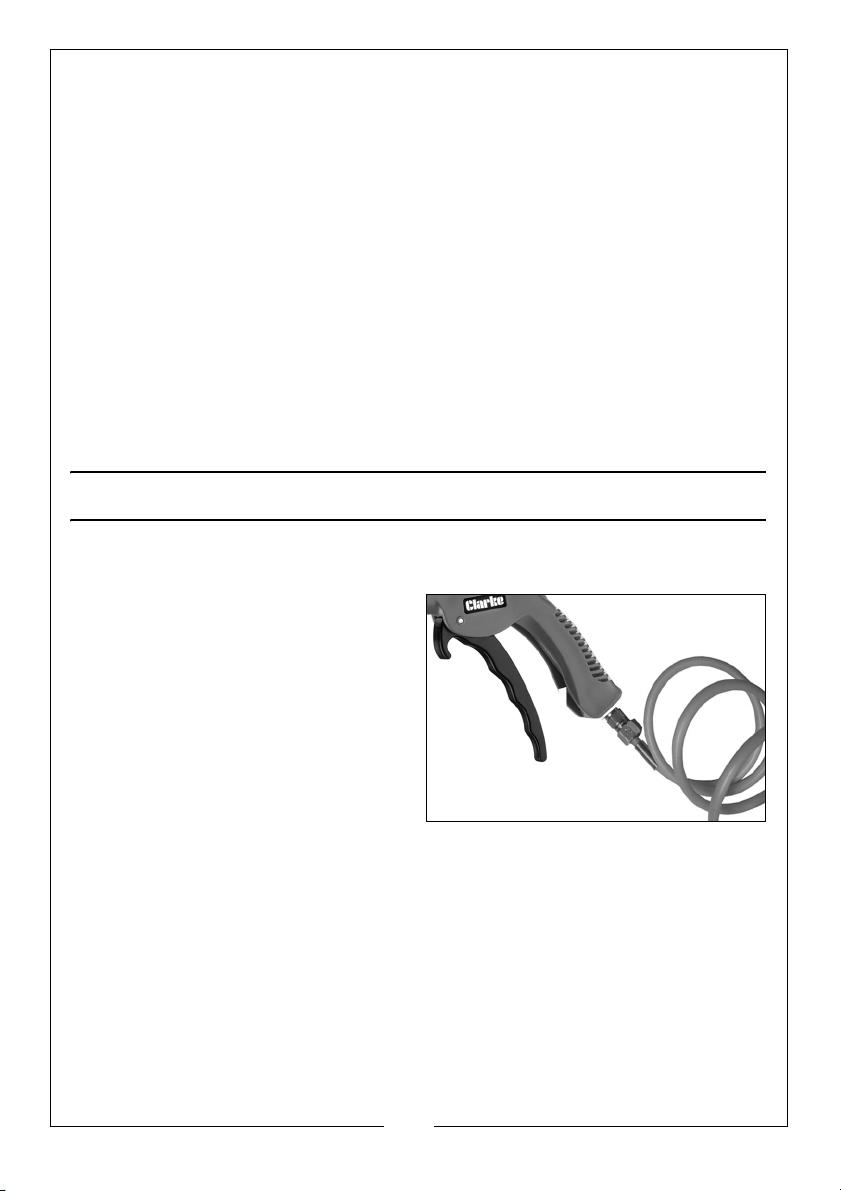

1. Connect a suitable hose to the air
inlet connector as shown.
2. Connect the other end of the air
hose to the air compressor.
3. Set the compressed air pressure to
suit the task at the airline regulator.
4. Turn on the air supply and check
for air leaks. Rectify any found before proceeding.
• PTFE tape may be useful for sealing threaded connections.
5. Your blow gun is now ready for use.
DISCONNECTING THE AIR SUPPLY
1. Do not disconnect the airline until the supply is isolated at a shut-off valve.
2. Once the pressure has been isolated, disconnect the air supply hose from
the blow gun.
3. Shut down the compressor at the end of the work session.
5
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 6
MAINTENANCE
WARNING: MAKE SURE THAT THE BLOW GUN IS DISCONNECTED FROM THE
AIR SUPPLY BEFORE ANY CLEANING OR MAINTENANCE.
1. Before use, drain any condensate from the airline filter and compressor.
2. Clean thoroughly after use with a suitable solvent.
PERFORMANCE
Please note that factors other than the air tool may affect its operation and
efficiency such as reduced compressor output, excessive drain on the airline,
moisture or restrictions in the air-line, or the use of connectors of improper size
or poor condition which will reduce air supply.
Your CLARKE air tool has been designed to give long and trouble free service.
If, however, having followed the instructions in this booklet carefully, you
encounter problems, take the unit to your local CLARKE dealer.
ACCESSORIES
A wide range of accessories is available including filter/regulators, lubricators,
high-pressure hoses (5 to 50 metres) etc.
Contact your CLARKE dealer for further information or the CLARKE
International Service Department.
6
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 7

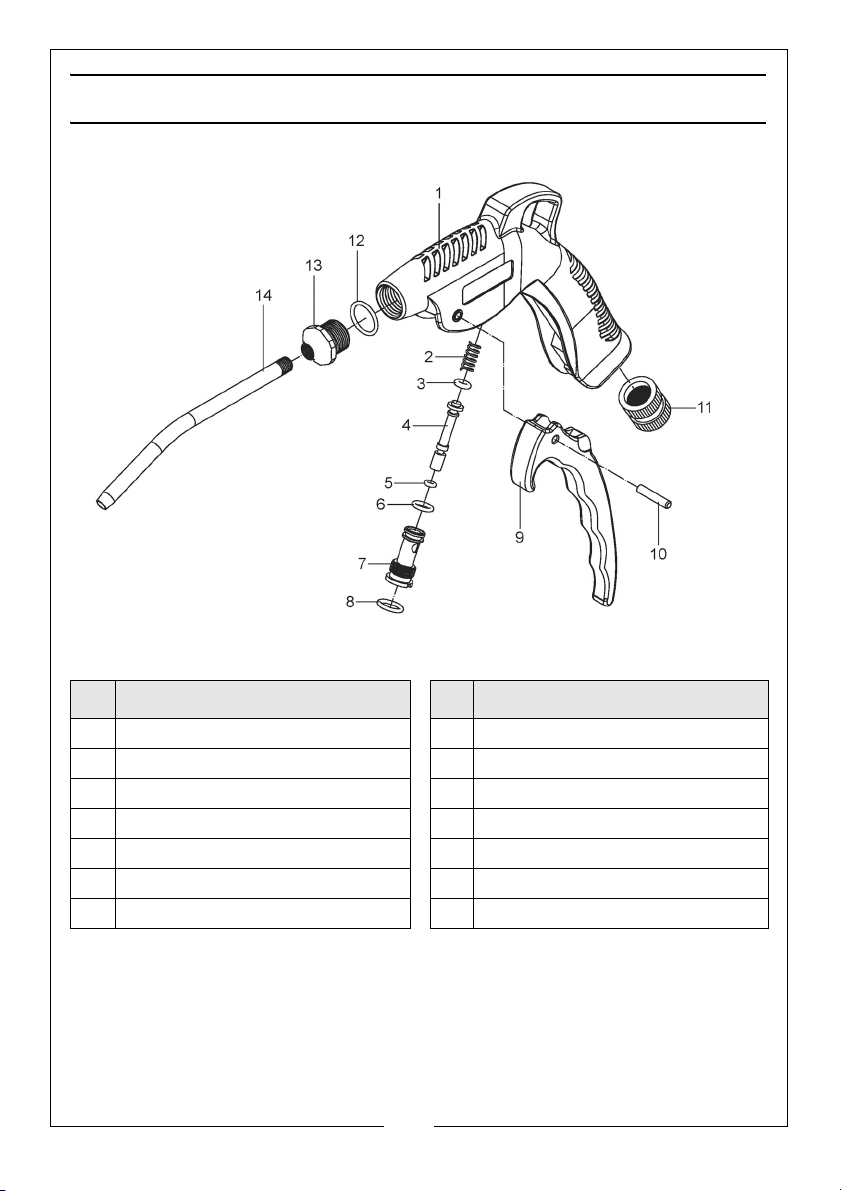

COMPONENT PARTS
No Description No Description
1 Main Housing 8 O-ring
2 Spring 9 Trigger
3 O-ring 10 Pin
4 Valve stem 11 Air inlet
5 O-ring 12 O-ring
6 O-ring 13 Air nozzle seat
7 Valve stem 14 Air nozzle
7
