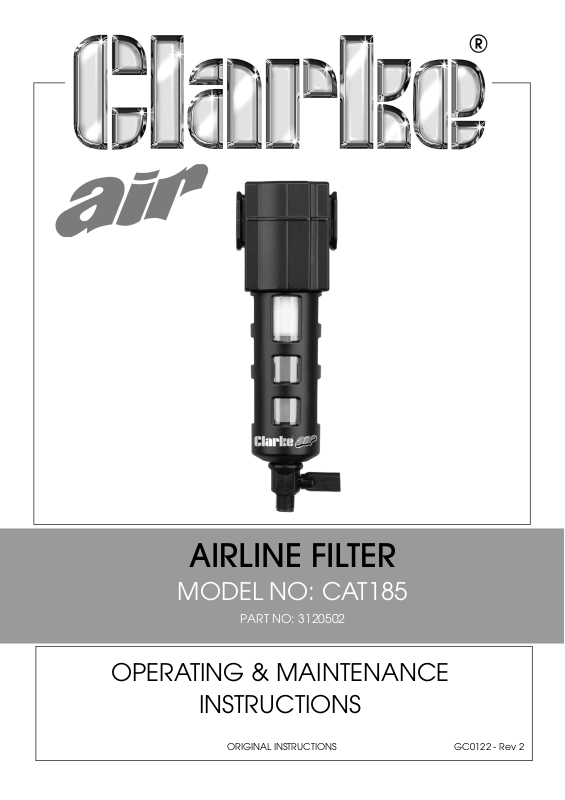

Clarke CAT 185, 3120502 User guide

AIRLINE FILTER

MODEL NO: CAT185

PART NO: 3120502

OPERATING & MAINTENANCE

INSTRUCTIONS

ORIGINAL INSTRUCTIONS GC0122 - Rev 2

INTRODUCTION

Thank you for purchasing this CLARKE Air Filter.

Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.

Your filter has been designed to give long and trouble free service. If, however,
having followed the instructions in this booklet carefully, you encounter
problems, take the unit to your local CLARKE dealer.

SPECIFICATIONS

CAT185

Dimensions (D x W x H) 46 x 50 x 166 mm

Air Inlet /Outlet Size 1/4“BSP (female)

Max Flow 55 CFM

Max Inlet Pressure 150 psi

Element Micron Rating

Max working Temperature 125 deg F

5

μ

GENERAL SAFETY RULES

CAUTION: FAILURE TO FOLLOW THESE PRECAUTIONS COULD RESULT IN
PERSONAL INJURY, AND/OR DAMAGE TO PROPERTY.

WORK ENVIRONMENT

1. Keep the work area clean and tidy.

2. Dress appropriately - do not wear loose clothing or jewellery. Tie long hair
out of the way.

3. Keep children and visitors away - do not let children handle the tools.

4. Do not operate air tools where there are flammable liquids or gases.

2

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

USE OF AIRLINE EQUIPMENT

1. Stay alert and use common sense - do not operate an air tool when you
are tired or under the influence of alcohol, drugs or medication.

2. Do not overreach - Keep proper footing and balance at all times.

3. Never use oxygen, CO
source of power for air tools.

4. Do not exceed the maximum pressure for the airline component stated in
the specification.

5. Check airline hoses for leaks or worn condition before use and ensure that
all connections are secure.

6. Keep the air supply hose away from heat, oil and sharp edges.

7. Avoid damaging the component for example by applying excessive force
of any kind.

8. Always maintain the air tool with care. Keep it clean for the best and safest
performance.

, combustible gases or any type of bottled gas as a

2

COMPRESSED AIRLINE REQUIREMENTS

WARNING: COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU
ARE FAMILIAR WITH ALL PRECAUTIONS RELATING TO THE USE OF
COMPRESSORS AND COMPRESSED AIR SUPPLY.

1. Use only clean, dry, regulated compressed air as a power source.

2. Air compressors must comply with the appropriate European Community
Safety Directives.

3. A build-up of moisture in the air compressor will accelerate wear and
corrosion in the air tool. Ensure any moisture is drained from the compressor
daily and the airline filter is kept clean.

4. If an unusually long air hose is required, (over 8 metres), the line pressure or
the hose inside diameter may need to be increased.

• The air hose must be rated at least 150% of the maximum operating

pressure of the air tool.

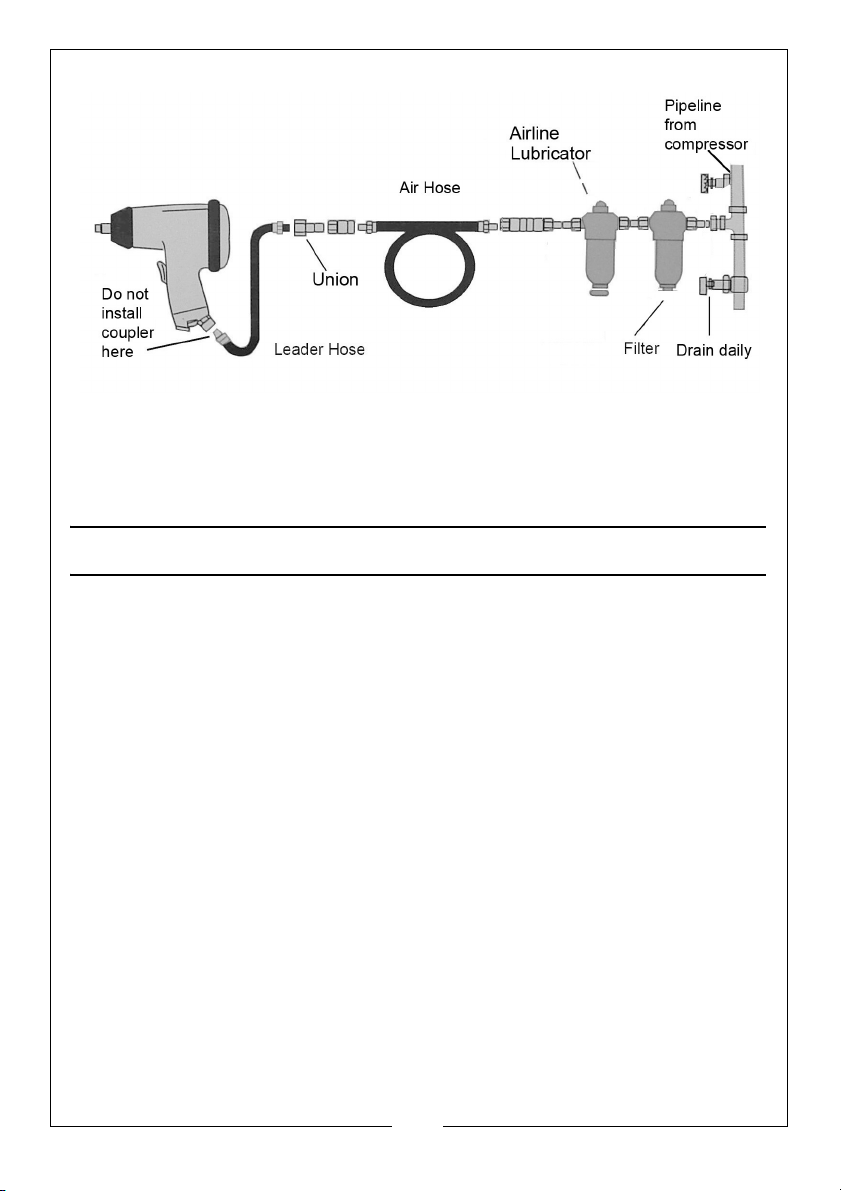

5. A typical air line layout is shown below. If an automatic in-line filter/
regulator is used it will keep the tool in good condition. The lubricator
should be adjusted to approx 2 drops per minute and SAE 10 oil should be
used.

3

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

6. Never exceed the maximum operating pressure for the air tool. Ensure that
air pressure does not exceed that stated in the specification for the tool
when running. Higher pressures and contaminated air will shorten the life of
the air tool due to faster wear and is a possible safety hazard.

INSTALLATION

1. Ensure the compressor is turned off. Before using the airline, drain water
from the air reservoir at the compressor.

• The filter should be installed with reasonable accessibility for service

whenever possible.

2. The filter should be installed upstream of regulator(s), lubricator(s), and
cycling valve(s) in the air line, and should be as close as possible to the air
tool(s) when used as a main line filter and/or as a final filter.

3. Keep pipe or tubing lengths to a minimum with the inside clean and free of
dirt. Pipe joint compound should be used sparingly and applied only to the
male pipe — never into the female port.

4. Do not use PTFE tape to seal pipe joints — pieces have a tendency to
break off and lodge inside the unit, possibly causing malfunction.

5. Install the filter so that air flows as marked by the arrow on the filter body.

6. Installation should be downstream of the regulator but upstream of any
lubricator.

7. Install the filter vertically with the bowl drain mechanism at the bottom.
ensuring there is sufficient free space below the filter for future access.

4

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

8. Remove the blanking plugs from the connection ports and connect to the
supply and delivery hoses.

9. A drain hose can be screwed to the drain port or the filter bowl drained
manually.

10. Your filter is now ready for use.

USE AND CARE IN SERVICE

1. Let the filter run with air supply on. Ensure that the pressure to the air inlet of
the filter from air line does not exceed the maximum pressure specified in
the instructions.

2. The filter is equipped with a manual drain. Turn manual drain valve to drain
accumulated liquids inside the bowl. Take care to drain the liquids from the
bowl whenever necessary and always keep the liquids below the baffle.

3. The filter element should be replaced when the pressure drop across the
element exceeds 10 psi. When an excessive pressure drop across a
saturated but uncontaminated element occurs, it may indicate that the
tool being operated exceeds the maximum flow rate (CFM) of the filter
(See Specifications). Refer to the maximum flow rate of your filter and
make sure that the required CFM of the air tool is within the maximum flow
rate of your filter for best air tool operation.

MAINTENANCE

DISASSEMBLY

1. The filter can be disassembled without removal from the air line.

2. Shut OFF inlet pressure. Reduce
pressure in inlet and outlet lines to
zero.

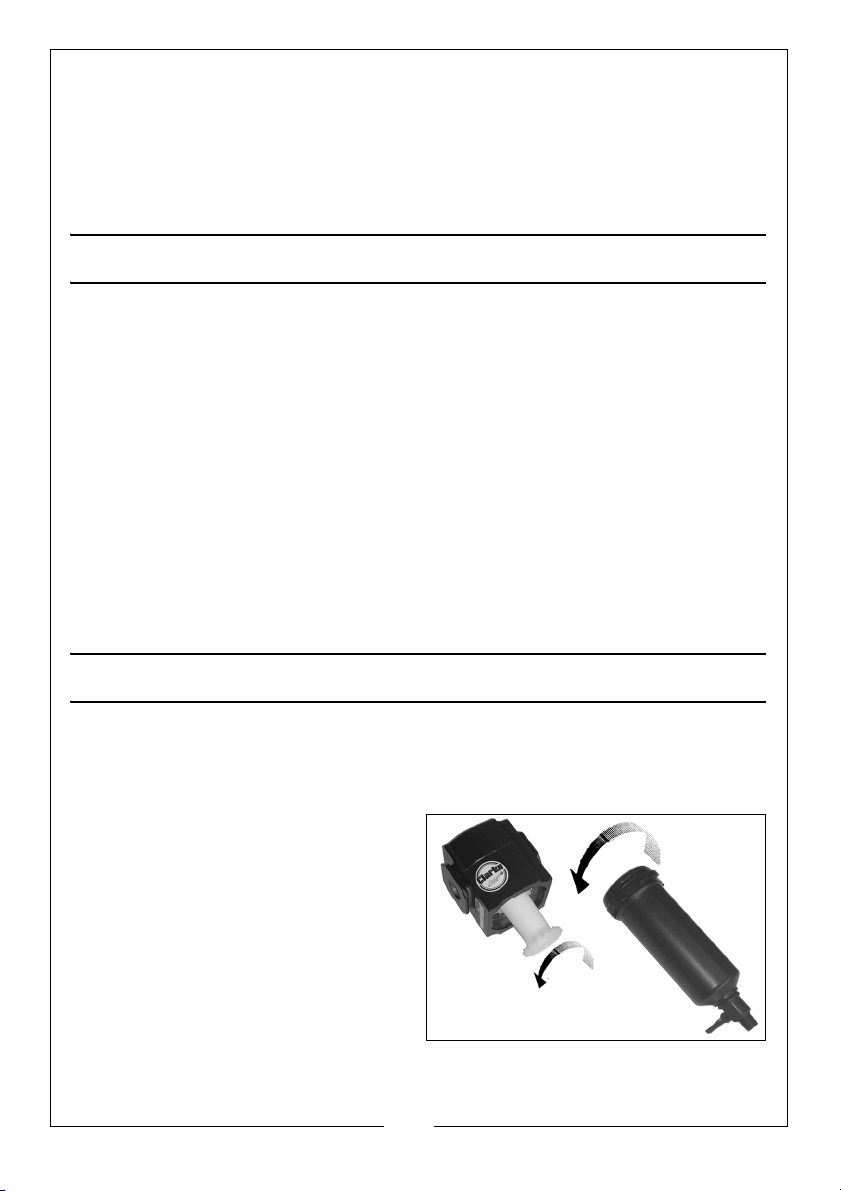

3. Remove the bowl. Push into the
body and turn anti-clockwise.

4. Disassemble in general
accordance with the parts
illustrated. Do not remove the
drain unless replacement is
necessary. Remove and replace
only if drain malfunctions or is being replaced with optional automatic
drain.

5

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

CLEANING

1. Clean the polycarbonate bowl with warm water only. Clean other parts
with warm water and soap.

CAUTION: The bowl is made from polycarbonate which can be severely
damaged if it comes into contact with some chemicals. These include
acetone, benzene, carbon tetrachloride, ethylene di-chloride, gasolene or
synthetic fire resistant lubricants.

2. Rinse and dry parts. Blow out internal passages in the body with clean, dry,
compressed air. Blow air through the filter element from inside to outside to
remove surface contaminants.

3. Inspect and replace any parts found to be damaged. Replace the plastic
bowl with a metal bowl if plastic bowl shows signs of cracking or cloudiness.

ASSEMBLY

1. Lubricate the o-rings, the portion of the manual drain body that contacts
the bowl, and the hole in the manual drain body that accommodates the
stem of drain valve with o-ring grease.

2. Assemble the filter as shown on page 7.

3. Tighten the items listed in the Table below..

Torque Settings

Part Inch Pounds (N-m)

Screw 17 to 22 (1.9 to 2.5)

Baffle 4 to 6 (0.5 to 0.7)

Centre post 6 to 8 (0.7 to 0.9)

Nut 20 to 25 (2.3 to 2.8)

4. Refit the bowl assembly ensuring the O-ring is in position. Push the bowl, or
bowl with guard, into the body and turn fully clockwise

ACCESSORIES

A wide range of accessories is available including filter/regulators, lubricators,
high-pressure hoses (5 to 50 metres) etc.

Contact your CLARKE dealer for further information or CLARKE International
Service Department.

6

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

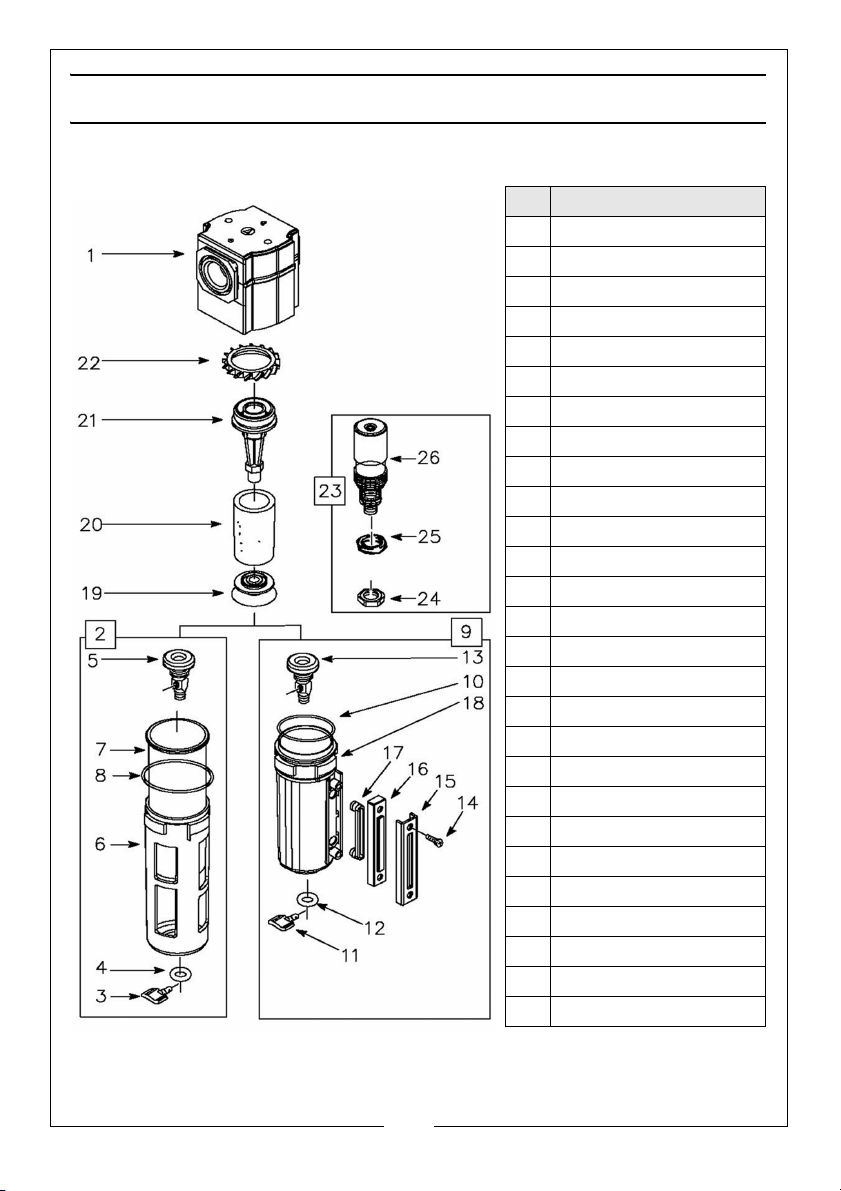

COMPONENT PARTS

No Description

1Body

2 Poly bowl assembly

3 Drain valve

4 O-ring

5Drain body

6 Bowl guard

7Polycarbonate bowl

8 O-ring

9 Metal bowl assembly

10 O-ring

11 Drain valve

12 O-ring

13 Drain body

14 Screw

15 Clamp

16 Lens

17 Seal

18 Metal bowl

19 Baffle

20 5 micron element

40 micron element

21 Centre post

22 Louvre

23 Auto drain conversion

24 Nut

25 Gasket

26 Automatic drain
