Page 1
1/4” MINI AIR REGULATOR
MODEL NO: CAT157
PART NO: 3120171
USER INSTRUCTIONS
ORIGINAL INSTRUCTIONS GC0122 - Rev 1
Page 2
INTRODUCTION
Thank you for purchasing this CLARKE product.
Before attempting to use this product, please read this document thoroughly
and follow the instructions carefully. In doing so you will ensure the safety of
yourself and that of others around you, and you can look forward to your
purchase giving you long and satisfactory service.
INSTALLATION

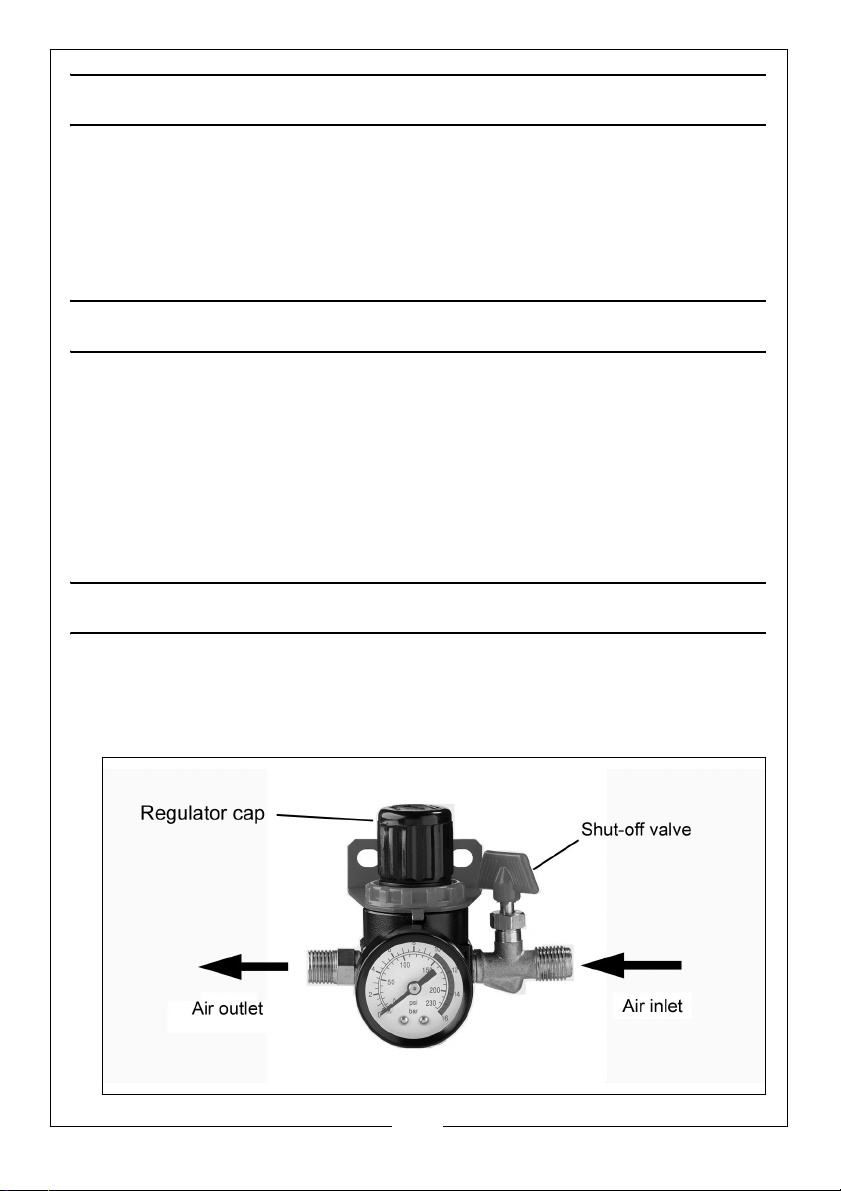

The regulator should ideally be connected to a fixed airline or connected to
the outlet of the compressor. An arrow, moulded under the body of the unit,
indicates the direction in which the air should flow. Use the mounting bracket
supplied whenever possible.
The maximum supply pressure the unit can operate is 145psi (10bar).
IMPORTANT: Remember that the sequence for airline component assembly
is: FILTER/REGULATOR/LUBRICATOR.
ADJUSTING THE AIR PRESSURE
To adjust the delivery air pressure, pull the regulator cap upwards and twist
clockwise to increase/anti-clockwise to decrease the outlet pressure. The
outlet pressure is displayed by the gauge. When the pressure is correct, press
the cap back to lock and retain the setting.
2
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 3
The unit can be isolated from the air supply by screwing down the shut off
valve on the inlet side of the unit. To restore airflow, unscrew the valve no more
than 3 full turns from the fully closed position.
CAUTION: AIRFLOW WILL BE RESTORED AFTER 3 FULL TURNS. NEVER
UNSCREW THE VALVE ANY MORE THAN 3 FULL TURNS FROM THE FULLY
CLOSED POSITION.
This product has no user serviceable parts.
SPECIFICATION
Weight 0.228 kg
Length x Width x Height 98 x 68 x 80
Maximum supply pressure 143psi (10 bar)
Maximum outlet pressure 115psi (8 bar)
Outlet port size 2 x 1/4” BSP
Gauge range 0-230psi (0-16bar)
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does not effect your statutory rights.
ENVIRONMENTAL PROTECTION POLICY
Do not dispose of airline products with general household waste at the end of
its life. This product contains valuable raw materials and should be disposed of
appropriately at a recognized disposal facility.
3
