Page 1
FILTER REGULATORS
MODEL NO: CAT155 & CAT156
PART NO: 3120169 & 3120170
FITTING & MAINTENANCE
INSTRUCTIONS
ORIGINAL INSTRUCTIONS GC0117
Page 2
INTRODUCTION
Thank you for purchasing this CLARKE Filter/Regulator. This filter/regulator unit is
designed to remove up to 95% of foreign matter from the airline and to set the
delivery pressure accurately using the gauge.
Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.
Your Filter/Regulator has been designed to give long and trouble free service.
If, however, having followed the instructions in this booklet carefully, you
encounter problems, take the unit to your local CLARKE dealer.
SPECIFICATION
Model Number CAT155 CAT156
Max Supply Pressure 170 psi (12 bar)
Max Outlet Pressure 143 psi (10 Bar)
Air throughput 40 cfm (1140L / min) at max @90psi
Air Inlet/Outlet Size 3/8“BSP male inlet with
1/4” converter attached
/1/4” BSP male outlets
Dimensions (D x W x H) 73 x 100 x 177 mm 73 x 100 x 165 mm
Pressure Gauge Range 0-230 psi/0-16 bar
3/8“BSP male inlet
1/4” BSP male outlets
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for its intended purpose.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission. This guarantee does not effect your
statutory rights.
2
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 3
GENERAL SAFETY RULES
CAUTION: FAILURE TO FOLLOW THESE PRECAUTIONS COULD RESULT IN
PERSONAL INJURY, AND/OR DAMAGE TO PROPERTY.
WORK ENVIRONMENT
1. Keep the work area clean and tidy.
2. Dress appropriately - do not wear loose clothing or jewellery. Tie long hair
out of the way.
3. Keep children and visitors away - do not let children handle the tools.
4. Do not operate air tools where there are flammable liquids or gases.
USE OF AIRLINE EQUIPMENT
1. Stay alert and use common sense - do not operate an air tool when you
are tired or under the influence of alcohol, drugs or medication.
2. Do not overreach - Keep proper footing and balance at all times.
3. Never use oxygen, CO
a source of power for air tools.
4. Do not exceed the maximum pressure for the airline component stated in
the specification.
5. Check airline hoses for leaks or worn condition before use and ensure that
all connections are secure.
6. Keep the air supply hose away from heat, oil and sharp edges.
7. Avoid damaging the component for example by applying excessive force
of any kind.
8. Always maintain the air tool with care. Keep it clean for the best and safest
performance.
, combustible gasses or any type of bottled gas as
2
3
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 4
TYPICAL AIRLINE REQUIREMENTS
WARNING: COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU
ARE FAMILIAR WITH ALL PRECAUTIONS RELATING TO THE USE OF
COMPRESSORS AND COMPRESSED AIR SUPPLY.
Use only clean, dry, regulated compressed air as a power source.
Air compressors must comply with the appropriate European Community
Safety Directives.
A build-up of moisture in the air compressor will accelerate wear and corrosion
in the air tool. Ensure any moisture is drained from the compressor daily and
the airline filter is kept clean.
If an unusually long air hose is required, (over 8 metres), the line pressure or the
hose inside diameter may need to be increased. The air hose must be rated at
least 150% of the maximum operating pressure of the air tool.

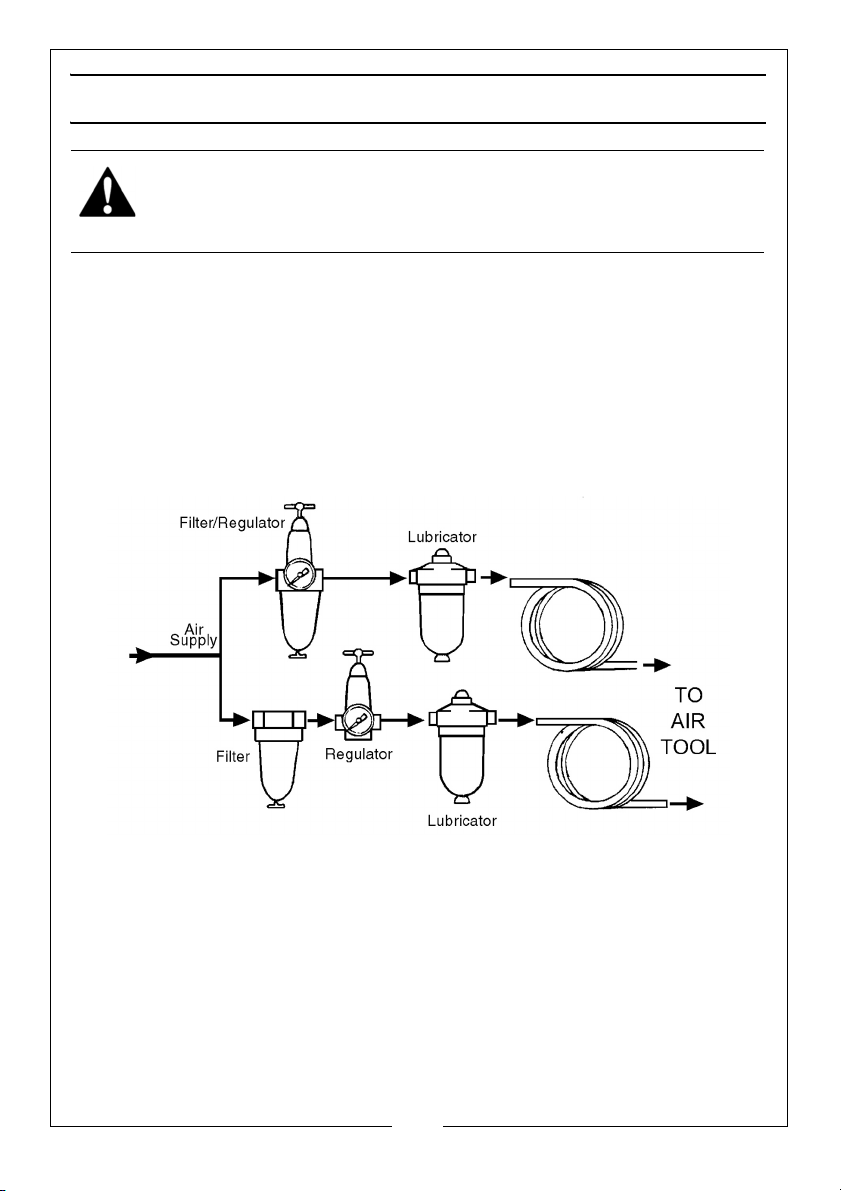

A typical air line layout is shown above. The use of an automatic in-line filter
and regulator will keep air tools in good condition. Air compressors must
comply with the appropriate European Community Safety Directives. Only
clean, dry, regulated compressed air should be used.
Never exceed the maximum operating pressure for the airline components.
Higher pressures and dirty air will shorten the life of your air tools due to faster
wear. The air hose must be rated to at least 150% of the maximum operating
pressure of the air tool.
IMPORTANT! Any airline lubricator required for motorised air tools must be fitted
downstream of the filter/regulator
4
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 5
INSTALLATION
WARNING: COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU
ARE FAMILIAR WITH ALL PRECAUTIONS RELATING TO THE USE OF AIR
COMPRESSORS AND COMPRESSED AIR SYSTEMS.

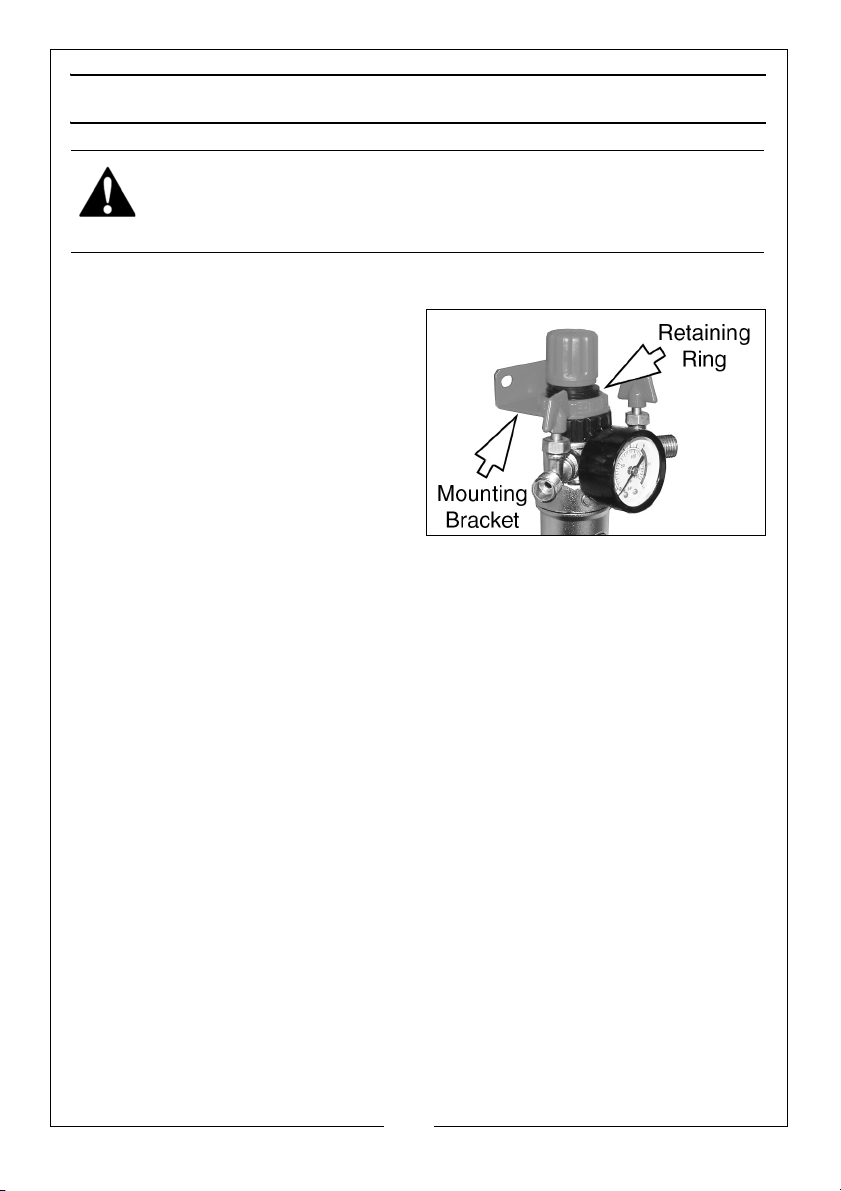

MOUNTING THE UNIT
This filter/regulator is supplied with a
bracket for mounting it to a wall or
any suitable framework. It should
ideally be connected to a fixed airline
or be mounted on the outlet of the
compressor.
Ensure sufficient free space above the
regulator for future adjustments.
Take care not to overtighten when
connecting the airline unions.
Make sure that the compressed air is not contaminated with solvents to such
an extent as to cause damage to internal components.
Ensure the compressor is turned off when making connections.
After connection, turn on the air supply and check for air leaks. Rectify any
found before starting work.
• PTFE tape may be useful for sealing threaded connections.
SETTING
The adjustment knob is of the locking type.
Adjust the delivery air pressure as required, by pulling the regulator cap
upwards and then twisting clockwise to increase or anti-clockwise to reduce
the outlet pressure as displayed on the gauge, When the pressure is correct,
press the cap back to lock and retain the setting.
• Turning the adjustment knob clockwise increases the pressure as
displayed by the gauge. Turning counter clockwise will reduce the
pressure.
• + and - are marked on the knob.
5
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 6
CARE AND MAINTENANCE
A build-up of moisture in the air compressor will accelerate wear and corrosion
in airline tools. Ensure any moisture is drained from the compressor routinely
and that the inlet filter is kept clean.
With use the filter will become sufficiently blocked that the air throughput can
become severely diminished. It should be removed and cleaned as follows:
1. Shut off the air compressor and vent any remaining air from the airline.
2. Unscrew the lower body (16) from the middle body (9) using a 20 mm
spanner, and remove the filter (13). If this is found to be tight, remove the
filter/regulator from the installation & grip the regulator body securely in a
vice.
3. Gently clean the filter and body using dishwashing liquid and allow to dry.
4. Re-install the filter in the body and reassemble, taking care not to
overtighten. The seat should only be tightened until the sealing rings (15)
are compressed and an airtight seal is achieved.
IMPORTANT: Over tightening will permanently damage the sealing rings.
5. Finally, re-install the unit into the airline.
ACCESSORIES
A wide range of accessories is available including filter/regulators, lubricators,
high-pressure hoses (5 to 50 metres) etc.
Contact your CLARKE dealer for further information or CLARKE International
Service Department.
6
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 7

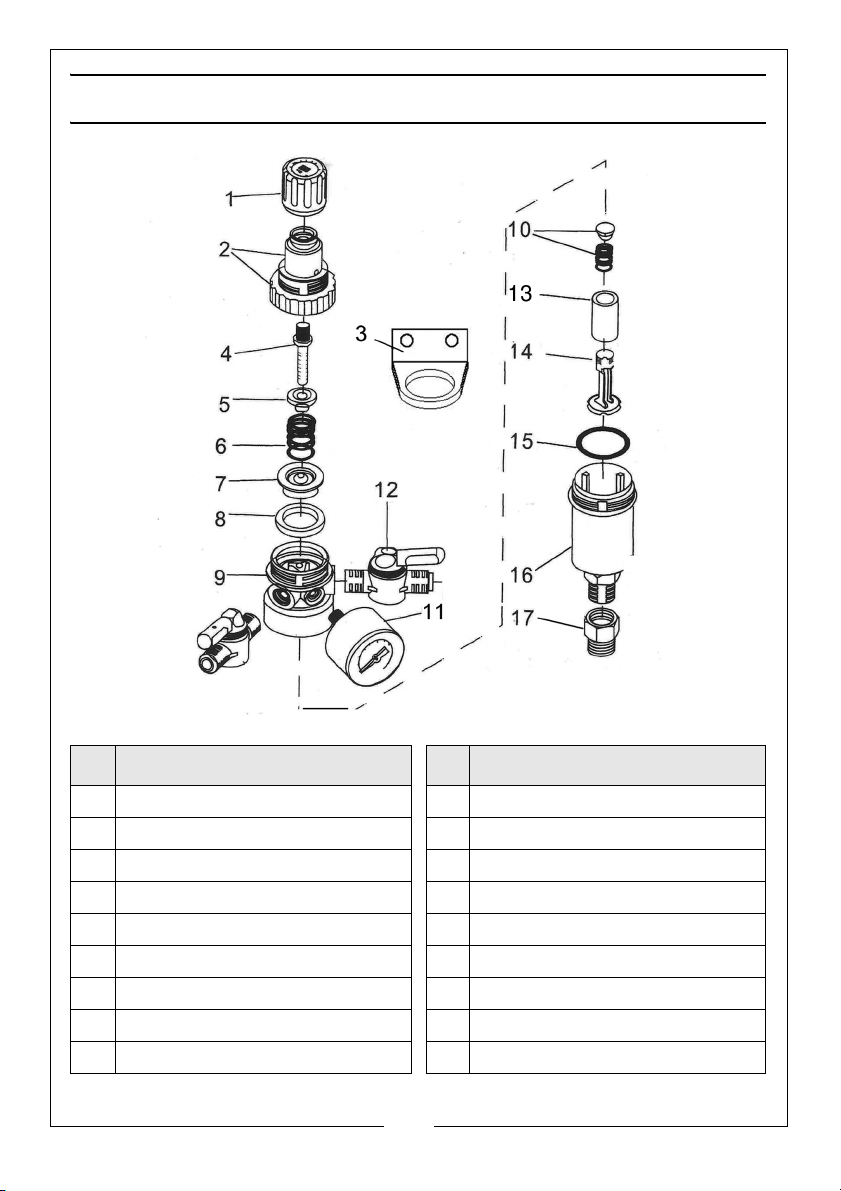

COMPONENT PARTS
No Description No Description
1 Adjusting Knob 10 Spring & Spring Cap
2 Upper body 11 Pressure Gauge
3 Mounting Bracket 12 Valve Assembly
4 Regulator Screw 13 Filter
5 Spring cap 14 Filter Holder
6 Spring 15 Gasket
7 Air Piston 16 Lower Body
8 Gasket 17 Reducing Connector (CAT155)
9Middle Body
