ADJUSTABLE MACHINE TOOL STAND

MODEL NUMBER: CAMTS

PART NUMBER: 6501610

INTRODUCTION

Thank you for purchasing this CLARKE Adjustable Machine Tool Stand.

Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing
so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please
keep your receipt which will be required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or tampered with in any way, or not used for the
purpose for which it was intended.

Faulty goods should be returned to their place of purchase, no product can be returned to us without prior permission.

This guarantee does not effect your statutory rights.

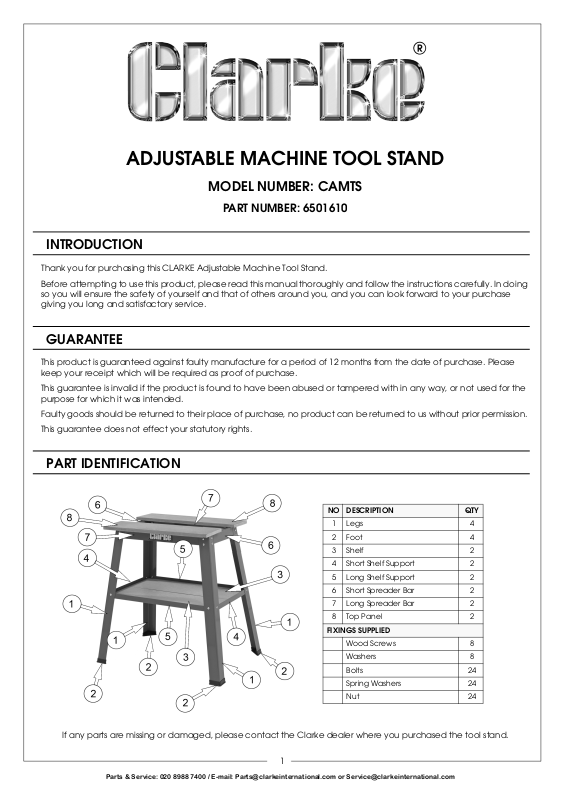

PART IDENTIFICATION

NO DESCRIPTION QTY

1Legs 4

2 Foot 4

3Shelf 2

4 Short Shelf Support 2

5 Long Shelf Support 2

6 Short Spreader Bar 2

7 Long Spreader Bar 2

8Top Panel 2

FIXINGS SUPPLIED

Wood Screws 8

Washe rs 8

Bolts 24

Spring Washers 24

Nut 24

If any parts are missing or damaged, please contact the Clarke dealer where you purchased the tool stand.

1

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

ASSEMBLY

1. Make up the front frame by connecting the
two legs, a long spreader bar, and the long
shelf support as shown, Fix them together
using the bolts, nuts and spring washers.

• The nut and spring washer should be on the

inside of the completed frame

• Do not fully tighten the nuts and bolts at this

stage.

2. Make up the rear frame in the same way.

3. Join the two frames using the two short shelf
supports and two short spreader bars, again
fixing them together using the bolts, nuts and
spring washers.

• The short spreader bars should be place on

the inside of the frame.

4. Place the two shelves into position.

5. Fit the feet to the end of each leg.

SPECIFICATIONS

Model Number CAMTS

Maximum Load 226 kg

Weight (unpacked) 11.5 kg

Dimensions (L x W x H) 810 mm x 570 mm x 810 mm

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

6. Place the the top panels on to the short
spreader bars as shown, set to the required
distance apart and fix in position using the
screws and washers supplied.

• The screws are inserted from below through

the short spreader bars into the top panels.

7. Tighten up all the nuts, bolts and screws. The tool
stand is now ready for use.

2
