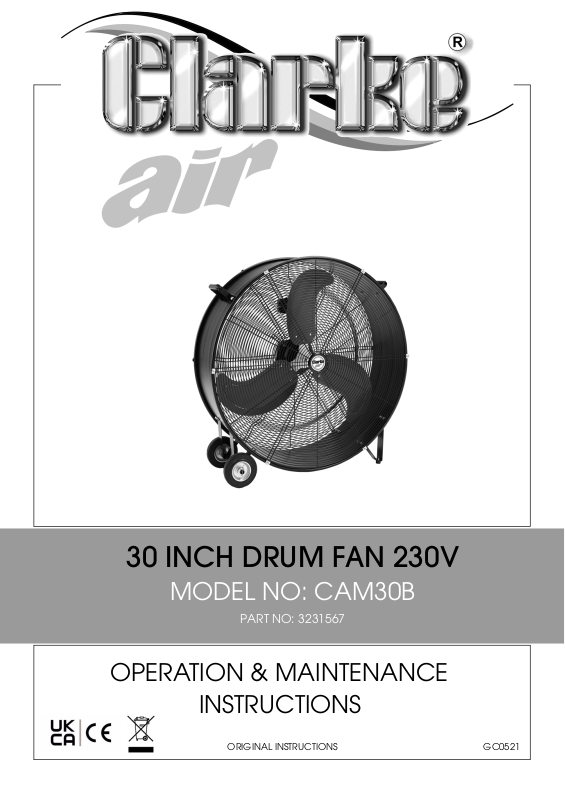

Page 1
30 INCH DRUM FAN 230V
MODEL NO: CAM30B
PART NO: 3231567
OPERATION & MAINTENANCE
INSTRUCTIONS
ORIGINAL INSTRUCTIONS GC0521
Page 2
INTRODUCTION
Thank you for purchasing this CLARKE 30” Drum Fan.
Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.
SPECIFICATIONS
MODEL CAM30B
Part No: 3231567
Voltage: 230 V~ (50Hz)
Ingress Protection Rating IP20
Insulation Class 1
Fan Power Input 118.6 W
Duty Cycle S1 (continuous)
Fan Speeds
Position 1 850 rpm
Position 2 919 rpm
Standby Power Consumption N/A
Fan Sound Power Level 78 dB(A)
Sound Power Measured 82.4 dB(A) L
Wa
Guaranteed Sound Level 84.9 dB Lwa
Maximum Fan Flow Rate
283.4 m
3
/m
Maximum Air Velocity 2.2 m/sec
Service Value
2.4 m
3
/m/W
Measurement Standard for Service Value EU 206/2012
Dimensions (D x W x H) mm 830 x 300 x 845
Weight: 18.6 kg
2
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 3

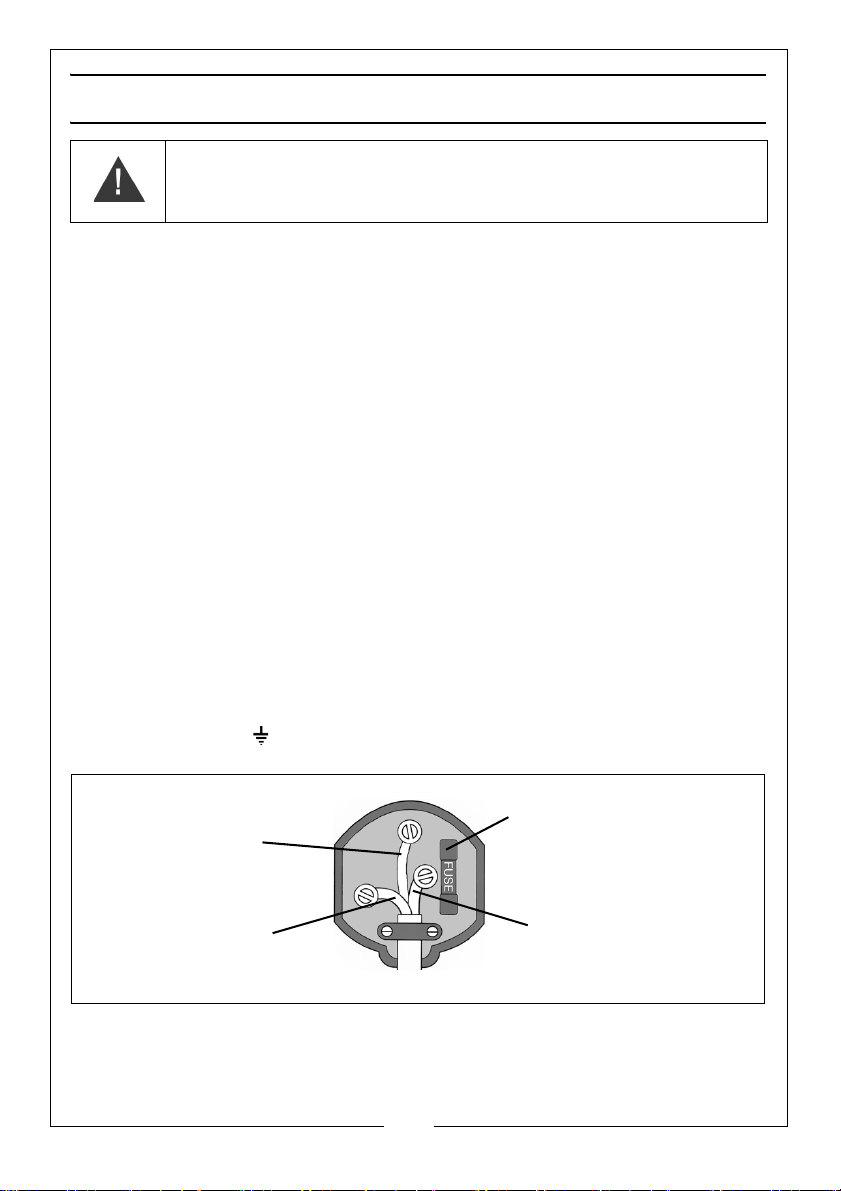

ELECTRICAL CONNECTIONS
Plug must be BS1363/A approved.
Always fit a 5 Amp fuse.
Ensure that the outer sheath of the cable is firmly held by the clamp
Neutral
(Blue)
Live
(Brown)
Earth
(Green and Yellow)
WARNING! READ THESE ELECTRICAL SAFETY INSTRUCTIONS
THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE
MAINS SUPPLY.
Before switching the product on, make sure that the voltage of your electricity
supply is the same as that indicated on the rating plate. This product is
designed to operate on 230VAC 50Hz. Connecting it to any other power
source may cause damage.
This product may be fitted with a non-rewireable plug. If it is necessary to
change the fuse in the plug, the fuse cover must be refitted. If the fuse cover
becomes lost or damaged, the plug must not be used until a suitable
replacement is obtained.
If the plug has to be changed because it is not suitable for your socket, or due
to damage, it should be cut off and a replacement fitted, following the wiring
instructions shown below. The old plug must be disposed of safely, as insertion
into a mains socket could cause an electrical hazard.
If the colours of the wires in the power cable of this product do not correspond
with the markings on the terminals of your plug, proceed as follows.
•The Blue wire must be connected to the terminal marked N or
coloured Black.
•The Brown wire must be connected to the terminal marked L or
coloured Red.
•The Yellow and Green wire must be connected to the terminal
marked E or or coloured Green.
We strongly recommend that this machine is connected to the mains supply
via a Residual Current Device (RCD)
If in any doubt, consult a qualified electrician. DO NOT attempt any repairs
yourself.
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
3
Page 4
SAFETY PRECAUTIONS
1. ALWAYS read the manual before use.
2. Suitable for indoor use only.
3. Avoid using in dusty environments.
4. DO NOT use in environments containing chemical fumes etc.
5. DO NOT use as an extractor fan.
6. DO NOT use in areas of high humidity/water vapour, i.e. bathrooms etc.
7. DO NOT connect the fan to duct system.
8. DO NOT cover the fan with clothing or any material that will restrict free
airflow through the fan.
9. NEVER touch the blades with your hand or any loose object.
10. ALWAYS unplug the fan before moving it or performing maintenance.
11. DO NOT touch the fan when your hands are wet.
12. ALWAYS unplug the fan when it is not in use.
13. NEVER unplug the fan by holding the cable. Unplug by holding the plug.
14. NEVER use the fan if the cable or plug are damaged.
15. NEVER use the fan close to fires.
16. DO NOT use this fan with any solid-state speed control device to reduce
the risk of fire or electric shock.
17. Those who are not qualified electricians should not disassemble or repair
this product.
ENVIRONMENTAL RECYCLING POLICY
Through purchase of this product, the customer is taking on the
obligation to deal with the WEEE in accordance with the WEEE
regulations in relation to the treatment, recycling & recovery and
environmentally sound disposal of the WEEE.
In effect, this means that this product must not be disposed of with general
household waste. It must be disposed of according to the laws governing
Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal
facility.
4
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 5

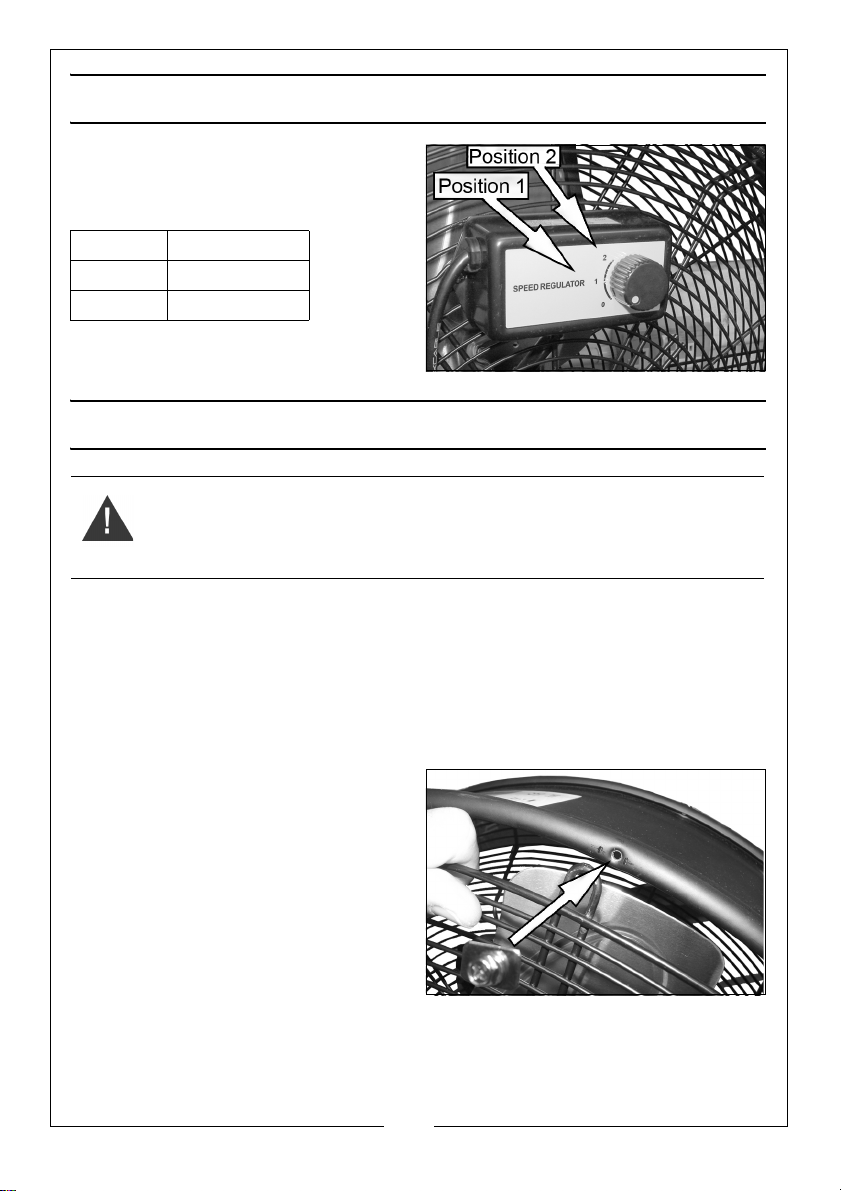

OPERATION
Turn the switch on the speed
regulator to select the fan speed
required.
CAM30B
Position 1 850 RPM
Position 2 919 RPM
MAINTENANCE
WARNING: NEVER OPERATE THE FAN WITH THE FRONT OR REAR GUARDS
REMOVED.
Have any repairs carried out by a suitably qualified person.
• The motor bearings are permanently sealed for life and do not
require any additional lubrication.
If the fan has been operating for long periods in a very dusty environment, the
blades and motor assembly may eventually require cleaning.
1. Disconnect the power cable from the power supply.
2. Unscrew the front guard and lift it
away carefully.
3. Wipe the fan blades with dry cloth
and remove any dust from the
motor assembly with a soft
paintbrush, vacuum cleaner or jet
of compressed air.
• Always wear suitable eye
protection when using
compressed air.
• Never use polish or any corrosive liquid that will damage the surface
finish.
4. Replace the guard securely before use.
5
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 6

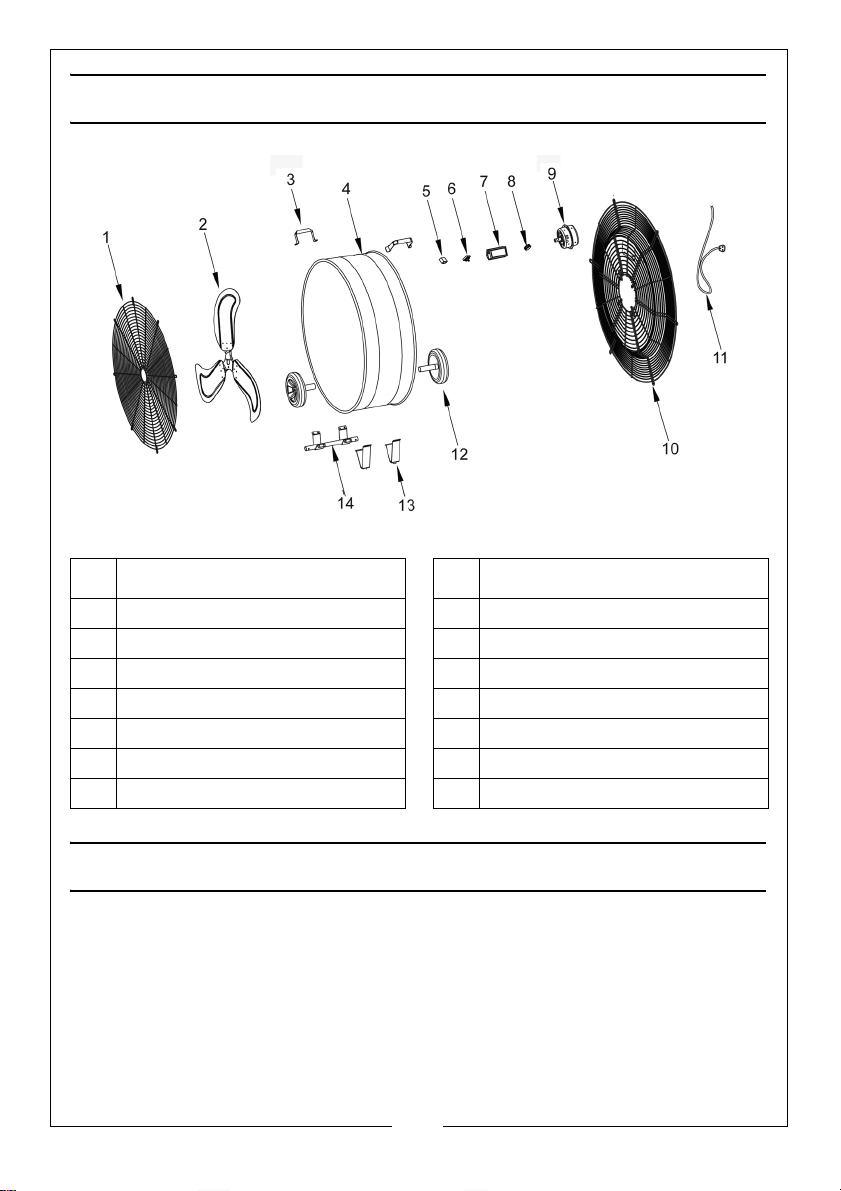

PARTS LIST AND DIAGRAM
N
O
DESCRIPTION
1Front Grill 8Switch Knob
2 Blade Assembly 9 Fan Motor
3 Handle 10 Rear Grill
4. Drum Body 11 Power Cable
5 Capacitor 12 Wheel & Stub Axle
6Switch 13Feet
7 Switch Box 14 Long Wheel Shaft
NO
DESCRIPTION
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for its intended purpose.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission. This guarantee does not effect your
statutory rights.
6
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 7
DECLARATIONS OF CONFORMITY
7
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
