Clarke CAMAX 36, 3231710 User guide

24, 30 & 36 INCH DRUM FANS

MODEL NO: CAMAX24, 30 & 36

PART NO: 3231700 / 3231705/ 3231710

OPERATION & MAINTENANCE

INSTRUCTIONS

ORIGINAL INSTRUCTIONS DL0922 - ISS 3

INTRODUCTION

Thank you for purchasing this CLARKE Drum Fan.

Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.

SPECIFICATIONS

MODEL CAMAX24 CAMAX30 CAMAX36

Part No: 3231700 3231705 3231710

Manufacturer/place
of manufacture

Voltage: 230 V~ (50Hz) 230 V~ (50Hz) 230 V~ (50Hz)

Power consumption 330 W 315 W 410 W

Rated motor power input at opti­mum energy efficiency

Fan Speeds

Setting 1 1304 rpm 880 rpm 880 rpm

Setting 2 1428 rpm 960 rpm 960 rpm

Max Air Flow

Rated air flow at optimum
energy efficiency

Rated air pressure at optimum
energy efficiency

Clarke International/made in China

391 W 368 W 459 W

3

274 m

1.116 m

110 Pa 70 Pa 65 Pa

/m 401 m3/m 455 m3/m

3

/s 1.69 m3/s 2.242 m3/s

RPM at at optimum energy
efficiency

“Specific Ratio”(EU No 327/2011) N/a

Dimensions (DxWxH) mm 740x280x755 910x350x925 1030x370x1080

Weight: 23.5 kg 34.2 kg 40.7 kg

Sound Power Measured 87 dB(A) L

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

1399 rpm 954 rpm 940 rpm

Wa 84 dB(A) LWa 84 dB(A) LWa

2

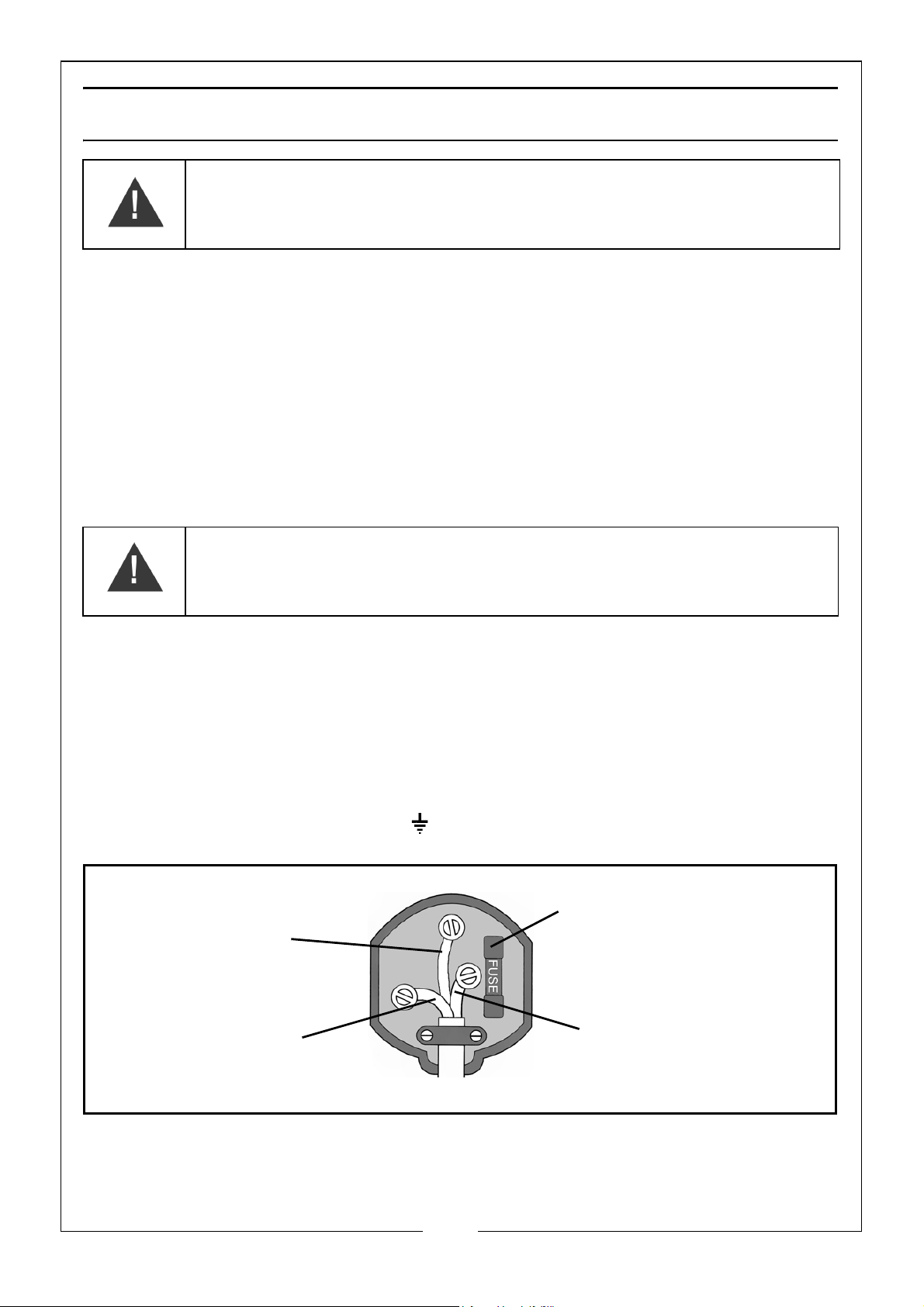

ELECTRICAL CONNECTIONS

Plug must be BS1363/A approved.

Always fit a 5 Amp fuse

Ensure that the outer sheath of the cable is firmly held by the clamp

Neutral

(Blue)

Live

(Brown)

Earth

(Green and Yellow)

(CAMAX24).
Always fit a 13 Amp fuse
(CAMAX30 & 36).

WARNING! READ THESE ELECTRICAL SAFETY INSTRUCTIONS
THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE
MAINS SUPPLY.

Before switching the product on, make sure that the voltage of your electricity supply is
the same as that indicated on the rating plate. This product is designed to operate on
230VAC 50Hz. Connecting it to any other power source may cause damage.

This product may be fitted with a non-rewireable plug. If it is necessary to change the
fuse in the plug, the fuse cover must be refitted. If the fuse cover becomes lost or
damaged, the plug must not be used until a suitable replacement is obtained.

If the plug has to be changed because it is not suitable for your socket, or due to
damage, it should be cut off and a replacement fitted, following the wiring instructions
shown below. The old plug must be disposed of safely, as insertion into a mains socket
could cause an electrical hazard.

WARNING! THE WIRES IN THE POWER CABLE OF THIS PRODUCT
ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:
Blue = Neutral Brown = Live Yellow and Green = Earth

If the colours of the wires in the power cable of this product do not correspond with the
markings on the terminals of your plug, proceed as follows.

• The wire which is coloured Blue must be connected to the terminal which is
marked N or coloured Black.

• The wire which is coloured Brown must be connected to the terminal which is
marked L or coloured Red.

• The wire which is coloured Yellow and Green must be connected to the

terminal which is marked E or or coloured Green.

We strongly recommend that this machine is connected to the mains supply via a Residual
Current Device (RCD)

If in any doubt, consult a qualified electrician. DO NOT attempt any repairs yourself.

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

3

SAFETY PRECAUTIONS

1. Always read this manual before use.

2. Suitable for indoor use only.

3. Avoid using in dusty environments.

4. Do not use in environments containing chemical fumes etc.

5. Do not use as an extractor fan.

6. Do not use in areas of high humidity/water vapour, i.e. bathrooms etc.

7. Do not connect the fan to duct system.

8. Do not cover the fan with clothing or any material that will restrict free
airflow through the fan.

9. Never touch the blades with your hand or any object.

10. Always unplug the fan before moving it or performing maintenance.

11. Don’t touch the fan when your hands are wet.

12. Do not disassemble the fan.

13. Always unplug the fan when it is not in use.

14. Never unplug the fan by pulling the cable. Always hold the plug.

15. Never use the fan if the cable or plug are damaged.

16. Never use the fan close to fires.

17. Do not use this fan with any solid-state speed control device to reduce the
risk of fire or electric shock.

ENVIRONMENTAL RECYCLING POLICY

Through purchase of this product, the customer is taking on the
obligation to deal with the WEEE in accordance with the WEEE
regulations in relation to the treatment, recycling & recovery and
environmentally sound disposal of the WEEE.

In effect, this means that this product must not be disposed of with general
household waste. It must be disposed of according to the laws governing
Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal
facility.

4

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

ADJUSTING THE SPEED

WARNING: NEVER OPERATE THE FAN WITH THE GUARDS REMOVED.
ALWAYS UNPLUG THE FAN BEFORE ANY CLEANING OR MAINTENANCE.

Turn the switch on the speed
regulator to select the fan speed
required.

.

CAMAX24 CAMAX30 CAMAX36

Pos 1

Pos 2

1304 rpm 880 rpm 880 rpm

1428 rpm 960 rpm 960 rpm

MAINTENANCE

Have any repairs carried out by a suitably qualified person.

• The motor bearings are permanently sealed for life and do not

require any additional lubrication.

CLEANING

If the fan has been operating for long
periods in a very dusty environment,
the blades and motor assembly may
eventually require cleaning.

1. Disconnect the power cable from
the power supply.

2. Unscrew the front guard and lift it
away carefully.

3. Wipe the fan blades with dry cloth
and remove any dust from the
motor assembly with a soft paintbrush, vacuum cleaner or jet of
compressed air.

• Never use polish or any corrosive liquid that will damage the surface

finish.

4. Replace the guard securely before use.

5

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

PARTS LIST AND DIAGRAM

NO

1 Front Guard 7 Switch Box

2 Blade Assembly 8 Power cable/plug

3 Handle 9 Wheel & Axle Assembly

4. Drum 10 Frame

5 Rear Guard 11 Supporting Foot

6 Motor Assembly 12 Supporting bar (30 & 36” only)

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

DESCRIPTION

NO

6

DESCRIPTION

DECLARATION OF CONFORMITY - CAMAX36
