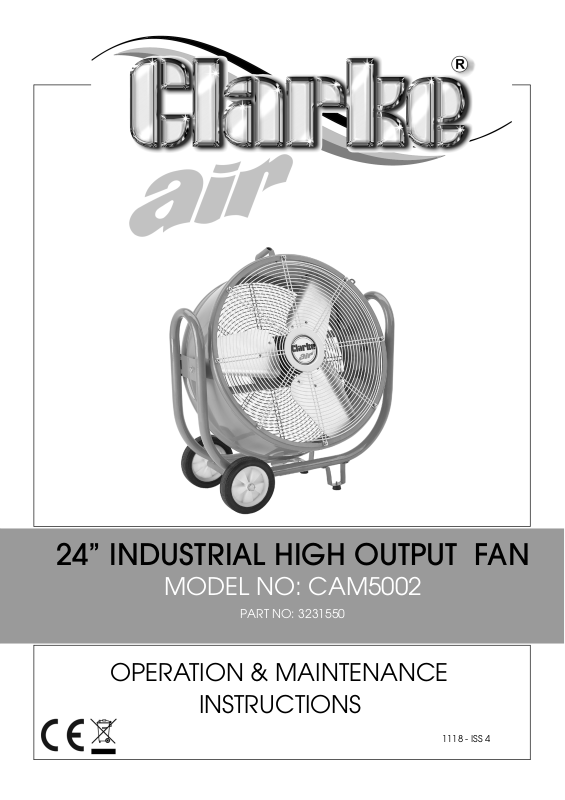

24” INDUSTRIAL HIGH OUTPUT FAN

MODEL NO: CAM5002

PART NO: 3231550

OPERATION & MAINTENANCE

INSTRUCTIONS

1118 - ISS 4

INTRODUCTION

Thank you for purchasing this CLARKE 24” Industrial high output fan.

Before using, please read this manual thoroughly and follow the instructions
carefully. In doing so you will ensure the safety of yourself and others, and you
can look forward to your purchase giving you long and satisfactory service.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.

Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.

This guarantee does not effect your statutory rights.

ENVIRONMENTAL RECYCLING POLICY

Through purchase of this product, the customer is taking on the
obligation to deal with the WEEE in accordance with the WEEE
regulations in relation to the treatment, recycling & recovery and
environmentally sound disposal of the WEEE.

In effect, this means that this product must not be disposed of with general
household waste. It must be disposed of according to the laws governing
Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal
facility.

SPECIFICATIONS

Voltage: 230 VAC (50Hz)

Wattage: 250 W

Fan Speeds 3

Dimensions (L x W x H): 735 x 340 x 835 mm

Weight: 245 kg

2

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

ELECTRICAL CONNECTIONS

Plug must be BS1363/A approved.

Always fit a 13 Amp fuse.

Ensure that the outer sheath of the cable is firmly held by the clamp

Neutral

(Blue)

Live

(Brown)

Earth

(Green and Yellow)

WARNING! Read these electrical safety instructions thoroughly
before connecting the product to the mains supply.

Before switching the product on, make sure that the voltage of your electricity supply is
the same as that indicated on the rating plate. This product is designed to operate on
230VAC 50Hz. Connecting it to any other power source may cause damage.

This product may be fitted with a non-rewireable plug. If it is necessary to change the
fuse in the plug, the fuse cover must be refitted. If the fuse cover becomes lost or
damaged, the plug must not be used until a suitable replacement is obtained.

If the plug has to be changed because it is not suitable for your socket, or due to
damage, it should be cut off and a replacement fitted, following the wiring instructions
shown below. The old plug must be disposed of safely, as insertion into a mains socket
could cause an electrical hazard

WARNING! The wires in the power cable of this product are
coloured in accordance with the following code:
Blue = Neutral Brown = Live Yellow and Green = Earth

If the colours of the wires in the power cable of this product do not correspond with the
markings on the terminals of your plug, proceed as follows.

• The wire which is coloured Blue must be connected to the terminal which is
marked N or coloured Black.

• The wire which is coloured Brown must be connected to the terminal which
is marked L or coloured Red.

• The wire which is coloured Yellow and Green must be connected to the
terminal which is marked E or or coloured Green.

.

We strongly recommend that this machine is connected to the mains supply
via a Residual Current Device (RCD)

If in any doubt, consult a qualified electrician. DO NOT attempt any repairs
yourself.

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

3

SAFETY PRECAUTIONS

• DO NOT use in dusty environments.

• Indoor use only.

• DO NOT use in environments with high fumes from chemicals etc.

• DO NOT use as an extractor fan.

• DO NOT use in areas of high humidity/water vapour, e.g. bathrooms.

• DO NOT connect fan to a ducting system.

• DO NOT cover the fan with any material that will restrict free airflow.

• Never touch the blades with your hand or any other object.

CONTENTS

Before assembly, check for damage and or shortages etc, if any are found
contact your Clarke dealer where the fan was originally purchased.

l x Fan Assembly 2 x Rubber Feet With Mounting Brackets

2 x Moulded Wheels 1 x Ceiling Mounting Bracket

3 x Ml2 Screws 3 x l 2mm Plain Washers

l x Handle

ASSEMBLY & OPERATION

FLOOR MOUNTING

1. Fit handle (item 13) to the fan housing (item 11) using screws x 2 (item 12).

2. Fit wheels x 2 (item 22) to the frame using shoulder screws x 2 (item 20) and
washers x 2 (item 21).

3. Fit feet brackets x 2, (item 27) using screws x 4 (item 28) and washers x 4
(item 29).

4. Fit feet x 2 (item 26) onto brackets using screws x 2 (item 24) and washers x
2 (item25).

5. Plug in and switch on. adjust the fan speed to suit.

4

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

CEILING MOUNTING

Choose location for the fan installation, ensuring correct electric supply is
available.

1. Use the ceiling mounting plate (item 23) as a template, to mark drilling
locations.

2. Drill holes in ceiling to suit suitable fixings, not supplied.

3. Fix the ceiling mounting plate to the ceiling using appropriate fixings, not
supplied.
Ensure the mounting plate is secured sufficiently to take the weight of the
fan.

4. Attach the fan to the mounting plate using screws supplied, (item 30).

5. Adjust the fan to desired position then tighten all three securing sc rews.

6. Plug in and switch on, adjust the fan speed to suit.

NOTE: all parts not used for ceiling mounted fans, should be stored safely

for use if the fan is to be floor mounted

ADJUSTING THE SPEED

WARNING: NEVER OPERATE THE FAN WITH EITHER FRONT OR REAR

GRILLS REMOVED.

Plug in the power cable to an appropriate power outlet and select the
desired speed using the selector switch 0/1/2/3.

0Off

1Low speed

2 Medium speed

3 High speed

MAINTENANCE

• Always observe the safety precautions and remove the plug from

the power outlet before cleaning.

• Use a moist cloth and if required, a mild detergent to clean the

surfaces of the fan. Do not use solvents or thinners.

• The motor bearings are permanently sealed and do not require any

additional lubrication.

5

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

PART LIST AND DIAGRAM

NO DESCRIPTION NO DESCRIPTION NO DESCRIPTION

1 Name plate 11 Drum Fan Housing 21 Washer l 2mm

2 Screw Ml8 x 12 12 Screw M6 x 10 22 Wheel

3 Washer 5mm 13 Handle 23 Ceiling Mounting Plate

4. Grill 14 Switch Box 24 Screw M5 x 10

5 Fan blade 15 Power Cord & Plug 25 Washer5mm

6 Screw 10 x 13 16 Screw ST4 x 12 26 Foot

7 Motor 17 Frame 27 Bracket

8 Screw M6 x 12 18 Shock Absorber 28 Screw M6 x 12

9 Nut M6 19 Screw Ml 2 x 35 29 Washer

10 Nut M8 20 Screw Ml2 x 70 30 Screw M 12 x 20

6

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

DECLARATION OF CONFORMITY

7
