PORTABLE AIR CONDITIONER

MODEL NO: AC7000

PART NO: 3230565

OPERATION & MAINTENANCE

INSTRUCTIONS

ORIGINAL INSTRUCTIONS GC0518 ISS 3

INTRODUCTION

Thank you for purchasing this CLARKE Portable Air Conditioner.

Before attempting to operate the machine, it is essential that you read this
manual thoroughly and carefully follow all instructions given. In doing so you
will ensure the safety of yourself and that of others around you, and you can
also look forward to the product giving you long and satisfactory service.

GUARANTEE

This CLARKE product is guaranteed against faulty manufacture for a period of
12 months from the date of purchase. Please keep your receipt as proof of
purchase.

This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.

Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.

This guarantee does not affect your statutory rights.

ENVIRONMENTAL PROTECTION

Recycle unwanted materials instead of disposing of them as waste. All
unwanted accessories and packaging should be sorted and taken to a
recycling centre for disposal in a manner which is compatible with the
environment.

R410A is a refrigerant that complies with EEC environmental standards.
Nonetheless, the refrigerant circuit on the machine should never be
punctured. At the end of its working life, consign the air conditioning unit to a
special collection centre.

Through purchase of this product, the customer is taking on the
obligation to deal with the WEEE in accordance with the WEEE
regulations in relation to the treatment, recycling & recovery and
environmentally sound disposal of the WEEE.

In effect, this means that this product must not be disposed of with
general household waste. It must be disposed of according to the
laws governing Waste Electrical and Electronic Equipment (WEEE)
at a recognised disposal facility.

2

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

SAFETY WARNINGS

WARNING: IF THE SUPPLY CABLE IS DAMAGED, IT MUST BE REPLACED BY
THE MANUFACTURER, ITS SERVICE AGENT OR SIMILARLY QUALIFIED
PERSONS IN ORDER TO AVOID A HAZARD.

1. Please read these instructions carefully and retain for future reference.

2. Position the power cable so that it cannot be inadvertently pulled or
pinched, and where it does not cause a trip hazard.

3. This appliance is designed for use in residential environments and must not
be used for other purposes.

4. If the appliance requires repair, always contact your CLARKE dealer.
Always insist on original spare parts. Repairs carried out by unauthorized
persons may be dangerous and invalidate the guarantee.

5. This appliance must only be used by adults. Children should not be allowed
to play with this appliance.

6. Do not use extension power cables.

7. Before cleaning or maintenance operations, always unplug the appliance
from the power supply.

8. Do not move the appliance by pulling the power cable.

9. Do not install the appliance close to sources of gas, oil or sulphur. Do not
install near sources of heat.

10. Do not use the appliance on inclined surfaces.

11. Always keep the appliance at least 50 cm away from walls or furniture.

12. Keep the appliance at least 50 cm away from flammable substances
(solvents etc) or pressurised containers (e.g. aerosol cans).

13. Do not rest heavy or hot objects on top of the appliance.

14. Do not use the appliance outdoors.

15. Do not obstruct or restrict the airflow to the inlet or from the air outlet.

3

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

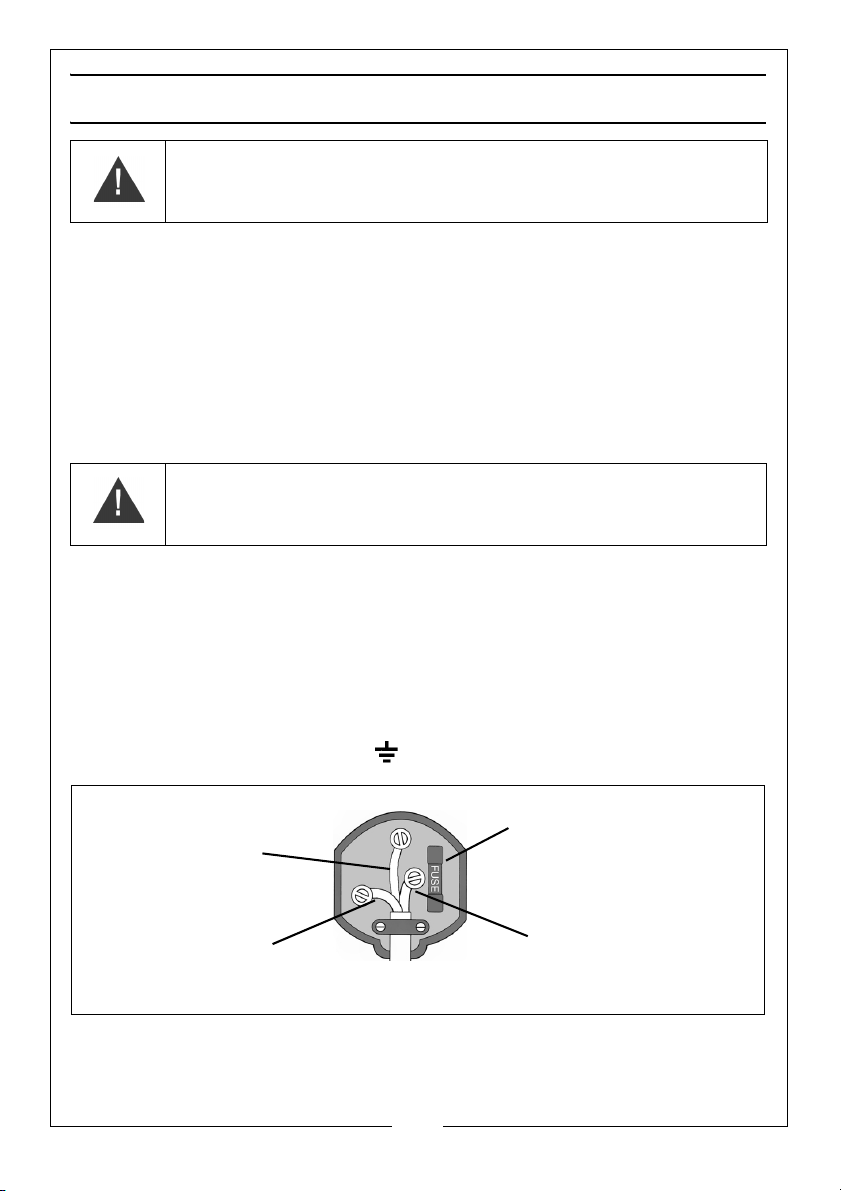

ELECTRICAL CONNECTIONS

Plug must be BS1363/A approved.

Always fit a 13 Amp fuse.

Ensure that the outer sheath of the cable is firmly held by the clamp

Neutral

(Blue)

Live

(Brown)

Earth

(Green and Yellow)

WARNING! READ THESE ELECTRICAL SAFETY INSTRUCTIONS
THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE
MAINS SUPPLY.

Before switching the product on, make sure that the voltage of your electricity supply is
the same as that indicated on the rating plate. This product is designed to operate on
230 V AC 50Hz. Connecting it to any other power source may cause damage.

This product may be fitted with a non-rewireable plug. If it is necessary to change the
fuse in the plug, the fuse cover must be refitted. If the fuse cover becomes lost or
damaged, the plug must not be used until a suitable replacement is obtained.

If the plug has to be changed because it is not suitable for your socket, or due to
damage, it should be cut off and a replacement fitted, following the wiring instructions
shown below. The old plug must be disposed of safely, as insertion into a mains socket
could cause an electrical hazard

WARNING! THE WIRES IN THE POWER CABLE OF THIS PRODUCT
ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:
Blue = Neutral Brown = Live Yellow and Green = Earth

If the colours of the wires in the power cable of this product do not correspond with the
markings on the terminals of your plug, proceed as follows.

• The wire which is coloured Blue must be connected to the terminal which is
marked N or coloured Black.

• The wire which is coloured Brown must be connected to the terminal which
is marked L or coloured Red.

• The wire which is coloured Yellow and Green must be connected to the
terminal which is marked E or or coloured Green.

.

.

We strongly recommend that this machine is connected to the mains supply via a Residual
Current Device (RCD)

If in any doubt, consult a qualified electrician. DO NOT attempt any repairs yourself.

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

4

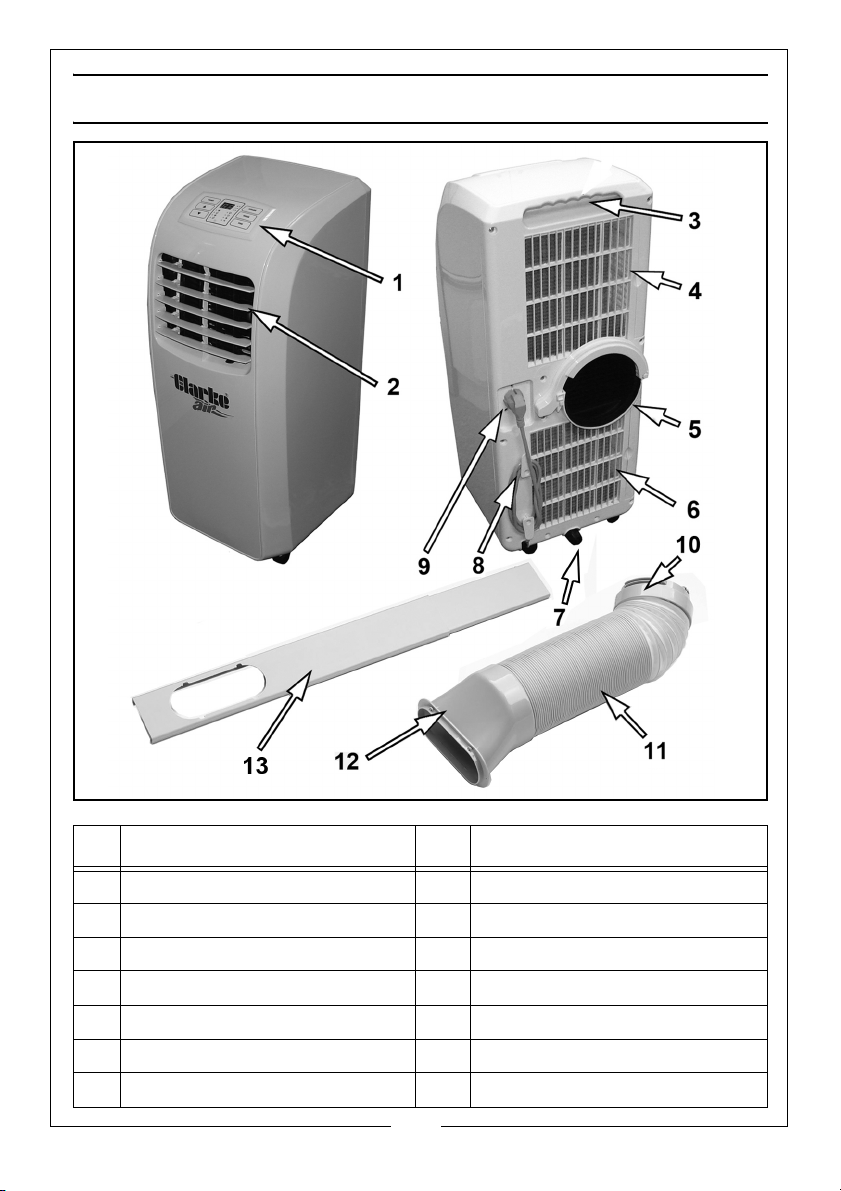

OVERVIEW

NO DESCRIPTION NO DESCRIPTION

1 Control Panel 8 Power Cable with Storage

2 Air Outlet Flap 9 Power Plug with Storage Socket

3 Handle 10 Duct Round Adaptor

4 Upper Air Filter 11 Flexible Duct

5 Air Outlet Port 12 Duct Outlet Connector

6 Lower Air Filter 13 Window Slider Plate

7 Water Drain Port

5

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

CONTENTS

Ensure the air conditioner and its components suffered no damage during
transit and that all components are present. Should any loss or damage be
apparent, please contact your CLARKE dealer immediately.

The following components are supplied with the unit;

1. Flexible exhaust duct.

2. Exhaust duct outlet connector (2 pieces)

3. Exhaust duct round connector.

4. Adjustable window slider plate.

5. Remote control handset with batteries.

INSTALLATION

IMPORTANT: Do not position your air conditioner where it will be exposed to

sources of heat above 35

1. Always transport the air conditioner upright. Remember to drain the tank
before moving the appliance.

• It is recommended to wait up to 2 hours after transporting/unpacking the
air conditioner before using it, to allow the refrigerant gasses to settle.

2. Position the unit on a level, dry surface with at least 50 cm of free air space
around the unit.

NOTE: Do not use the air exhaust duct when in DRY or FAN only modes.

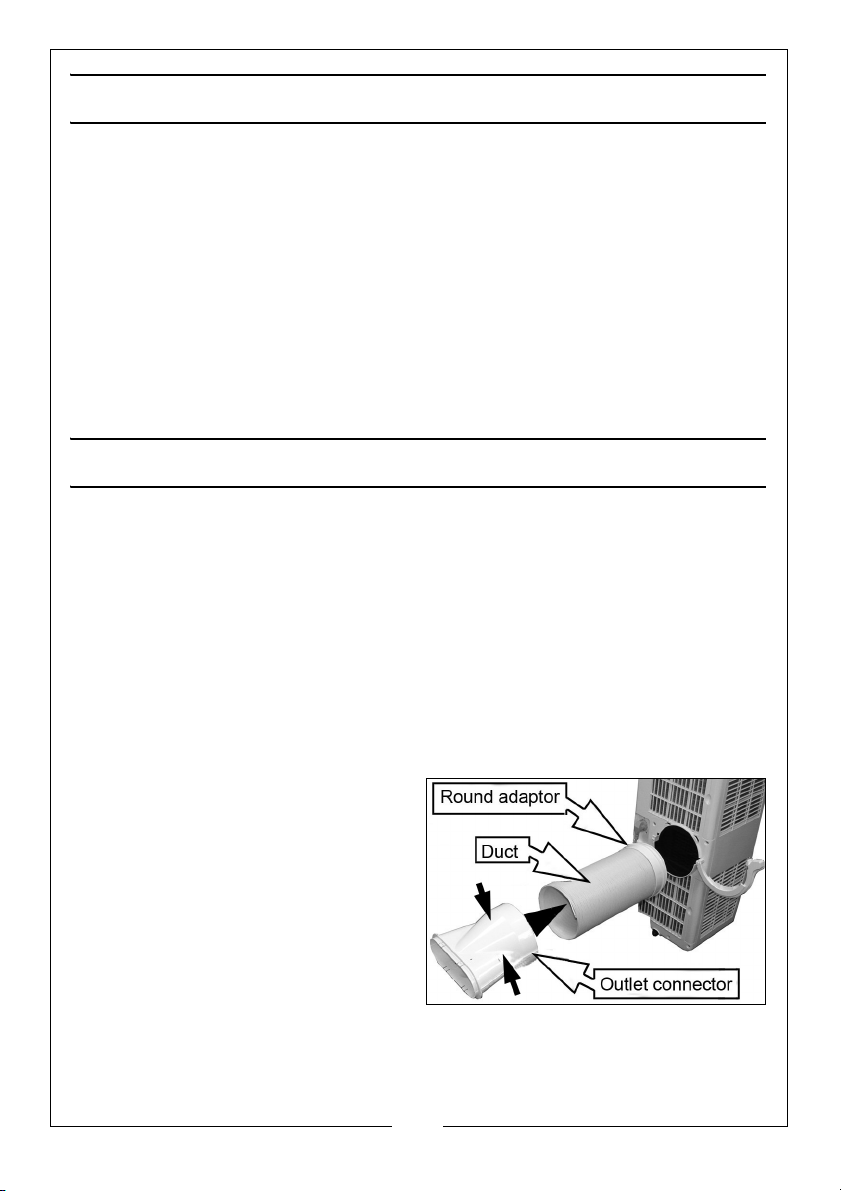

3. Twist fit the round adaptor to the
exhaust duct.

4. Clip the two halves of the duct
outlet connector together before
twist-fitting them to the duct as
shown.

o

C.

6

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

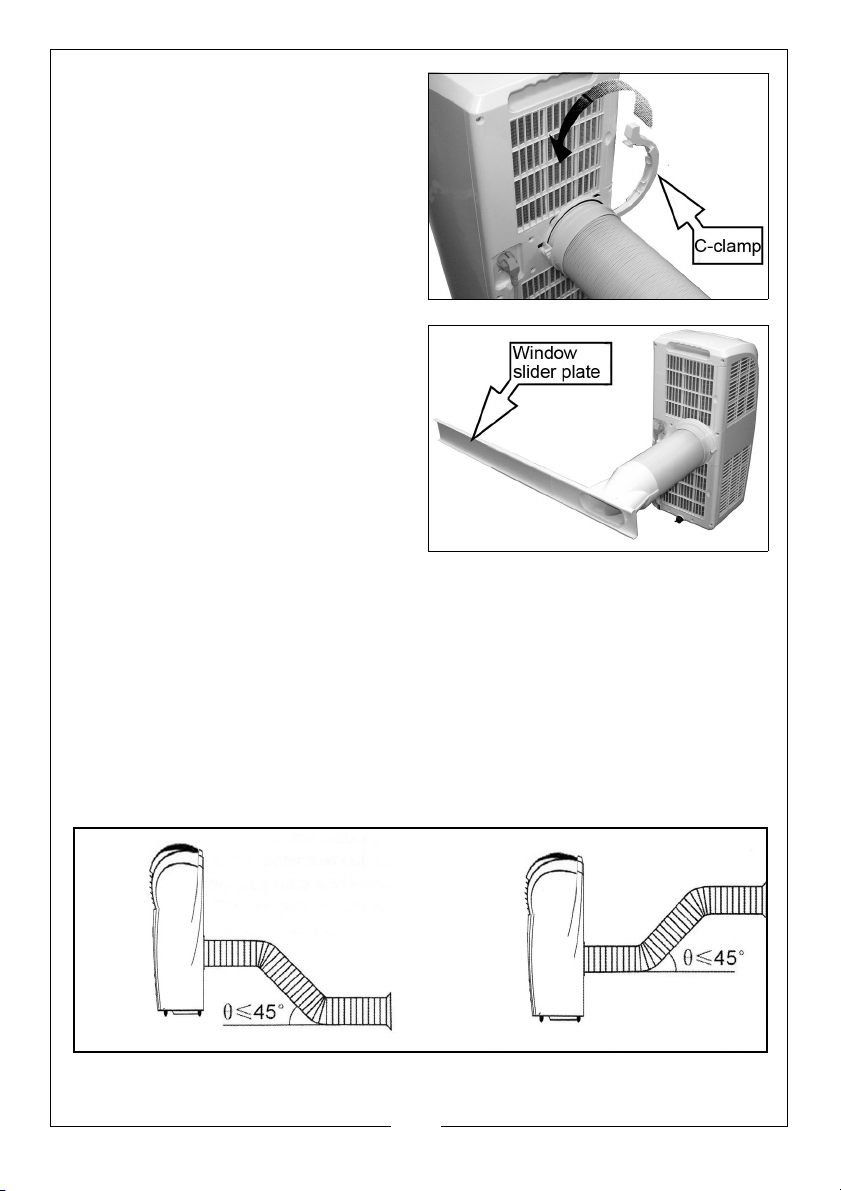

5. Fit the exhaust duct assembly
complete to the outlet port of the
air conditioner and secure in
place by locking down the c­clamp until it clips into position.

6. Move the air conditioner into
position, and extend/adjust the
flexible exhaust duct to suit your
window layout.

7. Clip the window slider plate to the
duct outlet connector to
complete the duct assembly.

8. Set the window slider plate in
position in the nearest window
opening.

NOTE: The length of the exhaust duct is variable between 480 mm and

1500 mm (adaptor/outlet connector included). Using a shorter
length of ducting uses less energy.

NOTE: The length of duct has been designed to suit the specification of

the air conditioner. Do not use an extension or change to a
different size duct as it may lead to poor performance.

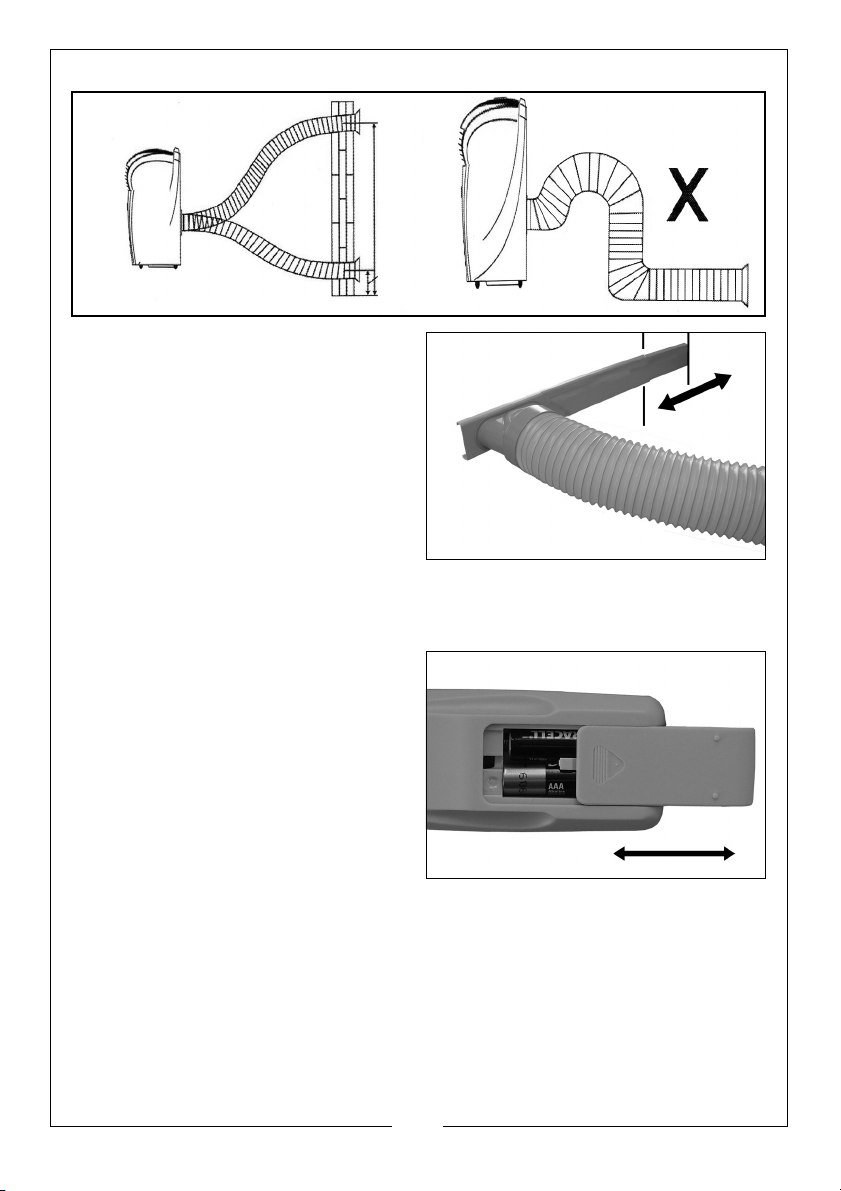

NOTE: The flexible exhaust ducting can be bent to an angle if followed

by a straight section, but tight curves and kinks must always be
avoided.

7

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

9. Extend the two parts of the
window slider plate and fit into the
window opening.

10. Secure in position by closing the
window and if required, use
wedges to secure the window
slider plate so that it cannot fall
out.

• The window slider plate is
designed to fit most standard
vertical sash type and horizontal sliding windows. However, it may be
necessary for you to adapt the installation procedure for various other
types of window.

11. Fit two AAA size batteries to the
remote control unit by sliding the
battery cover away and installing
the batteries to face in opposing
directions as indicated by the
symbols inside the unit.

• Follow the polarity diagram inside
the battery compartment.

8

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

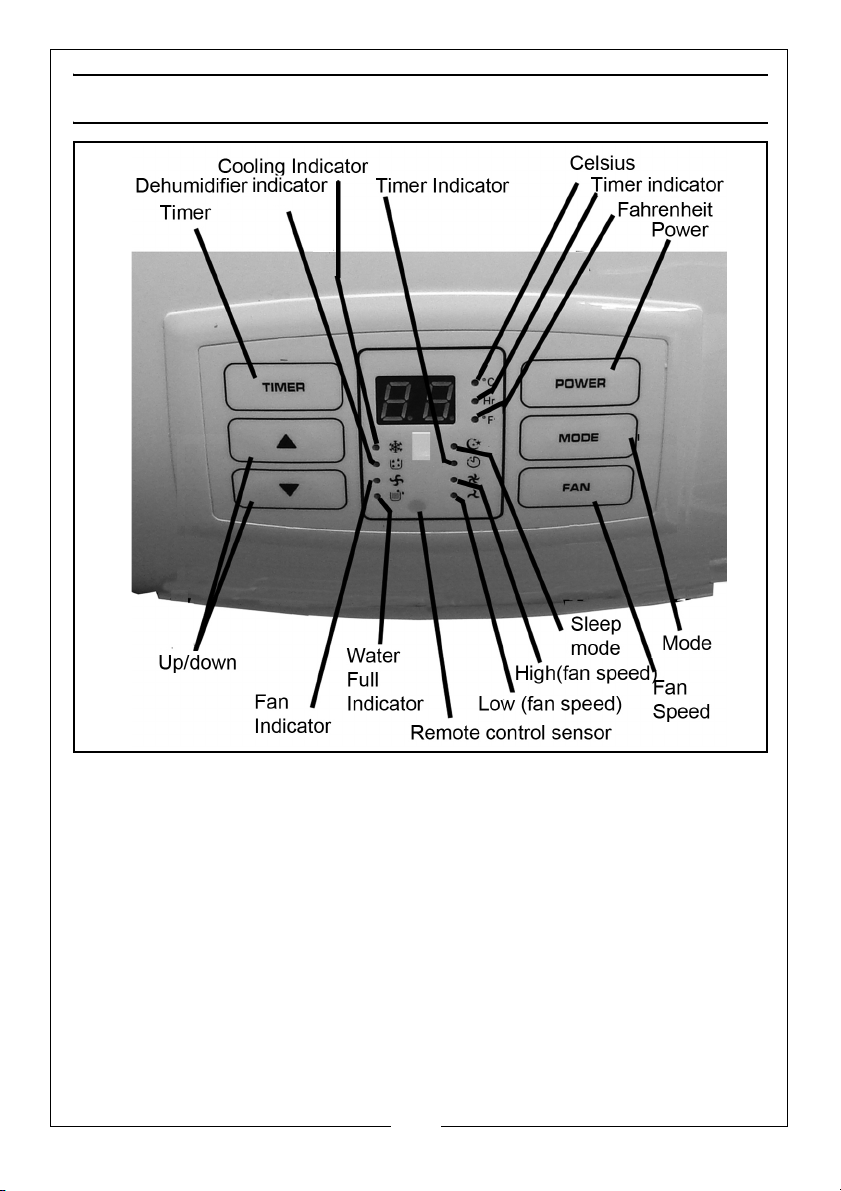

THE CONTROL PANEL

The control panel has the following buttons:

1. TIMER: Press this button to select the timer mode and the main display will
initially show “0”. Set the running time from 0-24 hours using the UP/DOWN
buttons.

2. POWER: Press this button to turn the unit on & off. When turned on, the
machine will start running in the previously selected mode.

3. MODE: Press this button to select from COOLING, FAN, and DEHUMIDIFY
modes.

4. UP/DOWN: Press the UP or DOWN buttons to set the required temperature
or adjust the running time in the TIMER mode.

• Press the UP/DOWN buttons simultaneously to switch from Celsius to
Fahrenheit display.

9

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

5. FAN: Press this button to select Low or High fan speed. If switching between
cooling and fan mode, the fan speed remains the same. During drying, the
fan will run at low speed.

6. The display in the centre of the panel indicates the following:

COOL Indicates that the unit is operating in COOLING mode

DEHUMIDIFY Indicates that the unit is operating in DEHUMIDIFYING

mode to remove dampness from the room air.

FAN Indicates that the unit is operating in FAN mode to

circulate air through the unit. The light illuminates in
conjunction with the selected fan speed LED.

WATER FULL Indicates that the water container is full and requires

emptying.

SLEEP Indicates that the unit is operating in SLEEP mode.

TIMER Indicates that the unit is operating in TIMER mode and will

run for a pre-set time.

HIGH Indicates that the unit is operating at the high fan speed

LOW Indicates that the unit is operating low fan speed

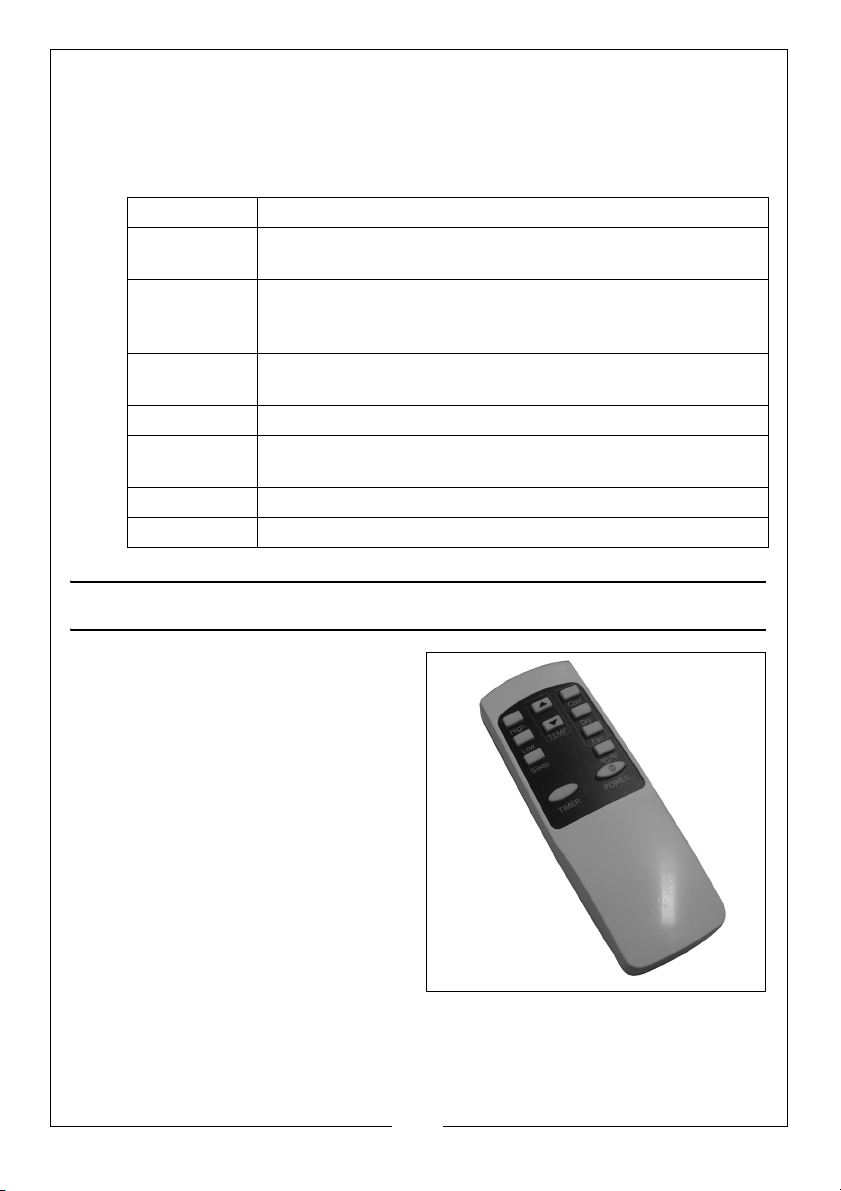

THE REMOTE CONTROLLER

The remote controller requires 2 x
AAA batteries to be installed as
shown on page 8.

It incorporates the following buttons.

10

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

POWER Turns the unit on or off.

TIMER Sets the timer On/Off and allows the running time

duration to be adjusted using the Up/Down arrows.

HIGH Sets the unit to operate at the high fan speed.

LOW Sets the unit to operate at low fan speed.

SLEEP Sets the unit to operate in the sleep mode with the

fan at its lowest setting.

UP or DOWN (arrows) Sets the target temperature or adjusts the run time

duration in TIMER mode.

oC/o

F

COOL
DRY
FAN

Switches the display between degrees Celsius to
degrees Fahrenheit.

Selects either: COOLING mode
DEHUMIDIFYING mode
FAN mode
These options correspond to the “MODE” option
on the main control panel.

GENERAL OPERATION

If the room is exposed to direct sunlight, draw any curtains during the sunniest
part of the day.

NOTE: Always drain any water from the unit via the drain plug after

operating in DRY mode. The unit will automatically stop working
when water reaches the high level.

NOTE: Do not use the air exhaust duct when in DRY or FAN modes.

1. Plug the unit into the power supply and the unit will enter ‘Standby’ mode
and the LED will display the room temperature.

2. Press the POWER button.

• The unit will start up in COOLING mode using High fan speed.

3. Press the MODE button and select from COOLING, DRYING or FAN only
modes and the corresponding LED will illuminate.

COOLING MODE

1. With the unit running, press the MODE button & choose COOLING mode.

2. Press the UP/DOWN button to set the desired room temperature.

11

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

• The selectable range is 16-30oC (60-86oF) and the temperature will change

3. Press the FAN button to choose a fan speed.

o

C or 1oF each time the button is pressed.

by 1

DRYING (DEHUMIDIFYING) MODE

1. With the unit running, press MODE button on the panel to select DRY mode.

The fan speed will run and the panel display will show the actual room
temperature. The compressor will stop if the air temperature drops to <15oC
and re-start when it returns to 16

o

C.

AIR SUPPLY (FAN ONLY) MODE

In this mode only the fan operates and the display shows the room
temperature. Adjust the position of the air outlet louvres as required.

SETTING THE TIMER

1. With the unit turned on, press the TIMER button.

• The display will show “1”hr.

2. Press the Up or Down button to adjust the set time from 1 hour to 24 hours.

• Once the set running time has elapsed, the unit will switch off
automatically.

• Press the timer button once to query the remaining run time. To cancel the
timer, change the time value to ‘0’ hours.

DRAINING OFF THE WATER

The air conditioner has a self-evaporating system. Condensing water will
recycle to cool the condenser, which improves cooling efficiency but also
saves energy and reduces noise. The condensation may eventually collect
faster than the system can cycle and the water container will become full.

When the water container is full, the “Water Full” symbol will flash on the
control panel and the appliance give an audible alarm. After this, the air
conditioner will shut down automatically.

12

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

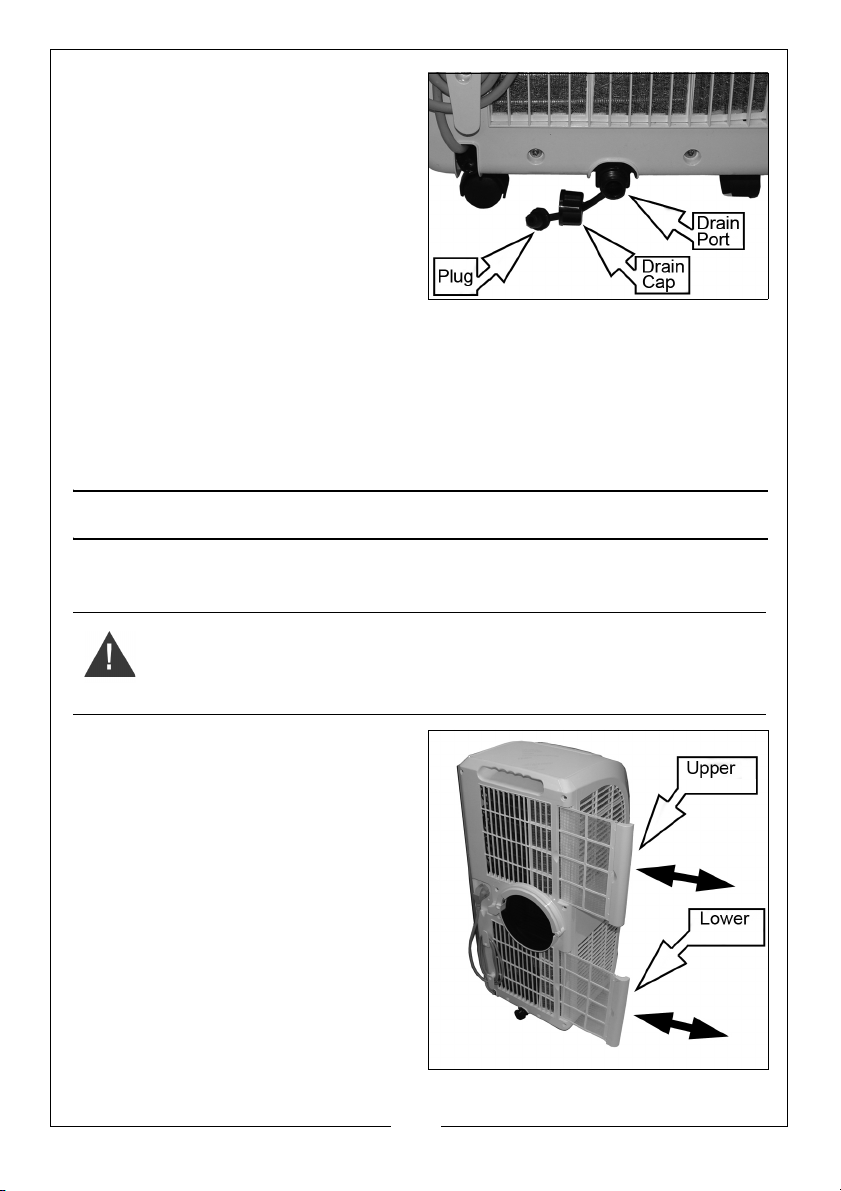

1. Before emptying the water, switch
off and disconnect from the
power supply. Take care not to tilt
the machine causing water to spill
from the collection tray.

2. Remove the drain cap and plug
from the drain port and let the
water flow out into a container.

3. Once drained, replace the plug
and drain cap and switch back
on.

4. For continuous draining, remove the drain cap and insert a length of 13
mm OD drain hose into the drain port. Position it to discharge at a height
lower than the drain port of the air conditioner which may require raising
the unit above floor level.

• This is likely to be beneficial when operating in DEHUMIDIFYING mode.

MAINTENANCE

CLEANING

WARNING: ALWAYS TURN OFF THE UNIT AND DISCONNECT FROM THE
POWER SUPPLY BEFORE CLEANING.

1. Clean the outside surfaces of the
unit with a duster or a soft, moist
cloth.

• Do not use solvents which could
damage the plastic components.

2. If the air filters are blocked with
dust, the efficiency of the unit will
be reduced. Clean the filters after
approximately two weeks of
regular use.

3. To remove the air filters, grasp the
handhold and slide the rear filters
sideways from the back of the
appliance.

13

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

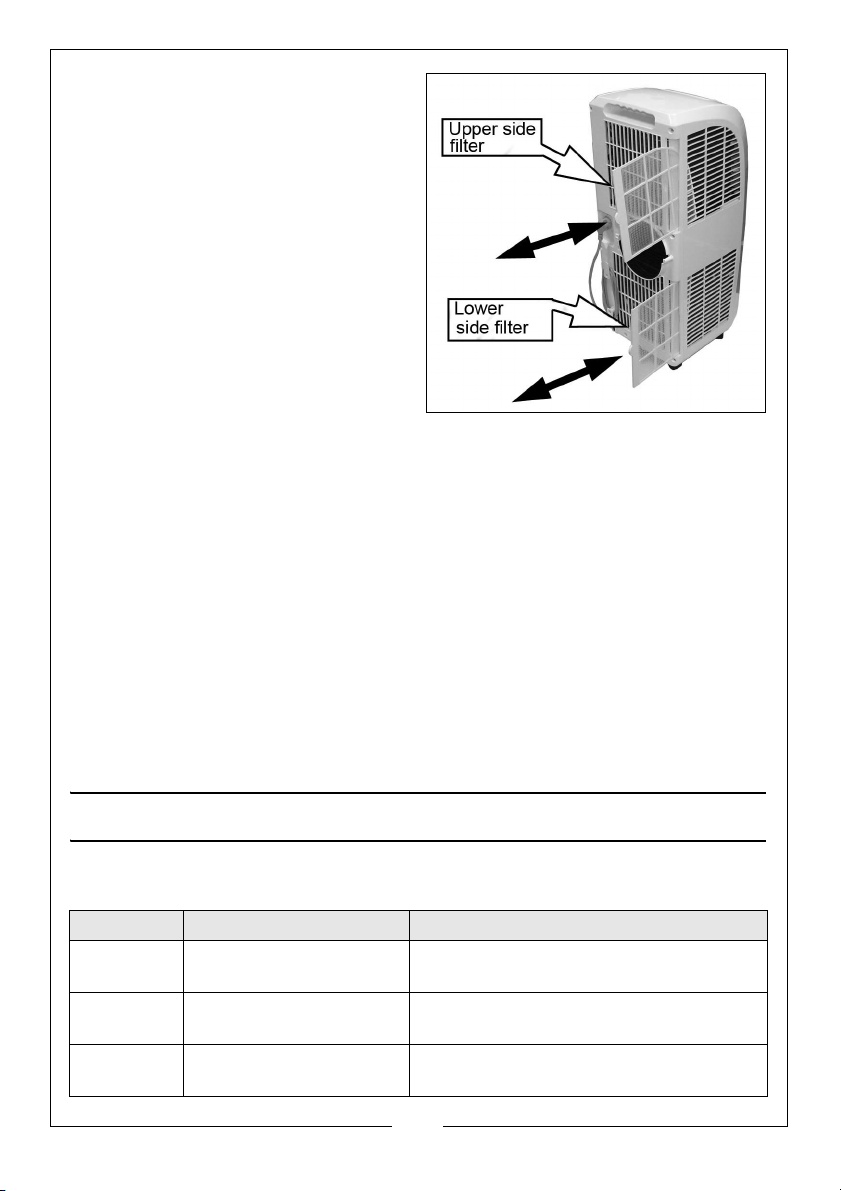

4. Grip the flange and draw the side
filters from the side of the unit.

5. Wash the air filters gently in warm
water with a mild detergent. Rinse
the filters and dry them gently out
of direct sunlight.

• Make sure the filters are dry
before use.

6. Slide all the filters back into
position, side filters first, noting that
the top of the upper side filter is
curved and that the rear filters are
marked, ‘UP’ and ‘DOWN’.

STORAGE

1. If the appliance is not going to be used for some time, remove the drain
cap/plug and ensure all the water is removed.

2. Operate the unit in FAN mode at low speed until the drain outlet is dry. This
will discourage the growth of mould inside the unit.

3. Switch off the unit and disconnect the power cable. Coil it around the
hooks at the back of the machine and set the plug in the socket provided.

4. Remove and contract the exhaust duct and store it carefully.

• The duct must be disconnected by releasing the C-clamp which holds it in
place.

5. Remove the batteries from the remote control to prevent damage caused
by leakage.

6. Cover the unit and store it in a dry location.

FAULT CODES

The following fault codes can be displayed on the control panel.

Fault Code Diagnosis of Fault Action Required

E1 Piping temperature is

abnormal

E2 Room temperature

sensor.

E4 Anti-freezing protection Waiting for defrosting, function will

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

Return to Clarke Service Department to
check coil temperature sensor or circuit

Return to Clarke Service Department to
check room temperature sensor circuit

recover automatically.

14

TROUBLESHOOTING

Problem Check Solution

The unit fails to
operate

Check for power failure if
unit is plugged in.

Plug the unit into the
socket.

Check the switch is on and
that the fuse is not blown.

Is the set running time
correct?

Check that the water full
indicator is not on.

Room temperature is
already lower than the set
temperature in the cooling
mode.

Inefficient cooling Unit is standing in direct

sunlight.

Is air inlet or outlet blocked?

Doors or windows open or
another source of heat in
the room?

Are the air filters very dirty?

Is the set temperature
suitable?

Noise or vibration Is the unit standing on an

uneven surface?

Compressor doesn't
work

The remote control
doesn't work

Overheating protection
circuit has cut in.

The unit is too far away.
Batteries are flat.
Remote control not pointing
at the air conditioner.

Replace fuse or switch
on.

Change the set time
duration.

Drain the water
container.

Check that room
temperature is between

O

C

10-35

Draw the curtains to
shield from sunlight.

Remove obstruction.

Close windows/doors.
Remove the heat source.

Clean the air filters.

Change the temperature

Stand the unit on a flat,
firm surface.

Wait 3 minutes before
re-starting unit.

Move closer to the unit.
Replace the batteries
Aim the remote control
at the unit.

15

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

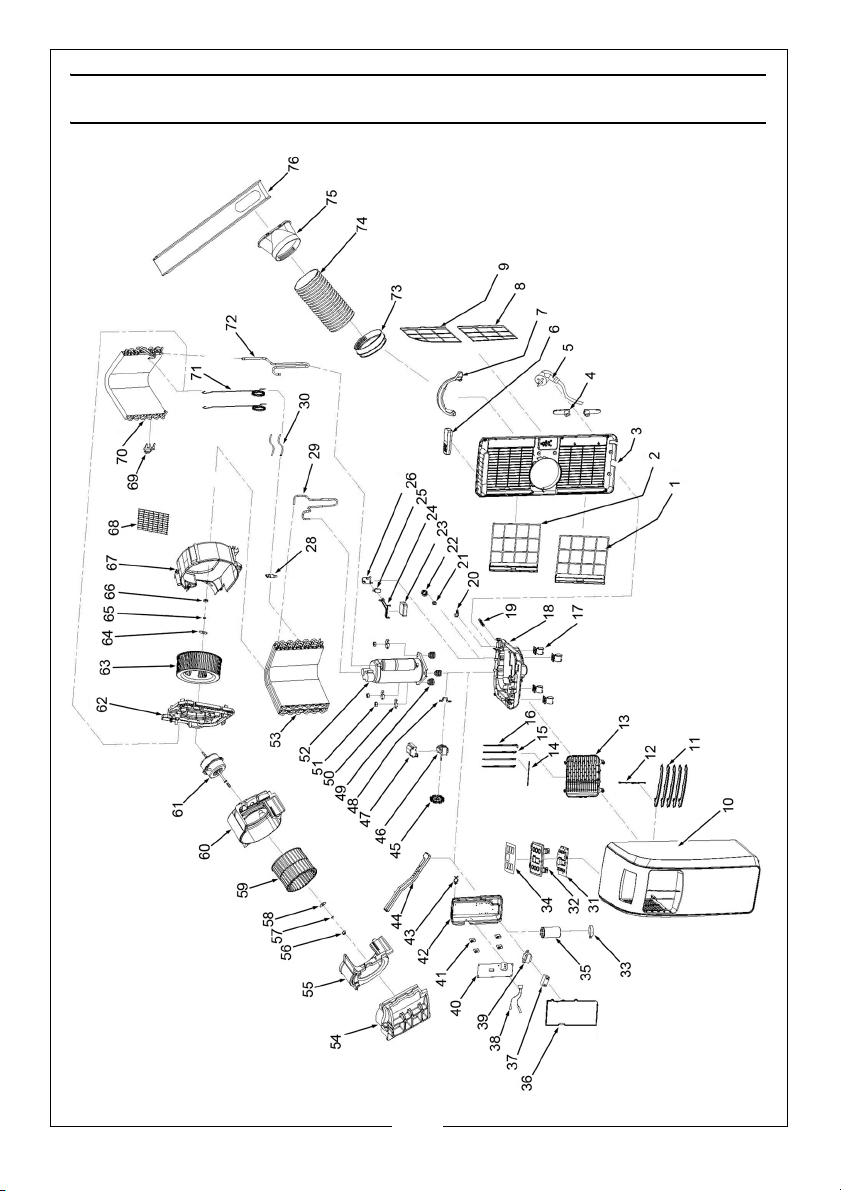

PARTS DIAGRAM

16

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

PARTS LIST

PART NO DESCRIPTION PART NO DESCRIPTION

1 Rear condenser filter 35 Capacitor

2 Rear evaporator filter 36 Junction box cover

3 Rear panel 37 Motor capacitor

4 Cable storage post 38 Sensor

5 Power cable 39 Transformer

6 Remote controller 40 Main circuit board

7 Exhaust duct clamp 41 Mounting post

8 Side condenser filter 42 Junction box base

9 Side evaporator filter 43 Cable clip

10 Front panel 44 Lower duct right bracket

11 Horizontal swinging vane 45 Water wheel

12 Linking lever 46 Water pump motor

13 Air outlet frame 47 Motor cover

14 Link lever 48 Motor bracket

15 Vertical swinging vane 49 Compressor shockproof feet

16 Main vertical swinging vane 50 Claw spacer

17 Caster wheel 51 Nut

18 Base tray 52 Compressor

19 Cable gland 53 Condenser

20 Cable clamp 54 Upper duct sealing foam

21 Water drain plug 55 Upper duct upper foam

22 Drain cap 56 Nut

23 Float 57 Spring washer

24 Float arm 58 Flat shim

25 Water level switch 59 Higher fan wheel

26 Switch connector 60 Upper duct lower foam

27 n/a 61 Fan motor

28 4-way filter 62 Lower air duct-upper

29 Delivery tube 63 Lower fan wheel

30 Capillary sleeve 64 Flat shim

31 Display panel 65 Spring washer

32 Control panel 66 Nut

33 Capacitor mounting 67 Lower air duct

34 Display covering film 68 Metal grille

17

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

PART NO DESCRIPTION PART NO DESCRIPTION

69 Indoor temp sensor fixing 73 Circular connector

70 Evaporator coils 74 Exhaust duct

71 Capillary tube 75 Duct connector

72 Return tube 76 Window installation panel

TECHNICAL SPECIFICATIONS

Power Supply 230V/50Hz

Weight 22.9 kg

Dimensions (L x W x H) 352 x 300 x 756 mm

Water Holding Capacity 0.35 L

Air Flow Volume

Operating Temperature

Exhaust Duct Diameter 135 mm ID

Exhaust Duct Length (expanded) 1500 mm

Permissible Excessive Operating Pressure

1.5 Mpa/4.0 MPa

(suction/discharge)

Max Pressure (Low/High Pressure Side) 2.0 Mpa/5.5MPa

Sound Pressure Level Under 70 dB LpA

Sound Power Level 56 dB LwA

Energy Efficiency 2.61 (EU Class A)

Energy Consumption 0.8 kW/60min

Cooling Output 2.05 kW

Electrical Insulation Class 1

Energy Efficiency rate (EER) 2.6

350 m

10 - 35

3

/h

o

C

REFRIGERANT DATA

This product contains hemetically seald flourinated greenhouse gasses,

Type R410A

Volume 400 g

GWP 2088

2

Equivalent

Co

0.835 t

18

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

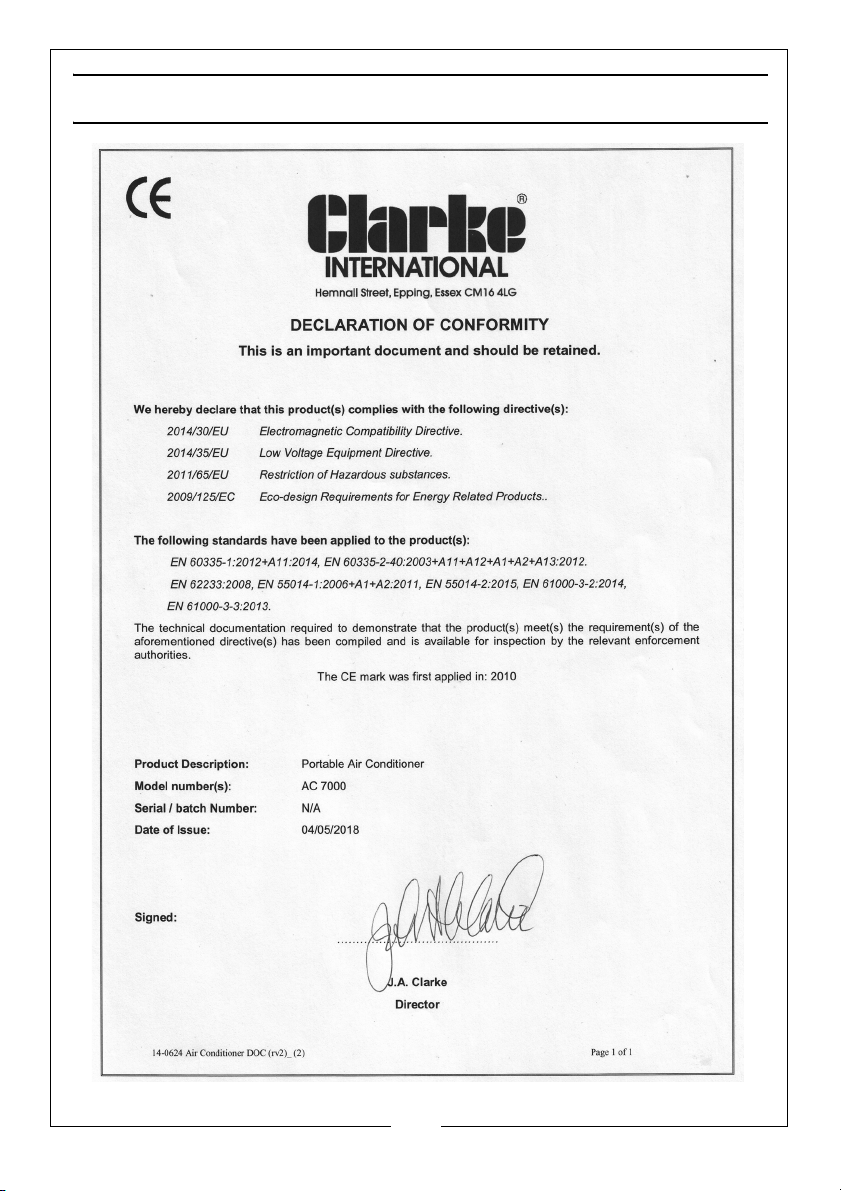

DECLARATION OF CONFORMITY

19

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
