Page 1
720W PORTABLE GENERATOR
MODEL NO: G720
PART NO: 8857800
OPERATION & MAINTENANCE
INSTRUCTIONS
ORIGINAL INSTRUCTIONS
LS0118 - ISS 10
Page 2

INTRODUCTION

Thank you for purchasing this CLARKE 720W Portable Generator
Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt which will be required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or tampered with in any way, or not used for the purpose for which it was intended.
Faulty goods should be returned to their place of purchase, no product can be returned to us without prior permission.
This guarantee does not effect your statutory rights.

ENVIRONMENTAL RECYCLING POLICY

Through purchase of this product, the customer is taking on the obligation to deal with the WEEE in accordance with the WEEE regulations in relation to the treatment, recycling & recovery and environmentally sound disposal of the WEEE.
In effect, this means that this product must not be disposed of with general household waste. It must be disposed of according to the laws governing Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal facility.
2
Page 3

TABLE OF CONTENTS

INTRODUCTION ............................................................... 2
GUARANTEE .................................................................... 2
ENVIRONMENTAL RECYCLING POLICY ......................... 2
TABLE OF CONTENTS ....................................................... 3
GENERAL SAFETY RULES ................................................. 4
Work area ........................................................................................ 4
Positioning the generator .............................................................. 4
Fire prevention ................................................................................ 4
Prevention of electric shock .......................................................... 5
Additional safety rules for generators .......................................... 5
SAFETY SYMBOLS ............................................................ 6
GENERATOR OVERVIEW ................................................. 7
UNPACKING AND ASSEMBLY ........................................ 8
BEFORE USING THE GENERATOR .................................... 8
Earth Connector ............................................................................. 8
Adding the fuel/oil mixture ............................................................ 9
USING YOUR GENERATOR .............................................. 10
Starting the engine ......................................................................... 10
Shutting down the generator ........................................................ 11
MAINTENANCE ............................................................... 14
the spark plugs (every 50 hours of use) ........................................ 14
the air filter (every 150 hours of use) ............................................. 15
the fuel filter (every 150 hours of use) ........................................... 16
TROUBLESHOOTING ........................................................ 17
SPECIFICATIONS ............................................................. 18

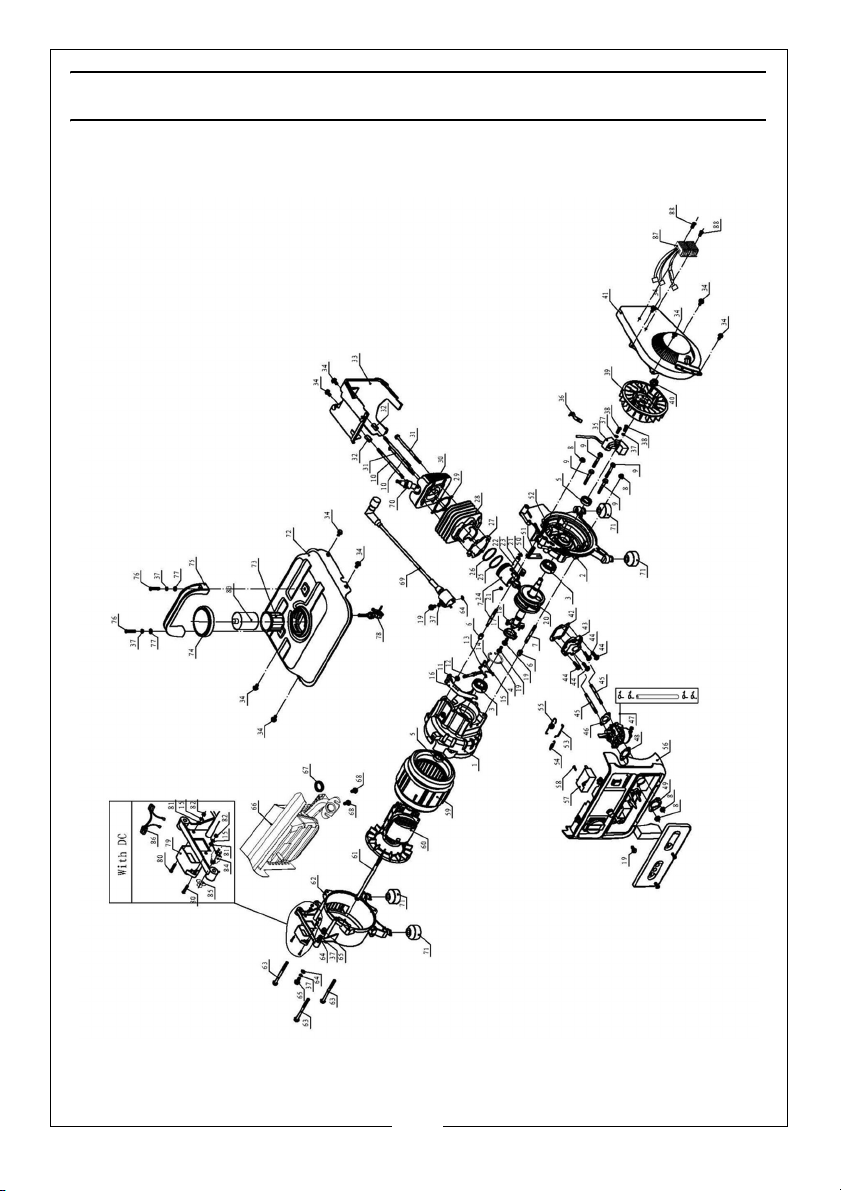

EXPLODED DIAGRAM & PARTS LIST ............................... 19

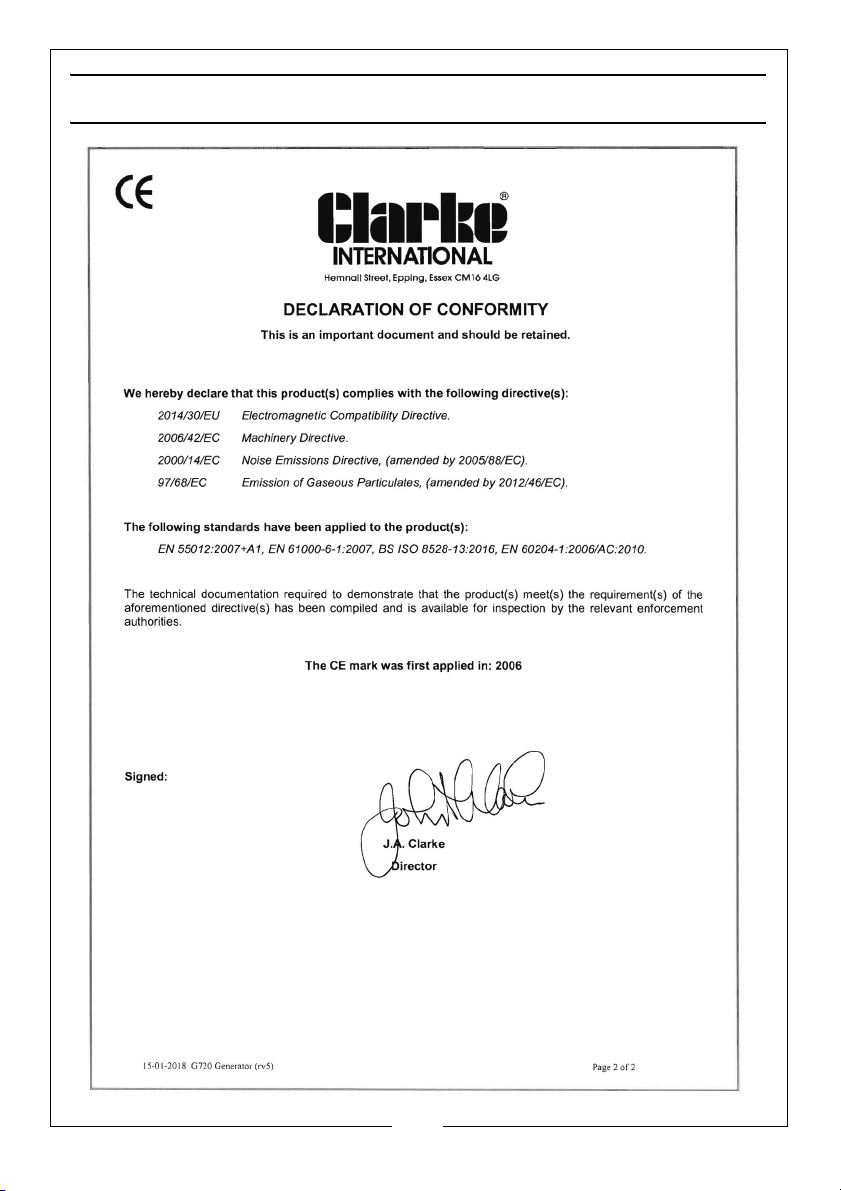

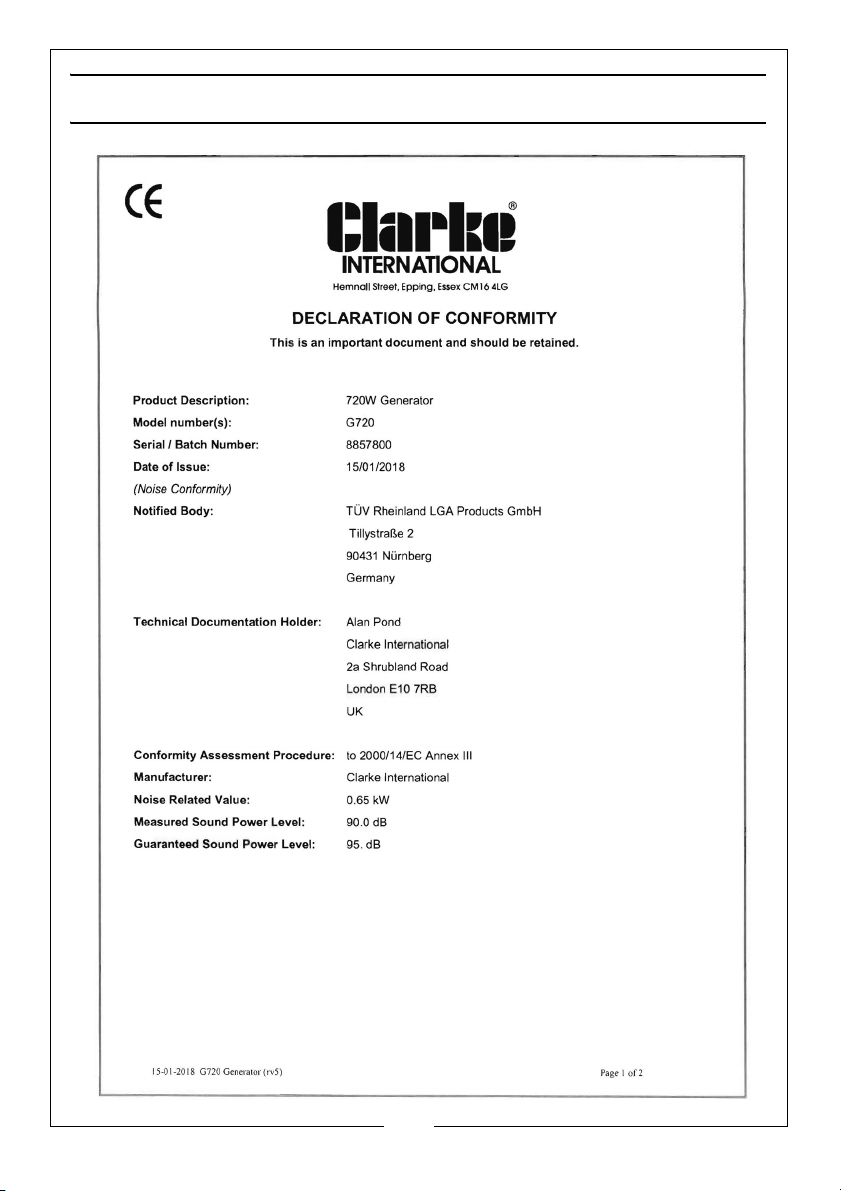

DECLARATION OF CONFORMITY ................................... 21
DECLARATION OF CONFORMITY ................................... 22
OTHER PRODUCTS ........................................................... 23
3
Page 4

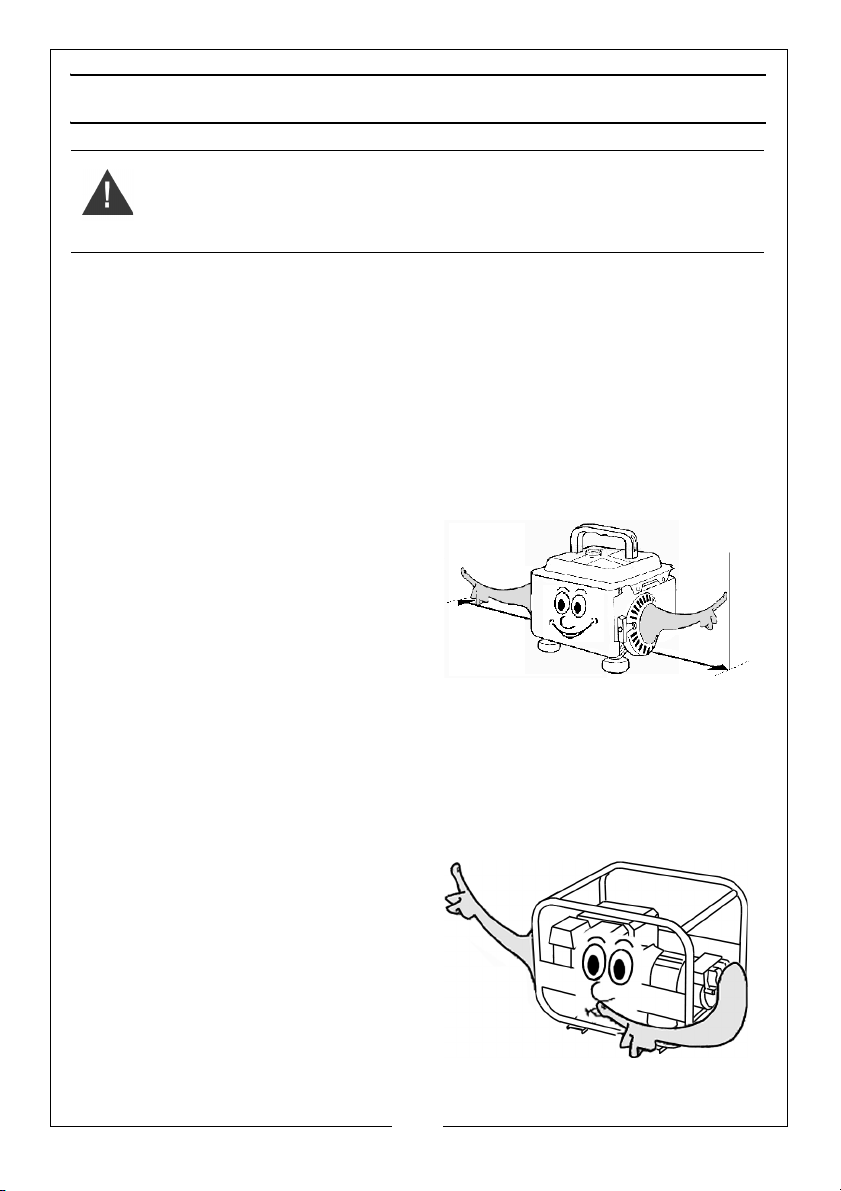

GENERAL SAFETY RULES

1M (3ft)
1M (3ft)
WARNING: EXHAUST FUMES CAN BE EXTREMELY DANGEROUS IF INHALED

WORK AREA

• Always use in a well ventilated area. Never use indoors or in a confined space.
• Always position the exhaust outlet away from people.
• Read these safety instructions before using the equipment.
• Keep children and animals away from the generator.

POSITIONING THE GENERATOR

1. Always keep the generator at least 1 m (3 ft) from walls or other equipment, or the engine may overheat.
2. Always ensure the generator is on a solid, flat surface.
3. Always ensure the surrounding area is free from any material that could burn or be damaged by heat.
4. Never move or tilt the generator whilst it is switched on.

FIRE PREVENTION

1. Always switch the engine OFF when refuelling.
2. Always refuel in a well ventilated area.
3. Never refuel while smoking or in the vicinity of an open flame.
4. Never overfill the tank, fill to the level specified (See “Adding the fuel/oil mixture” on page 9).
4
Page 5
5. Never start the engine if there is spilled fuel. Any spillage must be wiped clean and the generator allowed to dry before attempting to start the engine.

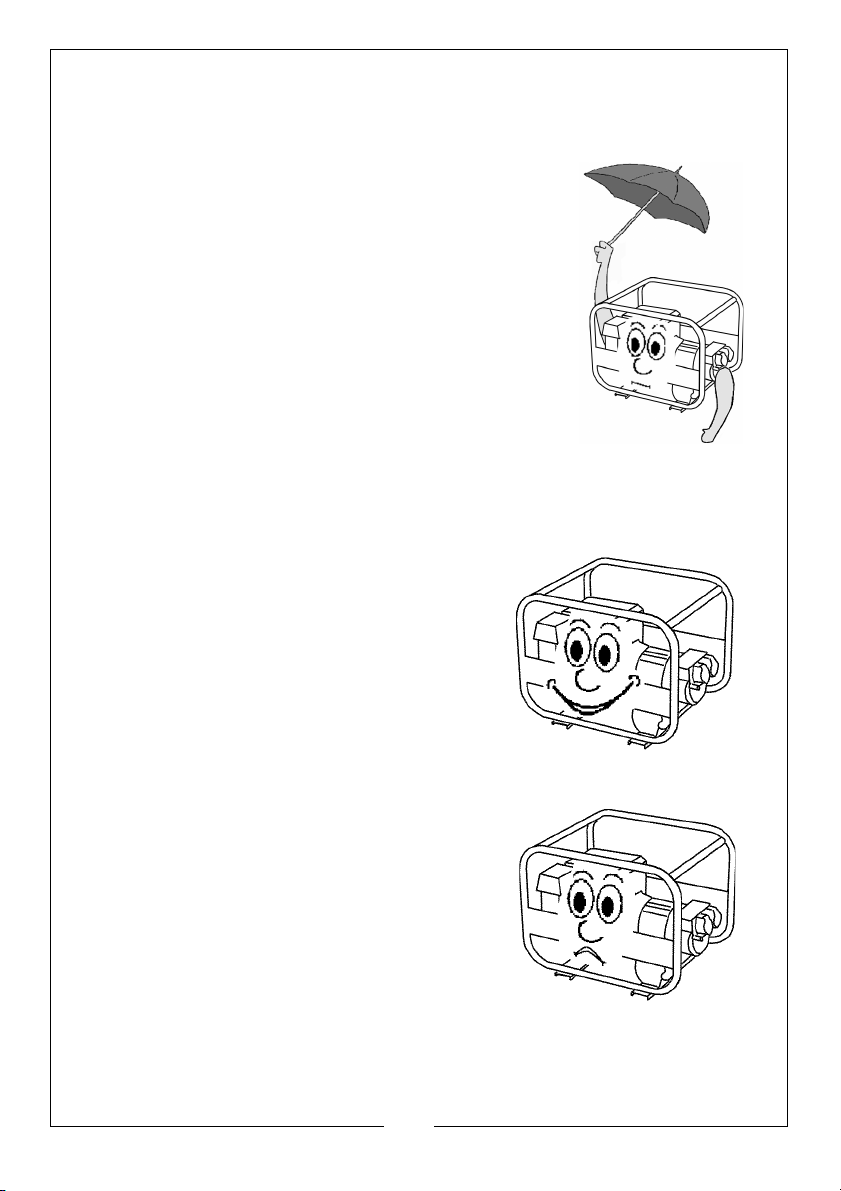

PREVENTION OF ELECTRIC SHOCK

1. Never use the generator in wet conditions unless it is well protected/ under cover. Under these conditions, adequate ventilation MUST be provided
2. Never operate the generator with wet hands
3. Never use water or any other liquids to clean the generator.
4. Make sure you ground (earth) the generator.

ADDITIONAL SAFETY RULES FOR GENERATORS

1. Always ensure the applied load does not exceed the generator rating. Overloading the generator is dangerous and could cause serious damage.
2.
Always
carrying out any maintenance.
3. Always ensure the generator reaches operating speed before connecting a load.
4. Never allow the generator to run out of fuel when a load is connected.
5. Never transport the generator with fuel in the tank.
6. Do Not connect to a commercial or residential power supply; e.g. ring main.
7. Never allow the generator air vents to become blocked.
disconnect the generator when
5
Page 6

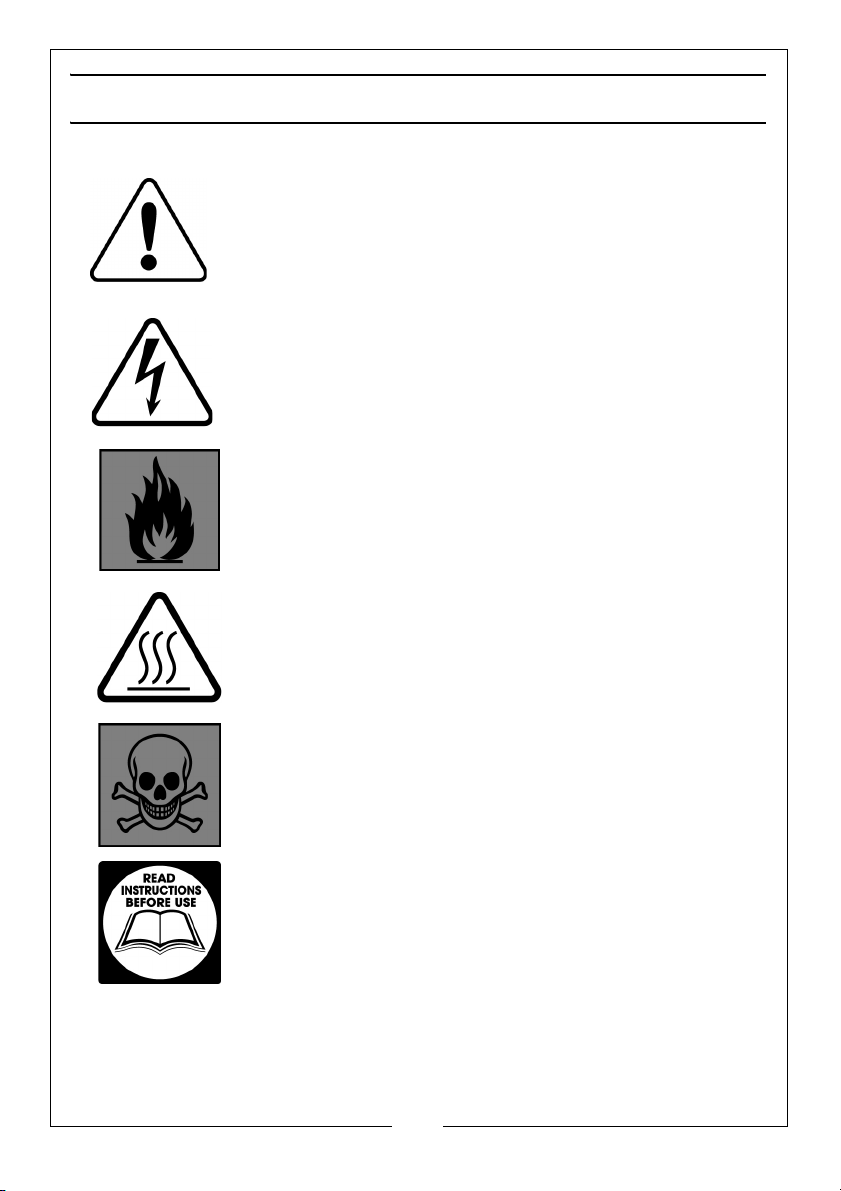

SAFETY SYMBOLS

Caution - The user should be aware of a general hazard
Dangerous Voltage
Flammable
Hot Surface - Do not touch
Poisonous fumes - Do not use the generator in an enclosed space.
Read Instruction manual before use.
6
Page 7

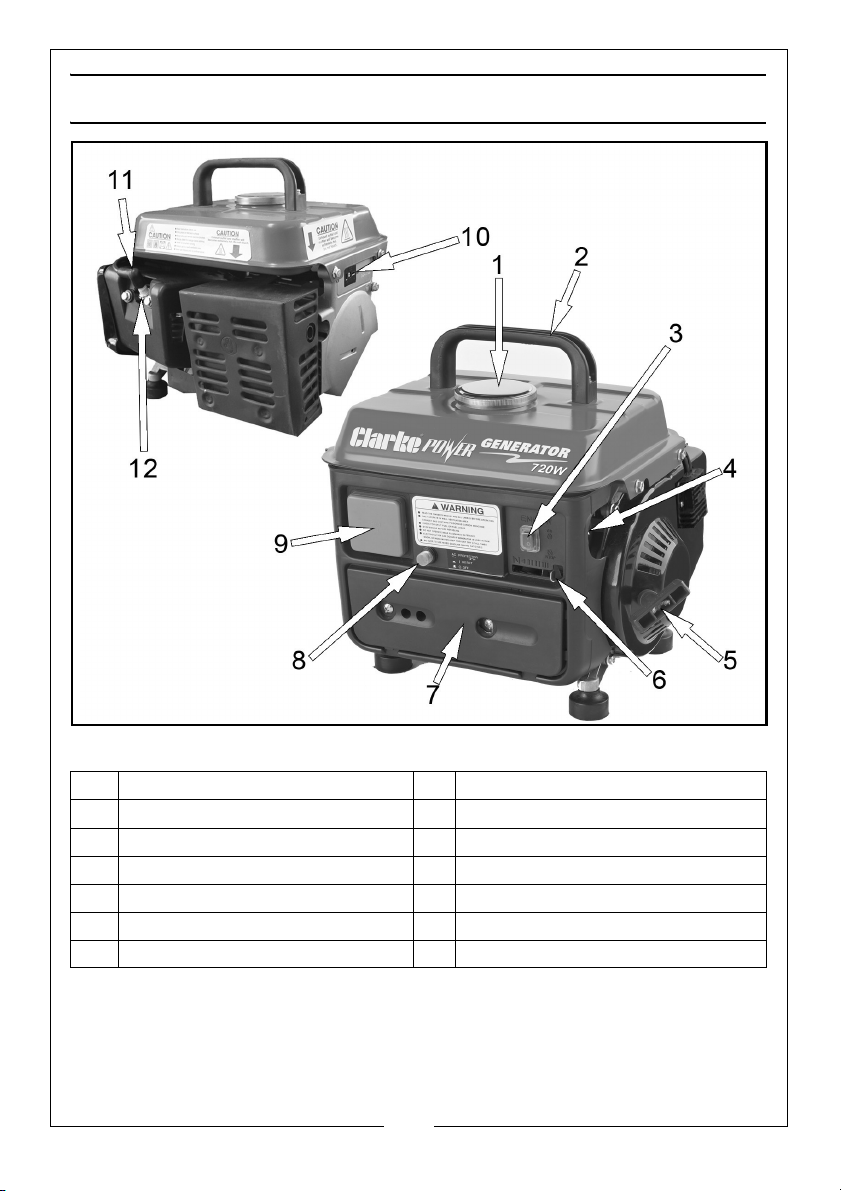

GENERATOR OVERVIEW

NO DESCRIPTION NO DESCRIPTION
1 Fuel cap 7 Maintenance panel
2 Carry handle 8 AC circuit breaker/reset button
3 Engine switch 9 AC socket
4 Fuel valve 10 DC socket/reset button
5 Starting handle 11 Spark plug cover
6 Choke 12 Spark plug
7
Page 8

UNPACKING AND ASSEMBLY

Unpack your generator and make sure the following items are present.
1 x Generator 1 x Battery Charging Lead Assembly
1 x Spark Plug Box Spanner 1 x Fuel Mixing Cup (inside fuel tank cap)
1 x Tommy Bar 1 x Instruction Manual
Should there be anything missing or damaged in transit contact your Clarke dealer immediately.

BEFORE USING THE GENERATOR

IMPORTANT: Generators should ALWAYS be earthed. Make sure you ground (earth) the generator.
Before using your generator check that:
• The generator is in good condition and free from any damage.
• The generator is clean and free from fuel or oil spillage.
• The generator is correctly positioned for use (See page 4).
• The fuel system and connectors are intact and there is no leakage.
NOTE: Always use a funnel to fill the fuel tank so as to avoid accidental
spillage of fuel. If fuel is spilled it must be cleaned up before attempting to start the engine.
WARNING: ENSURE THERE IS ADEQUATE FUEL IN THE TANK WHEN USING THE GENERATOR. RUNNING OUT OF FUEL OR STOPPING THE ENGINE SUDDENLY WITH A LOAD CONNECTED COULD CAUSE SERIOUS DAMAGE.

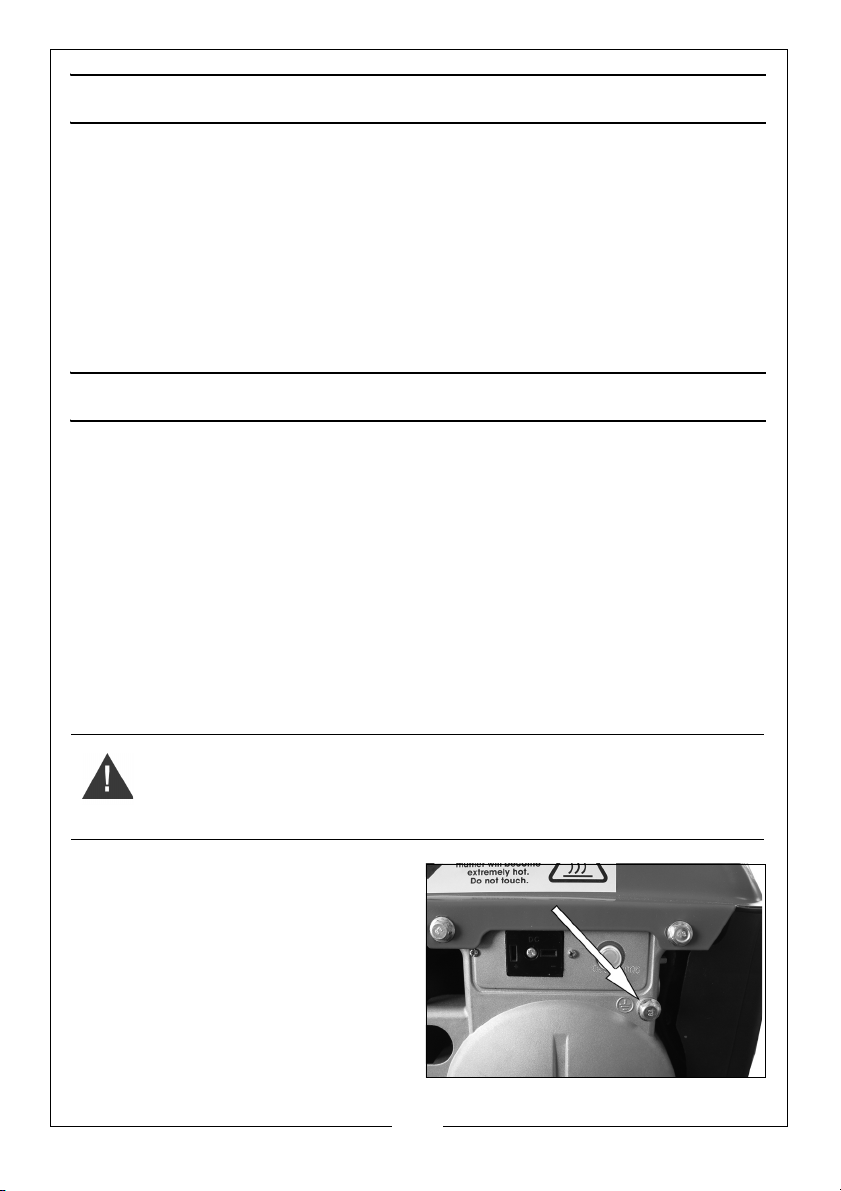

EARTH CONNECTOR

Always connect the generator to an earth point. The earth terminal is shown on the right.
8
Page 9

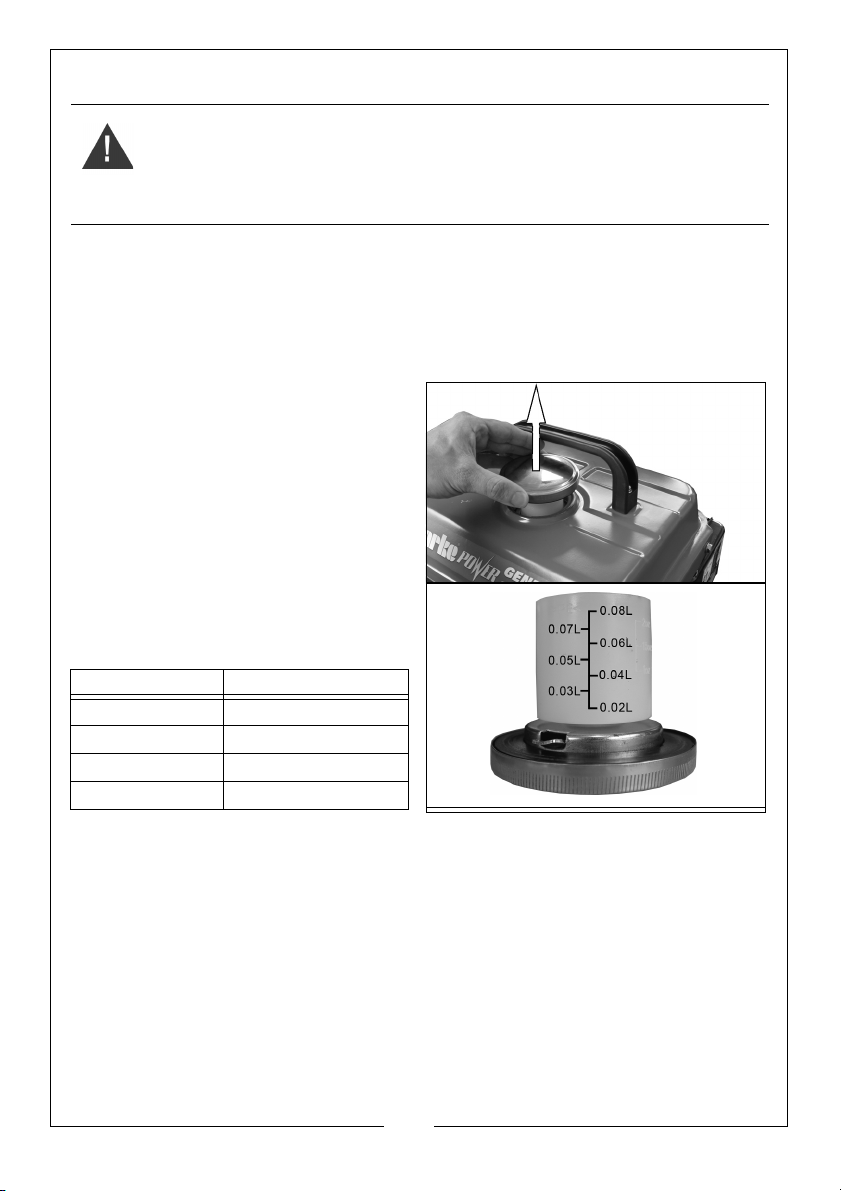

ADDING THE FUEL/OIL MIXTURE

WARNING: FUEL IS HIGHLY FLAMMABLE AND POISONOUS.
WARNING: WIPE UP ANY SPILLED FUEL IMMEDIATELY.
WARNING: AFTER REFUELING, MAKE SURE THE FUEL CAP IS TIGHTENED SECURELY.
The generator requires a 50:1 mixture of fuel and oil. To mix the fuel you will need a 5L container with a screw-on lid suitable for storing petrol.
1. Pour the required amount of petrol into the container.
• Your generator has been designed to use regular unleaded petrol
with an octane rating of 86 or higher.
2. Remove the fuel cap from the generator.
3. Use the measuring cup attached to the fuel cap to measure the required amount of oil.
• Add 0.02L of oil to every litre of
fuel.
IMPORTANT: Only use approved two stroke engine oil, standard engine oil is not suitable.
Amount of Fuel Add this much Oil
1L 0.02L
2L 0.04L
3L 0.06L
4L 0.08L
Replace the lid on the container holding the petrol/oil mixture and shake the container to mix the contents.
4. Slowly pour the mixture into the fuel tank (maximum 4.2L)
• Do not overfill the fuel tank.
5. Replace the fuel cap securely.
NOTE: The measuring cup MUST be fitted onto the fuel cap when the cap
is replaced, it forms an important part of the fuel system and may cause damage to the generator if it is not fitted.
9
Page 10

USING YOUR GENERATOR

Make sure there is sufficient fuel in the tank before using the generator.

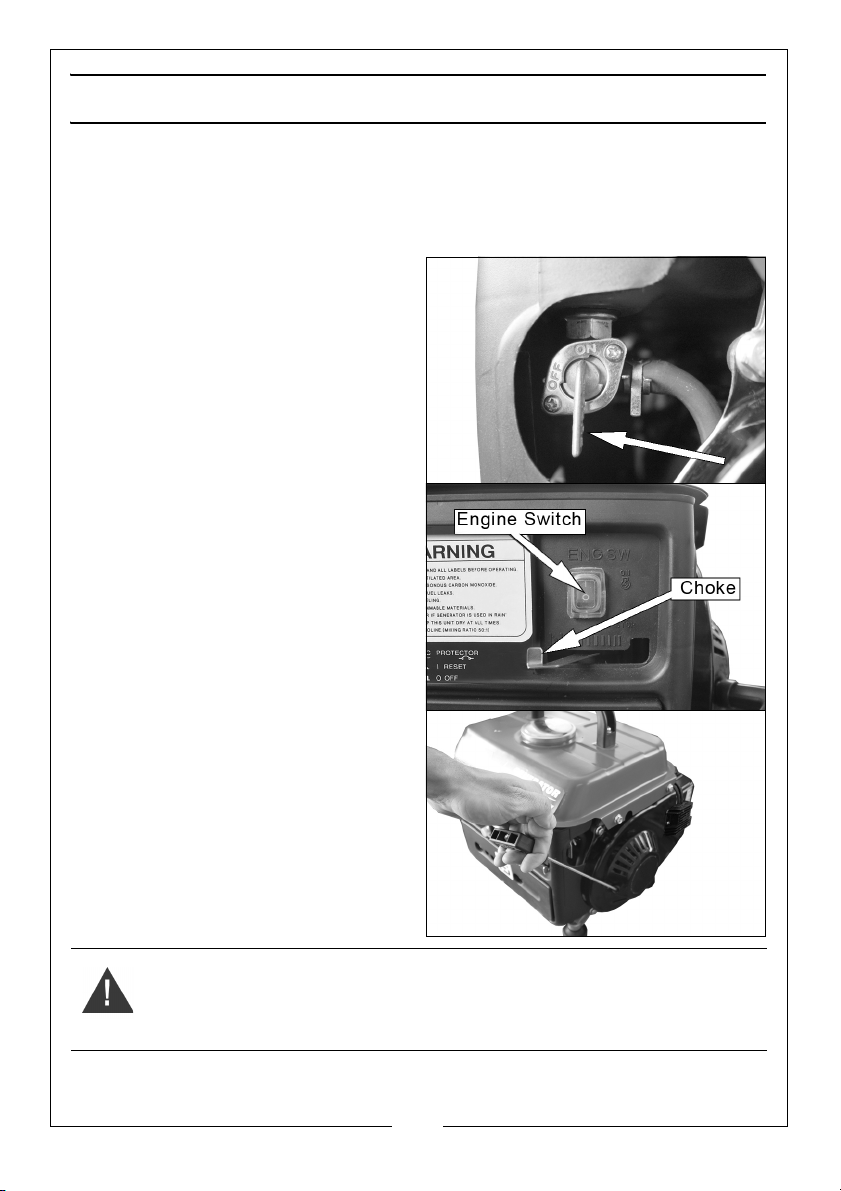

STARTING THE ENGINE

1. Remove all connections from the AC sockets.
2. Turn fuel valve to the ON position.
3. Set the choke lever to the “I” position (all the way to the left).
4. Set the engine switch to the “I” (ON) position.
5. Hold the generator handle firmly and pull the starting handle lightly until you start to feel resistance and then pull up sharply to start the engine.
NOTE: You may have to do this
more than once.
WARNING: ONCE THE GENERATOR HAS STARTED, RELEASE THE STARTING HANDLE SLOWLY TO AVOID INJURY/DAMAGE AS IT WHIPS BACK.
10
Page 11
6. Once the engine has warmed up, return the choke lever to the run position (all the way to the right).

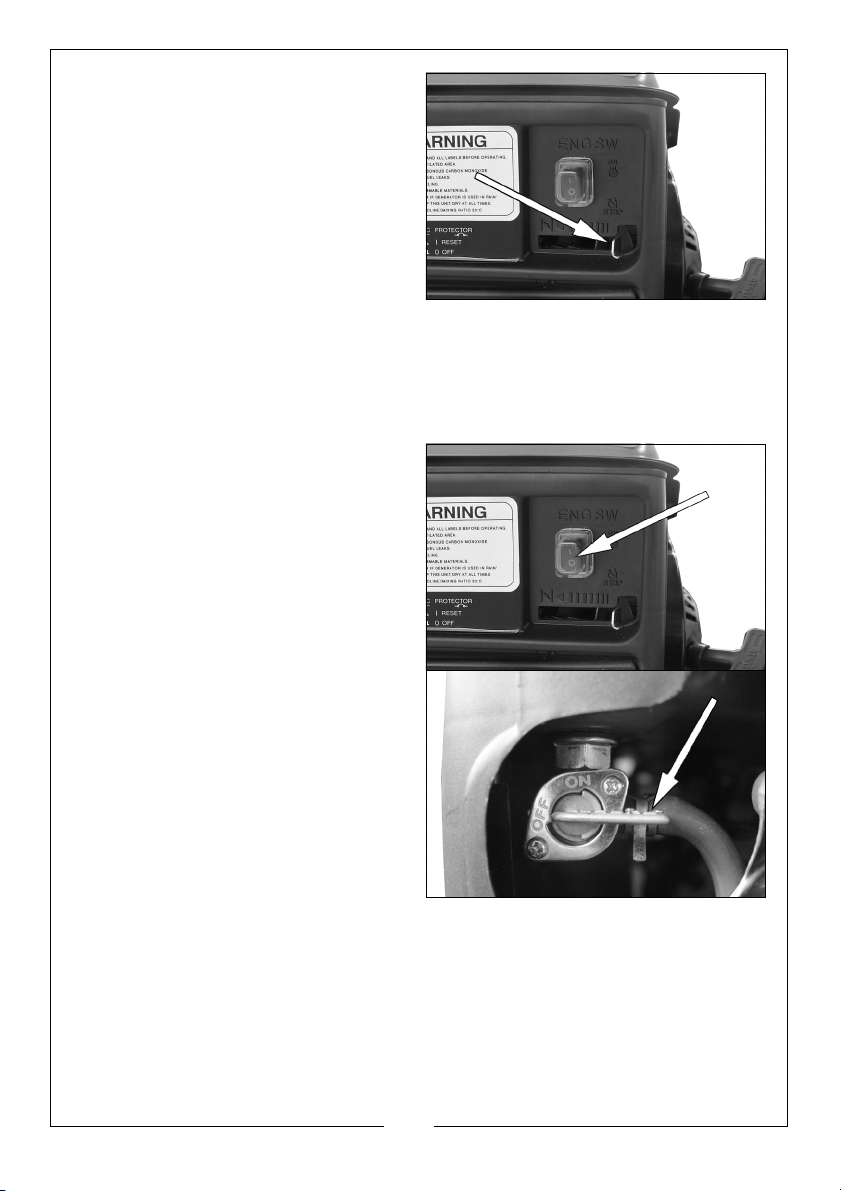

SHUTTING DOWN THE GENERATOR

To stop the generator in an emergency simply set the engine switch to ‘0’ (OFF) position.
1. Turn off and disconnect any electric devices.
2. Set the engine switch to the “0” (OFF) position.
3. Turn the fuel valve to the “OFF” position.
11
Page 12

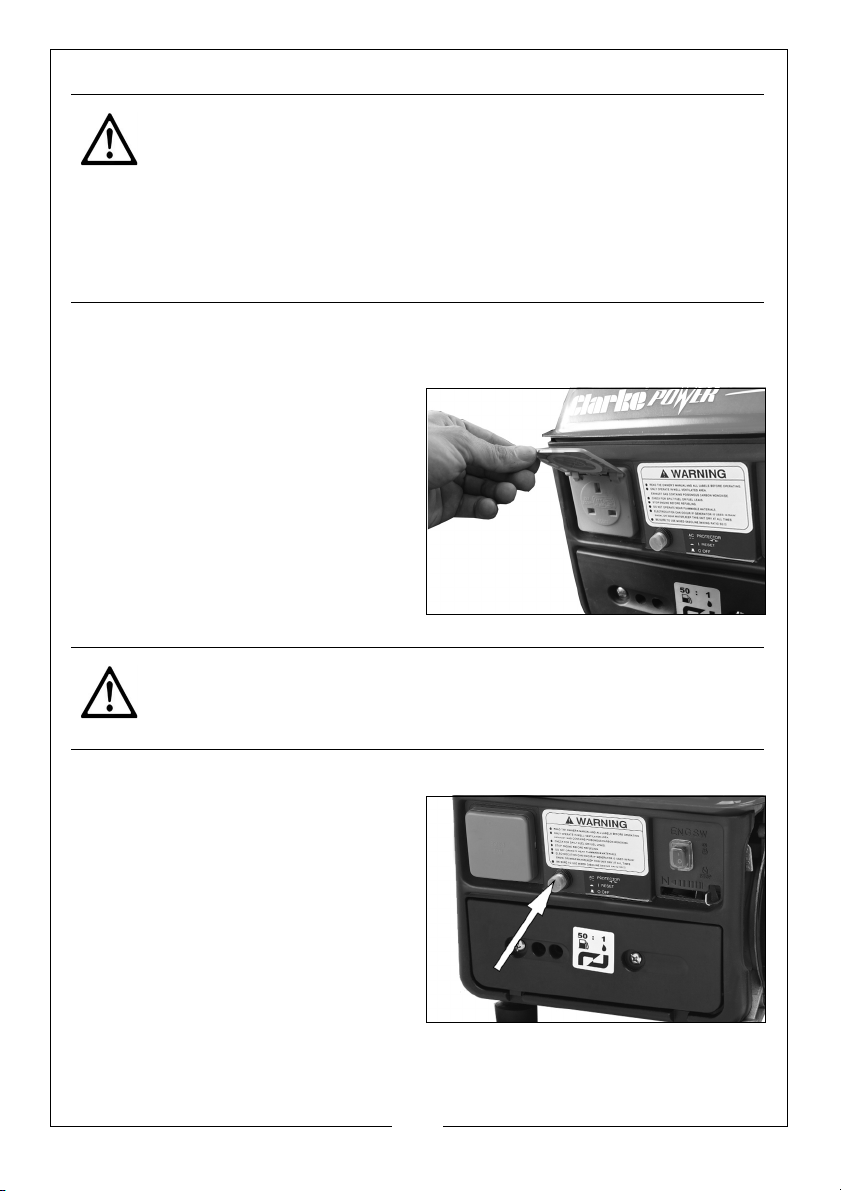

CONNECTING ELECTRICAL DEVICES
CAUTION: MAKE SURE THAT THE APPLIANCE BEING CONNECTED IS IN GOOD WORKING ORDER, IF IT BEGINS TO ACT ABNORMALLY OR STOPS SUDDENLY, DISCONNECT IT FROM THE GENERATOR.
CAUTION: MAKE SURE THE APPLIANCE DOES NOT EXCEED THE MAXIMUM RATED LOAD FOR THE GENERATOR.
CAUTION: ANY DEVICE WHICH CONTAINS AN INDUCTIVE LOAD E.G. DEVICES THAT CONTAIN A MOTOR MAY REQUIRE MORE CURRENT ON STARTUP.
The generator can supply both 230V AC and 12V DC
AC POWER
1. Start the engine. See page 10.
2. Make sure the appliance is turned off before connecting it to the generator.
3. Connect the appliance to the generator.
CAUTION: Care should be taken when connecting sensitive devices such as laptop computer and televisions to the generator. A surge protection device is recommended when connecting these types of device.
AC OVER LOAD PROTECTOR
If the AC overload protector activates:
1. Disconnect the appliance
• Wait for 2-3 minutes.
2. Press the AC circuit breaker/reset button shown on the right.
12
Page 13

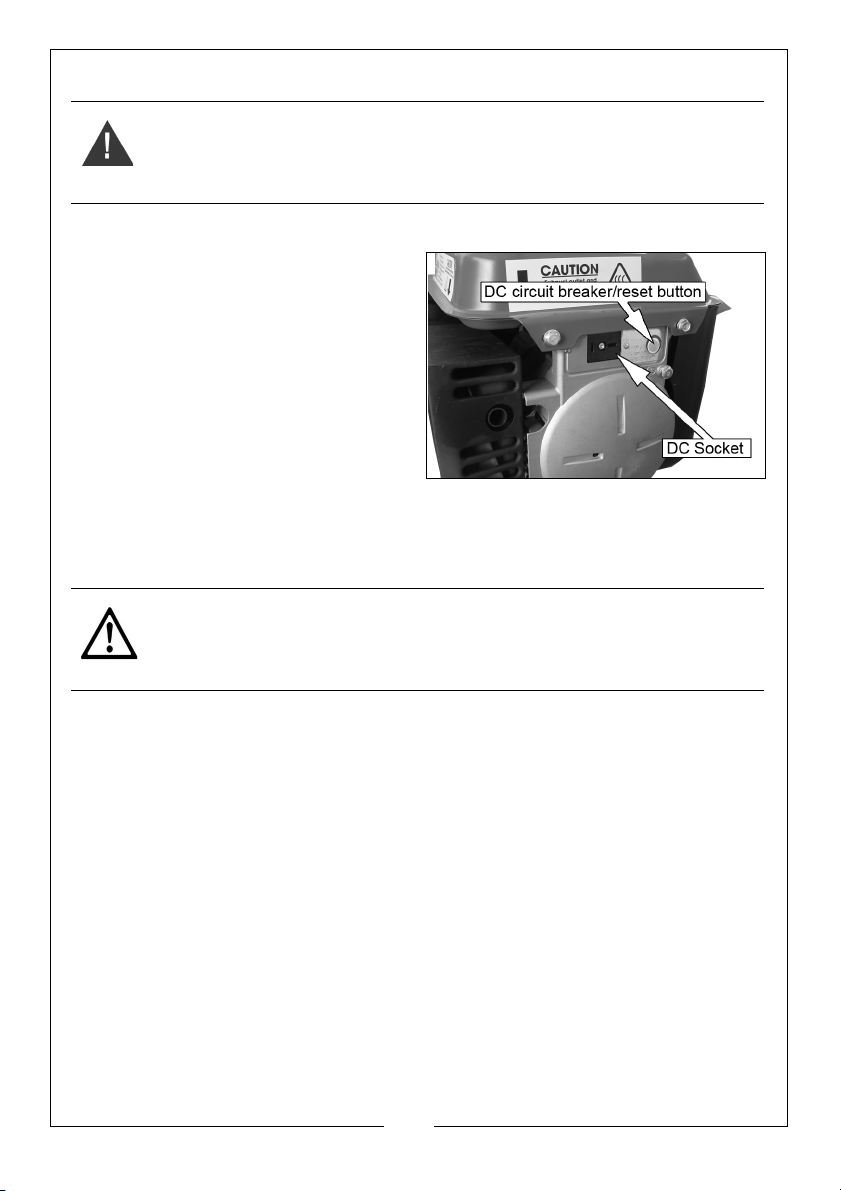

DC POWER (FOR CHARGING CAR BATTERIES ONLY)
WARNING: FOR YOUR SAFETY PERFORM THE FOLLOWING INSTRUCTIONS IN THE ORDER SHOWN.
1. Start the engine, See page 10.
2. Connect the battery charging leads to the battery.
• Make sure you clamp the red
wire to the positive (+) terminal and the black wire to the negative (-) terminal of the battery.
3. Connect the battery charging leads to the DC Socket.
• The battery will begin to
charge.
4. Monitor the voltage across the battery regularly during charging and disconnect the battery when the voltage reaches 14.4 volts.
CAUTION: WHEN DISCONNECTING THE BATTERY, ALWAYS DISCONNECT THE NEGATIVE LEAD FIRST.
DC OVER LOAD PROTECTOR
If the DC overload protector activates:
1. Disconnect the battery charging leads and wait for 2-3 minutes.
2. Press the DC circuit breaker/reset button to reset the generator.
13
Page 14

MAINTENANCE

THE SPARK PLUGS (EVERY 50 HOURS OF USE)

CAUTION: ALLOW THE ENGINE TO COOL BEFORE REMOVING THE SPARK PLUG.
1. Remove the spark plug cap from the spark plug.
2. Use a spark plug spanner (supplied) to remove the spark plug.
3. Check for discoloration and use a wire brush to remove any carbon build up.
4. Check the spark plug gap (a) with a feeler gauge, it should be between 0.6 and 0.7 mm.
• Adjust if necessary.
5. Check the overall condition of the spark plug and replace if damaged.
NOTE: Spark plugs are available
from Clarke Spare Parts department 020 8988 7400.
6. Reinstall the spark plug and replace the spark plug cap.
14
Page 15

THE AIR FILTER (EVERY 150 HOURS OF USE)

1. Remove the maintenance panel screws.
2. Remove the maintenance panel.
3. Remove the air filter element.
4. Wash it in a solution of warm water and mild detergent.
5. Rinse thoroughly and leave it to dry, once it is completely dry immerse the filter in clean engine oil and squeeze the filter to remove excess oil.
• If the air filter is damaged
contact Clarke spare parts department for a replacement.
WARNING: DO NOT USE FLAMMABLE SOLVENTS OR PETROL TO CLEAN THE AIR FILTER.
6. Replace the filter into its original position and replace and secure the maintenance panel.
15
Page 16

THE FUEL FILTER (EVERY 150 HOURS OF USE)

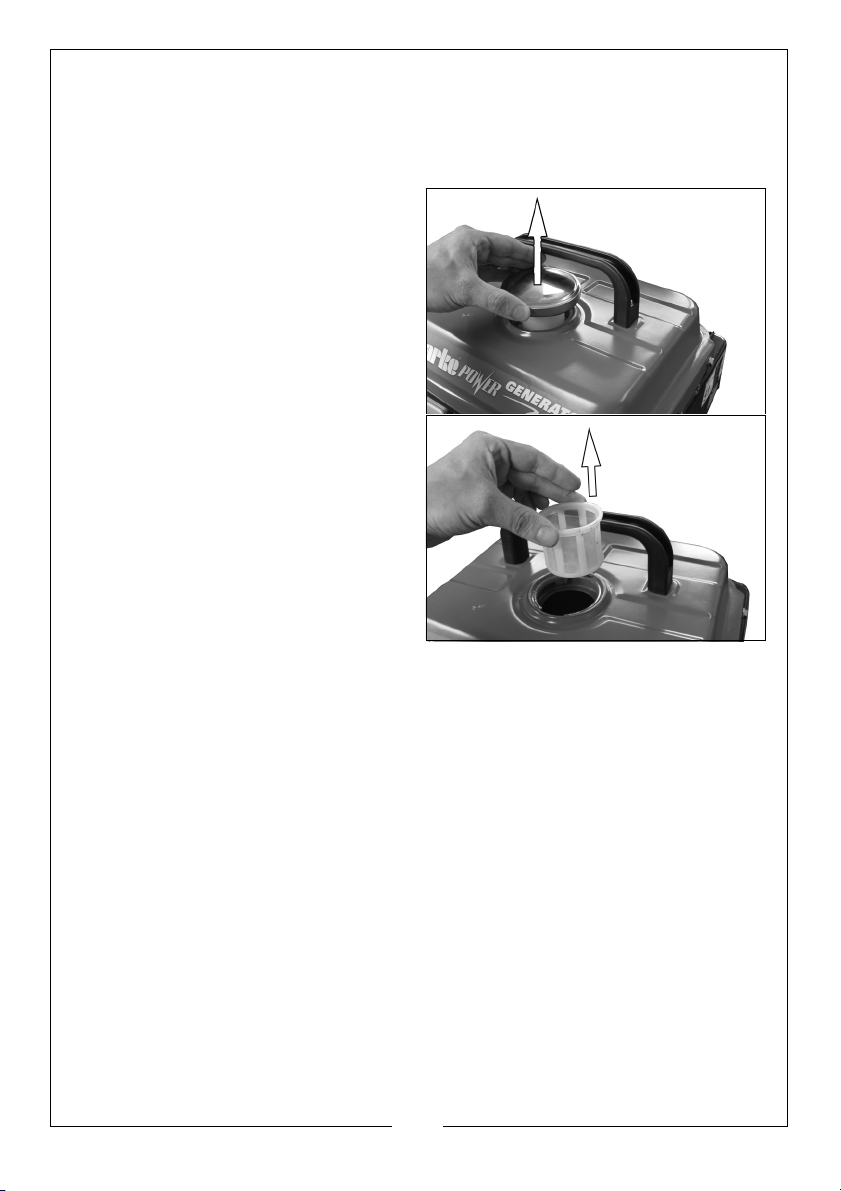

Just inside the fuel tank is a fuel filter, check this filter periodically and remove any contaminants which may have accumulated.
1. Remove the fuel cap from the generator.
2. Lift out the fuel filter.
3. Clean the filter with solvent.
• If the filter is damaged contact
Clarke spare parts department for a replacement.
4. Replace the filter and fuel cap.
16
Page 17

TROUBLESHOOTING

PROBLEM CAUSE SOLUTION
The generator fails to start
The generator fails to generate electricity
If this does not solve your problem, please contact the Clarke service department. see page 2
Engine switch is off. Set the engine switch to ‘on’.
No fuel. Add more fuel, see page 9.
Spark plug not working correctly.
The device you are trying to power is faulty.
(AC supply only) The AC Circuit Breaker has activated.
Change the spark plug. see page 14.
Make sure the device you want to power is working properly.
Remove the appliance immediately, wait for a 2-3 minutes and press the AC Circuit Breaker/ reset button. Do not connect any appliance that requires more than 720W.
17
Page 18

SPECIFICATIONS

G720
Engine Type Petrol 2-Stroke
3
Displacement (cm
)
Ignition type Recoil
Fuel tank capacity (L) 4.2
Maximum run time (h) 6.5 hours @ 75% Load
Guaranteed sound power level (L
Measured sound power level (L
WA dB) 95
WA dB) 90.0
Generator Rated Frequency (Hz) 50
Rated AC Voltage (V) 230
Rated Power (W) 650
Max. Power (W) 720
Rated DC Voltage (V) 12
Rated DC Current (A) 5.3
Dimensions Length (mm) 380
Width (mm) 312
Height (mm) 319
Weigh t ( kg) 17
63
18
Page 19

EXPLODED DIAGRAM & PARTS LIST

19
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 20
EXPLODED DIAGRAM & PARTS LIST
NO DESCRIPTION PART NO:
1 Left Crankcase RKG72001
2Right
Crankcase
3 Bearing 6004 RKG72003
4 Hole Circlip RKG72004
5Oil Seal
20*30*7
6 Pin 10*7*14 RKG72006
7 Stub Am6*50 RKG72007
8Dentiform
Flange Nut M6
9Flange Bolt
M6*45
10 Stub Am6*100 RKG72010
11 Oil Seal 6*12*7 RKG72011
12 Governor Shaft RKG72012
13 Governor Fork RKG72013
14 Bolt M3*8 RKG72014
15 Spring Washer RKG72015
16 Governor Arm RKG72016
17 Collar Bush RKG72017
18 Weight Comp RKG72018
19 Flange Bolt
M6*16
20 Crankshaft
Assembly
21 Circlip RKG72021
22 Piston Pin RKG72022
23 Roller Bearing
14*10*13
24 Piston RKG72024
25 Second Piston
Ring
26 First Piston Ring RKG72026
27 Cylinder
Gasket
28 Cylinder RKG72028
29 Cylinder Cap
Gasket
30 Cylinder Cap RKG72030
31 Flange Bolt
M6*105
RKG72002
RKG72005
RKG72008
RKG72009
RKG72019
RKG72020
RKG72023
RKG72025
RKG72027
RKG72029
RKG72031
NO DESCRIPTION PART NO:
32 Thick Nut
M6*18
33 The Cover Of
Cylinder Cap
34 Flange Bolt
M6*12
35 Ignition Coil
Assembly
36 Clamp RKG72036
37 Spring Washer RKG72037
38 Bolt M6*16 RKG72038
39 Flywheel RKG72039
40 Flange Nut
M10*1.25
41 Recoil Starter
Assembly
42 Intake Valve
Gasket
43 Intake Vavle
Assembly
44 Flange Bolt
M6*18
45 Stub Am6*60 RKG72045
46 Intake Gasket RKG72046
47 Carburetor RKG72047
48 Carbureor
Gasket B
49 Carbureor
Gasket A
50 Supporting
Plate
51 Compression
Spring
52 Bolt M6*40 RKG72052
53 Rod Link RKG72053
54 Tension Spring RKG72054
55 Governor
Spring
56 Controll Pannel RKG72056
57 Capacitance RKG72057
58 Self-tapping
Screw St4.2*14
59 Alternator
Stator
RKG72032
RKG72033
RKG72034
RKG72035
RKG72040
RKG72041
RKG72042
RKG72043
RKG72044
RKG72048
RKG72049
RKG72050
RKG72051
RKG72055
RKG72058
RKG72059
NO DESCRIPTION PART NO:
60 Alternator
Rotor
61 Flange Bolt
M8*156
62 Rear Cover RKG72062
63 Flange Bolt
M6*80
64 Dentiform
Washer ?6
65 Flange Bolt
M6*10
66 Muffler RKG72066
67 Muffler Gasket RKG72067
68 Flange Bolt
M6*16
69 Cdi Winding RKG72069
70 Spark Plug RKG72070
71 Absorber RKG72071
72 Fuel Tank RKG72072
73 Fuel Filter RKG72073
74 Fuel Tank Cap RKG72074
75 Handlebar RKG72075
76 Bolt M6*30 RKG72076
77 Washer ?6 RKG72077
78 Fuel Switch RKG72078
79 DC Socket RKG72079
80 Bolt M3*16 RKG72080
81 Washer ?3 RKG72081
82 Nut M3 RKG72082
83 Fuel Cup RKG72083
84 Breaker 6a RKG72084
85 Tarpaulin RKG72085
86 DC Wire RKG72086
87 Rectifier
Regulator
88 Screw M6x12 RKG72088
RKG72060
RKG72061
RKG72063
RKG72064
RKG72065
RKG72068
RKG72087
20
Page 21

DECLARATION OF CONFORMITY

21
Page 22

DECLARATION OF CONFORMITY

22
Page 23

OTHER PRODUCTS

Other generators from our range include:
IG1000
• 1000W Maximum output
• Inverter technology for clean
stable power, for computers etc.
• Eco throttle for more greater fuel
efficiency
• 12V Battery charging facility
• Low oil alert and overload
shutdown
IG2200
• 2200W Maximum output
• Inverter technology for clean
stable power, for computers etc.
• Eco throttle for more greater fuel
efficiency
• 12V Battery charging facility
• Low oil alert and overload
shutdown
For further information on these or any of our products, contact your local CLARKE dealer.
23
Page 24
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
