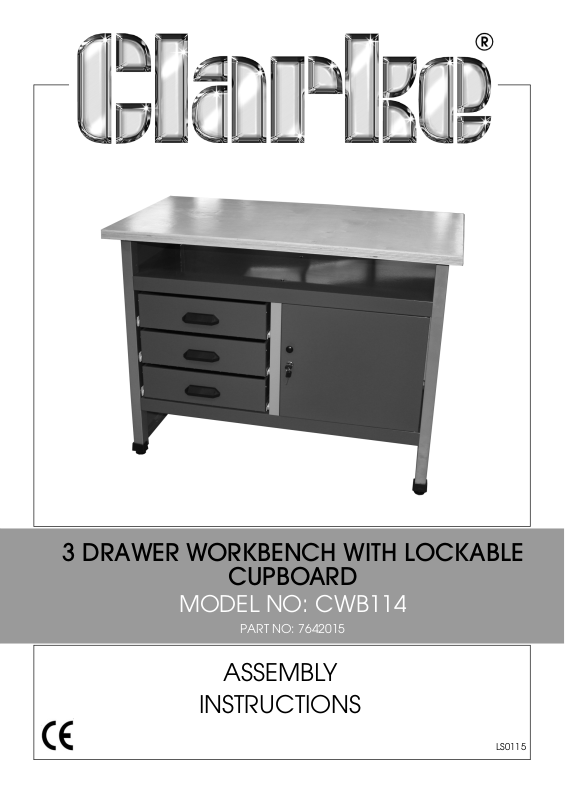

3 DRAWER WORKBENCH WITH LOCKABLE
CUPBOARD
MODEL NO: CWB114
PART NO: 7642015
ASSEMBLY
INSTRUCTIONS
LS0115
Page 2
INTRODUCTION
Thank you for purchasing this CLARKE product.
Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does not effect your statutory rights.
SPECIFICATION
Dimensions (w x d x h) 1140 x 600 x 870 mm
Maximum Load Per Drawer 10 kg
Maximum Load Total 150 kg
2
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 3
WHATS SUPPLIED
No Description Qty
1Side Panel 2
2Rear Panel 1
3 Top/Lower Shelf 2
4 Drawer Base and Sides 3
5 Drawer Rear 3
6 Centre Divider 1
7Door 1
8Door Jamb 1
9 Drawer Runners 3 sets
10 Feet 4
11 Drawer Handle 3
12 Red Drawer Front 3
13 Wooden Workbench Top (not shown) 1
14 Fixings kit (not shown) Includes
• 16 x M4x8 flat head bolt set (bolt, washer, nut)
• 51 x M5x10 round head bolt set (bolt, washer, nut)
• 4 x M6x25 Hex head self tapping screw and washer
• 1 x m5x8 Hex head bolt and washer
• 6 x m4x10 round head self tapping screw and washer
• 1 Door Knobs
• 1 Lock Assemblies and Keys
3
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 4
ASSEMBLY
1. Join the top shelf to the right
side piece and secure using the
large nuts, large bolts and
washers supplied.
2. Do not tighten fully at this stage.
4. Fit the lower shelf and centre
divider as shown and secure
using the large nuts, large bolts
and washers supplied.
• The centre divider must be
fitted with the open side to the
left and the edge with six holes
to the front.
3. Fit the left side piece to the
upper shelf in the same way.
5. Fit the rear panel and secure
using the large nuts, large bolts
and washers supplied.
4
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 5
6. Fit the door jamb to the right
side of the centre divider.
7. Place the door pin into the hole
on the top panel as shown.
• The allen screw, washer and nut
supplied act as the second
hinge pin, and must be fitted
though the hole in the bottom
panel.
8. Fully tighten all fixings.
9. With assistance, Turn the unit
over
10. Push the feet onto the bottom
of the side pieces as shown.
11. Turn the unit back upright.
12. Fit the wooden top to the
workbench using the coach
bolts and washers provided.
13. If the lock is fitted to the door
already, go to step 21.
5
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 6
14. Place the key in the lock and
turn it so that the window on the
front of the lock turns green.
15. Remove the screw and star
washer from the rear of the
lock.
16. Remove the washer and
locking arm.
17. Remove the locknut from the
lock barrel.
18. Insert the lock barrel with the
green window at the top
through the door and secure
using the locknut as shown.
19. Replace the locking arm and
washer and secure using the
star washer and screw.
20. Check the lock and if necessary
adjust the orientation of the
locking arm.
21. Fit the door knob.
6
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 7
22. Fit the drawer guides into
position as shown and use the
small machine screws and nuts
to secure.
• The drawer guides are marked
CR and CL, CR should be fitted
on the right hand side of the
opening and CL should be
fitted on the left.
23. Fold up the ends of the drawer
along the creases as shown.
24. Secure the front to the sides
using the small machine screws
and nuts.
25. Fit the rear panel and secure
using the small machine screws
and nuts.
7
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 8
26. Fit the red drawer front (12) in
Viewed from below
Viewed from below
place and attach the handle
(11) to the drawer using the 2
screw supplied.
27. The drawer runners are marked
(DR and DL), and must be fitted
to the correct side of the drawer
when viewed from the front and
above the drawer, using the
small machine screws and nuts
28. The right hand runner (DR) must
be fitted as shown, note the
runner overhangs the rear of the
drawer slightly.
29. The left hand runner (DL) must be
fitted as shown, note the runner
30. Insert the drawers into the
workbench as shown.
overhangs the rear of the drawer
slightly.
8
