Clarke CTC150, 7640295 User guide

12V TYRE INFLATOR

MODEL NO: CTC150

PART NO: 7640295

OPERATION & MAINTENANCE

INSTRUCTIONS

ORIGINAL INSTRUCTIONS GC0921

INTRODUCTION

Thank you for purchasing this CLARKE Tyre Inflator. The CTC150 can be used for
inflating car, motorcycle and bicycle tyres, inflatable sports balls and other
inflatables. The compressor is not waterproof and should not be used in any
wet applications.

Before attempting to operate the product it is essential that you read this
manual thoroughly and carefully follow all instructions given. In doing so you
will ensure the safety of yourself and that of others around you, and you can
also look forward to the product giving you long and satisfactory service

SPECIFICATIONS

Model CTC150

Part No 7640295

Tyre Inflator

Hose length 135mm

Max working pressure 10.3 Bar/150 psi

Max flow rate 22L/min

Ingress protection IPX0 (non-waterproof)

Duty cycle 10 mins on/10 mins off

Dimensions (L x W x H) 180 x 60 x 230 mm

Weight 0.75 kg

12V Power supply

Extending cable length 2.92m

Plug type In-car 12V plug-in adaptor

SAFETY SYMBOLS

The following safety symbols are shown on the product and/or it’s packaging.
Please read all of the safety and operating instructions carefully before use..

Read this instruction
booklet carefully before
use

2

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

Caution-hot surfaces

GENERAL SAFETY WARNINGS

WARNING: WHEN USING ELECTRICAL TOOLS, BASIC SAFETY
PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE THE RISK OF
FIRE, ELECTRIC SHOCK AND PERSONAL INJURY.

WARNING: READ ALL THESE INSTRUCTIONS BEFORE ATTEMPTING TO USE
THIS PRODUCT AND KEEP THESE INSTRUCTIONS IN A SAFE PLACE.

PERSONAL SAFETY

1. ALWAYS stay alert, watch what you are doing and use common sense
when operating the compressor. DO NOT use the tyre inflator while you are
tired or under the influence of medication, drugs or alcohol. A moment of
inattention can result in personal injury.

2. ALWAYS protect yourself against electric shock. Never operate the
compressor in wet or damp locations.

3. NEVER over-reach. Keep your proper footing and balance at all times to
enable better control of the tyre inflator in unexpected situations.

4. NEVER attempt any complex repairs yourself. If you have a technical
problem contact your local CLARKE dealer.

5. ALWAYS store the tyre inflator out of reach of children.

6. Keep the work area clean and well lit. Floors should always be kept clear.
Cluttered or dark areas invite accidents.

7. DO NOT work in enclosed areas or near naked flames.

GENERAL PRODUCT USE AND CARE

1. ALWAYS thoroughly familiarise yourself with this product and its operation
and always read the instructions in this manual before using the product.

2. NEVER use this tyre inflator if any part is damaged. If so, have it inspected
and repaired by your CLARKE dealer.

3. NEVER attempt to modify the fittings or attachments in any way. Doing so
will invalidate the guarantee and could result in personal injury.

4. NEVER abuse the charging cable. NEVER pull on the cable when removing
the plug from the socket or lift the tyre inflator by the power cable.

5. NEVER USE A TYRE INFLATOR WHICH APPEARS DEFECTIVE OR IS OPERATING
ABNORMALLY: If the tyre inflator operates unusually or makes strange
noises, switch off immediately. Arrange repairs with your CLARKE dealer.

3

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

6. BEFORE USE CHECK THE TYRE INFLATOR AND HOSE FOR DAMAGE: NEVER use
the tyre inflator if it is damaged. Have it repaired by your CLARKE dealer.
DO NOT use if the On/Off switch does not operate correctly.

7. Keep the motor air vents clear and free from dust.

8. Take care when using this tyre inflator to inflate small, low-pressure objects
such as children's toys or footballs can explode if over-inflated.

9. ALWAYS use in a safe area away from traffic and other hazards.

10. ALWAYS ensure that tyre pressure checks are carried out to the tyre and
vehicle manufacturer’s recommended pressures.

11. NEVER overstretch the power lead or high pressure hose.

ENVIRONMENTAL RECYCLING POLICY

By purchasing this product, the customer is taking on the obligation
to comply with current WEEE regulations.

This means that this product must not be disposed of with general

household waste. It must be disposed of according to the laws
governing Waste Electrical and Electronic Equipment (WEEE) at a recognised
disposal facility.

This product contains valuable raw materials. Metal products should be taken
to your local civic amenity site for recycling of metal products.

4

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

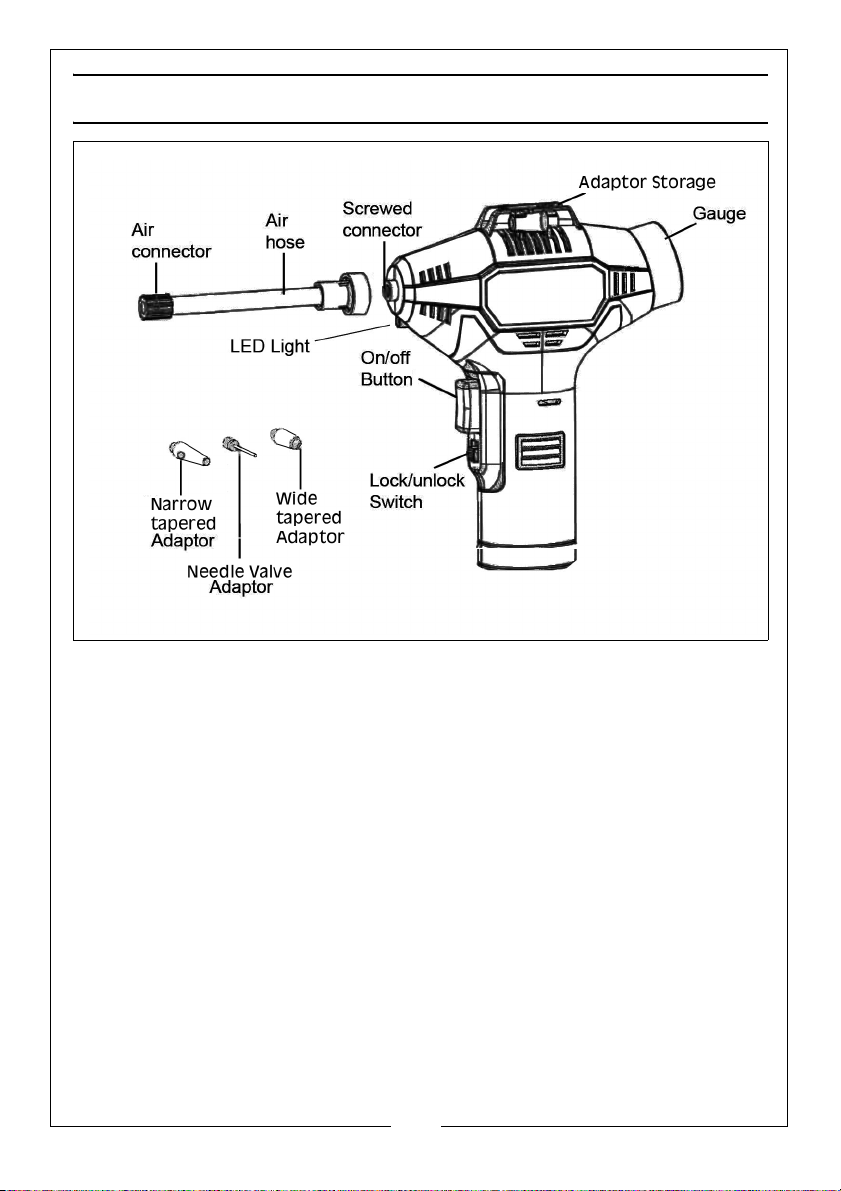

OVERVIEW

UNPACKING

After removing the tyre inflator from its packaging, check that it has not been
damaged in transit. Report any damage immediately to the CLARKE dealer
where the item was purchased.

ADAPTORS

Clipped to the top of the tyre inflator are three adaptors for different uses.
These are provided to inflate sports balls, air beds, small inflatables and bicycle
tyres etc. To avoid over-inflation, always follow manufacturer’s instructions for
the item to be inflated.

• Narrow tapered adaptor

• Wide tapered adaptor

• Needle valve adaptor

5

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

WORKING CONDITIONS

1. Make sure that the intake air is dry and dust free.

2. DO NOT use the tyre inflator in a damp or wet environment. The compressor

should only be used with good ventilation. There should be no dust, acids,
vapours, explosive or flammable gases present.

3. NEVER use the tyre inflator in areas where work is conducted with sprayed

water.

4. DO NOT cover the tyre inflator. Always use it with good all-round air

ventilation.

USING THE TYRE INFLATOR

ALWAYS inspect the tyre inflator before use to ensure the power cable and
high pressure hose are in good condition.

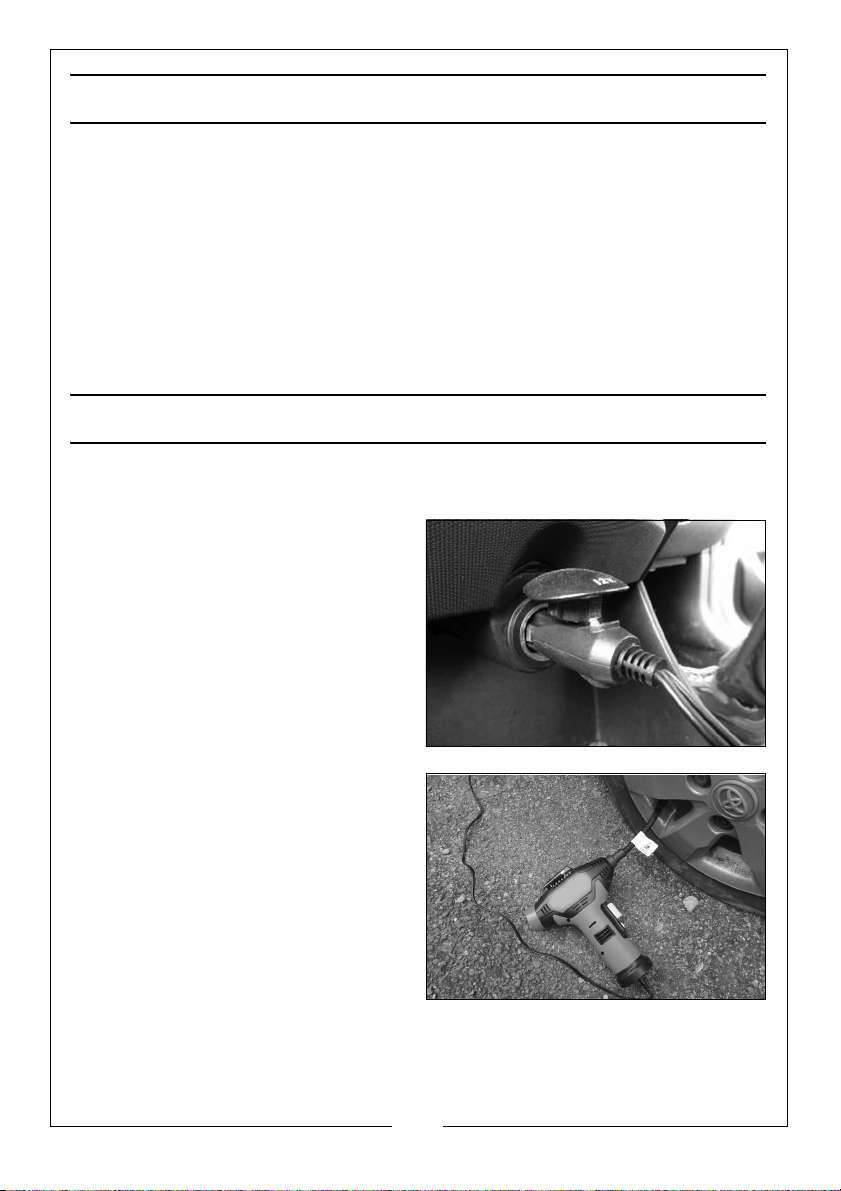

1. Power the compressor directly

from the vehicle using the power
cable included. Connect one
end of the car charger to the
bottom of the tyre inflator and the
other end directly to your vehicle
12V outlet.

2. Fit the air hose by screwing it into

the end of the tyre inflator.

3. Connect the other end of the

air hose to the valve stem of the
item you are inflating.

• Use the adaptor supplied to

inflate sport balls including soccer,
basketballs and footballs.

NOTE: When inflating items of 10

psi or less, inflate in short
bursts and check after
each burst by feel or with a
calibrated measuring device to determine accurate pressure.
Pressure required for most sports balls is too low for accurate
reading on tool gauge.

6

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

• The manufacturer set pressure is 30 PSI and this compressor has a
memory function. The gauge will indicate units of measurement and
measured value.

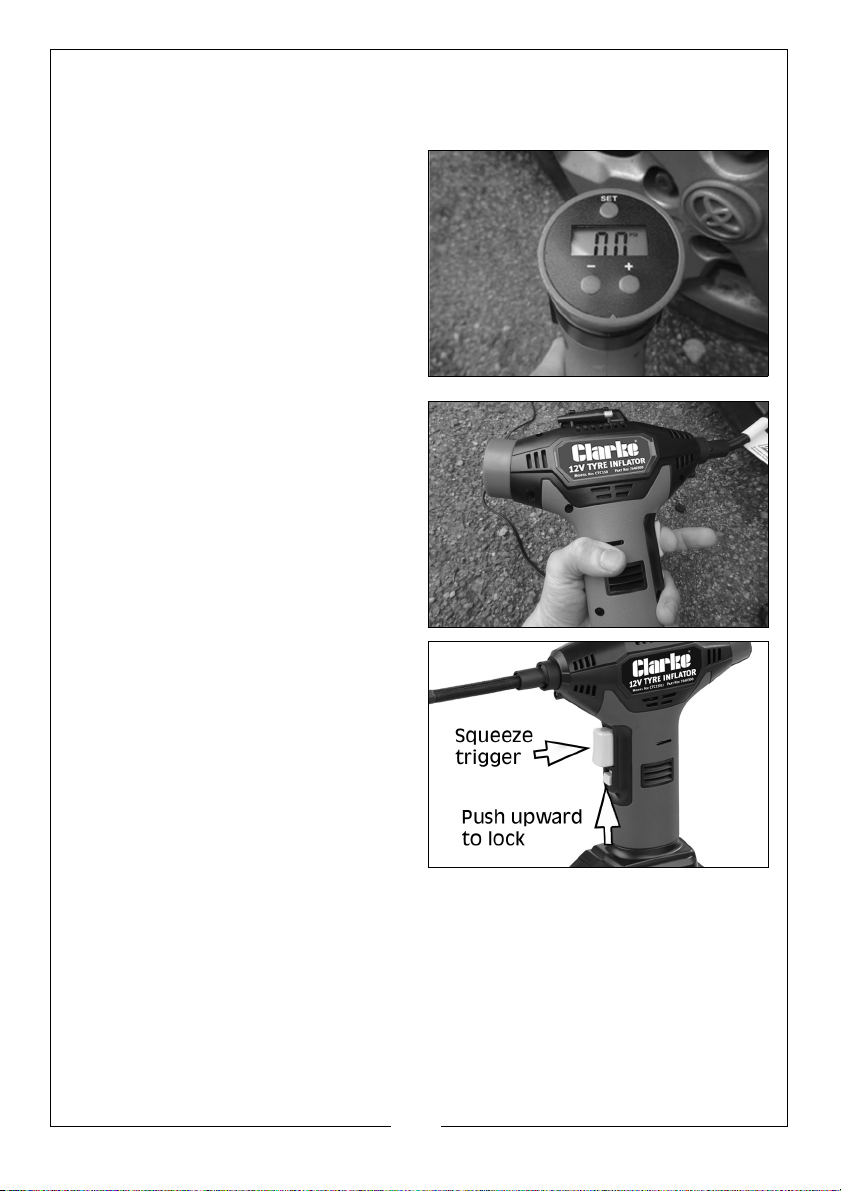

4. Press the "SET" button to choose
the desired unit (PSI, BAR, KPA, kg/

2

cm

).

5. Press "-" or "+" button to choose
the desired value. Press and hold

"-" or "+" button will accelerate
numerical change. After the
screen flashes three times, it will
show "0" and the system will enter
the chosen unit.

6. Press the tyre inflator's On/Off
trigger switch to start and hold this
button for continuous working.

• The built-in LED light will be lit
during inflation.

• For continuous inflation you can
push the switch lock upwards to
lock while the On/Off trigger is
depressed. In this way, inflation
continues without pressing any
button. To stop, simply squeeze
the trigger to release the locking
switch.

• When the desired pressure is
reached, the tyre inflator will
stop working as it has pre-set
function. When the desired the pressure is reached, the reading may
have a +/- 1.5 psi difference. (This is normal)

• Note that the tyre inflator has a 10 mins running/10 mins resting duty cycle.

7. After use, loosen the hose and remove from the tyre inflator

7

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

WARNING: THE HOSE MAY BE HOT AFTER USE. REMOVE CAREFULLY.

WARNING: IMPROPERLY ATTACHED HOSES OR ACCESSORIES CAN
BECOME DETACHED UNDER PRESSURE AND CAUSE SERIOUS INJURY.

WARNING: POSSIBLE AIR LEAKS CAN CAUSE FAULTY PRESSURE READINGS.
MAKE SURE ALL CONNECTIONS ARE TIGHTLY SECURED.

WARNING: THE GAUGE IS ONLY TO BE USED AS A REFERENCE, ALWAYS
CARRY OUT A FINAL PRESSURE CHECK WITH A GAUGE CONFORMING TO
BS EN 12645

• When not in use, adaptors provided with the tyre inflator can be clipped to
the storage area on the top of the tyre inflator.

TYRE INFLATION

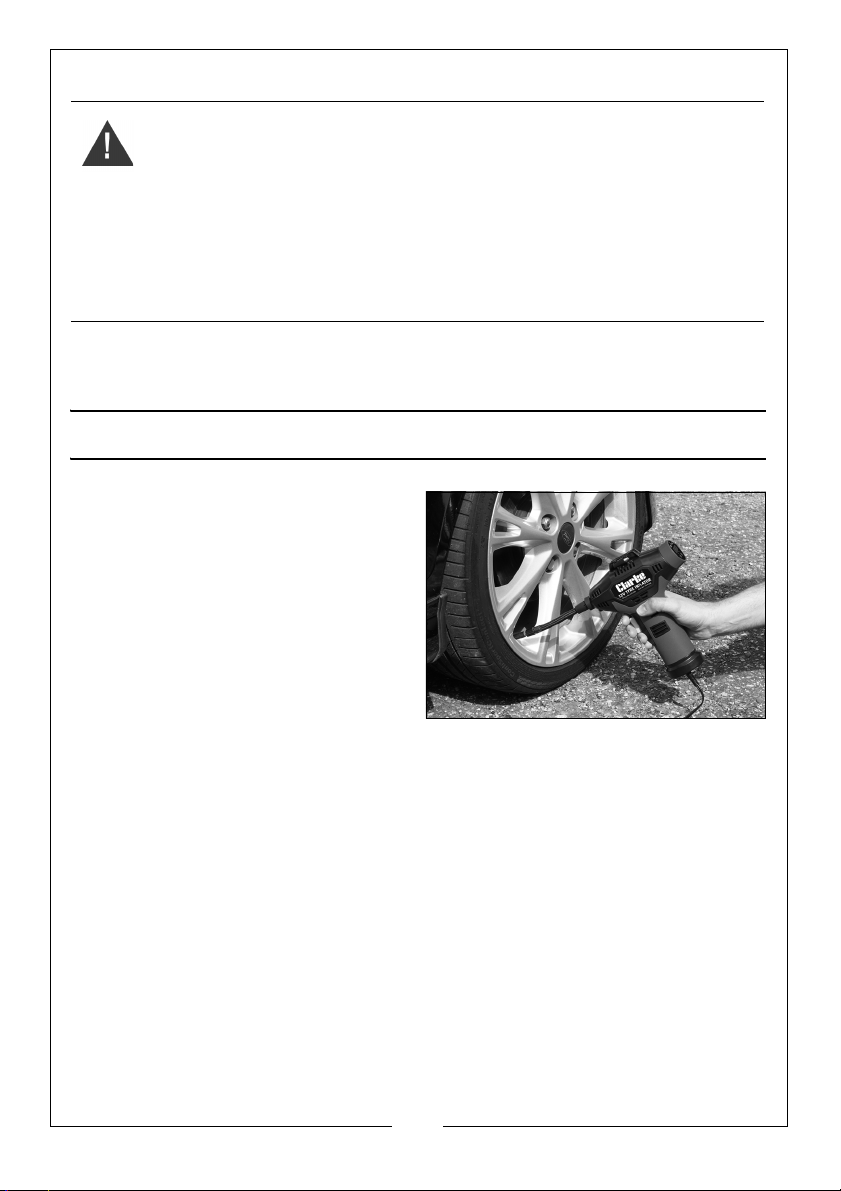

1. Fix the tyre valve connector onto
the vehicle tyre valve, ensuring
the valve is clean.

• When connected correctly, the
digital display will show the
current pressure in the tyre. If this is
the correct tyre pressure as stated
in your vehicle handbook, remove
the valve connector.

2. If the tyre is below the
recommended pressure (as specified in your vehicle handbook), press
either the ‘-’ or ‘+’ pre-set button to adjust the pre-set value on the display
to the correct tyre pressure.

NOTE: The unit will default to the last tyre pressure set. You can then

adjust this using the ‘-’ or ‘+’ buttons.

3. Press the Power Switch to 'ON'.

4. The tyre inflator will now inflate your tyre to the pre-set pressure and switch
off automatically when the pressure is reached. Towards final inflation, the
tyre pressure display reading will be slightly higher than the selected
pressure. When the compressor stops, the final reading will be the selected
pressure. This is a normal function of the unit.

5. Switch OFF the tyre inflator and remove the tyre valve connector from the
tyre valve, returning the hose to its storage position.

8

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

IMPORTANT: The ‘-’ or ‘+’ pre-set buttons should never be pressed while the
compressor is running.

If you leave the compressor connected to the 12V supply but do not inflate
the tyre, after a few minutes the Digital Display will switch off. To turn back on,
press the Pressure Format Select Button.

• When inflating tyres with normal “Schrader” valves, no adaptors need to
be fitted to the hose.

• Presta valves require the adaptor to be screwed onto the valve before
attaching the hose.

CAUTION: AVOID INFLATING THE OBJECTS ABOVE THE RECOMMENDED INFLATION
PRESSURE. THIS COULD LEAD TO DAMAGE AND /OR INJURIES.

MAINTENANCE

Keep the tyre inflator free of dirt and dust as far as possible. Wipe with a clean
cloth or blow it down with compressed air at low pressure.

Never use cleaning agents or solvents as these may be aggressive to the
plastic parts. Ensure that no water can get into the interior of the tyre inflator.

Your CLARKE tyre inflator has been designed to give long and trouble free
service. If, however, having followed the instructions in this booklet carefully,
you encounter problems, take the tyre inflator to your local CLARKE dealer.

The 12V plug incorporates a 15A fuse which can be replaced by unscrewing
the two halves of the plug.

Store the tyre inflator in a dry location.

9

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

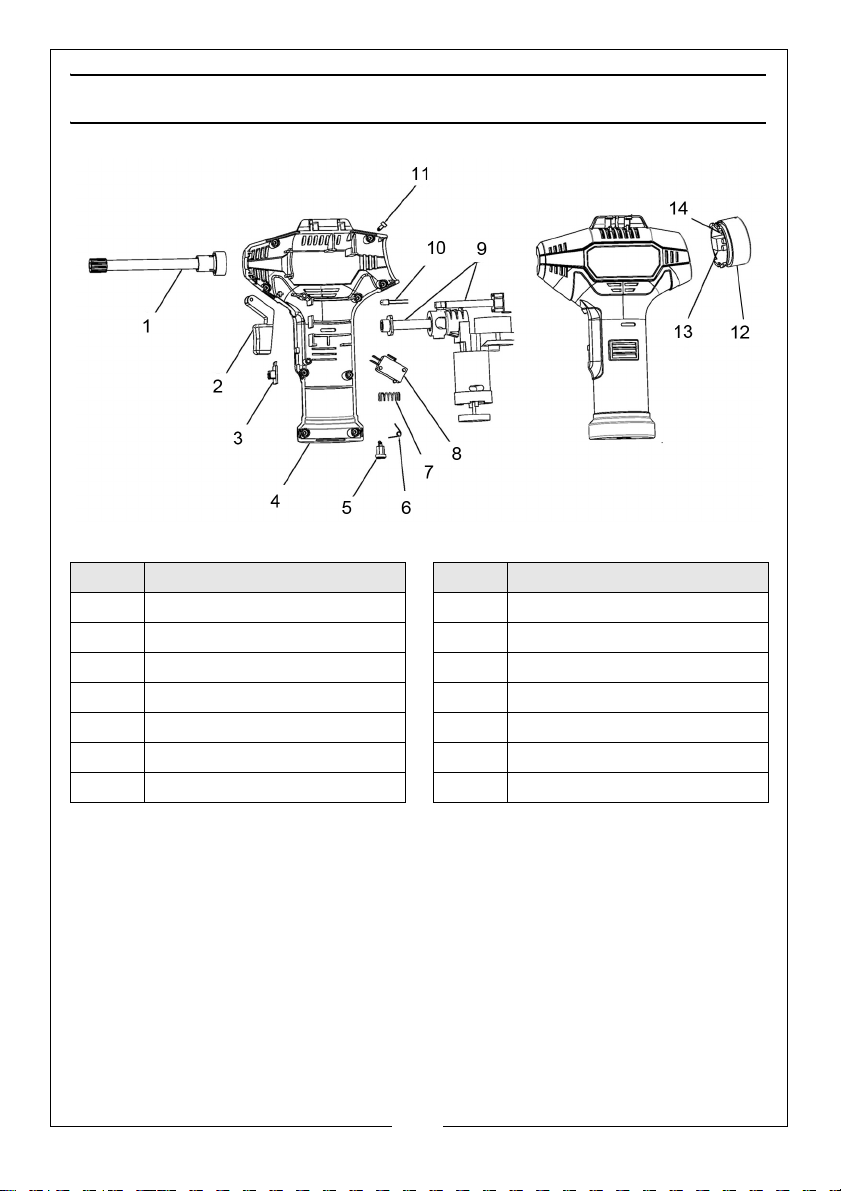

COMPONENT PARTS

No Description No Description

1 Flexible hose attachment 8 Switch

2 Trigger 9 Motor/pump assembly

3 Trigger Lock switch 10 Nozzle attachment

4 Housing 11 Screw

5 Power socket 12 Display housing

6 Hair spring 13 Pressure selector PCB

7 Coil spring 14 Digital display

GUARANTEE

This CLARKE product is guaranteed against faulty manufacture for a period of
12 months from the date of purchase. Please keep your receipt as proof of
purchase.

This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.

Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission. This guarantee does not effect your
statutory rights.

10

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

DECLARATIONS OF CONFORMITY

11

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
