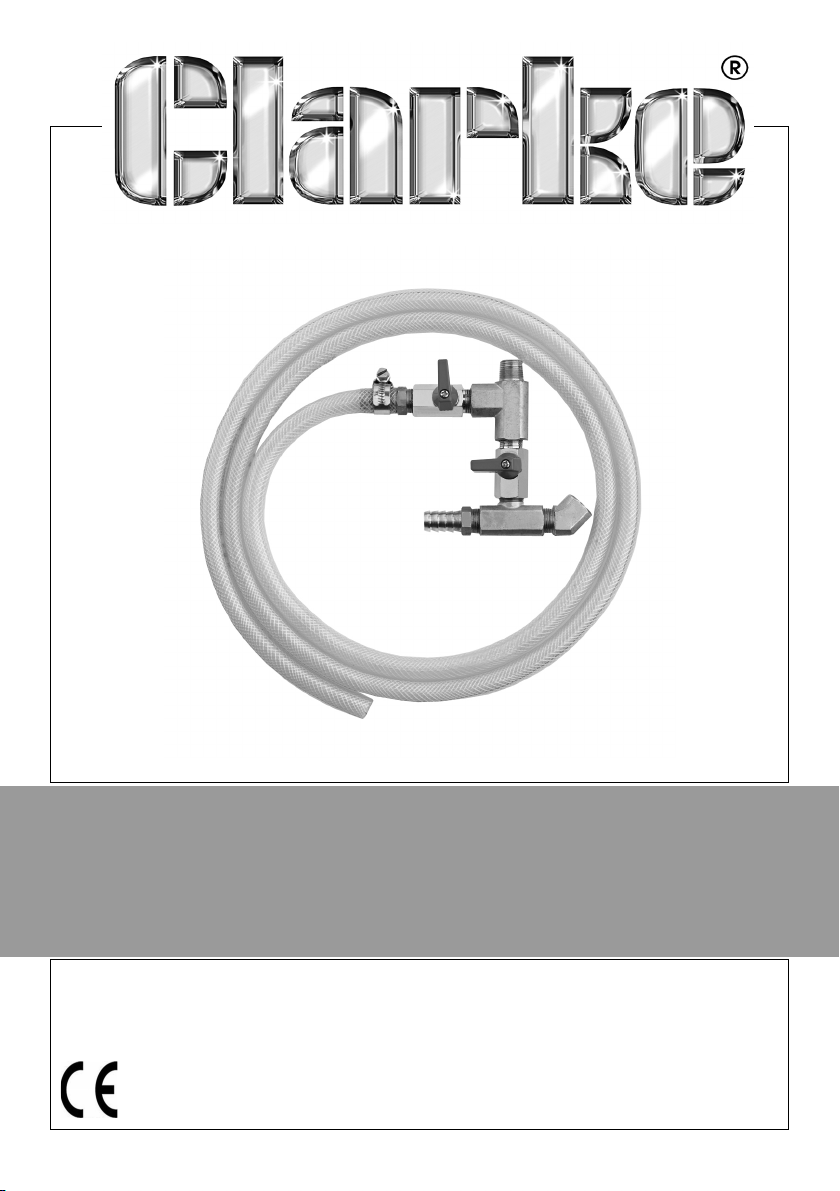

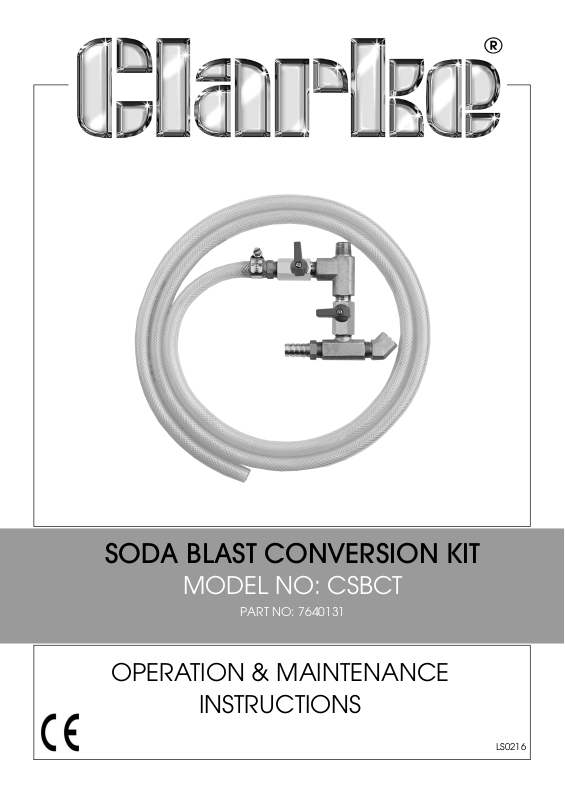

SODA BLAST CONVERSION KIT
MODEL NO: CSBCT
PART NO: 7640131
OPERATION & MAINTENANCE
INSTRUCTIONS
LS0216
Page 2
INTRODUCTION
Thank you for purchasing this CLARKE Soda Blast Conversion Kit.
Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you can look forward to your
purchase giving you long and satisfactory service.
RECOMMENDED USE
Soda blasting accessory for use in conjunction with the Clarke CPSB100 and
CPSB200 sandblasters.
Soda blasting is especially suitable in the classic car market as soda will not
etch glass and will not warp or remove metalwork. Surface will be left smooth.
Soda also leaves a rust inhibitor behind for up to six weeks.
Use with Clarke Soda Blasting Grit (See page 7).
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does not effect your statutory rights.
WHAT IS SUPPLIED
Contact your Clarke dealer if any items are missing or damaged.
• 1 x Soda Blast Adaptor • 1 x Exhaust Hose
• 2 x Hose Clip
2
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 3
SAFETY INSTRUCTIONS
WARNING: TURN OFF OR DISCONNECT FROM AIR SUPPLY BEFORE
SERVICING OR PERFORMING ANY MAINTENANCE AND WHEN UNIT IS
NOT IN USE. FAILURE TO COMPLY WITH THIS INSTRUCTION MAY DAMAGE
THE UNIT AND WILL INVALIDATE YOUR WARRANTY
WARNING: WEAR APPROVED EAR, EYE, HAND AND RESPIRATORY
PROTECTION WHEN OPERATING THE BLASTER. A FULL RANGE OF
PERSONAL SAFETY EQUIPMENT IS AVAILABLE FROM YOUR CLARKE
DEALER
• Spillages of abrasive material, which may be slippery, must be
cleaned up immediately to avoid injury.
• Replace or repair damaged parts- Use recommended parts only.
Non-authorised parts may be dangerous and will invalidate the
warranty.
• Remove loose clothing. Remove ties, watches, rings, other loose
jewellery and contain long hair.
• Always keep the blast nozzle directed at the workpiece.
• Keep all other persons away from the working area. Contact with a
high pressure blast or inhaling the dust generated is dangerous.
• DO NOT operate the blaster if any parts are missing or damaged as
this may cause failure and/or personal injury.
NOTE: This manual is only for the soda blasting conversion kit, for full safety,
assembly and operating instructions please refer to the manual for the
Clarke CPSB100 or CPSB200.
3
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 4

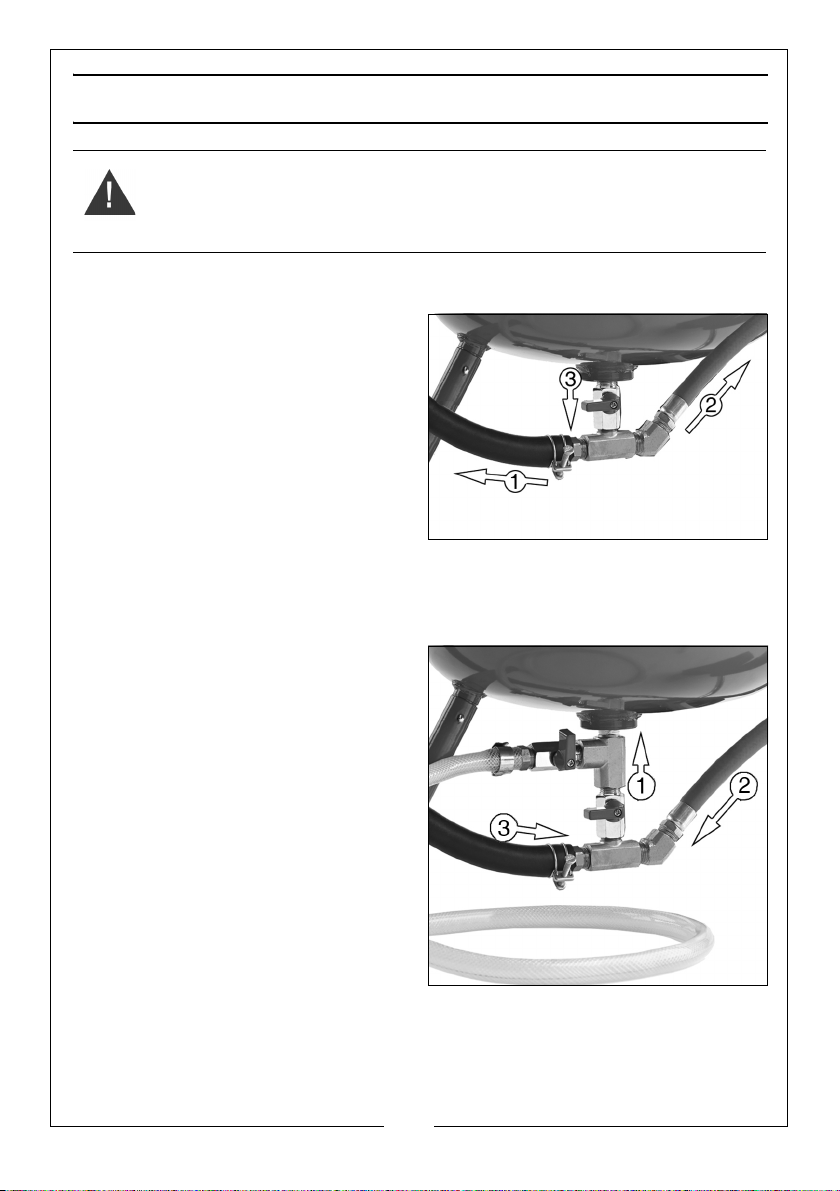

ASSEMBLY
WARNING: BEFORE OPERATING THE UNIT ENSURE YOU READ,
UNDERSTAND AND APPLY ALL SAFETY INSTRUCTIONS.
REMOVE THE STANDARD MANIFOLD
1. Loosen the hose clamp on the
blasting hose and pull the hose off
of the connector.
2. Unscrew the air hose from the
manifold.
3. Unscrew the manifold from the
tank.
FIT THE SODA BLASTING MANIFOLD
NOTE: Use PTFE tape on threaded connections for an air tight seal.
1. Screw the new manifold onto the
tank until tight, (use a spanner).
• Make sure that the air hose
connection faces the back of
the tank.
2. Screw in the air hose and tighten
with a spanner.
3. Push the blasting hose onto the
lower connector, tighten the
clamp with a flat head
screwdriver.
4. if the exhaust hose is not
connected push it onto the
remaining connector.
5. Tighten any hose clips.
4
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 5
INSTRUCTIONS FOR USE

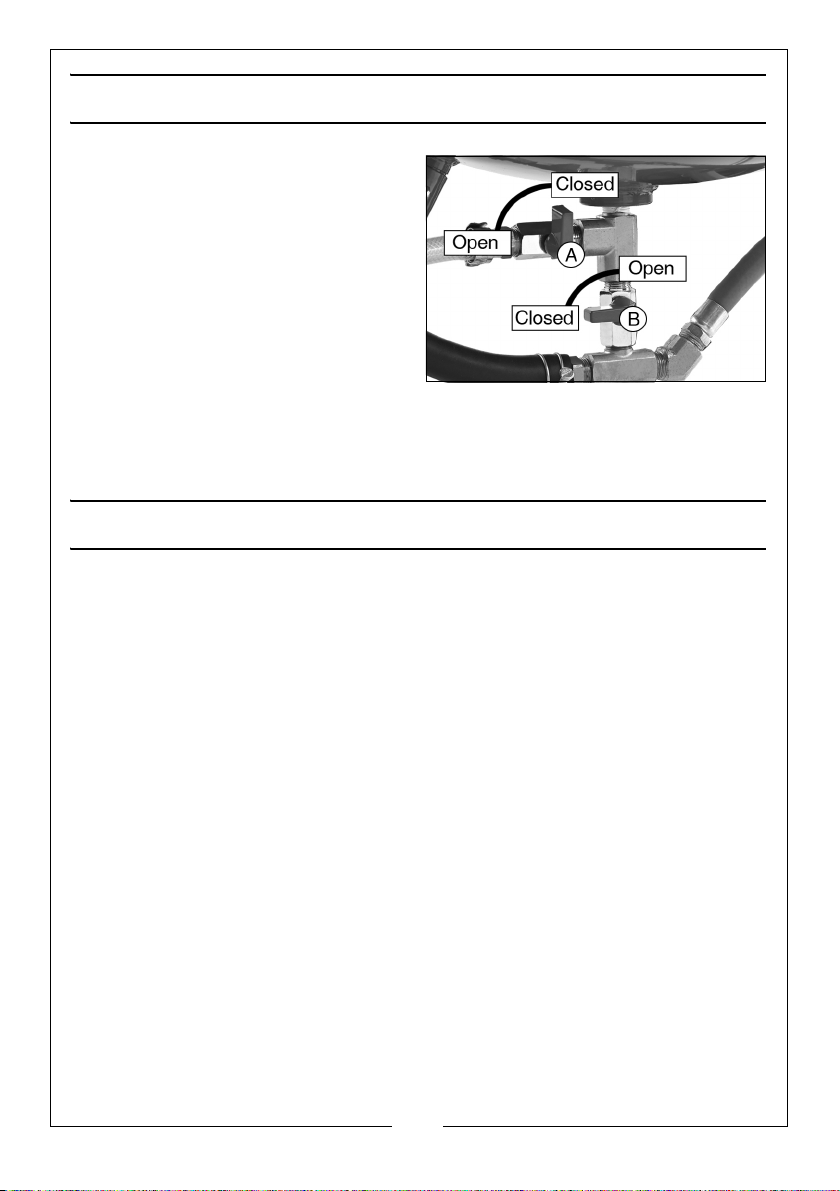

1. Before blasting ensure both valves
on the manifold are in the closed
position.
2. See the CPSB100 or CPSB200
manual for correct operating
procedures.
3. Open the lower soda metering
valve (B).
4. If the sandblaster gets clogged
up, close the lower soda metering
valve (B) and open the exhaust valve (A), only open for a short time and
ensure the hose is directed into a container or away from people and the
workpiece.
MAINTENANCE
Please refer to the CPSB100 or CPSB200 manual for all maintenance
instructions.
5
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 6
ALSO AVAILABLE FROM YOUR CLARKE DEALER

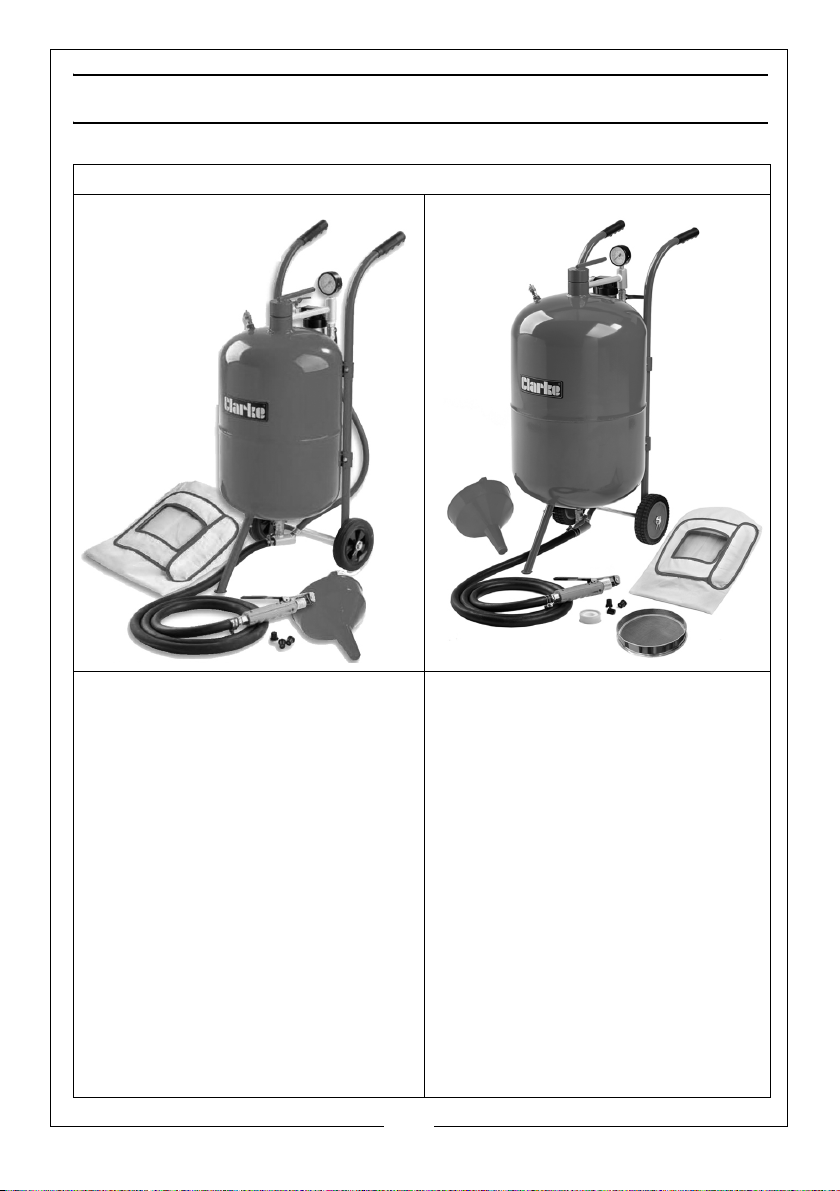

PRESSURISED SANDBLASTER
CPSB100
• Heavy duty steel construction
• Removes surface rust, paint,
dirt/grease etc.
• Pressurised design gives greater
power than its siphon fed
equivalent
• Facility to control the sand &
the outlet air flow
• 32 litre tank capacity
• Safety shut off valve
• Inc. 4 ceramic nozzles (2, 2.5, 3,
3.5mm), pressure gauge, hose,
hood & funnel
• Part No. 7640130
