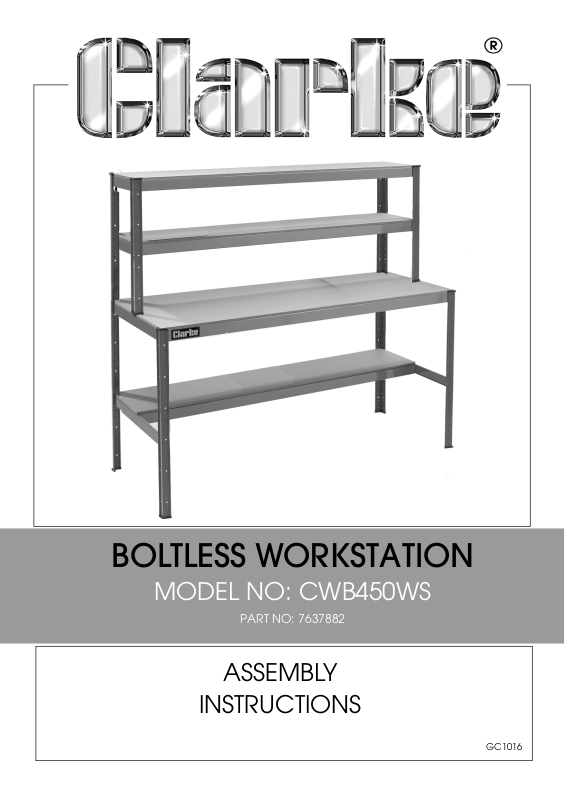

Page 1

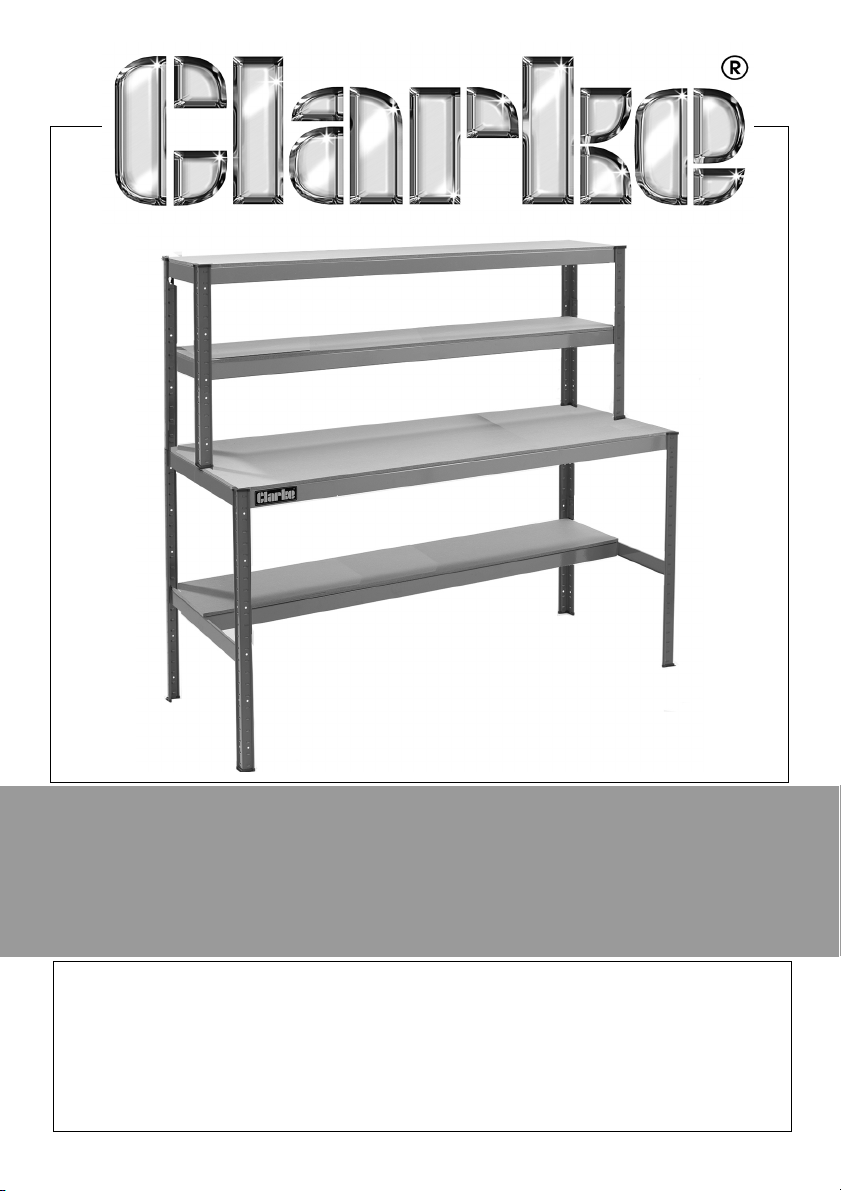

BOLTLESS WORKSTATION
MODEL NO: CWB450WS
PART NO: 7637882
ASSEMBLY
INSTRUCTIONS
GC1016
Page 2
INTRODUCTION
Thank you for purchasing this CLARKE workstation.
Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.
SPECIFICATION
Model CWB450WS
Dimensions (L x W x H) 1800 x 750 x 1695 mm
Weight 60 kg
Maximum rated load 300 kg/board
100 kg/shelf
UNPACKING
When unpacking, check for damaged or missing parts. Any deficiencies
found should be reported to your CLARKE dealer where the product was
originally purchased.
Do not dispose of damaged components or packaging with general
household waste. They should be taken to a recycling centre and disposed of
appropriately. This product should include the items listed on page 4.
2
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 3
SAFETY PRECAUTIONS
1. Always read these instructions before use.
2. Always wear protective gloves when assembling the workstation.
3. It is recommended that the assembly be done by two persons.
4. Not following these instructions could result in the workstation falling over,
causing damage to equipment and personal injury.
5. Never carry out any alterations or modifications to this product or use the
workstation for a purpose for which it was not intended.
6. Never allow children to climb on the workstation.
7. Always ensure the load is positioned centrally and evenly distributed.
8. If replacing parts, only use those supplied by Clarke International.
9. Do not exceed the maximum rated load as stated on page 2 and on the
warning labels.
10. Only use on a flat, level surface capable of supporting the workstation and
its maximum load.
11. Always ensure you are working on a firm flat surface and that the
workstation is completely stable.
12. Take care when placing a heavy load on to the bench or shelves. It should
be placed gently so that the strain is taken up gradually.
13. Always keep the work areas clean and well lit..
14. Check for damaged parts before using the workstation. Any part that
appears damaged should be carefully checked to determine that it will
perform its intended function. Replace any damaged parts as soon as
possible.
15. Always place heavier items on the lower shelf where possible.
16. Always distribute loads evenly across the shelves where possible.
17. These units are not recommended for outdoor use.
18. It is recommended that this workstation be secured to an adjacent wall.
19. Keep these instructions in a safe place for future reference.
3
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 4

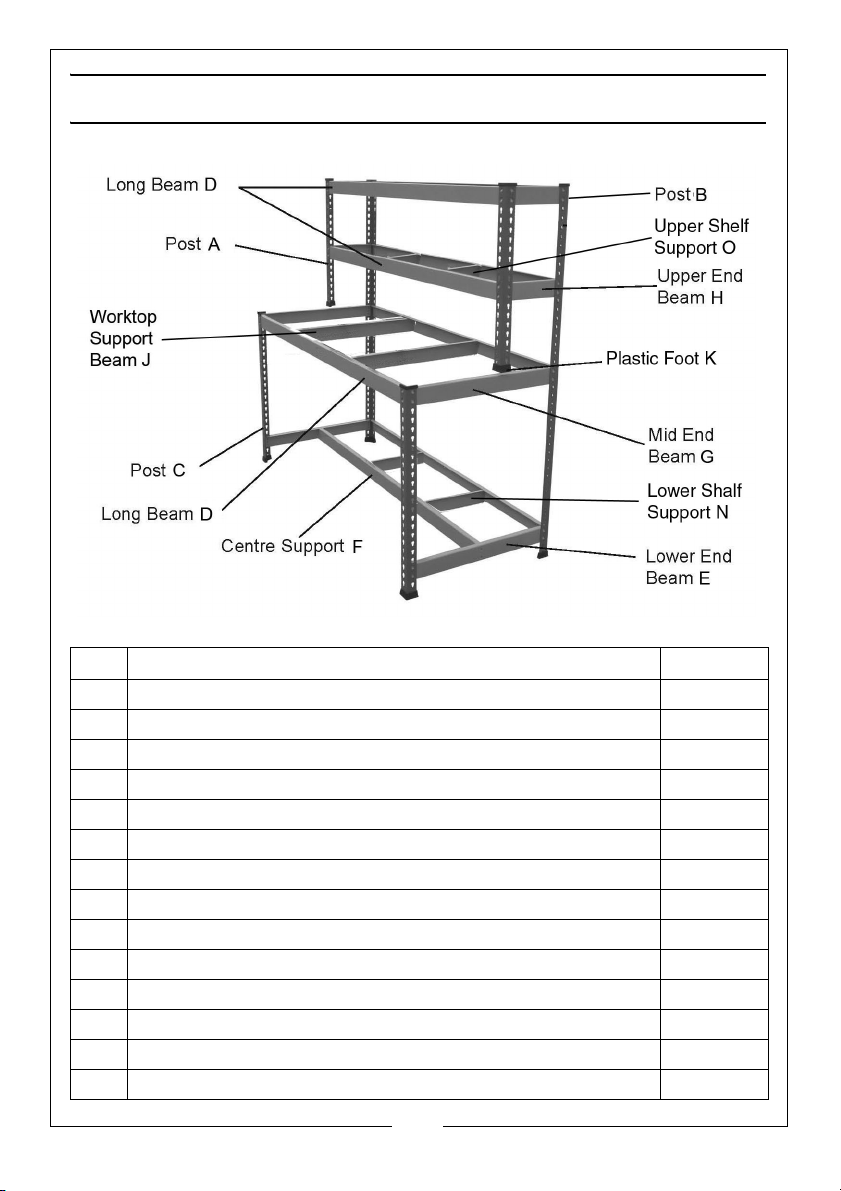

INVENTORY
No Description Quantity
A Upper Front Corner Post 786mm 2
B Rear Corner Post 1684mm 2
C Lower Front Corner Post 890mm 2
D Long Support Beam 7
ELower End Beam 2
F Long Lower Shelf Support Beam 1
G Mid End Beam 2
H Upper End Beam 4
J Worktop Support Beam 2
K Plastic Foot 6
L Worktop (see picture on front of manual) 1
M Shelf (see picture on front of manual) 3
N Lower Shelf Support 2
O Upper Shelf Support 4
4
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 5
ASSEMBLY
TOOLS REQUIRED
• Rubber mallet or hammer
• Protective cloth/wood block
ASSEMBLY PROCEDURE
1. Assemble on a firm, level surface. Avoid assembly on a domestic carpet.
2. Always ensure that the tabs sit at the bottom of the keyhole slots.
3. It is recommended that the assembly should be done by two persons.
4. Use a cloth or softwood block to
protect the surface finish of the
product when using a mallet.
5. The tabs of the beams will often
enter the slots fully using just firm
hand pressure but if they are too
tight, you may require a rubber
mallet to assist. If so, always use a
cloth to protect the product paint
finish.

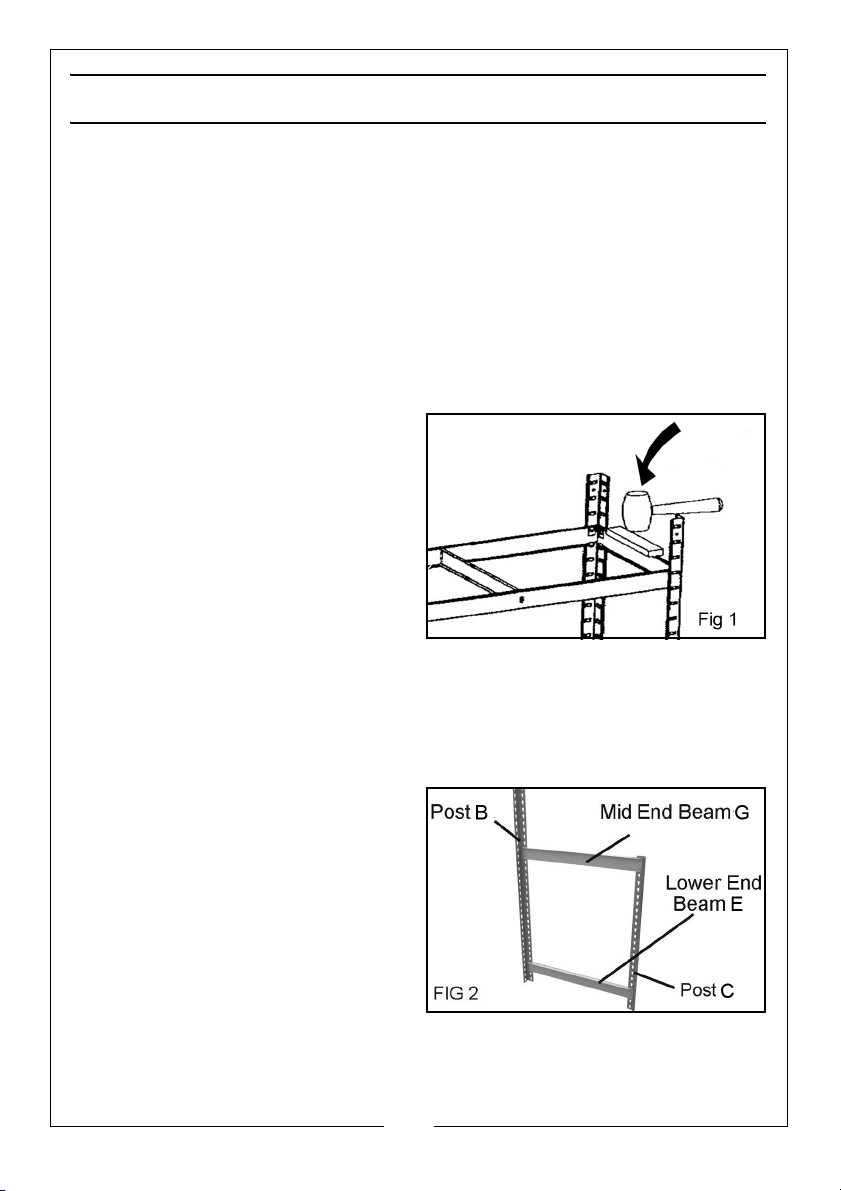

6. Tap gently with the mallet to drive the tabs of the beams fully into the slots
in the corner post. Always strike the edge close to the post.
7. Decide how high you want the lower shelf to be, relative to the floor, noting
that the lower shelf should never be more than half height from the bottom
of the corner posts.
8. Use a mid-end beam (G) and a
lower end beam (E) to connect
the lower front corner post (C) to
the rear corner post (B) as in Fig 1
and create an end assembly.
NOTE: The beam edge with the
wider flange should be
installed uppermost to
support the shelf or worktop.
9. Repeat this again for the other
end assembly, making sure that the corresponding beams are at the same
height.
5
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 6

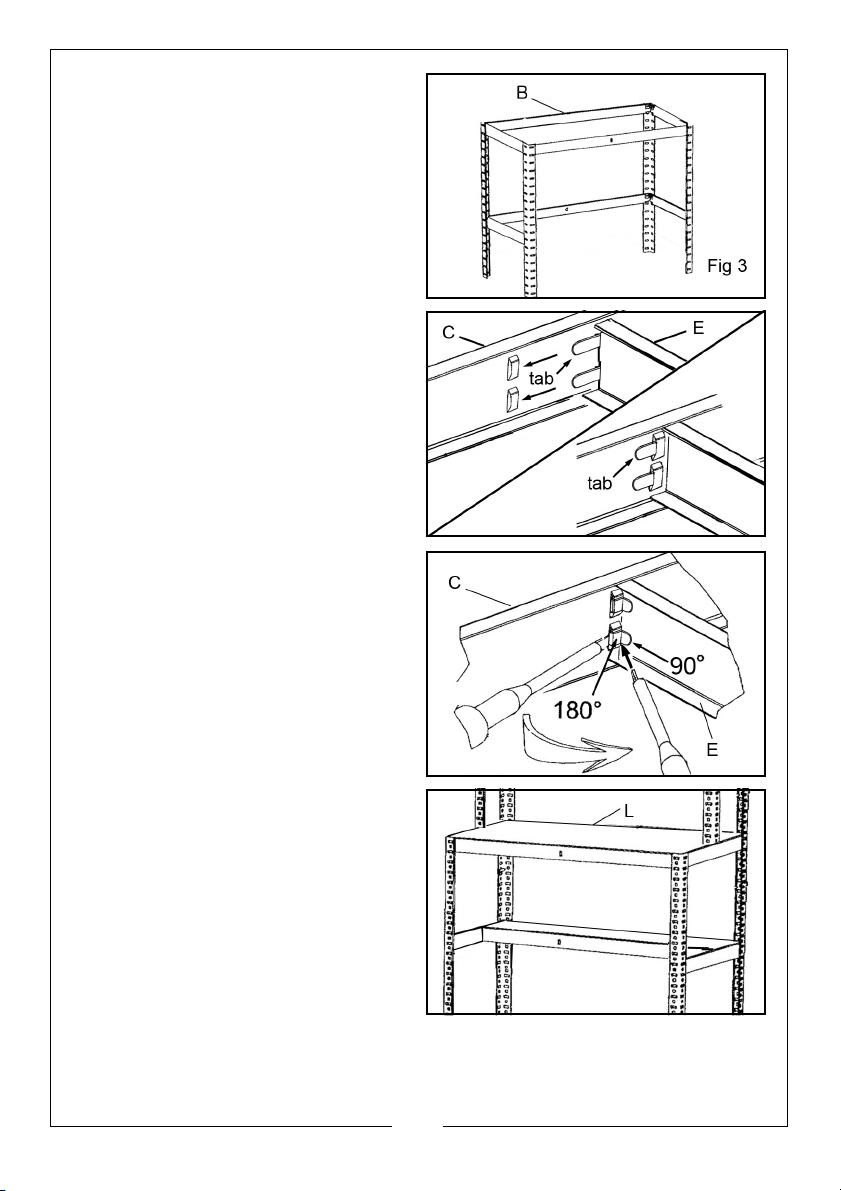

10. Use the long beams (D) to
connect the two end assemblies
together as shown in Fig 3.
11. Use the centre support beam (F)
to connect the end assemblies
together.
12. Add the worktop support beam
(J), bending the flexible tabs to 90
degrees and slotting them into
place as shown in Fig 4.
13. Finally bend the tabs back 180
degrees to lock in place.
14. Fit the work top (L) in position
before continuing to assemble
the upper beams in the same way
as the lower beams.
6
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 7

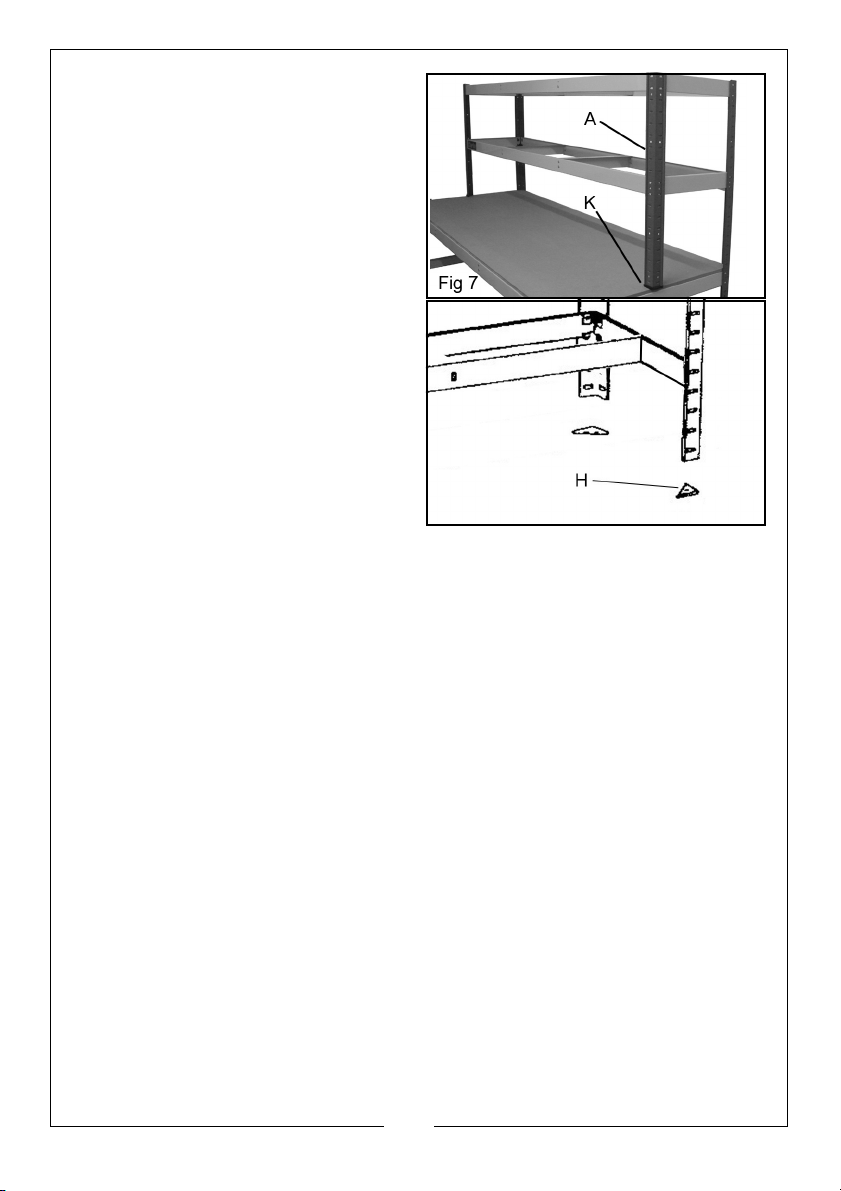

15. Mark the worktop where the
upper front corner posts (A) will
stand and fix the plastic feet (K) to
the worktop with a screw or bolt.
Position the upper front corner
posts (A) on the plastic feet.
16. Position the workstation on the
four plastic feet (H).
17. Position all the remaining shelf
panels on the beams.
SPARE PARTS
In the event of damage, spare parts are available from the Clarke
International parts department.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does not effect your statutory rights.
