INFRARED WALL HEATERS

MODEL NO: CFI 1800/1800L

PART NO: 6939000 & 6939002

OPERATION & MAINTENANCE

INSTRUCTIONS

GC0715

INTRODUCTION

Thank you for purchasing this CLARKE Infrared Wall Heater.

Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.

Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.

This guarantee does not effect your statutory rights.

ENVIRONMENTAL RECYCLING POLICY

Through purchase of this product, the customer is taking on the
obligation to deal with the WEEE in accordance with the WEEE
regulations in relation to the treatment, recycling & recovery and
environmentally sound disposal of the WEEE.

In effect, this means that this product must not be disposed of with general
household waste. It must be disposed of according to the laws governing
Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal
facility.

If disposing of this product or any damaged components, do not dispose of
with general waste. This product contains valuable raw materials. Metal
products should be taken to your local civic amenity site for recycling of metal
products. Gas filled heater tubes should be disposed of appropriately.

2

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

SAFETY PRECAUTIONS

GENERAL

1. Always read and ensure you fully understand the following precautions
and the hazards associated with this type of heater. Do not allow anyone
who has not read these instructions to operate this heater. Please keep
these instructions in a safe place for future reference.

2. Always check for damage before using the heater. Any damage should
be properly repaired or the part replaced. If in doubt, DO NOT use the
heater and consult your local Clarke dealer.

3. Never carry out any modifications to this product. If experiencing difficulty
of any kind consult your local dealer.

4. Use the heater in accordance with any applicable fire regulations.

OPERATING ENVIRONMENT

1. Never use the heater where petrol, paint thinners or other highly flammable
vapour or where high levels of airborne dust may be present.

2. Never locate the heater facing combustible materials such as screens,
workshop furniture etc.

3. Disconnect the heater from the power supply when not in use.

4. Never place anything on top of the heater so as to impede free air flow.

5. The heater is resistant to splashing but should be sheltered from direct
rainfall, as should the power cable, plug and supply outlet socket. An
overhanging roof or other shelter should be used to protect from rain.

6. Never locate the heater near combustible materials such as curtains,
furniture etc. Allow at least 1 metre distance between heater and any
combustible surfaces.

7. Allow a distance of at least 1 metre from an adjacent walls and avoid
installing the heater close to power socket outlets.

8. Do not allow the heating element to become covered with dust which
could become a fire hazard. If used in a dusty workplace it should be
cleaned as described under Cleaning and Maintenance.

9. Never touch the heater element for at least 15 minutes after switching off.

10. Do not leave the heater unattended.

11. Do not use this heater with a programmable timer used to switch it on
automatically.

12. Never arrange any duct work to the front of the heater.

3

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

PERSONAL SAFETY

1. When the heater is to be operated in the presence of other people the
user is responsible for informing those present of the safety precautions and
of the hazards involved.

2. The heater is not to be used by children or persons with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge.

3. Always ensure that people and animals are well away from the front of the
heater when in operation.

4. This heater will be hot when in operation and should not be touched until it
has fully cooled down after switching off.

5. Never leave the heater plugged in without adult supervision if children or
animals are likely to be present.

6. Do not use this heater in small rooms when occupied by persons unable to
leave the room on their own unless constant supervision is provided.

ELECTRICAL SAFETY

1. Make sure that the voltage on the rating label is the same voltage as the
power supply. If in doubt consult a qualified electrician.

2. Never modify the plug in any way. Do not use adaptor plugs with earthed
appliances. Correct plugs and outlets will reduce the risk of electric shock.

3. Do not abuse the electrical cable. Keep the cable away from sources of
heat, sharp edges or moving parts. Damaged or tangled cables increase
the risk of electric shock.

4. Regularly inspect the power cable for damage. DO NOT use if damaged &
keep it away from the source of heat. If damaged, it must be replaced.

DAMAGE & REPAIRS

1. If necessary, have your heater repaired by a qualified person using
identical replacement parts to maintain the safety of the heater.

SAFETY SYMBOLS

Hot surface, do not

.

touch

The above symbols are shown on the heater.

4

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

Do not cover.

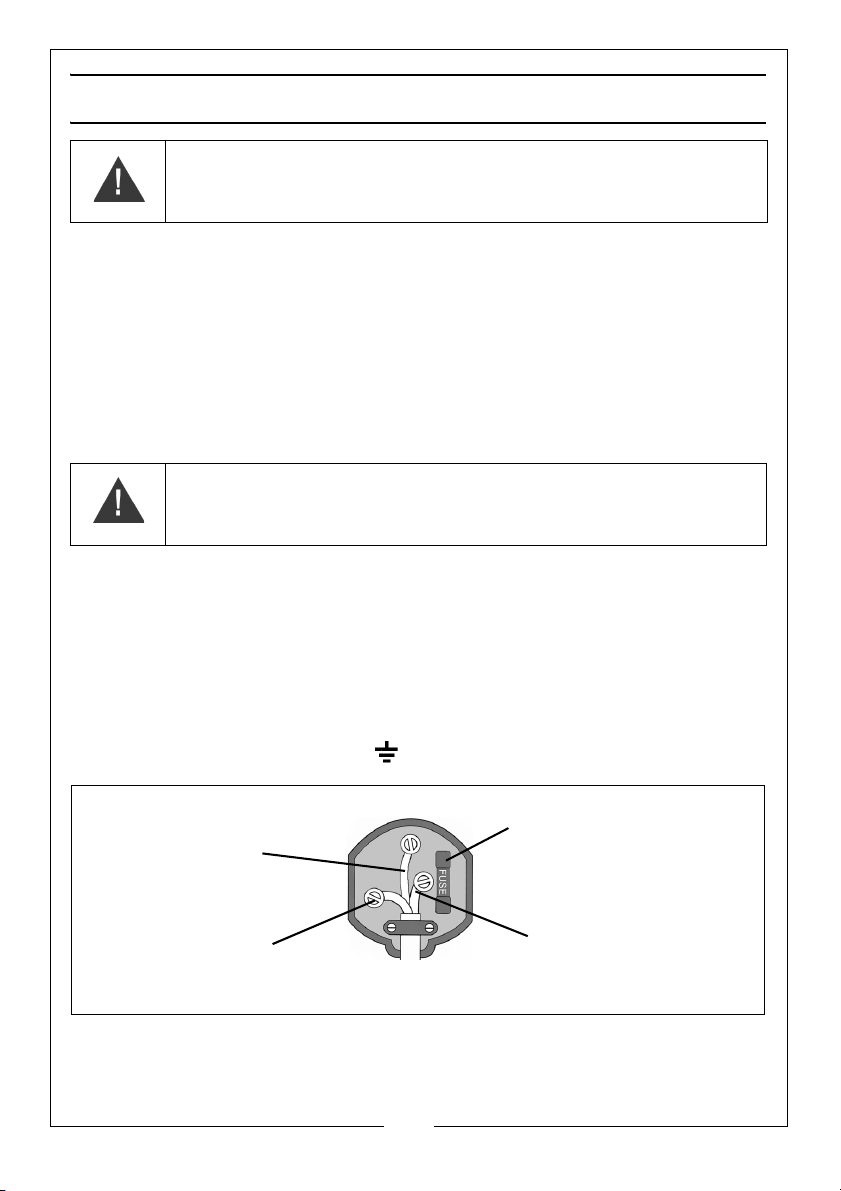

ELECTRICAL CONNECTIONS

Plug must be BS1363/A approved.

Always fit a 13 Amp fuse.

Ensure that the outer sheath of the cable is firmly held by the clamp

Neutral

(Blue)

Live

(Brown)

Earth

(Green and Yellow)

WARNING! READ THESE ELECTRICAL SAFETY INSTRUCTIONS
THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE
MAINS SUPPLY.

Before switching the product on, make sure that the voltage of your electricity supply is
the same as that indicated on the rating plate. This product is designed to operate on
230VAC 50Hz. Connecting it to any other power source may cause damage.

This product may be fitted with a non-rewireable plug. If it is necessary to change the
fuse in the plug, the fuse cover must be refitted. If the fuse cover becomes lost or
damaged, the plug must not be used until a suitable replacement is obtained.

If the plug has to be changed because it is not suitable for your socket, or due to
damage, it should be cut off and a replacement fitted, following the wiring instructions
shown below. The old plug must be disposed of safely, as insertion into a mains socket
could cause an electrical hazard

WARNING! THE WIRES IN THE POWER CABLE OF THIS PRODUCT
ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:
BLUE = NEUTRAL BROWN = LIVE YELLOW AND GREEN = EARTH

If the colours of the wires in the power cable of this product do not correspond with the
markings on the terminals of your plug, proceed as follows.

• The wire which is coloured Blue must be connected to the terminal which is
marked N or coloured Black.

• The wire which is coloured Brown must be connected to the terminal which
is marked L or coloured Red.

• The wire which is coloured Yellow and Green must be connected to the
terminal which is marked E or or coloured Green.

.

.

We strongly recommend that this machine is connected to the mains supply
via a Residual Current Device (RCD)

If in any doubt, consult a qualified electrician. DO NOT attempt any repairs yourself.

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

5

PREPARATION

UNPACKING

Remove heater from the carton and check for any damage sustained in
transit. Notify your Clarke dealer immediately of any defects.

MOUNTING THE HEATER

The heater is resistant to splashing but should be sheltered from direct rainfall,
as should the power cable, plug and supply outlet socket. If used outdoors, an
awning, overhanging roof or other shelter should be used to protect from rain

The heater must be mounted on a suitable wall at a height not less than 1.8m
above the floor.

It is important that the heater is positioned with at least 1 m clearance at the
front between the heater and any obstruction including walls or other
combustible surfaces. Always position the heater facing the centre of the
space to be heated, not pointing directly at any nearby surfaces. Never place
any objects on, or against the heater.

Any equipment or furniture should be a safe distance away, as they could be
adversely affected by heat. Take care that the heat is not directed at curtains
or other fabrics.

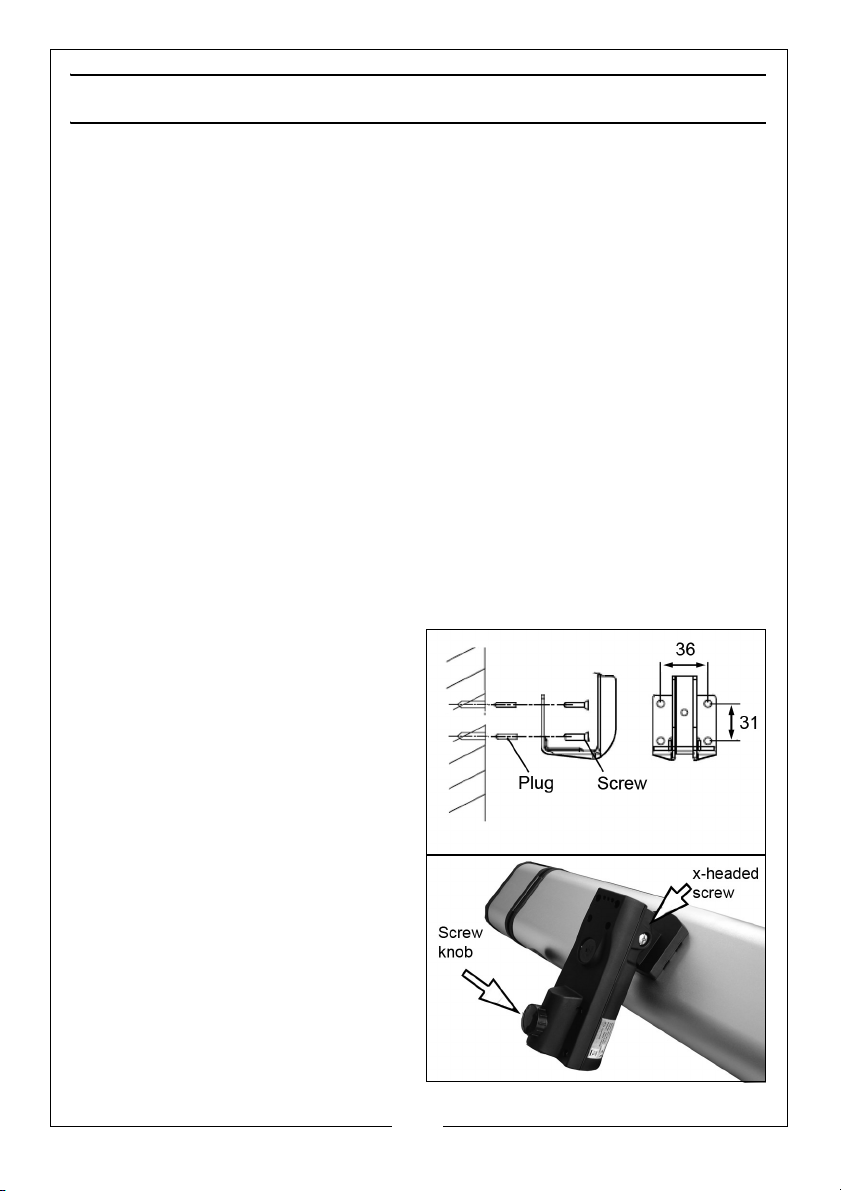

1. Drill four holes in the wall to
accept the plastic wall-plugs
supplied, at the distances apart
shown in the diagram. Other wall
plugs may be required,
dependant upon the construction
of the wall.

2. Screw the mounting bracket to
the wall.

3. Fit the heater onto the wall
bracket and secure in position
with the screw knob.

4. Set the downwards angle of the
heater by loosening the mounting
bracket with a large x-head
screwdriver and adjusting the
angle before re-tightening

6

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

OPERATION

1. Connect the mains cable to a suitable power socket.

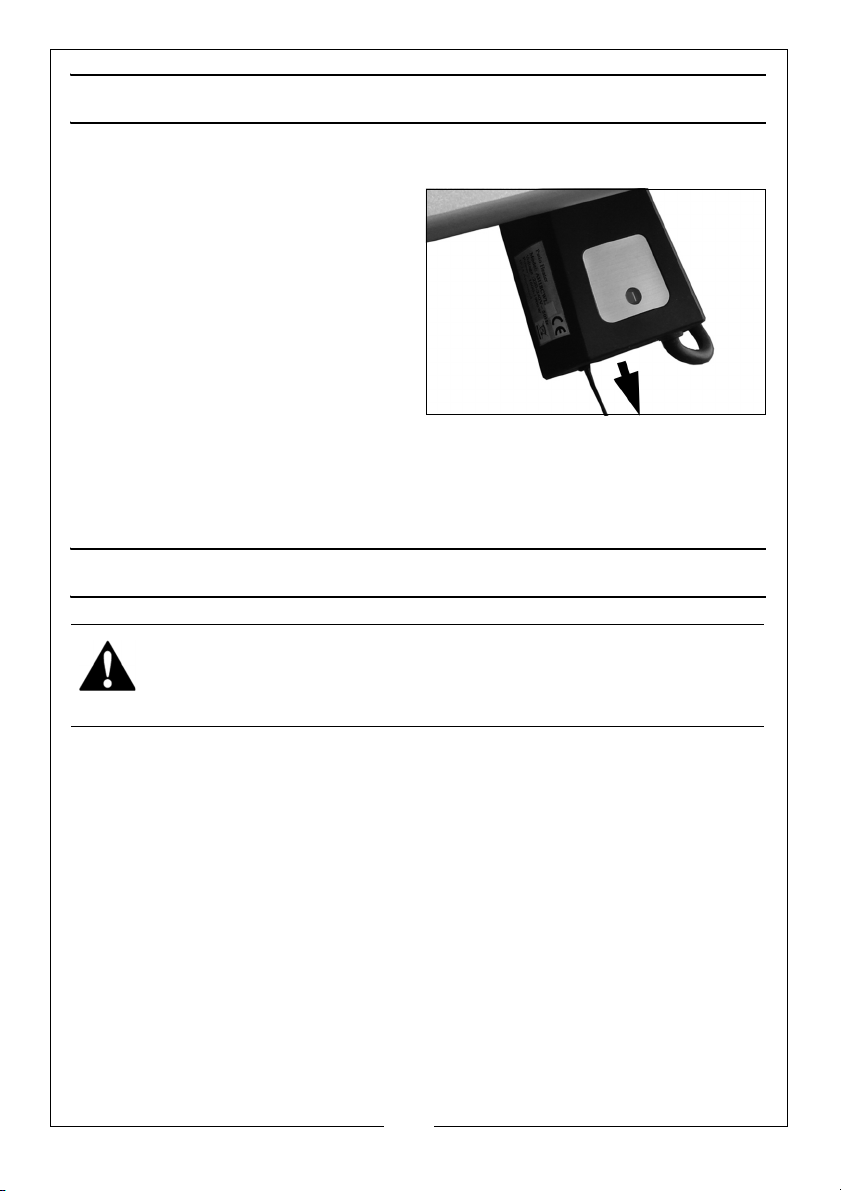

2. Pull the string to repeatedly to
cycle through the following
settings:

CFI1800

• O = Off

• I = Heater elements on

CFI1800L

• O = Off

• I = Lamps only

• II = Heater elements on/lamps off

• III = Heating elements and lamps both on

CLEANING AND MAINTENANCE

WARNING: BEFORE CARRYING OUT ANY MAINTENANCE, ENSURE THE
HEATER IS SWITCHED OFF, DISCONNECTED FROM THE MAINS SUPPLY,
AND HAS BEEN GIVEN ADEQUATE TIME TO COOL DOWN.

PERIODICALLY

1. If there is any serious build up of dirt, wipe thoroughly with a damp cloth.
Take care that no moisture enters the heater.

2. Inspect the power cable for damage. Undue heat will cause the cable to
stiffen and crack, in which case it should be replaced.

3. Ensure heating elements are free of dust (use compressed air to clean if
possible. (Always wear a dust mask if performing this operation).

4. Refer to your Clarke dealer if the heater element or LED lamp need
replacing.

7

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

FAULT FI N DI N G

SYMPTOM PROBLEM SOLUTION

Heater does not
operate, although
plugged in and
switched on.

Lights not working Defective LED array. Consult your Clarke dealer

Plug is loose/ bad
connection.

Fuse blown. Replace if necessary and

No power at socket
outlet.

Input voltage incorrect. Ensure power supply

Defective switch Consult your Clarke dealer

Remove the plug & check
the connection of the plug
and socket.

investigate the cause. If
fuse blow repeatedly,
consult your Clarke dealer.

Insert plug into a suitable
socket.

matches the rating on the
label.

for replacement.

for replacement.

TECHNICAL SPECIFICATION

Model CFI1800 CFI1800L

Dimensions (L x W x H) 220 x 652 x 228 mm 220 x 890 x 228 mm

Weight 2.35 kg 3.3 kg

Electrical Supply 230 V / 50hz

Power Cable length 1850 mm

Protection Degree IP24 (water splash)

Operating Temperature -20 to 30

Tilt Range Level to -14 degrees

8

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

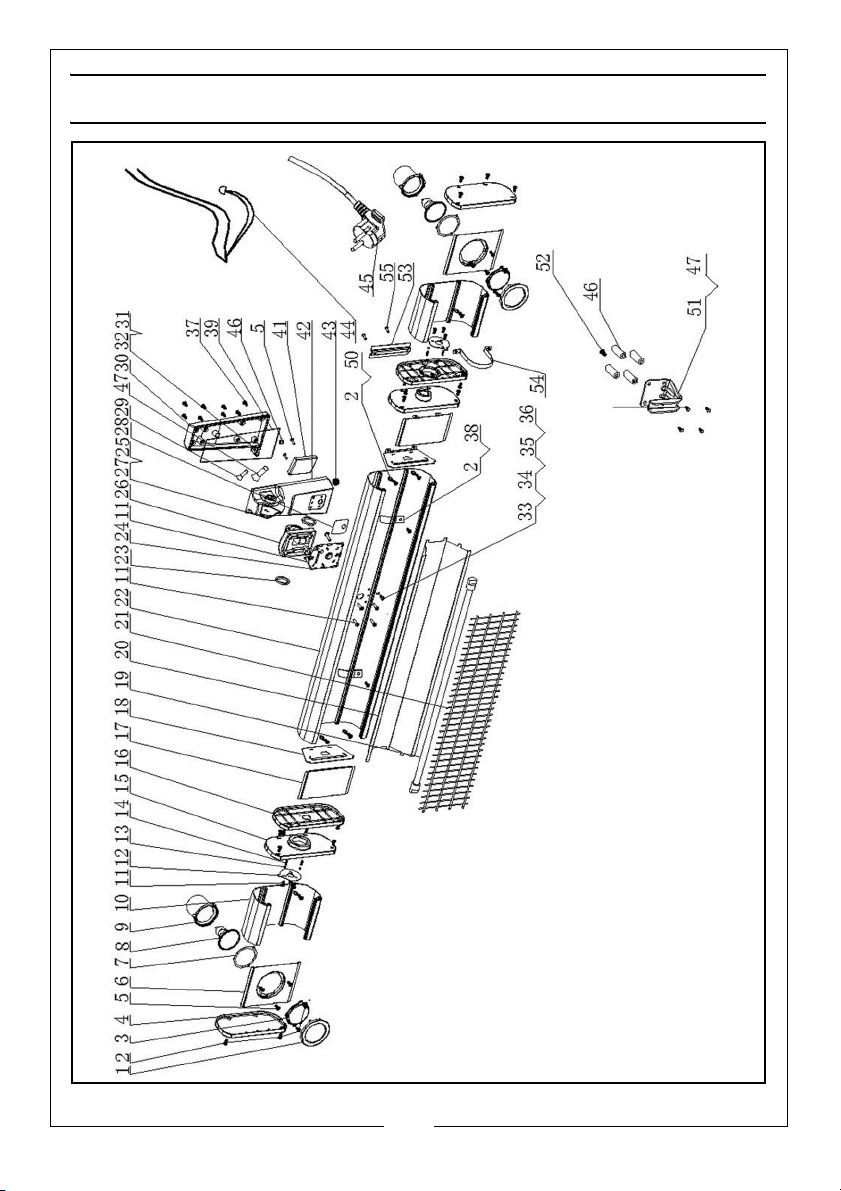

PARTS DIAGRAM

9

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

PARTS LIST

ID DESCRIPTION ID DESCRIPTION

1 LED Surround Ring # 29 Connector Cap

2 Self-tapping Screw 30 Control Box Cover

3 LED Lens # 31 Cable Clamp

4 Side Cover 32 Screw

5ST Screw # 33Star Washer

6 LED Panel # 34 Screw

7 LED Sealing Ring # 35 Spring Washer

8 LED Bulb Assembly # 36 Nut

9 LED Holding Bracket # 37 Self-tapping Screw

10 LED Housing # 38 Cable Clip

11 Self-tapping Screw # 39 Seal

12 Connecting Disc # 40 Switch Bracket

13 Stainless Steel Ball # 41 Switch

14 Spring # 42 Control Box

15 LED Module Side Panel 43 Cable Bush

16 Heater Side Panel 44 Internal Wiring Loom

17 Heater Panel 45 Power Cable & Plug

18 Reflector Bracket 46 Plastic Plug

19 Heating Tube Element (lamp) 47 Self-tapping Screw

20 Reflector 48 Draw Cord

21 Mesh Guard 49 Display Disc

22 Heater Housing 50 Star Washer

23 Hinge Sealing Ring 51 Wall Bracket

24 Hinge Seal 52 Screw Knob

25 Nut 53 Connecting Plate

26 Hinge 54 Fixing Loop

27 Screw 55 Self-tapping Screw

28 PVC Sticker

When requesting replacement parts, please quote: WH-CFI1800(L)-01
onwards.

# = items related to the light assembly on the CFI1800L only.

10

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

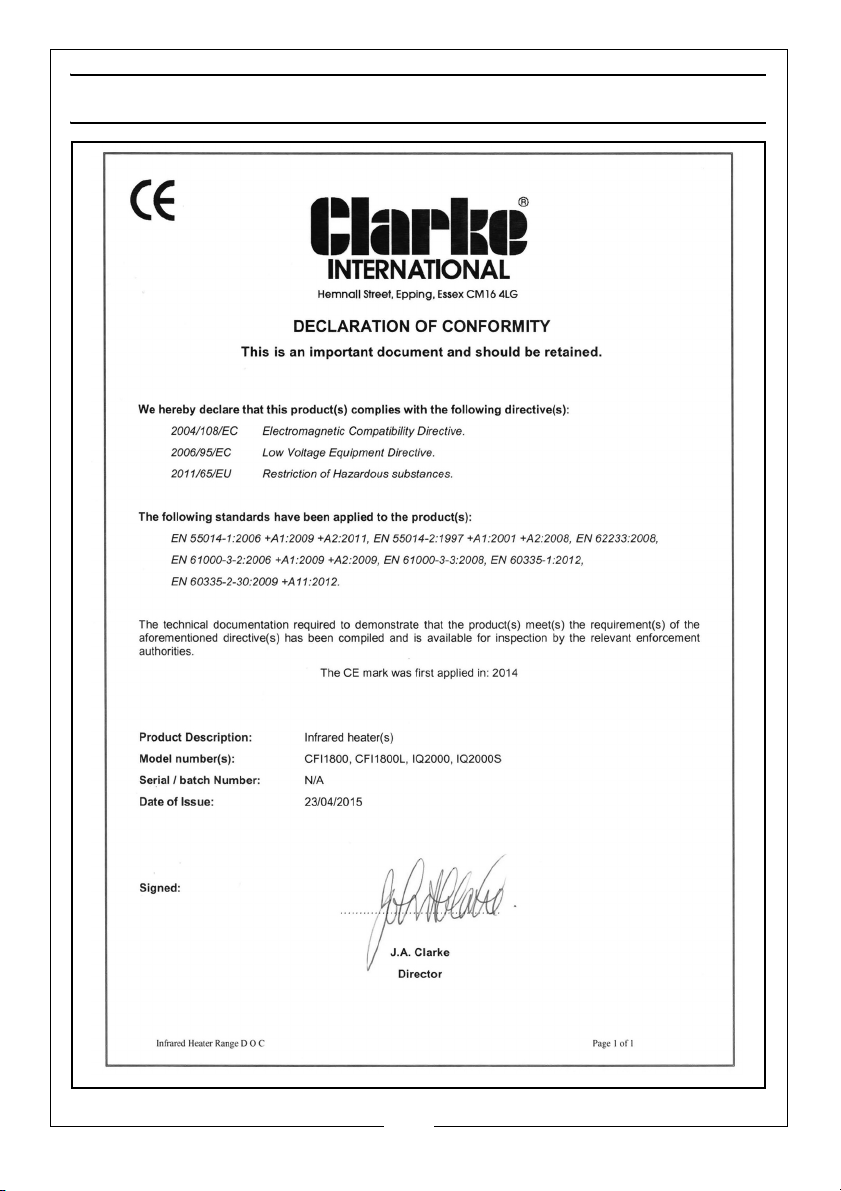

DECLARATION OF CONFORMITY

11

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
