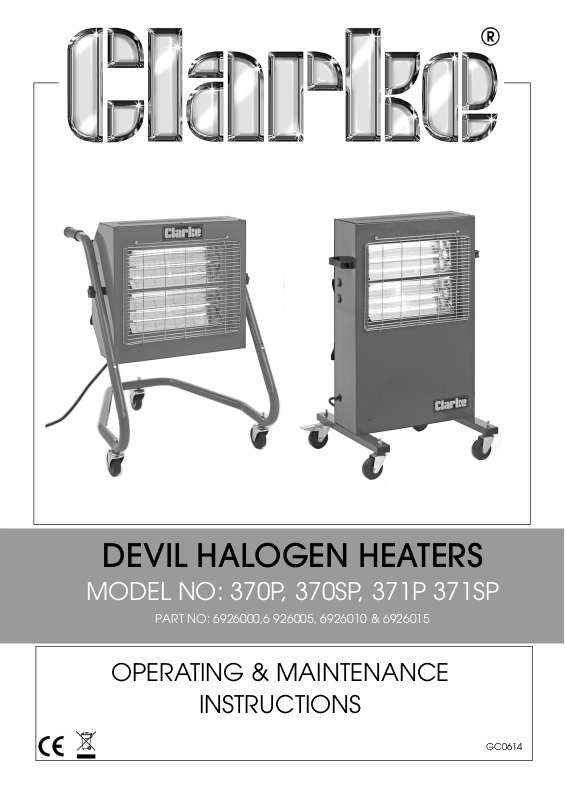

DEVIL HALOGEN HEATERS
MODEL NO: 370P, 370SP, 371P 371SP
PART NO: 6926000,6 926005, 6926010 & 6926015
OPERATING & MAINTENANCE
INSTRUCTIONS
GC0614
Page 2
INTRODUCTION
Thank you for purchasing this CLARKE Quartz Halogen Infra-red Heater.
Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.
Your tool kit has been designed to give long and trouble free service. If,
however, having followed the instructions in this booklet carefully, you
encounter problems, take the unit to your local CLARKE dealer.roblems, take
the unit to your local CLARKE dealer.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does not effect your statutory rights.
ENVIRONMENTAL RECYCLING POLICY
Through purchase of this product, the customer is taking on the
obligation to deal with the WEEE in accordance with the WEEE
regulations in relation to the treatment, recycling & recovery and
environmentally sound disposal of the WEEE.
In effect, this means that this product must not be disposed of with general
household waste. It must be disposed of according to the laws governing
Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal
facility.
2
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 3
GENERAL SAFETY RULES
1. These heaters are for INDOOR USE ONLY.
2. Do not expose the heater or power cable to rain or wet conditions. Any
water entering the heater will increase the risk of electric shock. DO NOT
use this heater in a bathroom, shower room or any other wet environment.
3. NEVER locate the heater near combustible materials such as curtains,
furniture etc. Allow at least 1 metre distance.
4. DO NOT locate the heater close to an adjacent wall or low ceiling. Allow a
distance of at least 1 metre from a wall or ceiling. Avoid placing the heater
directly below power socket outlets.
5. Take care to ensure that the wire guard cannot be covered.
6. Do not operate heater in explosive atmospheres such as in the presence of
flammable liquids, gases or dust such as in a paint spray booth or any
explosive environment.
7. Never stand the heater on a movable vehicle where it could tip over.
8. Do not allow the halogen tubes to become covered with dust which could
become a fire hazard. If used in a dusty workplace it should be cleaned as
described under Cleaning and Maintenance.
9. NEVER touch the halogen tubes for at least 15 minutes after switching off.
10. DO NOT leave the heater unattended.
11. If children are present always use with a fireguard.
12. Store the heater out of the reach of children and do not allow persons
unfamiliar with these instructions to operate it.
13. Do not use this heater with a programmable timer used to switch it on
automatically.
14. Use ONLY in an upright position.
15. Always manoeuvre the heater using the handles provided and avoid
trapping the fingers between the handle and the heater body.
ELECTRICAL SAFETY
1. Electrical appliances must match the power outlet. Never modify the plug
in any way. Do not use adaptor plugs with earthed (grounded) appliances.
Correct plugs and outlets will reduce the risk of electric shock.
2. Do not abuse the electrical cable. Never use the cable for pulling or
unplugging the heater. Keep the cable away from sources of heat, oil,
3
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 4
sharp edges or moving parts. Damaged or tangled cables increase the risk
of electric shock.
3. Keep the mains cable well away from machines and ensure an adequate
electrical supply is close at hand so that the operation is not restricted by
the length of the cable.
4. ALWAYS disconnect from the mains supply before moving the heater, or
performing any cleaning or maintenance tasks.
5. Inspect the mains cable regularly for signs of damage. DO NOT use if it is
damaged, and ALWAYS keep it away from the source of heat.
6. Check the heater for damage before use. DO NOT use if the heater tubes
are damaged or broken. Any damage should be properly repaired or the
part replaced. If in doubt, DO NOT use. Consult your local Clarke dealer.
SERVICE & REPAIRS
1. If necessary, have your heater repaired by a qualified person using
identical replacement parts. This will ensure that the safety of the
appliance is maintained.
Additionally, please keep these instructions in a safe place for future
reference.
ELECTRICAL CONNECTIONS
DEVIL 370P & 370SP HEATER UNITS
The 370 models are provided with a 13 amp BS 1363 plug, fitted with a 13amp
fuse and MUST be connected to a standard, 230 Volt (50Hz) electrical supply,
preferably through a suitably fused isolator switch.
WARNING: THIS APPLIANCE MUST BE EARTHED
IMPORTANT: The wires in the mains lead should be wired up in accordance
with the following colour code:
Green & Yellow - Earth
Blue - Neutral
BrowN - Live
As the colours of the flexible cable of this appliance may not correspond with
the coloured markings identifying terminals in your plug, proceed as follows:
4
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 5
• Connect the GREEN & YELLOW coloured cord to the
plug terminal marked with a letter E or Earth symbol
• or coloured GREEN or GREEN & YELLOW.
• Connect the BROWN coloured cord to the plug terminal marked a
letter “L” or coloured RED
• Connect the BLUE coloured cord to the plug terminal marked a
letter “N” or coloured BLACK.
If this appliance is found to be fitted with a plug which is moulded on to the
electric cable (i.e. non-rewireable) please note:
1. The plug must be thrown away if it is cut from the electric cable. There is a
danger of electric shock if it is subsequently inserted into a socket outlet.
2. Never use the plug without the fuse cover fitted.
3. Should you wish to replace a detachable fuse carrier, ensure that the
correct replacement is used (as indicated by marking or colour code).
4. Replacement fuse covers can be obtained from your local Clarke dealer
or most electrical stockists.
FUSE RATING
The fuse in the plug must be replaced with one of the same rating and this
replacement must be ASTA approved to BS1362.
We strongly recommend that this machine is connected to the mains supply
via a Residual Current Device (RCD).
DEVIL 371P & 371SP HEATER UNITS
The 371 models MUST be connected to a 110 Volt, 1 phase 50Hz supply
through a suitably fused isolator switch. On no account must a 230V, 13amp
(BS1363) plug be used.
NOTE: If a portable 110V transformer is used, make sure it has a rated
capacity sufficient to take the load of the heater.
In the event that the heater is hard wired into the electrical system, it must be
carried out in accordance with IEE regulations.
The user should purchase a suitable connecting lead which is compatible with
the appliance socket. A length of 2-3 metres is recommended as giving
mobility to the heater but without becoming a trip hazard.
If in any doubt, consult a qualified electrician. DO NOT attempt any electrical
repairs yourself.
5
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 6
UNPACKING AND ASSEMBLY
Before assembling, please check contents against the following list and advise
your dealer immediately if any parts are missing.
1 x Heater 2 x Halogen Lamps
2 x Support Legs (P only) 1 x Frame (SP only)
2 x Securing Knobs (SP only) 2 x Saddle Supports (SP only)
2 x Handles (P only)/1 x Handle (SP only) 1 x Fixings pack
4 x Castors (2 with brakes-P models) or 3 Castors (one braked -SP models)
TOOLS REQUIRED
7mm, 13mm and 14mm spanners, pozidrive
(phillips) screwdriver

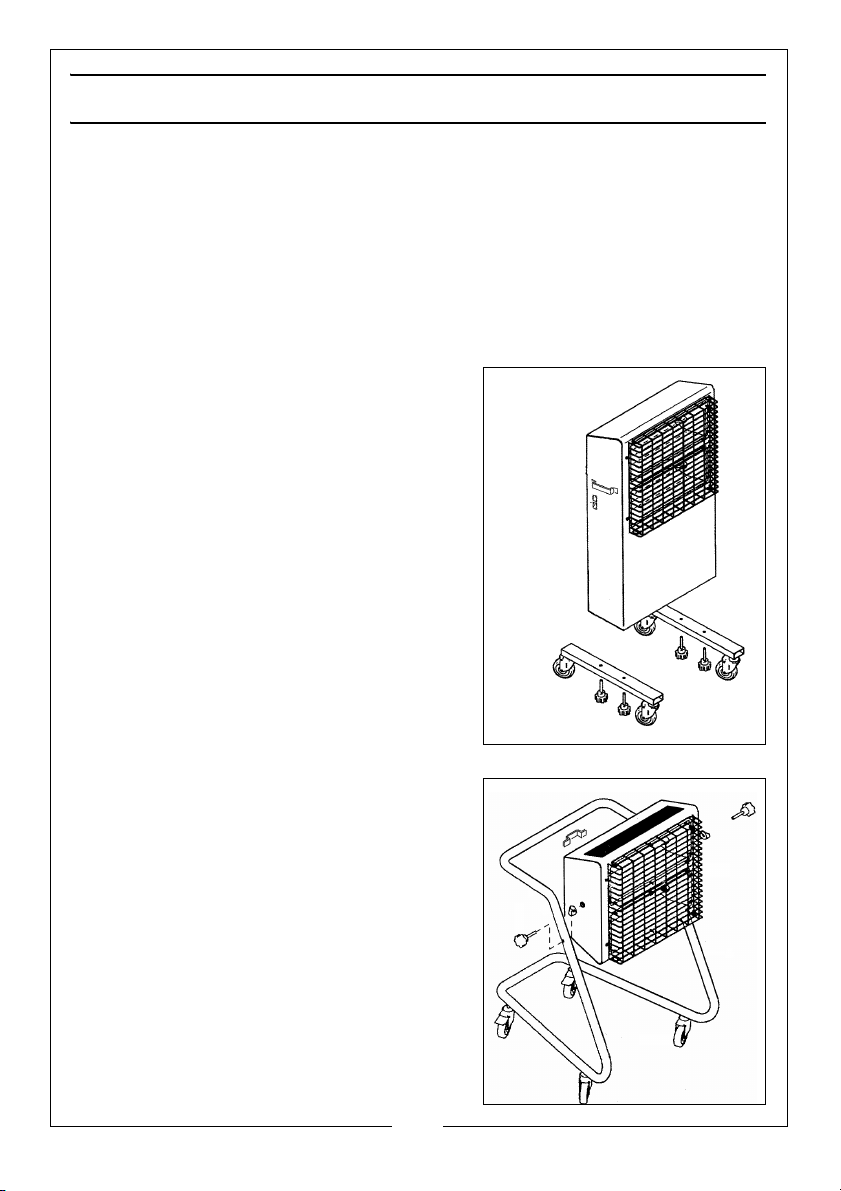

DEVIL 370 /371P
1. Attach the four castors to the support
legs using the 13mm nuts.
2. Attach the legs to the main body using
14mm securing bolts supplied.
3. Attach the handles to each side of the
heater body using the screws supplied.
4. Fit the halogen lamps (see page 7).
DEVIL 370SP/371SP
1. .Attach the castors to the frame using the
13mm nuts, ensuring the castor with the
brake is at the rear of the unit.
2. Attach the handle to the heater body
using the screws supplied.
3. Attach the frame to the heater body as
shown in the drawing, using the securing
knobs and the plastic saddle supports
located either side of the frame tubing.
4. Fit the halogen lamps (see page 7).
6
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 7
OPERATION
1. Position the heater where required, and lock the castors to prevent the
heater from moving. Always move the heater using the handles.
2. Slacken the locking knobs and rotate the heater body to the required
angle. Tighten the securing knobs on each side to lock into place (SP
models only).
3. Connect the mains cable to a suitable power supply.
4. Use the on/off switches to turn on either one, or both heating elements.
IMPORTANT: When using the SP model heaters, the angle of tilt MUST NOT
exceed 45 degrees downwards, as this could lead to the heater
overheating. NEVER position the heater pointing vertically downwards.
CLEANING & MAINTENANCE
If the heater has been used, ALWAYS allow it to cool down for at least 15
minutes and disconnect from the mains supply before performing any
maintenance tasks.
PERIODICALLY
• If there is any serious build up of dirt, wipe thoroughly with a damp
cloth. Take care that no moisture enters the heater. Take care NOT
to touch the tubes with your fingers.
• Inspect the mains cable for damage. Undue heat will cause the
cable to stiffen and crack. If this is found, have the cable replaced.
Check cable routing and ensure it is well away from the heat source.
• Ensure heating lamps are clear of dust (use compressed air to clean
if possible. (ALWAYS wear a dust mask if performing this operation)
• Refer to your CLARKE dealer if internal maintenance is required.
• When storing the heater, allow it to cool down, then place it in its
packing box for storage in a dry, ventilated place.
FITTING/ REPLACING LAMPS
Before attempting to fit/replace halogen lamps, ensure the heater is switched
off and isolated from the main electrical supply by removing the plug from the
socket.
NEVER handle the heater lamps with bare hands. ALWAYS handle using either
a soft clean glove or a piece of soft clean cloth wrapped around the lamp.
7
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 8
1. Loosen and remove the two pozidrive screws securing the wire guard,
remove the guard and store removed parts safely.
2. To remove lamp, grasp lamp and gently but firmly push it to one end of the
heater. The lamp holders are spring loaded and will allow the lamp
sufficient movement to clear the opposite holder.
3. Remove the lamp and dispose of, according to local regulations.
4. Fit new halogen lamp in reverse order, repeat procedure for second tube.
5. Replace the guard using the screws removed earlier.
The heater is now ready for use again & may be plugged in and switched on.
FAULT FIN DIN G
SYMPTOM PROBLEM SOLUTION
Heater does not
operate, although
plugged in and
switched on.
Heater element is
glowing hot
Plug is loose/bad
connection.
Fuse blown. Replace if necessary and
No power at socket
outlet
Tilt safety switch is
disabling unit
Input voltage incorrect. Ensure power supply
Air inlet partly blocked. Ensure the heater is kept
Remove the plug & check
the connection of the plug
and socket.
investigate the cause. If
fuse blow repeatedly,
consult your Clarke dealer.
Insert plug into a suitable
socket.
Ensure unit is upright. If
switch does not re-set,
consult your Clarke dealer.
matches the rating on the
label.
away from any objects or
materials which could
partially cover the wire
guard or be drawn onto it.
8
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 9

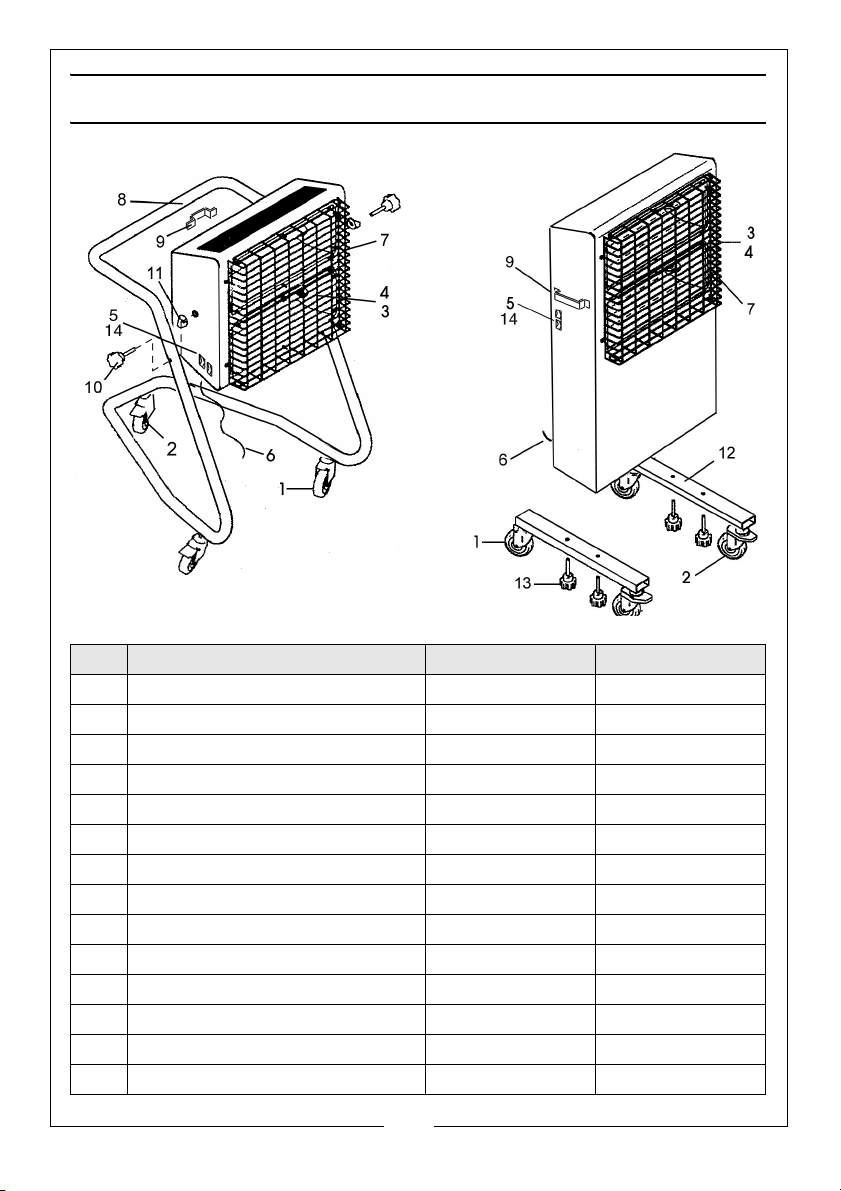

PARTS DIAGRAM
No Description Devil 370 Devil 371
1 Castor (standard) WGDEV37001 WGDEV37101
2 Castor with Brake WGDEV37002 WGDEV37102
3 Ceramic End Cap WGDEV37003 WGDEV37103
4 Quartz Halogen Tube WGDEV37004 WGDEV37104
5 ON/OFF Switch WGDEV37005 WGDEV37105
6 Power Cable WGDEV37006 WGDEV37106
7 Wire Guard WGDEV37007 WGDEV37107
8 Frame (SP only) WGDEV37008 WGDEV37108
9 Plastic Handle WGDEV37009 WGDEV37109
10 Securing KNob (SP only) WGDEV37010 WGDEV37110
11 Plastic Saddle (SP only) WGDEV37011 WGDEV37111
12 Support Bar (P only) WGDEV37012 WGDEV37112
13 Securing Bolt (P only) WGDEV37013 WGDEV37113
14 Tilt Safety Switch WGDEV37014 WGDEV37114
9
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 10
SPECIFICATIONS
Model Number Devil 370P Devil
370SP
Model Number 6926000 6926005 6926010 6926015
Weight 16.6 kg 15.6 kg 16.6 kg 15.6 kg
Dimensions (L x W x H) 490 x 570 x
890 mm
Wattage 3 KW 3 KW 3 KW 3 KW
Amperage 12.5 a 12.5 A 27.2 a 27.2 a
Supply Voltage 230V/50 hz 230V/50 hz 110v/50hZ 110v/50hZ
Fuse Rating 13 a 13 A 32 A 32 A
Insulation Class IP20 IP20 IP20 IP20
Max Heat Output 3 kw 3 kw 3 kw 3 kw
Please note that the details and specifications contained herein are correct at
the time of going to print. However CLARKE International reserve the right to
change specifications at any time without prior notice. Always consult the
machine’s data plate.
570 x 510 x
620 mm
Devil 371P Devil
371SP
490 x 570 x
890 mm
570 x 510 x
620 mm
10
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 11

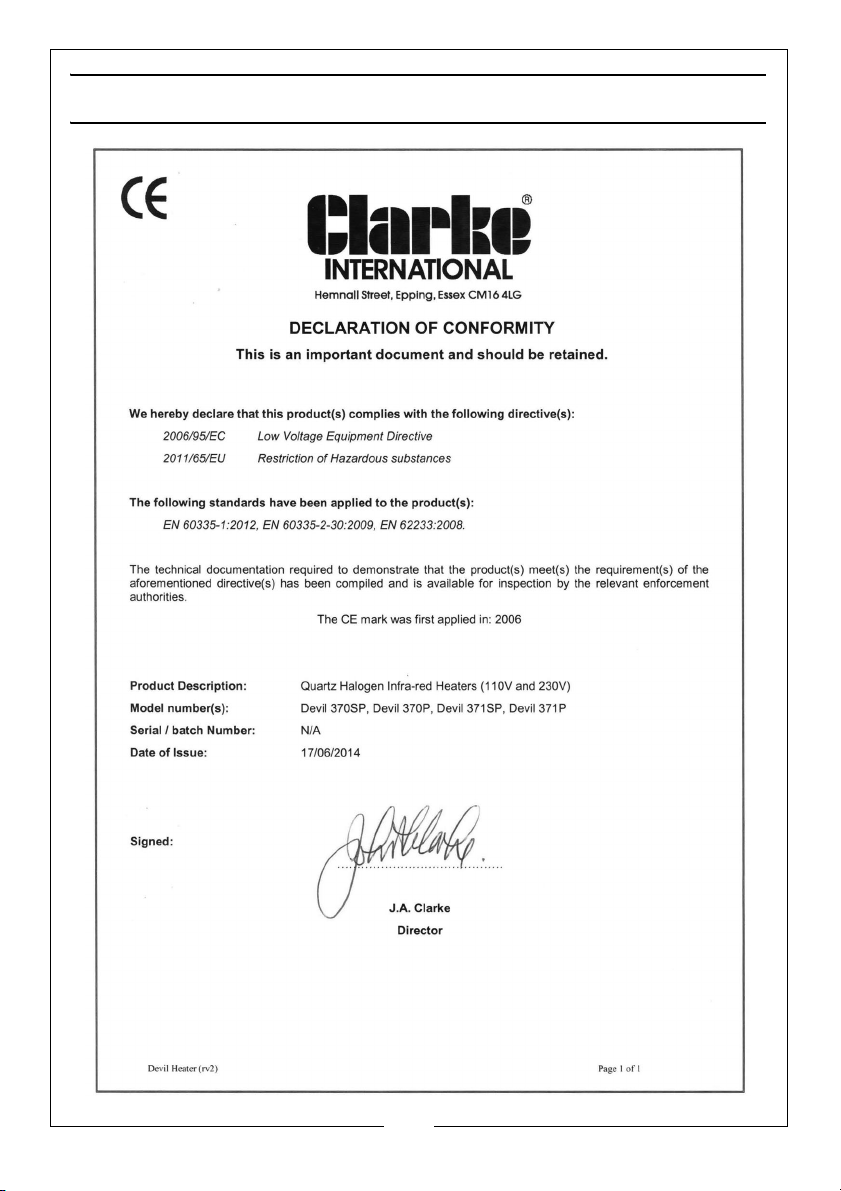

DECLARATION OF CONFORMITY
11
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 12
Loading...
