Page 1
This product is only suitable for well insulated areas and is
to be the primary heat source.
not designed
2KW ELECTRIC FAN HEATER
MODEL NO: DEVIL 2000PTC
PART NO: 6925590
OPERATION & MAINTENANCE
INSTRUCTIONS
ORIGINAL INSTRUCTIONS GC0621 - ISS 7
Page 2
INTRODUCTION
Thank you for purchasing this CLARKE product. Please read this manual
carefully, in doing so you guarantee the safety of yourself and that of others
around you, and you can look forward to your purchase giving you long and
satisfactory service.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt as proof of
purchase.
This guarantee is invalid if the product is found to have been abused,
tampered with, or not used for the purpose for which it was intended. Faulty
goods must be returned to their place of purchase, no product can be
returned to us without prior permission.
This guarantee does not effect your statutory rights.
PRODUCT SPECIFICATIONS
Product: Depth x Width x Height 211 x 165 x 215 mm
Product weight 1.74 kg
Operating Voltage and Frequency: (V / Hz) 230 V / 50Hz
Required power 8.3 - 9.1 A
Operating Temperature: (Min/Max) (°C): -15 to 25°C
Heat Output: (kW): Fan only
Fan& heat setting 1
Fan& heat setting 2
3
Max Air Output: (m
Safety Device: Thermal cut-out
Duty Cycle Classification: Continuous duty
Electrical Insulation Class I
Ingress Protection rating IP20
Sound Pressure Level 43 dB
/h) 197m3/h
25 W
1000 W
2000 W
2
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 3
THE FOLLOWING TABLE ADDRESSES THE INFORMATION
REQUIREMENTS OF REG.2015/118
Item Symbol Value Unit Item Unit
Heat output Type of heat input for electric storage local
Measured seasonal space
heating energy efficiency
Nominal heat
output
Minimum heat
output
P
P
nom
min
2 kW Manual heat charge control with room
1 kW Electronic heat charge control with
(indicative)
Maximum
continuous
P
2 kW Fan assisted output Yes
max
heat output
Auxiliary electricity consumption Type of heat output/room temperature control
At nominal
heat output
At minimum
heat output
In standby
mode
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
el
el
el
N/A kW Single stage heat output, no
max
N/A kW Two or more manual stages, no
min
N/A kW With mechanical thermostat temp
SB
36% Manual heat charge control with
8
heaters only
No
integrated thermostat
No
and/or outdoor temperature feedback
No
room and/or outdoor temperature
feedback
(select one)
No
temperature control
No
temperature control
Yes
control
With electronic temperature control No
Electronic temperature control with day
No
timer
Electronic temperature control with
No
week timer
Other control options (multiple selections
possible)
Room temperature control with
No
presence detection
Room temperature control with open
No
window detection
Room temperature control with
No
distance control option
Room temperature control with
No
adaptive start control
Room temperature control with working
No
time limitation
Room temperature control with black
No
bulb sensor
3
Page 4
SAFETY RULES
Make sure that you read, understand and comply with the following.
WARNING: THIS PRODUCT IS ONLY SUITABLE FOR WELL INSULATED AREAS
AND IS NOT DESIGNED TO BE THE PRIMARY HEAT SOURCE.
GENERAL
• DO NOT operate the heater when you are tired or under the influence of
alcohol, drugs or intoxicating medication.
• DO NOT stand on the heater.
• DO NOT use the heater with wet hands or when there is water on the
power cable.
• Turn the heater off when not in use and keep it in a safe, dry, childproof
location.
• The heater is designed to heat enclosed areas such as workshops and
other industrial areas. Do not use the heater for any other function. It is
not suitable for drying clothes or laundry.
ELECTRICAL SAFETY
WARNING: THIS HEATER MUST BE EARTHED
• Regularly inspect the power cable / plugs for damage/looseness. Do
not use the heater it the power cable is damaged.
• Minimise the risk of electric shock by installing a RCCB (Residual Current
Circuit Breaker) and a suitable isolator into the main distribution board.
• Make sure that the voltage on the rating label is the same as the voltage
of the power supply. If in doubt, consult a qualified electrician.
• Do not abuse the electrical cable. Do not use the cable for pulling or
unplugging the heater.
• Keep the cable away from sources of heat, oil, sharp edges or moving
parts. Damaged or tangled cables increase the risk of electric shock.
• Do not use extension cables with this heater.
4
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 5
POSITIONING
WARNING: DO NOT USE THE HEATER NEAR FLAMMABLE MATERIAL,
LIQUIDS, SOLIDS, GASSES OR COMPRESSED GAS CYLINDERS ETC.
• This heater is designed for indoor use only.
• DO NOT place the heater close to a bath, wash basin, shower, swimming
pool or any other water-filled area or wet surface. DO NOT place the
heater against any surface such as a wall, door or furniture etc.
• DO NOT place the heater immediately below any electrical outlet.
• NEVER place the heater near combustible materials etc. Allow 2 metres
clearance all round this heater.
• DO NOT place the heater on a raised surface or anywhere it could
topple over.
• Take care to ensure that the grille cannot be blocked.
• Do not operate fan heater in explosive atmospheres such as in the
presence of flammable liquids, gasses or dust such as in a paint spray
booth, or any explosive environment. Electric motors create sparks
which may ignite dust or fumes.
OPERATION
• The heater must only be used by people who have read these
instructions and have been trained in its use.
• DO NOT obstruct the air inlet and outlet sections of the heater.
• DO NOT cover the heater.
• DO NOT touch the heater casing or grille when first switched off, as these
will be very hot and will take time to cool.
• DO NOT get the heater wet or use in areas of high condensation.
• DO NOT allow the power lead to touch hot surfaces.
• DO NOT connect other appliances to the same mains socket as the
heater.
• Only use the heater in a level position.
• Do not use this heater with a programmable timer used to switch it on
automatically.
5
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 6
MAINTENANCE.
WARNING: DISCONNECT THE HEATER FROM THE POWER SUPPLY BEFORE
SERVICING OR PERFORMING ANY MAINTENANCE. THIS MUST ONLY BE
CARRIED OUT BY THE CLARKE SERVICE DEPARTMENT.
• Check that the heater is in good working order. Take immediate action
to have it repaired or any damaged parts replaced.
• DO NOT attempt to repair a damaged heater yourself. Always contact
the Clarke service department.
• Do not allow the heating elements to become covered with dust, which
could become a fire hazard. If used in a dusty workplace it should be
cleaned as described under Cleaning and Maintenance.
• The Clarke service department will use recommended parts only.
Unapproved parts may be dangerous and will invalidate the warranty.
SERVICING & REPAIRS
• Have your heater repaired by a qualified person using identical
replacement parts to maintain the safety of the appliance.
SAFETY SYMBOLS
These safety symbols appear on the heater.
Hot Surface,
Do Not Touch
WEEE Directive for the
disposal of waste
electrical & electronic
equipment
Do Not Cover
ENVIRONMENTAL RECYCLING POLICY
Through purchase of this product, the customer is taking on the
obligation to deal with the WEEE in accordance with the WEEE
regulations in relation to the treatment, recycling & recovery and
environmentally sound disposal of the WEEE.
In effect, this means that this product must not be discarded with general
household waste. It must be discarded according to the laws governing
Waste Electrical and Electronic Equipment (WEEE) at a recognized disposal
facility.
6
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 7

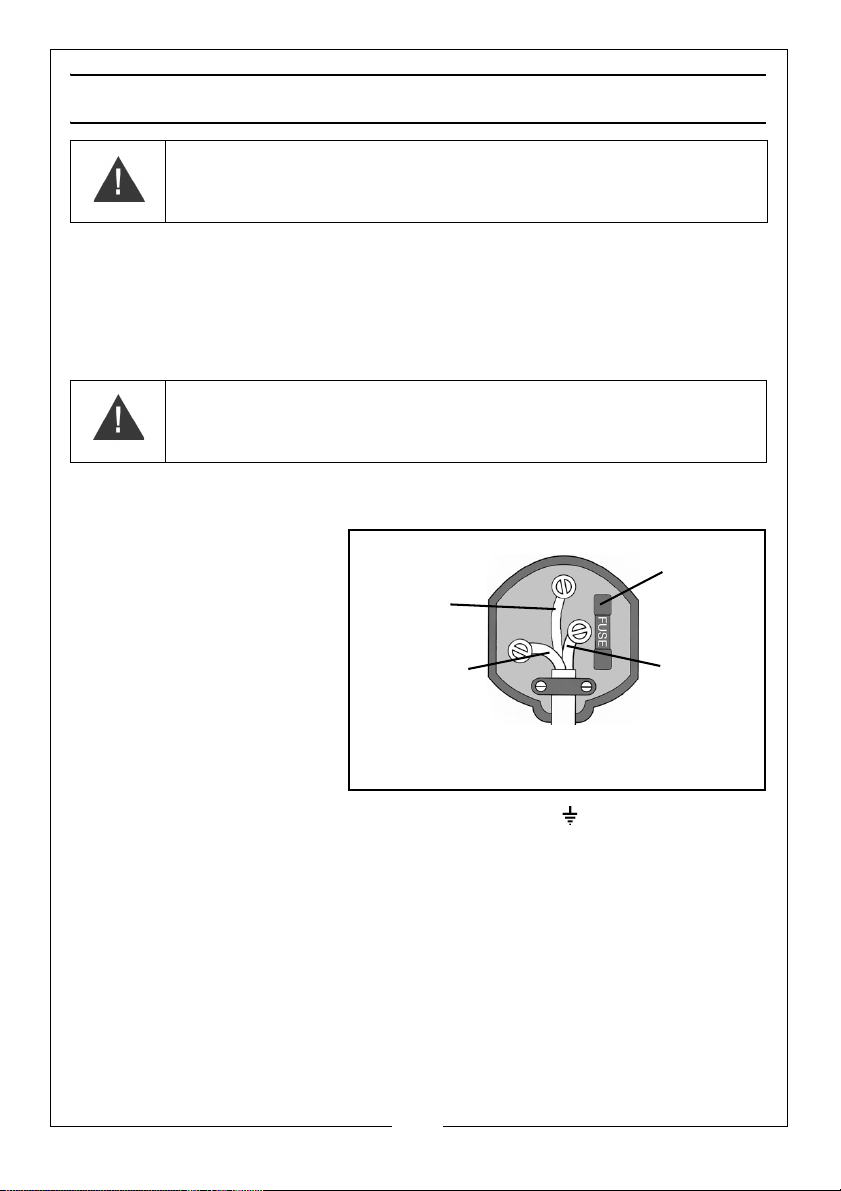

ELECTRICAL CONNECTIONS
Plug must be BS1363/A approved.
Always fit
Ensure that the outer sheath of
Neutral
(Blue)
Live
(Brown)
Earth
(Green and
a 13 Amp
the cable is firmly held by the clamp
fuse.
Yel low)
WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS
THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS
SUPPLY.
Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply
through an approved 13 amp BS 1363 plug, or a suitably fused isolator switch.
If the plug has to be changed because it is not suitable for your socket, or
because of damage, it must be removed and a replacement fitted, following
the wiring instructions shown below. The old plug must be discarded safely, as
insertion into a power socket could cause an electrical hazard.
WARNING: THE WIRES IN THE POWER CABLE OF THIS PRODUCT ARE
COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:
BLUE = NEUTRAL BROWN = LIVE YELLOW AND GREEN = EARTH
If the colours of the wires in the power cable do not agree with the markings
on the plug.
• The BLUE wire must be
connected to the
terminal which is
marked N or coloured
black.
• The BROWN wire must
be connected to the
terminal which is
marked L or coloured
red.
• The YELLOW AND
GREEN wire must be
connected to the terminal which is marked E or or coloured green.
We strongly recommend that this machine is connected to the mains supply
through a Residual Current Device (RCD)
If you are not sure, consult a qualified electrician. DO NOT try to do any repairs
yourself.
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
7
Page 8

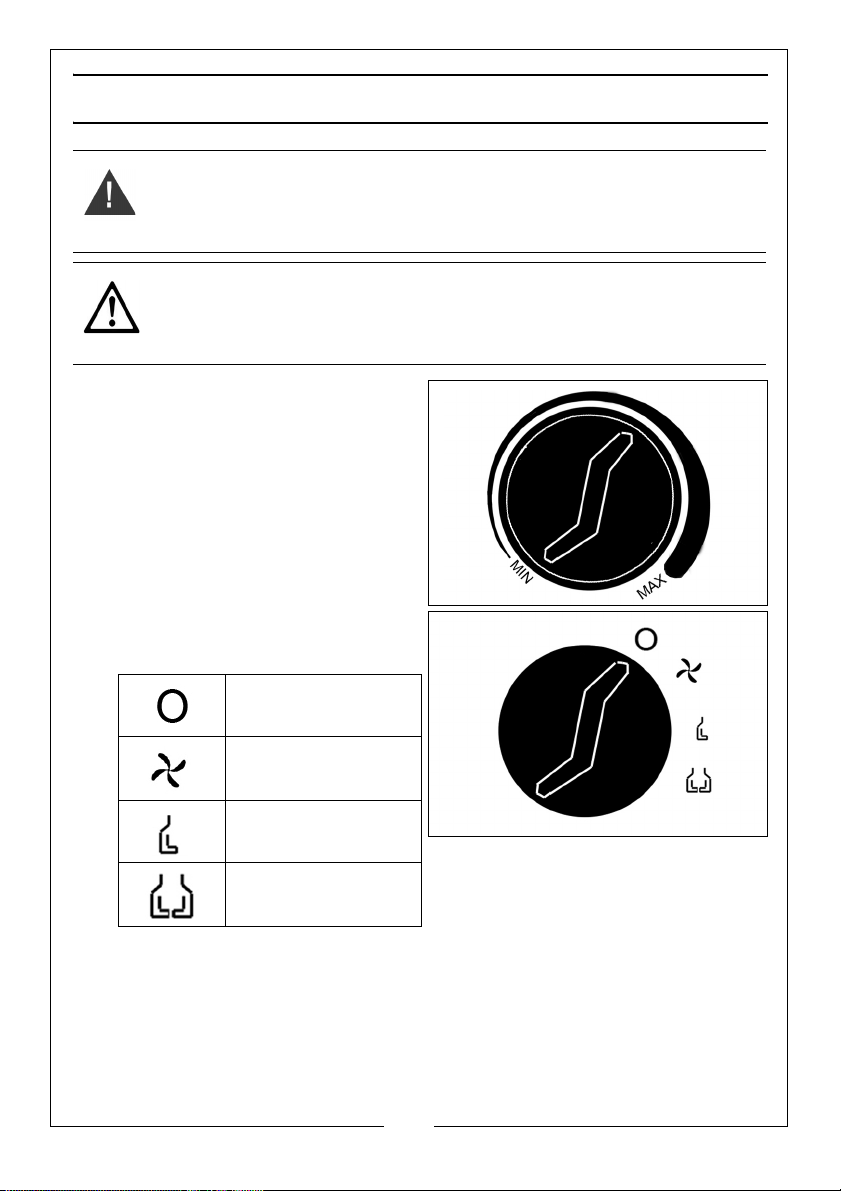

OPERATION
WARNING: DO NOT USE THIS HEATER IN SMALL ROOMS WHEN THEY ARE
OCCUPIED BY PERSONS NOT CAPABLE OF LEAVING THE ROOM ON THEIR
OWN, UNLESS CONSTANT SUPERVISION IS PROVIDED.
CAUTION: PARTS OF THIS HEATER CAN BECOME VERY HOT AND CAUSE
BURNS. PARTICULAR ATTENTION HAS TO BE GIVEN WHERE CHILDREN
AND VULNERABLE PEOPLE ARE PRESENT.
1. Place the heater in a level
position on a flat surface and at a
safe distance from flammable
materials. Keep 2m clearance all
round.
2. Connect the heater to a suitable
power supply.
3. Set the thermostat control to the
maximum setting (fully clockwise).
4. Set the mode selector to one of
the following settings:
Off
Fan Only
Fan + Heat Setting 1
Fan + Heat Setting 2
• The heater will take up to three minutes to reach optimum temperature.
5. Once the room reaches the required temperature, turn the thermostat
control slowly counter-clockwise until the thermostat clicks, leave the
control in this position.
• The heater will continue to operate until the power switch is turned to
the OFF position.
8
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 9
6. For fan only operation, turn the power switch to the fan only setting and set
the thermostat to its minimum setting.
7. When not in use, disconnect the heater from the mains supply. Store it in a
safe, dry, childproof location.

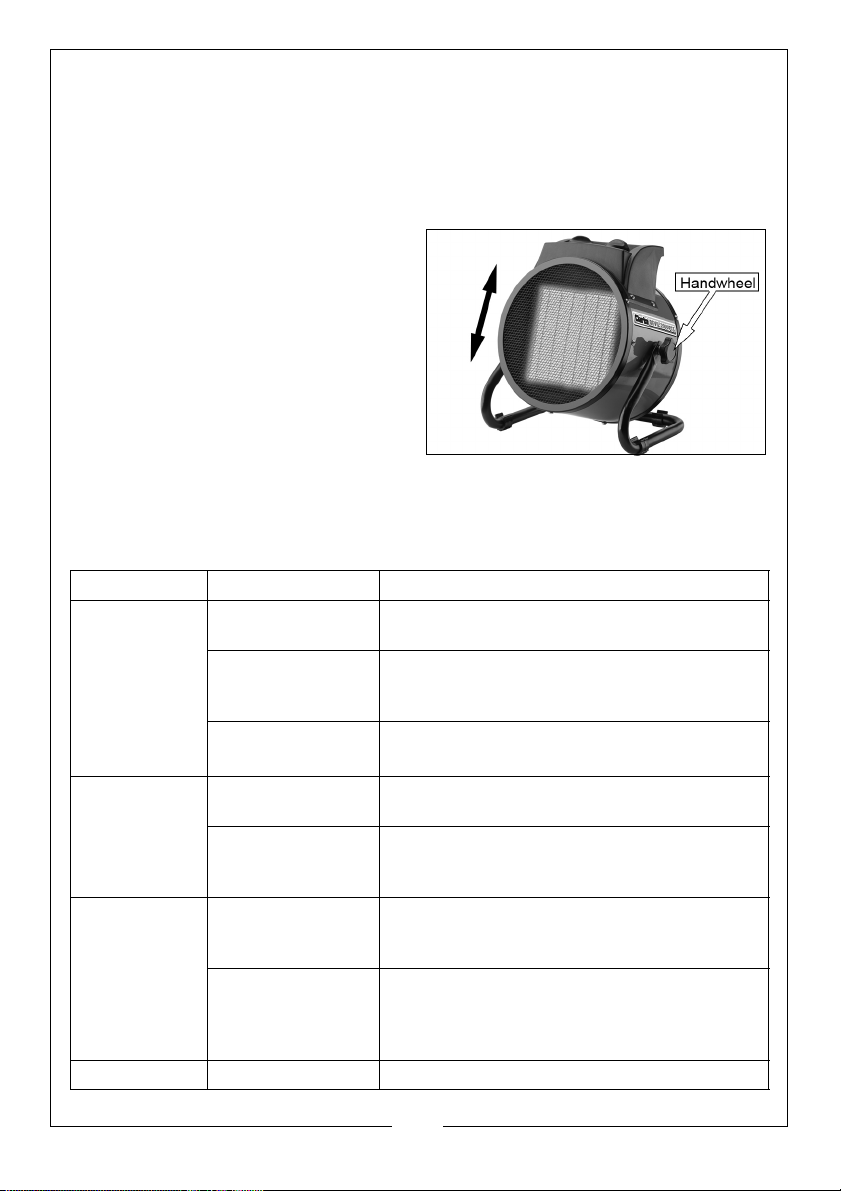

ADJUSTING THE ANGLE
1. Loosen both handwheels.
2. Adjust to the required angle.
3. Retighten the handwheels.
THERMOSTATIC PROTECTION
The Devil 2000PTC has a thermal cut
out to prevent it from overheating.
If the temperature of the front grille
gets too high the thermal cutout will
turn off the heating elements. When the fan has cooled the unit sufficiently,
normal operation will resume.
FAULTFINDING
Problem Possible Cause Remedy
Heater does
not operate,
although
plugged in
with the switch
and
thermostat
switched on.
Heating
element
glowing hot.
Heater has
failed to heat
up so only the
air fan has
operated.
Abnormal noise
Plug is loose/bad
connection.
Fuse blown or
circuit breaker trips.
No power at
socket
Input voltage too
high.
Air inlet grille is
blocked
Control switch not
set at a "HEATING"
level.
Thermostat has
tripped.
Heater is not level. Stand heater on a level surface
Pull the plug out & check the connection of
the plug and socket.
Replace if necessary and investigate cause. If
fuse blows repeatedly, consult your Clarke
dealer.
Insert the plug in a functioning socket
Use a power supply in accordance with the
rating on the label.
Ensure the heater is kept away from any
objects which could cover the air inlet or be
drawn into it.
Turn switch to a heating level.
Turn the thermostat and listen. If there is no
CLICK and the thermostat is not damaged,
the heater will automatically switch ON when
it has cooled down.
9
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 10
MAINTENANCE
WARNING: .ALWAYS DISCONNECT FROM THE POWER SUPPLY AND ALLOW
THE HEATER IT TO COOL DOWN BEFORE PERFORMING ANY
MAINTENANCE TASKS
• Clean the heater with a soft damp cloth, Do not use solvents or
abrasives.
• Make sure that the heater grille is not blocked.
• No other maintenance is required, should you discover any problem
with the heater, return it to the Clarke service department for repair.
DECLARATIONS OF CONFORMITY
10
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 11

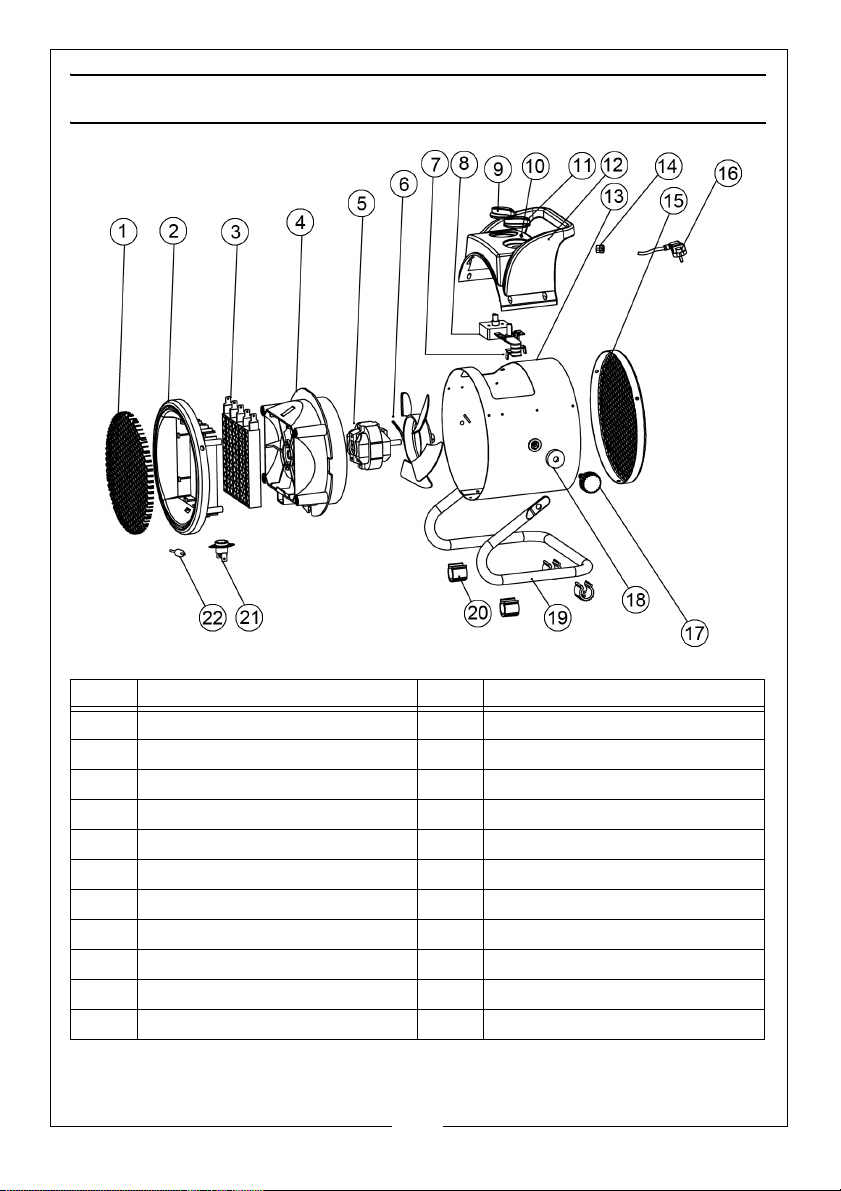

PARTS LIST & DIAGRAM
NO DESCRIPTION NO DESCRIPTION
1 Front Grille 12 Control Box
2 Air Outlet 13 Outer Casing
3 PTC Heating Element 14 Cable Fastener
4 Air Flue 15 Back Grill
5 Motor 16 Power Cable
6Fan 17Screw
7 Adjustable Thermostat 18 Rubber Gasket
8 Rotary Switch 19 Steel Pipe
9Switch Knob 20Feet
10 Indicator Lamp Cover 21 Self Setting Thermostat
11 Thermostatic Knob 22 Metal Thermal Protection
11
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 12
Loading...
