210MM (8”) MITRE SAW
MODEL NO: CMS210S
PART NO: 6501325
OPERATION & MAINTENANCE
INSTRUCTIONS
LS1117 - ISS 3
Page 2
INTRODUCTION
Thank you for purchasing this CLARKE 210mm (8”) Mitre Saw.
Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.
IMPORTANT
Please read all of the safety and operating instructions carefully before using this
product. Please pay particular attention to all sections of this User Guide that
display warning symbols and notices.
WARNING: THIS IS A WARNING SYMBOL. THIS SYMBOL IS USED
THROUGHOUT THE USER GUIDE WHENEVER THERE IS A RISK OF
PERSONAL INJURY. ENSURE THAT THESE WARNINGS ARE READ AND
UNDERSTOOD AT ALL TIMES.
CAUTION: THIS IS A CAUTION SYMBOL. THIS SYMBOL IS USED
THROUGHOUT THE USER GUIDE WHENEVER THERE IS A RISK OF
DAMAGING YOUR PRODUCT. ENSURE THAT THESE CAUTIONS ARE
READ AND UNDERSTOOD AT ALL TIMES.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does not effect your statutory rights.
2
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 3
CABLE SAFETY RULES
WORK AREA
1. Keep the work area clean and
well lit. Cluttered and dark areas
invite accidents.
2. Do not operate power tools in
explosive atmospheres, such as in
the presence of flammable
liquids, gases or dust. Power tools
create sparks which may ignite
the dust or fumes.
3. Keep children and bystanders
away while operating a power
tool. Distractions can cause you
to lose control.
ELECTRICAL SAFETY
1. Power tool plugs must match the
outlet. Never modify the plug in
any way. Do not use adapter
plugs with earthed (grounded)
power tools. Unmodified plugs
and matching outlets will reduce
the risk of electric shock.
2. Do not expose power tools to rain
or wet conditions. Water entering
a power tool will increase the risk
of electric shock.
3. Do not abuse the cable. Never
use the cable for carrying, pulling
or unplugging the power tool.
Keep the cable away from heat,
oil, sharp edges or moving parts.
Damaged or entangled cables
increase the risk of electric shock.
4. When operating a power tool
outdoors, use an extension cable
suitable for outdoor use. Use of a
cable suitable for outdoor use
reduces the risk of electric shock.
5. If operating the power tool in a
damp location is unavoidable,
use a residual current device
(RCD) protected supply.
PERSONAL SAFETY
1. Stay alert, watch what you are
doing and use common sense
when operating a power tool. Do
not use a power tool while you
are tired or under the influence of
drugs, alcohol or medication. A
moment of inattention while
operating power tools may result
in personal injury.
2. Use safety equipment. Always
wear eye protection. Safety
equipment such as dust mask,
non-skid safety shoes, hard hat, or
hearing protection used for
appropriate conditions will
reduce personal injuries.
3. Avoid accidental starting. Ensure
the switch is in the off position
before plugging in. Carrying
power tools with your finger on
the switch or plugging in power
tools that have the switch on
invites accidents.
4. Remove any adjusting key or
wrench before turning the power
tool on. A wrench or a key left
attached to a rotating part of the
power tool may result in personal
injury.
5. Do not overreach. Keep proper
footing and balance at all times.
This enables better control of the
power tool in unexpected
situations.
3
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 4
GENERAL SAFETY RULES
6. Dress properly. Do not wear loose
clothing or jewellery. Keep your
hair, clothing and gloves away
from moving parts. Loose clothes,
jewellery or long hair can be
caught in moving parts.
7. A laser beam can cause serious
eye injury. Never look into the
laser outlet.
POWER TOOL USE AND CARE
1. Do not force the power tool. Use
the correct power tool for your
application. The correct power
tool will do the job better and
safer at the rate which it was
designed.
2. Do not use the power tool if the
switch does not turn it on and off.
Any power tool that cannot be
controlled with the switch is
dangerous and must be repaired.
3. Disconnect the plug from the
power source before making any
adjustments, changing
accessories, or storing power
tools. Such preventive safety
measures reduce the risk of
starting the power tool
accidentally.
4. Store idle tools out of the reach of
children and do not allow persons
unfamiliar with the power tool or
these instructions to operate the
power tool. Power tools are
dangerous in the hands of
untrained users.
5. Maintain power tools. Check for
misalignment or binding of
moving parts, breakage of parts
and any other condition that may
affect the power tools operation.
If damaged, have the power tool
repaired before use. Many
accidents are caused by poorly
maintained power tools.
6. Keep cutting tools sharp and
clean. Tools with sharp cutting
edges are less likely to bind and
are easier to control.
7. Use the power tool and
accessories in accableance with
these instructions and in the
manner intended, taking into
account the working conditions
and the work to be performed.
Use of the power tool for
operations different from
intended use could result in a
hazardous situation.
ADDITIONAL SAFETY RULES FOR MITRE SAWS
1. Make sure all locking knobs and
clamp handles are tight before
starting any operation.
2. Do not operate the machine
without the guard in position, or if
the guard does not function
correctly or is not maintained
properly.
3. Never use your saw without the
kerf plate.
4. Never place either hand in the
blade area when the saw is
connected to the electrical
power source.
4
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 5
ADDITIONAL SAFETY RULES FOR MITRE SAWS
5. Never attempt to stop a machine
in motion rapidly by jamming
anything against the blade; injury
can result.
6. Before using any accessory
consult the instruction manual.
The improper use of an accessory
can cause damage.
7. Observe the maximum speed
marked on the saw blade.
8. Always wear gloves when
handling a saw blade.
9. Do not use blades of larger or
smaller diameter than
recommended. For the proper
blade rating refer to the technical
data. Use only the blades
specified in the specifications
section of this manual.
10. Do not use cracked or damaged
saw blades.
11. Do not use any abrasive discs.
12. Raise the blade from the kerf in
the workpiece prior to releasing
the switch.
13. Ensure that the arm is securely
fixed when performing bevel cuts.
14. The blade guard on your saw will
automatically raise when the arm
is brought down; it will lower over
the blade when the arm is raised.
The guard can be raised by hand
when installing or removing saw
blades or for inspection of the
saw. Never raise the blade guard
manually unless the saw is
switched off.
15. Keep the surrounding area of the
machine well maintained and
free of loose materials, e.g. chips
and cut-offs.
16. Before use, check that the motor
air slots are clean and free of dust
and woodchips.
17. Replace the kerf plate when
worn.
18. Disconnect the machine from the
mains before carrying out any
maintenance work or when
changing the blade.
19. Never perform any cleaning or
maintenance work when the
machine is still running and the
head is not in the rest position.
20. When possible, always mount the
machine onto a bench or
plywood base which is then
clamped to a bench, or mount
the machine to a purpose built
mitre saw stand available from
your local Clarke dealer.
5
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 6

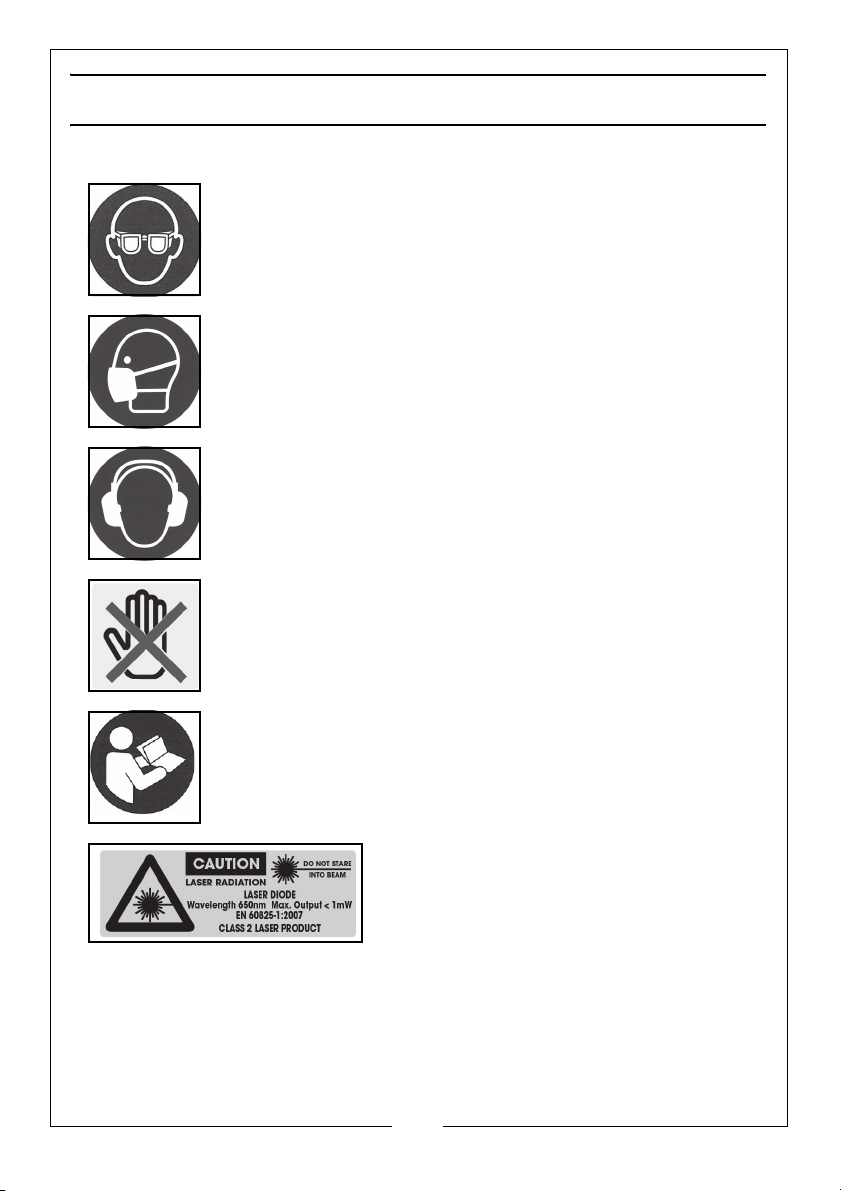

SAFETY SYMBOLS
Wear eye protection
Wear dust mask
Wear ear defenders
Do not put your hand near the blade
Read instruction manual before use
Laser Radiation, Class 2 Laser: Do not stare
into the beam.
6
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 7

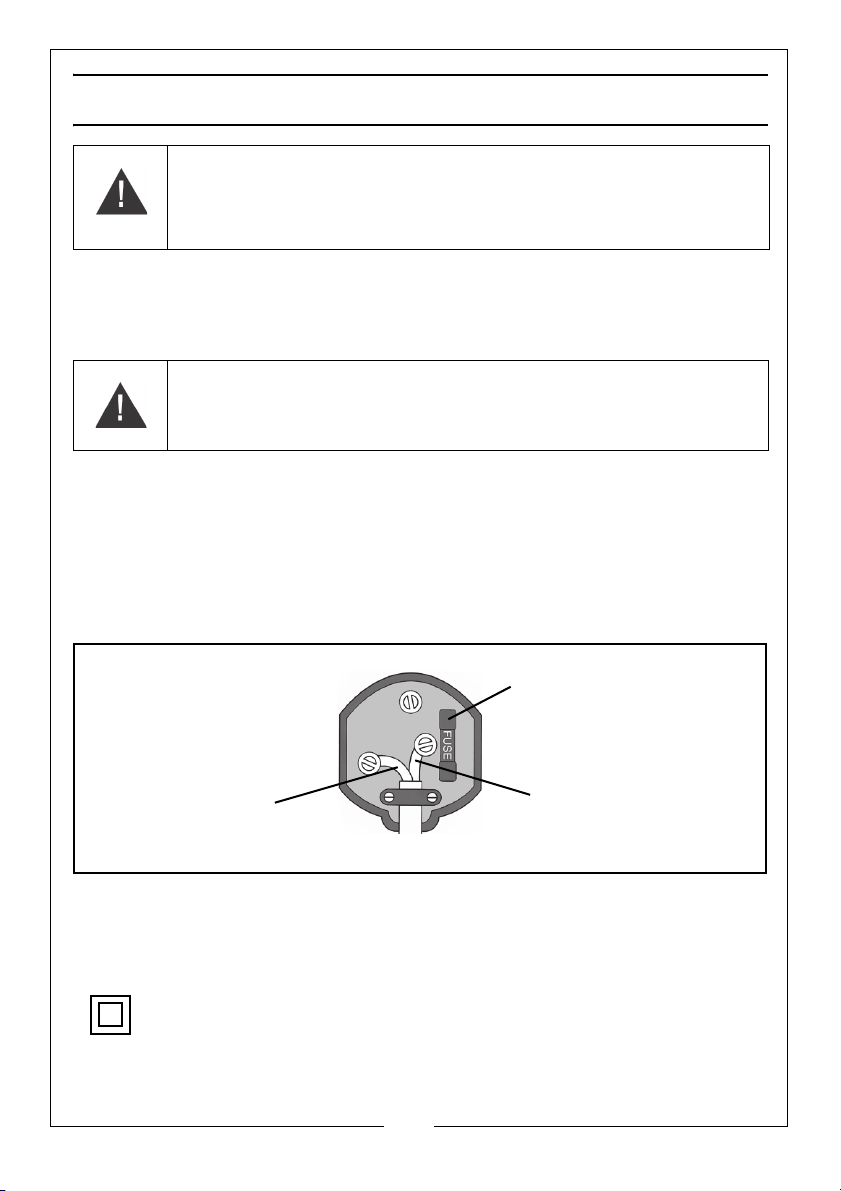

ELECTRICAL CONNECTIONS
Plug must be BS1363/A approved.
Always fit a 13 Amp fuse.
Ensure that the outer sheath of the cable is firmly held by the clamp
Neutral
(Blue)
Live
(Brown)
WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS
THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS
SUPPLY.
This product is provided with a standard 13 amp, 230 volt (50Hz), BS 1363 plug,
for connection to a standard, domestic electrical supply. Should the plug
need changing at any time, ensure that a plug of identical specification is
used.
WARNING: THE WIRES IN THE POWER CABLE OF THIS PRODUCT ARE
COLOURED IN ACCABLEANCE WITH THE FOLLOWING CODE:
BLUE = NEUTRAL BROWN = LIVE
If the colours of the wires in the power cable of this product do not correspond
with the markings on the terminals of your plug, proceed as follows.
• The wire which is coloured Blue must be connected to the terminal
which is marked N or coloured Black.
• The wire which is coloured Brown must be connected to the terminal
which is marked L or coloured Red.
We strongly recommend that this machine is connected to the mains supply
via a Residual Current Device (RCD)
If in any doubt, consult a qualified electrician. DO NOT attempt any repairs
yourself.
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
This symbol indicates that this is a Class II product, and does not require
an earth connection.
7
Page 8

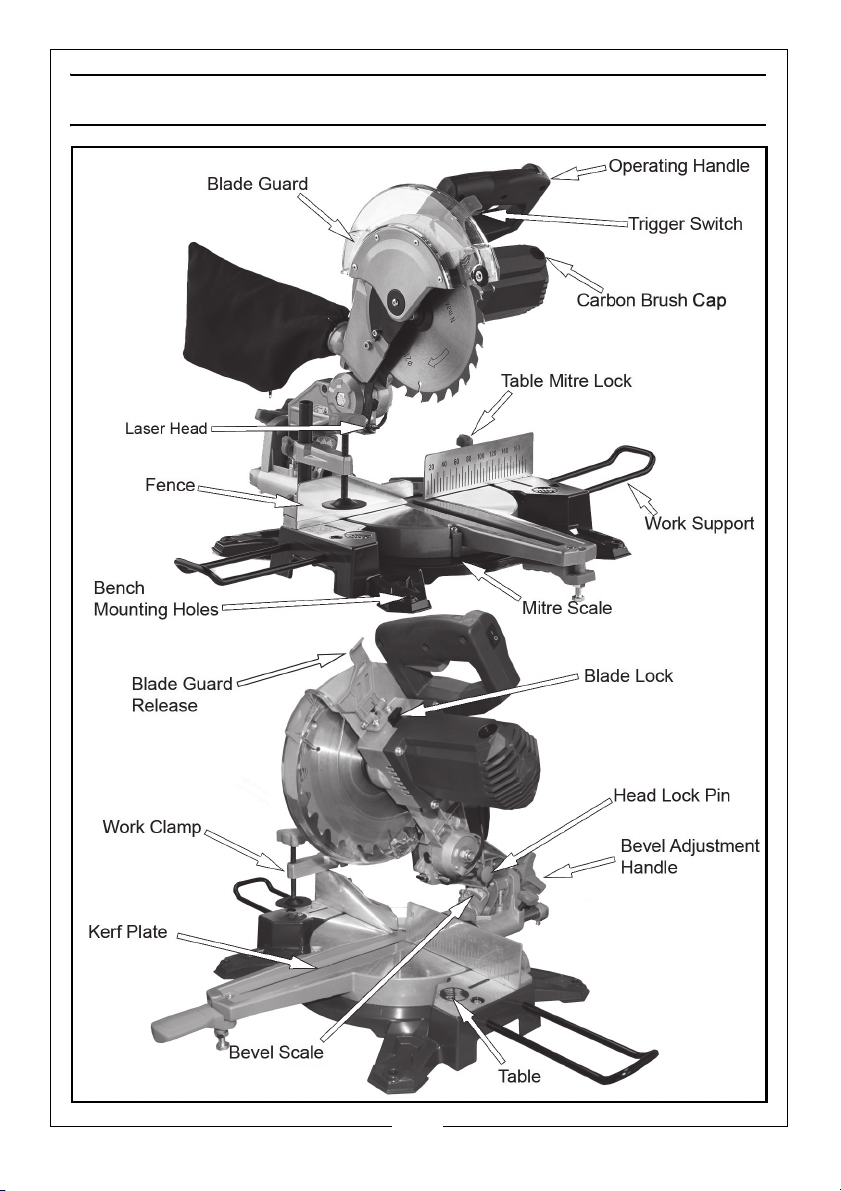

Page 9

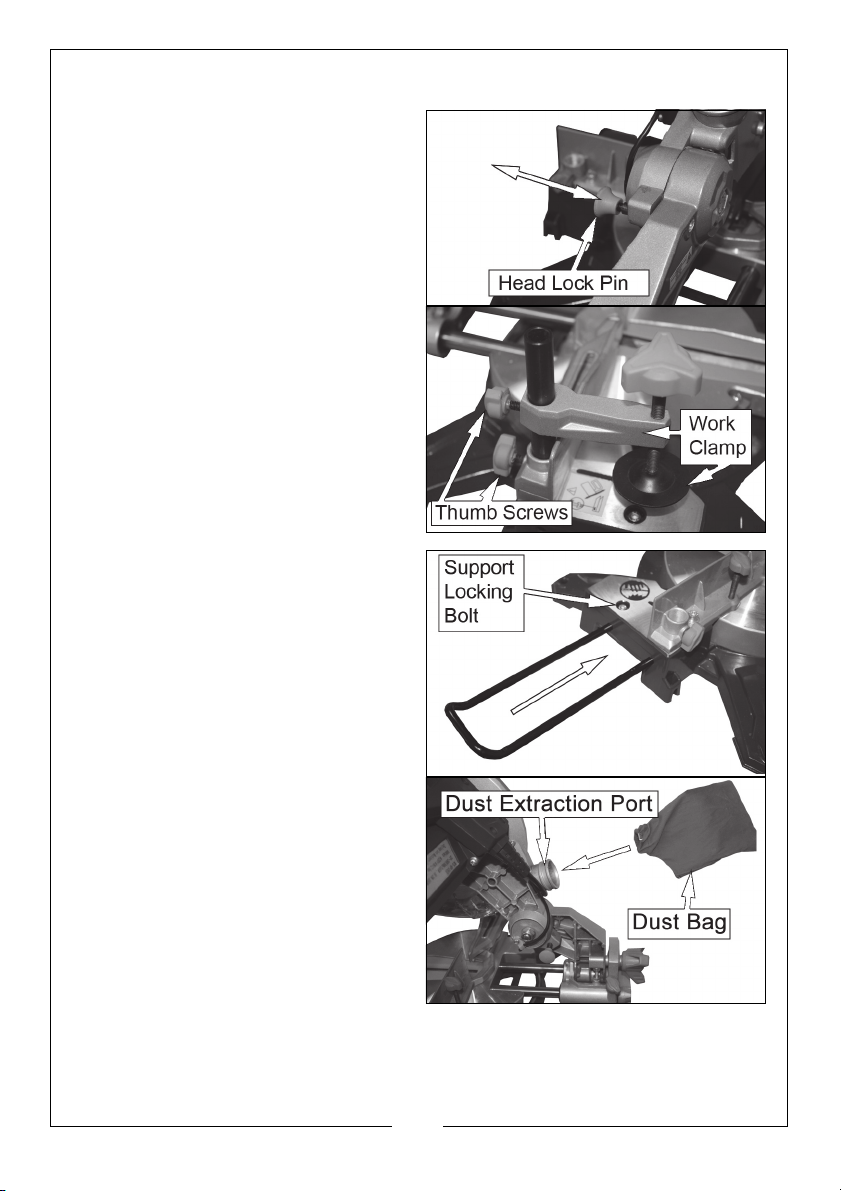

BEFORE USE
1. Remove the saw from the packing material carefully.
• The following should be supplied. If anything is missing contact your
dealer.
210 mm Sliding Mitre Saw with Laser Guide 24 tooth TCT Blade (fitted)
Work Clamp Assembly Dust Collection Bag
2 x Work Supports 2 x Hexagon Key; 4 mm + 6 mm
BENCH MOUNTING
Holes are provided in all four feet to
facilitate bench mounting.
• Always mount your saw firmly
on a level surface to prevent
movement.
The saw can also be mounted to a
piece of 12.5 mm or thicker plywood
which can then be clamped to your
bench or moved to other job sites
and re-clamped when required.
• When mounting your saw to a piece of plywood, make sure that the
mounting screws do not protrude from the underside of the wood.
• If the saw rocks on the mounting surface, place a thin piece of material
under one foot until the saw is stable.

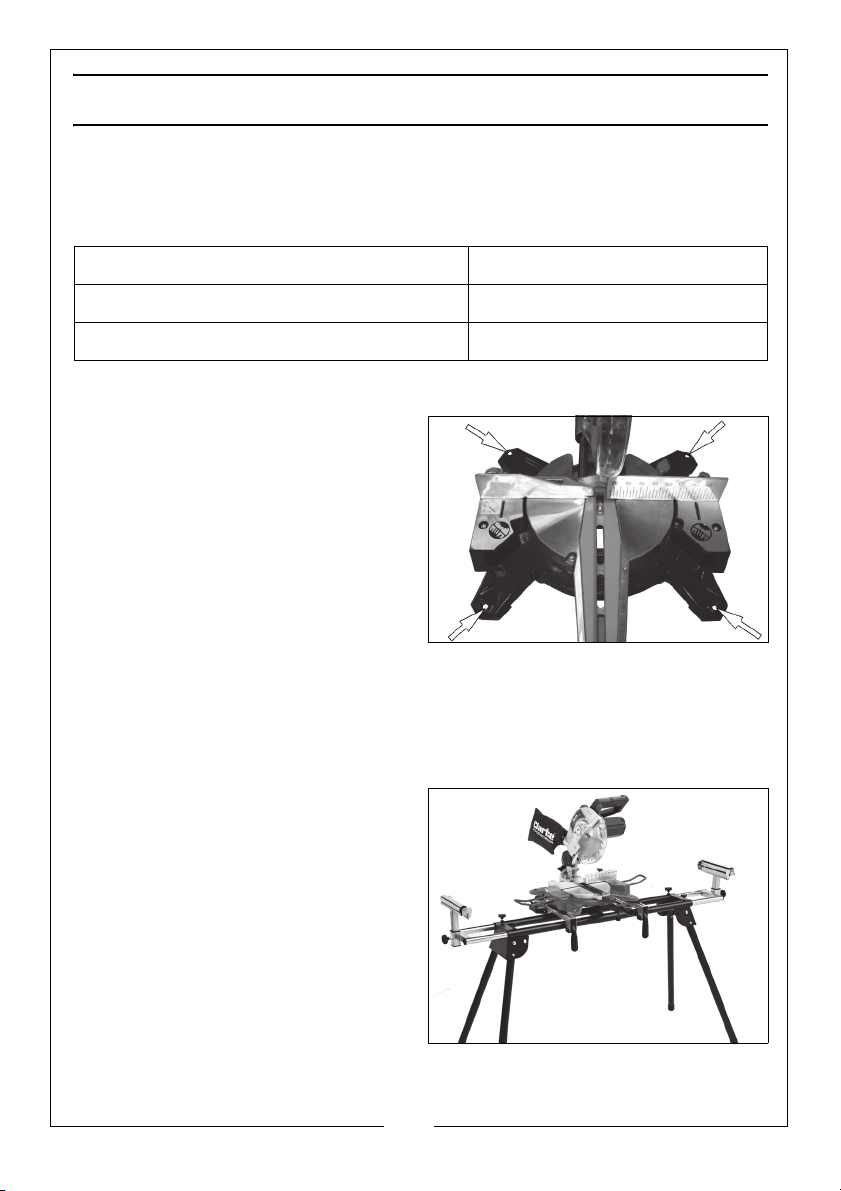

MITRE SAW STAND (NOT SUPPLIED)
You can also mount the machine to
a purpose built mitre saw stand
available from your local Clarke
dealer.
This highly versatile, folding stand
includes extendable workpiece
supports and is great for onsite use
and when cutting longer workpieces
9
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 10
LOCKING / RELEASING THE SAW HEAD
1. Press down slightly on the
operating handle and pull out the
head lock pin.
2. Gently release the downward
pressure on the operating handle
and allow the head to rise to its full
height.
FITTING THE WORK CLAMP
1. Loosen the thumb screw on the
clamp support.
2. Slide the work clamp into the
clamp support.
3. Tighten the thumb screw to
secure the work clamp.
4. Adjust the clamp as required.

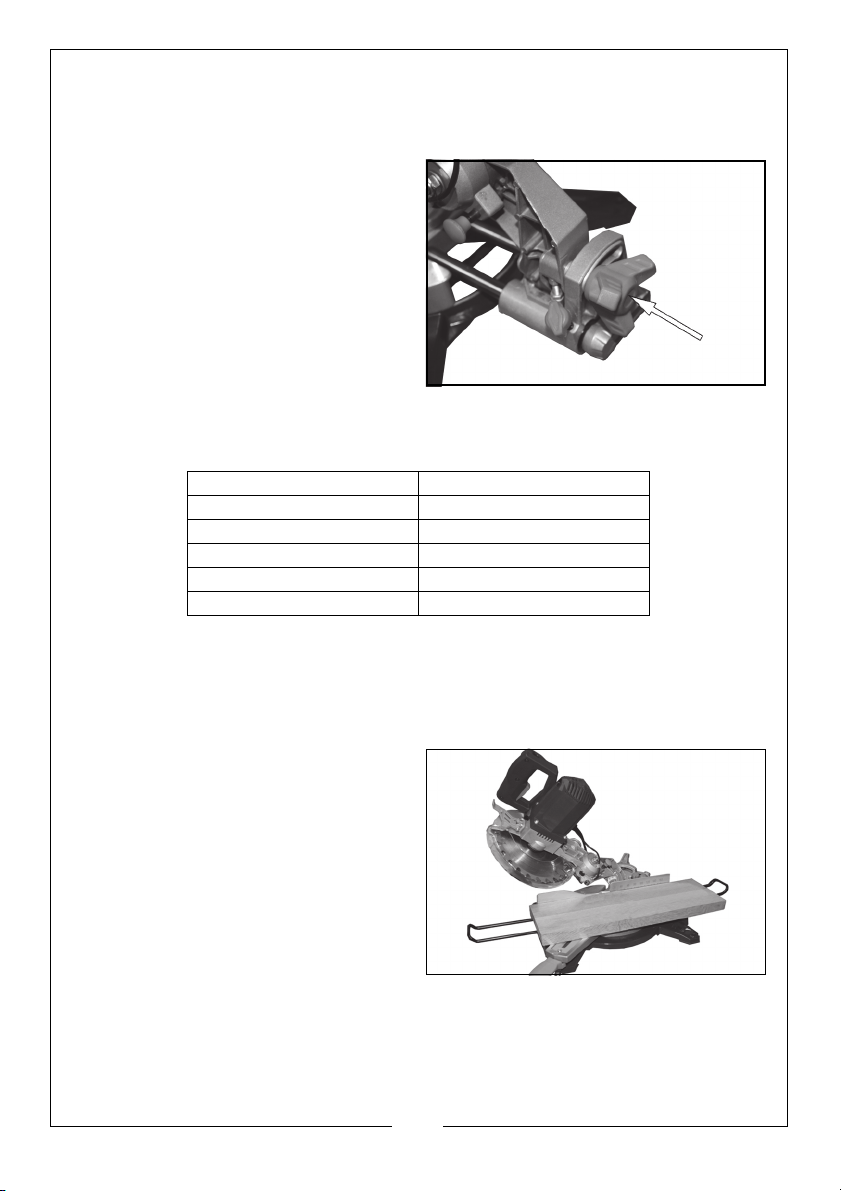

FITTING WORK SUPPORTS
1. Loosen the support locking bolt.
2. Slide the work supports into place
(at each end of the cutting bed)
as shown.
3. Secure in place by tightening the
support locking bolts.
DUST EXTRACTION
This machine is provided with a dust
extraction point for connection to a
dust bag (supplied).
1. Place the dust bag over the dust
extraction port using the clip on
the neck of the dust bag.
2. Make sure the zipper on the dust
bag is closed.
3. The dust extraction port may also be connected to a suitable extraction
system, using the appropriate hose (not supplied).
• Dust Extraction Port diameter: (Inner 35mm / Outer 45 mm).
10
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 11
INSTRUCTIONS FOR USE
Always observe the safety instructions and applicable regulations.
BODY AND HAND POSITION
Proper positioning of your body and hands when operating the mitre saw will
make cutting easier and safer.
• Never place your hands near the cutting area or blade.
• Hold the workpiece tightly to the table and the fence when cutting.
• Keep your hands in position until the trigger switch has been released
and the blade has completely stopped.
• Do not cross your hands.

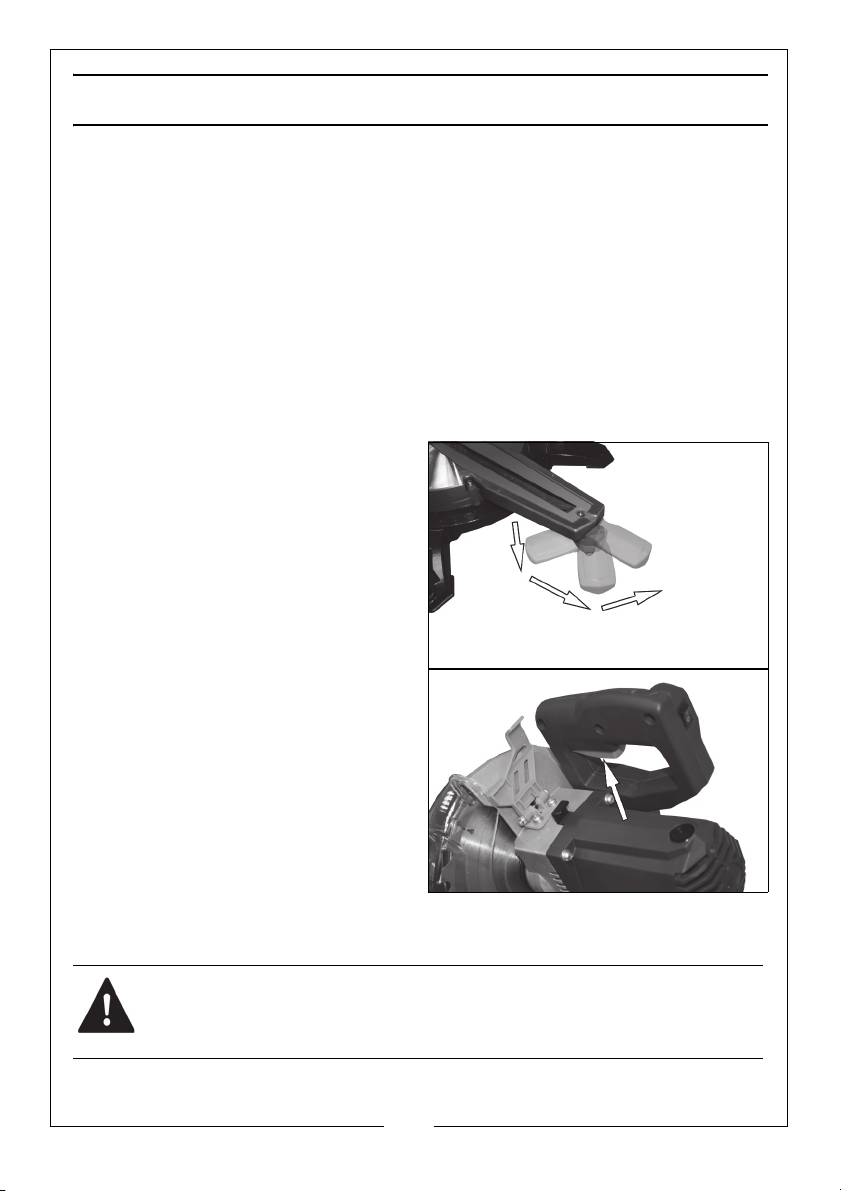

FRONT HANDLE
Rotate the front handle into position
as shown.
When the handle is out and inline
with the saw blade lift it to lock it into
place.
SWITCHING ON AND OFF
1. To start the saw, squeeze the
trigger switch.
• Allow the motor to reach full
speed before cutting.
2. To stop the saw, release the
trigger switch.
NOTE: The main handle will get
warm to the touch when the
saw is connected to the mains supply, this is to be expected and does
not indicate a fault.
WARNING: THE BLADE WILL CONTINUE TO ROTATE AFTER THE SWITCH HAS
BEEN RELEASED.
11
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 12
BASIC SAW CUTS
VERTICAL STRAIGHT CROSS CUT

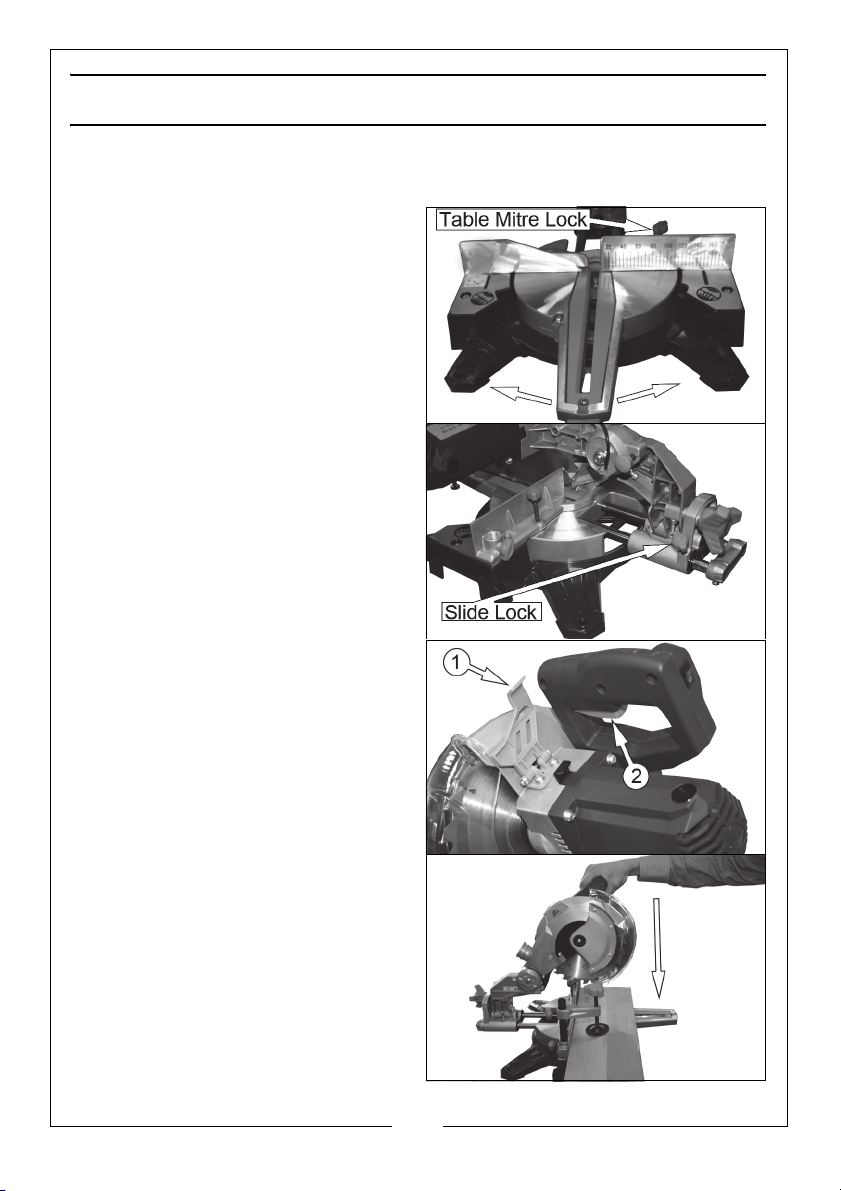

1. Release the table mitre lock and
move the arm to the 0° position
and re-tighten the table mitre
lock.

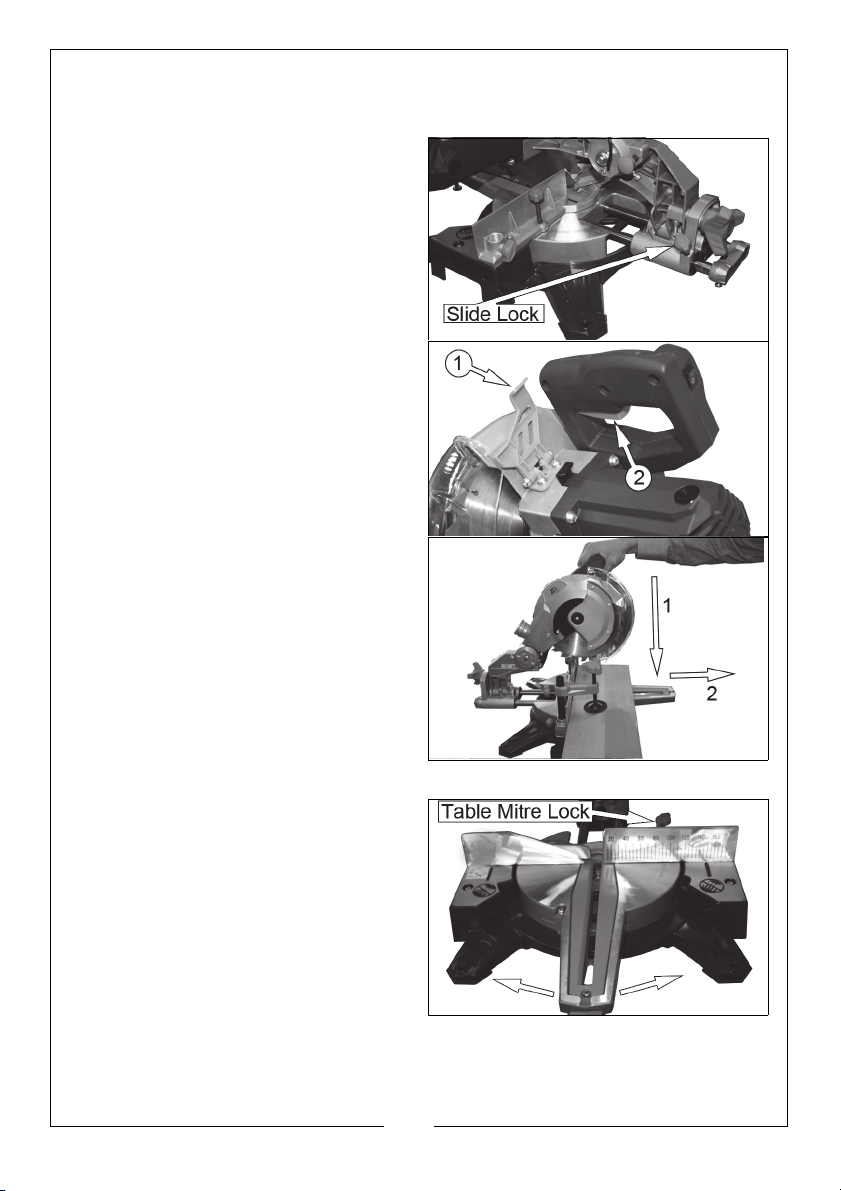

2. Release the slide lock, and push
the saw head back to the rear
position.
3. Retighten the slide rail lock.
4. Place the wood to be cut against
the fence.
5. Grasp the operating handle and
press and hold the blade guard
release lever (1) to release the
head.
6. Squeeze the trigger switch (2) to
start the saw.
7. Lower the head allowing the
blade to cut through the timber
and enter the kerf plate.
• Allow the blade to cut freely.
Do not force the saw.
8. After completing the cut, release
the trigger and wait for the saw
blade to come to a complete
standstill before returning the
head to its upper resting position.
12
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 13
PERFORMING A SLIDING CUT
The guide rail allows cutting larger workpieces up to 340 mm x 78 mm
1. Release the slide rail lock.
2. Grasp the operating handle and
press and hold the blade guard
release lever (1) to release the
head.
3. Squeeze the trigger switch (2) to
start the saw.
4. Plunge the saw head down
through the workpiece.
5. When the head is fully depressed,
slowly pull it across to complete
the cut.
6. After completing the cut, release
the trigger and wait for the saw
blade to come to a complete
standstill before returning the
head to its upper resting position.
MITRE CROSS-CUT
1. Release the table mitre lock and
move the arm left or right to the
required angle.
2. Lock in position by tightening the
table mitre lock.
• Always ensure that the table
mitre lock is securely tightened
before cutting.
NOTE: When you mitre the end of a piece of wood with a small off-cut, place
the wood so that the off-cut is to the side of the blade with the greater
angle to the fence.
13
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 14
BEVEL CUTS
Bevel angles can be set from 45° left to vertical and can be cut with the mitre
arm set between zero and a maximum of 45° right or left.
1. Loosen the bevel lock and set the
bevel at the desired angle.
2. Tighten the bevel lock firmly.
3. Proceed as for a vertical straight
cross-cut.
• Allow the blade to cut freely.
Do not force the tool.
MITRE / BEVEL CUTS
As the number of sides the workpiece has changes, so do the mitre and bevel
angles. The chart below gives the cutting angles for a variety of shapes,
assuming that all sides are of equal length.
No. of sides Angle mitre or bevel
4 45°
5 36°
6 30°
8 22.5°
10 18°
COMPOUND MITRE CUTS
A compound mitre is a cut made using a mitre angle and a bevel angle at the
same time. This is the type of cut used to make frames or boxes with bevelled
sides.
1. Set your saw to the required
angles and make a few trial cuts.
2. Practice fitting the cut pieces
together.
3. Always try cuts on a few scrap
pieces of wood to verify the
settings on the saw.
14
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 15

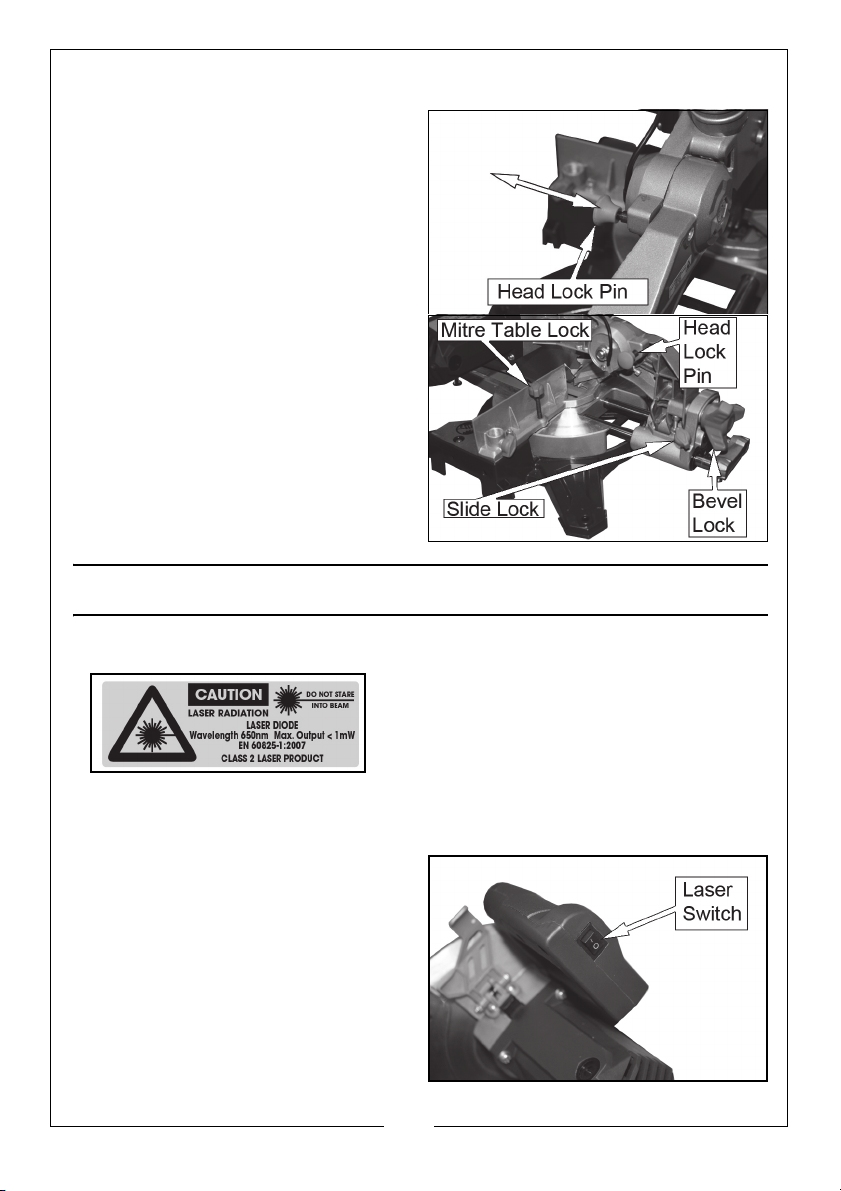

TRANSPORTING THE SAW
1. Lower the head and lock it down
using the head lock pin.
2. Lock the mitre arm with the table
mitre lock.
3. Lock the sliding mechanism using
the slide lock.
4. Lock the saw head in the vertical
position using the bevel lock.
THE LASER GUIDE
Your saw is fitted with a laser guide to assist with accurate cutting.
CAUTION: LASER RADIATION, CLASS 2 LASER:
DO NOT STARE INTO THE BEAM.
SWITCHING ON/OFF
Switch the laser on/off using the on/
off switch.
• Turn on the laser before you
make a cut and off again after
you have finished the cut.
15
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 16
ADJUSTMENTS
WARNING: MAKE SURE THAT THE SAW IS SWITCHED OFF AND UNPLUGGED
FROM THE MAINS SUPPLY BEFORE PERFORMING ANY ADJUSTMENTS.

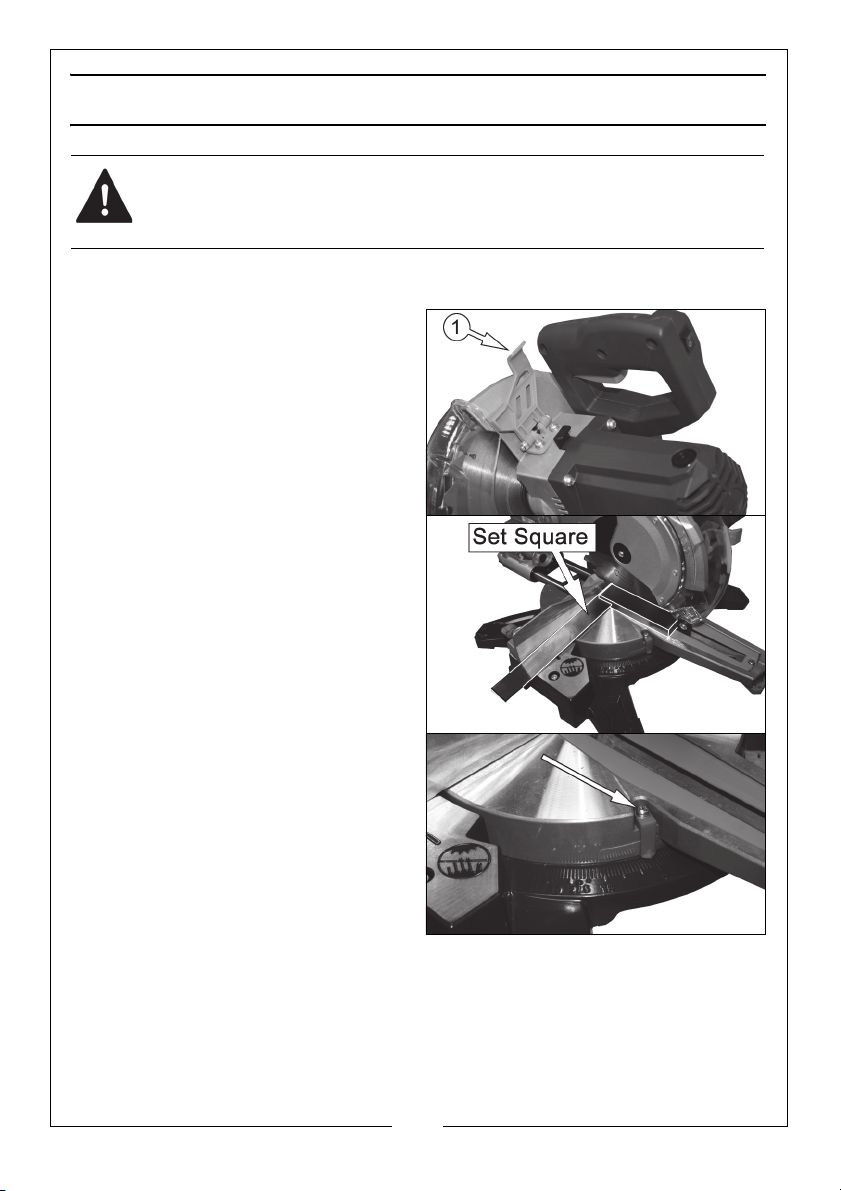

CHECKING AND ADJUSTING THE MITRE SETTINGS
1. Release the blade guard release
lever to release the mitre arm.
2. Lower the head until the blade
just enters the kerf plate.
3. Place a set square against the left
side of the fence and blade.
Move the mitre arm if required
until the blade is perfectly square
to the fence.
4. If the pointer does not indicate
zero on the mitre scale, loosen the
screws that secure the pointer
(located underneath) and move
the pointer as necessary.
16
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 17

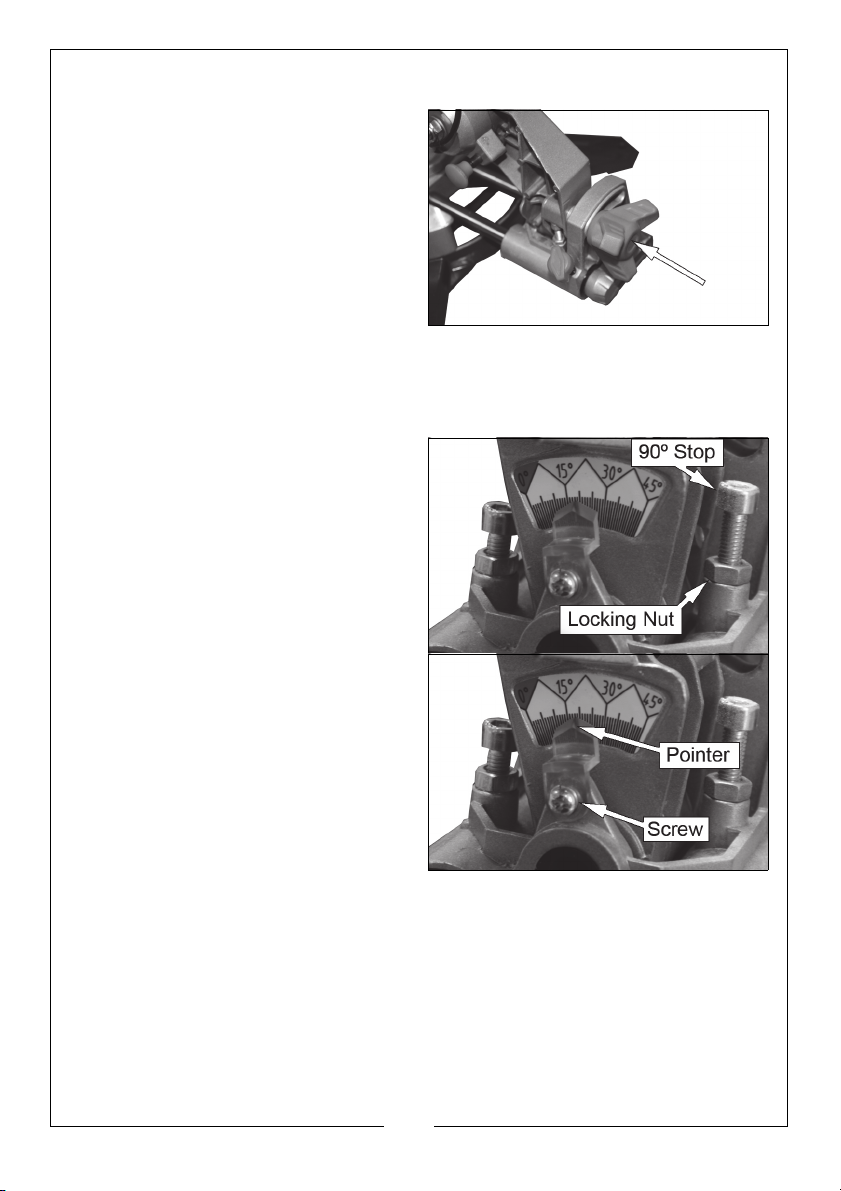

CHECKING AND ADJUSTING THE BEVEL SETTINGS
1. Loosen the bevel clamp handle.
2. Press the saw head to the right to
ensure it is fully vertical and
tighten the bevel clamp handle.
3. Pull down the head until the
blade just enters the kerf plate.
90 DEGREE STOP ADJUSTMENT
4. Place a set square on the table
and up against the blade.
NOTE: Do not touch the tips of the blade teeth with the square.
If adjustment is required, proceed as follows:
5. Loosen the locking nut and turn
the 90° stop screw in or out until
the blade is at 90° to the table.
6. Re-tighten the locking nut.
7. If the bevel pointer does not
indicate zero on the bevel scale,
loosen the screw that secures the
pointer and move the pointer as
necessary.
17
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 18

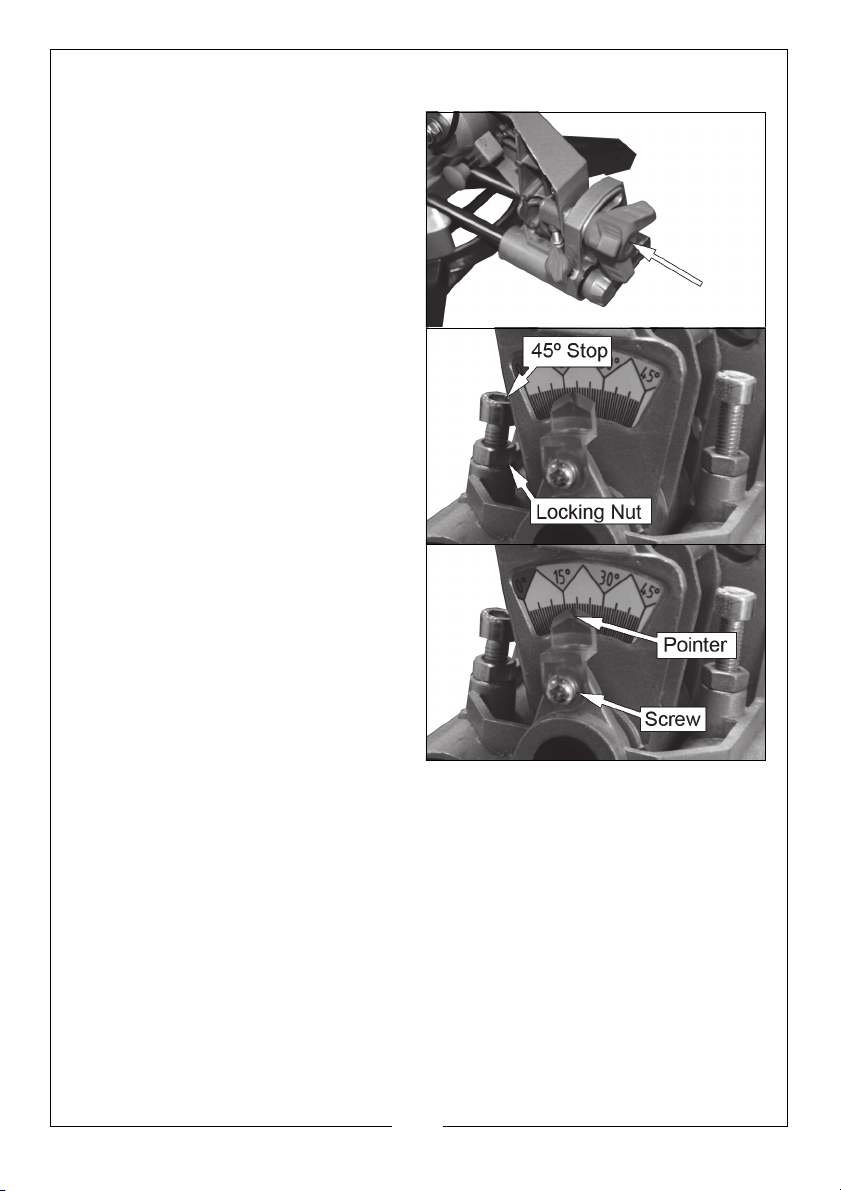

45 DEGREE STOP ADJUSTMENT
1. Loosen the bevel clamp handle
and set the saw head as far to the
left as possible (this should be the
45° angle)
2. Place a 45° set square on the
table and up against the blade.
NOTE: Do not touch the tips of the
blade teeth with the square.
3. Loosen the locking nut and turn
the 45° stop screw in or out until
the blade is at 45° to the table.
4. Re-tighten the locking nut.
5. If the bevel pointer does not
indicate zero on the bevel scale,
loosen the screw that secures the
pointer and move the pointer as
necessary.
18
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 19
MAINTENANCE
WARNING: MAKE SURE THAT THE SAW IS SWITCHED OFF AND UNPLUGGED
FROM THE MAINS SUPPLY BEFORE FITTING OR REMOVING THE BLADE.
WARNING: THE BLADE MUST BE RATED TO AT LEAST 6000 RPM.
CHANGING THE SAW BLADE
Install an appropriate saw blade. Do not use excessively worn blades. The
maximum rotation speed of the tool must not exceed that of the saw blade.

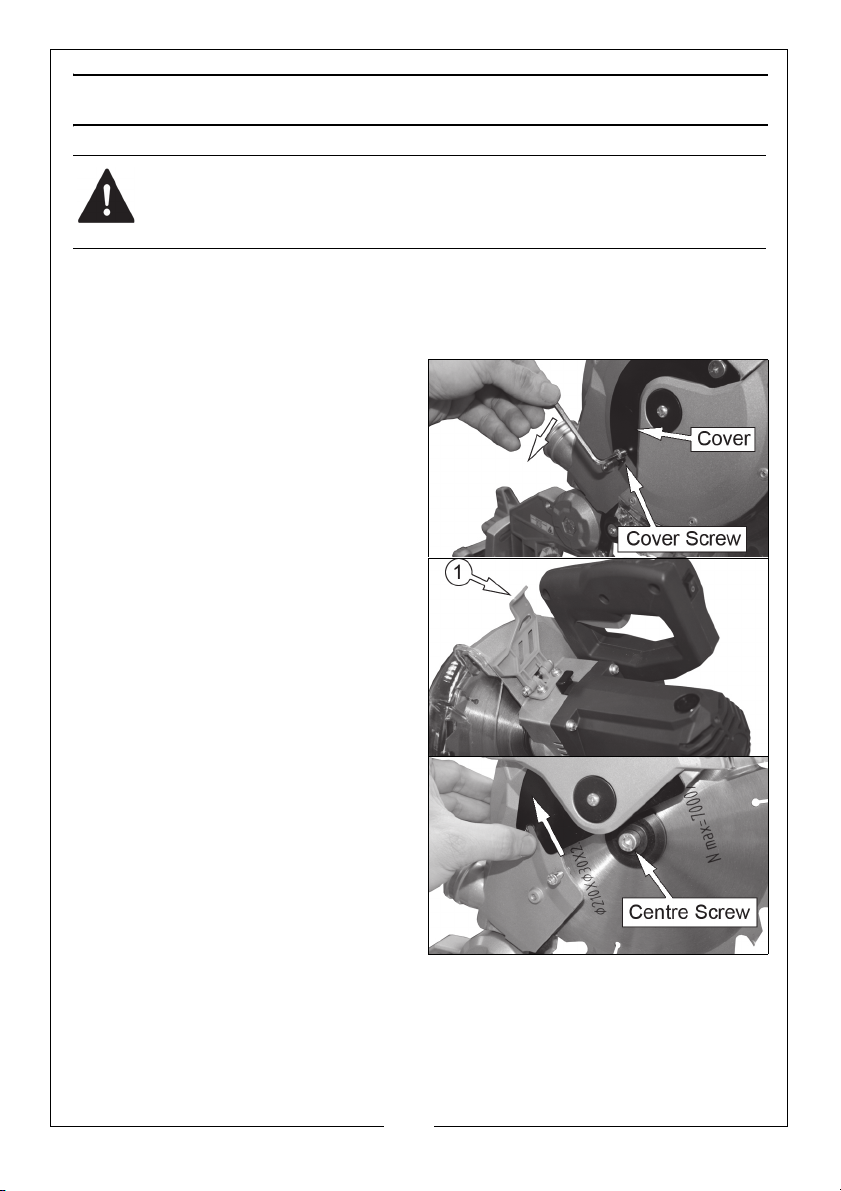

1. With the saw head in the raised
position, Loosen the cover screw
shown.
2. Move the blade guard release
then rotate the blade guard back
by hand.
3. Whilst holding the blade guard
back, slide the cover up to
expose the centre screw.
4. Insert the Hex key supplied into
the centre screw
19
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 20

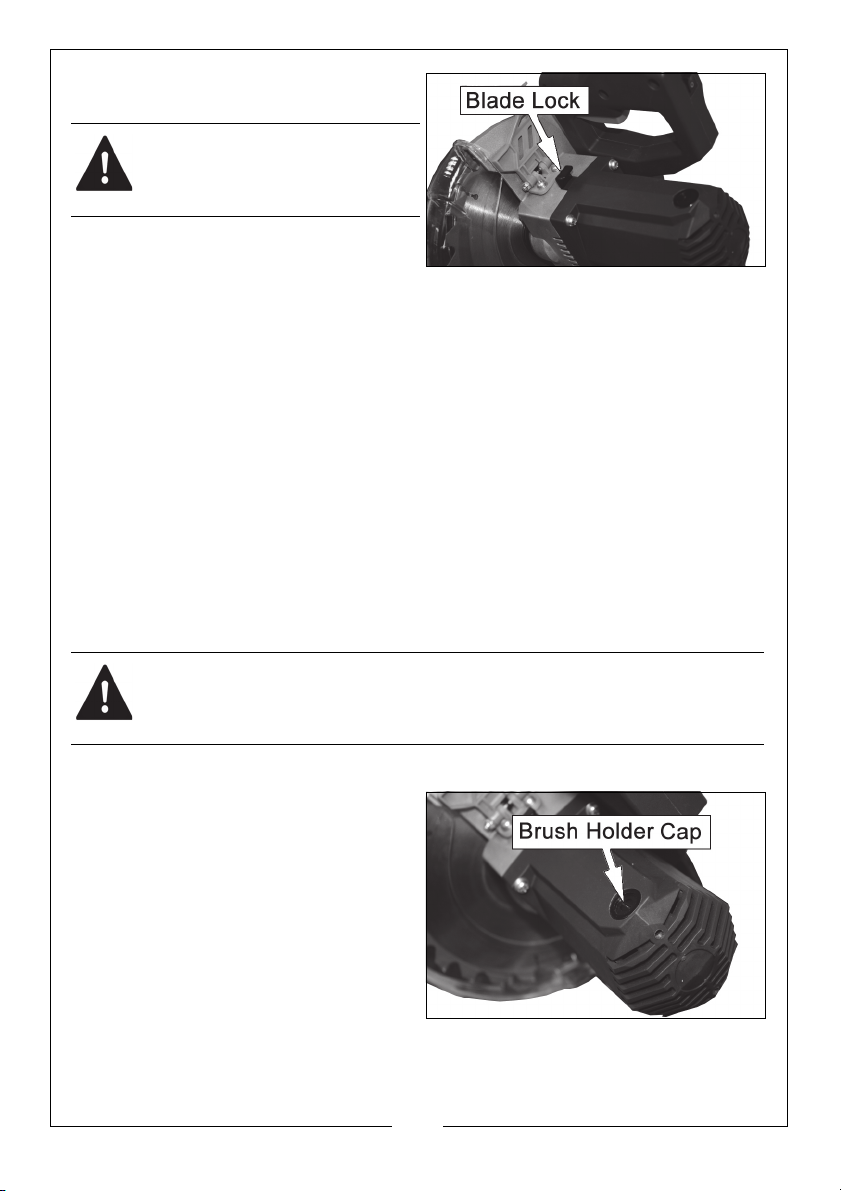

5. Push and hold down the blade
lock.
WARNING: NEVER PUSH THE
BLADE LOCK IN WHEN THE
MOTOR IS RUNNING.
6. Use a hex wrench to undo and
remove the centre screw.
• The screw has a LEFT HAND THREAD (turn it CLOCKWISE to undo).
7. Pull off the outer flange followed by the saw blade.
NOTE: You should take this opportunity to thoroughly clean parts previously
inaccessible.
8. Replace the blade, ensuring it has the correct diameter and bore.
• Make sure that the teeth point down at the front.
• Please note that spare blades are available from Clarke
International. Please see your Clarke dealer.
9. Replace the outer flange (marked with an ‘O’) and screw in the centre
screw, remembering the screw has a LEFT HAND THREAD (turn it
ANTICLOCKWISE to tighten).
CHANGING THE CARBON BRUSHES
WARNING: MAKE SURE THAT THE SAW IS SWITCHED OFF AND UNPLUGGED
FROM THE MAINS SUPPLY BEFORE CHANGING THE CARBON BRUSHES.
Should it become necessary to change the carbon brushes:
1. Unscrew the brush holder cap.
2. Pull out the worn brushes.
3. Replace with new brushes (not
supplied).
• Always replace the brushes in
pairs.
• Replacement brushes are
available from the Clarke
spares department (part
number -
ZLCMS210S101).
4. Replace the brush holder cap, taking care not to cross thread it.
20
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 21
CLEANING
Your power tool has been designed to operate over a long period of time with
a minimum of maintenance. Continuous satisfactory operation depends upon
proper care and regular cleaning.
• Keep the ventilation slots clear and regularly clean the motor
housing with a soft cloth.
• Regularly clean the table top.
• Regularly empty the dust collection bag.
• Avoid the use of cleaners or lubricants to maintain the tool. In
particular spray and aerosol cleaners may chemically attack the
plastic lower guard.
ENVIRONMENTAL PROTECTION
Recycle unwanted materials instead of disposing of them as
waste. All tools, accessories and packaging should be sorted,
taken to a recycling centre and disposed of in a manner which is
compatible with the environment.
21
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 22
SPECIFICATIONS
Model Number CMS210S
Part Number 6501325
Rated Voltage 230 V @ 50Hz
Input Wattage 1450 W
Blade Diameter 210 mm
Blade bore 30 mm
Max. blade thickness (Kerf) 2.8 mm
Max. No Load Speed 5000 RPM
Max. Blade Speed 7000 RPM
Max. crosscut capacity at 90° 210 mm x 60 mm
Max. mitre cut capacity at 45° 145 mm x 60 mm
Max. bevel cross-cut 45° 210 mm x 34 mm
Max. Compound Mitre Cut 145 mm x 34 mm
Max Bevel Angle 45° to Left; 45° to Right
Sound pressure (L
Sound power (LWA) 109.54 dB (A)
Uncertainty Factor (K) 3
Dimensions (W x D x H) 690 x 615 x 447 mm
Weight 9.25 kg
To obtain the stated cutting capacities, always use 210 mm saw blades with a
30 mm bore, available from your local Clarke dealer.
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
) 96.54 dB (A)
pA
22
Page 23
Page 24

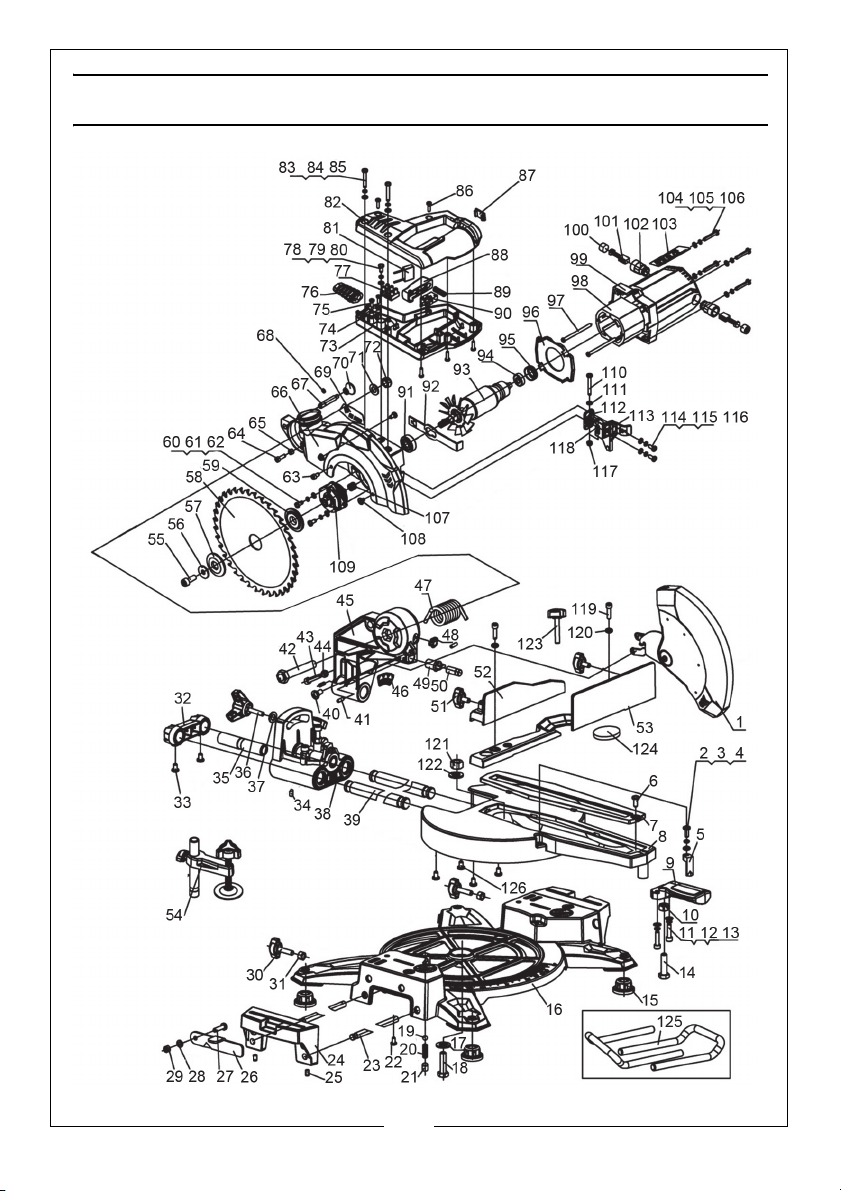

PARTS LIST
1Guard &
Linkage Plate
Assembly
2 Screw M5x10 ZLCMS210S002
3Spring Washer Ø5ZLCMS210S003
4 Flat Washer Ø5 ZLCMS210S004
5 Mitre Pointer ZLCMS210S005
6 Screw M5x10 ZLCMS210S006
7 Turntable Insert ZLCMS210S007
8Turntable
Assembly
9 Mitre Lock Knob ZLCMS210S009
10 Hex Nutø8 ZLCMS210S010
11 Screw M5x20 ZLCMS210S011
12 Spring Washer Ø5ZLCMS210S012
13 Flat Washer Ø5 ZLCMS210S013
14 Hex Bolt M8x30 ZLCMS210S014
15 Base Rubber
Feet
16 Base ZLCMS210S016
17 Wave Washer Ø8ZLCMS210S017
18 Hex Bolt M8x30 ZLCMS210S018
19 Steel Ball ZLCMS210S019
20 Spring ZLCMS210S020
21 Screw M10x12 ZLCMS210S021
22 Screw M4x8(B) ZLCMS210S022
23 Extension Rod
(B)
24 Extension Board
(B)
25 Screw M5x8(B) ZLCMS210S025
26 Left Extension
Baffle(B)
27 Screw M5x16(B) ZLCMS210S027
28 Spring Washer
Ø5(B)
29 Nut M5(B) ZLCMS210S029
ZLCMS210S001
ZLCMS210S008
ZLCMS210S015
ZLCMS210S023
ZLCMS210S024
ZLCMS210S026
ZLCMS210S028
30 Lock Knob
M6x25(B)
31 Nut M6(B) ZLCMS210S031
32 Upper Sliding
Rear Base
33 Screw M5x10 ZLCMS210S033
34 Screw M5x8 ZLCMS210S034
35 Bevel Spindle ZLCMS210S035
36 Big Knob M8x20 ZLCMS210S036
37 Flat Washer Ø8 ZLCMS210S037
38 Lower Sliding
Assembly
39 Lower Sliding
Bar
40 Screw ZLCMS210S040
41 Screw M4x8 ZLCMS210S041
42 Screw M10x65 ZLCMS210S042
43 Screw M5x25 ZLCMS210S043
44 Nut M5 ZLCMS210S044
45 Pivot ZLCMS210S045
46 Bevel Scale ZLCMS210S046
47 Torque Spring ZLCMS210S047
48 Upper Sliding
Linear Bearing
Cover
49 Laser Seat ZLCMS210S049
50 Laser ZLCMS210S050
51 Small Knob
M6x12
52 Active
Positioning Plate
53 Fixed Positioning
Plate
54 Workclamp
Assembly
55 Screw
M8x16(Left)
56 Washer 8 ZLCMS210S056
57 Blade Outer
Flange
ZLCMS210S030
ZLCMS210S032
ZLCMS210S038
ZLCMS210S039
ZLCMS210S048
ZLCMS210S051
ZLCMS210S052
ZLCMS210S053
ZLCMS210S054
ZLCMS210S055
ZLCMS210S057
24
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 25
58 210mm Blade ZLCMS210S058
59 Blade Inner
Flange
60 Screw M5x12 ZLCMS210S060
61 Spring Washer?5 ZLCMS210S061
62 Flat Washer Ø5 ZLCMS210S062
63 Screw M5x10 ZLCMS210S063
64 Screw M5x20 ZLCMS210S064
65 Nut M6 ZLCMS210S065
66 Upper Arm ZLCMS210S066
67 Upper arm Lock
Pin
68 O-ring 5x1.8g ZLCMS210S068
69 Brand Label ZLCMS210S069
70 Upper arm Lock
Button
71 Flat Washer Ø10 ZLCMS210S071
72 Nut M10 ZLCMS210S072
73 Lower Handle ZLCMS210S073
74 Cable Holder ZLCMS210S074
75 Screw M4.2x16 ZLCMS210S075
76 Cable Sleeve ZLCMS210S076
77 Terminal Block ZLCMS210S077
78 Screw M5x12 ZLCMS210S078
79 Spring Washer Ø5ZLCMS210S079
80 Flat Washer Ø5 ZLCMS210S080
81 Capacitor ZLCMS210S081
82 Upper Handle ZLCMS210S082
83 Screw M5x35 ZLCMS210S083
84 Spring Washer Ø5ZLCMS210S084
85 Flat Washer Ø5 ZLCMS210S085
86 Tapping Screw
St4.2x16
87 Lever Lock ZLCMS210S087
88 Trigger ZLCMS210S088
89 Spring ZLCMS210S089
90 On-off Switch ZLCMS210S090
91 Ball Bearing
6200
92 Shaft Lock Bar ZLCMS210S092
ZLCMS210S059
ZLCMS210S067
ZLCMS210S070
ZLCMS210S086
ZLCMS210S091
93 Armature ZLCMS210S093
94 Ball Bearing 608 ZLCMS210S094
95 Bearing Bush ZLCMS210S095
96 Fan Shroud ZLCMS210S096
97 Tapping Screw
St4.2x65
98 Stator ZLCMS210S098
99 Motor Housing ZLCMS210S099
100 Carbon Brush
Cover
101 Carbon Brush ZLCMS210S101
102 Carbon Brush
Holder
103 Brand Label ZLCMS210S103
104 Screw M5x30 ZLCMS210S104
105 Spring Washer Ø5ZLCMS210S105
106 Flat Washer Ø5 ZLCMS210S106
107 Needle Bearing ZLCMS210S107
108 Screw to Lower
Guard
Stationery Plate
109 Gearbox
Assembly
110 Screw M5x40 ZLCMS210S110
111 Flat Washer Ø6 ZLCMS210S111
112 Knobs Seat ZLCMS210S112
113 Knobs ZLCMS210S113
114 Screw M5x12 ZLCMS210S114
115 Spring Washer ZLCMS210S115
116 Flat Washer ZLCMS210S116
117 Nut M5 ZLCMS210S117
118 Knobs Spring ZLCMS210S118
119 Screw M6x25 ZLCMS210S119
120 Flat Washer Ø6 ZLCMS210S120
121 Nut M8 ZLCMS210S121
122 Flat Washer Ø8 ZLCMS210S122
123 Lock Knob
M6x25
124 Lock Washers ZLCMS210S124
125 Extension Rod ZLCMS210S125
126 Screw M5x8 ZLCMS210S126
ZLCMS210S097
ZLCMS210S100
ZLCMS210S102
ZLCMS210S108
ZLCMS210S109
ZLCMS210S123
25
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 26

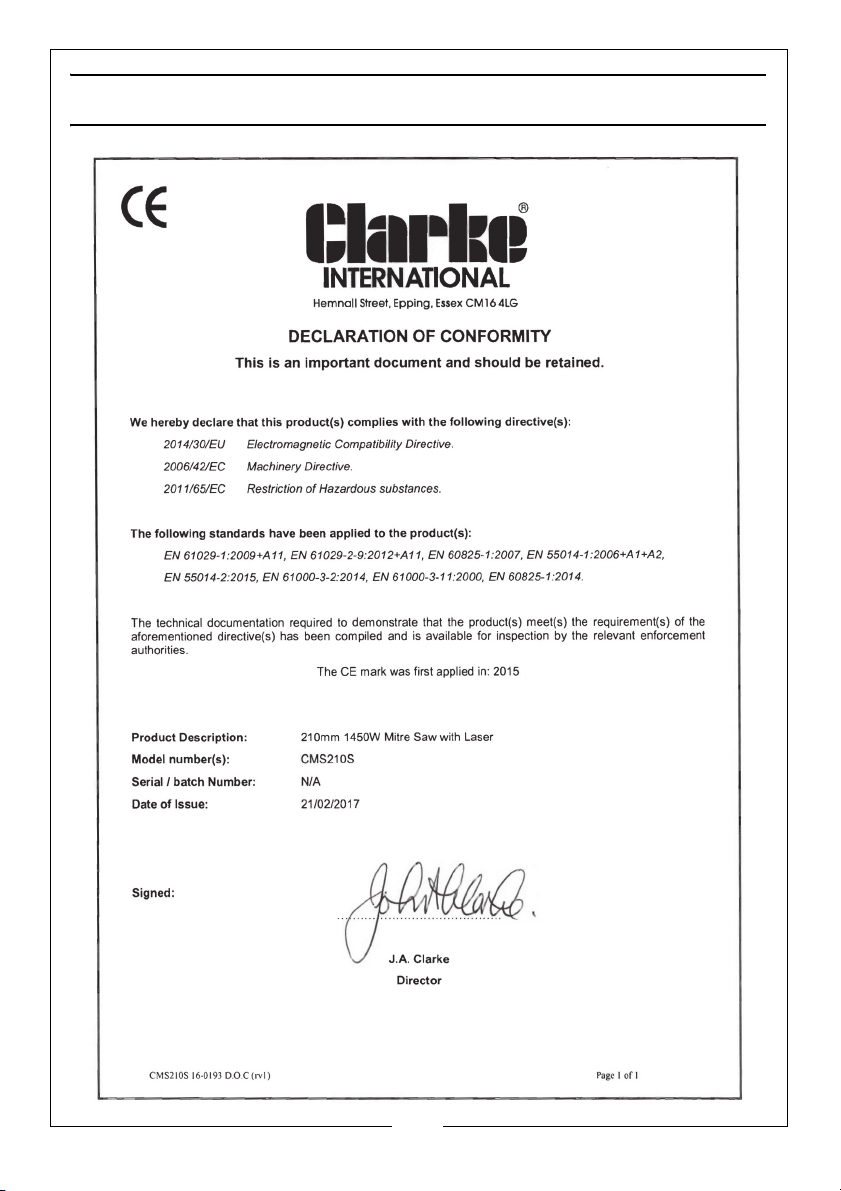

DECLARATION OF CONFORMITY
26
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 27
Page 28
Loading...
