Page 1
CORDLESS TACKER
MODEL NO: CCT48
PART NO: 6485070
OPERATION & MAINTENANCE
INSTRUCTIONS
LS0414
Page 2
INTRODUCTION
Thank you for purchasing this CLARKE product.
Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.
INTENDED USE
The machine is intended for tacking of cardboard, insulating material, fabrics,
foils, leather and similar materials on surfaces of wood or materials similar to
wood.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does not effect your statutory rights.
ENVIRONMENTAL RECYCLING POLICY
Through purchase of this product, the customer is taking on the
obligation to deal with the WEEE in accordance with the WEEE
regulations in relation to the treatment, recycling & recovery and
environmentally sound disposal of the WEEE.
In effect, this means that this product must not be disposed of with general
household waste. It must be disposed of according to the laws governing
Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal
facility.
2
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 3
SAFETY INSTRUCTIONS
WARNING: WHEN USING ELECTRIC TOOLS, BASIC SAFETY PRECAUTIONS,
INCLUDING THE FOLLOWING, SHOULD ALWAYS BE FOLLOWED TO REDUCE
THE RISK OF FIRE, ELECTRIC SHOCK AND PERSONAL INJURY.
WARNING: READ ALL THESE INSTRUCTIONS BEFORE OPERATING THIS
PRODUCT AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
For safe operations:
1. Keep work area clean. - Cluttered areas and benches invite injuries.
2. Consider work area environment. - Do not expose power tools to rain. Do not use
power tools in damp or wet locations. Keep work area well lit. Do not use power
tools where there is risk to cause fire or explosion.
3. Guard against electric shock. - Avoid body contact with earthed or grounded
surfaces (e.g. pipes, radiators, ranges, refrigerators).
4. Keep children away. - Do not let visitors touch the tool or extension cord. All visitors
should be kept away from area.
5. Store idle tools. - When not in use, tools should be stored in a dry, high or locked up
place, out of reach of children.
6. Do not force the tool. -It will do the job better and safer at the rate for which it was
intended.
7. Use the right tool. - Do not force small tools or attachments to do the job of a heavy
duty tool. Do not use tools for purposes not intended.
8. Dress properly. -Do not wear loose clothing or jewellery, they can be caught in
moving parts. Rubber gloves and non-skid footwear are recommended when
working outdoors. Wear protecting hair covering to contain long hair.
9. Use safety glasses. - Always wear suitable eye protection, manufactured to the
latest European Safety Standards, when firing the tacker. Eyeglasses are NOT Safety
glasses
10. Do not abuse the cord on the charger. - Never carry the charger by the cord or yank
it to disconnect it from the socket. Keep the cord a way from heat, oil and sharp
edges.
11. Secure work. - Use clamps or a vice to hold the work. It is safer than using your hand
and it frees both hands to operate the tool.
12. Do not overreach. - Keep proper footing and balance at all times.
13. Maintain tool with care. - Inspect charger cord periodically and if damaged have it
repaired by an authorized service facility. Inspect extension cords periodically and
replace, if damaged. Keep handles dry, clean and free from oil and grease.
14. Disconnect tools. - When not in use, before servicing and when changing
accessories such as nails or staples.
15. Avoid unintentional starting. - Do not carry a tool with a finger on the trigger.
3
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 4
16. Use outdoor extension leads. - When tool is used outdoors, use only extension cords
intended for outdoor use.
17. Stay alert. - Watch what you are doing. Use common sense. Do not operate tool
when you are tired.
18. Check damaged parts. - A guard or other part that is damaged should be properly
repaired or replaced by an authorized service centre unless otherwise indicated in
this instruction manual. Have defective parts replaced by an authorised service
facility.
19. Warning. - The use of any accessory or attachment, other than those recommended
in this instruction manual, may present a risk of personal injury.
20. Have your tool repaired by a qualified person. - This electric tool is in accordance
with the relevant safety requirements. Repairs should only be carried out by qualified
persons using original spare parts, otherwise this may result in considerable danger to
the user.
BATTERY TOOL USE AND CARE
1. Ensure the trigger switch is not being depressed before inserting battery pack.
2. Recharge only with the charger specified by the manufacturer. A charger that is
suitable for one type of battery pack may create a risk of fire when used with
another.
3. When battery pack is not in use, keep it away from other metal objects like paper
clips, coins, keys, nails, screws, or other small metal objects that can make a
connection from one terminal to another. Shorting to battery terminals together may
cause burns or a fire.
4. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If
contact accidentally occurs, flush with water. If liquid contacts eyes, additionally
seek medical help. Liquid ejected from the battery may cause irritation or burns.
5. If the supply cord on the charger is damaged, it must be replaced by an assembly
available from the manufacturer.
MACHINE SPECIFIC
1. Secure the workpiece. A workpiece held with clamping devices or in a vice is held
more secure than by hand.
2. Before any work on the machine itself (e.g. maintenance) as well as during transport
and storage, remove the battery from the power tool. There is danger of injury when
unintentionally actuating the trigger switch.
3. Do not open the battery. Danger of short-circuit.
4. Protect the battery against heat, e.g., also against continuous sun irradiation and
fire. There is danger of explosion.
5. Do not short-circuit the battery. There is danger of explosion.
6. Keep your fingers away from the tacker head. There is danger of injury when
unintentionally actuating the trigger switch.
7. Never point the machine at persons or animals. Staples or nails shot from a short
distance can cause considerable injuries.
4
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 5
8. Do not use the machine to fasten electrical wiring. Contact with electric wires can
lead to fire and electric shock.
BATTERY CHARGER
1. Observe the mains voltage! The voltage of the power supply must correspond with
the data given on the rating plate of the battery charger.
2. Keep the battery charger away from rain or moisture. Penetration of water in to the
battery charger increase the risk of an electric shock.
3. Keep the battery charger clean. Contamination can lead to danger of an electric
shock.
4. Before each use, check the battery charger, cable and plug. If damage is
detected, do not use the battery charger. Never open the battery charger yourself.
Have repairs performed only by a qualified technician and only using original spare
parts. Damaged battery chargers, cables and plugs increase the risk of an electric
shock.
5. Do not operate the battery charger on easily inflammable surfaces (e.g., paper,
textiles, etc.) or surroundings. The heating of the battery charger during the charging
process can pose a fire hazard.
SYMBOLS
Read manual
before use
Wear suitable eye
protection
This symbol indicates that this is a Class II product, and does
not require an earth connection.
SAFETY SYSTEM
FULL SEQUENTIAL ACTUATION
This stapler/nailer has an actuation system in which the trigger and safety yoke
are linked in such a way that it will only operate if the trigger is pulled after the
safety yoke (muzzle) has been applied to the work. Further driving operations
require the user to release the trigger and lift the safety yoke (muzzle) away from
the workpiece before the next use.
5
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 6

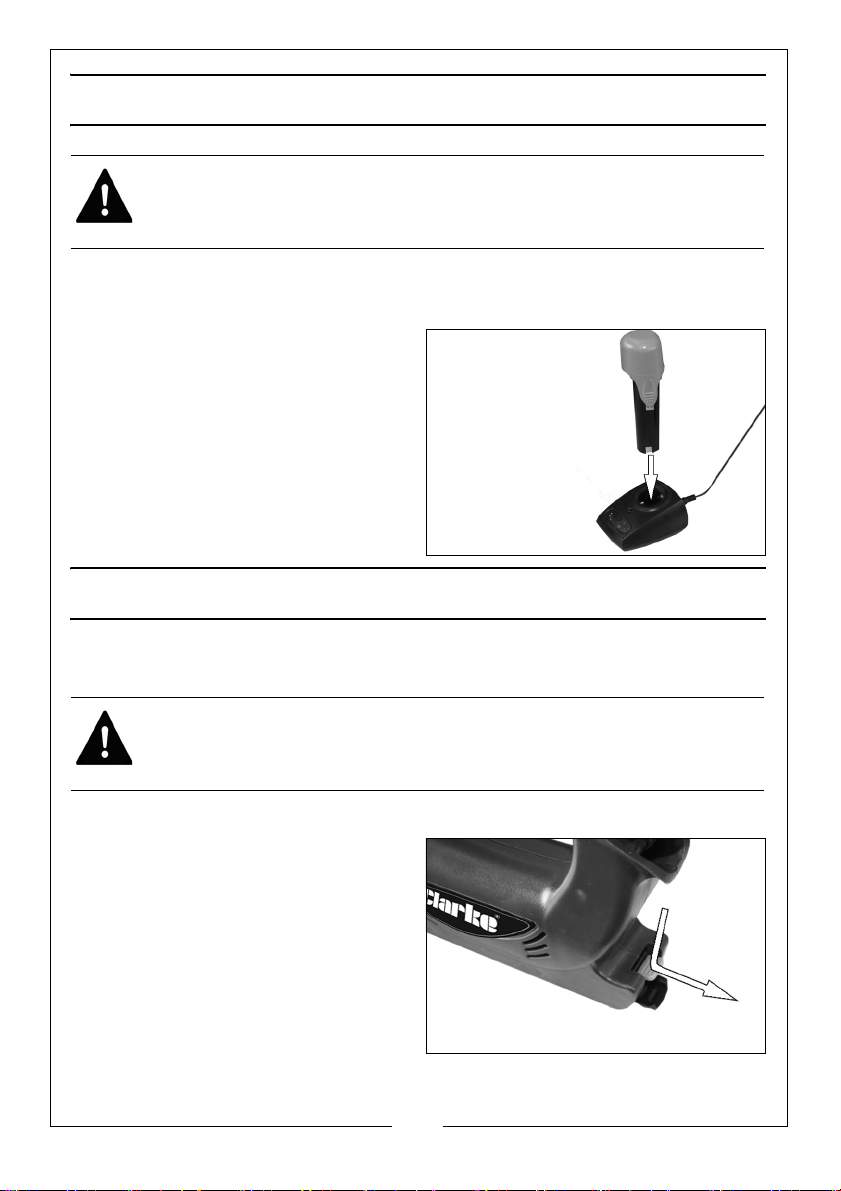

HOW TO CHARGE THE BATTERY
WARNING: THE BATTERY CAN BE WARM TO THE TOUCH WHEN REMOVED
FROM THE TOOL. ALWAYS LET THE BATTERY COOL DOWN BEFORE
RECHARGING. DO NOT RECHARGE A WARM BATTERY.
NOTE: New batteries must be charged before use.
1. Connect the battery charger to the power supply.
2. Slide the battery in to the battery
charger.
• Charging takes approximately
90 minutes
3. Remove the battery from the
battery charger.
4. Disconnect the charger from the
power supply.
PREPARING THE TACKER FOR USE
FILLING THE MAGAZINE :
WARNING: REMOVE THE BATTERY FROM THE TACKER BEFORE FILLING THE
MAGAZINE.
• Keep your fingers well away from the trigger,
1. Press and hold the magazine
catch then pull out the magazine
6
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 7

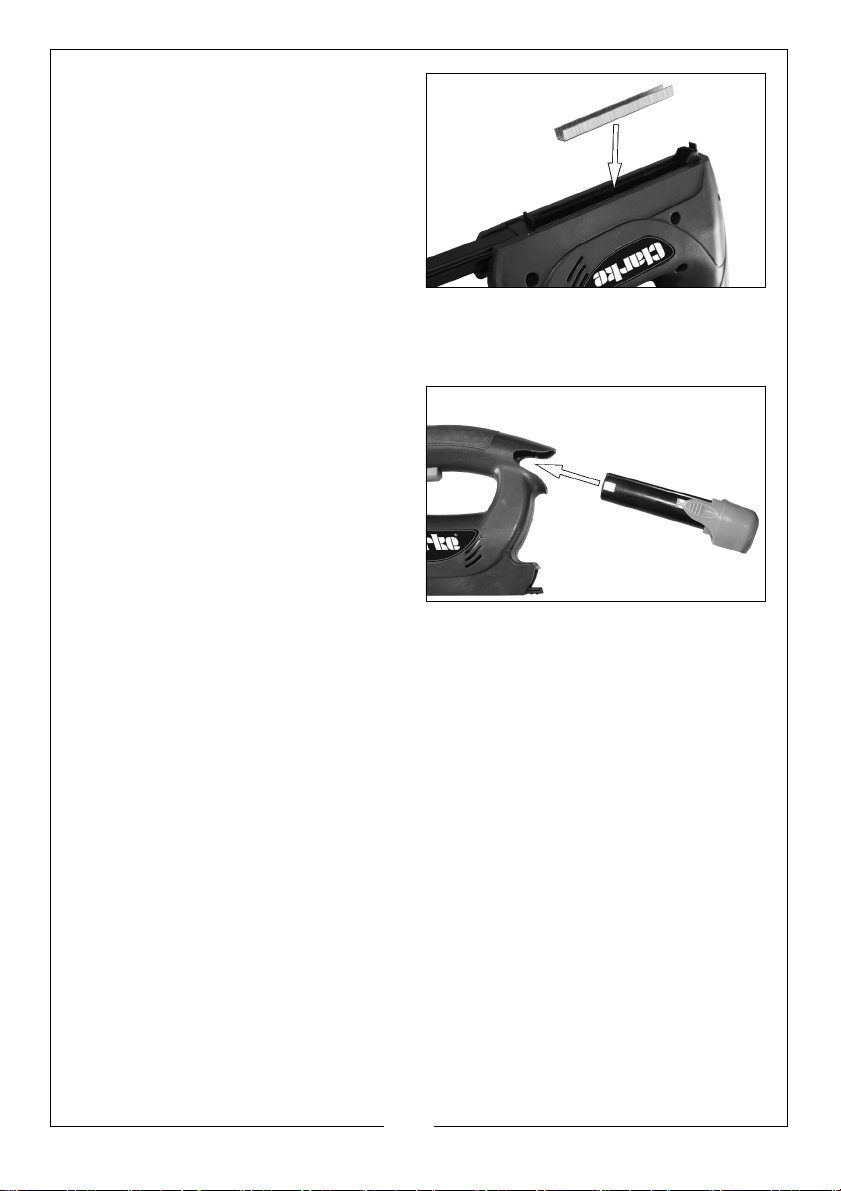

2. Turn over the tacker and insert the
staple strip or the nail strip.
• Hold the tacker slightly inclined
while inserting the nail strip so
that nails rest against the side
wall.
• Only those fasteners specified
in the specification should be
used.
3. Close the magazine, making sure it clicks shut.
FITTING THE BATTERY PACK
TO FIT THE BATTERY
1. Slide the battery pack into the
tacker until it click into place.
TO REMOVE THE BATTERY
1. Press and hold the release buttons
on the side of the battery.
2. Slide the battery pack out of the
tacker.
7
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 8
USING THE TACKER
1. Pay attention to the SAFETY WARNINGS in these operating instructions.
2. Press the tacker against the work and pull the trigger.
• Always hold the tacker square to the workpiece...Never at an angle.

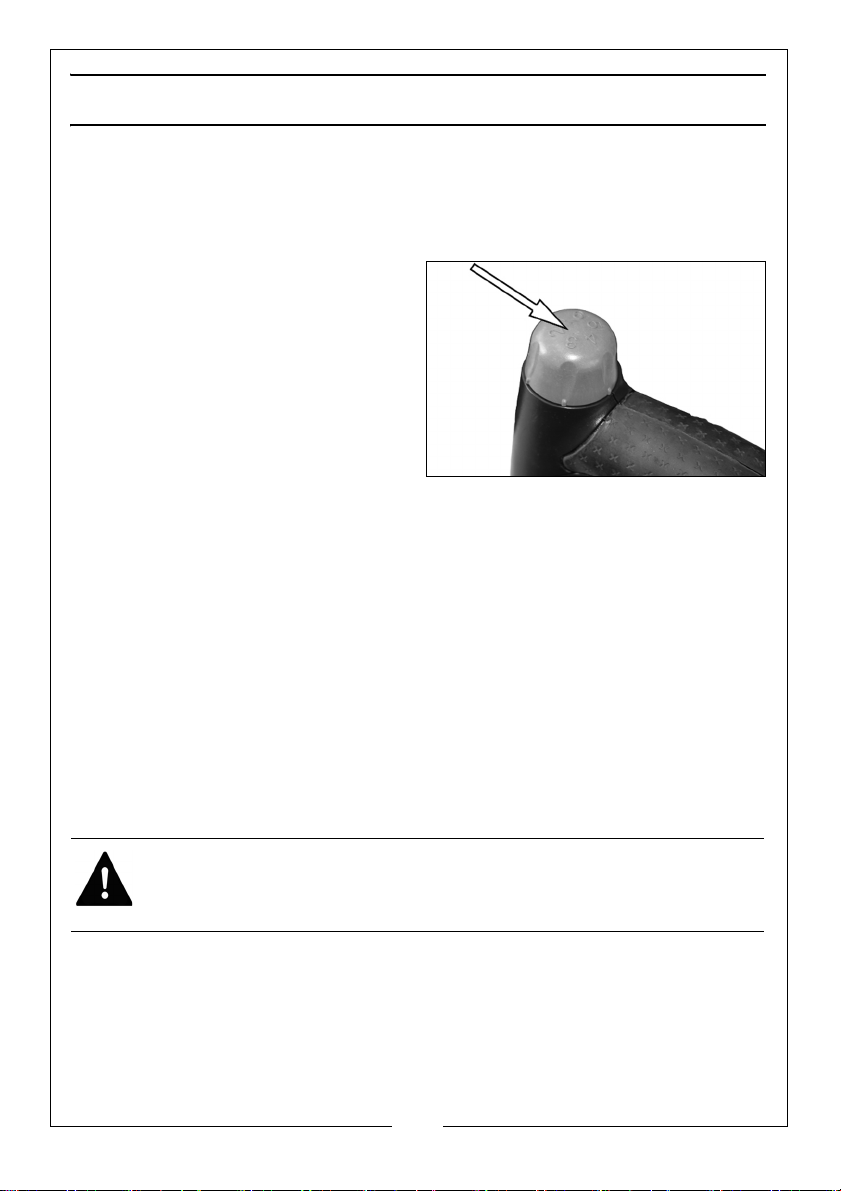

3. Check that the nail or staple has
been driven into the workpiece.
• If it is protruding, increase the
impact force using the dial
shown.
• If it has been driven in too far,
decrease the impact force
using the dial shown.
• Check the result after each
adjustment.
• You should work at the lowest possible setting.
4. In the event of long breaks in work or at the end of the working shift,
remove the battery and empty the magazine.
TIPS
• Do not intentionally activate the tacker if the magazine is empty.
• Do not attempt to staple/nail at the edge of a workpiece, the edge
could fail, causing a nail or staple to shoot straight through.
TO CLEAR A JAM
Do not pull the trigger until the jam has been cleared, as this could cause
serious damage:
WARNING: REMOVE THE BATTERY FROM THE TACKER BEFORE CARRYING
OUT ANY SERVICING OR MAINTENANCE
1. Remove the battery from the tacker.
2. Release the magazine catch and slide the magazine open.
3. Remove all staples/nails from the chamber.
4. Using pliers, grip the jammed fastener and pull firmly to dislodge it.
5. Once the jammed fastener is removed, reload as above and continue.
8
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 9
MAINTENANCE
WARNING: REMOVE THE BATTERY FROM THE TACKER BEFORE CARRYING
OUT ANY SERVICING OR MAINTENANCE
• The tacker does not require any specific maintenance other then
keeping it free from any dirt or debris. This can be done using a
clean dry cloth and/or brush. Do not use solvent or alcohol based
cleaner as it could damage the casing.
• There are no user serviceable parts on the tacker. If there is a
problem please contact your nearest CLARKE dealer.
• Do not open the casing, the guarantee will be void if the casing has
been opened or if the tacker has been tampered with.
• The use of parts other than CLARKE replacement parts may result in
safely hazards, decreased tool performance and will invalidate your
warranty.
SPECIFICATION
Input Voltage 4.8V DC 1.3AH
Max Firing Speed 30 shots/min.
Maximum Magazine Capacity 100 Nails or 100 Staples
Nail Type 18 gauge (F Type) 15mm Brad Nail
Staple Type 22 gauge (Type 53) 6-14 mm
Dimensions 230 x 190 x 50 mm
Weight 1.44 kg
Activation Mode Full Sequential Actuation
Noise Characteristic Values In Accordance With EN12549.
Sound Pressure: 83.4 dB(A)
Sound Power Measured LwA 96.4dBLwA
Vibration Characteristic Values In
Accordance With ISO 8662-1 1: 1999
2.67 m/s
2
9
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 10

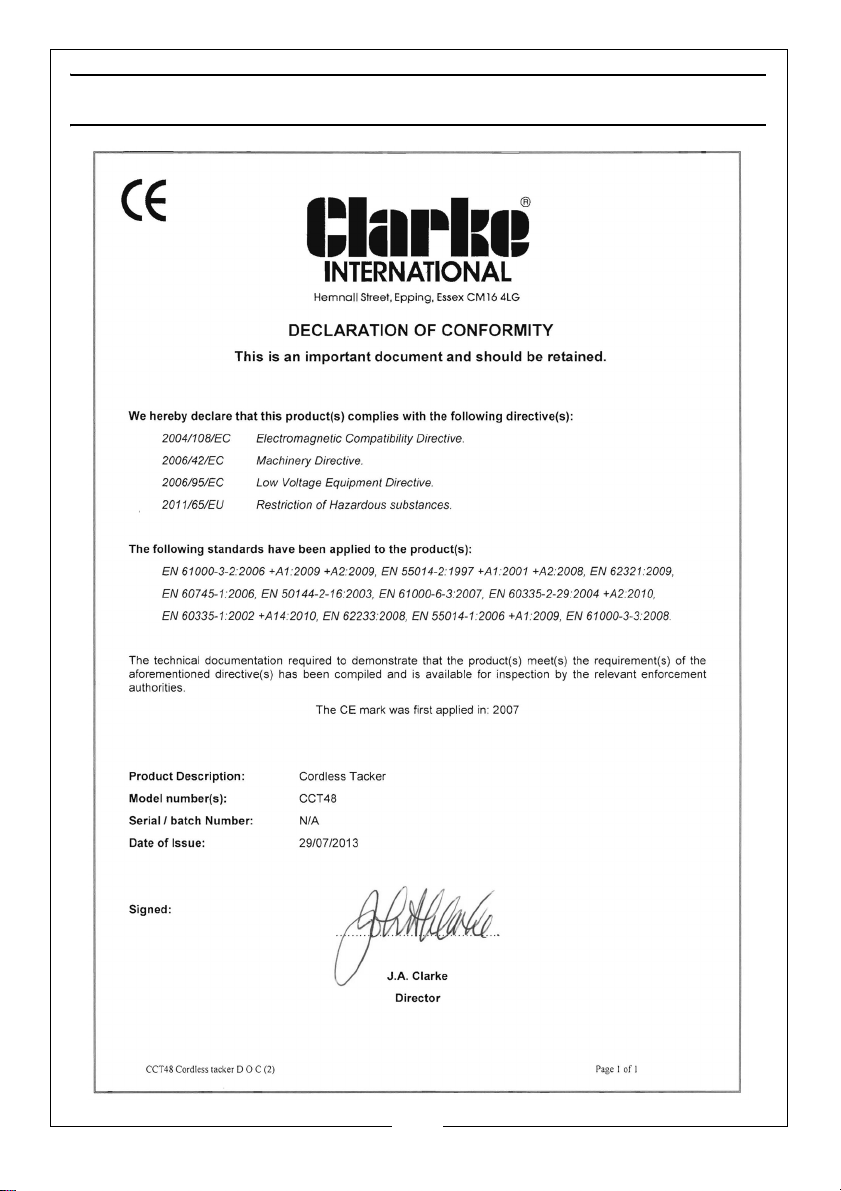

DECLARATION OF CONFORMITY
10
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 11
Page 12
Loading...
