Page 1
10 LITRE DEHUMIDIFIER
MODEL NO: YDK10
PART NO: 6470686
OPERATION & MAINTENANCE
INSTRUCTIONS
ORIGINAL INSTRUCTIONS
LS0617 - ISS 1
Page 2

INTRODUCTION

Thank you for selecting this Clarke dehumidifier.
The dehumidifier is used to decrease the humidity within a space, it also collects the resulting condensate.
Read this manual before use, the warnings and cautions in this manual will help you operate the dehumidifier safely.

GUARANTEE

The dehumidifier is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Your receipt is required as proof of purchase.
This guarantee is invalid if the dehumidifier has been tampered with, or not used for the function for which it was intended.
Defective goods must be returned to their place of purchase. The dehumidifier must not be returned to Clarke international without prior permission.
This guarantee does not effect your statutory rights.

ENVIRONMENTAL PROTECTION

Through purchase of this dehumidifier, the customer is taking on the obligation to deal with the WEEE in accordance with the WEEE regulations in relation to the treatment, recycling & recovery and environmentally sound disposal of the WEEE.
In effect, this means that this dehumidifier must not be discarded with general waste. Refer to the laws governing Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal facility.
R134a is a refrigerant that complies with EEC environmental standards. The refrigerant circuit must not be punctured. At the end of its working life take the dehumidifier to a recognised disposal facility.
2
Page 3

SAFETY WARNINGS

WARNING: READ THESE INSTRUCTIONS CAREFULLY AND REFER TO THEM IF NECESSARY.
1. The dehumidifier is used to decrease the humidity in a space. Do not use it for other functions.
2. All users must know how to operate the dehumidifier safely and understand any possible risks.
3. Do not let children play with the dehumidifier.
4. Do not install the dehumidifier in rooms that contain gas, oil or sulphur.
5. Do not install near sources of heat.
6. Keep the dehumidifier away from flammable material or pressurised containers (a minimum of 50 cm).
7. Do not use the dehumidifier on an slope.
8. Do not use the dehumidifier outside.
9. Do not cover any part of the dehumidifier.
10. Do not block the air inlet/outlet vents.
11. Do not pull the cable or let it get pinched.
12. Do not let the cable become a hazard.
13. Replace the cable if it is damaged.
14. Speak to your Clarke supplier if repairs are necessary.
15. Repairs by unauthorised persons can be dangerous and invalidates the guarantee.
16. Remove the plug from the power supply before you clean the dehumidifier or do any maintenance operations.
3
Page 4

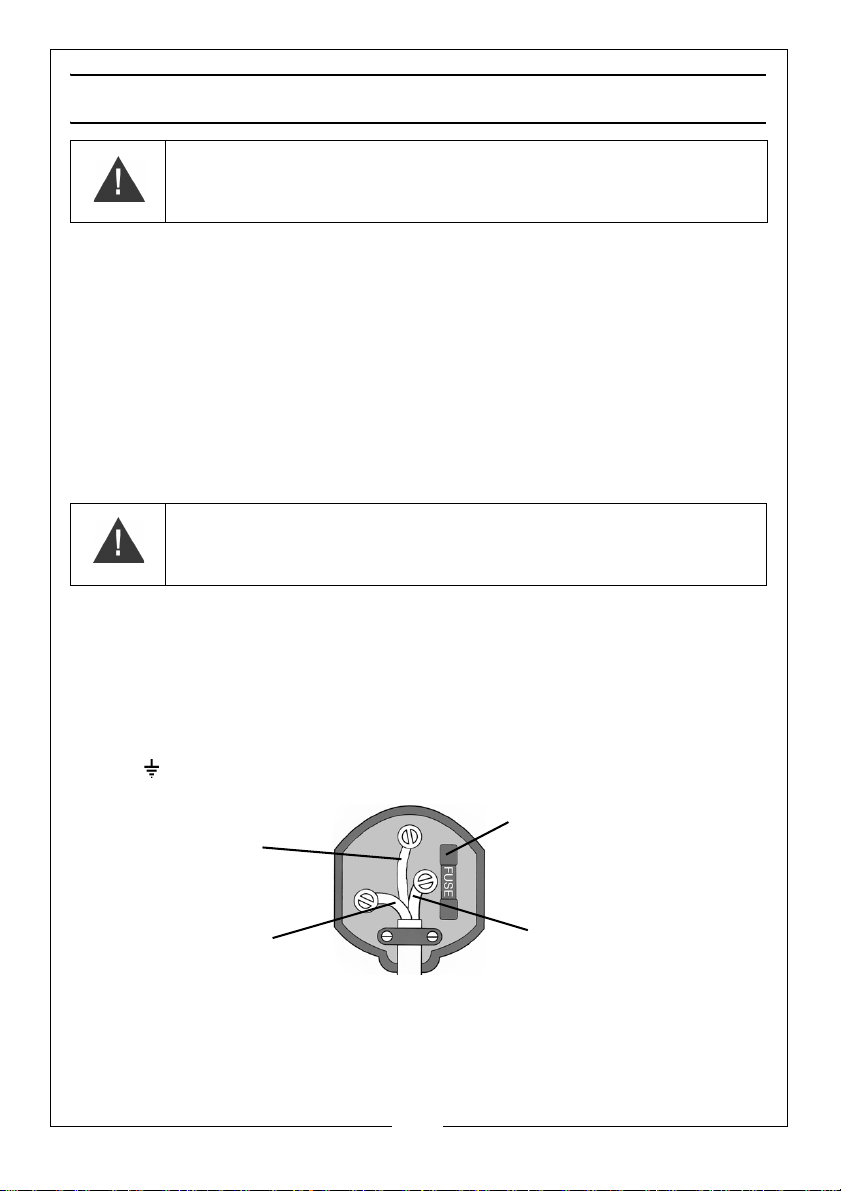

ELECTRICAL CONNECTIONS

Plug must be BS1363/A approved.
Always fit a 5 Amp fuse.
Ensure that the outer sheath of the cable is firmly held by the clamp
Neutral
(Blue)
Live
(Brown)
Earth
(Green and Yellow)
WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS FULLY BEFORE YOU CONNECT THE DEHUMIDIFIER TO THE MAINS SUPPLY.
Before you switch the dehumidifier on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate. This dehumidifier operate on a 230VAC 50Hz supply. Connecting it to any other power source can cause damage.
This dehumidifier may be fitted with a non-rewireable plug. If it is necessary to change the fuse in the plug, the fuse cover must be refitted. If the fuse cover becomes lost or damaged, the plug must not be used until a suitable replacement is obtained.
If the plug has to be changed, it must be cut off and a replacement fitted, following the wiring instructions shown below. The old plug must be disposed of safely, as insertion into a mains socket can cause an electrical hazard.
WARNING: THE WIRES IN THE POWER CABLE OF THIS DEHUMIDIFIER ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE: BLUE = NEUTRAL BROWN = LIVE YELLOW AND GREEN = EARTH
If the colours of the wires in the power cable of this dehumidifier do not correspond with the markings on the terminals of your plug, proceed as follows.
• Connect the Blue wire to the terminal which is marked N.
• Connect the Brown wire to the terminal which is marked L.
• Connect the Yellow and Green wire to the terminal which is marked E or .
We recommend that this machine is connected to the mains supply via a Residual Current Device (RCD)
If in doubt, consult a qualified electrician. DO NOT attempt any repairs yourself
4
Page 5

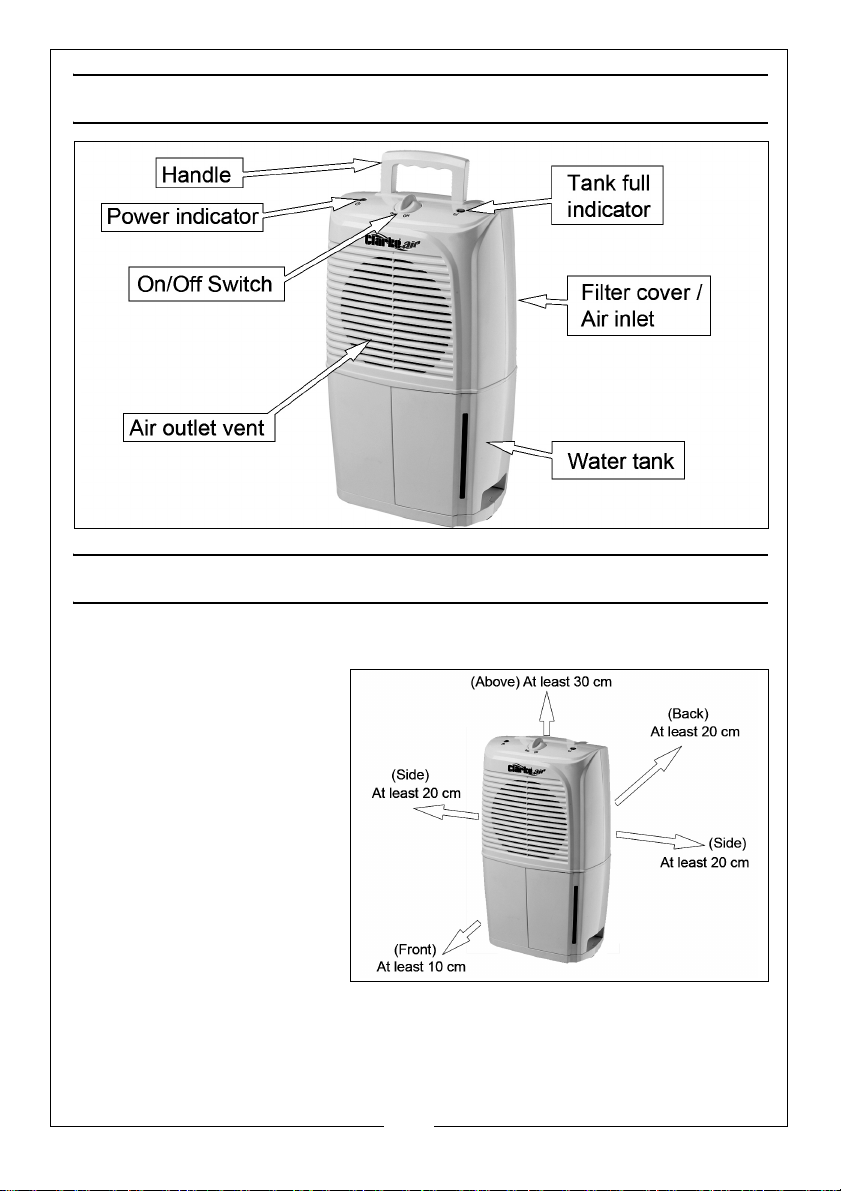

OVERVIEW

LOCATING THE DEHUMIDIFIER

• Place the dehumidifier near a power outlet.
• Space must be left around the dehumidifier, to let air flow in and out.
• Do not pull on the cable.
• Do not crush the cable.
• Do not put the dehumidifier adjacent to a heat source as this decreases its performance.
• Keep the dehumidifier upright when moving it.
• Empty the tank before moving.
5
Page 6

OPERATION

BEFORE USE

1. Stand your dehumidifier upright for a minimum of 1 hour before operating.
2. Connect the plug to the power supply.

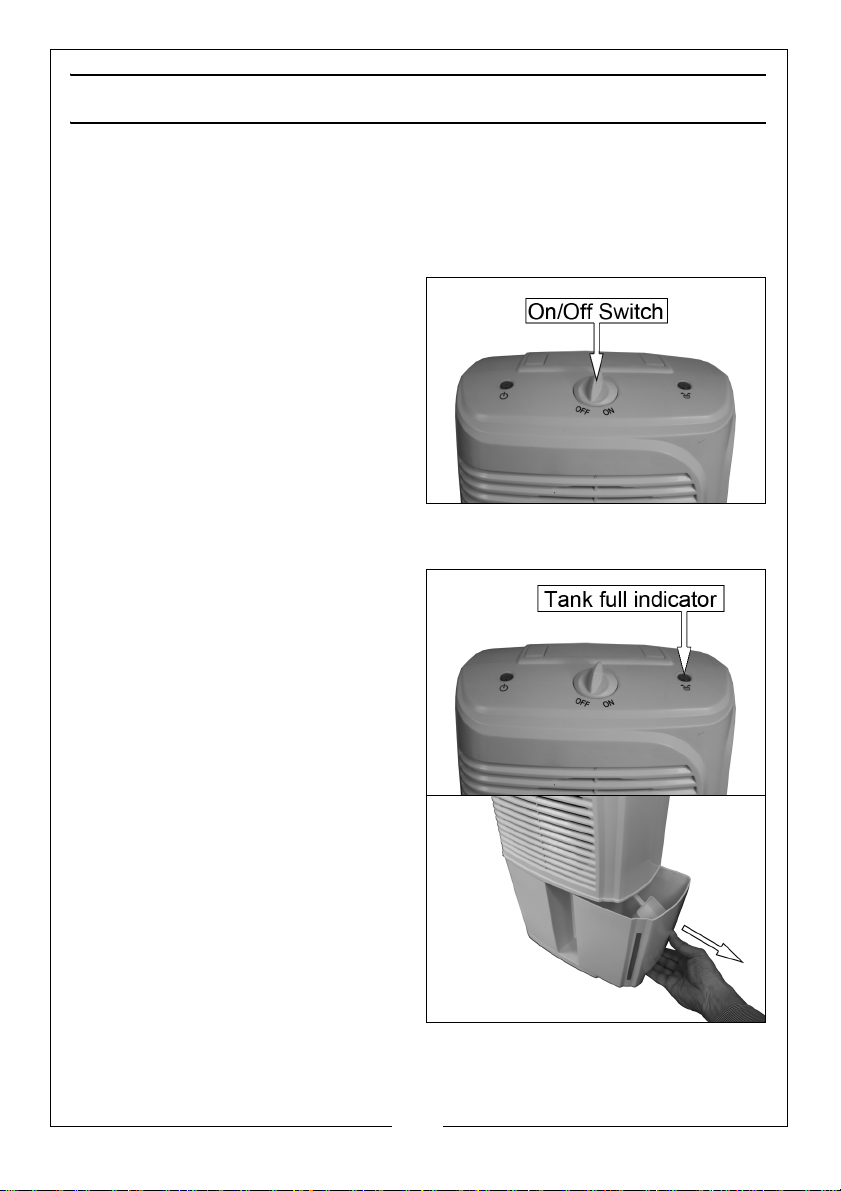

SWITCH ON/OFF

1. Set the ON/OFF Switch to the ON position.
• The power indicator lights up.
2. Set the ON/OFF Switch to the OFF position.
• The power indicator turns off.

EMPTYING THE TANK

1. When the “Tank full indicator” comes on, switch off the dehumidifier and disconnect the plug from the power supply.
2. Remove the tank.
3. Discard the water and replace the tank.
NOTE: The unit does not operate if
the tank is not installed.
6
Page 7

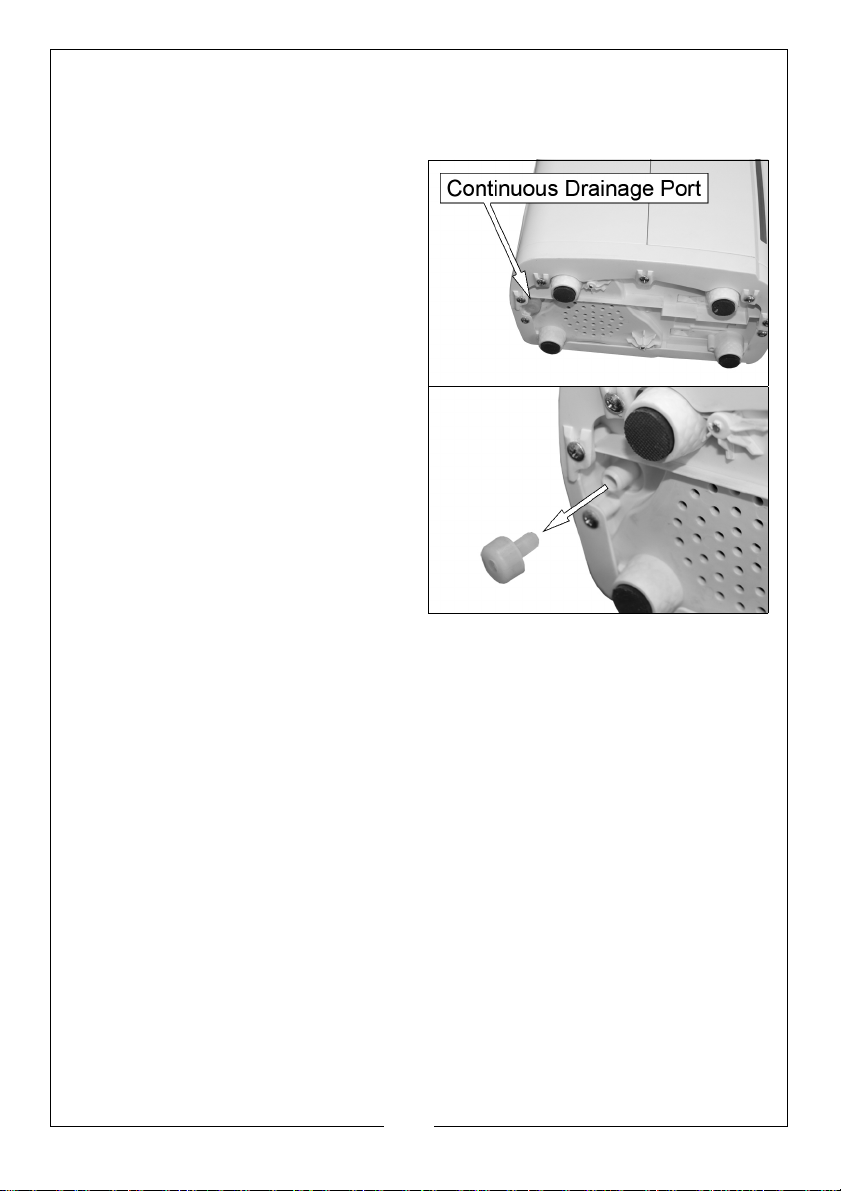

CONTINUOUS DRAINAGE

This function lets the dehumidifier work continuously without having to empty the water tank.
1. Turn the dehumidifier over and identify the continuous drainage port
2. Remove the plug from the continuous drainage port.
3. Insert the spring supplied into the drainage hose and then connect that end of the drainage hose to the drainage port.
4. Secure the drainage hose to the drainage port using the spring clip provided.
• Make sure that the drainage
hose always runs downhill away from the dehumidifier.
• Do not raise the height of any part of the drainage hose by more than
200 mm (above the height of unit base), otherwise the water will not drain correctly.
5. Remove the drainage hose and replace the plug when you don't want to drain continuously.
7
Page 8

MAINTENANCE

WARNING: ALWAYS UNPLUG THE DEHUMIDIFIER BEFORE YOU CLEAN OR DO ANY MAINTENANCE OPERATIONS.

STORAGE

• Disconnect from the mains supply and empty the tank.
• Clean and install the filter, see below.
• Put a cover on the dehumidifier to stop dust getting inside.

CLEANING THE CABINET

• Use a soft moist cloth to clean the external surfaces.
• Do not use strong chemicals or abrasives as these can damage the finish.

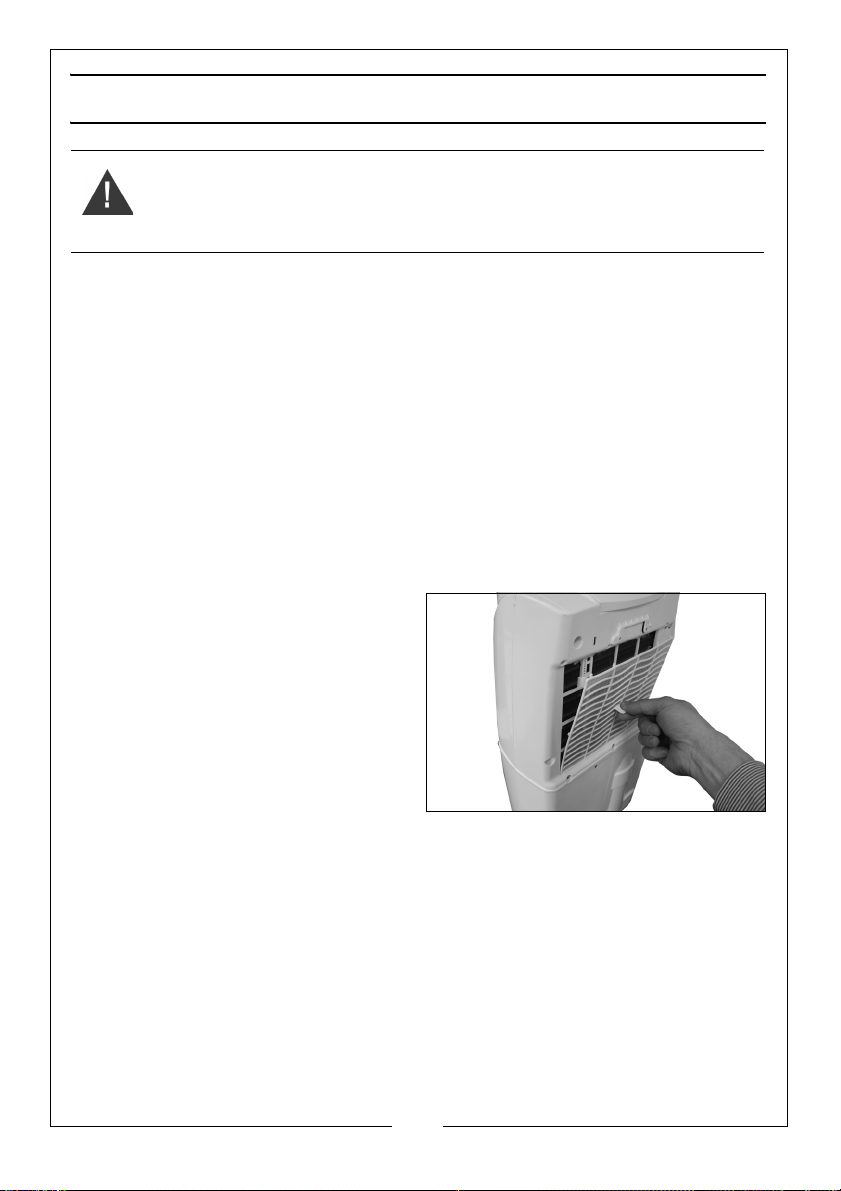

CLEANING THE AIR FILTER

1. Pull the filter towards you to remove it.
2. Clean the filter with water to remove any dust.
• Let the filter dry naturally before
refitting.
3. Replace the filter.
• Make sure that the lugs on the
filter are seated correctly.
• The cleaning frequency depends on the duration of use and the level of
dust in the environment.
8
Page 9

TROUBLESHOOTING

Cause Solution
No operation Power cable is
disconnected.
The tank is full. Empty the tank.
The tank is not fitted properly.
Dehumidifier output is low
Washed clothes are not drying
The filter is dirty. Clean the filter. See page 8.
The air inlet is blocked. Remove dirt from the air inlet.
Washed clothes are hard to dry when the temperature is low.
Connect the plug to the power supply.
Replace the tank correctly in position.
Check to see if the room temperature is too low.

TECHNICAL SPECIFICATION

Power source 220 to 240V AC 50Hz
Input power 260W
Dehumidifying capacity 10 litres per day
Water tank capacity 2 litres
Weight 7.5 kg
Operation temperature 5 - 35 degrees Celsius
Dimensions (LxWxH) 160 mm x 280 mm x 500 mm
Refrigerant R134a
9
Page 10

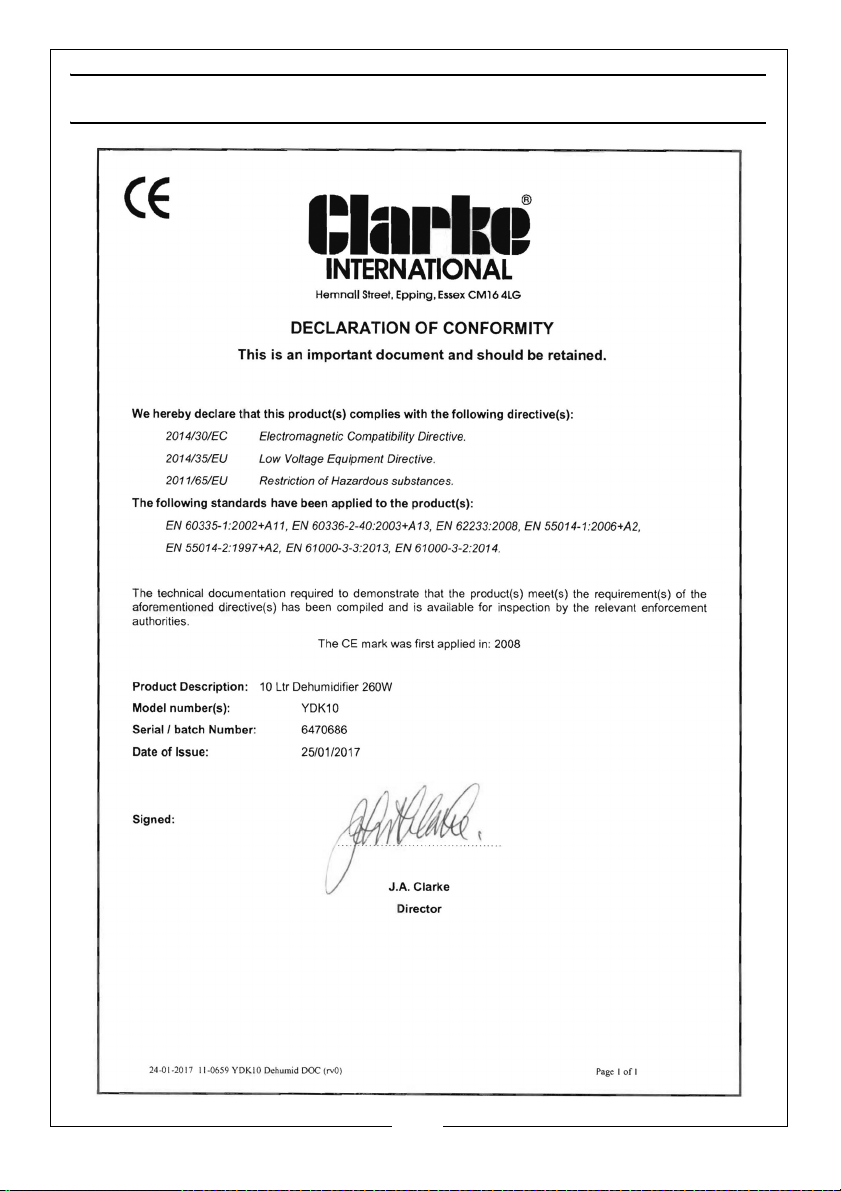

DECLARATION OF CONFORMITY

10
Page 11
11
