Clarke DH 20, 6470652 User guide

20 LITRE DEHUMIDIFIER

MODEL NO: DH20

PART NO: 6470652

OPERATION & MAINTENANCE

INSTRUCTIONS

LS0914

INTRODUCTION

Thank you for purchasing this CLARKE product.

Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.

Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.

This guarantee does not effect your statutory rights.

ENVIRONMENTAL RECYCLING POLICY

Through purchase of this product, the customer is taking on the
obligation to deal with the WEEE in accordance with the WEEE
regulations in relation to the treatment, recycling & recovery and
environmentally sound disposal of the WEEE.

In effect, this means that this product must not be disposed of with general
household waste. It must be disposed of according to the laws governing
Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal
facility.

R134a is a refrigerant that complies with EEC environmental standards;
nonetheless, the refrigerant circuit on the machine should not be punctured.
At the end of its working life, consign the air conditioning unit to a special
collection centre.

2

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

SAFETY WARNINGS

WARNING: IF THE SUPPLY CABLE IS DAMAGED, IT MUST BE REPLACED BY
THE MANUFACTURER, ITS SERVICE AGENT OR SIMILARLY QUALIFIED
PERSONS IN ORDER TO AVOID A HAZARD.

1. Please read these instructions carefully and retain for future reference.

2. Position the mains cable so that it cannot be inadvertently pulled or
pinched and where it does not cause a trip hazard

3. This appliance is designed to dehumidify residential environments and must
not be used for other purposes.

4. If the appliance requires repair, always contact your CLARKE dealer.
Always insist on original spare parts. Repairs carried out by unauthorized
persons may be dangerous and invalidate the guarantee.

5. This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children without supervision.

6. Do not use extension power cables.

7. Before cleaning or maintenance operations, always unplug the appliance
from the power supply.

8. Do not move the appliance by pulling the power cable.

9. Do not install the appliance in rooms containing gas, oil or sulphur. Do not
install near sources of heat.

10. Do not use the appliance on inclined surfaces.

11. Keep the appliance at least 50 cm away from inflammable substances
(alcohol etc) or pressurised containers (e.g. aerosol cans).

12. Do not rest heavy or hot objects on top of the appliance.

13. Always transport the appliance upright or resting on one side. Remember
to drain the tank before moving the appliance. Wait at least 1 hour after
transporting the appliance before using it to allow the refrigerent gasses to
settle.

14. Do not use the appliance outdoors.

15. Do not obstruct the air inlet or outlet.

3

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

ELECTRICAL CONNECTIONS

Plug must be BS1363/A approved.

Always fit a 5 Amp fuse.

Ensure that the outer sheath of the cable is firmly held by the clamp

Neutral

(Blue)

Live

(Brown)

Earth

(Green and Yellow)

WARNING! Read these electrical safety instructions thoroughly
before connecting the product to the mains supply.

Before switching the product on, make sure that the voltage of your electricity supply is
the same as that indicated on the rating plate. This product is designed to operate on
230VAC 50Hz. Connecting it to any other power source may cause damage.

This product may be fitted with a non-rewireable plug. If it is necessary to change the
fuse in the plug, the fuse cover must be refitted. If the fuse cover becomes lost or
damaged, the plug must not be used until a suitable replacement is obtained.

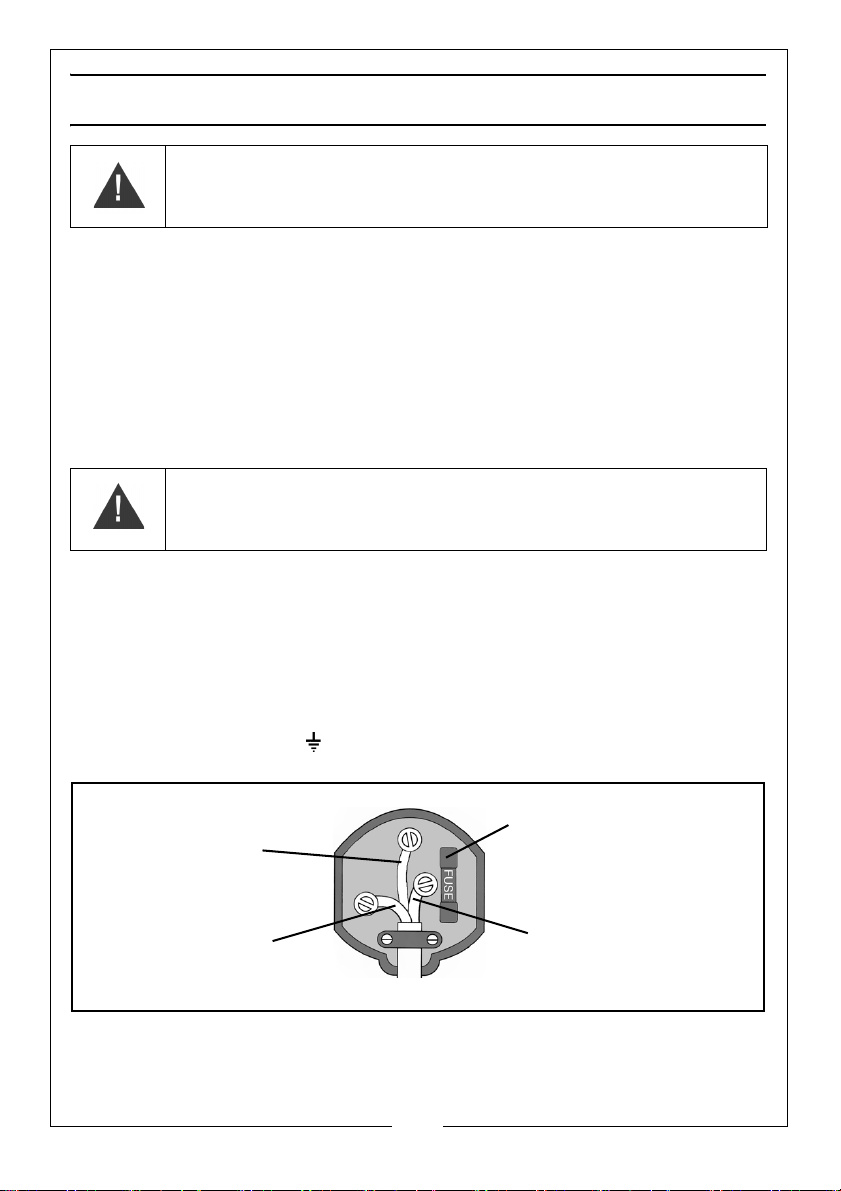

If the plug has to be changed because it is not suitable for your socket, or due to
damage, it should be cut off and a replacement fitted, following the wiring instructions
shown below. The old plug must be disposed of safely, as insertion into a mains socket
could cause an electrical hazard

WARNING! The wires in the power cable of this product are
coloured in accordance with the following code:
Blue = Neutral Brown = Live Yellow and Green = Earth

If the colours of the wires in the power cable of this product do not correspond with the
markings on the terminals of your plug, proceed as follows.

• The wire which is coloured Blue must be connected to the terminal which is

marked N or coloured Black.

• The wire which is coloured Brown must be connected to the terminal which is

marked L or coloured Red.

• The wire which is coloured Yellow and Green must be connected to the terminal

which is marked E or or coloured Green.

.

We strongly recommend that this machine is connected to the mains supply via a Residual
Current Device (RCD)

If in any doubt, consult a qualified electrician. DO NOT attempt any repairs yourself

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

4

OVERVIEW

3

4

5

2

1

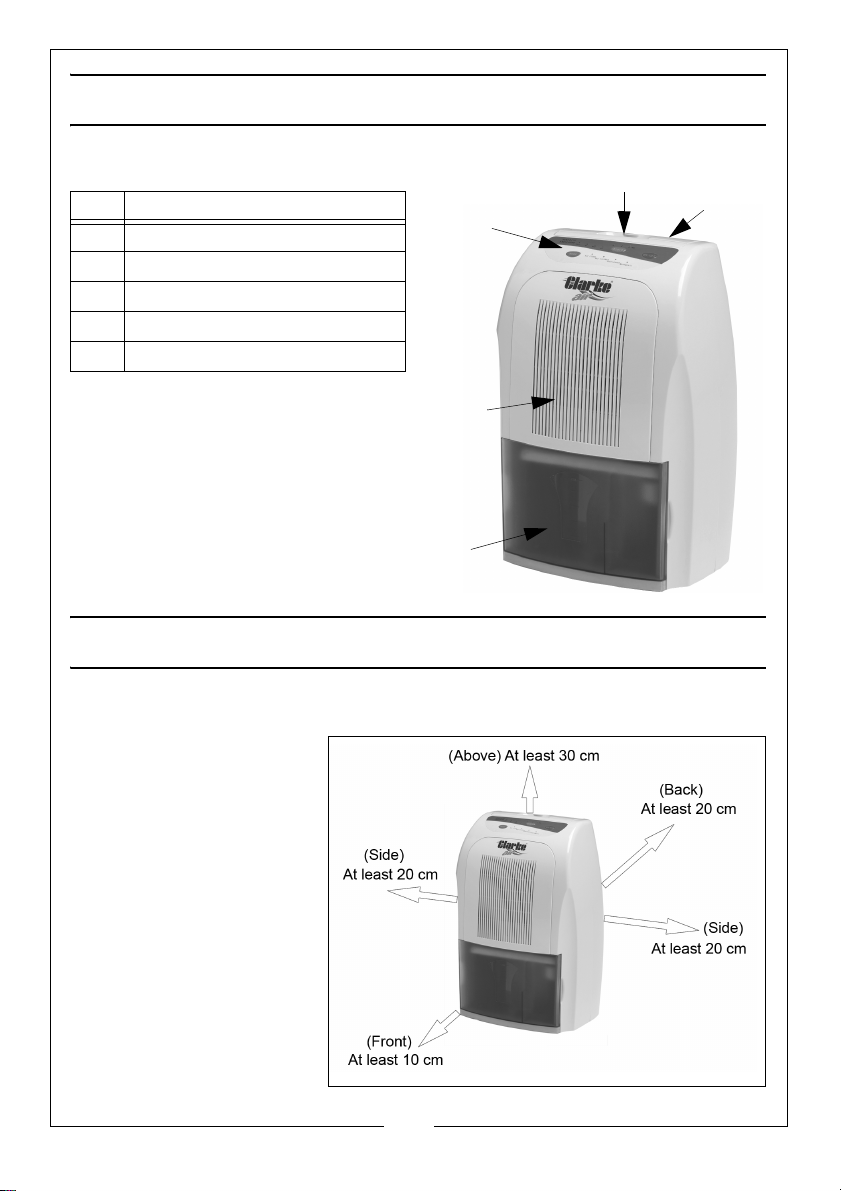

NO DESCRIPTION

1 Control panel

2 Handle

3Air vent

4 Filter cover / Air inlet

5Water tank

POSITIONING THE DEHUMIDIFIER

• Position the dehumidifier close to a mains supply socket

•A free space

indicated must be
left around the

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

dehumidifier, so as
not to block the air
flow.

• Make sure that the

power cable is not
placed where it can
be inadvertently
pulled or pinched
and where it does
not cause a trip
hazard.

5

OPERATION

SWITCHING ON

Plug into the mains supply socket and
switch on. The Automatic indicator
will flash.

Open the air vent (3) on top on the
dehumidifier to one of three settings

Each setting will vary the direction of
the air flow.

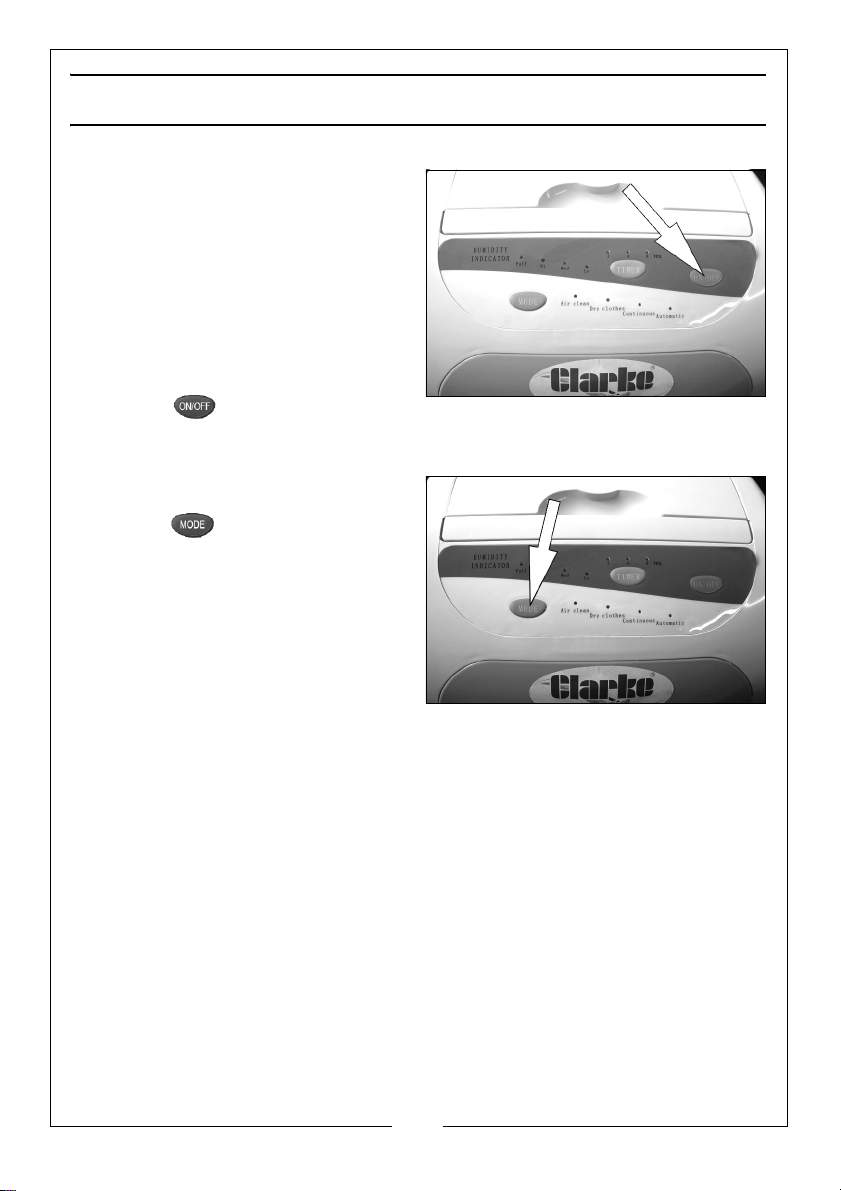

Press the button.

• The Automatic indicator will illuminate.

SELECT MODE

Press the button to cycle
through the available modes.

• The indicator light will

illuminate above your
selection.

AUTOMATIC

Used to dehumidify a room or
prevent a room from getting mouldy
through excessive condensation.

• The dehumidifying functions stops when the humidity falls below 60%,

The air cleaning function continues as long as the unit is switched on.

CONTINUOUS

Used to dehumidify a wardrobe:

• Position the dehumidifier with the air inlet facing the open doors.

DRY CLOTHES

Used to dry a carpet or small space or to dry wet clothes faster

• Position the dehumidifier with the air inlet facing wet clothes/carpet.

AIR CLEAN

Used to filter the air

• The filter must be fitted for the air cleaning function to work.

6

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

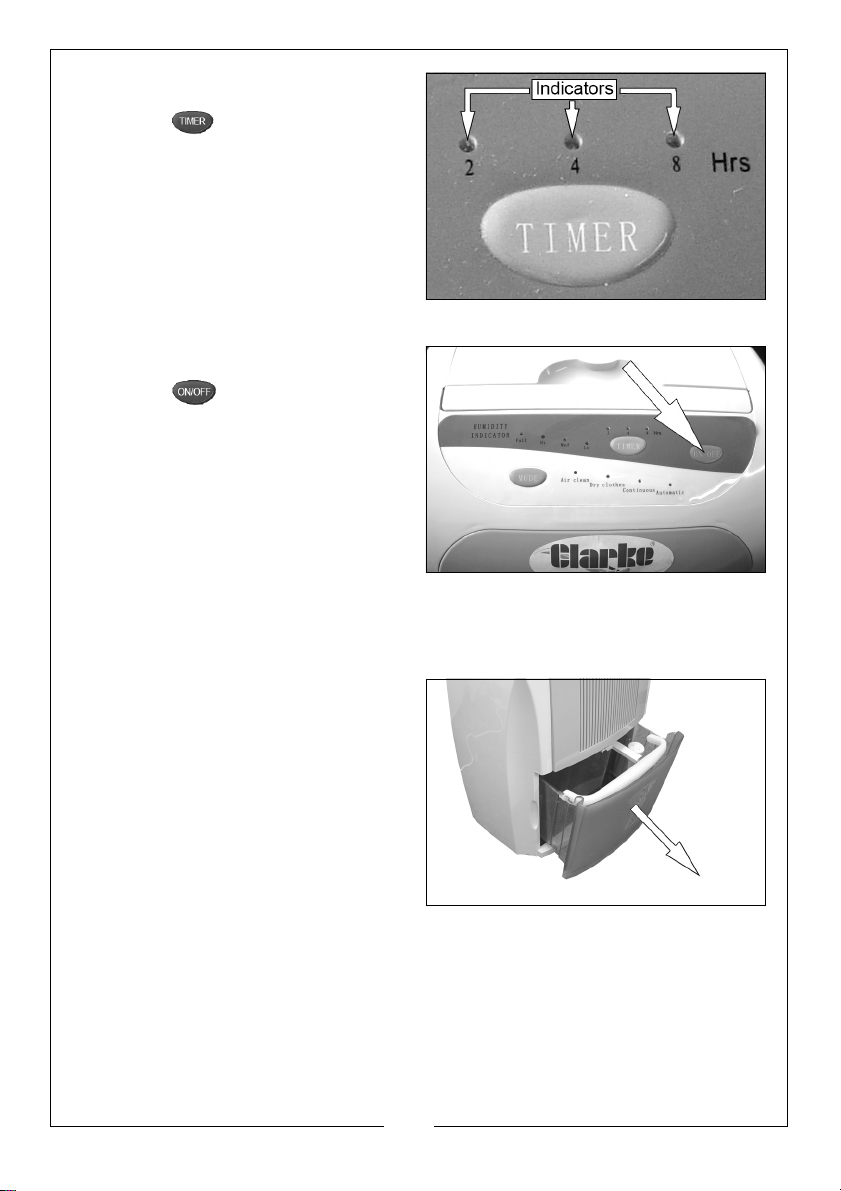

TIMER OPERATION

Press the button to cycle
through the timer options: 2 hours, 4
hours or 8 hours.

After the time selected has elapsed
the dehumidifier will switch off.

NOTE: The timer function works in

ALL modes.

SWITCHING OFF

Press the button. to turn the
dehumidifier off.

EMPTYING THE WATER TANK

1. When the FULL indicator on the panel illuminates, switch off and
disconnect from the mains supply.

2. Carefully remove the water tank
by placing your fingers in the
channel on either side of the tank
and pulling forwards, as shown
opposite.

3. Discard the water and refit the
water tank.

NOTE: The unit will not operate

unless the water tank is fitted
correctly.

7

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

CONTINUOUS DRAINING

This function enables continuous dehumidifying without having to empty the
water tank.

PREPARATION FOR CONTINUOUS DRAINING:

1. Remove the water tank.

2. Make the hose opening.

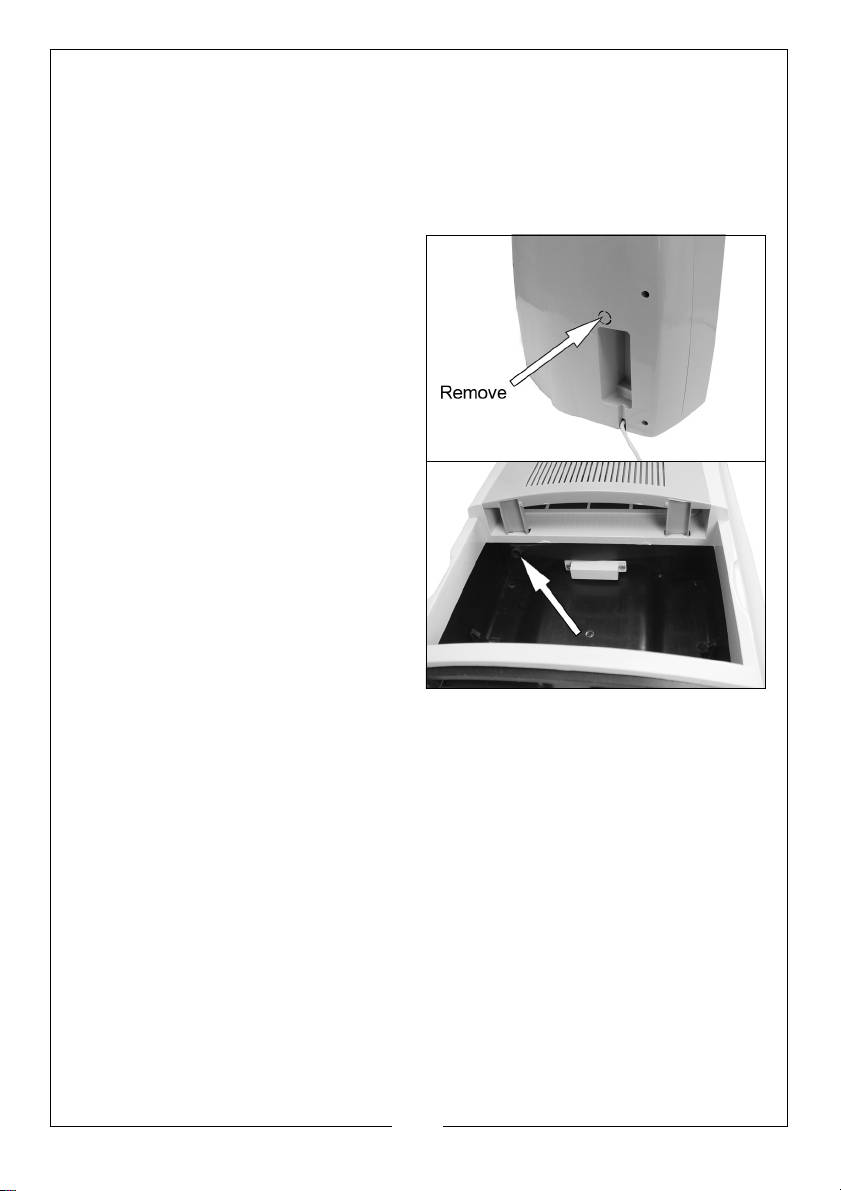

• To make the opening, prise the

cover for the drain hose away
using a screwdriver.

3. Fit the drainage pipe adapter
supplied into position shown on
the right.

4. Put the drain hose (supplied)
through the hose opening and
securely fit the hose to the
drainage pipe adapter.

• The hose should have an

internal diameter of 15mm and
an outer diameter of less than
20mm.

• Make sure that the drain hose always runs downhill away from the

dehumidifier.

5. Replace the water tank.

• The unit will not operate without the tank in position.

8

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

MAINTENANCE

WARNING: ALWAYS UNPLUG THE DEHUMIDIFIER BEFORE PERFORMING
ANY CLEANING OR MAINTENANCE OPERATIONS.

CLEANING THE CABINET

• Use a soft damp cloth to clean the exterior.

• Never use harsh chemicals or abrasive cleaning agents as these may

damage the casing finish.

CLEANING THE AIR FILTER

1. Remove the water tank.

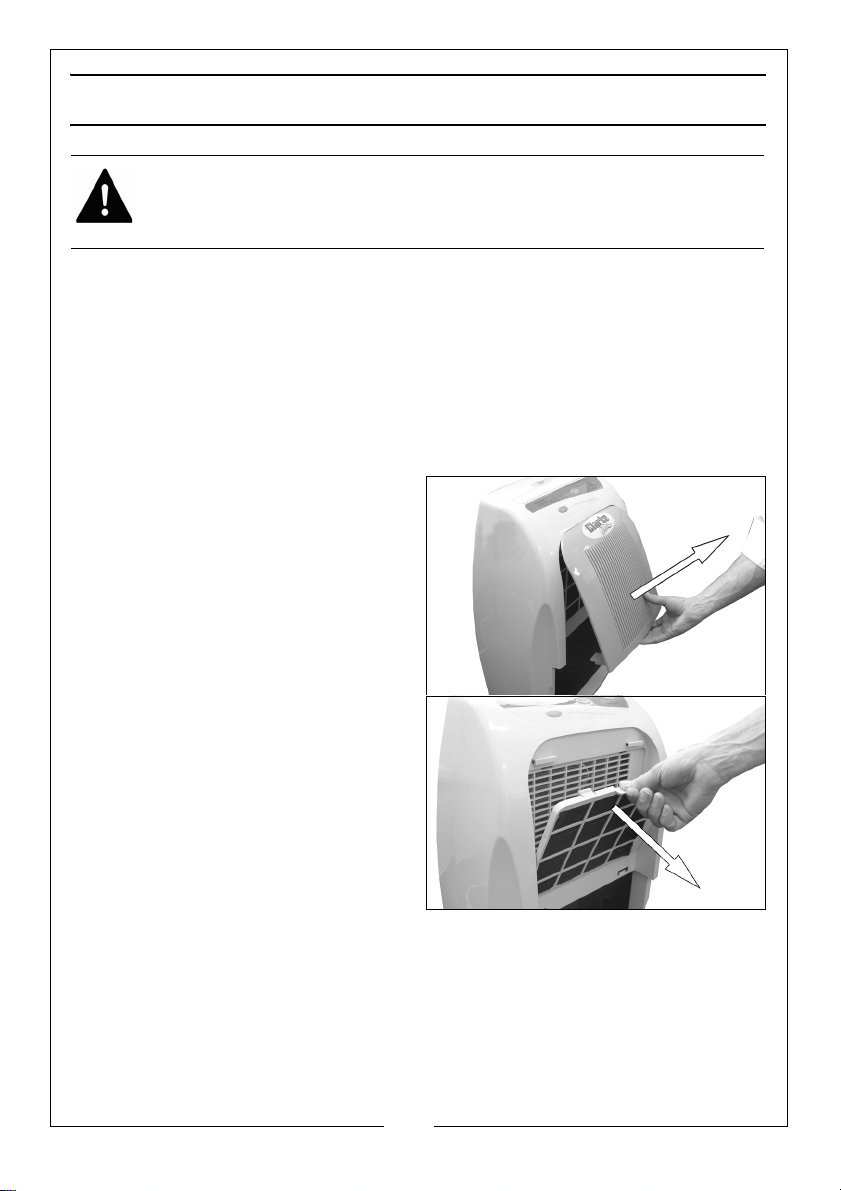

2. Pull the grill forwards, from the
bottom.

3. Remove the filter holder.

4. Unclip the cage at the rear of the
filter holder.

5. Wash the filter under running
water to remove any dust.

6. Allow the filter to dry naturally.

7. Refitting is the reverse process.

The frequency depends on the
duration and the level of dust in the enviroment.

STORAGE

• Unplug from the mains socket and empty the tank.

• Clean and reinstall the filter.

• Cover the dehumidifier to prevent dust getting into the workings.

9

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

TROUBLESHOOTING

Cause Solution

No operation Power cable disconnected Insert the plug into a power

socket.

Water tank is full Empty the water tank.

Dehumidified
volume is small

Operation
stops during
spot
dehumidifying

Washed
clothes are not
dried

Water tank is not seated
properly.

Air vent closed. Open the air vent.

Is the filter dirty? Clean the filter as specified.

Check to see if the air inlet
is blocked.

The dehumidifier is in ‘air
clean’ mode.

The room temperature is
higher than the usable
operating temperature.

Clothes are not exposed to
the air from the unit.

Washed clothes are hard to
dry when the temperature
is low.

Replace the tank correctly in
position.

Remove dirt from the air inlet.

Change the operation mode
to the dehumidifying mode.

Dehumidifying operation will
restart automatically when the
temperature falls

Try to expose the clothes to the
air flow.

Check to see if the room
temperature is too low

TECHNICAL SPECIFICATION

Power source 220 to 240 Volts AC 50Hz

Input Power 400W

Water tank capacity 5 Litres

Weight 13.6 kg

Operation temperature 5 - 35 degrees Celsius

Dimensions (LxWxH) 290 mm x 386 mm x 575 mm

Refrigerant R134a

10

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

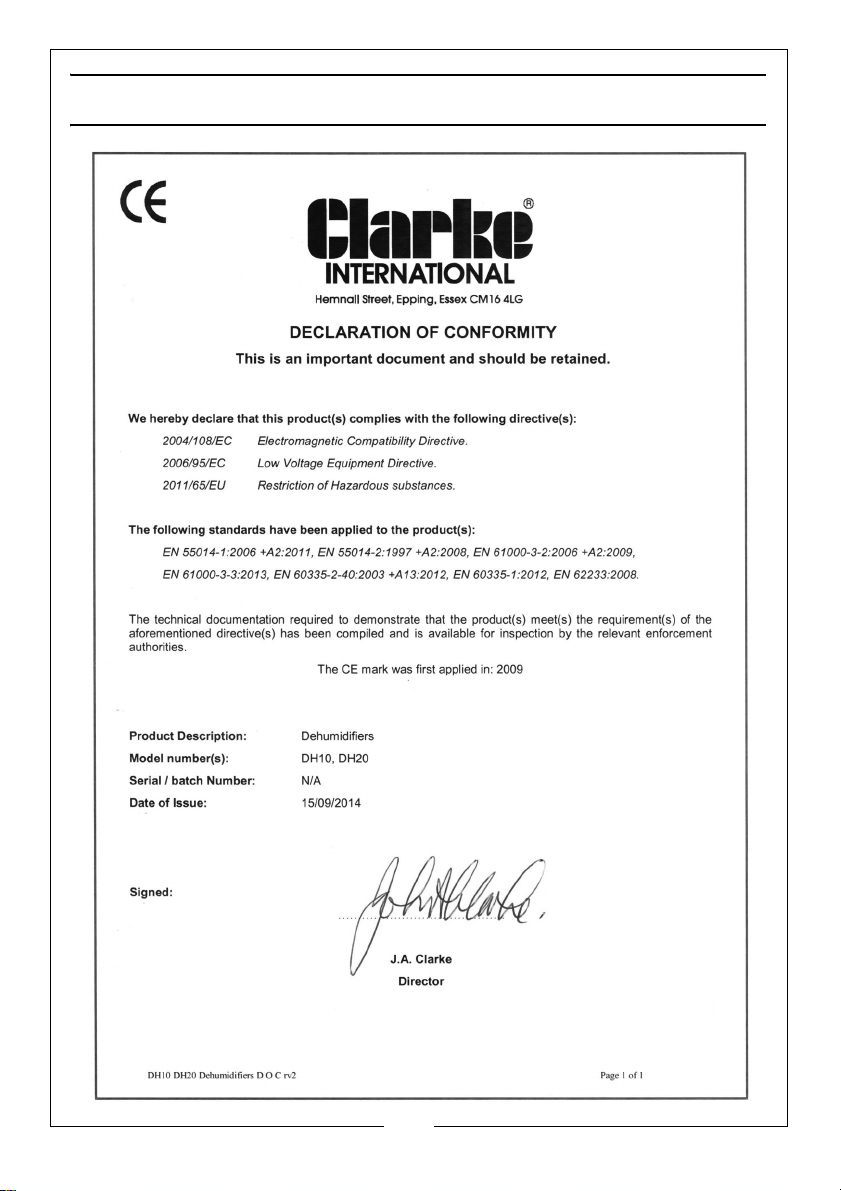

DECLARATION OF CONFORMITY
