SLIDING MITRE SAW
MODEL NO: CMS250S
PART NO: 6461530
OPERATION & MAINTENANCE
INSTRUCTIONS
ORIGINAL INSTRUCTIONS GC0219 ISS 2
Page 2
INTRODUCTION
Thank you for purchasing this CLARKE Mitre Saw.
Before attempting to operate the machine, it is essential that you read this
manual thoroughly and carefully follow all instructions given. In doing so you
will ensure the safety of yourself and that of others around you, and you can
also look forward to the product giving you long and satisfactory service.
GUARANTEE
This CLARKE product is guaranteed against faulty manufacture for a period of
12 months from the date of purchase. Please keep your receipt as proof of
purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for its intended purpose.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does not effect your statutory rights.
ENVIRONMENTAL PROTECTION
Recycle unwanted materials instead of disposing of them as waste.
All unwanted accessories and packaging should be sorted and
taken to a recycling centre for disposal in a manner which is
compatible with the environment.
Through purchase of this product, the customer is taking on the obligation to
deal with the WEEE in accordance with the WEEE regulations in relation to the
treatment, recycling & recovery and environmentally sound disposal of the
WEEE.
In effect, this means that this product must not be disposed of with general
household waste. It must be disposed of according to the laws governing
Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal
facility.
2
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 3
SAFETY WARNINGS
WORK AREA
1. Keep the work area clean and well lit. Cluttered and dark areas invite
accidents.
2. Do not operate power tools in explosive atmospheres, such as in the
presence of flammable liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
3. Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.
ELECTRICAL SAFETY
1. Power tool plugs must match the outlet. Never modify the plug in any way.
Do not use adapter plugs with earthed (grounded) power tools. Unmodified
plugs and matching outlets will reduce the risk of electric shock.
2. Do not expose power tools to rain or wet conditions. Water entering a
power tool will increase the risk of electric shock.
3. Do not abuse the cable. Never use the cable for carrying, pulling or
unplugging the power tool. Keep the cable away from heat, oil, sharp
edges or moving parts. Damaged or entangled cables increase the risk of
electric shock.
4. When operating a power tool outdoors, use an extension cable suitable for
outdoor use. Use of a cable suitable for outdoor use reduces the risk of
electric shock.
5. If operating the power tool in a damp location is unavoidable. Use a
residual current device (RCD) protected supply.
PERSONAL SAFETY
1. Stay alert, watch what you are doing and use common sense when
operating a power tool. Do not use a power tool while you are tired or
under the influence of drugs, alcohol or medication. A moment of
inattention while operating power tools may result in personal injury.
2. Use safety equipment. Always wear eye protection. Safety equipment such
as dust mask, non-skid safety shoes, hard hat, or hearing protection used
for appropriate conditions will reduce personal injuries.
3. Avoid accidental starting. Ensure the switch is in the off position before
plugging in. Carrying power tools with your finger on the switch or plugging
in power tools that have the switch on invites accidents.
3
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 4
4. Remove any adjusting key or wrench before turning the power tool on. A
wrench or a key left attached to a rotating part of the power tool may
result in personal injury.
5. Do not overreach. Keep proper footing and balance at all times. This
enables better control of the power tool in unexpected situations.
6. Dress properly. Do not wear loose clothing or jewellery. Keep your hair,
clothing and gloves away from moving parts. Loose clothes, jewellery or
long hair can be caught in moving parts.
7. A laser beam can cause serious eye injury. Never look into the laser outlet.
POWER TOOL USE AND CARE
1. Do not force the power tool. Use the correct power tool for your
application. The correct power tool will do the job better and safer at the
rate which it was designed.
2. Do not use the power tool if the switch does not turn it on and off. Any
power tool that cannot be controlled with the switch is dangerous and
must be repaired.
3. Disconnect the plug from the power supply before making any
adjustments, changing accessories, or storing power tools. Such preventive
safety measures reduce the risk of starting the power tool accidentally.
4. Store idle tools out of the reach of children and do not allow persons
unfamiliar with the power tool or these instructions to operate the power
tool. Power tools are dangerous in the hands of untrained users.
5. Maintain power tools. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may affect the power
tools operation. If damaged, have the power tool repaired before use.
Many accidents are caused by poorly maintained power tools.
6. Keep cutting tools sharp and clean. Tools with sharp cutting edges are less
likely to bind and are easier to control.
7. Use the power tool and accessories in accordance with these instructions
and in the manner intended, taking into account the working conditions
and the work to be performed. Use of the power tool for operations
different from intended use could result in a hazardous situation.
ADDITIONAL SAFETY RULES FOR MITRE SAWS
1. Make sure all locking knobs and clamp handles are tight before starting
any task.
4
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 5
2. Do not operate the saw without the guard in position, if the guard does not
function correctly or is not maintained properly.
3. Never use your saw without the kerf plate.
4. Never place either hand in the blade area when the saw is connected to
the electrical power source.
5. Never attempt to stop a saw in motion rapidly by jamming a tool or other
item against the blade. Serious accidents can be caused unintentionally in
this way.
6. Before using any accessory consult the instruction manual. The improper
use of an accessory can cause damage.
7. Observe the maximum speed marked on the saw blade.
8. Always wear gloves when handling a saw blade.
9. Do not use blades of larger or smaller diameter than recommended. For
the proper blade rating refer to the technical data. Use only the blades
specified in the specifications section of this manual.
10. Do not use cracked or damaged saw blades.
11. Do not use any abrasive discs.
12. Raise the blade from the kerf in the workpiece prior to releasing the switch.
13. Ensure that the arm is securely fixed when performing bevel cuts.
14. The blade guard on your saw will automatically raise when the arm is
brought down; it will lower over the blade when the arm is raised. The
guard can be raised by hand when installing or removing saw blades or for
inspection of the saw. Never raise the blade guard manually unless the saw
is switched off.
15. Keep the surrounding area of the saw well maintained and free of loose
materials, e.g. chips and cut-offs.
16. Before use, check that the motor air slots are clean and free of chips.
17. Replace the kerf plate when worn.
18. Disconnect the saw from the mains before carrying out any maintenance
work or when changing the blade.
19. Never perform any cleaning or maintenance work when the saw is still
running and the head is not in the rest position.
20. When possible, always mount the saw on to a bench or plywood base
which is then clamped to a bench, or mount the machine to a purpose
built mitre saw stand available from your local Clarke dealer.
5
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 6

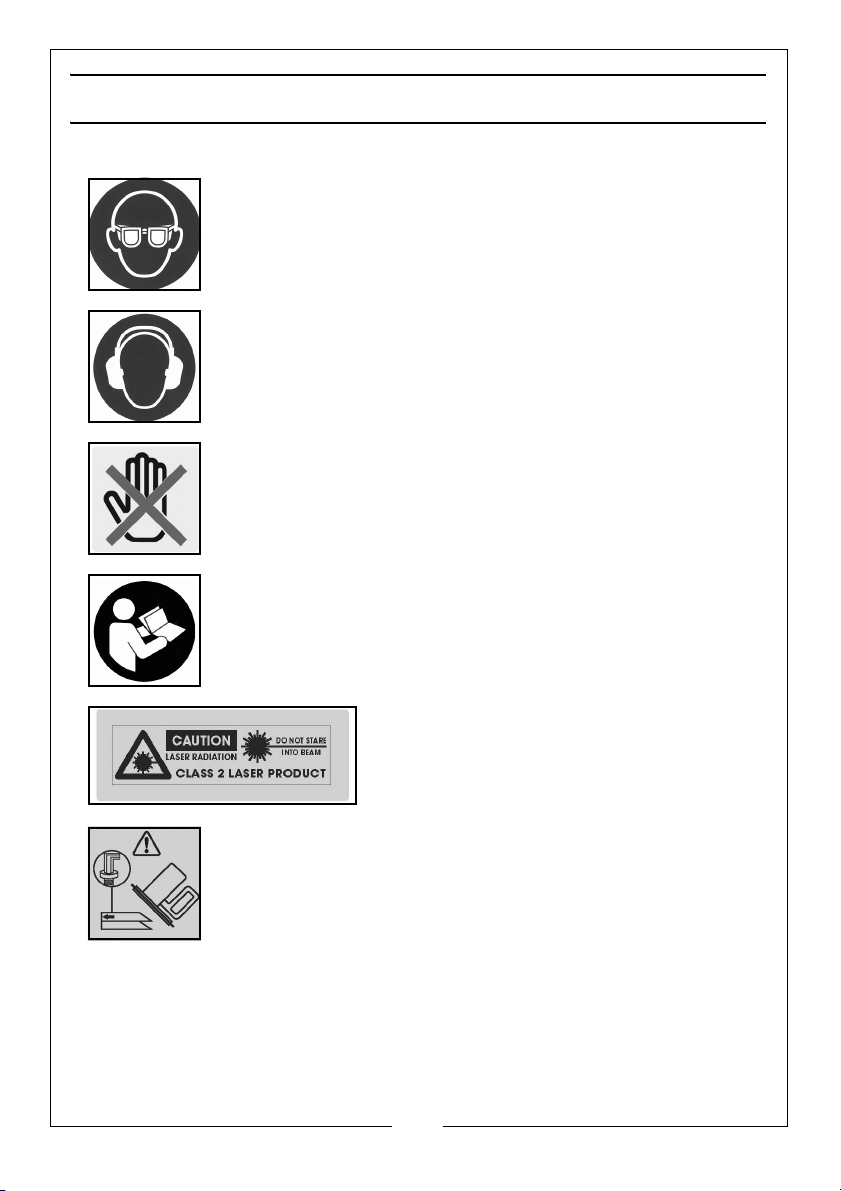

SAFETY SYMBOLS
Wear eye protection
Wear ear defenders
Do not put your hand near the blade
Read instruction manual before use
Laser Radiation, Class 2 Laser: Do not stare
into the beam.
Take care not to damage the fence when using different mitre
angles.
6
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 7

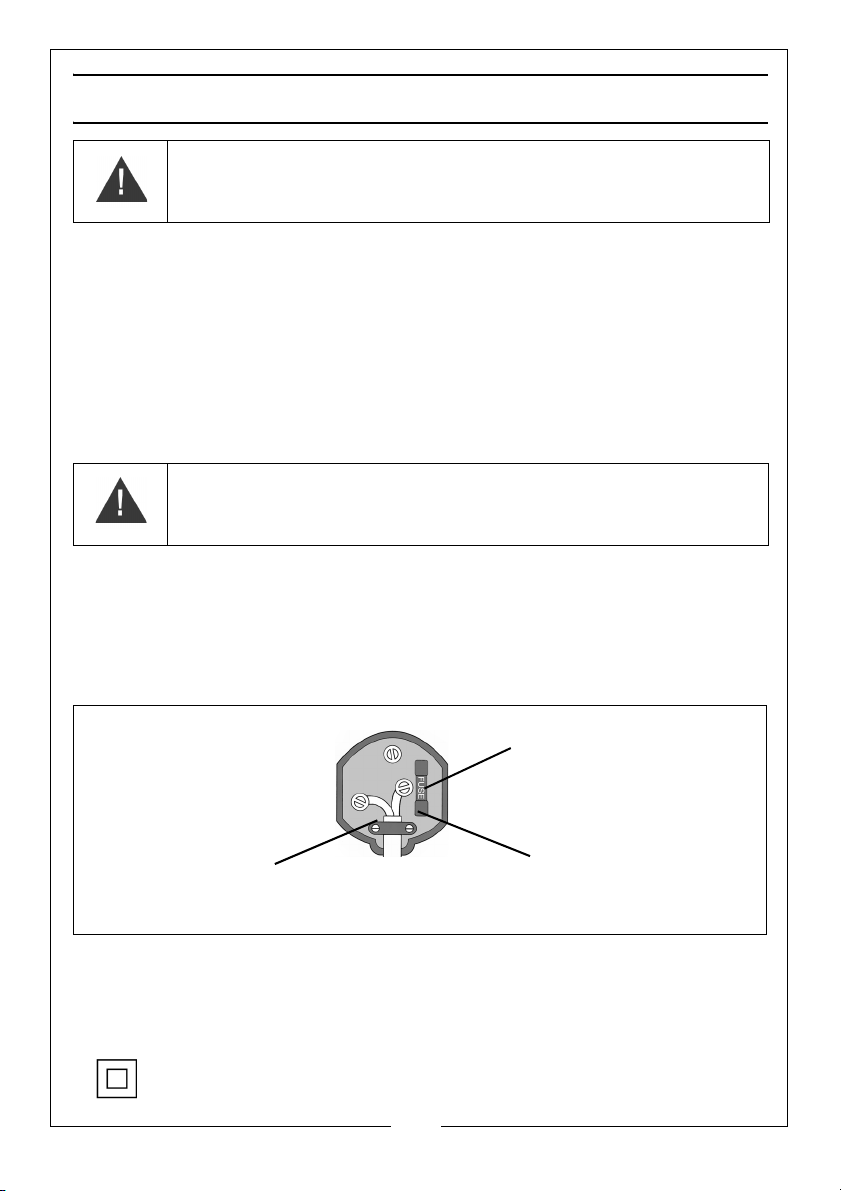

ELECTRICAL CONNECTIONS
Plug must be BS1363/A approved.
Always fit a 13 Amp fuse.
Ensure that the outer sheath of the cable is firmly held by the clamp
Neutral
(Blue)
Live
(Brown)
WARNING! READ THESE ELECTRICAL SAFETY INSTRUCTIONS
THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE
MAINS SUPPLY.
Before switching the product on, make sure that the voltage of your electricity supply is
the same as that indicated on the rating plate. This product is designed to operate on
230 V AC 50Hz. Connecting it to any other power source may cause damage.
This product may be fitted with a non-rewireable plug. If it is necessary to change the
fuse in the plug, the fuse cover must be refitted. If the fuse cover becomes lost or
damaged, the plug must not be used until a suitable replacement is obtained.
If the plug has to be changed because it is not suitable for your socket, or due to
damage, it should be cut off and a replacement fitted, following the wiring instructions
shown below. The old plug must be disposed of safely, as insertion into a mains socket
could cause an electrical hazard
WARNING! THE WIRES IN THE POWER CABLE OF THIS PRODUCT
ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:
Blue = Neutral Brown = Live
If the colours of the wires in the power cable of this product do not correspond with the
markings on the terminals of your plug, proceed as follows.
• The wire which is coloured Blue must be connected to the terminal which is
marked N.
• The wire which is coloured Brown must be connected to the terminal which
is marked L.
.
We strongly recommend that this machine is connected to the mains supply
via a Residual Current Device (RCD).
If in any doubt, consult a qualified electrician. DO NOT attempt any repairs
yourself.
This symbol indicates that this is a class II product and does not require an earth
connection.
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
7
Page 8

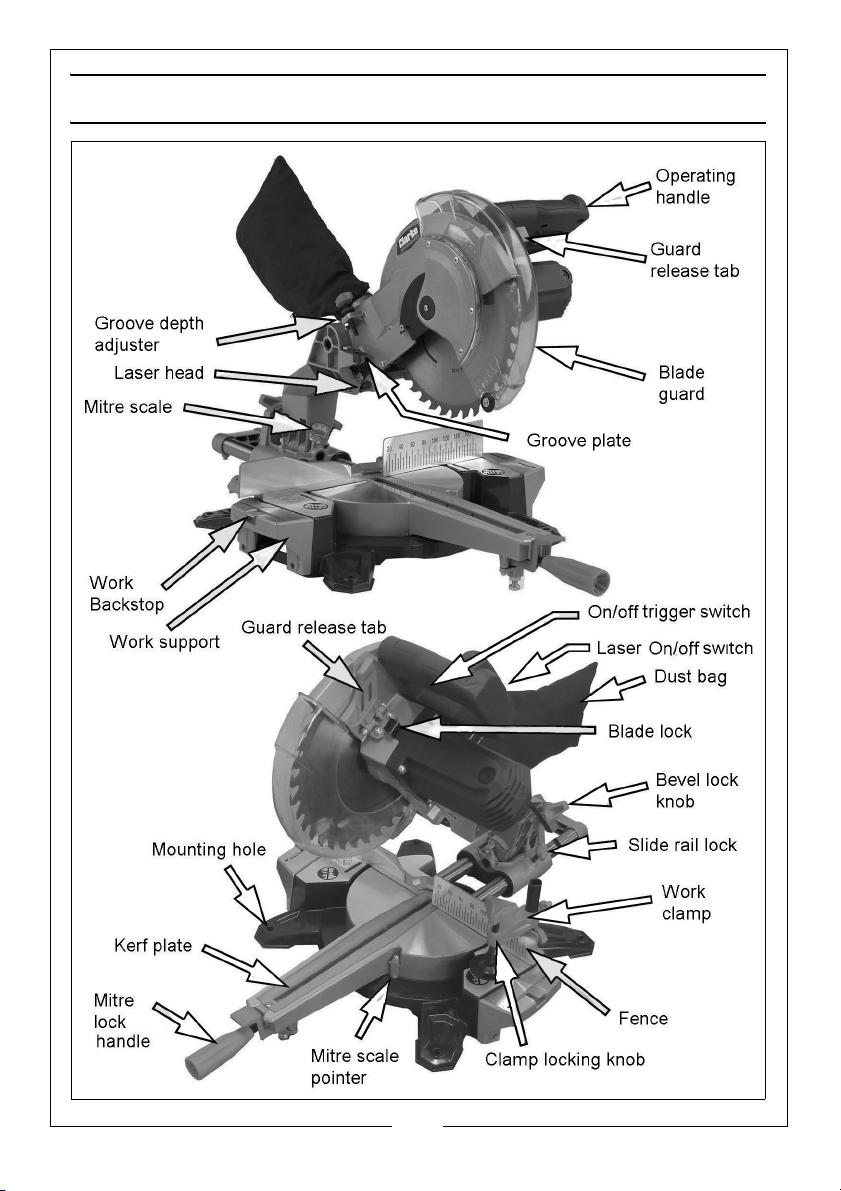

Page 9
BEFORE USE
1. Remove the saw from the packaging carefully.
• The following items should be supplied. If anything is missing contact
your dealer.
Cross-Cut Mitre Saw with Laser Guide 1 x Dust Collection Bag
1 x Work Clamp 2 x Hexagon Keys (4 mm & 6 mm)
250 mm Diameter 36 Tooth TCT Wood
Cutting Blade (fitted)
BENCH MOUNTING
Holes are provided in all four feet to
facilitate bench mounting.
• Always mount your saw firmly
on a level surface to prevent
movement.
The saw can also be mounted to a
piece of 12.5 mm or thicker plywood
which can then be clamped to your
work bench or moved to other work
sites and re-clamped when required.
• When mounting your saw to a piece of plywood, make sure that the
mounting screws do not protrude from the bottom of the wood.
• If the saw rocks on the surface, place a thin piece of material under one
saw foot until the saw is firm on the mounting surface.

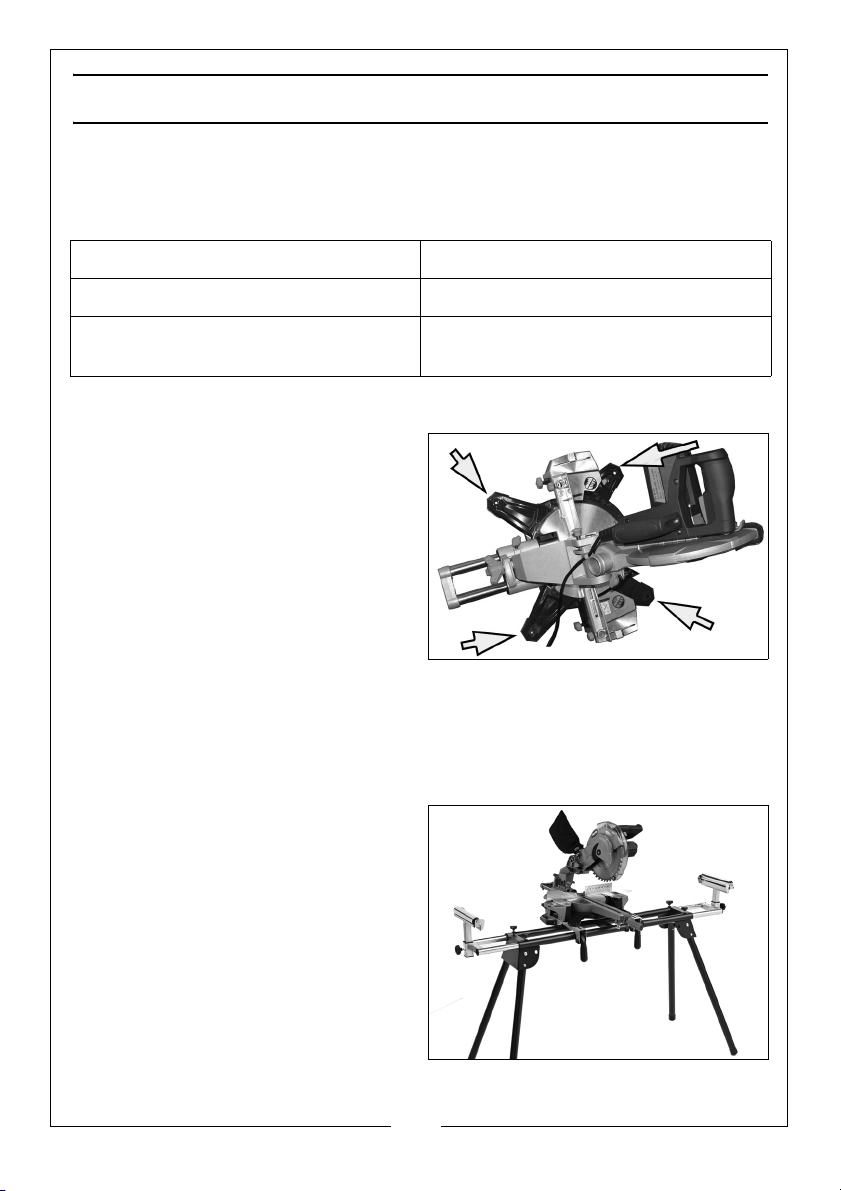

MITRE SAW STAND (NOT SUPPLIED)
You can also mount the mitre saw on
a purpose built stand available from
your Clarke dealer.
9
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 10
LOCKING / RELEASING THE SAW HEAD

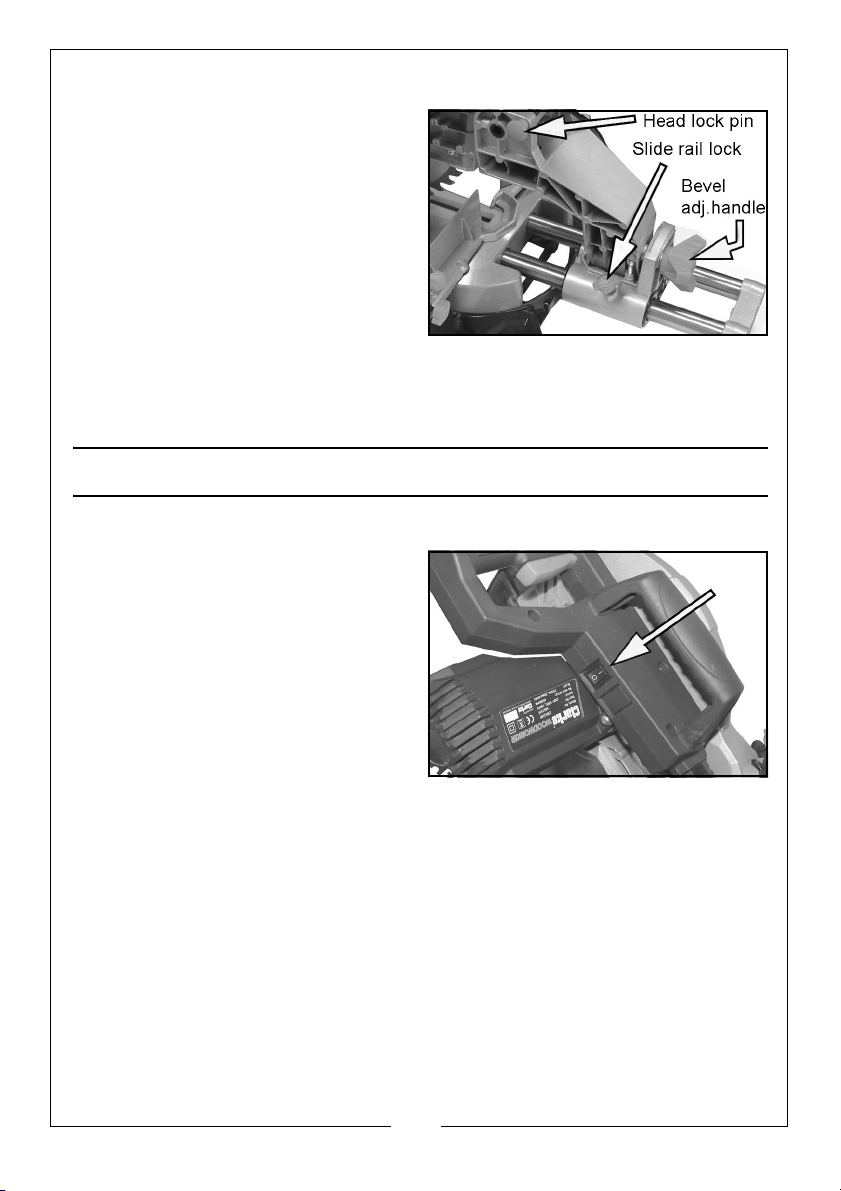

1. Press down slightly on the
operating handle.

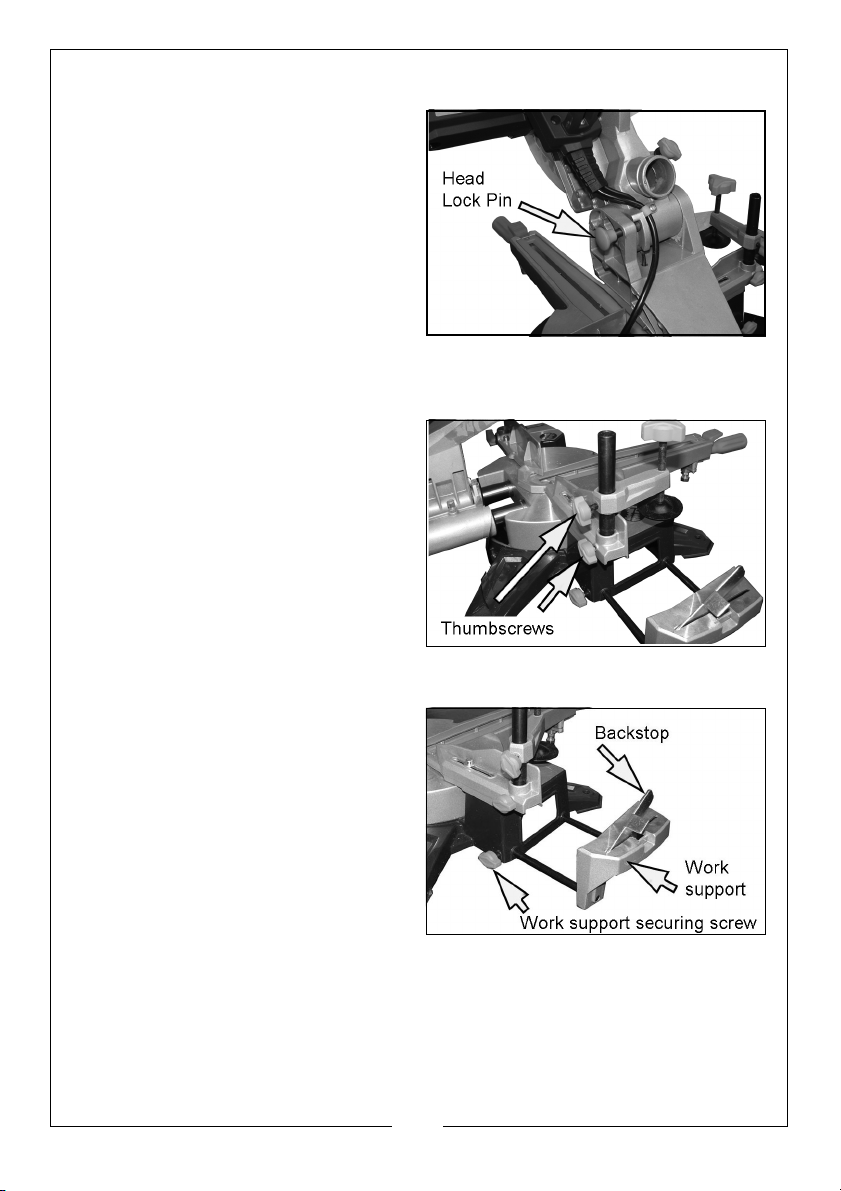

• Pull out the head lock pin to
release the arm for cutting.
• Push the pin back in to secure the
arm for lifting.
2. Gently release the downward
pressure on the operating handle
and allow the head to rise to its full
height.
FITTING THE WORK CLAMP
1. Loosen the clamp support
thumbscrew.
2. Slide the work clamp post into one
of the clamp supports on either
side of the saw.
3. Adjust the clamp to suit the
workpiece.
4. Tighten the thumbscrew to secure
the work clamp.
SETTING THE WORK SUPPORTS
1. Loosen the work support securing
screw.
2. Extend the work supports as
required.
3. Secure them in place by
tightening the work support
securing screw.
4. The work support incorporates a
hinged backstop which can be
raised if required.
10
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 11

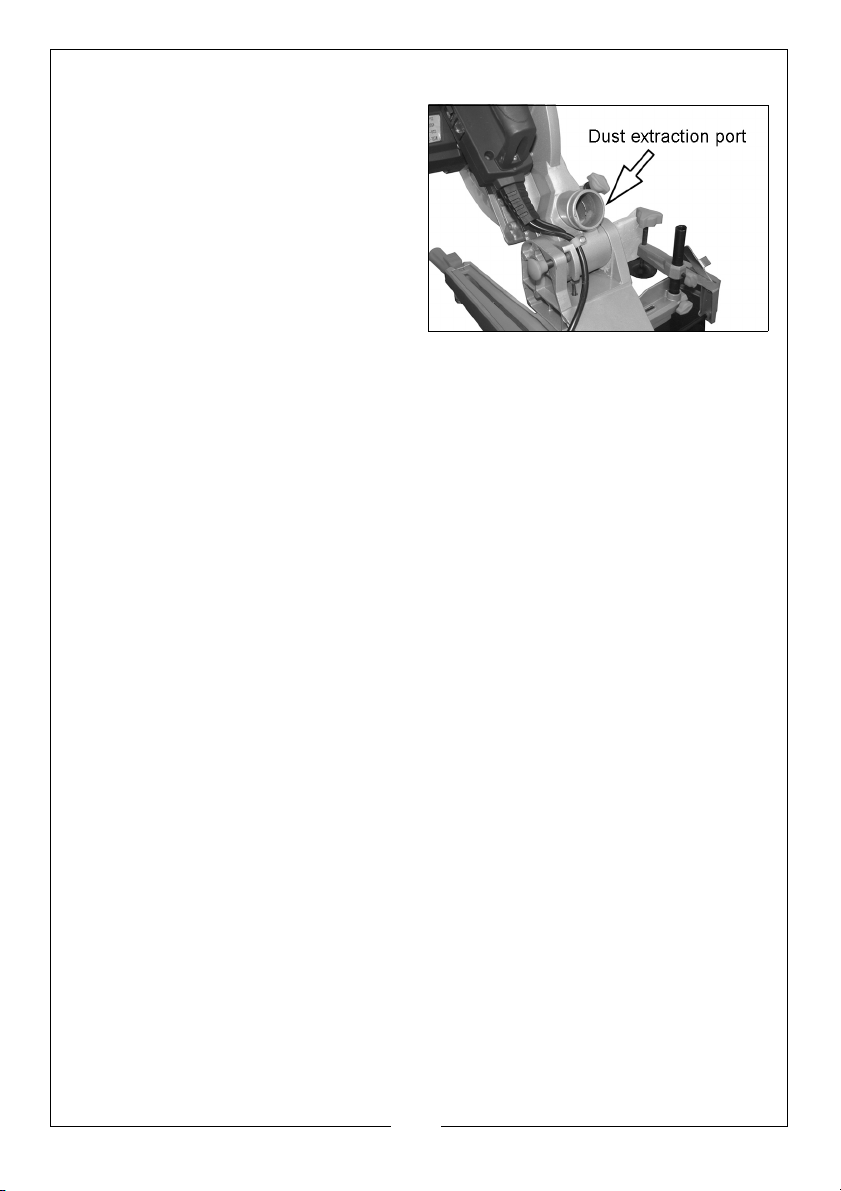

DUST EXTRACTION
This machine is provided with a dust
extraction port for connection to a
dust bag (supplied).
1. Place the dust bag over the dust
extraction port using the clip on
the neck of the dust bag.
2. Make sure the zipper on the dust
bag is closed.
3. The dust extraction port may
alternatively be connected to a
suitable extraction system using the appropriate hose (not supplied).
• The hose must have an inside diameter of 40 mm.
11
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 12

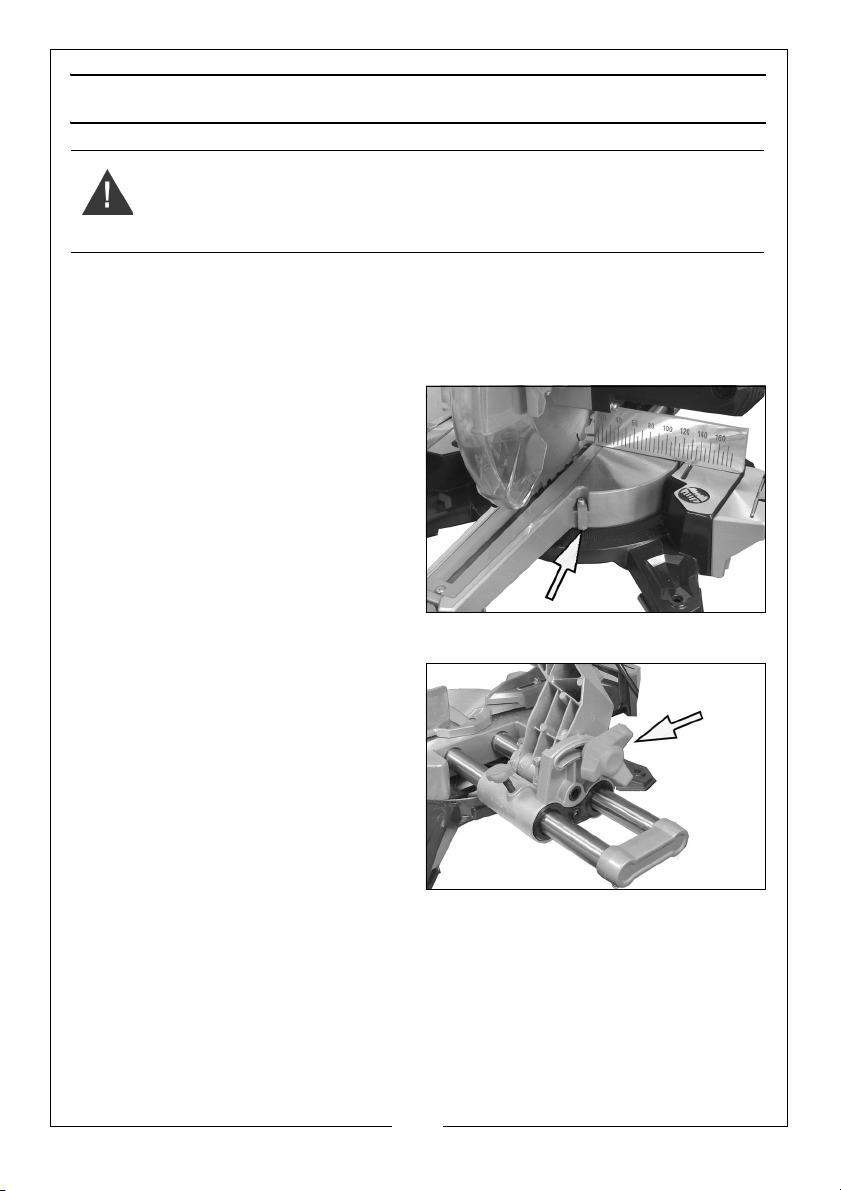

ADJUSTMENTS
WARNING: MAKE SURE THAT THE SAW IS SWITCHED OFF AND UNPLUGGED
FROM THE MAINS SUPPLY BEFORE PERFORMING ANY ADJUSTMENTS.
CHECK AND ADJUST THE MITRE POINTER
The saw can be set in a number of positions as determined by the mitre
locking mechanism but the pointer should read zero when making straight
cuts and remain true for other angles selected.
1. If the pointer does not indicate
zero on the mitre scale, loosen the
pointer securing screw and adjust
it as necessary.
CHECK AND ADJUST THE 90 DEGREE ANGLE STOP
1. Loosen the bevel clamp handle.
2. Press the saw head to the right to
ensure it is fully vertical and
tighten the bevel clamp handle.
3. Pull down the head until the
blade just enters the kerf plate.
12
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 13

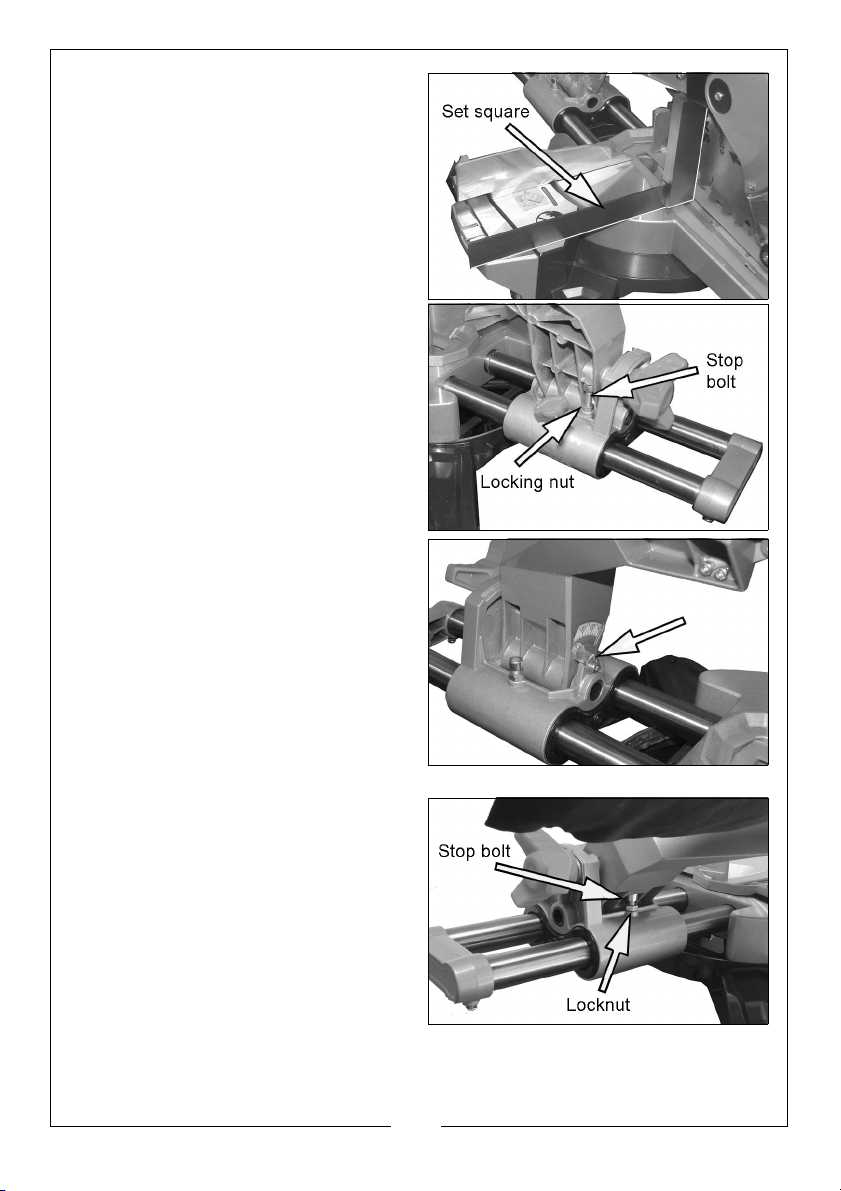

4. Place a set square on the table
and up against the blade.
• Do not touch the extended tips of
the blade teeth with the square.
Lower the blade so as to present
as much blade surface as
possible to the set square.
If adjustment is required, proceed as
follows:
5. Release the locking nut and use
the hex key to turn the 90°
adjustment stop bolt in or out until
the blade is at 90° to the table as
shown by the set square.
6. If the bevel pointer does not
indicate zero on the bevel scale,
loosen the set screw that secures
the pointer and adjust the pointer
as necessary.
CHECK & ADJUST THE 45 DEGREE
STOP
1. Loosen the bevel clamp handle
and lean the saw head as far to
the side as possible (i.e. at 45°).
2. Place a 45° set square on the
table and up against the blade.
NOTE: Do not touch the tips of the
blade teeth with the square.
3. Loosen the locknut and turn the
45° adjustment stop bolt in or out
until the blade is at 45° to the
table as verified with the square.
4. Adjust the bevel pointer if required as shown previously.
13
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 14
OPERATION
Always observe the safety instructions and applicable regulations.
BODY AND HAND POSITION
Proper positioning of your body and hands when operating the saw will make
cutting easier and safer.
• Never place your hands near the cutting area or blade.
• Hold the workpiece tightly to the table and the fence when cutting.
• Keep your hands in position until the trigger switch has been released and
the blade has completely stopped.
• Always make dry runs (without power) before cutting so that you can
check the path of the blade.
• Do not cross your hands.
SWITCHING ON AND OFF
1. To start the saw, squeeze the
trigger switch.
• Allow the motor to reach full
speed before cutting.
2. To stop the saw, release the
trigger switch.
WARNING: THE BLADE WILL CONTINUE TO ROTATE AFTER THE SWITCH HAS
BEEN RELEASED.
NOTE: Before beginning any cuts, ensure that the fence assembly is
positioned centrally and will not be struck by the saw blade.
14
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 15
DIFFERENT SAW CUTS
VERTICAL STRAIGHT CROSS CUT

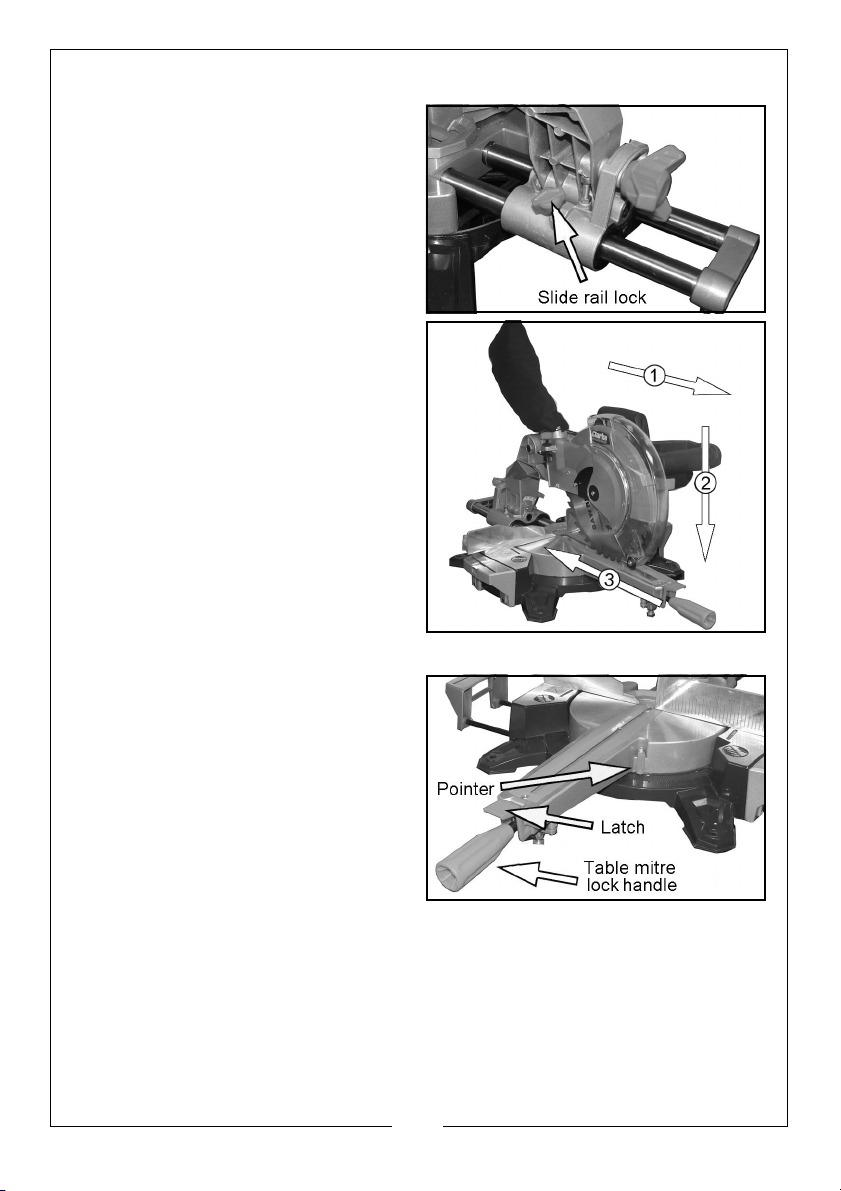

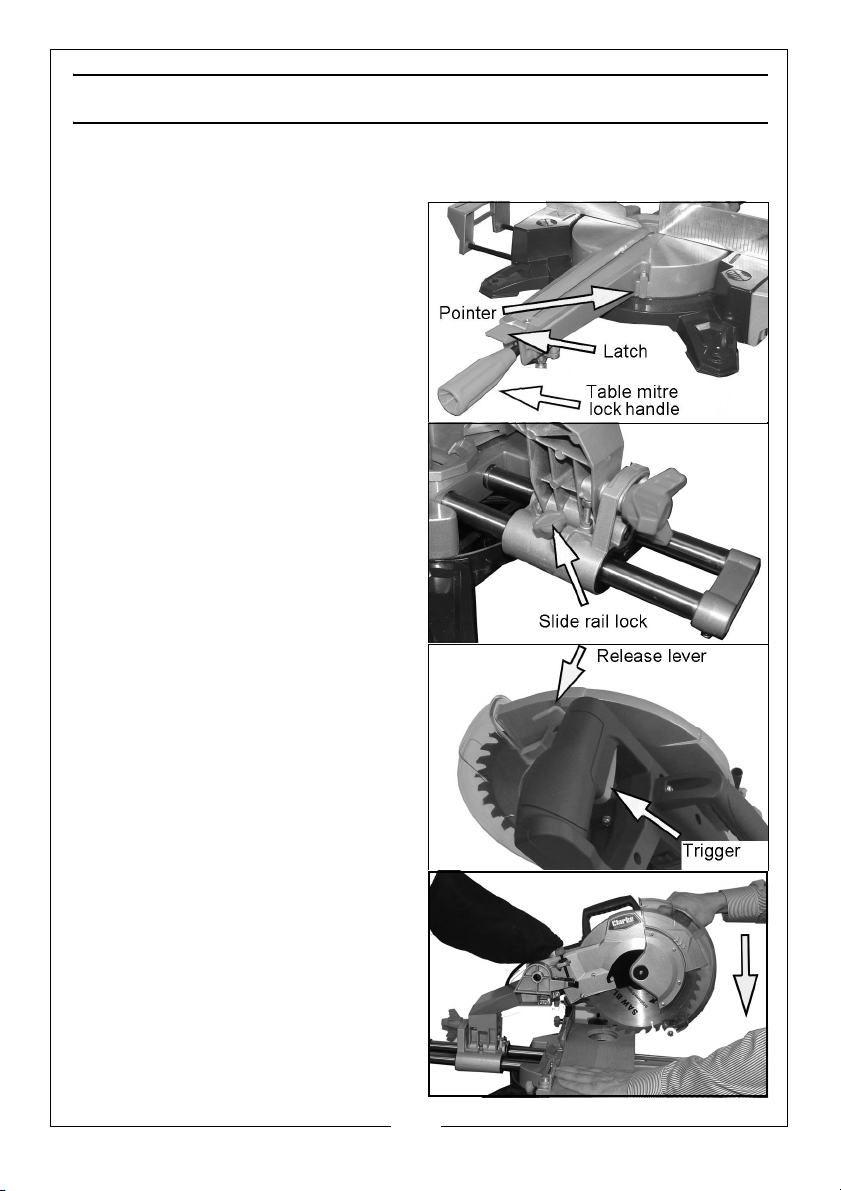

1. Release the table mitre lock by
twisting the handle anticlockwise.
2. Press and hold the latch down.
3. Move the arm so that the pointer
lines up with the 0° position on the
scale.
4. Release the latch to re-secure the
mitre lock.
5. Release the slide rail lock, and
push the saw head back to the
rear position.
6. Retighten the slide rail lock.
7. Place the wood to be cut against
the fence.
8. Take hold of the operating handle
and press and hold the blade
guard release lever to release the
head.
9. Squeeze the trigger switch to start
the saw.
10. Lower the head, allowing the
blade to cut through the timber
and enter the kerf plate.
• Allow the blade to cut freely. Do
not force the tool.
11. After completing the cut, release
the trigger and return the head to
its upper rest position.
15
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 16
PERFORMING A SLIDING CUT
The guide rail allows cutting larger
workpieces up to 340 mm x 78 mm
using an out-down-back sliding
motion.
1. Release the slide rail lock.
2. Pull the saw head towards you (1)
and switch the saw on as
mentioned on the previous page.
3. Lower the saw blade (2) into the
workpiece and push the head
back (3) to complete the cut.
• Do not perform sliding cuts on
workpieces smaller than 50 x 100
mm.
• Remember to lock the saw head
in the rear position when the
sliding cuts are finished.
MITRE CROSS-CUT
1. Release the table mitre lock by
twisting the handle anticlockwise.
2. Press and hold the latch down.
3. Move the arm until the pointer
lines up with the required mitre
angle on the scale.
4. Release the latch to re-secure the
mitre lock.
• Tighten the table mitre lock
before use.
• Allow the blade to cut freely. Do not force the tool.
• Proceed as for a vertical straight cross-cut.
NOTE: When mitering the end of a piece of wood with a small off-cut,
position the wood to ensure that the off-cut is to the side of the
blade with the greater angle to the fence; i.e. left mitre, offcut to
the right - right mitre, off-cut to the left.
16
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 17

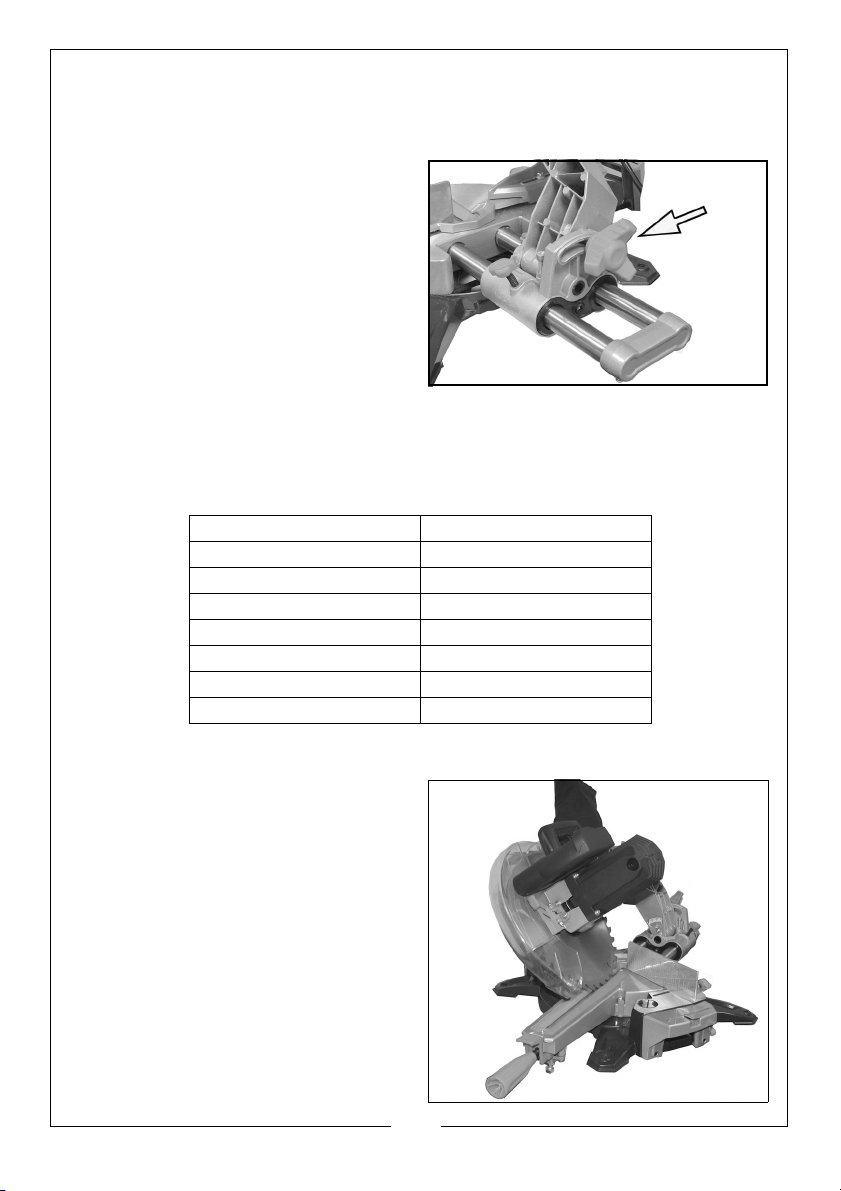

BEVEL CUTS
Bevel angles can be set from 45° left to vertical and can be cut with the mitre
arm set between zero and a maximum of 45° mitre position right or left.
1. Loosen the bevel adjustment
handle and set the bevel at the
desired angle.
2. Tighten the bevel adjustment
handle firmly.
3. Proceed as for a vertical straight
cross-cut.
• Allow the blade to cut freely. Do
not force the tool.
MITRE / BEVEL CUTS
As the number of sides changes, so do the mitre and bevel angles. The chart
below gives the cutting angles for a variety of shapes, assuming that all sides
are of equal length.
No. of sides Angle mitre or bevel
4 45°
5 36°
6 30°
7 25.7°
8 22.5°
9 20°
10 18°
COMPOUND MITRE CUTS
A compound mitre is a cut made
using a mitre angle and a bevel
angle at the same time. This is the
type of cut used to make frames or
boxes with slanting sides.
1. Set your saw to the required
angles and make a few trial cuts.
2. Practice fitting the cut pieces
together.
3. Always try cuts on a few scrap
pieces of wood to verify the
settings on the saw.
17
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 18
GROOVE CUTTING
Your saw is equipped with a grooving stop and thumbscrew to allow for
groove cutting.
1. Firstly, determine the depth of
your groove, and subtract this
value from the thickness of your
workpiece. This will give you the
height above the table surface at
which the saw blade must be set.
2. Ideally, place a template or a
piece of wood, the same thickness as the saw blade height setting, on the
table, beneath the saw blade.

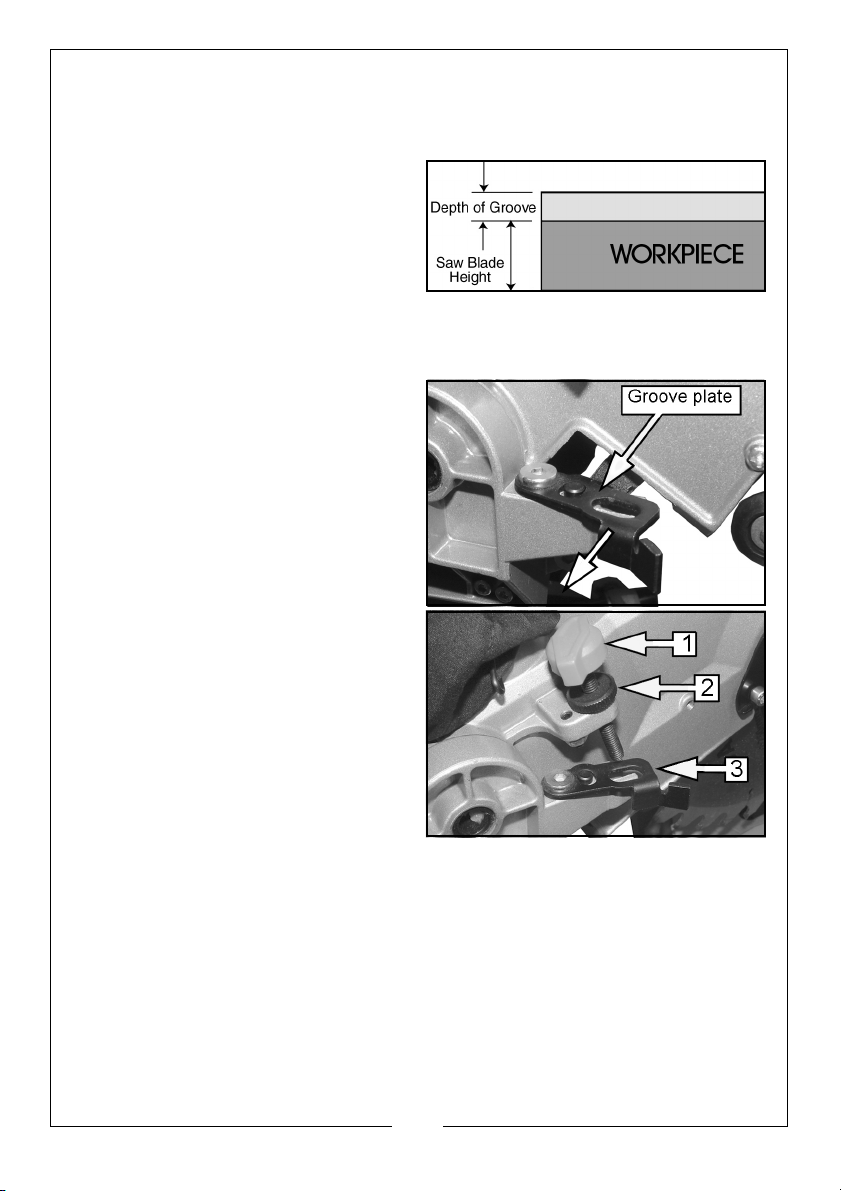

3. Pivot the groove plate to the side
position shown.
4. Undo the adjuster locking ring (2)
and screw out the adjuster (1),
then lower the head so that it
lightly touches the template or is
at the correct height as
determined using a rule.
5. Screw down the adjuster (1) so
that it touches the groove plate
(3), then finally tighten the locking
ring (2).
• The saw blade is now set to cut
your groove, using the sliding
feature.
• The width of the groove will, of
course, be the width of the saw
blade. However, by moving the
workpiece along the table in small increments, each time making a cut, it
is possible to cut grooves to any desired width.
• Angled grooves may be cut by tilting the head to the appropriate angle.
6. Before reverting to normal cutting, remember to turn the groove plate to its
normal position as shown.
18
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 19
TRANSPORTING
1. Lower the head and lock it down
using the head lock pin.
2. Slide the head towards you and
secure in place using the slide rail
lock.
3. Lock the mitre arm with the table
mitre lock.
4. Lock the bevel adjustment handle
with the saw head in the vertical
position to make the machine as
compact as possible.
5. Always lift the saw using the lifting handle.
THE LASER GUIDE
Your saw is fitted with a laser guide to assist with accurate cutting.
Switch the laser on/off using the on/
off switch.
19
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 20
MAINTENANCE
WARNING: MAKE SURE THAT THE SAW IS SWITCHED OFF AND UNPLUGGED
FROM THE MAINS SUPPLY BEFORE FITTING OR REMOVING THE BLADE.
WARNING: THE BLADE MUST BE RATED TO AT LEAST 6000 RPM.
CHANGING THE SAW BLADE
Only install the correct saw blade. Do not use excessively worn blades. The
maximum rotation speed of the saw must not exceed that of the saw blade.
1. Begin with the saw head in the
raised position and with the slide
rails locked.
2. Move the blade guard release
lever allowing the blade guard to
be rotated back in the usual way.

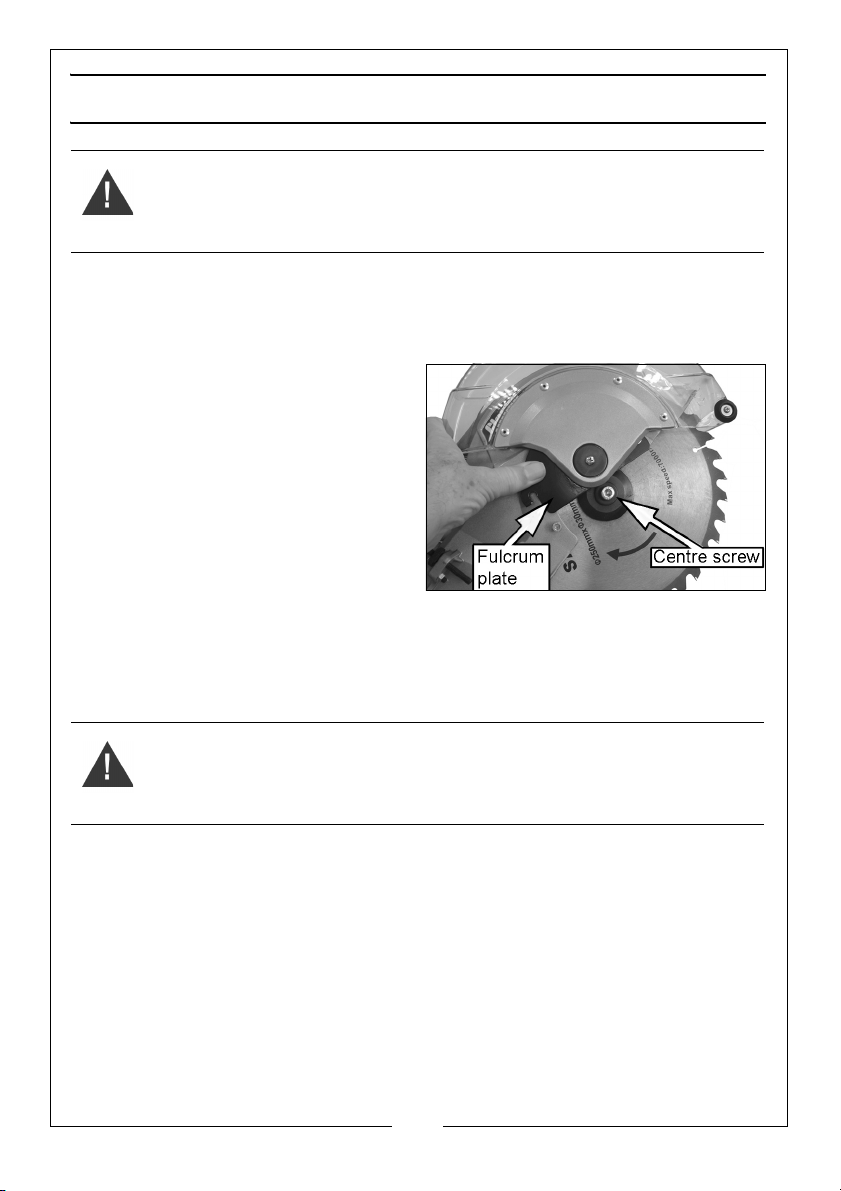

Lift the fulcrum plate upwards
releasing the moving guard
assembly to rise upwards.
• The centre screw should now
be accessible below the moving guard.
3. Press and hold down the blade lock, then using the Hex wrench supplied,
undo and remove the centre screw.
• The screw has a LEFT HAND THREAD (turn it CLOCKWISE to undo).
WARNING: NEVER PUSH THE BLADE LOCK IN WHEN THE MOTOR IS
RUNNING.
4. Pull off the outer disc (marked with an ‘O’) followed by the saw blade.
NOTE: You should take this opportunity to thoroughly clean parts previously
inaccessible.
5. Replace the blade, ensuring it has the correct diameter and bore.

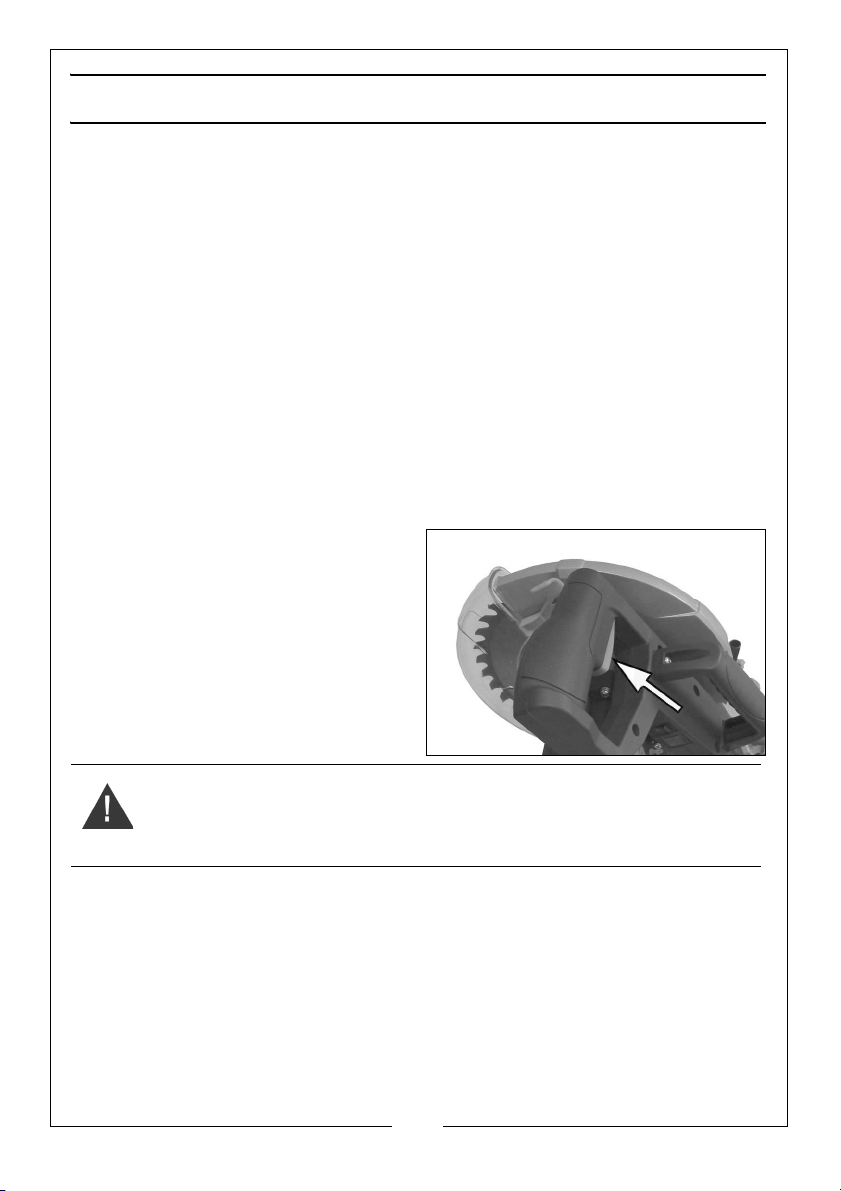

• Ensure also that all parts are perfectly clean and the blades’ teeth point
down at the front as shown in the picture above.
• The blade must be rated to at least 6000 rpm.
• Please note that spare blades are available from Clarke International.
Please see your Clarke dealer.
20
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 21
• Replace the outer disc (marked with an ‘O’) and screw in the centre
screw, remembering the screw has a LEFT HAND THREAD (turn it
ANTICLOCKWISE to tighten).
CHANGING THE CARBON BRUSHES
WARNING: MAKE SURE THAT THE SAW IS SWITCHED OFF AND UNPLUGGED
FROM THE MAINS SUPPLY BEFORE CHANGING THE CARBON BRUSHES.
Should it become necessary to change the carbon brushes:

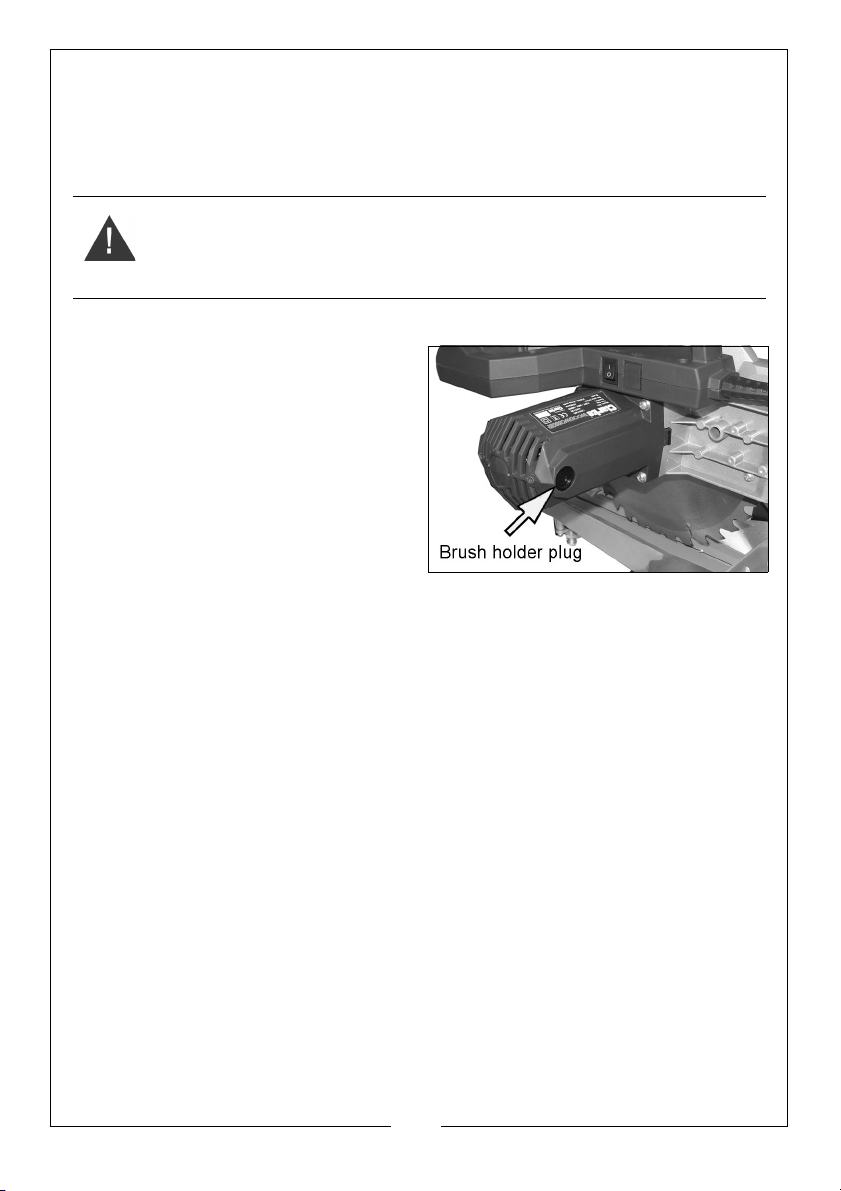

1. Unscrew the brush holder plug.
2. Pull out the worn brushes.
3. Replace with new brushes.
• Always change brushes in pairs.
4. Replace the brush holder plug,
taking care not to cross thread it.
You may prefer to leave this task to
your Clarke dealer.
CLEANING
Your saw has been designed to operate over a long period of time with a
minimum of maintenance. Continuous satisfactory operation depends upon
proper care and regular cleaning.
• Keep the ventilation slots clear and regularly clean the motor housing with
a soft cloth.
• Regularly clean the table top.
• Regularly clean the dust collection bag.
• Avoid the use of cleaners or lubricants to maintain the tool. In particular
spray and aerosol cleaners may chemically attack the plastic lower guard.
21
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 22
Page 23

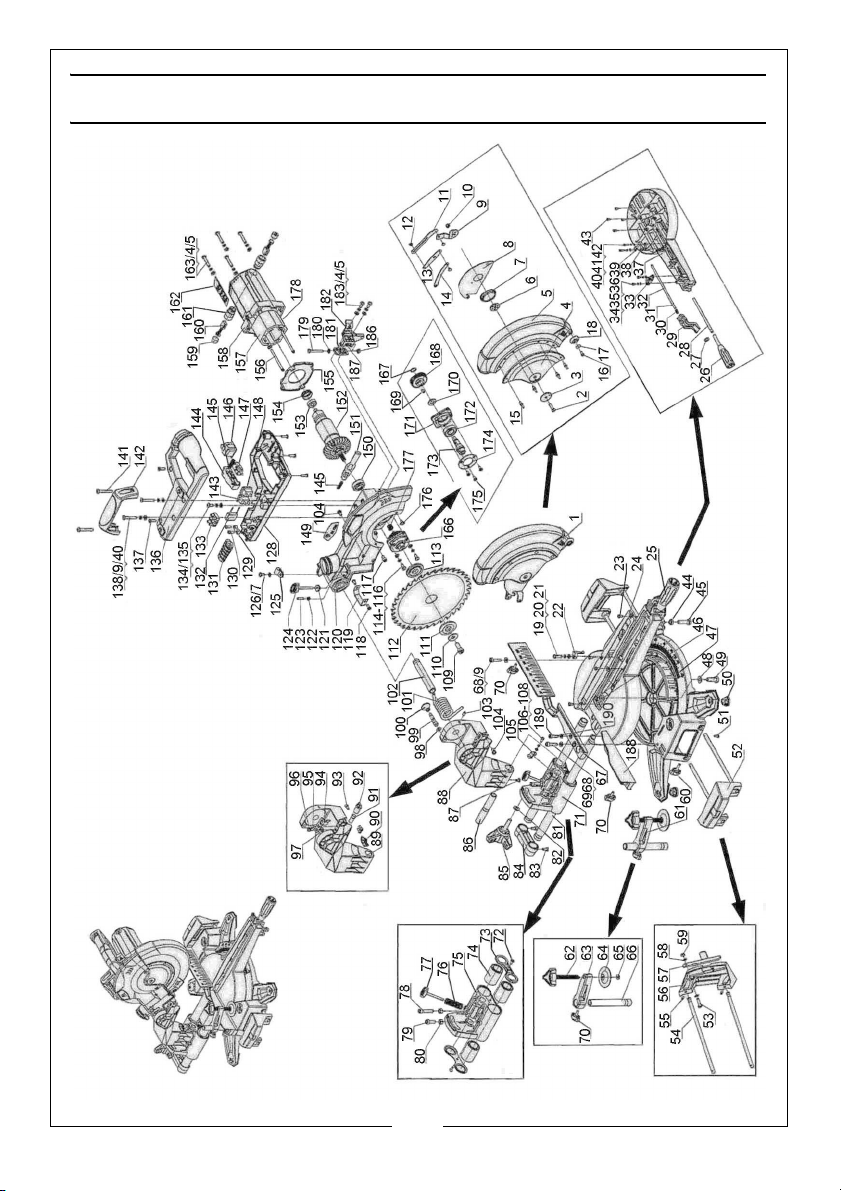

PARTS LIST
NO DESCRIPTION NO DESCRIPTION
1 Guard & Linkage Plate Assembly 32 Mitre Positioning Shaft
2 Screw M5 x 20 33 Mitre Lock Front Retain Seat
3Washer 34Flat Washer
4 Lower Guard Plate 35 Spring Washer
5 Transparent Cover 36 Screw M4 x 12
6 Spacer Disc 37 Turntable Assembly
7 Spring 38 Mitre Lock Rear Seat
8 Guard Fulcrum Plate 39 Mitre Lock Friction Plate
9 Guard Moving Plate 40 Flat Washer
10 Nut M5 41 Spring Washer
11 Linkage Plate A 42 Screw M4 x 16
12 Rivet 43 Screw M5 x 10
13 Linkage Plate B 44 Nut M8
14 Linkage Plate C 45 Bolt M5
15 Rivet 4 x 10 46 Flat Washer
16 ST Screw 47 Base
17 Flat Washer 48 Spring Washer
18 Roller 49 Bolt M8x30
19 Screw M5 x16 50 Base Rubber Feet
20 Spring Washer 51 Screw M4x8
21 Flat Washer 52 Extension Table Assembly
22 Mitre Pointer 53 Screw M5 x 20
23 Screw M4x8 54 Extension Rod
24 Turntable Insert 55 Screw M5x8
25 Turntable Assembly 56 Extension Table Assembly
26 Mitre Lock Knob 57 Extension Stop Sheet
27 O-Ring 6mm 58 Wave Washer
28 Mitre Locking Shaft 59 Nut M5
29 Mitre Locking Handle 60 Lock Knob M6x20
30 Coil Spring 61 Work Clamp Assembly
31 Mitre Positioning Shaft Pin 62 Work Clamp Screw Rod
23
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 24
NO DESCRIPTION NO DESCRIPTION
63 Work Clamp Base 97 Wave Washer
64 Work Clamp Bowl 98 O-Ring 5x1.8G
65 O-ring 4mm 99 Upper Arm Lock Pin
66 Work Clamp Shaft 100 Upper Arm Lock Button
67 Fence 101 Torque Spring
68 Screw M6x25 102 Upper Arm Spindle
69 Flat Washer 103 Screw M5x8
70 Small Knob M6x12 104 Screw
71 Lower Sliding Assembly 105 Bevel Pointer
72 Screw M4x8 106 Screw M4x10
73 Lower Sliding Linear Bearing
107 Spring Washer
Cover
74 Linear Bearing 20x32x42 108 Flat Washer
75 Sliding Pivot Base 109 Screw M8x20
76 Spring 110 Large Washer
77 Lock Knob M6x35 111 Blade Outer Disc
78 Screw M6x35 112 Blade
79 Screw M6x20 113 Blade Inner Disc
80 Nut M6 114 Screw M5x12
81 Lower Sliding Bar 115 Spring Washer
82 Flat Washer 116 Flat Washer
83 Screw M5 x 10 117 Screw M5x16
84 Bar cover 118 Screw M5 x12
85 Large Knob M8x35 119 Safety Block
86 Bevel Spindle 120 Upper Arm Body
87 Screw M5x8 121 Nut M6
88 Pivot Assembly 122 Nut 5mm
89 Pivoting body 123 Screw M5x16
90 Pivot Bevel Scale 124 Lock Knob M6x45
91 Laser 125 Cable Holder
92 Laser Seat 126 Flat Washer
93 Screw M4x10 127 Screw M5x12
94 Mitre Lock Friction Plate 128 Lower Handle
95 Mitre Lock Friction Plate 129 Cable Holder
96 Screw 130 ST Screw
24
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 25
NO DESCRIPTION NO DESCRIPTION
131 Cable Sleeve 161 Carbon Brush Holder
132 Capacitor 0.33 µF 162 Brand label
133 Terminal Block 163 Screw M5 x 30
134 Screw M5x12 164 Spring Washer
135 Flat Washer 165 Flat Washer
136 Upper handle 166 Gearbox Assembly
137 Self Tapping Screw 168 Gear
138 Screw M5x35 169 Flat Key 4x4x10
139 Spring Washer 170 Wave Washer
140 Flat Washer 171 Bearing Housing
141 Self Tapping Screw 172 Ball Bearing 6002
142 Carrying Handle 173 Output Spindle
143 Lever Lock 174 Bearing Cover
144 Trigger 175 Screw M4 x 8
145 Spring 176 Screw
146 Transformer 177 Needle Bearing
147 On/Off Switch 178 Flat Washer
148 Laser Switch 179 Screw M5x40
149 Brand Label 180 Flat Washer 5mm
150 Bearing 6002 181 Lower Guard Lock Base
151 Shaft Lock bar 182 Lower Guard Lock Button
152 Armature 183 Screw M5x12
153 Bearing 608 184 Spring Washer
154 Bearing Holder 185 Flat Washer 5mm
155 Fan Shroud 186 Nut M5
156 Long Machine Screw 65mm 187 Lower Guard Lock Spring
157 Stator 188 Left Fence Plate
158 Motor Housing 189 Flat Washer
159 Carbon Brush Cover 190 Screw M5x20
160 Carbon Brush
25
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 26
TECHNICAL SPECIFICATIONS
Power Supply 230 V @ 50Hz
Laser Class 2 power supply 1800W
Electrical Insulation Class II
Blade Diameter 250 mm
Blade bore 30 mm
Max. blade thickness (Kerf) 3.2 mm
Number of Teeth 36
Max. No Load Speed 7000 rpm
Operating Modes Single Speed
Max. crosscut capacity at 90° 260 x 85 mm
Max. mitre cut capacity at 45° 260 x 50 mm
Max. bevel cross-cut 45° 185 x 85 mm
Max. Compound Mitre Cut 185 x 50 mm
Max Bevel Angle
Sound pressure (LpA) 96.54 dB(A)
Sound power (L
Uncertainty Factor (K) 3 dB(A)
Dimensions (W x D x H) D = 756
Weight 11.7 kg
) 109.54 dB(A)
WA
W = 676/466 mm (supports extended or
H = 527/360 (saw head raised/lowered)
o
(left/right)
45
retracted
26
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 27

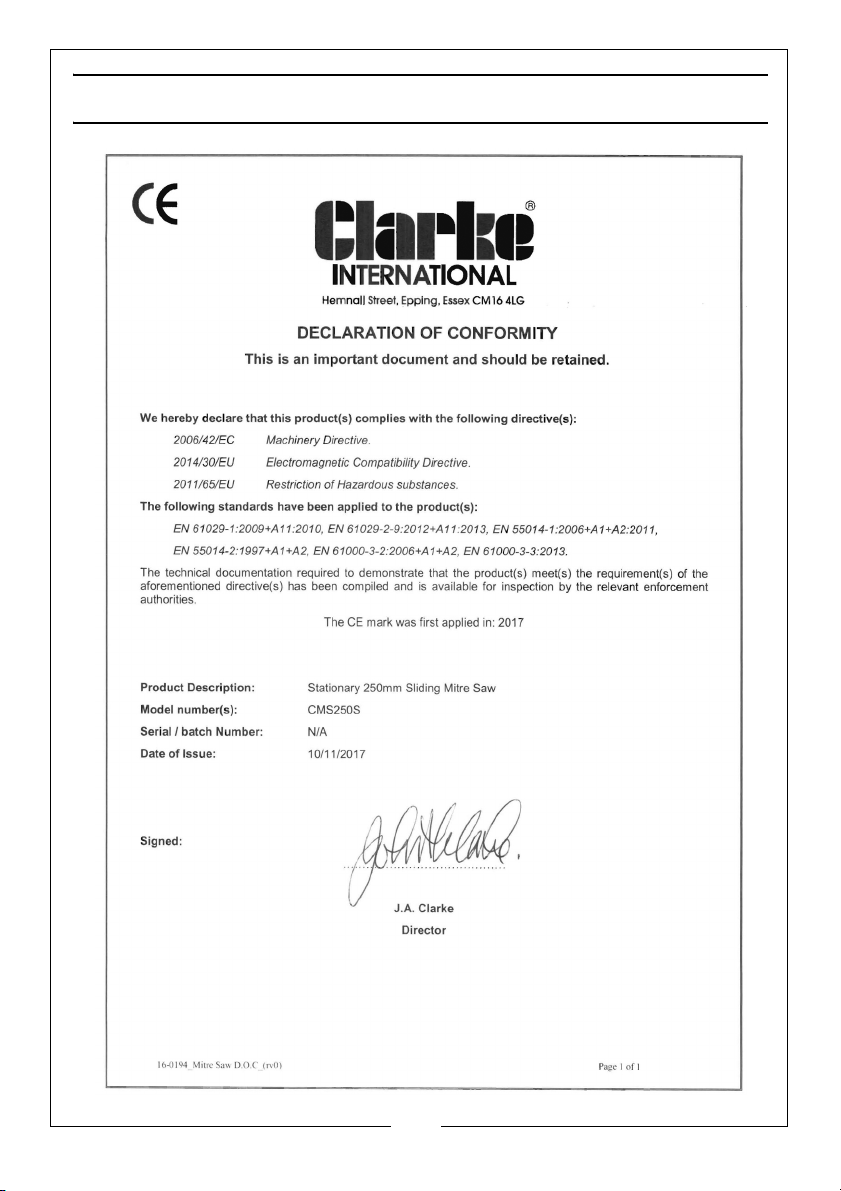

DECLARATION OF CONFORMITY
27
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 28
Loading...
