Clarke CBS 250B, 6460140 User guide

Download
Page 1
BAND SAW
MODEL NO: CBS250B
PART NO: 6460140
OPERATION & MAINTENANCE
INSTRUCTIONS
ORIGINAL INSTRUCTIONS
LS0718 - ISS 1
Page 2

INTRODUCTION

Thank you for purchasing this CLARKE band saw.
This band saw is designed to cut wood or other materials by means of a revolving endless saw blade which is carried on two band wheels. It has an adjustable table to support and position the work piece that is fed by hand against the saw band.
Before attempting to operate the machine, it is essential that you read this manual thoroughly and carefully follow all instructions given.

GUARANTEE

This CLARKE product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt as proof of purchase.
This guarantee is invalid if the product is found to have been abused or tampered with in any way, or not used for the purpose for which it was intended.
Faulty goods should be returned to their place of purchase, no product can be returned to us without prior permission.
This guarantee does not effect your statutory rights.

ENVIRONMENTAL PROTECTION

Through purchase of this product, the customer is taking on the obligation to deal with the WEEE in accordance with the WEEE regulations in relation to the treatment, recycling & recovery and environmentally sound disposal of the WEEE.
In effect, this means that this product must not be disposed of with general household waste but according to the laws governing Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal facility.
2
Page 3

SAFETY PRECAUTIONS

WARNING: WHEN USING ELECTRIC TOOLS BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK AND PERSONAL INJURY INCLUDING THE FOLLOWING. READ ALL THESE INSTRUCTIONS BEFORE ATTEMPTING TO OPERATE THIS PRODUCT AND SAVE THESE INSTRUCTIONS
1. Keep work area clear
• Cluttered areas and benches invite injuries.
2. Consider work area environment
• - Do not expose tools to rain.
• - Do not use tools in damp or wet locations.
• - Keep work area well lit.
• - Do not use tools in the presence of flammable liquids or gases.
3. Guard against electric shock
• Avoid body contact with earthed or grounded surfaces (e.g. pipes, radiators, ranges, refrigerators).
4. Keep other persons away.
• Do not let persons, especially children, not involved in the work touch the tool or the extension lead and keep them away from the work area.
5. Store idle tools
• When not in use, tools should be stored in a dry locked-up place, out of reach of children.
6. Do not force the tool
• It will do the job better and safer at the rate for which it was intended.
7. Use the right tool
• Do not force small tools to do the job of a heavy duty tool.
• Do not use tools for purposes not intended; for example do not use circular saws to cut tree limbs or logs.
8. Dress properly
• Do not wear loose clothing or jewellery, they can be caught in moving parts.
• Non-skid footwear is recommended when working outdoors.
3
Page 4
• Wear protective hair covering to contain long hair.
9. Use protective equipment
• Use safety glasses.
• Use face or dust mask if working operations create dust
10. Connect dust extraction equipment
• If the tool is provided with a connection for dust extraction and collecting equipment, ensure these are connected and properly used.
11. Do not abuse the cord
• Never yank the cord to disconnect it from the socket. Keep the cord away from heat, oil and sharp edges.
12. Secure work
• Where possible use clamps or a vice to hold the work. It is safer than using your hand.
13. Do not overreach
• Keep proper footing and balance at all times.
14. Maintain tools with care
• Keep cutting tools sharp and clean for better and safer performance.
• Follow instruction for lubricating and changing accessories.
• Inspect tool cords periodically and if damaged have them repaired by an authorized service facility.
• Inspect extension cords periodically and replace if damaged.
• Keep handles dry, clean and free from oil and grease.
15. Disconnect tools
• When not in use, before servicing and when changing accessories such as blades, bits and cutters, disconnect tools from the power supply.
16. Remove adjusting keys and wrenches
• Form the habit of checking to see that keys and adjusting wrenches are removed from the tool before turning it on.
17. Avoid unintentional starting
• Ensure switch is in “off' position when plugging in.
18. Use outdoor extension leads
• If the tool is used outdoors, use only extension leads intended for outdoor use and so marked.
4
Page 5
19. Stay alert
• Watch what you are doing, use common sense and do not operate the tool when you are tired.
20. Check damaged parts
• Before further use of tool, it should be carefully checked to determine that it will operate properly and perform its intended function.
• Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting and any other conditions that may affect its operation.
• A guard or other part that is damaged should be properly repaired or replaced by an authorized service centre.
• Have defective switches replaced by an authorized service centre.
• Do not use the tool if the switch does not turn it on and off.
21. Warning
• The use of any accessory or attachment other than one recommended in this instruction manual may present a risk of personal injury.
22. Have your tool repaired by a qualified person.
• This electric tool complies with the relevant safety rules. Repairs should only be carried out by qualified persons using original spare parts, otherwise this may result in considerable danger to the user.

ADDITIONAL

1. Position the fence on the lower side of the table when bevel-cutting with the table inclined;
2. Use a suitable holding device when cutting round or irregular shaped timber to prevent twisting of the work piece;
3. Do not to use saw blades which are damaged or deformed;
4. Do not to override the lockout and operate the tool, when the guards protecting the saw blades is open;
5. Do not clean the saw blade whilst it is moving;
6. Wear gloves for handling the saw blade and rough material.
7. The push-stick should be used if the distance between the blade and rip fence is less than approx 150 mm.
5
Page 6

SAFETY SYMBOLS

Read the manual and safety instructions before use
Ear protection should be worn
HAZARD, Motor gets hot
Eye protection should be worn
Dust mask should be worn

LIST OF CONTENTS.

Main Box
Band Saw (c/w fitted blade) Fixings Pack
Table Table Insert (in Fixings Pack)
Parallel Fence Push Stick
Scale Rail Instruction manual
Mitre Guide
Stand Kit
4 x Leg c/w Rubber Feet 2 x Short Cross Member
2 x Long Beam Nuts, bolts, washers from fixings pack
2 x Short Beam 1 x 13mm / 10mm OE spanner
2 x Long Cross Member 1 x 3mm Hexagon Key
6
Page 7

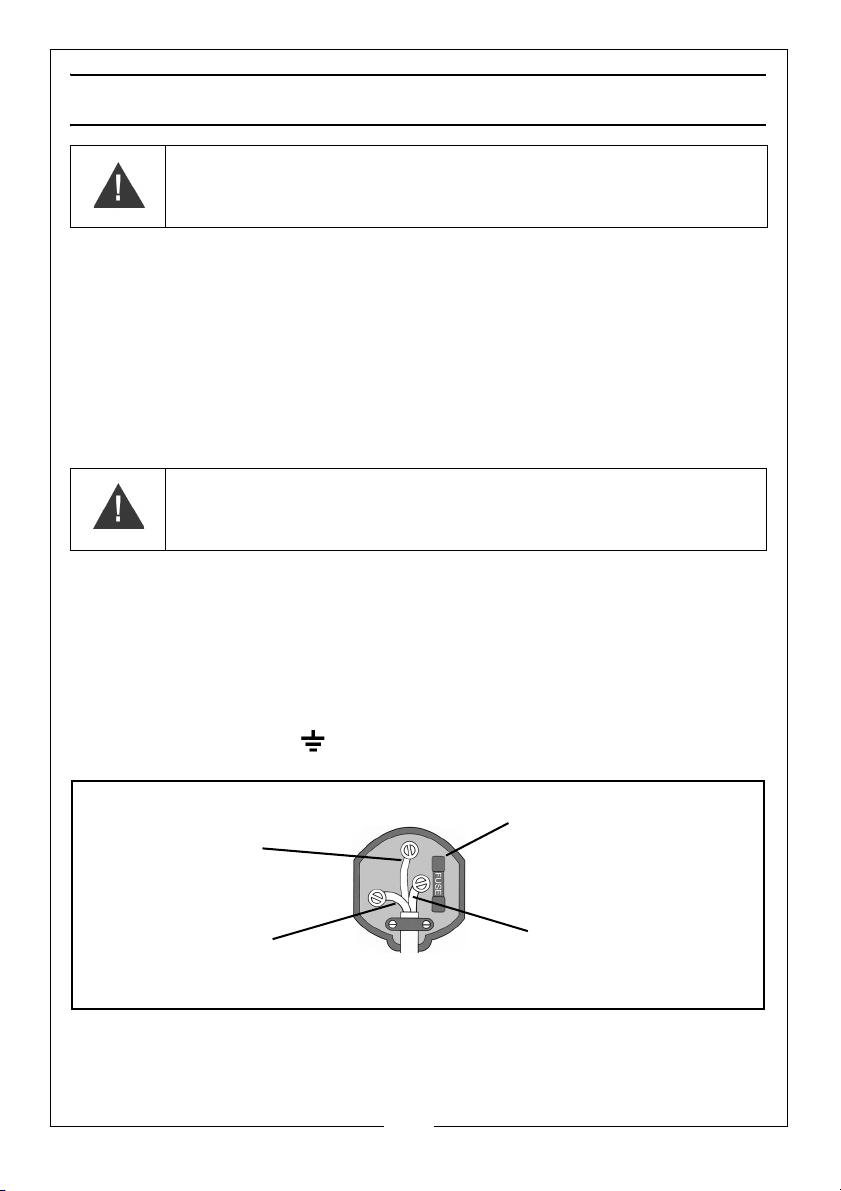

ELECTRICAL CONNECTIONS

Plug must be BS1363/A approved.
Always fit a 13 Amp fuse.
Ensure that the outer sheath of the cable is firmly held by the clamp
Neutral
(Blue)
Live
(Brown)
Earth
(Green and Yellow)
WARNING! Read these electrical safety instructions thoroughly before connecting the product to the mains supply.
Before switching the product on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate. This product is designed to operate on 230VAC 50Hz. Connecting it to any other power source may cause damage.
This product may be fitted with a non-rewireable plug. If it is necessary to change the fuse in the plug, the fuse cover must be refitted. If the fuse cover becomes lost or damaged, the plug must not be used until a suitable replacement is obtained.
If the plug has to be changed because it is not suitable for your socket, or due to damage, it should be cut off and a replacement fitted, following the wiring instructions shown below. The old plug must be disposed of safely, as insertion into a mains socket could cause an electrical hazard
WARNING! The wires in the power cable of this product are coloured in accordance with the following code: Blue = Neutral Brown = Live Yellow and Green = Earth
If the colours of the wires in the power cable of this product do not correspond with the markings on the terminals of your plug, proceed as follows.
• The wire which is coloured Blue must be connected to the terminal which is
marked N or coloured Black.
• The wire which is coloured Brown must be connected to the terminal which is
marked L or coloured Red.
• The wire which is coloured Yellow and Green must be connected to the terminal
which is marked E or or coloured Green.
.
.
We strongly recommend that this machine is connected to the mains supply via a Residual Current Device (RCD)
If in any doubt, consult a qualified electrician. DO NOT attempt any repairs yourself.
7
Page 8

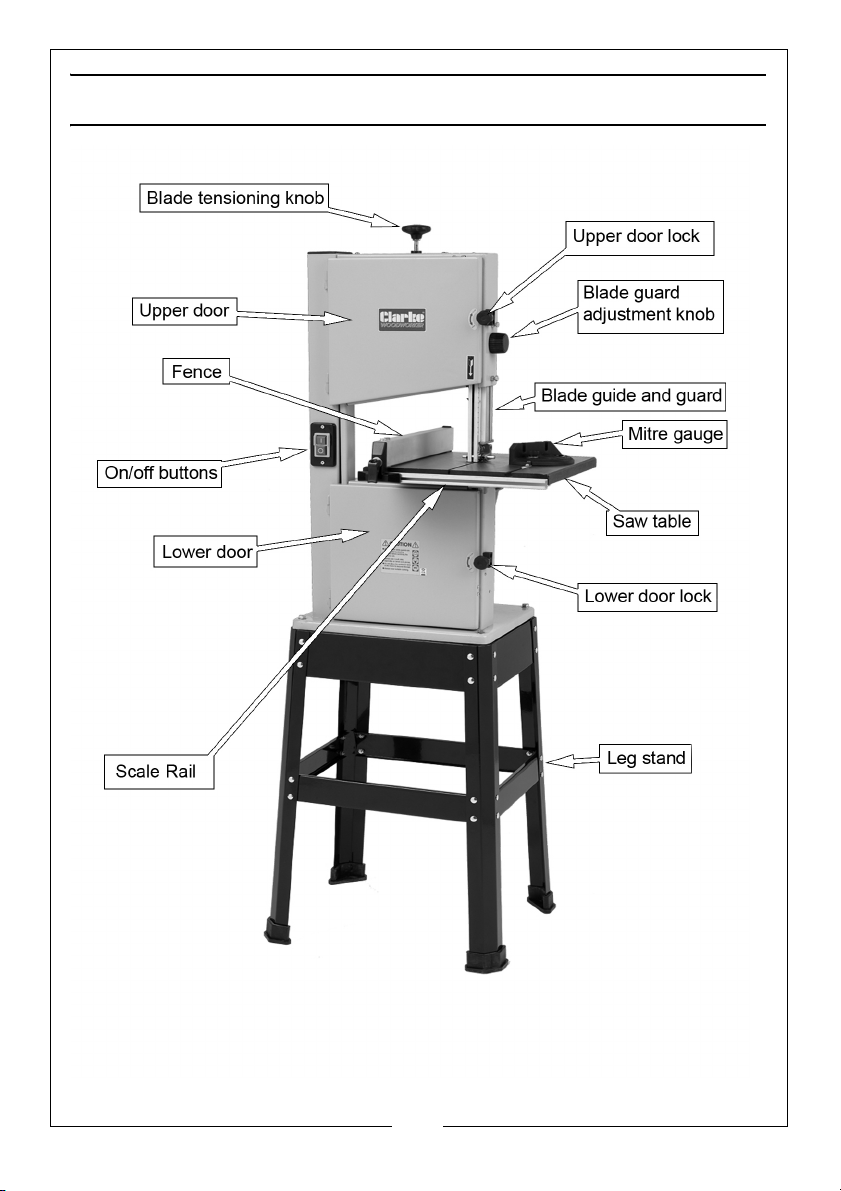

OVERVIEW

8
Page 9

ASSEMBLY

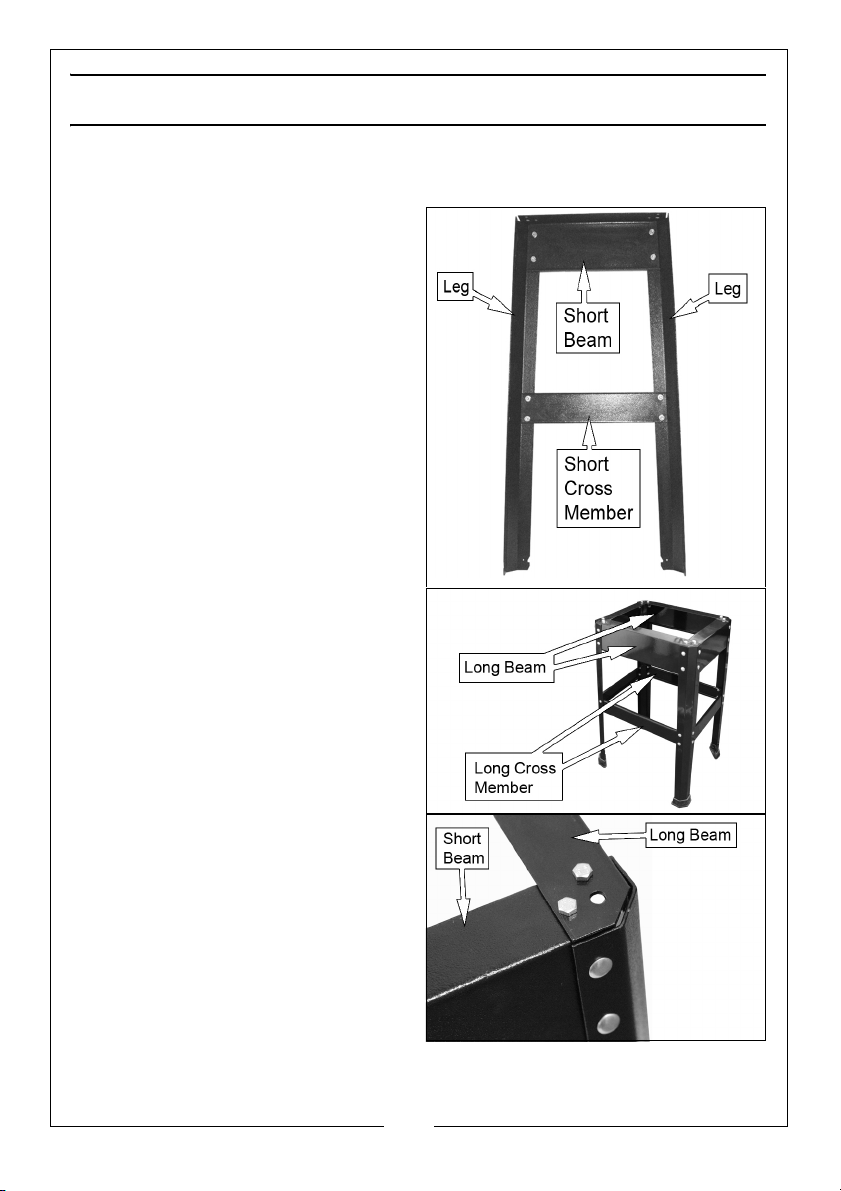

ASSEMBLE THE STAND

1. On a flat level surface, assemble 2 sub assemblies as shown.
• Parts required per assembly, 2
legs, 1 short beam, 1 short cross member and 8 short round head screws nuts and washers.
• Do not tighten nuts fully at this
stage.
NOTE: Beams and cross members fit
inside the legs. Screws are to be fitted from the outside with washers and nuts on the inside.
2. Connect the two sub assemblies together using 2 long cross members, 2 long beams, and 8 short round head screws with nuts and washers,
• Do not tighten nuts at this
stage.
NOTE: The long beams are fitted on
top of the short beams. Hex head bolts are fitted from the top with washers and nuts on the underside.
3. Invert the stand and push on the rubber feet.
4. Turn stand over onto its feet again and only when satisfied that it is completely stable, fully tighten all nuts.
9
Page 10

MOUNT THE BAND SAW ON TO THE STAND

WARNING: WHEN YOU MOUNT THE BAND SAW ON TO THE STAND WE RECOMMEND THAT YOU GET HELP BECAUSE OF THE WEIGHT OF THE BANDSAW.
1. Lift the band saw on to the stand.
2. Use the 4 x M8x35 bolts, washers and nuts supplied to attach the band saw to the stand.
• Put the bolts through the base
of the saw from above,
• Install the washers and nuts on
the underside of the stand and tighten to secure..

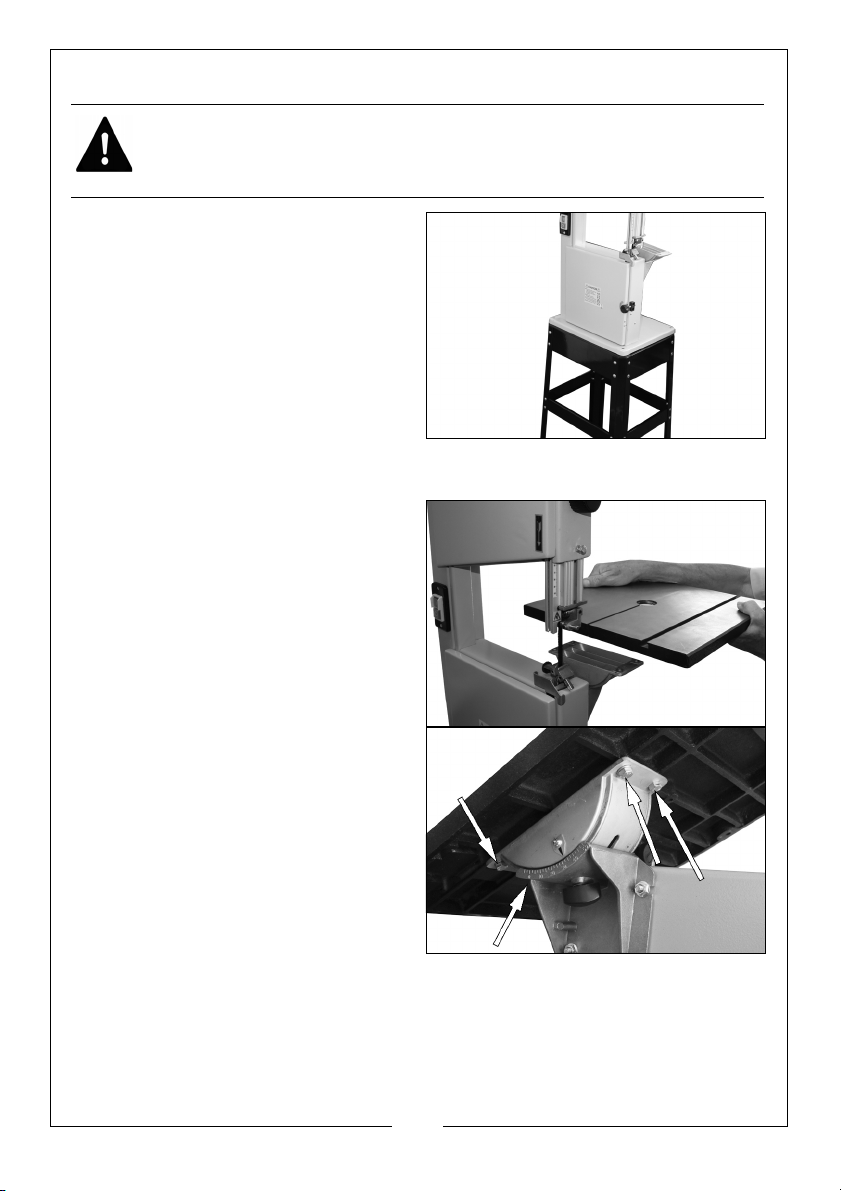

INSTALL THE SAW TABLE

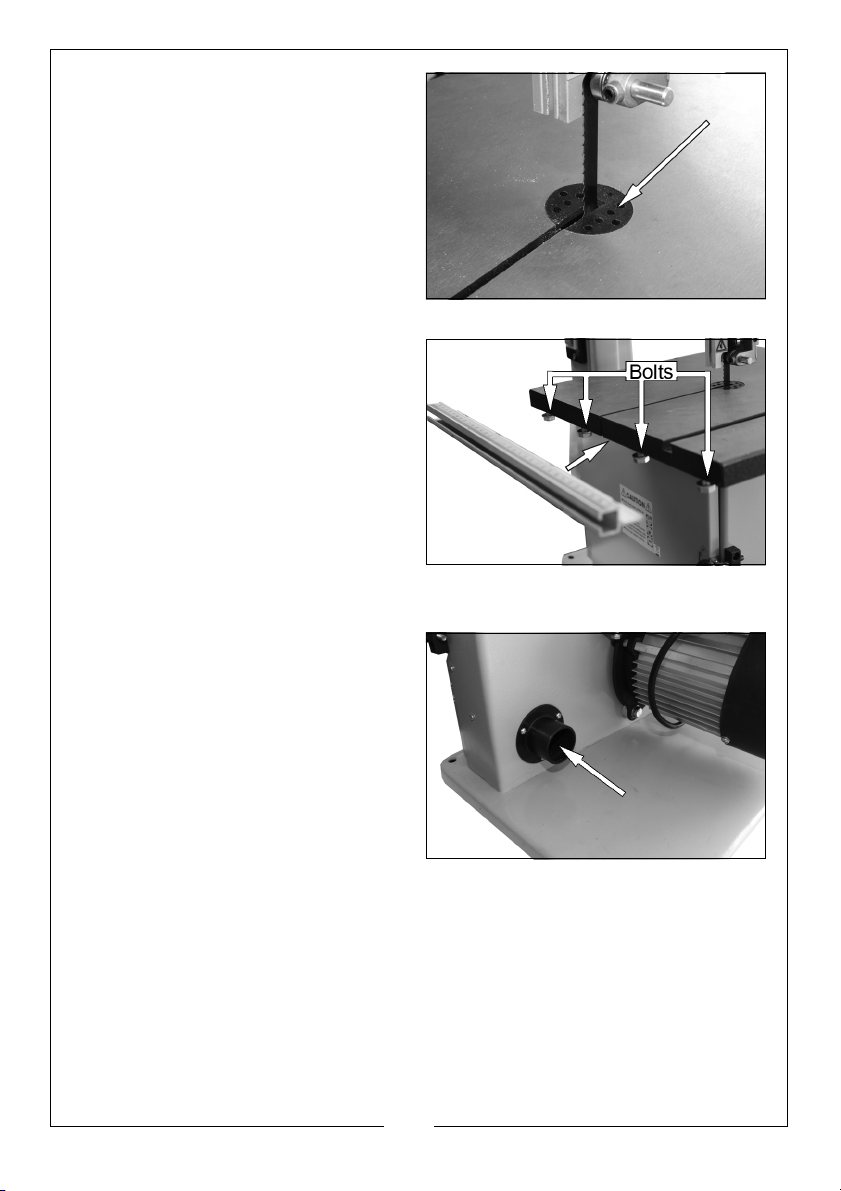

1. Slide the table over the blade and rest it on the quadrant support below.
2. Secure the table from below as shown, using 4 bolts and washers supplied.
10
Page 11
3. Fit the table insert as shown.
• Always replace the table insert
when worn.

FIT THE GUIDE RAIL TO THE TABLE

1. Loosely screw 4 bolts and washers into the bottom of the table as shown,
2. Slide the guide rail onto the shafts of the bolts
3. Tighten the bolts to secure the guide rail in place.

CONNECTING TO A DUST COLLECTOR

This bandsaw is fitted with a dust port to enable connection to a dust collector.
• Outside Diameter 40 mm
• Inside Diameter 36 mm
The band saw is now ready to use.
11
Page 12

FUNCTIONS

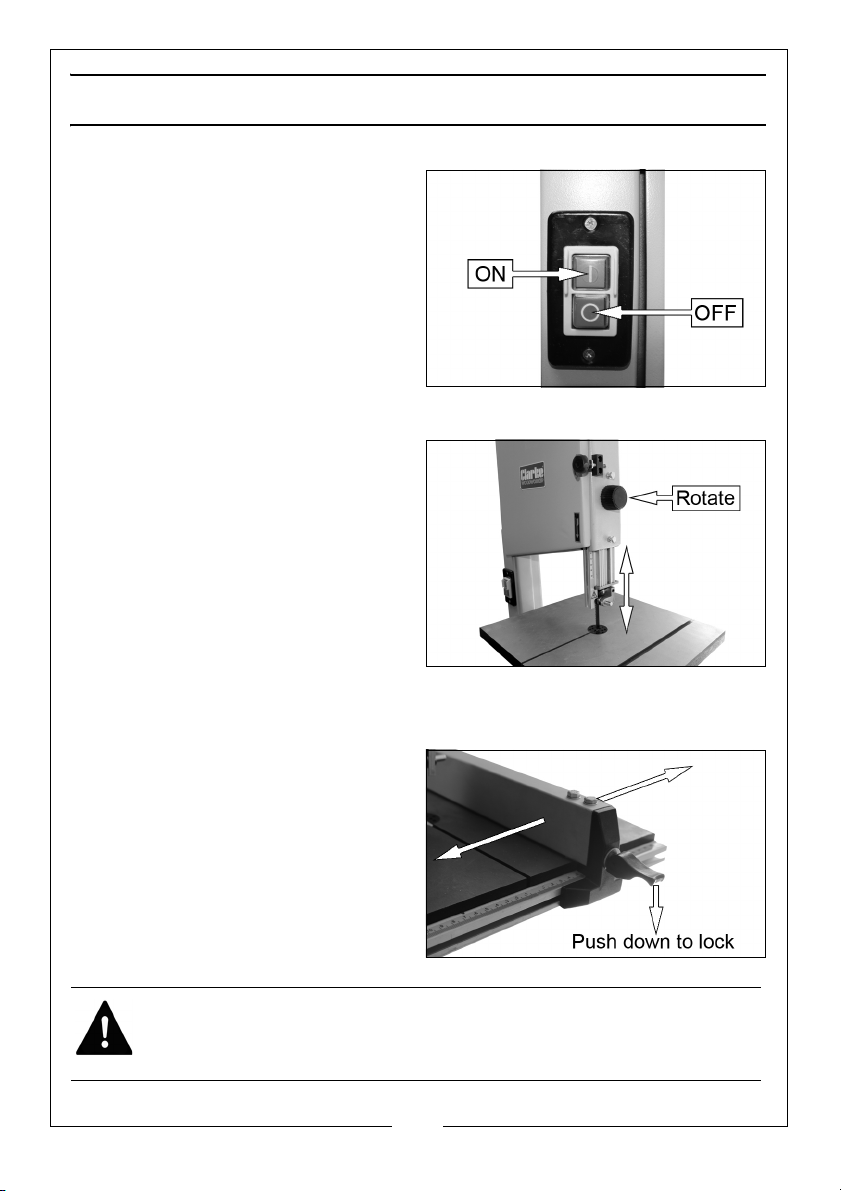

SWITCHING ON/OFF

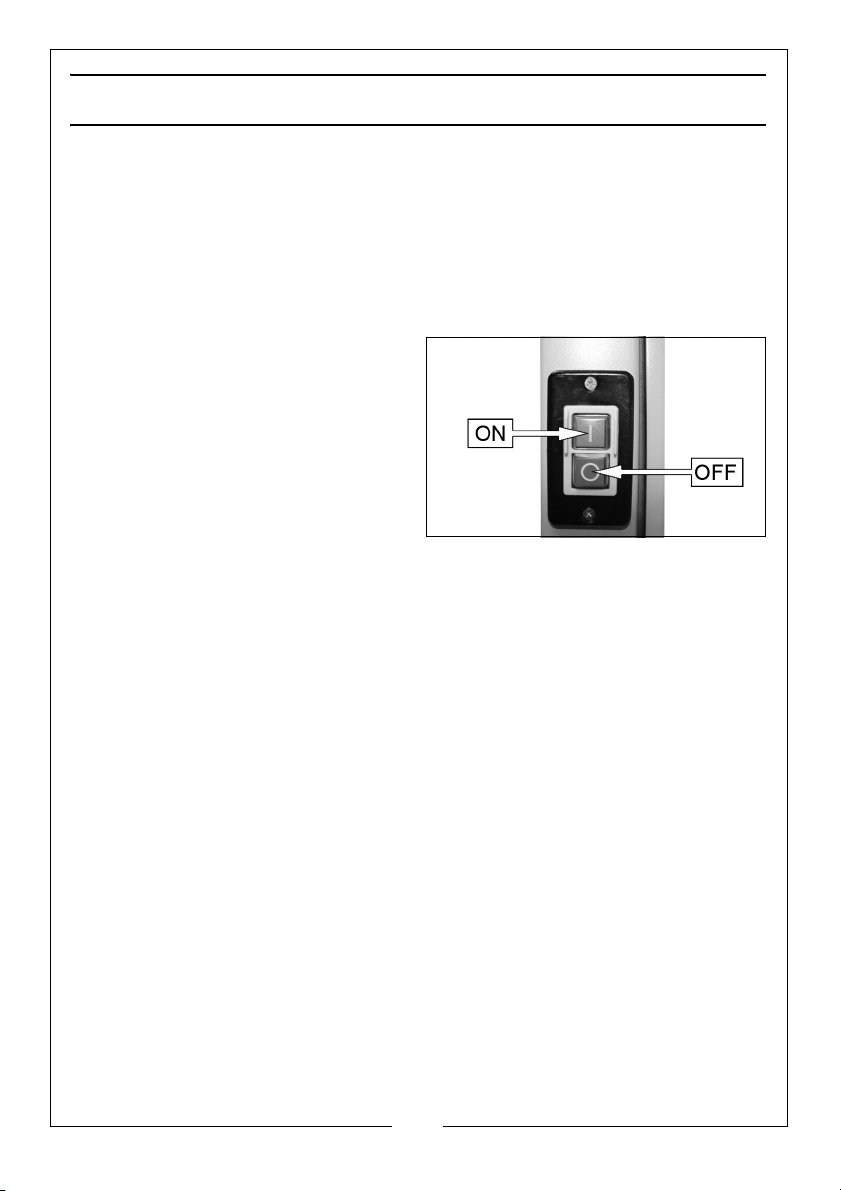

1. Press the green ON (I) button to start the band saw.
2. Press the red OFF (O) button to stop the band saw.
NOTE: The blade may continue to
rotate for a short time before coming to a complete stop.

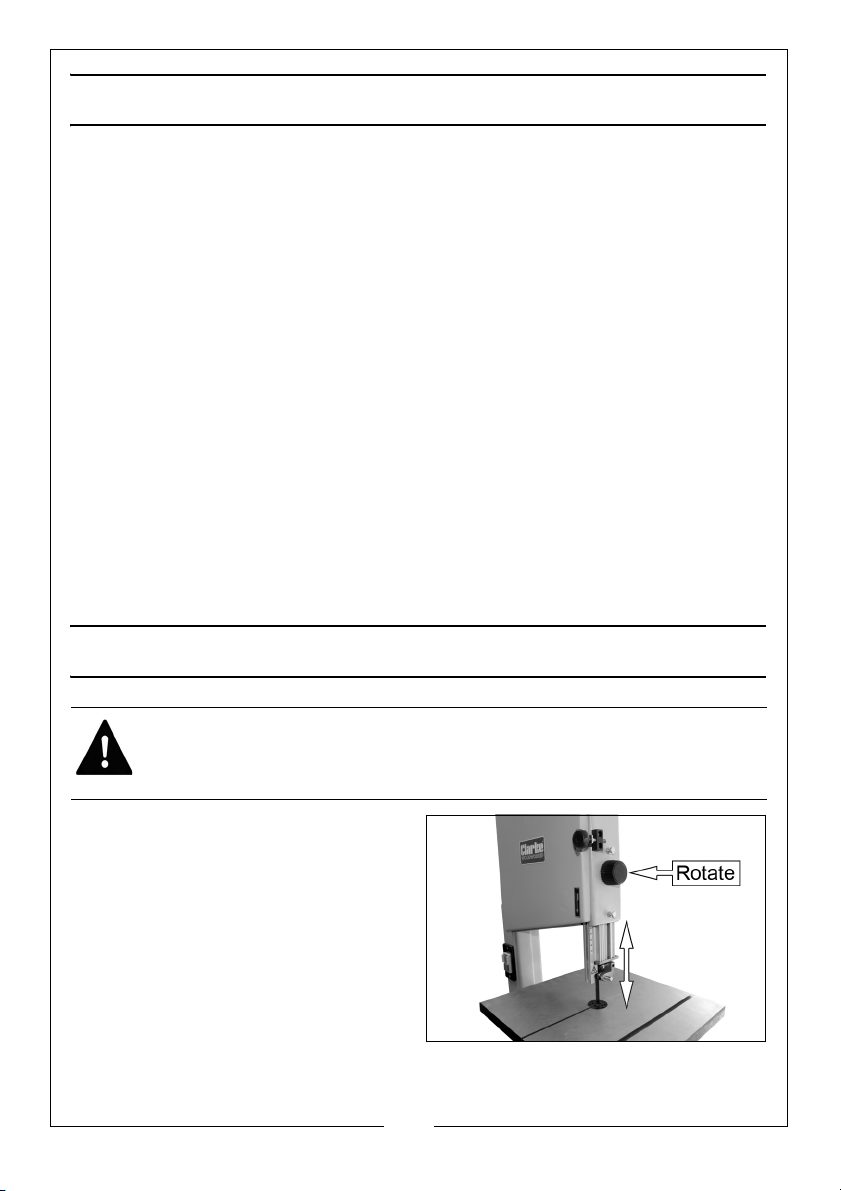

UPPER BLADE GUARD ADJUSTMENT

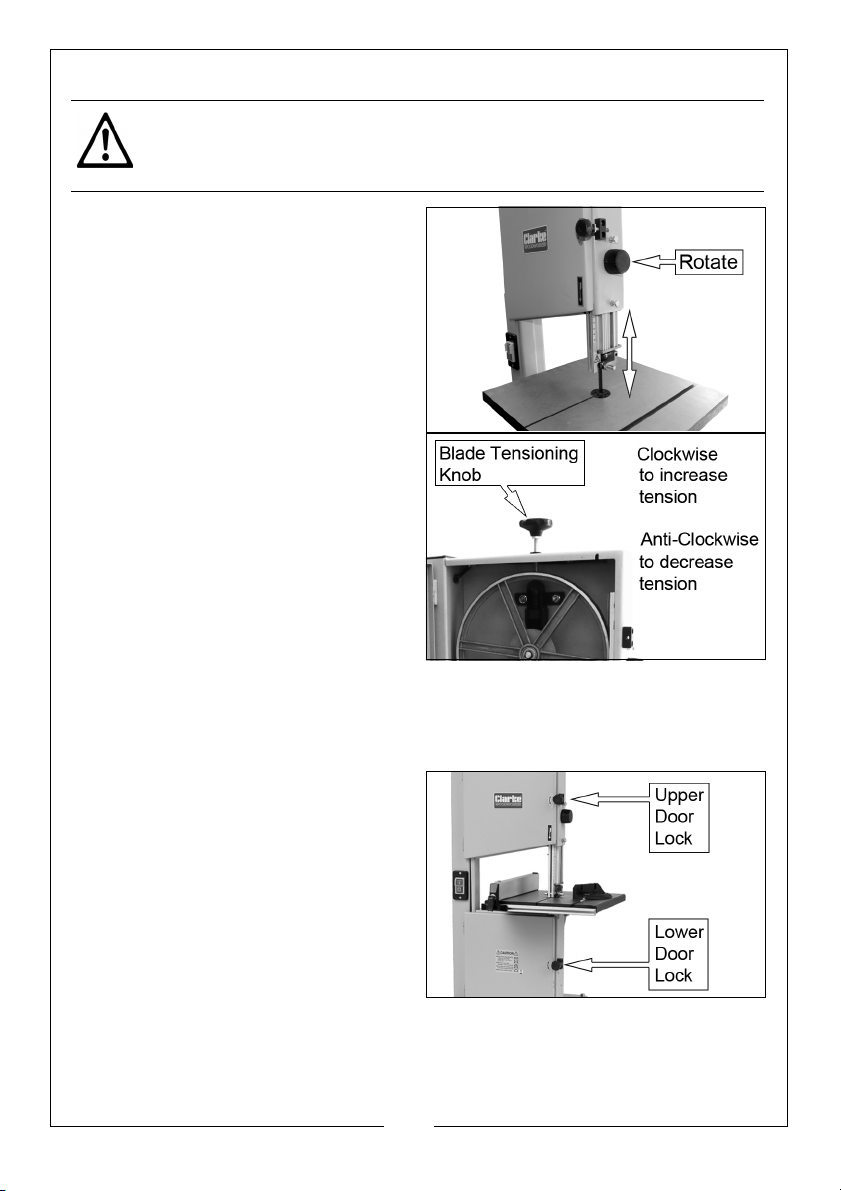

1. Rotate the blade guard adjustment knob:
• Clockwise to raise the blade
guard.
• Anti-clockwise to lower the
blade guard.
NOTE: The blade guard should be
positioned as close as possible to the top of the material the blade is cutting.

USING THE FENCE

• The rip fence can be used on
both sides of the blade.The scale indicates the distance from the saw blade to the fence.
1. Place the fence over the guide rail. and into the required position. and then press down the lock lever to clamp the rip fence in position.
WARNING: Always use a push stick when straight cutting small work pieces using the fence;
12
Page 13

USING THE PUSH STICK

• The push-stick serves as an extension of the operators hand as
protection against accidentally touching the saw blade.
• The push-stick should be used if the distance between the blade and rip
fence is less than approx 150 mm.
• Always replace the push-stick if lost or damaged.

USING THE MITRE GAUGE

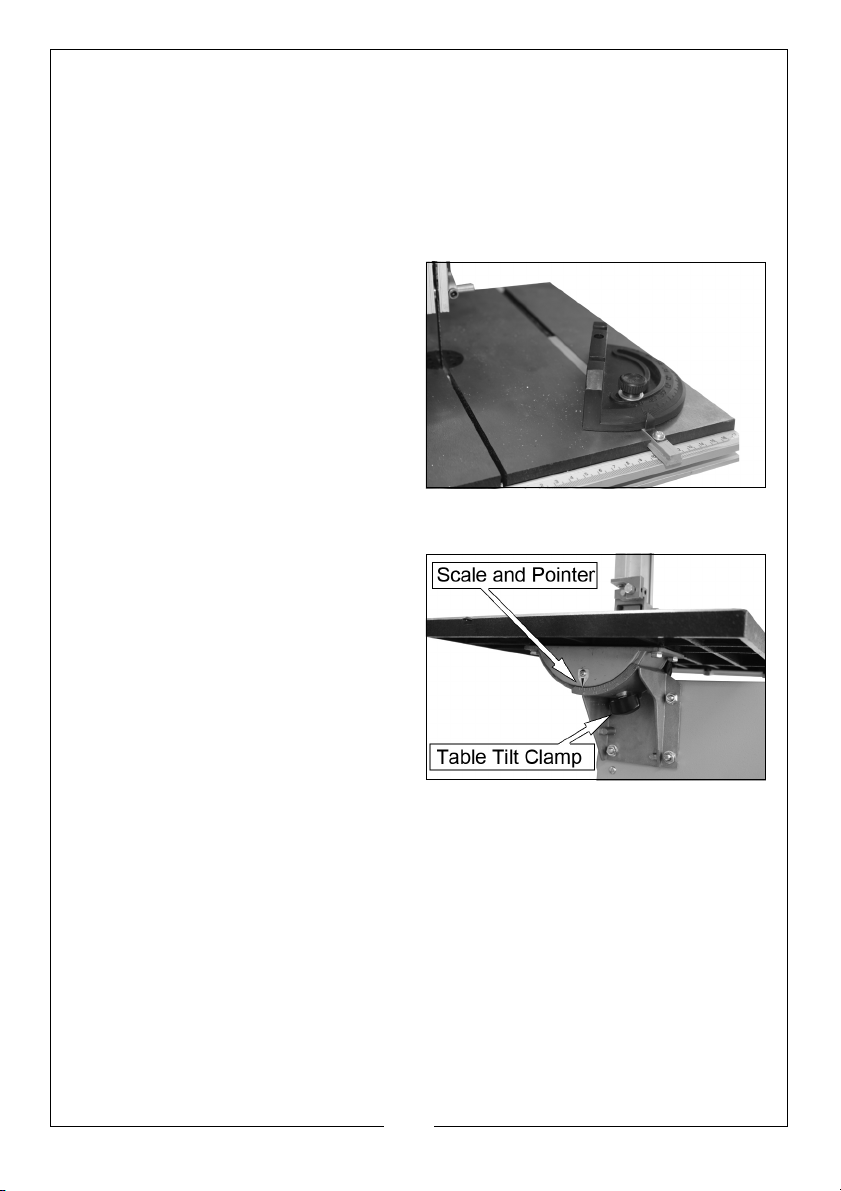

1. The mitre gauge is inserted into the table slot from the front edge.
2. To set a mitre angle, loosen the locking knob by turning it counterclockwise.
3. Firmly tighten the locking knob to secure the mitre gauge in position.

TILTING THE TABLE

1. Loosen the table tilt clamp.
2. Adjust the table to the required angle.
• We recommend that you use a
protractor to ensure accuracy.
3. Retighten the table tilt clamp.
NOTE: The scale and pointer can
be adjusted by loosening the screw on the pointer.
13
Page 14

OPERATION

Before commencing work, ensure the work area is clean and tidy and the bandsaw table is clear of tools etc. Plan your work carefully and set the bandsaw up accordingly before switching on.
1. Check the blade is correctly tensioned before use (see page 17).
2. Set the upper blade guide as close as practical to the workpiece. This provides the best safety for the operator and giving more accurate results and greater control.
3. Switch on and allow the saw blade to reach full speed before proceeding.
• Use both hands to feed the
workpiece. The work must be held flat on the table at all times to prevent the blade from binding
• Use a steady, even pressure,
just sufficient to keep the blade cutting.
• Always use the rip fence or mitre gauge where possible to eliminate any
sideways movement of the work. This is most important when the table is tilted at an angle.
• Remember that the blade removes material during the cut creating a
gap called the ‘kerf’, which must be allowed for when cutting to exact sizes. Plan your cut so that the kerf is the scrap side of the line you wish to cut. Where necessary, allow a little more material for finishing.
• Always use a suitable holding device when cutting round or irregular
shaped timber to prevent twisting of the work piece.
14
Page 15

CHANGING THE SAW BLADE

WARNING: DISCONNECT THE SAW FROM THE MAINS SUPPLY BEFORE CHANGING THE BLADE.

REMOVING THE BLADE

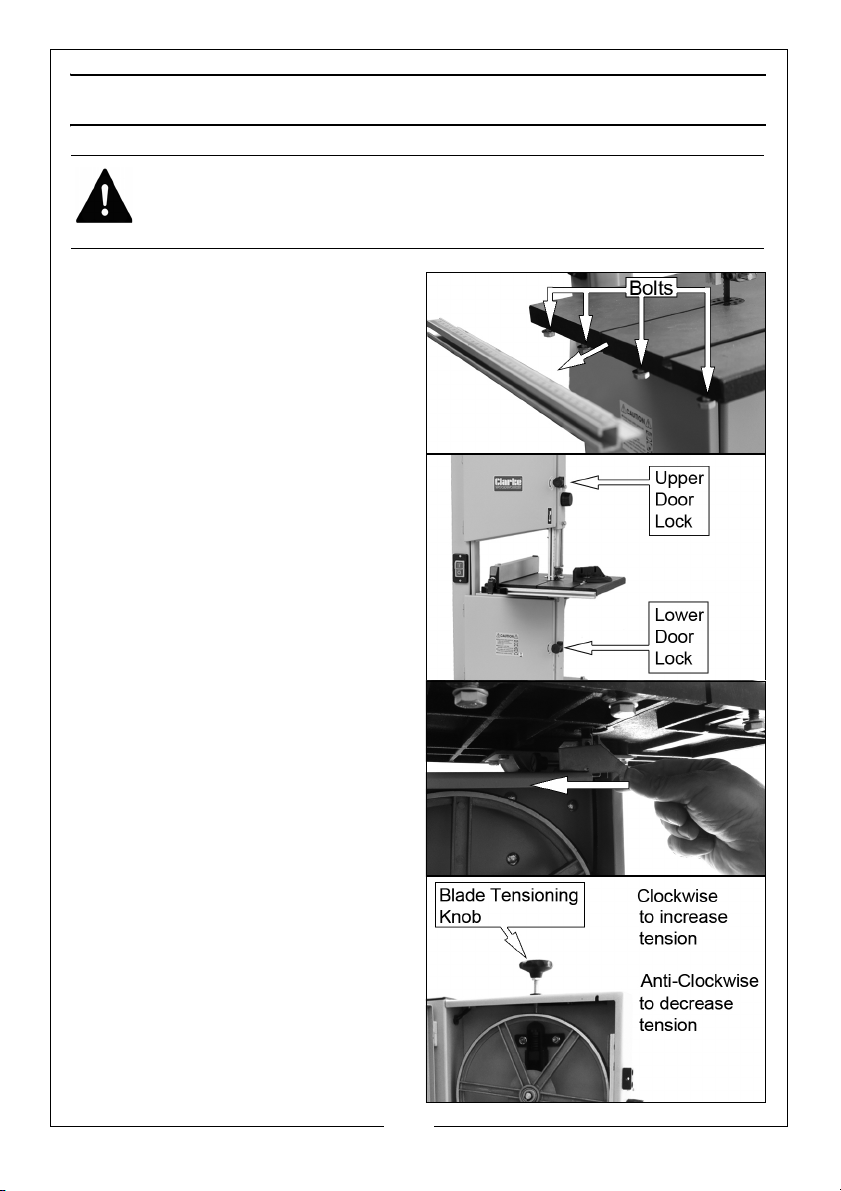

1. Loosen the bolts shown and remove the guide rail.
2. Open the upper and lower doors.
3. Slide the lower blade guard to the left.

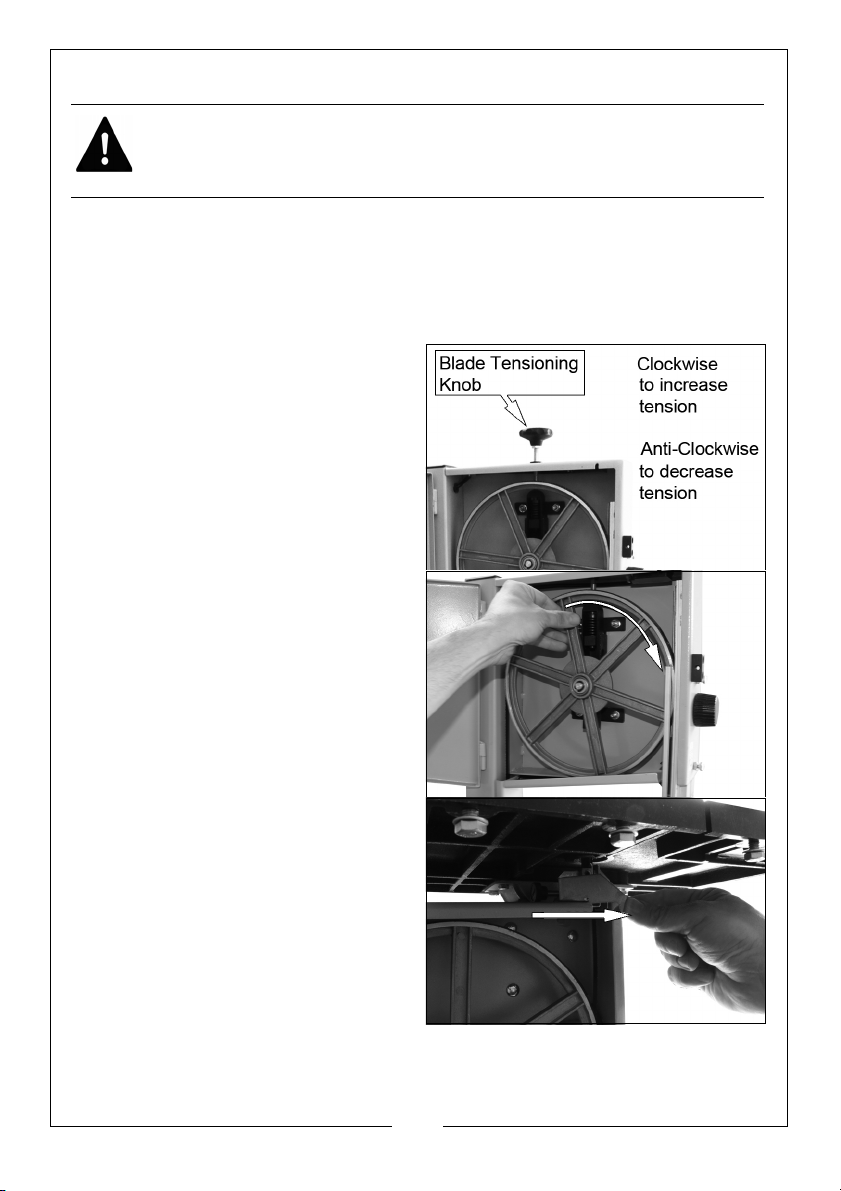

4. Remove tension from the blade and remove the blade.
15
Page 16

FITTING A BLADE

WARNING: BLADES ARE NORMALLY SUPPLIED COILED, TAKE CARE WHEN UNCOILING THE SAW BLADE AS THEY HAVE A TENDENCY TO SPRING OPEN.
1. Slide the blade over the wheels,
NOTE: Turning the wheels as you do so makes this easier.
• Centre the blade on the rubber tyres of the wheels.
• Make sure the teeth point down on the right side.

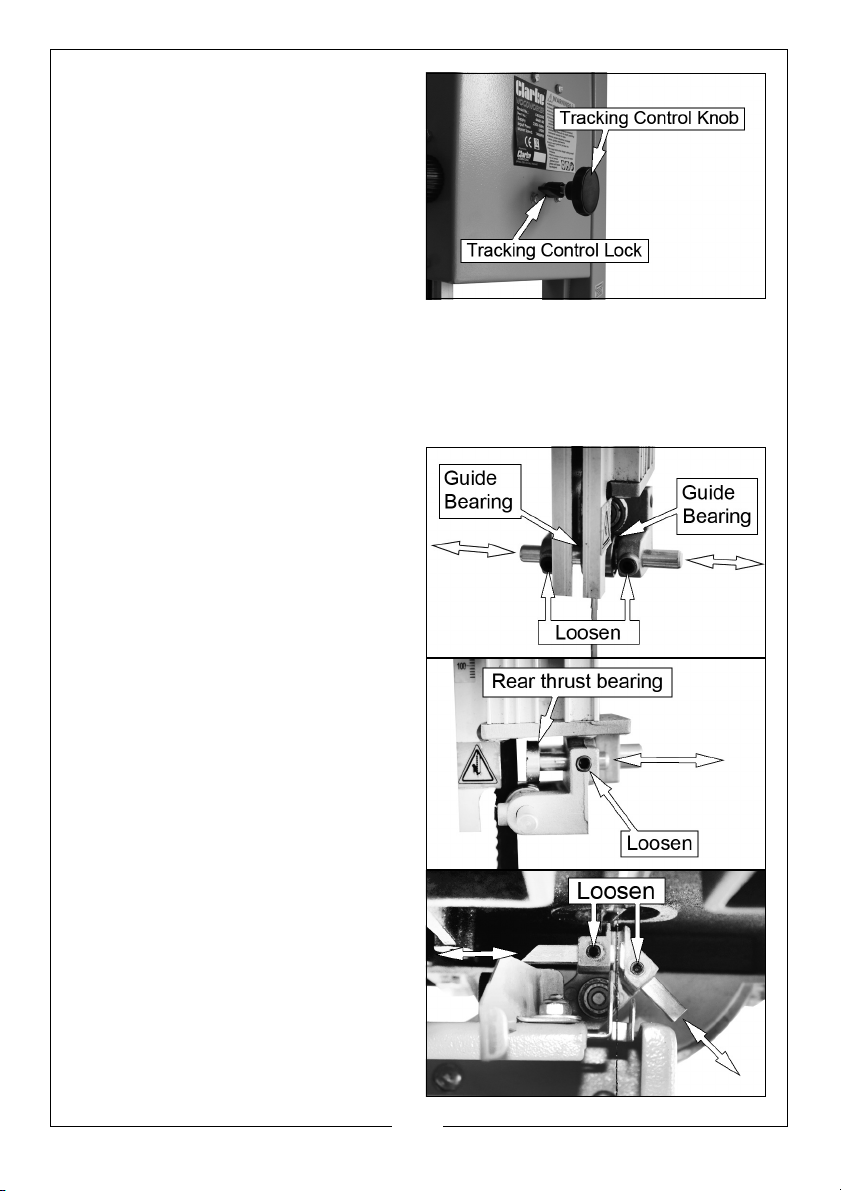

2. Add a little tension to the blade.
3. Turn the upper wheel clockwise by hand to make sure that the blade tracks correctly on the wheels.
• if not see “Tracking the Saw
Blade” on page 17.
4. Slide the lower blade guard to the right.
5. Close and secure the doors.
6. Replace the guide rail.
16
Page 17

ADJUSTING THE BLADE TENSION

CAUTION: TOO MUCH TENSION CAN CAUSE THE SAW BLADE TO BREAK. TOO LITTLE TENSION CAN CAUSE THE BLADE TO MAKE IRREGULAR CUTS
1. Raise the upper blade guide fully.
2. Check the tension by pressing with a finger against the side of the blade, halfway between the table and upper guide.
• The blade should not flex more
than 2 mm.
3. Turn the blade tension knob to adjust tension.
• Turning the blade tension knob
clockwise will increase the tension.
• Turning the blade tension knob
anticlockwise will decrease the tension.

TRACKING THE SAW BLADE

If the saw blade does not run in the centre of the rubber tyre, the tracking needs to be corrected by adjusting the tilt of the upper bandsaw wheel.
1. If required, open the upper and lower doors.
17
Page 18
2. Loosen the tracking control lock and manually rotate the upper wheel, taking care of the sharp blade
3. Turn the tracking control knob clockwise or anticlockwise until the saw blade tracks centrally on the rubber tyre.
4. After adjusting, retighten the tracking control lock and close the doors.

ADJUST THE GUIDE/THRUST BEARINGS AND LOWER BLADE GUIDES

The guide/thrust bearings and the lower blade guides help keep the blade tracking straight and correctly alligned during use. To adjust:
UPPER GUIDE BEARINGS
1. Loosen the two grub screws.
2. Adjust the bearings so that they are approximately 0.5 mm from the blade.
3. Retighten the grub screws.
REAR THRUST BEARING
1. Loosen the grub screw.
2. Adjust the bearing so that it is approximately 0.5 mm from the blade.
3. Retighten the grub screw.
LOWER BLADE GUIDES
1. Loosen the two grub screws.
2. Adjust the guides so that they are approximately 0.5 mm from the blade.
3. Retighten the grub screws.
18
Page 19

MAINTENANCE AND SERVICING

DAILY

1. Keep the machine clean.
2. Check the saw blade for missing teeth and cracks.
3. Open the top & bottom wheel covers and clean out all saw dust.

WEEKLY

1. Open the top & bottom wheel covers and clean out all saw dust with a vacuum cleaner.

MONTHLY

1. Open the lower and upper door and check the condition of the wheels/ tyres and blade.
• If required clean the tyres.
2. Using an air line (wearing goggles) blow out the motor casing.

TRANSPORTING THE BANDSAW

WARNING: DO NOT USE GUARDS FOR HANDLING OR TRANSPORTATION
• Always transport the tool with
the blade guard in the fully lowered position.
19
Page 20

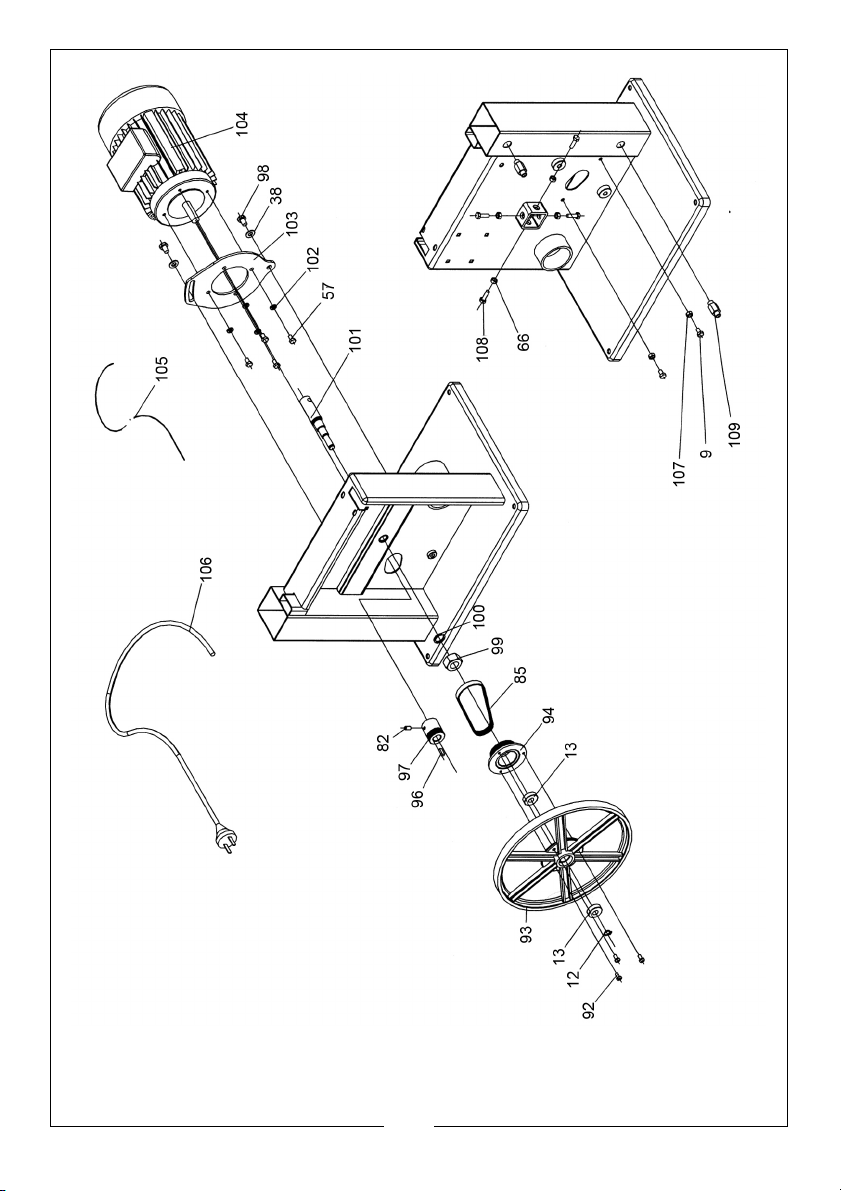

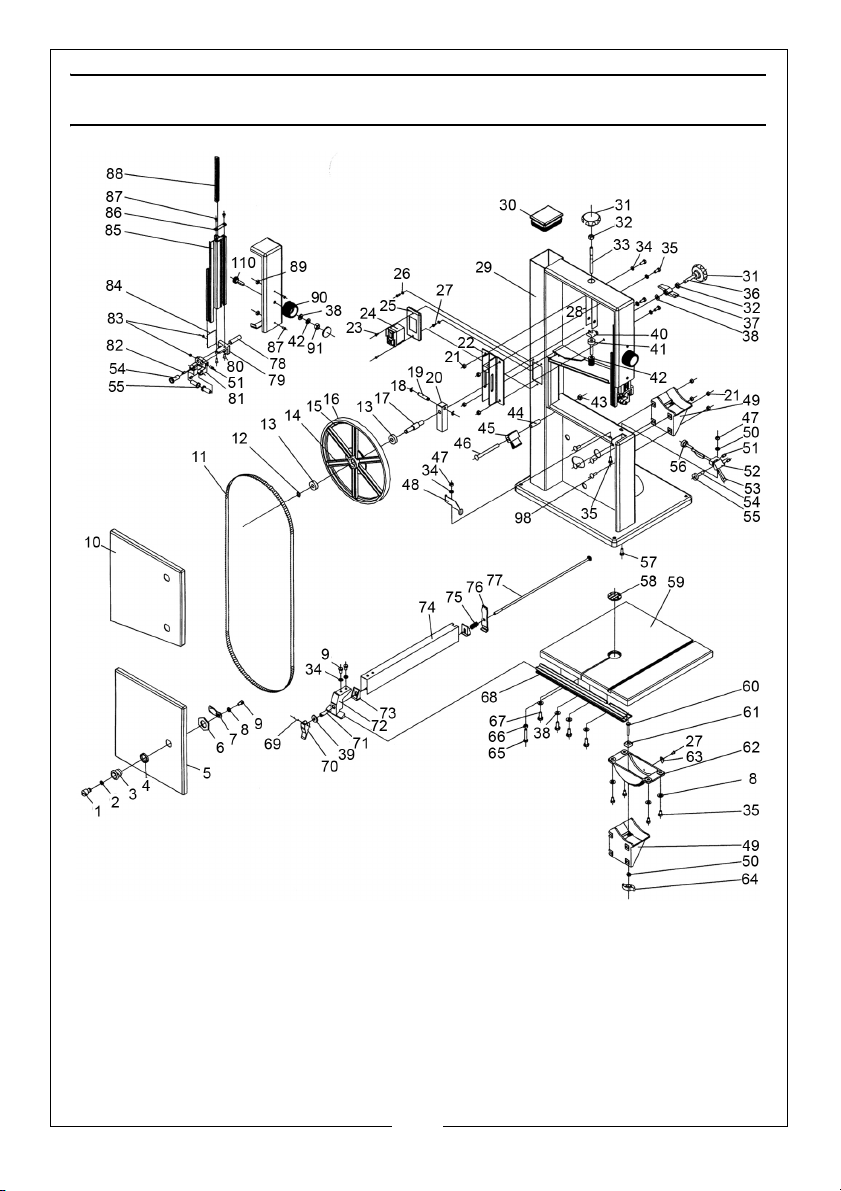

PARTS DIAGRAMS

20
Page 21
21
Page 22

PARTS LIST

001 Slotted Insert 032 Hex head.thin Nut
002 Washer 033 Thread Bolt
003 Housing 034 Washer
004 Washer 035 Hex head bolt
005 Lower Door 036 Hex head bolt
006 Nut 037 Wing Knob
007 Latch Tab 038 Washer
008 Ext lock Washer 6 039 Washer
009 Hex head bolt M6x10 040 Nut
010 Upper Door 041 Shaft
011 Saw Blade 042 Butterfly Spring
012 Circlip 043 Hex head flange nut
013 Ball Bearing 044 Spacer Bushing
014 Upper Wheel 045 Brush Strip
015 Balance Collar 046 Cup Square Neck Bolt
016 Band Saw Wheel/Tyre 047 Hex head lock nut
017 Bearing Bolt (Upper) 048 Blade Guard
018 "E" Clip 049 Blade Trunnion Lower
019 Pin Guide 050 Washer
020 Seat Bearing Bolt Upper 051 Grub screw
021 Hex head flange nut 052 Roller Guide
022 Guide Plate Assembly 053 Pilot Pin
023 Cross Countersunk Hd.screw 054 Thrust Bearing Shaft
024 Magnetic Switch 055 Bearing
025 Switch Plate 056 Idler Wheel Shaft
026 Ext.lock Washer 057 Hex head.bolt
027 Cross Pan.hd.screw 058 Blade Fork
028 Blade Tensioner 059 Table
029 Band Saw Frame 060 Cup Square Neck Bolt
030 End Plug 061 Guide Piece
031 Adjust Handle 062 Table Trunnion (Upper)
22
Page 23
063 Indicator 087 Cross Pan Head Screw
064 Tension Knob 088 Rack
065 Hex head bolt 089 Guide Piece
066 Hex.nut 090 Adjusting Knob
067 Hex head bolt 091 Hex head lock nut
068 Rip Fence Extrusion 092 Cross Pan.hd.screw
069 Roll Pin 093 Lower Wheel
070 Lever 094 Driven pully
071 Connet Set 095 V-ribbed Belt
072 Baffle Bracket 096 Key
073 End Plate 097 Motor Pulley
074 Baffle 098 Cup Square Neck Bolt
075 Spring 099 Hex.nut
076 Clamp Board 100 Spring Washer
077 Clamp Screw 101 Bearing Bolt Upper
078 Fastening Shaft 102 Spring Washer
079 Seat Guide Upper 103 Motor Plate Mounting
080 Tapping Screw 104 Motor
081 Housing Upper Guide 105 Motor Cable
082 Grub screw 106 Power Cable
083 Grub screw 107 Hex head nut
084 Slide Board 108 Hex head bolt
085 Guide Lever 109 Strain Relief
086 Cover Board 110 Shaft
To order spare parts quote DTCBS250B + the 3 digit part number above.
23
Page 24

SPECIFICATIONS

Model CBS250B
Power 370W, 230V
Blade Speed 730 m/min
Blade Length 1,712 mm
Blade Width 10 mm
Max Width of Cut 245 mm
Max Depth of Cut 100 mm @ 90° / 75 mm @ 45°
Table Size 333 x 336 mm
Table Height on Stand 1078 mm
Table Tilt Angle 0° to +45°
Dust Extraction Outlet 36 mm (inside) / 40 mm (outside)
Dimensions (W x H x D) 570 x 1525 x 480 mm
Weight 32 kg
24
Page 25

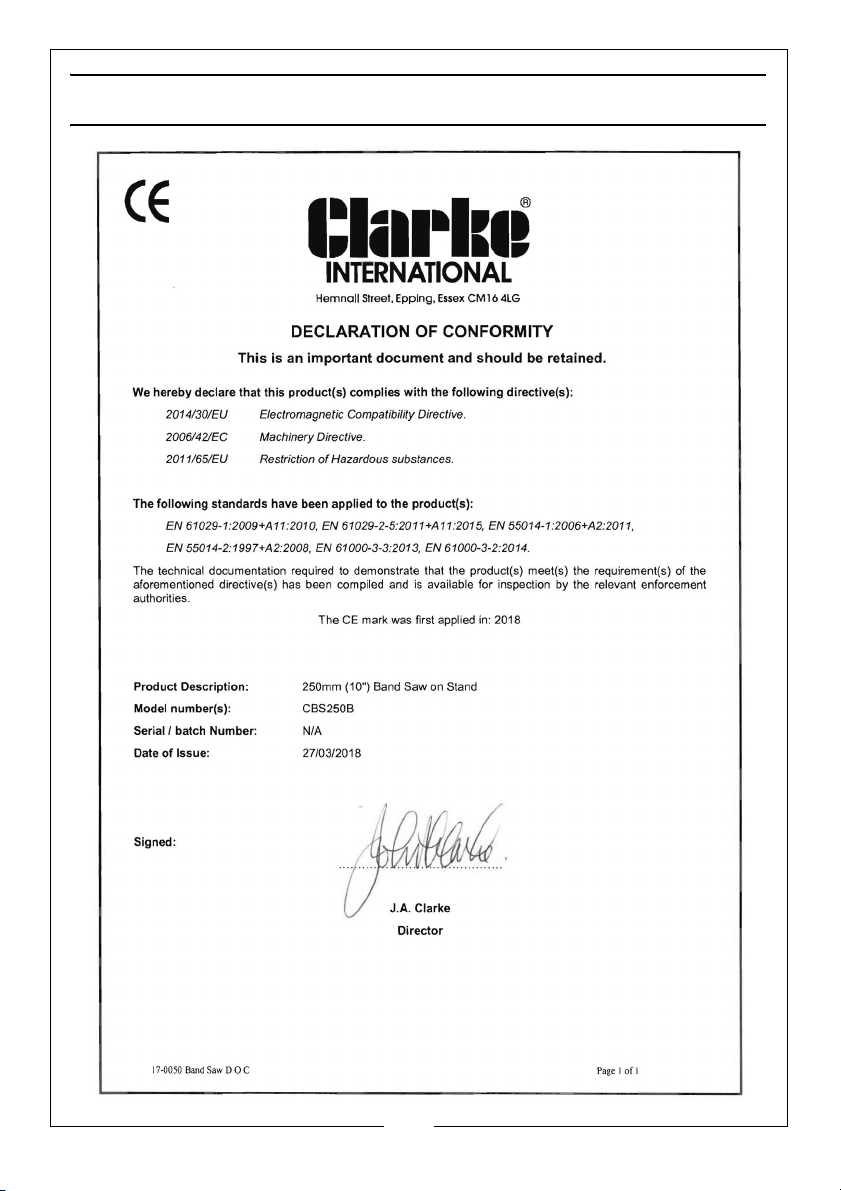

DECLARATION OF CONFORMITY

25
Page 26
26
Page 27
27
Page 28
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
