Clarke CBS 225, 6460133 User guide

9”BANDSAW

MODEL NO: CBS225

PART NO: 6460133

OPERATION & MAINTENANCE

INSTRUCTIONS

ORIGINAL INSTRUCTIONS GC0720 ISS 3

INTRODUCTION

Thank you for purchasing this CLARKE Bandsaw.

Before attempting to operate the machine, it is essential that you read this
manual thoroughly and carefully follow all instructions given. In doing so you
will ensure the safety of yourself and that of others around you, and you can
also look forward to the product giving you long and satisfactory service.

GUARANTEE

This CLARKE product is guaranteed against faulty manufacture for a period of
12 months from the date of purchase. Please keep your receipt as proof of
purchase.

This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.

Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.

This guarantee does not effect your statutory rights.

ENVIRONMENTAL PROTECTION

Recycle unwanted materials instead of disposing of them as waste. All
unwanted accessories and packaging should be sorted and taken to a
recycling centre for disposal in a manner which is compatible with the
environment.

ENVIRONMENTAL RECYCLING POLICY

Through purchase of this product, the customer is taking on the
obligation to deal with the WEEE in accordance with the WEEE
regulations in relation to the treatment, recycling & recovery and
environmentally sound disposal of the WEEE.

In effect, this means that this product must not be disposed of with general
household waste but according to the laws governing Waste Electrical and
Electronic Equipment (WEEE) at a recognised disposal facility.

2

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

SAFETY WARNINGS

CAUTION: FAILURE TO FOLLOW THESE PRECAUTIONS COULD RESULT IN
PERSONAL INJURY, AND/OR DAMAGE TO PROPERTY.

WORK ENVIRONMENT

1. Keep the work area clean and well lit. Cluttered and dark areas invite
accidents.

2. Do not operate power tools in explosive atmospheres, such as in the
presence of flammable liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.

3. Keep children and bystanders away while operating a power tool. Anyone

entering the work area must wear personal protective equipment.

Distractions can cause you to lose control and fragments of work or a
broken disc may fly away and cause injury.

4. Store power tools properly when not in use. Abrasive products should be
stored in a dry, secure place out of the reach of children.

5. Please read these instructions carefully and retain for future reference.

ELECTRICAL SAFETY

1. Power tool plugs must match the outlet. Never modify the plug in any way.
Do not use adapter plugs with earthed (grounded) power tools. Unmodified

plugs and matching outlets will reduce the risk of electric shock.

2. Do not expose power tools to rain or wet conditions. Water entering a
power tool will increase the risk of electric shock.

3. Do not abuse the cord. Never use the cable for carrying, pulling or

unplugging the power tool. Keep the cable away from heat, oil, sharp
edges or moving parts. Damaged or entangled cables increase the risk of

electric shock.

4. When operating a power tool outdoors, use an extension cable suitable for
outdoor use. Use of a cable suitable for outdoor use reduces the risk of
electric shock.

PERSONAL SAFETY

1. Stay alert, watch what you are doing and use common sense when
operating a power tool. Do not use a power tool while you are tired or

under the influence of drugs, alcohol or medication. A moment of
inattention while operating power tools may result in personal injury.

3

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

2. Use personal protective equipment. Always wear eye protection. Safety
equipment such as dust mask, non-skid safety shoes, hearing protection
and a workshop apron capable of stopping small abrasive or workpiece
fragments.

3. Avoid accidental starting. Ensure the switch is in the off position before
plugging in. Plugging in power tools that have the switch on invites
accidents.

4. Remove any adjusting key or wrench before turning the power tool on. A
wrench or a key left attached to a rotating part of the power tool may
result in personal injury.

5. Do not overreach. Keep proper footing and balance at all times. This
enables better control of the power tool in unexpected situations. Dress
properly. Do not wear loose clothing or jewellery.

6. Keep your hair, clothing and gloves away from moving parts. Loose
clothes, jewellery or long hair can be caught in moving parts. Keep the
work area clean and tidy.

7. Regularly clean the power tool’s air vents. The motor fan will draw dust
inside the housing and accumulation of material could cause electrical
hazards.

8. Avoid operator fatigue. Stop the power tool at regular intervals for a short
break to rest hands and arms.

9. Maintain your tools. Keep all handles and grips dry and clean.

ELECTRICAL SAFETY

1. Position the power cable so that it cannot be inadvertently pulled or
pinched, and where it does not cause a trip hazard.

2. This machine is designed for indoor environments and must not be used for
other purposes.

3. If the machine requires repair, always contact your Clarke dealer. Always
insist on original spare parts. Repairs carried out by unauthorized persons
may be dangerous and invalidate the guarantee.

4. This machine must only be used by adults. Children should not be allowed
to play with this appliance.

5. Never use the machine if the electric cable or plug is in poor condition.

6. Do not use extension power cables.

7. Before cleaning or maintenance operations, always unplug the machine
from the power supply.

4

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

POWER TOOL USE AND CARE

1. Do not force the machine. Use the correct power tool for your application.
It will do a better and safer job at the rate for which it was designed.

2. Do not use the power tool if the switch does not turn it on and off. Any
power tool that cannot be controlled with the switch is dangerous and
must be repaired.

3. Disconnect the power tool from the power supply before making any
adjustments, changing accessories, or storing the tool. These measures will
reduce the risk of the power tool starting accidently.

4. Store power tools out of the reach of children and do not allow persons
unfamiliar with these instructions to operate the power tool. Power tools are
potentially dangerous in the hands of untrained users.

5. Maintain power tools in top condition. Keep tools/ machines clean for the
best and safest performance. Check for misalignment or binding of
moving parts, broken parts, or any condition that may affect the power
tool’s operation. If damaged, have the power tool repaired before use.
Many accidents are caused by poorly maintained power tools.

6. Use recommended accessories. The use of improper accessories could be
hazardous.

7. Machine cleanliness. Do not allow the ventilation slots in the machine to
become blocked with dust.

8. Check the power tool for damage before using the machine. Any
damaged part should be inspected to ensure that it will operate properly
and perform its intended function. Check for alignment of moving parts,
breakage of parts, mountings, and any other condition that may affect the
machine’s operation. Any damage should be properly repaired or the part
replaced. If in doubt, DO NOT use the machine. Consult your local dealer.

SERVICING

1. When necessary, have your power tools serviced or repaired by a qualified
person using identical replacement parts. This will ensure that the safety of

the power tool is maintained.

ADDITIONAL PRECAUTIONS FOR BANDSAWS

1. Always check safety guards are in place and functioning correctly before
switching the machine on.

2. Always use a push stick & fence for small workpieces wherever practical.

3. Always use the appropriate saw blade for the material being cut.

4. Never touch the blade immediately after use, when changing the blade
always allow time for it to cool.

5

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

5. Never use damaged blades. (Replacement blades are available from your
Clarke dealer.

6. Never attempt any maintenance or adjustments of the saw band when it is
in motion.

7. Do not remove jammed cut -off pieces until the blade has stopped.

8. Replace table insert if the slot has become enlarged.

9. When cutting wood, ensure all nails or fastenings have been removed
beforehand. Nails will damage the saw blade.

10. When cutting round timber stock, use a suitable jig or fixture to keep the
work from turning.

11. Always ensure the blade is fully tightened and correctly adjusted before
use.

12. Keep the mains cable well away from the working parts of the machine
and ensure an adequate electrical supply is close at hand so that the
operation is not restricted by the length of the cable.

13. Switch the machine off as soon as the task is completed.

SAFETY SYMBOLS

The following safety symbols may be found on the machine.

Wear a dust mask

Wear eye protection

Read instruction manual before use

6

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

SPECIFICATIONS

CBS225

Weight 21 kg

Dimensions (W x D x H) 490 x 420 x 830 mm

Table Size (W x D) 300 x 300 mm

Throat Width 228 mm

Table Tilt Angle

Mitre Gauge Range

Maximum Cutting Depth @ 90

Maximum Cutting Depth @ 45

o

o

Height of Fence 52 mm

Power supply 230V - 50Hz

Rated Power @230V 300 W

Motor speed 1400 rpm

Blade Speeds 10.6 m/sec

Duty Cycle S1 continuous

Sound Pressure Level (Lp) 70.7 dB(A)

Sound Power Level Measured (Lw) 83.7 dB(A)

Blade dimensions

Blade Length (welded loop) 1575 mm

Blade Width 10 mm

Blade Tooth Pitch 10 tpi

Blade thickness 0.35 mm

0 - 45

Left 60

90 mm

50 mm

o

o

/ Right 60

o

7

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

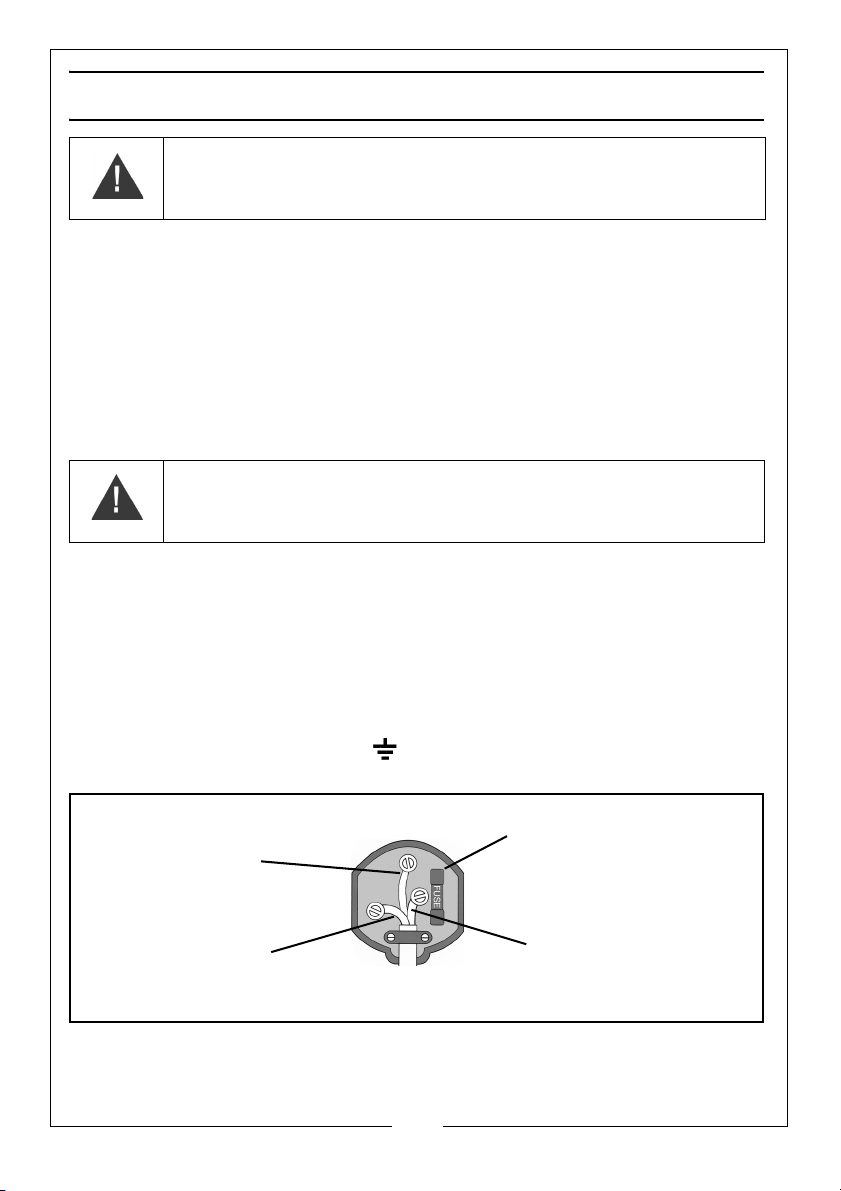

ELECTRICAL CONNECTIONS

Plug must be BS1363/A approved.

Always fit a 13 Amp fuse.

Ensure that the outer sheath of the cable is firmly held by the clamp

Neutral

(Blue)

Live

(Brown)

Earth

(Green and Yellow)

WARNING! Read these electrical safety instructions thoroughly
before connecting the product to the mains supply.

Before switching the product on, make sure that the voltage of your electricity supply is
the same as that indicated on the rating plate. This product is designed to operate on
230VAC 50Hz. Connecting it to any other power source may cause damage.

This product may be fitted with a non-rewireable plug. If it is necessary to change the
fuse in the plug, the fuse cover must be refitted. If the fuse cover becomes lost or
damaged, the plug must not be used until a suitable replacement is obtained.

If the plug has to be changed because it is not suitable for your socket, or due to
damage, it should be cut off and a replacement fitted, following the wiring instructions
shown below. The old plug must be disposed of safely, as insertion into a mains socket
could cause an electrical hazard

WARNING! The wires in the power cable of this product are
coloured in accordance with the following code:
Blue = Neutral Brown = Live Yellow and Green = Earth

If the colours of the wires in the power cable of this product do not correspond with the
markings on the terminals of your plug, proceed as follows.

• The wire which is coloured Blue must be connected to the terminal which is
marked N or coloured Black.

• The wire which is coloured Brown must be connected to the terminal which
is marked L or coloured Red.

• The wire which is coloured Yellow and Green must be connected to the
terminal which is marked E or or coloured Green.

.

.

We strongly recommend that this machine is connected to the mains supply via a Residual
Current Device (RCD)

If in any doubt, consult a qualified electrician. DO NOT attempt any repairs yourself.

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

8

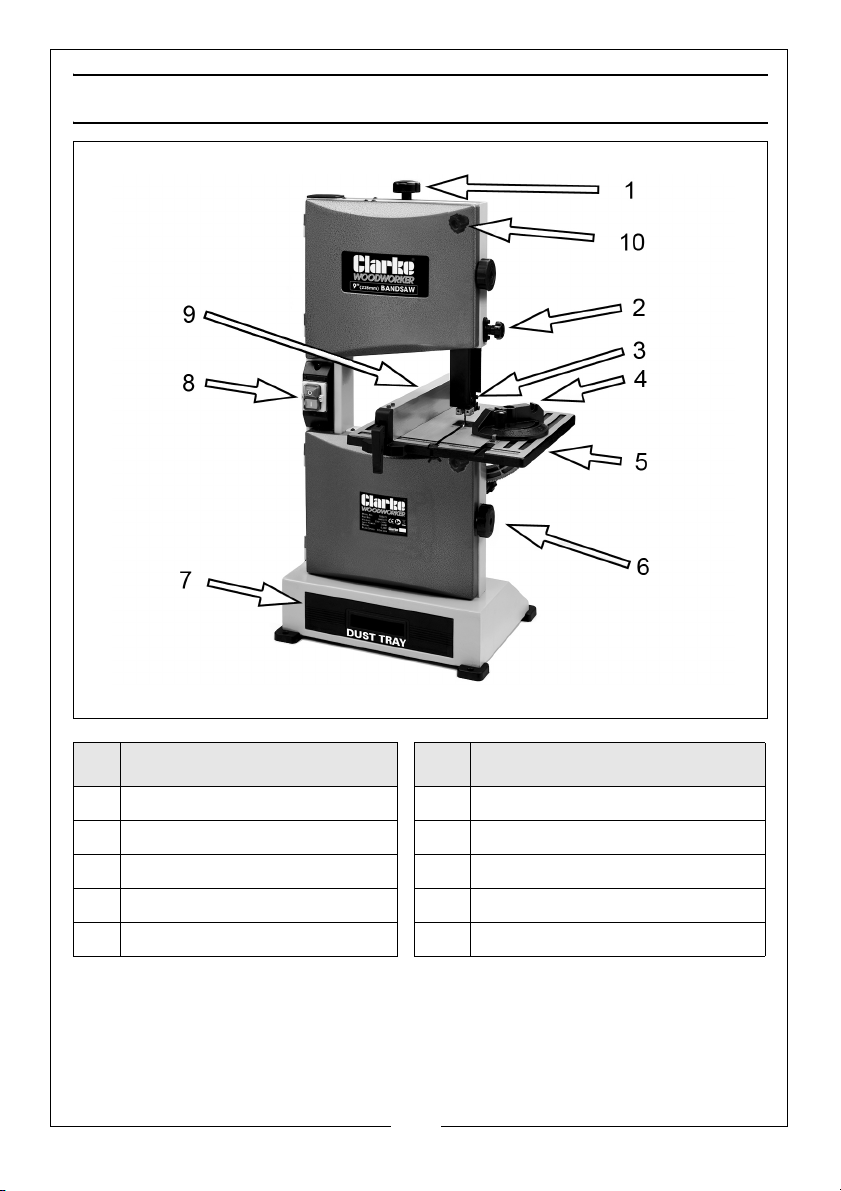

OVERVIEW

NO DESCRIPTION NO DESCRIPTION

1 Blade Tension Setting Knob 6 Cover Release knob

2 Guide Height Setting Knob 7 Dust Tray

3 Upper Blade Guide 8 Start/Stop buttons

4 Mitre Gauge Assembly 9 Rip Fence Assembly

5 Tilting Work Table 10 Cover Safety Latch

9

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

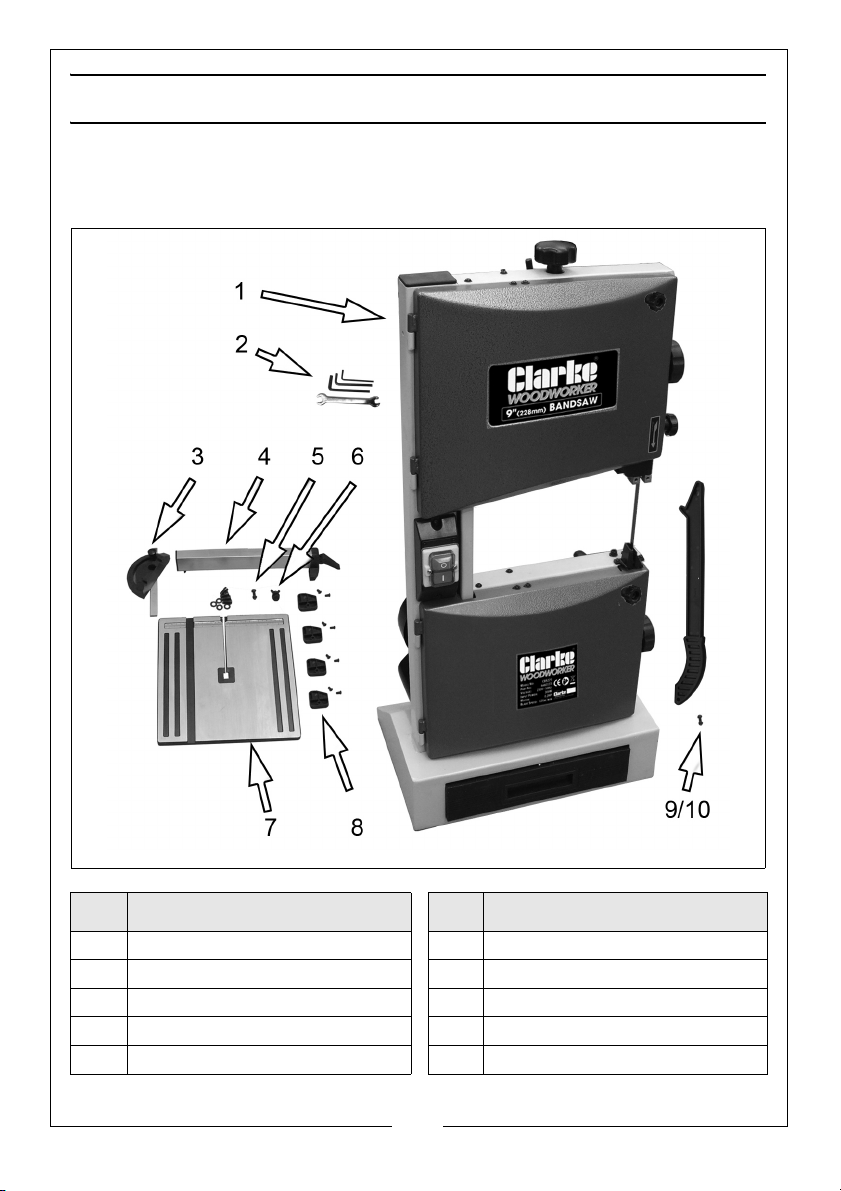

CONTENTS

Make sure that all parts are un-damaged and are present. If any parts are
missing or damaged please contact your CLARKE dealer immediately.

The following loose components are supplied with the bandsaw assembly.

ITEM DESCRIPTION ITEM DESCRIPTION

1 Bandsaw Assembly 6 D-piece/wing screw

2 Key/Spanner Set 7 Table

3 Mitre Guide Assembly 8 Polymer Foot c/w screws

4 Parallel Fence Assembly 9 Push Stick

5 Table Stop bolt 10 Push Stick Hook & nut

10

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

ASSEMBLY

PREPARATION

For maximum stability the bandsaw should be bolted firmly to either a
workbench, a suitable stand, or a piece of plywood, 5/8” thick, and the
plywood should be clamped firmly to a workbench, using clamps, whenever
the bandsaw is being used.

The saw must be located in an area large enough to allow you to work freely,
taking into account the likely size of your workpiece, and that there should be
adequate lighting.

Make sure also that an adequate electrical supply is close by. Take extra care
if extension leads are used. Make sure that there is no possibility of tripping
over the lead when moving around the work area.

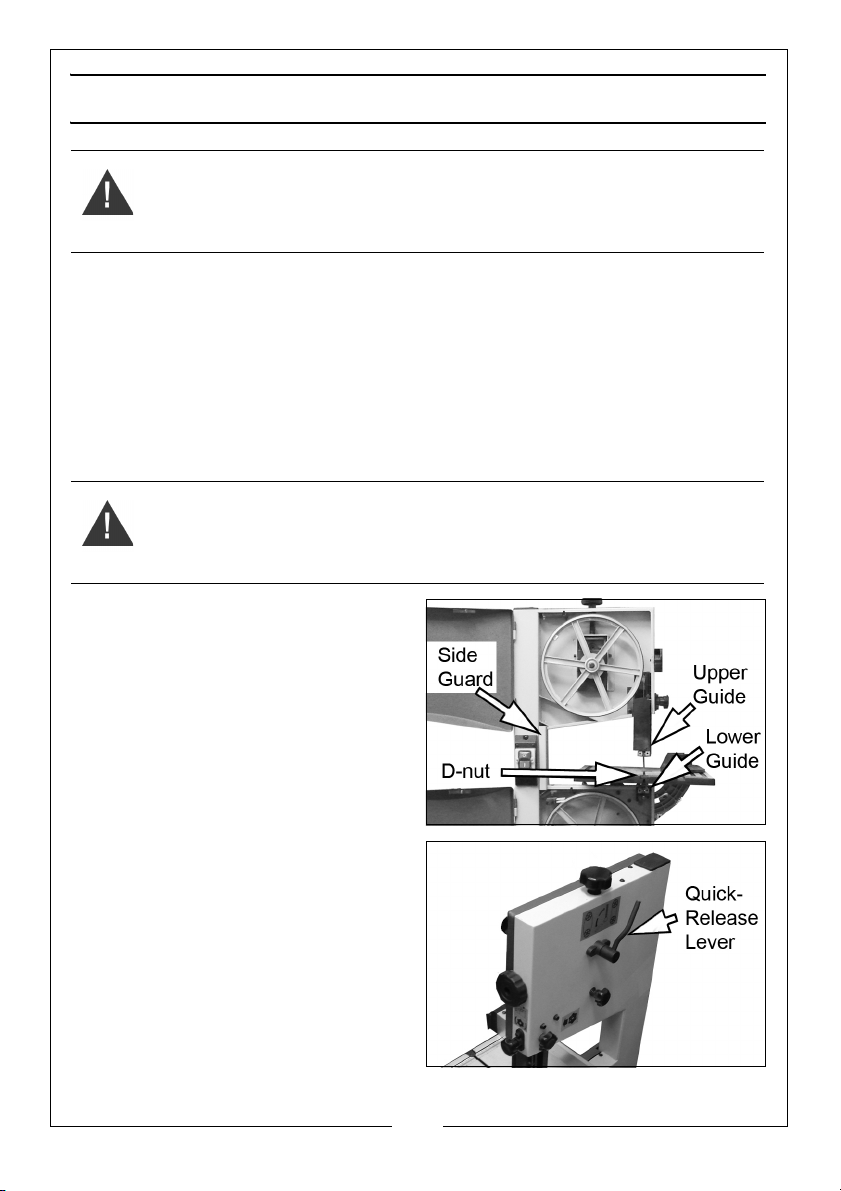

FITTING THE TABLE

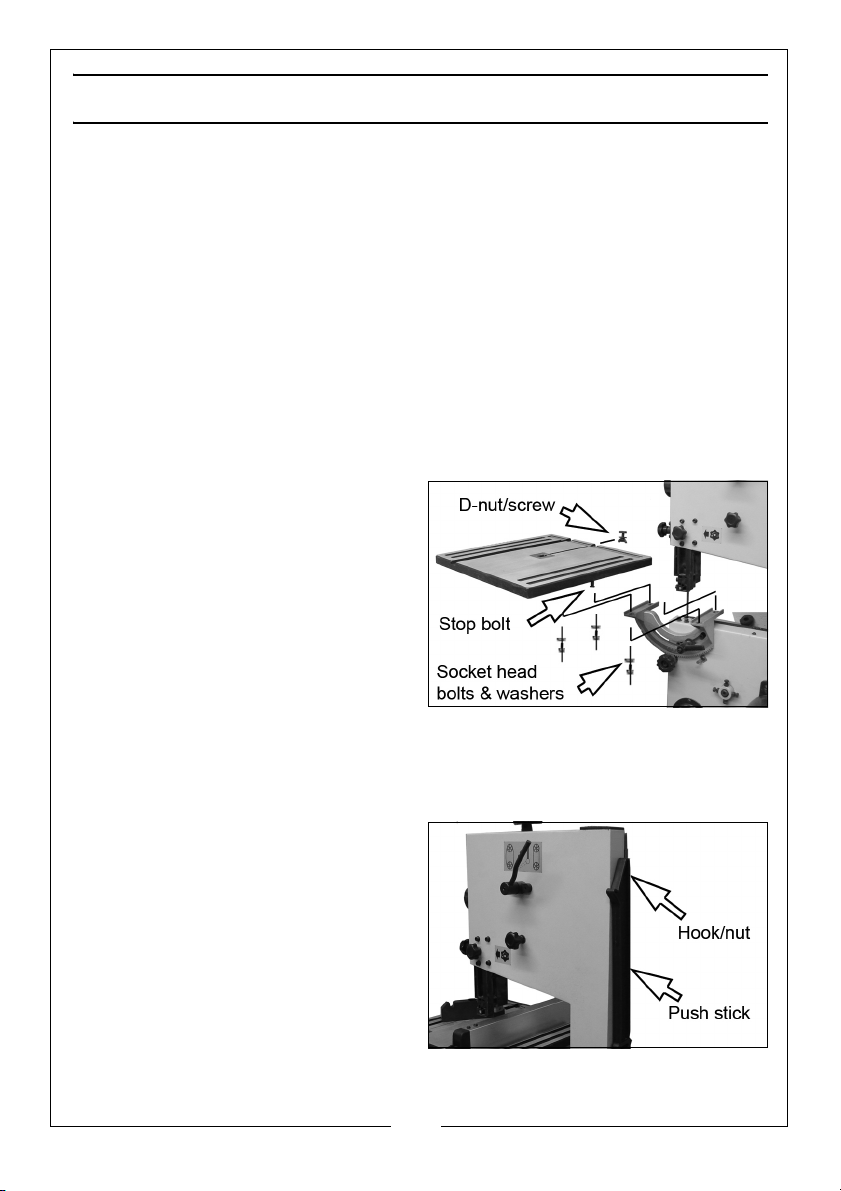

1. Rest the bandsaw on its side,
supported by a block of timber
and protect the casing from
damage with cardboard. Fit the
feet to the bandsaw using the
pan head screws and washers.

2. Remove the D-nut and wing
screw from the table (if fitted).

3. Fit the table to the bandsaw using
socket head M8 x 14 bolts and
8mm flat washers. Ensure the saw blade is central in the table slot.

4. Screw the table stop bolt into the underneath of the table.

5. Re-fit the D-nut and wing screw to the table.

6. Fit the push stick hook to the side
of the machine and tighten using
the locking nut.

7. Hang the push stick on the hook.

11

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

8. Fit the rip fence to the table if
required.

9. Slide the mitre gauge into the slot
in the table if required.

ADJUSTING THE COMPONENTS

TILTING THE TABLE

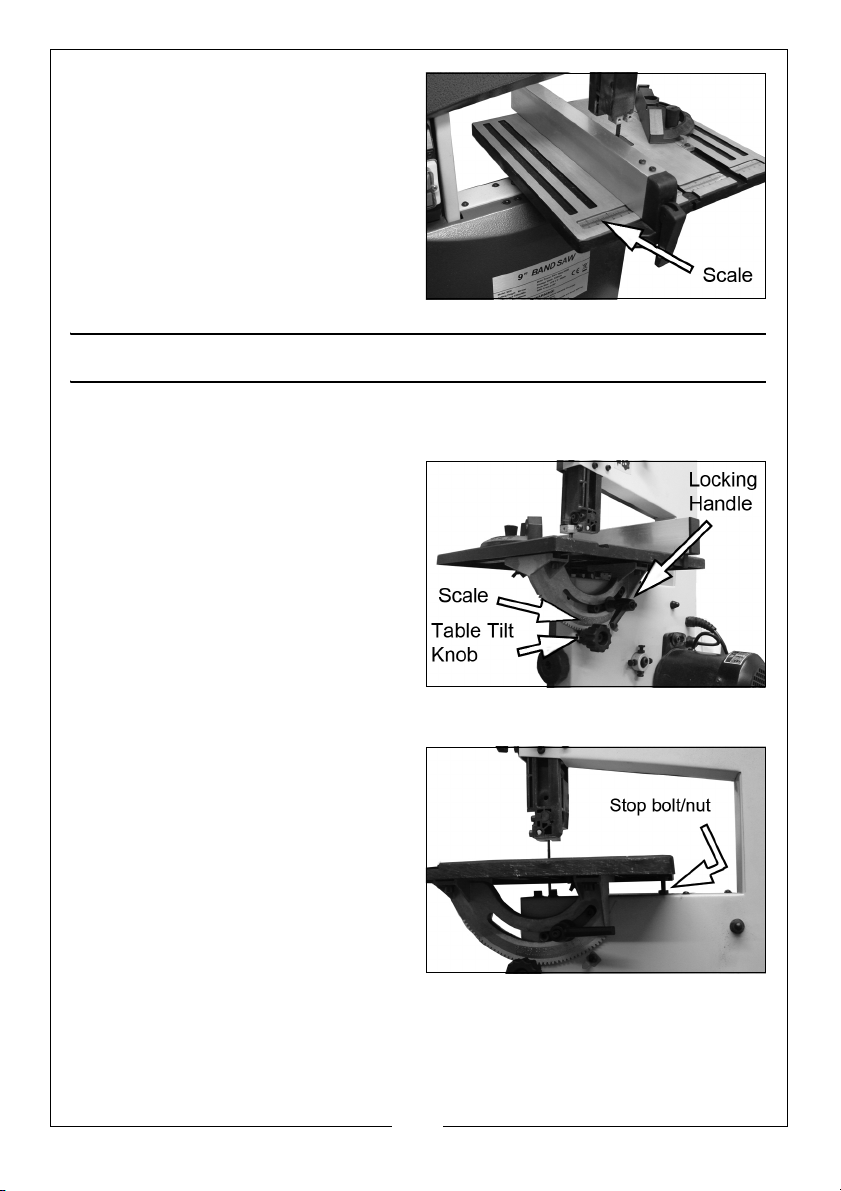

1. Loosen the locking handle and
turn the table tilting knob to adjust
the table to the desired angle.

2. Use the angle indicator scale on
the table tilting bracket, to find
the desired angle.

3. Re-tighten the locking handle to
secure the table.

• For assured accuracy, we
recommend checking the tilt
angle using a protractor or set square.

4. With the table exactly level, it
should rest on the supporting bolt
shown. Adjust the height of the
bolt by screwing it in or out of the
table and securing with the
locknut. Check with a set square
that the table is exactly level
when resting on the bolt.

12

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

TRACKING THE SAW BLADE

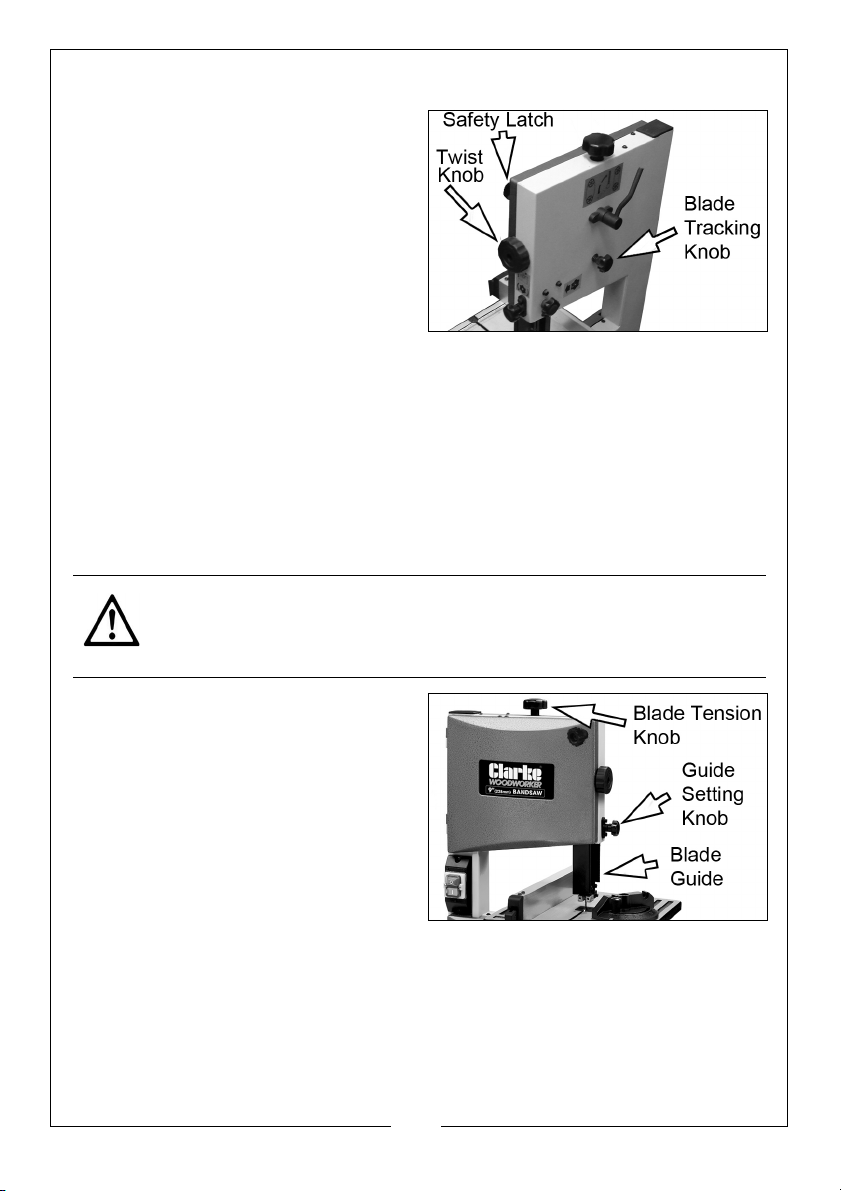

1. Open the upper and lower covers
by releasing the twist knobs and
the safety latches on the front of
the machine.

• Unscrew the safety latches fully to
release the cover panel.s.

• The panels will not move unless
the twist knobs are first released.

2. Manually rotate the upper wheel,
taking care of the sharp blade.

If the saw blade does not run on the centre of the rubber tyre the tracking
needs to be corrected before use by adjusting the tilt angle of the upper
bandsaw wheel.

3. Turn the blade tracking knob clockwise or anticlockwise until the saw
blade tracks centrally on the rubber tyre of both wheels.

4. After adjusting, close both covers.

ADJUSTING THE BLADE TENSION

CAUTION: TOO MUCH TENSION CAN CAUSE THE SAW BLADE TO BREAK.
TOO LITTLE TENSION CAN CAUSE THE BLADE TO MAKE IRREGULAR
(WANEY) CUTS.

1. Raise the upper blade guide fully
by twisting the guide setting knob.

2. Check the tension by pressing
with a finger against the side of
the blade, halfway between the
table and upper guide.

• The blade should not flex
sideways by more than 2 mm at its
longest span.

3. Turn the blade tension knob to
adjust the tension.

• Turning the blade tension knob clockwise will increase the blade tension.

13

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

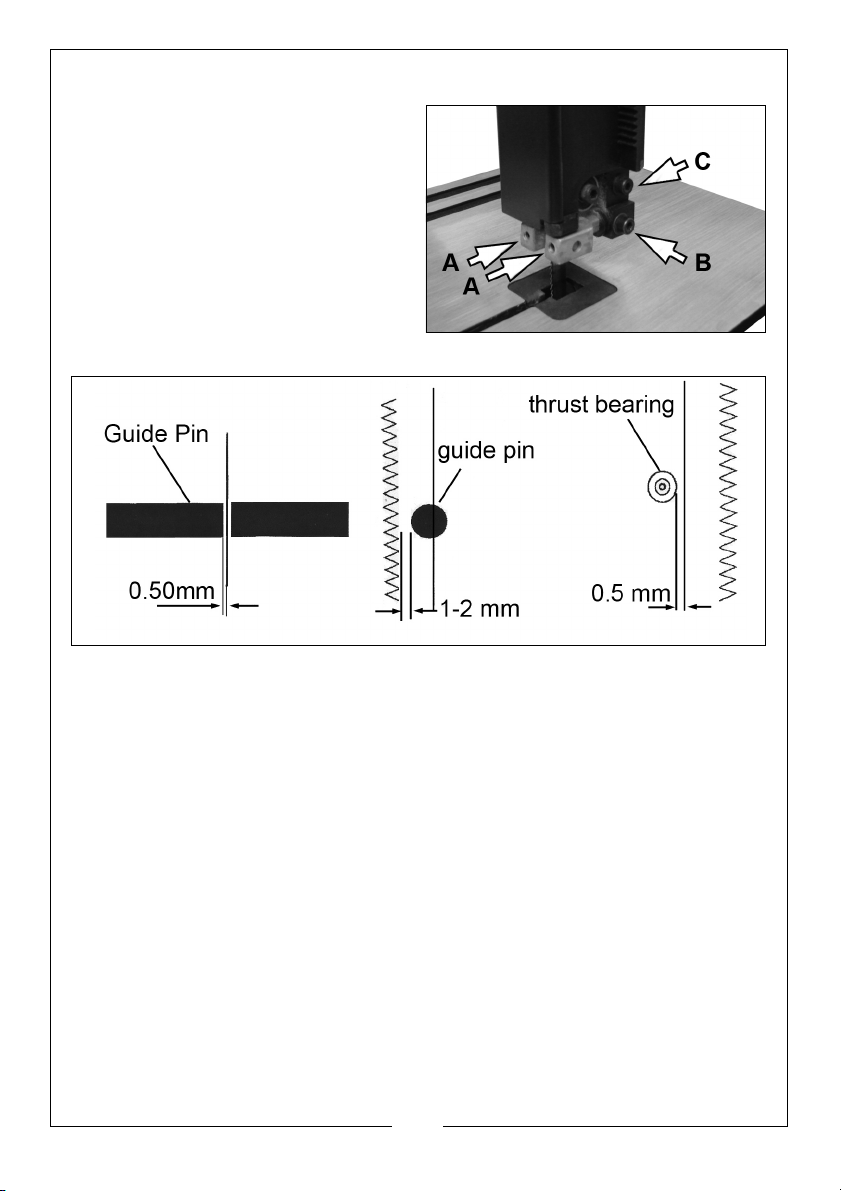

BLADE GUIDES / BEARING SETTING

The upper and lower blade guides
need to be re-adjusted after any
blade change or tracking
adjustment.

This task may be easier if the table is
tilted for better access.

1. Loosen the set-screws (A) and
position the guide pins 0.5 mm
from the blade. Tighten the set
screws.

.

2. Loosen the socket-headed bolt (B) and adjust guide pin carrier position, so
that guide pins are positioned 1- 2mm from teeth of blade. Retighten the
socket-headed bolt (B).

3. Loosen the socket-headed bolt (C), and adjust the thrust bearing to a
position of 0.5mm from rear edge of the blade. Retighten the bolt (C).

4. Repeat the process with the lower blade guide located in the lower
section of the bandsaw.

• Note that the lower guide assembly is identical but installed upside-down.
and that access to the socket-headed bolts (B and C) is through the holes
provided.

14

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

UPPER BLADE GUIDE ADJUSTMENT

The height of the upper blade guide
needs to be adjusted prior to every
cutting operation to accommodate
the height of the workpiece.

The upper blade guide should be set
approx 3 mm above the workpiece.

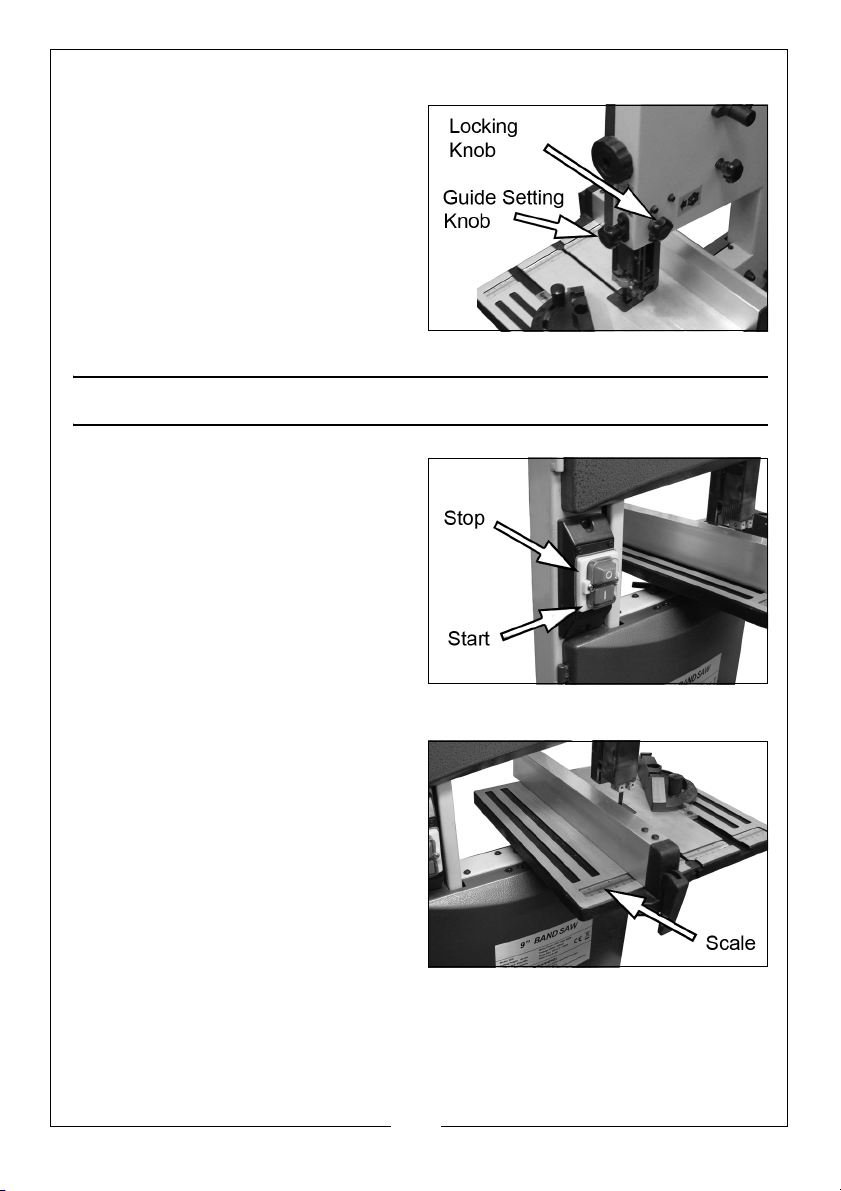

Set the upper blade guide by turning
the adjusting knob to the desired
height and securing in position with
the locking knob.

PREPARING FOR WORK

1. Press the green button to start the
bandsaw.

2. Press the red button ot stop the
machine at any time.

USING THE FENCE

The fence can be used on both sides of the blade.

1. Engage the fence with the table
and move to the required
position. The scale indicates the
distance from the saw blade to
the fence.

2. Ensure the fence is parallel with
the grooves in the table.

3. Press down the locking lever to
clamp the fence in position.

15

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

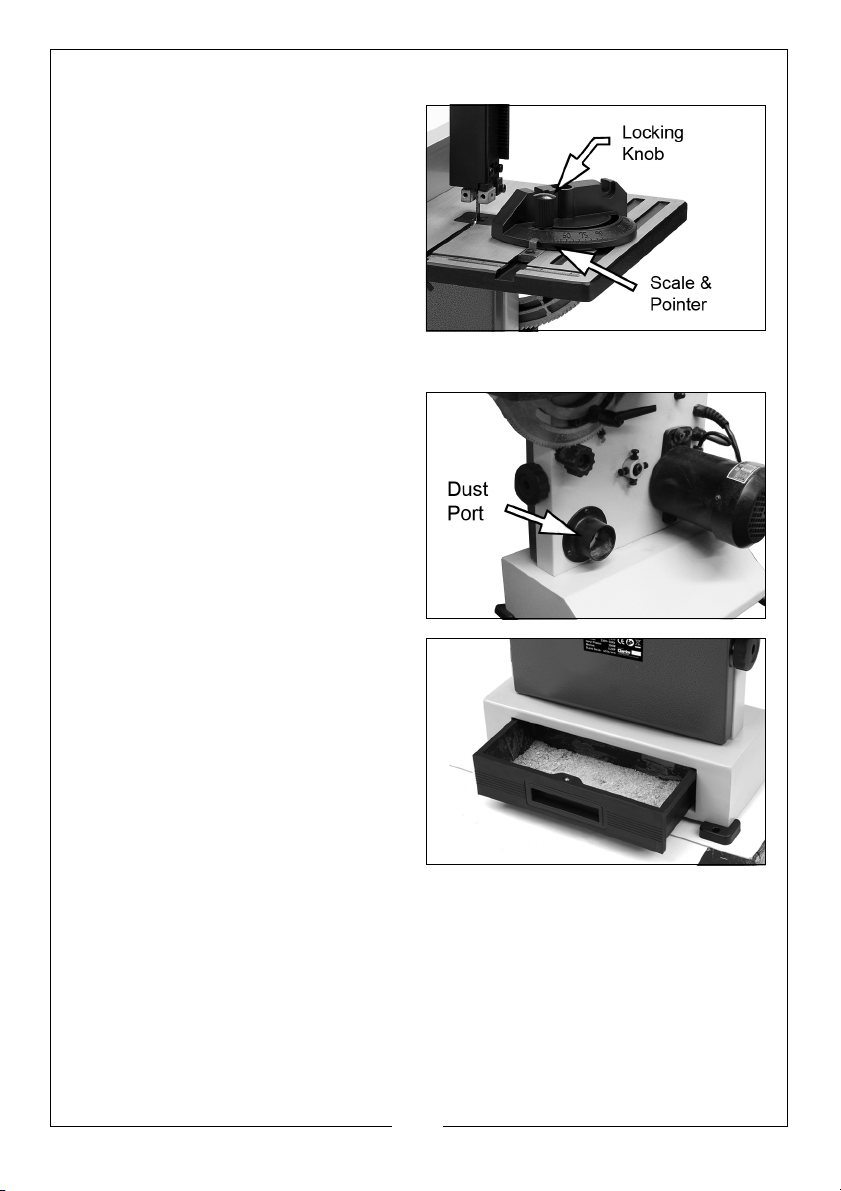

USING THE MITRE GAUGE

The mitre gauge is inserted into the
table slot from either edge.

1. To set a mitre angle, loosen the
lock knob by turning it counter­clockwise.

• The mitre gauge can be turned to
max 60o in both directions.

2. Firmly tighten the knob to secure
the mitre gauge in position.

CONNECTING TO A DUST COLLECTOR

This bandsaw is fitted with a dust port
for connection to a dust collector if
available.

• The connector size is 48 mm i/d
(53 mm o/d)

Other sawdust will fall into the dust
drawer which can be removed and
emptied as required. This is best
cleared out regularly.

16

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

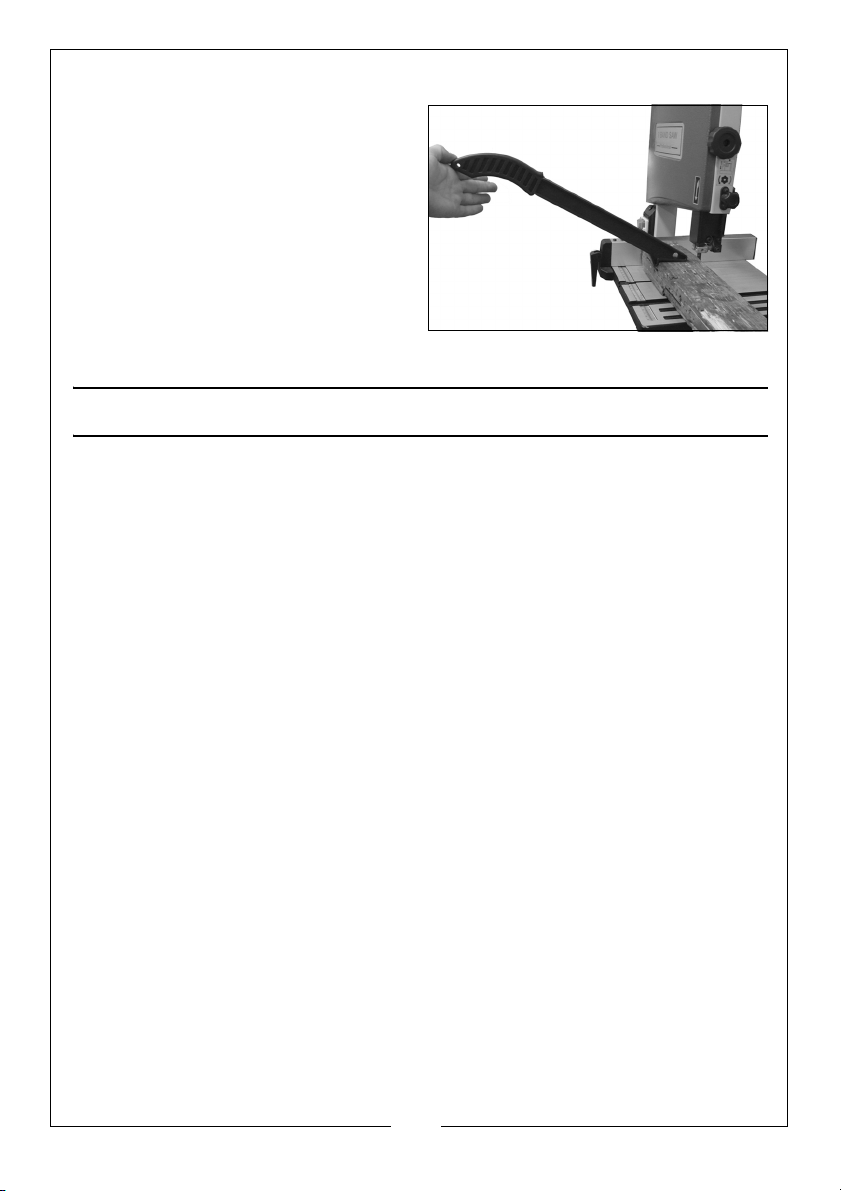

USING THE PUSH STICK

The push-stick serves as an extension
of the operators hand as protection
against accidentally touching the
saw blade.

The push-stick should be used if the
rip fence is close to the blade.

When not in use, the push-stick can
be stored on the hook provided on
the bandsaw frame.

PRACTICAL OPERATION

Before commencing work, ensure the work area is clean and tidy and the
machine table is clear of tools etc. Plan your work carefully and set the
machine up accordingly before switching on.

• Check the blade is correctly tensioned before use (see page 13).

• Set the upper blade guide as close as practical to the workpiece. This
provides the best safety for the operator and giving more accurate results
and greater control.

• Adjust the height of the upper blade guide to achieve the best control. The
guideshould always be set to just clear the top of the workpiece.

• Switch on and allow the saw blade to reach full speed before proceeding.

• Use both hands to feed the workpiece. The work must be held flat on the
table at all times to prevent binding of the blade. Use a steady, even
pressure, just sufficient to keep the blade cutting.

• Always use the rip fence or mitre gauge where possible to eliminate any
sideways movement of the work. This is most important when the table is
tilted at an angle.

• Remember that the blade removes material during the cut creating a gap
called the ‘kerf’, which must be allowed for when cutting to exact sizes.
Plan your cut so that the kerf is the scrap side of the line you wish to cut.
Where necessary, allow a little more material for finishing.

• Always use a suitable holding device when cutting round or irregular
shaped timber to prevent twisting of the work piece.

17

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

TYPES OF CUT

Several types of cut are possible with this saw i.e. rip cutting, cross cutting,
bevel or mitre cutting.

RIP CUTTING

This term refers to cutting timber in the same direction as the grain, rather than
across it. You can rip wood freehand to a drawn pencil line, but best results
are obtained by using the rip fence.

If the table is set level, set the rip-fence to the left hand side of the blade,
allowing you to use your right hand to hold the work firmly against the fence.

The scale on the fence guide rail indicates the distance of the fence from the
saw blade and can be used as shown on page 15.

When cutting a bevel rip, with the table tilted at any angle up to 45o, set the
rip fence to the right hand side of the blade if the width of the workpiece
allows it. With the fence on the ‘downhill’ side of the table, it will help support
the workpiece.

The width of cut indicator (scale) on the guide rail may be used to set the rip
fence to the required cutting position.

Long workpieces may require additional support in the form of blocks or rollers
and may be pulled as well as pushed to pass them through the bandsaw.

CROSS CUTTING

This term refers to cutting timber at right angles to the grain. This type of cut
can also be made freehand, but the mitre gauge is used to ensure accurate

results. The mitre gauge can be adjusted up to 60
with the table tilted, compound mitre cuts.

Make sure the work is held firmly against the table and against the face of the
mitre gauge. Be careful to keep your fingers away from the blade, particularly
at the end of the cut.

o

to produce mitre cuts, and

MITRE CUTTING

Most crosscut work, especially with small pieces is more easily controlled with
the use of a mitre gauge. The mitre gauge is also essential for accurate

compound mitre cuts. The gauge is graduated to 60
hand angles.

o

for both left and right

FREEHAND CUTTING

The ease with which many different and varied shapes can be cut is one of
the most important features of the bandsaw.

18

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

When freehand cutting, always feed the work slowly so that the blade can
follow the line you wish to cut. Make sure not to drag the work off line, forcing
the blade sideways, or twisting it.

In many cases, it is helpful to rough cut about 6mm away from the line. For
difficult curves which may be too tight for the blade, make relief cuts at 90° to
the face of the curve so that these scraps will fall away as the final radius is
sawn.

Each blade has a minimum radius which it will be able to cut, dependant
upon its width. The blade supplied is 10mm wide and able to cut as little as
50mm radius, beyond which the stress may cause it to break. If using a
different blade, a bandsaw blade radius chart should be consulted.

19

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

MAINTENANCE

WARNING: ALWAYS SWITCH OFF THE MACHINE AND DISCONNECT FROM
THE POWER SUPPLY BEFORE CARRYING OUT ANY CLEANING OR
MAINTENANCE TASKS.

CLEANING

Accumulated dust and chips should be removed from inside the bandsaw
frequently as well as emptying the dust drawer. Open the upper and lower
covers, use a soft brush and/or vacuum cleaner to remove sawdust. If
compressed air is used, ensure it is set to no more than 10 psi.

At the end of every work session, clean sawdust away from the motor vents.

CHANGING THE SAW BLADE

WARNING: THE TEETH OF THE BLADE ARE SHARP. TAKE CARE WHEN
HANDLING THE BLADE IN SITUATIONS SUCH AS UNPACKING, MOUNTING
OR REPLACING.

1. Remove the D-nut/screw from the
table.

2. Open the upper and lower
covers.

3. Set the upper blade guide to its
lowest position.

4. Loosen the quick-release lever
until the saw blade has
slackened.

5. Remove the saw blade from the
machine.

6. Fit a fresh saw blade, passing it
behind the side guard and
aligning it with the upper and
lower blade guides. Centre the
blade on the rubber tyres of the
wheels. Ensure the teeth are
pointing downwards towards the
table.

7. Tighten the quick release lever.

20

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

8. Set the blade tracking as described on page 13.

9. Close the upper & lower covers.

10. Adjust the blade tension as described on page 13.

11. Adjust the upper and lower blade guide as described on pages 13/14.

CHANGING THE WHEEL PULLEY TYRES

Eventually the rubber tyres on the bandsaw pulley wheels may wear due to
the constant contact with the blade. Remove the saw blade as described on
page 20, then lift the edge of the tyre with a small screwdriver and carefully
work off the wheel. Ease on the new tyre, ensuring it sits evenly around the
wheel.

We recommend that both tyres

are changed at the same time.

BLADE GUIDES

Blade guides should be inspected regularly for wear or chipping, and
replaced if necessary. See page 14 for blade guide adjustments.

BEARINGS

All bearings used in the construction of your bandsaw and its motor are sealed
and lubricated for life.

STORAGE

Switch off the bandsaw and disconnect the power cable.

Cover the machine with a plastic bag and store it in a dry location.

OPTIONAL ACCESSORIES

REPLACEMENT BLADES

Suitable blades are available from your Clarke stockist:

• 6tpi Bandsaw blade: Part No6458005

• 10tpi Bandsaw blade: Part No6458000

DUST EXTRACTORS

A choice of dust extractors is available for this bandsaaw including

CDE35 Portable Dust Extractor & Chip Collector

CDE1000 Portable Dust Extractor

21

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

TROUBLESHOOTING

FAULT CHECK SOLUTION

The unit fails to
operate

Blade breaks 1. Faulty alignment (tracking)

Noise or vibration 1. Blade not correctly aligned.

Blade runs off the
cutting line

1. Check for power failure if
the unit is plugged in.

2. Check the switch is on and
that the fuse is not blown.

3. Upper or lower door
interlock switch not
engaged.

2. Blade guides incorrectly
adjusted.

3. Feeding the work too fast.

4. Forcing or twisting the blade
around a tight radius.

5. Blade too tight.

6. Blunt teeth.

7. Blade is badly welded or
brazed.

8. Wrong blade fitted.

9. Bandsaw left running when
not in use.

2. Guides not securely set.

1. Blade guides incorrectly
adjusted.

2. Blade tracking mal-adjusted

3. Blade tension too slack.

4. Wrong blade fitted (too
thin).

1. Plug the unit into the
socket.

2. Replace fuse or switch
on.

3. Check that upper/lower
doors are fully closed
using the saety latches.

1. Carry out tracking
adjustments (p13).

2. Re-adjust blade guides
(p14/15)

3. Lower the feed rate

4. For tight curves, make
relief cuts fairly close
together at 90º to the
curve. A narrower blade
will make a tighter
curve.

5. Relieve blade tension

6. Renew blade

7. Renew blade

8. Fit only quality blades
supplied by your Clarke
dealer.

9. Always switch machine
off when not in use.

1. Carry out tracking
adjustments (p13).

2. Tighten the locking
knob. Check guides are
correctly set.

1. Re-adjust blade guides.

2. Carry out tracking.
adjustment (p13).

3. Re-tension blade.

4. Fit correct blade.

22

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

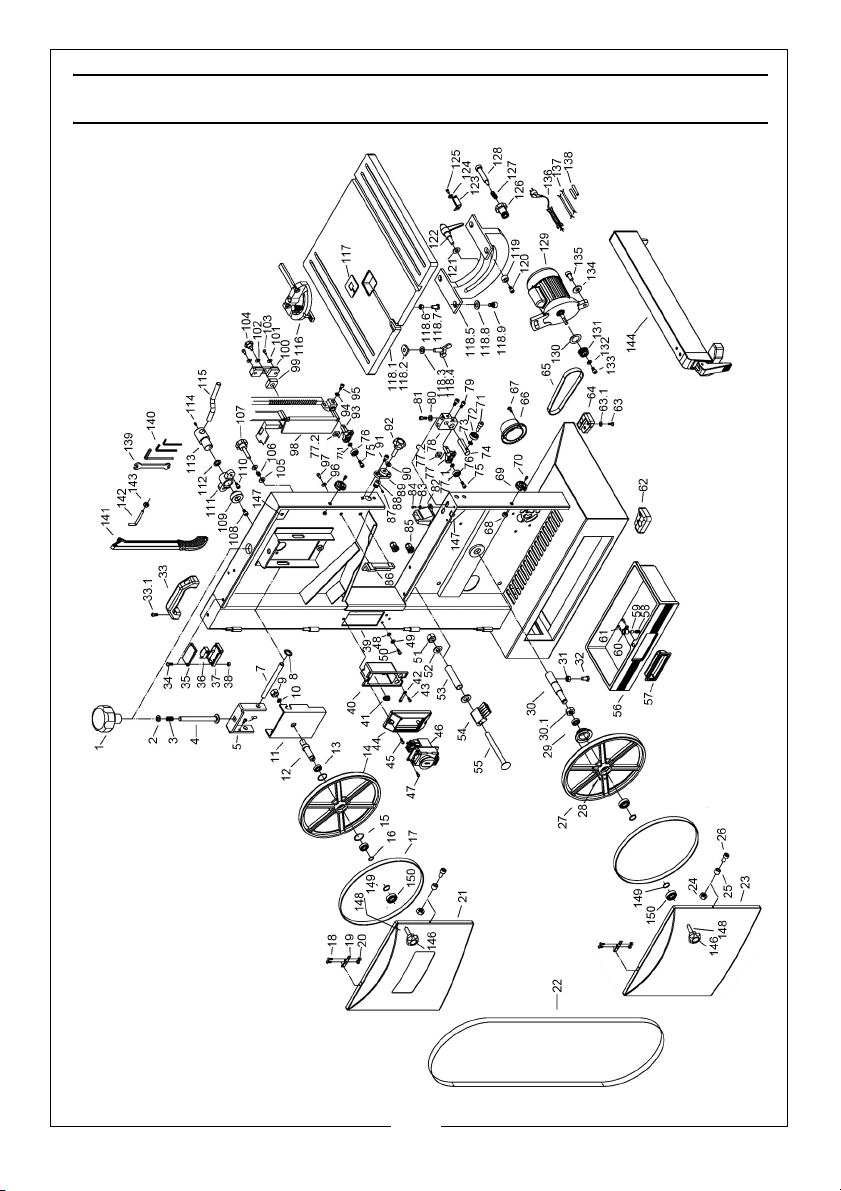

PAR T S DI AGR AM

23

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

PARTS LIST

PART NO DESCRIPTION PART NO DESCRIPTION

1 Blade tension knob 35 Cover

2 Flat washer 8 mm 36 Interlock switch

3 Blade tension spring 37 Interlock switch box

4 Carriage bolt M8 x 80 38 Nut M4

5 Pulling plate 39 Frame

6 Socket head screw M5x8 40 Switch box

7 Shaft 41 Connecting terminal

8 Lock Catch 42 Cable clamp

9 Hex nut M10 43 Self tapping screw

10 Lock washer 10mm 44 Switch mounting plate

11 Bevel support plate 45 Pan head screw M5 x 10

12 Upper wheel shaft 46 Switch

13 Ball bearing 6000ZZ 47 Self tapping screw

14 Upper Wheel 48 Lock washer 5mm

15 Internal circlip 26mm 49 Serrated washer 5mm

16 External circlip 10mm 50 Pan head screw M5 x 10

17 Tyre 51 Nut M8

18 Pan head screw M4x10 52 Flat washer 8mm

19 Interlock switch key 53 Bush

20 Nut M4 54 Brush

21 Upper wheel cover 55 Carriage bolt M8 x 65

22 Blade (1575mm x 10tpi) 56 Dust drawer

23 Lower wheel cover 57 Drawer handle

24 Lock nut M6 58 Spring

25 Bushing 59 Ball

26 Socket head screw M6 x 16 60 Ball housing

27 Lower wheel 61 Self tapping screw

28 ST screw 62 Foot

29 Driven pulley 63 Pan head screw /washer 5mm

30 Lower wheel shaft 64 Foot

31/30.1 Locknut M12/Nut M6 65 Drive belt

32 Bolt M6 x 16 66 Dust port

33 Lifting handle/screw M6 x 10 67 Pan head screw M5 x 8

34 Pan head screw M4 x 25 68 Locknut M6

24

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

PARTS LIST

PART NO DESCRIPTION PART NO DESCRIPTION

69 Catching knob 103 Socket head screw M5x10

70 Socket head screw M6x16 104 Locking knob

71 Socket head screw 105 Flat washer 8mm

72 Bearing 606-ZZ 106 Spring

73 Flat washer 5mm 107 Tracking knob

74 Support rod 108 Socket head screw M6x16

75 Socket head screw M5x14 109 Release block

76 Bearing 605ZZ 110 Socket head screw M5x10

77 Lower guide block/washer/nut 111 Sleeve

78 Guide block support 112 Wave washer

79 Socket head screw M5x12 113 Shaft

80 Flat washer 6mm 114 Set screw M5x6

81 Socket head screw M5x10 115 Release handle

82 Lower protective cover 116 Mitre gauge assembly

83 Flat washer 4mm 117 Table insert

84 Pan head screw M4x10 118.1 Table

85 Strain relief 118.2 D-Nut

86 Guide plate 118.3 Flat washer 6mm

87 Set screw M4x6 118.4 Wing screw

88 Pinion 118.5 Bevel case

89 Adjustment knob seat 118.6 Hex nut M6

90 Flat washer 6mm 118.7 Hex bolt M6x22

91 Socket head screw M5x10 118.8 Flat washer

92 Adjustment knob 118.9 Socket head screw M8x14

93 Upper guide block 119 Guide bushing

94 Flat washer 5mm 120 Socket head screw M6x12

95 Socket head screw M5x12 121 Flat washer 8mm

96 Flat washer 5mm 122 Locking handle

97 Socket head screw M5x10 123 Pointer

98 Upper protective cover 124 Flat washer 5mm

99 Square nut 125 Pan head screw M5x10

100 Guide block 126 Table adjusting handle

101 Flat washer 5mm 127 Spring

102 Flat washer 8mm 128 Table adjusting handle

25

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

PARTS LIST

PART NO DESCRIPTION PART NO DESCRIPTION

129 Motor 140 Hex wrench 4mm, 6mm

130 Sponge ring 141 Push stick

131 Motor pulley 142 Hook

132 Flat washer 5mm 143 Hex nut

133 Socket head screw M6x12 144 Rip fence assembly

134 Flat washer 8mm 146 Safety Latch Knob

135 Socket head screw M8x25 147 Safety Switch

136 Power cable 148 Latch Bolt

137 Inner wiring 149 Circlip

138 Protective sleeve 150 Bushing

139 Spanner

26

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

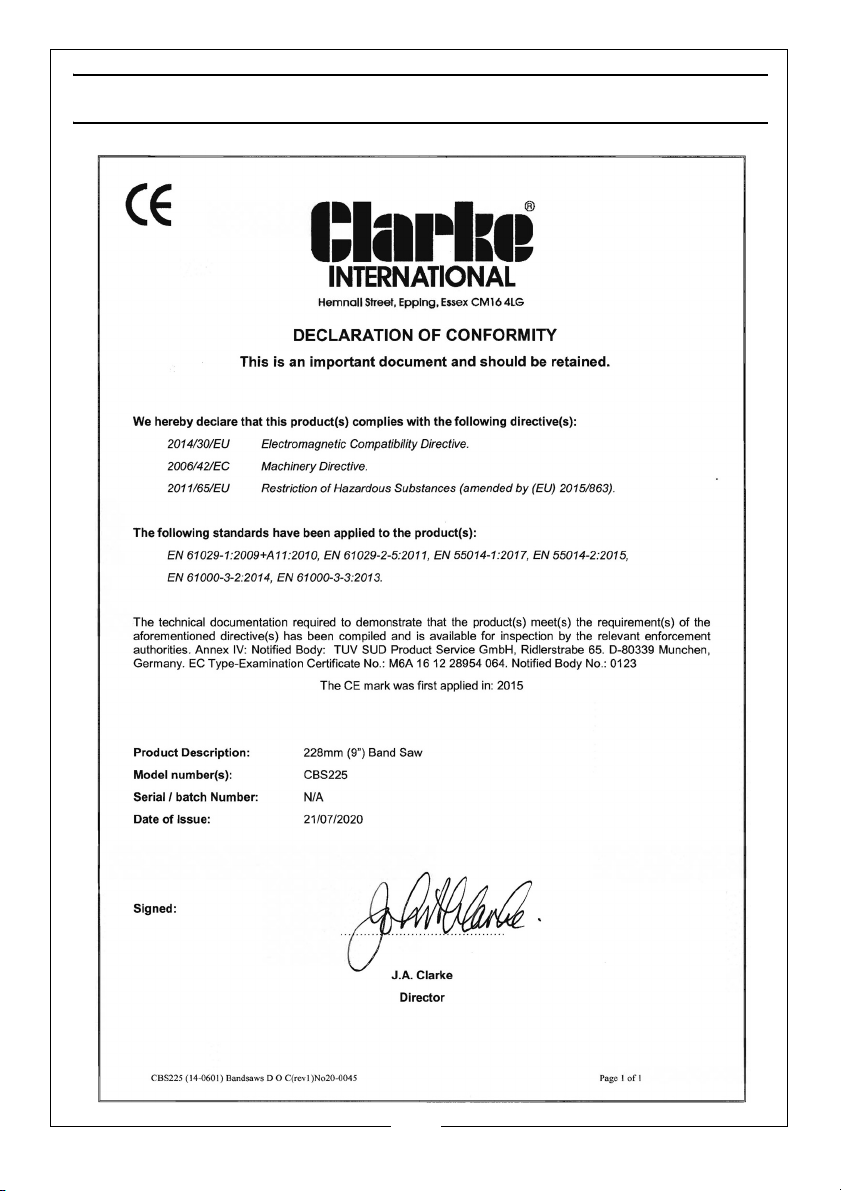

DECLARATION OF CONFORMITY

27

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
