Page 1

MMA/TIG INVERTER WELDERS

MODEL NO: MMA/TIG120, 160 & 200

PART NO: 6012100/6012101/6012102

OPERATION & MAINTENANCE

INSTRUCTIONS

ORIGINAL INSTRUCTIONS GC0722

Page 2

INTRODUCTION

Thank you for purchasing this CLARKE Welder. Before attempting to operate the machine it is essential that you read this manual thoroughly and carefully follow all instructions given. In doing so you will ensure the safety of yourself and that of others around you, and you can also look forward to the welder giving you long and satisfactory service.

When unpacking, any damage or deficiency should be reported to your CLARKE dealer immediately.

PRINCIPLES OF THE MACHINE

Manual Metal Arc (MMA) welding uses a coated consumable electrode (stick) to lay the weld, therefore an additional welding torch kit is not required. The arc melts the core of the electrode to produce drops of molten metal (weld pool) that cool to create the welded joint. Because of the versatility and simplicity of MMA welding, it requires less skill and is used primarily to weld iron and steel (including stainless steel. but nickel and copper can also be welded using this method.

This machine is designed to be used for both metal ARC (MMA) and TIG welding. (TIG welding leads are not supplied with the machine. These are however, readily available from your CLARKE dealer (Part number 6012233).

SUITABILITY

MMA/Arc Welding Carbon Steel, Low Alloy Steel, Stainless Steel, Cast

Iron.

TIG Welding Carbon Steel, Low Alloy Steel, Stainless Steel, Cast

Iron, Titanium, Copper + Brass.

MAIN DESIGN FEATURES

ARC-FORCE Automatically increases the current to prevent the

electrode sticking when operating with a short arc length.

HOT START Increases the welding current at the beginning of

the welding process.

ANTI-STICK The electrode can be easily withdrawn without it

becoming damaged.

VOLTAGE REDUCTION SAFETY DEVICE (VRD)

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

Reduces open circuit voltage when not in use to prevent accidental injury

Page 3

ENVIRONMENTAL RECYCLING POLICY

Through purchase of this product, the customer is taking on the obligation to deal with the WEEE in accordance with the WEEE regulations in relation to the treatment, recycling & recovery and environmentally sound disposal of the WEEE.

In effect, this means that this product must not be disposed of with general household waste. It must be disposed of according to the laws governing Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal facility.

If disposing of this product or any damaged components, do not dispose of with general waste. This product contains valuable raw materials. Metal products should be taken to your local civic amenity site for recycling of metal products.

SAFETY PRECAUTIONS FOR ALL TYPES OF WELDING

WARNING: AS WITH ALL MACHINERY, THERE ARE CERTAIN HAZARDS INVOLVED WITH THEIR OPERATION AND USE. EXERCISING RESPECT AND CAUTION WILL CONSIDERABLY LESSEN THE RISK OF PERSONAL INJURY. HOWEVER, IF NORMAL SAFETY PRECAUTIONS ARE OVERLOOKED, OR IGNORED, PERSONAL INJURY TO THE OPERATOR MAY RESULT.

FAILURE TO FOLLOW THESE RULES MAY RESULT IN SERIOUS PERSONAL INJURY.

GENERAL PRECAUTIONS

BURN PREVENTION

Wear protective clothing - gauntlet gloves designed for use in welding, apron, and protective shoes. Button shirt collar and pocket flaps and wear cuffless trousers to avoid entry of sparks and slag. Wear helmet with safety goggles or glasses with side shields underneath, appropriate filter lenses or plates (protected by clear glass). This is a MUST for welding (and chipping) to protect the eyes from radiant energy and spatter. Replace cover glass when broken, pitted, or spattered. Avoid oily or greasy clothing. A spark may ignite them. Hot metal should never be handled without gloves. First aid facilities and a qualified first aid person should be available unless medical facilities are close by for immediate treatment of flash burns of the eyes and skin burns. Ear plugs should be worn when working overhead or in a confined space. A hard hat should be worn when others work overhead. Flammable hair preparations should not be used by persons intending to weld or cut.

NOTE: ALL protective wear incl. masks & head shields MUST comply with

PPE Regulation (EU) 2016/425.

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

Page 4

TOXIC FUME PREVENTION

Severe discomfort, illness or death can result from fumes, vapours, heat, or oxygen enrichment or depletion that welding (or cutting) may produce. Prevent them with adequate ventilation. NEVER ventilate with oxygen. Lead-, cadmium-, zinc-, mercury- and beryllium-, bearing materials, when welded (or cut) may produce harmful concentrations of toxic fumes. Adequate local exhaust ventilation must be used, or each person in the area as well as the operator must wear an air- supplied respirator. For beryllium, both must be used. Metals coated with or containing materials that emit toxic fumes should not be heated unless coating is removed from the work surface, the area is well ventilated, or the operator wears an air-supplied respirator. Work in a confined space only while it is being force ventilated and, if necessary, while wearing an air-supplied respirator. Vapours from chlorinated solvents can be decomposed by the heat of the arc (or flame) to form PHOSGENE, a highly toxic gas, and other lung and eye irritating by-products. The ultraviolet (radiant) energy of the arc can also decompose trichloroethylene and perchloroethylene vapours to form phosgene. DO NOT WELD where solvent vapours can be drawn into the welding atmosphere or where the radiant energy can penetrate to atmospheres containing even minute amounts of trichloroethylene or perchloroethylene.

FIRE AND EXPLOSION PREVENTION

Causes of fire and explosion are:

1. Combustibles reached by the arc, flying sparks, hot slag or heated material;

2. Short circuits.

BE AWARE that flying sparks or falling slag can pass through cracks, along pipes, through windows or doors, and through wall or floor openings, out of sight of the goggled operator.

To prevent fires and explosion: keep equipment clean and operable, free of oil, grease, and (in electrical parts) of metallic particles that can cause short circuits. If combustibles are in the area, DO NOT weld. Move the work if practicable, to an area free of combustibles.

Avoid working in paint spray rooms, dip tanks, storage areas, ventilators. If the work cannot be moved, move combustibles away from sparks and heat; or protect against ignition with suitable fire- resistant covers or shields.

Walls, ceilings, and floor near work should be protected by heat resistant covers or shields. Fire watcher must be standing by with suitable fire extinguishing equipment during and for some time after welding or cutting if:

1. Appreciable combustibles (including building construction) are within 10m.

2. Appreciable combustibles are further than 10m, but can be ignited by sparks.

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

Page 5

3. Openings (concealed or visible) in floors or walls can expose combustibles to sparks.

4. Combustibles adjacent to walls, ceilings, roofs or metal partitions can be ignited by radiant or conducted heat.

After work, check that area is free of sparks, glowing embers and flames. An empty container that held combustibles or that can produce flammable or toxic vapours when heated, must never be welded on or cut, unless the container has first been cleaned. This includes a thorough steam or caustic cleaning (or a solvent or water washing, depending on the combustible’s solubility) followed by purging and inerting with nitrogen or carbon dioxide, and using protective equipment.

Water filling just below the working level may substitute for inerting.

A container with unknown contents should be cleaned (see paragraph above). DO NOT depend on sense of smell or sight to determine if it is safe to weld or cut. Hollow castings or containers must be vented before welding as they can explode.

In explosive atmospheres, NEVER weld or cut where the air may contain flammable dust, gas, or liquid vapours.

ELECTRIC ARC WELDING

Comply with precautions in above and this section. Arc welding, properly done, is a safe process but a careless operator invites trouble. The equipment carries high currents at significant voltages. The arc is very bright and hot. Sparks fly, fumes rise, ultraviolet and infrared energy radiates and work pieces are hot. The wise operator avoids unnecessary risks and protects himself and others from accidents.

BURN PROTECTION

The welding arc is intense and visibly bright. It’s radiation can damage eyes, penetrate lightweight clothing, reflect from light coloured surfaces and burn the skin and eyes. Skin burns resemble acute sunburn, those from gas shielded arcs are more severe and painful.

PROTECTIVE CLOTHING (PPE) MUST BE WORN

Wear long sleeved clothing (particularly for gas shielded arc) in addition to gloves, apron and strong shoes. As necessary, use additional protective clothing such as leather jacket or sleeves, flameproof apron, and fire-resistant leggings. Avoid outer garments of untreated cotton. Bare skin protection: Wear dark substantial clothing, Button collars closed to protect the chest and neck and button any pockets to prevent entry of sparks.

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

Page 6

EYE AND HEAD PROTECTION

Protect eyes from exposure to arc. NEVER look at an electric arc without protection. Welding helmet or shield containing an appropriate filter plate (Please refer to the section ‘Welding Shield on page 12). Place over face before striking arc. Protect filter plate with a clear cover plate. Cracked or broken helmet or shield should NOT be worn; radiation can pass through to cause burns.

Cracked, broken, or loose filter plates must be replaced IMMEDIATELY. Replace clear cover plate when broken, pitted, or spattered. WE SUGGEST you wear flash goggles with side shields under the helmet, to give some protection to the eyes should the helmet not be lowered over the face before an arc is struck. Looking at an arc momentarily with unprotected eyes (particularly high intensity gas-shielded arc) can cause a retinal burn that may leave a permanent dark area in the field of vision. Before welding whilst wearing contact lenses, seek advice from your optician.

PROTECTION OF NEARBY PERSONNEL

For production welding, a separate, well vented room or enclosed bay is best. In open areas, surround the operation with low reflective, non- combustible screens or panels. Allow for free air circulation, particularly at floor level. Provide face shields for all persons who will be looking directly at the weld. Others working in the area should wear flash goggles. Before starting to weld, make sure that screen or bay doors are closed.

TOXIC FUME PREVENTION

Comply with all precautions above.

FIRE AND EXPLOSION PREVENTION

Do not overload arc welding equipment. It may overheat cables and cause a fire. Loose cable connections may overheat or flash and cause a fire. Never strike an arc on a cylinder or other pressure vessel. It creates a brittle area that can cause a violent rupture or lead to such a rupture later under rough handling.

SHOCK PREVENTION

Exposed live conductors or other bare metal in the welding circuit, or in unearthed, electrically-LIVE equipment can fatally shock a person whose body becomes a conductor. DO NOT STAND, SIT, LIE, LEAN ON, OR TOUCH a wet surface when welding without suitable protection.

PROTECTION FOR WEARERS OF ELECTRONIC LIFE SUPPORT DEVICES (PACEMAKERS)

Magnetic fields from high currents can affect pacemaker operation. Persons wearing pacemakers should consult with their doctor before going near arc welding or spot welding operations.

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

Page 7

PROTECTION AGAINST SHOCK

Keep your body and clothing dry. Never work in damp area without adequate insulation against electric shock. Stay on a dry duckboard or rubber mat when dampness or sweat can not be avoided. Sweat, sea water, or moisture between body and an electrically LIVE part - or earthed metal reduces the body surface electrical resistance, enabling dangerous and possibly lethal currents to flow through the body.

EARTHING THE EQUIPMENT

When arc welding equipment is earthed according to the National Electrical Code and the workpiece is earthed, a voltage may exist between the electrode and any conducting object.

Examples of conducting objects include, but are not limited to, buildings, electrical tools, work benches, welding power source cases, workpieces, etc. Never touch the electrode and any metal object unless the welding power source is off. When installing, connect the frames of each unit such as welding power source, control, work table, and water circulator to the building earth. Conductors must be adequate to carry earth currents safely. Equipment made electrically LIVE by stray current may shock, possibly fatally. Do not EARTH to electrical conduit, or to a pipe carrying ANY gas or a flammable liquid such as oil or fuel.

CABLES

Frequently inspect cables for wear, cracks and damage. IMMEDIATELY REPLACE those with excessively worn or damaged insulation to avoid possibly lethal shock from bared cable. Cables with damaged areas may be taped to give resistance equivalent to original cable. Keep cable dry, free of oil and grease and protected from hot metal and sparks.

TERMINALS AND OTHER EXPOSED PARTS

Terminals and other exposed parts of electrical units should have insulating covers secured before operation.

SAFETY DEVICES

Safety devices such as interlocks and circuit breakers should not be disconnected or shunted out. Before installation, inspection, or service of equipment, shut off all power and remove line fuses (or lock or red-tag switches) to prevent accidental turning ON of power. DO NOT open power circuit or change polarity while welding. If, in an emergency, it must be disconnected, guard against shock burns, or flash from switch arcing. Always shut OFF and disconnect all power to equipment. A power disconnect switch must be available near the welding power source.

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

Page 8

PREPARATION OF THE WORKING AREA

The working area must be sufficiently spacious, not humid, and well-ventilated as to avoid any fumes which develop from the welding process and from incidental material adhering to the pieces to be welded (oils, paints, tars...) which may cause danger to the operator.

Avoid welding tanks which may contain flammable residuals.

WARNING: ELECTRIC SHOCK CAN BE FATAL. A PERSON QUALIFIED IN FIRST AID SHOULD ALWAYS BE PRESENT IN THE WORKING AREA. IF PERSON IS UNCONSCIOUS AND ELECTRIC SHOCK IS SUSPECTED, DO NOT TOUCH THE PERSON IF HE OR SHE IS IN CONTACT WITH THE WELDER OR CABLES. DISCONNECT THE WELDER FROM THE POWER SOURCE AND THEN USE FIRST AID. DRY WOOD, OR OTHER INSULATING MATERIAL CAN BE USED TO MOVE CABLES, IF NECESSARY, AWAY FROM THE PERSON.

ADDITIONAL PRECAUTIONS FOR MMA WELDING

1. ALWAYS ensure that there is full free air circulating around the outer casing of the machine and that the louvres are unobstructed.

2. A welding arc can seriously damage your eyes. Both operator and spectators must ALWAYS use a proper welding face shield or helmet with suitable filter lenses. Proper gloves and working clothes should be worn at all times.

3. ALWAYS remove all flammable materials from the welding area.

4. NEVER remove any of the panels unless the machine is disconnected from the supply and never use the machine with any of the panels removed.

5. NEVER use or store in a damp environment. DO NOT EXPOSE TO RAIN.

6. NEVER attempt any electrical or mechanical repair unless your are a qualified technician. If you have a problem with the machine contact your local CLARKE dealer.

7. ALWAYS keep a fire extinguisher handy (Dry Powder, C02 or BCF, NOT Water).

8. NEVER continue to weld, if, at any time, you feel even the smallest electric shock. Stop welding IMMEDIATELY and DO NOT attempt to use the machine until the fault is diagnosed and corrected.

9. NEVER allow the earth cable or torch to become wrapped around the operator or any person in the vicinity.

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

Page 9

A comprehensive range of CLARKE safety equipment for use when welding is available from your local dealer. See page 28.

Consideration should be given to shielding the supply cable of permanently installed welding equipment, in metallic conduit or equivalent. Shielding should be electrically continuous throughout its length.

The shielding should be connected to the welding power source so that good electrical contact is maintained between the conduit and the welding power source enclosure.

The welding equipment should be routinely maintained according to the manufacturer’s recommendations. All access and service doors and covers should be closed and properly fastened when the welding equipment is in operation. The welding equipment should not be modified in any way except for those changes and adjustments covered in the manufacturer’s instructions. In particular, the spark gaps of arc striking and stabilizing devices should be adjusted and maintained according to the manufacturers recommendations.

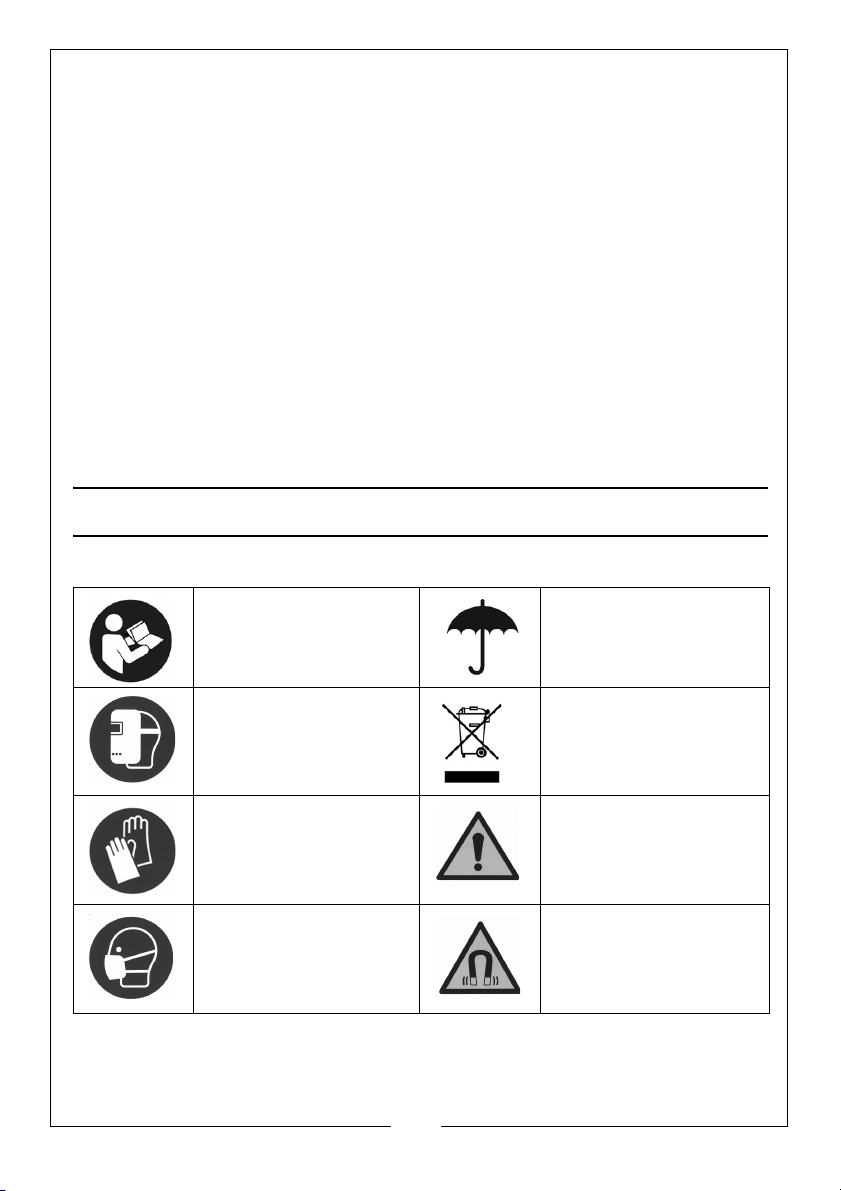

SAFETY SYMBOLS

The following symbols may be displayed on the machine.

Read this instruction booklet carefully before use.

Wear welding mask Recycle unwanted

Wear protective gloves General Hazard

Wear a dust mask Warning;- magnetic

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

Do not expose to rain.

materials under WEEE Directive

field created

Page 10

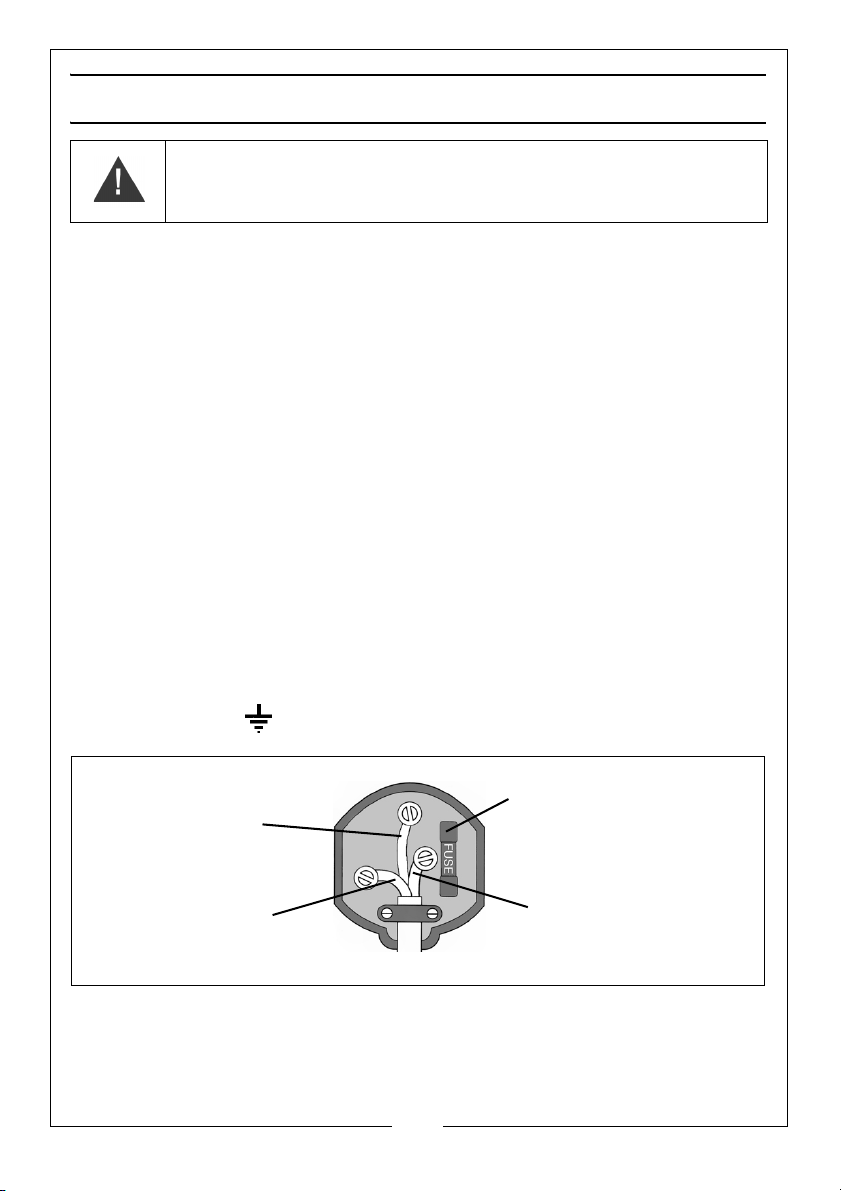

ELECTRICAL CONNECTION (MMA/TIG120 ONLY)

Plug must be BS1363/A approved.

Always fit a 13 Amp fuse.

Ensure that the outer sheath of the cable is firmly held by the clamp

Neutral

(Blue)

Live

(Brown)

Earth

(Green and Yellow)

WARNING! READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY.

Before switching the product on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate. This product is designed to operate on 230VAC 50Hz. Connecting it to any other power source may cause damage.

This product may be fitted with a non-rewireable plug. If it is necessary to change the fuse in the plug, the fuse cover must be refitted. If the fuse cover becomes lost or damaged, the plug must not be used until a suitable replacement is obtained.

If the plug has to be changed because it is not suitable for your socket, or due to damage, it should be cut off and a replacement fitted, following the wiring instructions shown below. The old plug must be disposed of safely, as insertion into a mains socket could cause an electrical hazard

If the colours of the wires in the power cable of this product do not correspond with the markings on the terminals of your plug, proceed as follows.

•The Blue wire must be connected to the terminal marked N or

coloured Black.

•The Brown wire must be connected to the terminal marked L or

coloured Red.

•The Yellow and Green wire must be connected to the terminal

marked E or or coloured Green.

We strongly recommend that this machine is connected to the mains supply via a Residual Current Device (RCD). If in any doubt, consult a qualified electrician. DO NOT attempt any repairs yourself.

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

Page 11

POWER CONNECTION FOR MMA/TIG160 & 200

CONNECTING TO MAINS POWER

NOTE: These welders are earthed and must only be connected to the

mains with an earth connection. DO NOT attempt to use it without one.

• These welders will draw far too much power for a normal domestic 230V mains plug and socket and will be supplied fitted with a 32Amp, 3-pin industrial plug.

• A high current 230V mains socket or terminal must be installed by a qualified and accredited professional electrician. A 32A socket used with a plug conforming to IEC 60309 is recommended.

• A non-socketed mains connection also requires connection by a qualified and accredited professional electrician. However, a socketed connection is safer and is recommended so the welder can be safely isolated when necessary. If directly wired to the mains, a double pole, double throw isolator switch must be fitted.

• The welder must be connected using a circuit protected by an RCD.

• Please refer to the Specification for details of the maximum current required by this welder.

If in any doubt, do not attempt to connect or use this welder until a professional electrician has been consulted.

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

Page 12

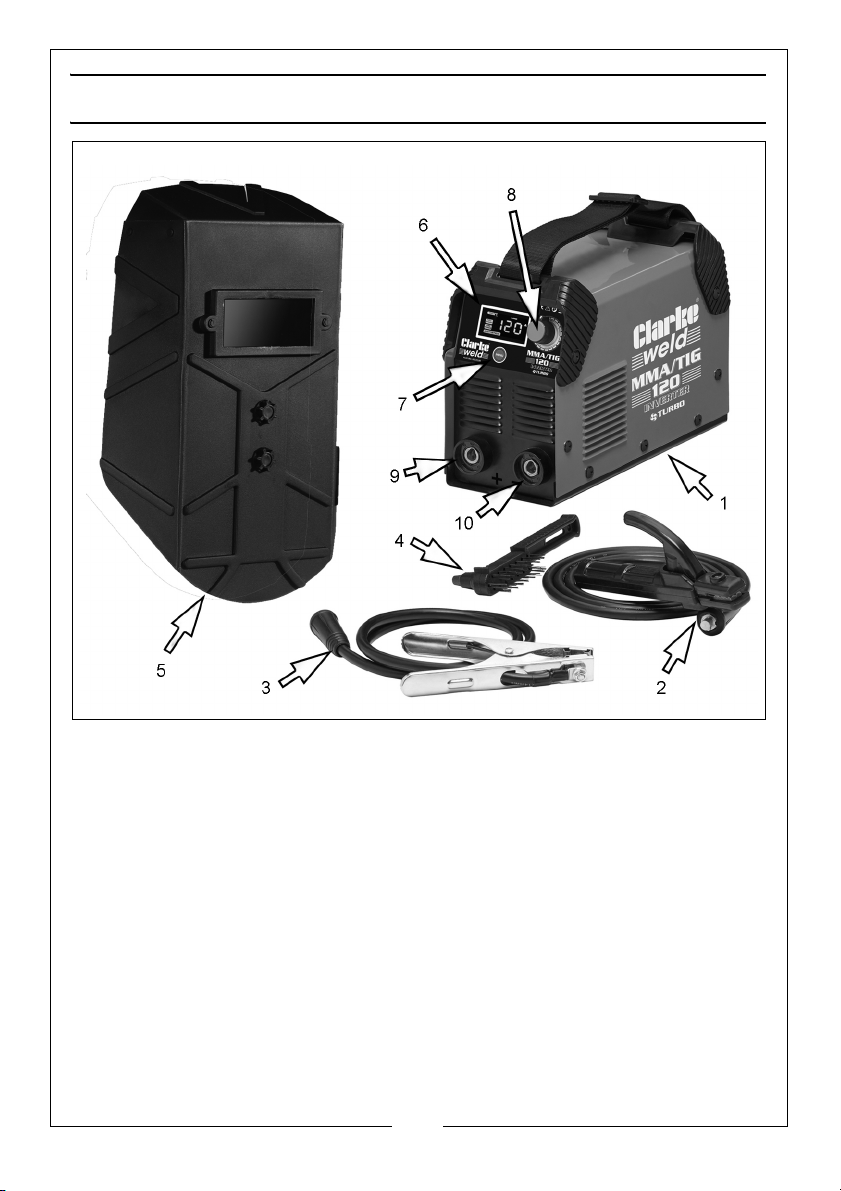

OVERVIEW & INVENTORY

The items supplied include the following:

1. 1 x MMA/TIG Inverter Welder

2. 1 x Electrode Holder

3. 1 x Earth Clamp & Cable

4. 1 x Combination Wire Brush / Hammer

5. 1 x Face Shield

The welder is fitted with

6. Digital display

7. Menu selector button

8. Current /menu selector knob

9. Positive terminal

10. Negative terminal

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

Page 13

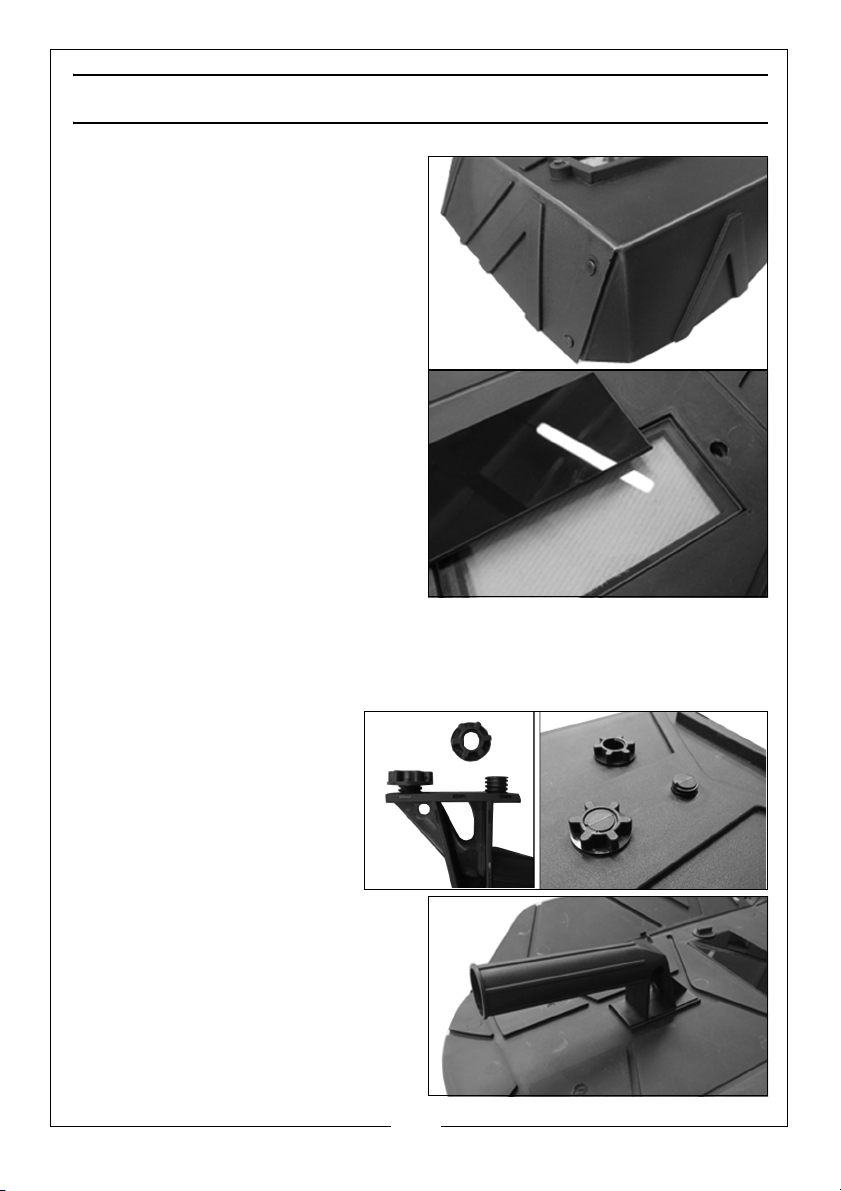

ASSEMBLING THE WELDING SHIELD

1. The welding shield shown is supplied flat for shipping. Fold the sides of the shield around and clip to the top panel.

2. Insert both the glass lens panels into the recess inside the shield.

• The clear glass must be fitted first to face the outside.

3. Insert the two plastic screws and use the plastic wingnuts to clamp the glass panels to the shield.

• The clear glass panel should be replaced when it becomes badly pitted.

4. When replacing the glass panels, only use parts supplied by Clarke International. The dark panel is a certified, optical glass and should not be exchanged for any other type.

5. Secure the handle in position using the plastic nuts provided.

• The handle will be mounted on the inside of the shield.

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

Page 14

PREPARATION FOR USE

FITTING THE WELDING ROD

Select the appropriate welding rod and insert it into the welding rod holder.

• It should be approximately the same thickness as the workpieces being welded.

PREPARING THE WORKPIECE

The area being welded should be perfectly clean. Any coating, plating or corrosion must be removed, otherwise a good weld will be impossible to achieve.

PREPARING THE MACHINE

To prepare the machine for welding it is important that you follow the procedure below.

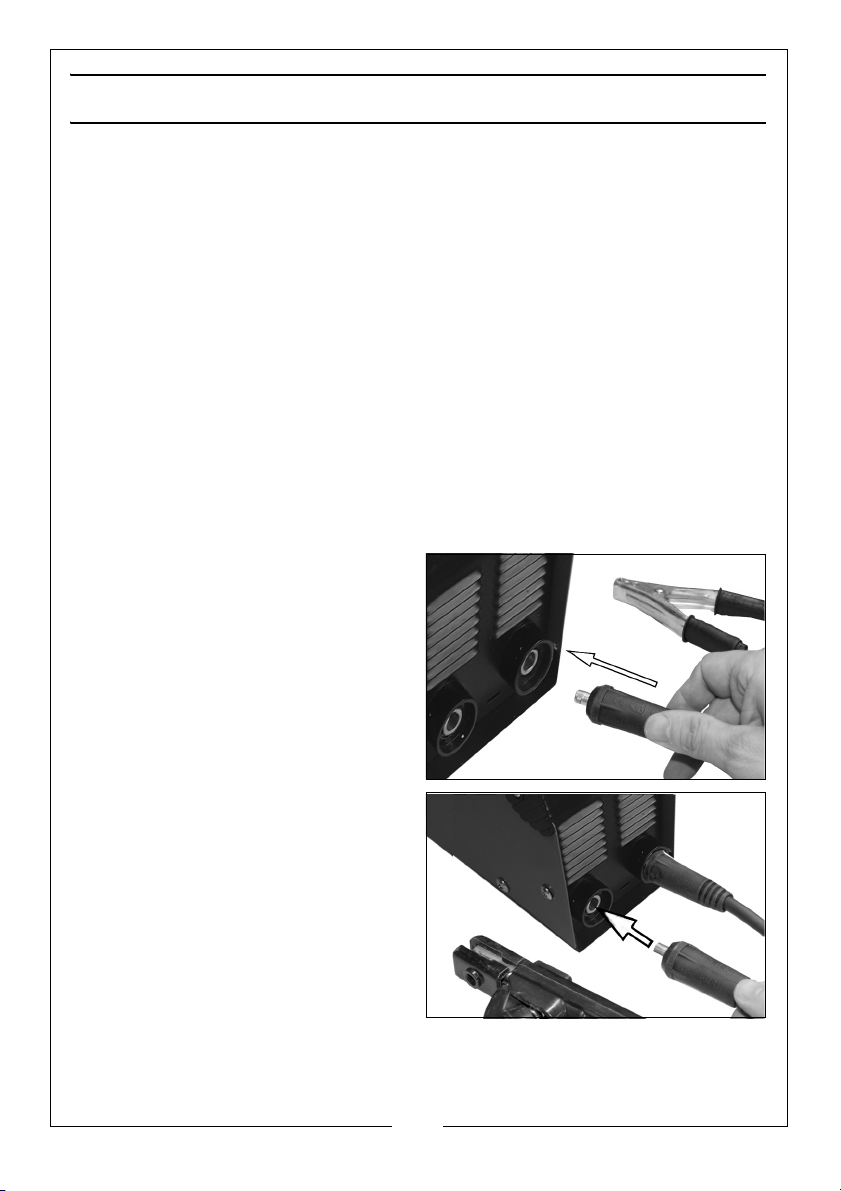

1. Making sure that the ON/OFF switch, located on the rear panel is in the OFF position, connect the welding leads as follows:

• Work clamp lead to the (-)

Negative terminal.

• Welding rod holder lead to the

(+) Positive terminal.

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

Page 15

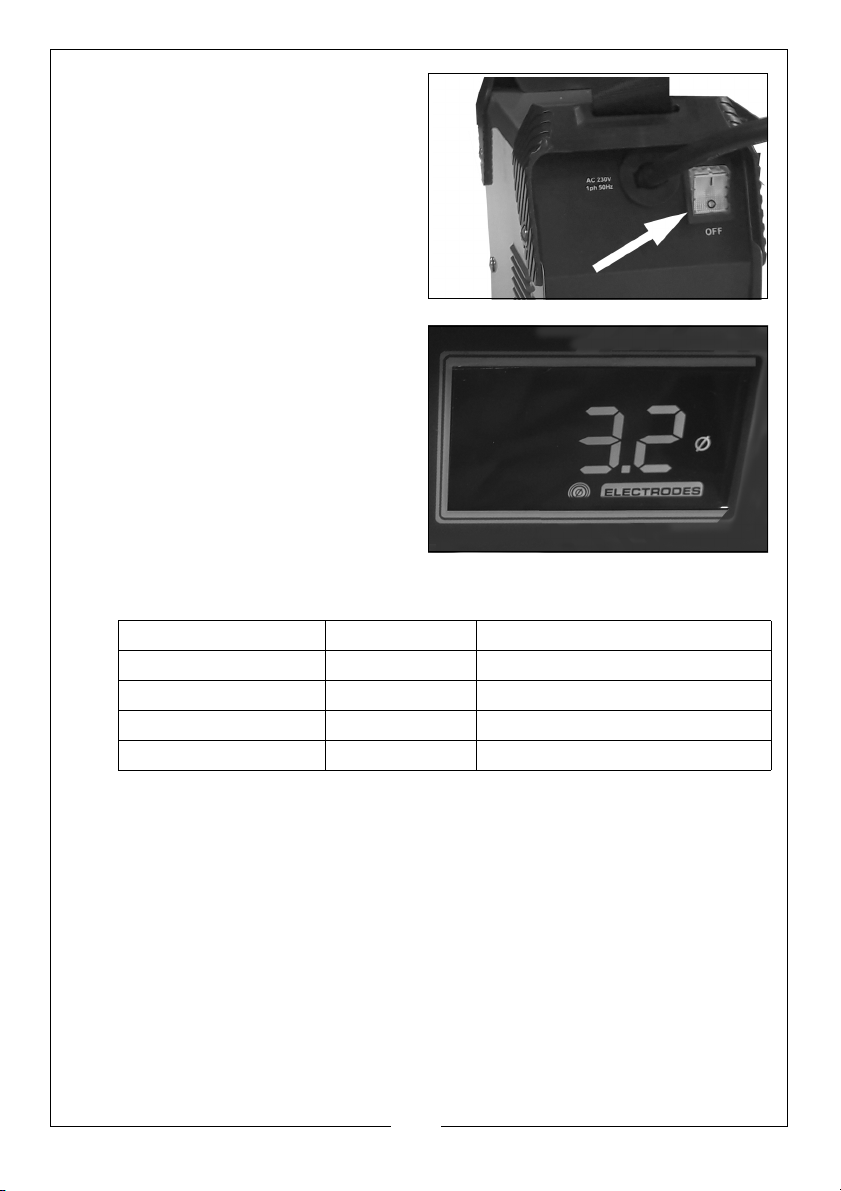

2. Switch ON using the switch located on the rear panel.

• The digital display on the front panel will come on and show the current setting in amps.

• If the machine stops at any time, the thermal overload device may have intervened. Wait until the welder has cooled sufficiently before restarting work.

3. Select the appropriate welding rod and fit it into the welding rod holder.

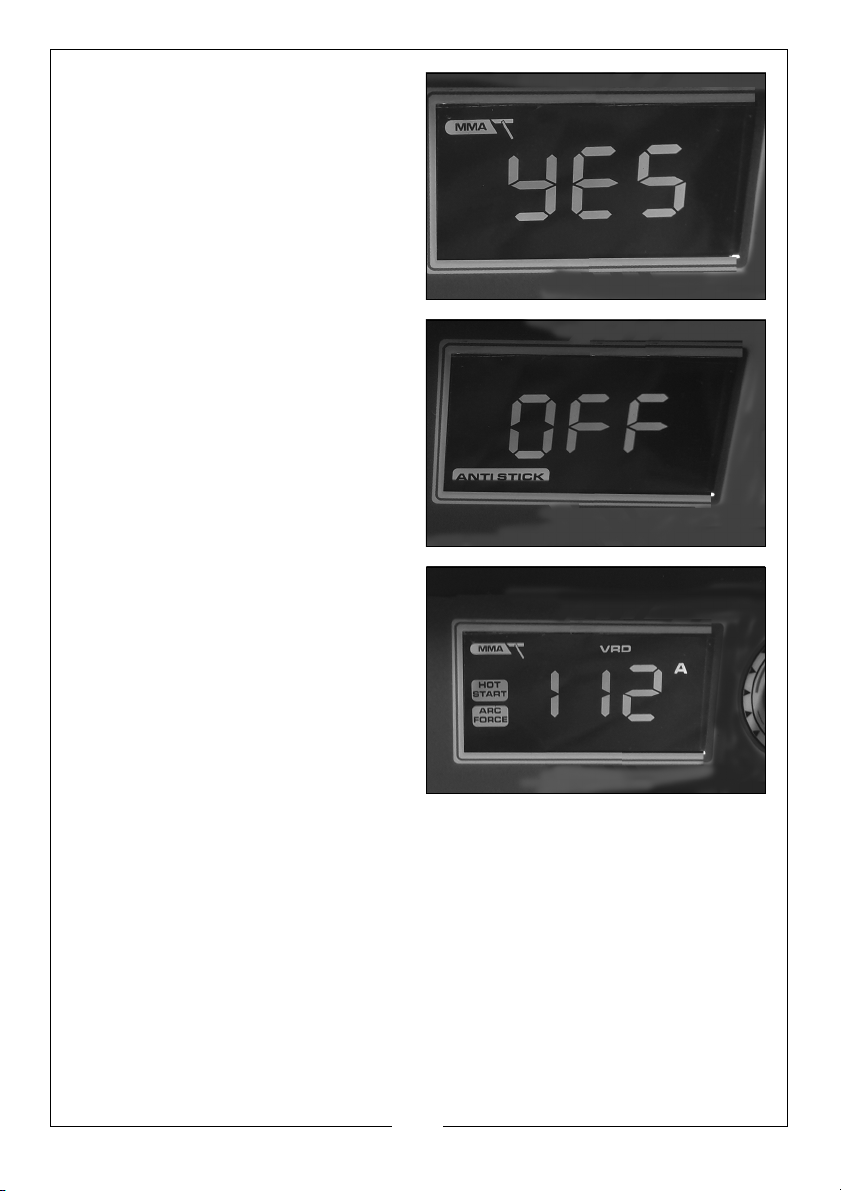

• When the machine is on, the menu will display the size of the electrode fitting to the holder.

The following sizes can be used and are available from your CLARKE dealer.

MACHINE ROD DIAMETER WORKPIECE THICKNESS

MMA/TIG120,160,200 1.6 mm 1.5 - 2.0 mm

MMA/TIG120,160,200 2.5 mm 2.5 - 3.0 mm

MMA/TIG120,160,200 3.2 mm 3.5 - 4.5 mm

MMA/TIG160 & 200 4.0 mm 5.0 - 8.0 mm

VOLTAGE REDUCTION DEVICE (VRD)

The VRD is a safety feature that It is also known as “Anti-shock”. It’s function is to lower the open circuit voltage across the output terminals to a safe 12V when the welder is not in use.

As soon as the welder is used (a load of 200 ohms or less is detected), the voltage will increase to the full output to enable welding to commence.

The “VRD” will only turn the output of the welder back to a reduced output state of 12 volts once the electrode Is removed from the work piece or if the resistance across the output rises above 200 ohms.

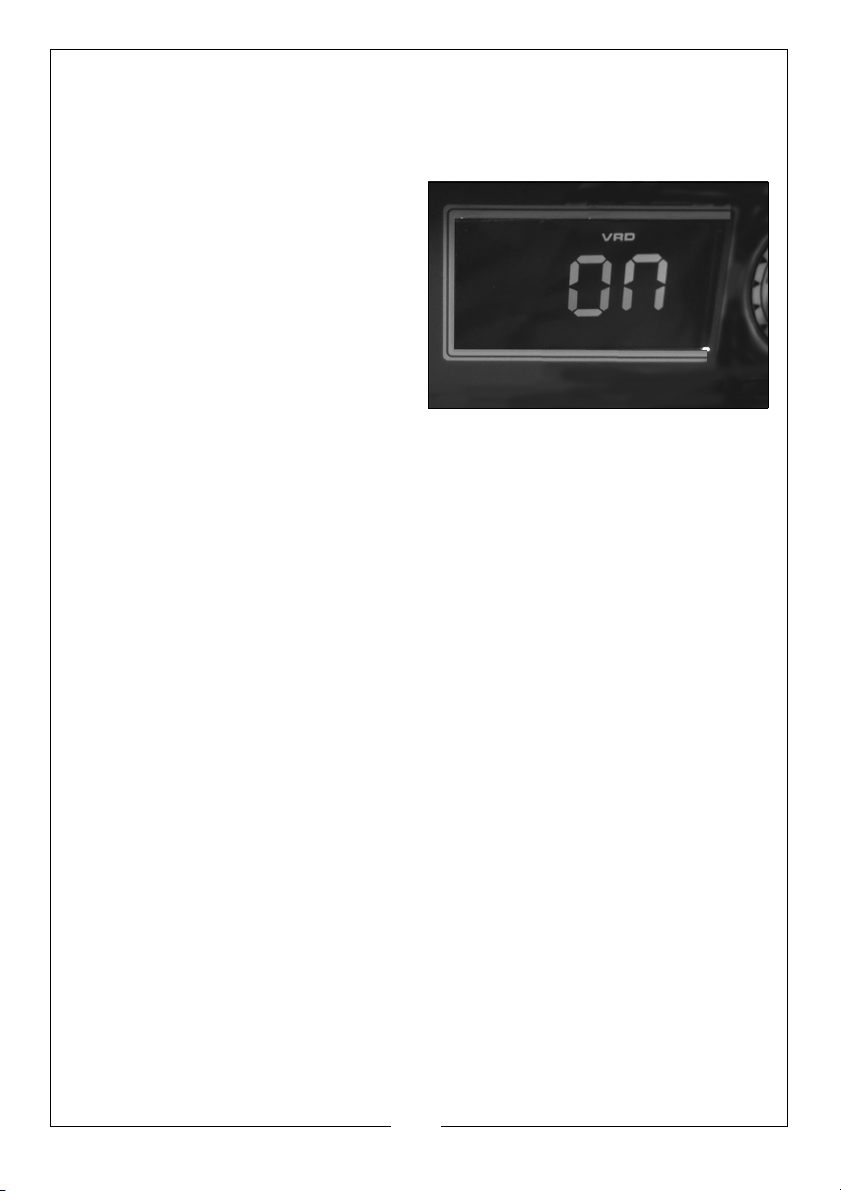

If you wish to turn off this feature, set the VRD option on the menu panel to OFF by pressing the MENU control and turning the control knob. We recommend that you leave it switched ON.

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

Page 18

ARC WELDING

WARNING: WHEN WELDING ALWAYS ENSURE THERE IS ADEQUATE VENTILATION IN THE WORK AREA AS THE WELDING PROCESS GIVES OFF TOXIC FUMES.

WARNING: DO NOT STRIKE THE ELECTRODE ON THE WORKPIECE, AS THIS MAY DAMAGE THE ELECTRODE.

WARNING: WELDING ARCS PRODUCE HARMFUL UV/IR LIGHT WHICH CAN SERIOUSLY DAMAGE YOUR EYES. ALWAYS USE A WELDING FACE-SHIELD WITH A SUITABLE FILTER THAT CONFORMS TO CURRENT STANDARDS.

WARNING: NEVER LOOK AT THE ARC WITHOUT A SUITABLE WELDING FACE-SHIELD

WARNING: PROTECT BYSTANDERS BY USING WELDING SCREENS/ CURTAINS.

The consumable electrode is connected to a high amperage low voltage supply which creates an electric arc between the electrode and the workpiece.

Benefits over TIG welding include less experience needed and torch kit or shielding gas are not required.

The most difficult aspect of the arc welding process, particularly for beginners, is that of striking an arc. We strongly recommend that you practice on some pieces of scrap metal to get the feel of the operation before you start an actual welding job.

1. Holding the welding mask close-up to your face, give a short stroke with the electrode on the workpiece. As soon as the arc is primed, withdraw the electrode from the workpiece to leave a gap. The current will flow across the gap with a crackling noise and a brilliant arc. Continue to weld in one direction, maintaining the small gap as you go.

2. As soon as the arc is struck, maintain a distance from the workpiece equal to the diameter of the electrode. Keep this distance as constant as possible for the duration of the weld. As you advance along the workpiece the angle of the electrode must be maintained at between 20º and 30º.

NOTE: When you prime the arc be sure to withdraw the electrode swiftly

to leave the gap, otherwise the electrode will weld itself to the workpiece. If this occurs give the electrode a short sharp jerk to free it and, if necessary, prime the arc again. If you cannot free the electrode, switch the machine off immediately and free it. Take care the electrode will get red hot very quickly and will be capable of burning through welding gloves.

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

Page 19

3. At the finish of the weld, bring the end of the electrode backward in order to fill the weld crater and then quickly lift the electrode from the weld pool to extinguish the arc.

4. Inspect the job carefully. Any slag forming on the surface should be chipped away with a chipping hammer or pick. ALWAYS wear your safety goggles when chipping away slag.

TIG WELDING

TIG welding is primarily for very thin materials. It uses a non-consumable tungsten (or tungsten alloy) electrode, held in a torch.

A shielding gas (100% Argon), is fed through the torch to protect:

• The electrode,

• Molten weld pool,

• Solidifying weld metal from contamination by the atmosphere.

The electric arc is produced by the passage of current through the conductive, ionized shielding gas. The arc is established between the tip of the electrode and the work. Heat generated by the arc melts the base metal. Once the arc and weld pool are established, the torch is moved along the joint and the arc progressively melts the joined surfaces. Filler wire, if used, is usually added to the leading edge of the weld pool to fill the joint.

This process is ideally suited for welding thin metals such as car body panels, pressure vessels, heat exchangers, pipes etc., where accuracy and a high quality weld is desired, as it produces a very low porosity weld.

MAIN FEATURES OF TIG WELDING

1. Electronic control of welding current.

2. Forced air cooling.

3. A thermal overload protection device prevents overheating.

TIG WELDING PROCESS ADVANTAGES

• It produces superior quality welds, generally free of defects.

• It is free of the spatter which occurs with other arc welding processes.

• It can be used with or without filler metal as required.

• It allows excellent control of root pass weld penetration.

• It can produce welds at high speeds.

• It allows precise control of the welding variables.

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

Page 20

• It is capable of welding very thin material (0.5mm), without undue distortion.

LIMITATIONS

1. Greater weld dexterity is required.

2. These units have a DC output which is not suitable for welding aluminium.

TIG WELDING

• The machine is not equipped with a TIG welding torch and cables; these are available from your Clarke dealer (Part number 6012232).

• Additionally, before TIG welding, you must obtain a gas cylinder of 100% pure Argon.

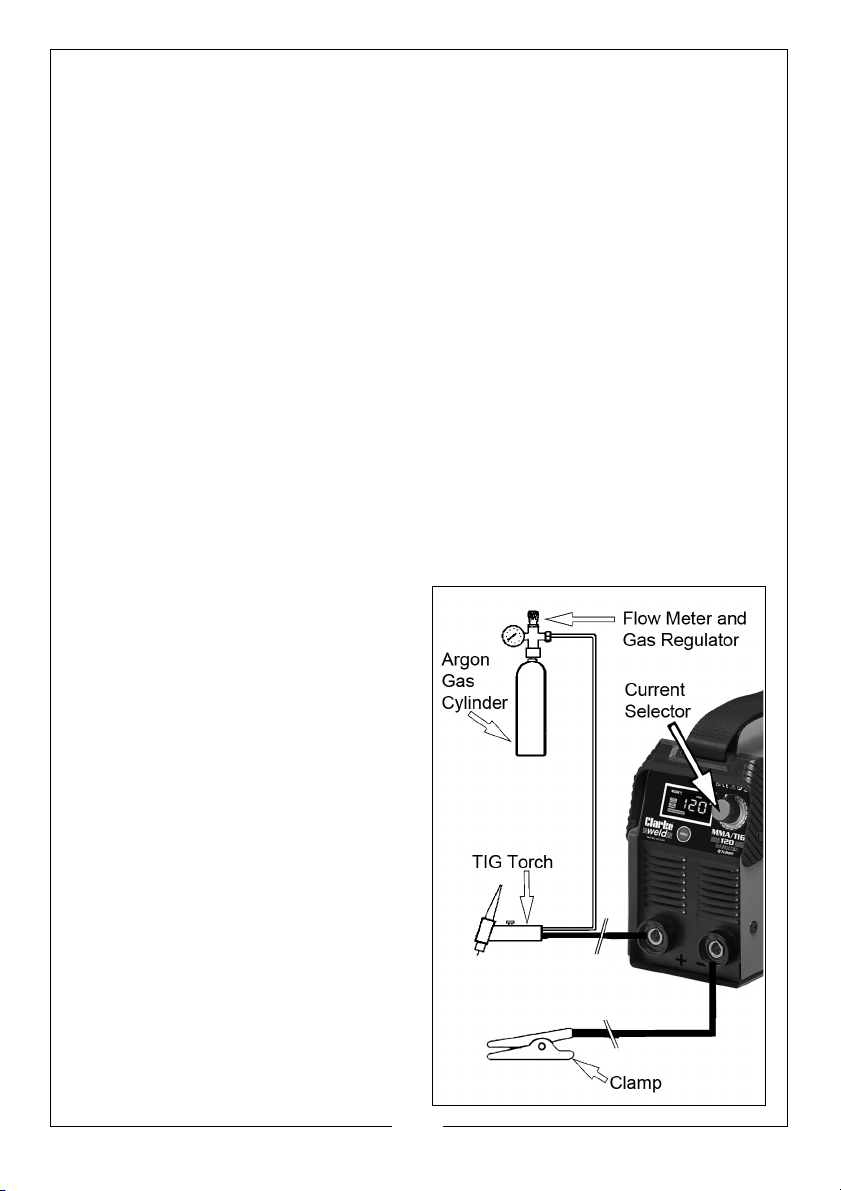

To prepare the unit for TIG welding, it is important that you adopt the following procedure.

1. Plug the work clamp lead in to the +ve terminal, and secure the work clamp to the workpiece.

• For good contact, the work clamp must be attached to clean bare

metal. Clean with a wire brush where necessary.

2. Plug the torch lead to the -ve terminal.

3. Screw the pressure regulator on to the gas bottle tightly, and attach the gas hose to the inlet connector securely, with a hose clip.

4. Turn the pressure regulator knob to set a pressure of approx. 2.5kg/

(35 lbf/in2).

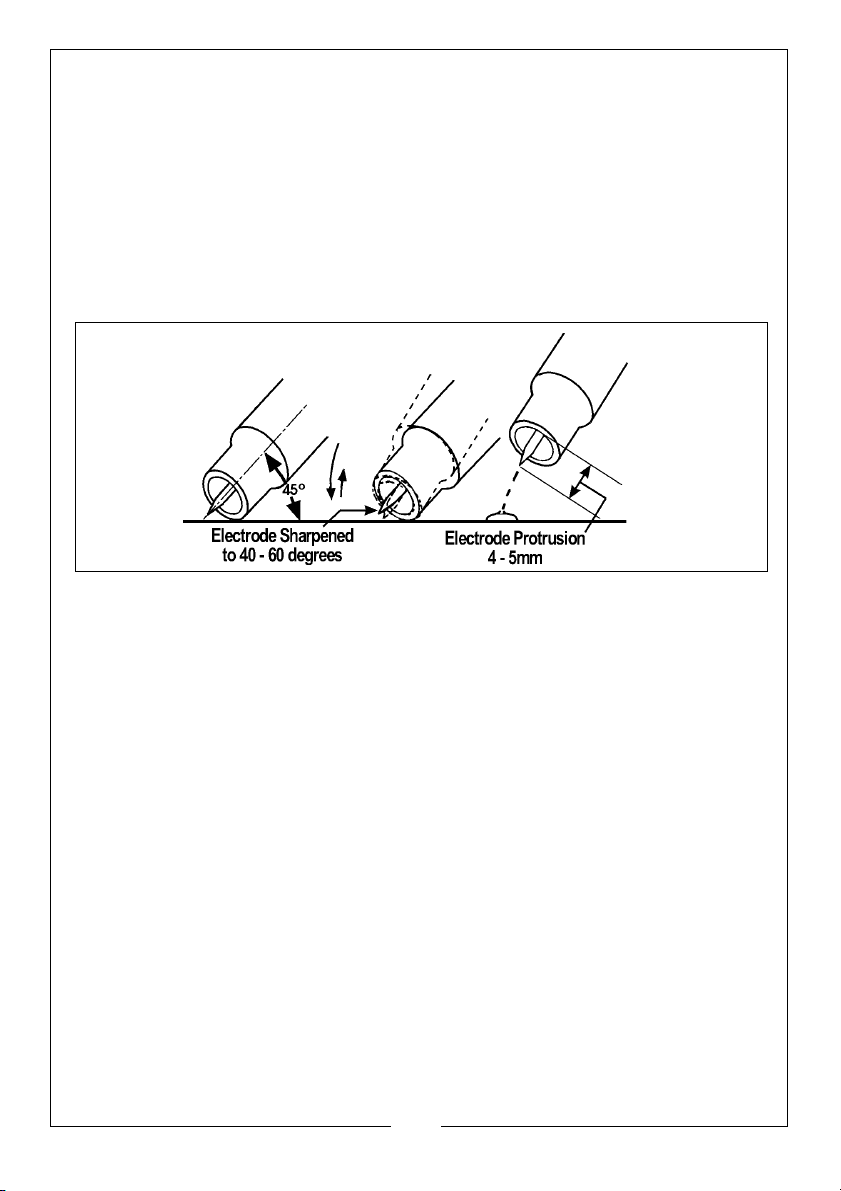

5. Ensure the electrode at the torch nozzle, protrudes by 4 - 5mm, also ensure that the electrode is sharply pointed with an angle of 40°-60°, if it is not, grind it to shape. (Consult your TIG Torch manual for the procedure for adjusting the electrode).

6. Set the welding current in accordance with the thickness of the material to be welded and the size of tungsten electrode to be used, (See page 14).

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

Page 21

7. Switch ON using the switch mounted on the rear panel. The green light on the front panel will glow.

8. If the machine stops at any time and the amber light comes ON, the thermal overload has intervened. Wait until the welder has cooled sufficiently (the amber light goes out) before restarting work. Open the gas valve on the torch handle,

• This will allow gas to flow from the torch nozzle.

9. Cover your face with the head shield, bring the torch to within 3-4mm of the work, and at an angle of 45°, so that the ceramic nozzle gently touches the work surface.

10. Scratch the tip of the electrode against the piece to be welded, as soon as the welding arc starts, remove the electrode to a distance of 3-4 mm, and continue the weld. (See notes below).

• This method is referred to as ‘Scratch Arc’.

11. To stop welding, simply remove the torch from the workpiece.

12. Turn OFF the gas as soon as you finish welding.

Note:

• To avoid a visible strike mark on the surface of the workpiece it is

advisable to strike the arc in the joint where the mark will be concealed by the weld.

• Thin sheet and stainless steel may be welded with or without filler,

similar to gas welding.

• The filler is fed in at the edge of the pool. The rod must not touch the

tip of the electrode or enter the arc. The end of the rod must always be shielded by the argon atmosphere to prevent as far as possible the formation of oxides of its surface. When welding stainless steel and copper, it is often possible to feed in the filler continuously at the edge of the pool.

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

Page 22

• The arc length generally varies between 3 and 6 mm depending on the type of joint, type and thickness of material and so on.

• The torch is advanced in the direction of welding, without lateral movement, maintaining the torch angle of 45

to the workpiece.

Guidelines for the TIG welding current needed and recommended electrode sizes etc. for different gauges of material are shown in the chart below:

Metal

Mild

Steel

Welding

Current (Amps)

20-30 1 0-1 1.6 4-5

60-80 2 1.2-1.6 1.6 4-5

Workpiece

Thickness

(mm)

Filler Rod

Dia (mm)

Welding

Electrode

Dia (mm)

Gas Flow

ltr/min

80-110 3 1.6-2.0 1.6/2.4 4-5

100-130 3.5 2.0-2.4 2.4 5-6

130-140 4 2.4 2.4 6-7

140-150 4.5 2.4 2.4 7-8

150-160 5 2.4 2.4 7-8

Stainless

Steel

15-35 1 0-1 1.6 4-5

60-80 2 1.2-1.6 2.4 4-5

80-115 3 1.6-2.0 1.6/2.4 4-5

100-130 3.5 2.0-2.4 2.4 5-6

130-140 4 2.4 2.4 6-7

140-150 4.5 2.4 2.4 7-8

150-160 5 2.4 2.4 7-8

Copper 80 2 2.0 1.6 5-6

125 3 2.4 2.4 5-6

135-150 4 2.4 2.4 6-7

150-160 4.5 2.4 2.4 7-8

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

Page 23

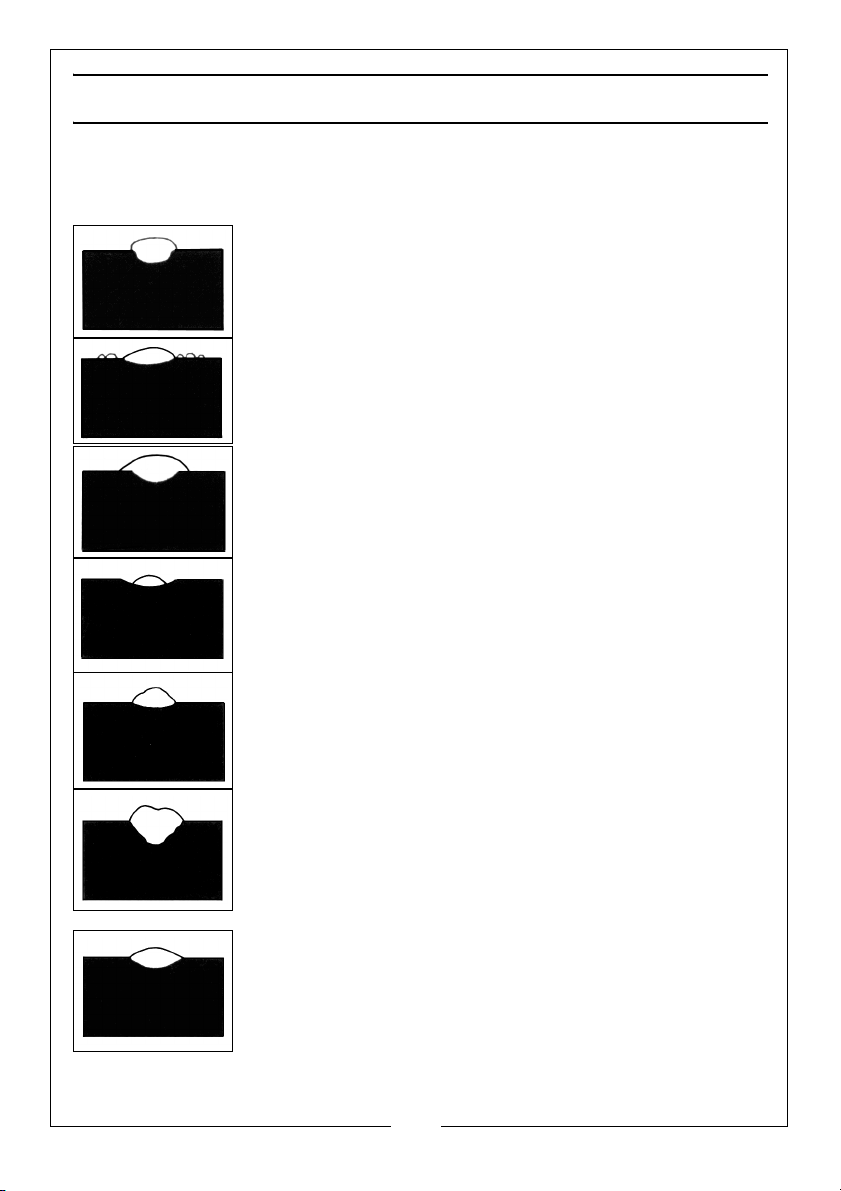

WELDING PITFALLS

The arc welding technique is an acquired skill and requires considerable practice before perfect results are obtained. The diagrams below will help to explain the pitfalls in your technique and how to overcome them.

ARC TOO SHORT

This causes irregular masses of weld to be deposited, with slag contamination on an uneven surface.

ARC TOO LONG

This causes poor penetration resulting in a weak weld with excessive spatter and porosity. Surface of the weld is rough and the arc makes a hissing sound

ELECTRODE MOVED TOO SLOWLY

This causes a very wide and heavy deposit which overlaps at the sides. It is wasteful both in terms of time and electrode use.

ELECTRODE MOVED TOO QUICKLY

This causes poor penetration with a ‘stringy’ and incomplete weld deposit. Slag is very hard to remove.

CURRENT TOO LOW

This causes poor penetration and causes the electrode to stick to the workpiece too readily. Also results in a very irregular and high weld deposit. Slag is very hard to remove.

CURRENT TOO HIGH

This causes excessive penetration with spatter and deep pointed crater. It may also cause holes to be burned in the workpiece.

Burns electrodes very quickly.

THE PERFECT WELD

With the correct combination of arc length, current regulation, inclination and speed of the electrode, you will, with practice, produce the perfect weld.

This should be regular with uniform ripples and no slag contamination. The arc will make a steady crackling sound.

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

Page 24

TROUBLESHOOTING

DEFECT CAUSES SUGGESTIONS

Spark will not start Bad clamp connection.

Inverter printed circuit is defective.

No output voltage Overheated machine (the

red LED should be on).

Internal relay has failed. Contact your nearest

Inverter printed circuit is defective.

Wrong output current

Porosity of welds Acid electrode on steel

Cracks in weld Material being welded is

Limited penetration

Profile defects Welding parameters are

Current selector control is defective.

Low power supply voltage. Check the mains distribution

with high sulphur content. Electrode oscillates too much. Workpieces are too far apart. Workpiece being welded is cold.

dirty (e.g.oil, paint, rust, oxides). Not enough current.

Low current, high welding rate, reversed polarity. Electrode inclined in position opposite to it's movement.

incorrect. Pass rate is not related to operating parameter requirements. Electrode not inclined constantly while welding.

Check clamp connection. Contact your nearest CLARKE dealer.

Wait for thermal cutout to be reset.

CLARKE dealer.

Contact your nearest CLARKE dealer.

system.

Use basic electrode. Move edges to be welded closer together. Move slowly at the beginning.

Clean workpiece before welding is an essential method of achieving neat weld beads.

Ensure operating parameters are regulated and improve preparation of work pieces.

Follow basic and general welding principles.

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

Page 25

DEFECT CAUSES SUGGESTIONS

High Sprays Electrode is too inclined. Make appropriate

corrections.

Arc is unstable Insufficient current. Check condition of

electrode and earth wire connection.

Electrode melts obliquely

Electrode core is not centred. Magnetic blow phenomenon.

Replace electrode. Connect two earth wires to opposite sites of the work piece.

CARE AND MAINTENANCE

WARNING: DISCONNECT FROM MAINS BEFORE CLEANING.

WARNING: DO NOT ATTEMPT TO CARRY OUT REPAIRS YOURSELF UNLESS YOU ARE FULLY COMPETENT. ALL REPAIR WORK MUST BE CARRIED OUT BY A QUALIFIED TECHNICIAN.

The machine requires no maintenance other than the following guidelines. Under normal working conditions removing the covers and cleaning with dry compressed air at reduced pressure once a year will be quite sufficient. Cleaning at more frequent intervals is advisable however, if the unit is operating in a very dusty environment.

1. Keep the louvres clean to avoid a build up of dirt and oxides inside the machine which can reduce machine output.

2. Check all cables periodically for condition and secure. They must be in good condition and not cracked.

3. Always avoid getting particles of metal inside the machine since they could cause short circuits.

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

Page 26

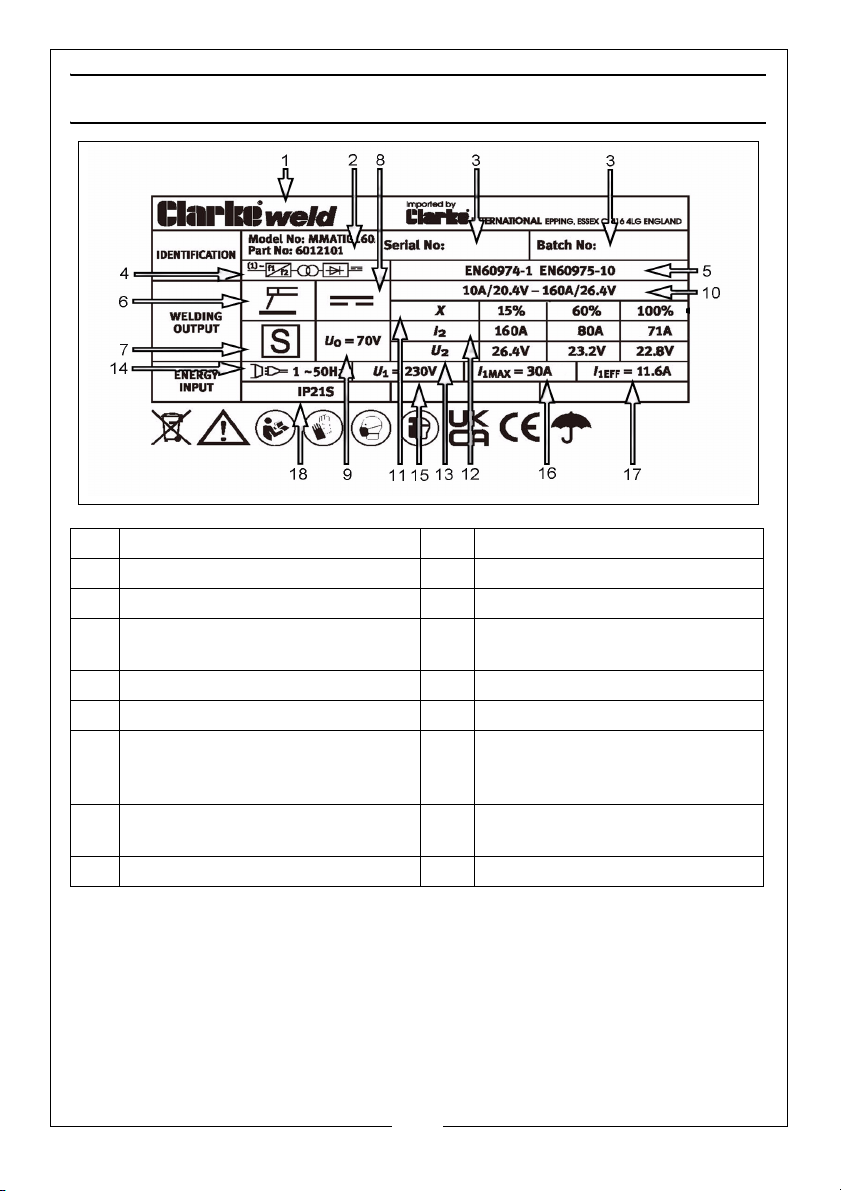

RATING PLATE (EXAMPLE)

1 Name/address of manufacturer 10 Range of Output

2 Model Number / Part Number 11 Duty Cycle symbol

3 Serial / Batch number 12 Rated Welding Current symbol

4 Welding Power Source 13 Conventional Load Voltage

symbol

5 British Standards applied 14 Energy Supply symbol

6 Welding Process symbol 15 Rated Supply Voltage

7 Suitable for use in an

environment with increased risk of electric shock

8 Welding Current symbol 17 Maximum Effective Supply

9 Rated No-load Voltage 18 Degree of Protection

16 Rated Maximum Supply Current

Current

DUTY CYCLE

This welder is covered by regulations EN IEC 60974-1:2018+A1:2019 / EN 6097410:2014+A1:2015, where the Duty Cycle (X) is expressed as a percentage of time the machine may be used in a given period for a specified welding current.

e.g. When welding at 140 Amps the machine may be used for 6 minutes (60%) in any10 minute period,

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

Page 27

SPECIFICATIONS

MMA/TIG120 MMA/TIG160 MMA/TIG200

Unpacked Weight (kg) 4.0 4.5

Dimensions (l x w x h) (mm) 275 x 117 x 190 263 x114 x184

Power Supply 230V~ 50Hz-(13A) 230V~ 50Hz-(32A)

Connecting plugs 13A 32A

Rated Input Capacity 4.6 KW 6.9 kW 8.7 kW

Rated Input Current 20A/7.7A 30A/11.6A 38A/12A

Rated Duty Cycle (@40

No Load Voltage (V) 70

Output Welding Current 10A-120A 10A-160A 10A-200A

IP Rating IP21S

Insulation Grade Class 1 - Grade H

Suitable Electrode size 1.6/2.5/3.2mm MMA 1.6-4 /TIG1.6-2.4mm

NOTE: The details and specifications contained herein, are correct at the

time of going to print. However, CLARKE International reserve the right to change specifications at any time without prior notice.

15/60/100% 15/60/100% 10/60/100%

GUARANTEE

This CLARKE product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt as proof of purchase.

This guarantee is invalid if the product is found to have been abused or tampered with in any way, or not used for the purpose for which it was intended.

Faulty goods should be returned to their place of purchase, no product can be returned to us without prior permission. This guarantee does not effect your statutory rights.

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

Page 28

CONSUMABLES

The following are some of the accessories available from your CLARKE dealer.

Please quote the part numbers shown below.

DESCRIPTION PART NUMBER

1.6 x 300mm Arc Welding Rods 3050590

2.0 x 350mm Arc Welding Rods 3050592

2.5 x 350mm Arc Welding Rods 3050594

3.25 x 350mm Arc Welding Rods 3050596

4.0 x 400mm E6013 Welding Rods 3050598

TIG Welding Torch Assembly (MMA/TIG100) 6012232

TIG Welding Torch Assembly (MMA/TIG160/200) 6012233

Argon Gas Regulator 8134140

ARC ACTIVATED HEADSHIELDS

These highly popular head-shields activate instantly when the arc is struck and allow you to have both hands free when welding.

Model Arc

Activated

GWH4 ✔✔✔ 6000706

GWH7 ✔✔✔ 6000709

GWH5 ✔✔✔ 6000707

GWH6 ✔✔✔ 6000708

GWH3 ✔✔✔ 6000698

GWH2 ✔✔✔ 6000697

PG4 ✔✔✔ 6000716

HS1 ✔✔6000700

HSF1 ✔✔6000705

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

Grinding function

Solar Powered

Fixed Shade

Flip Up Part

Number

Page 29

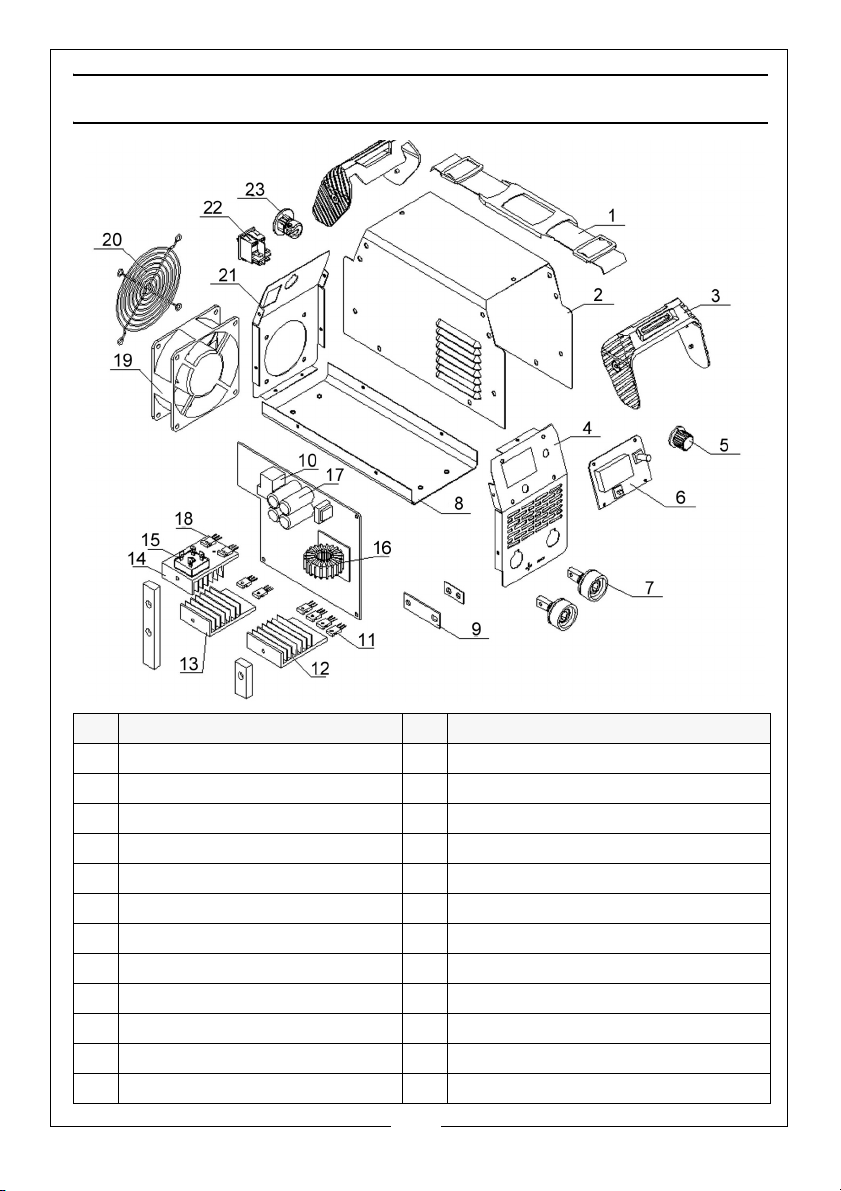

COMPONENT PARTS

NO DESCRIPTION NO DESCRIPTION

1 Shoulder strap assembly 13 Insulated Gate Bipolar Transistors (1)

2 Housing 14 Insulated Gate Bipolar Transistors (2)

3 Front plastic cover 15 Rectifier bridge

4 Front plate 16 Transformer

5 Adjusting knob 17 Capacitors

6 Digital Display Panel 18 Relay

7 Pos/Neg connection sockets 19 Cooling fan assembly

8 Base plate 20 Fan grille

9 Output connection 21 Rear plate

10 Transformer 22 Power switch

11 Fast recovery diode 23 Power cable connector

12 FRD cooling radiator

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

Page 30

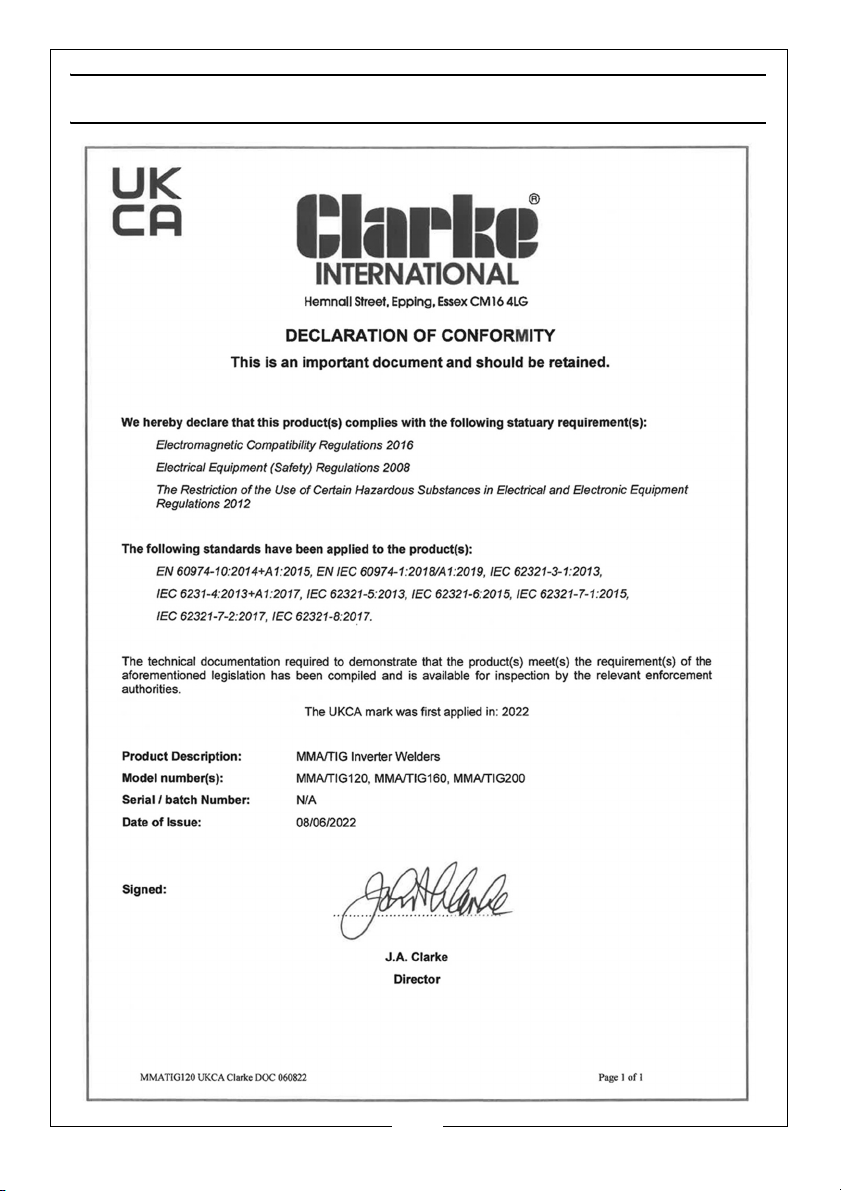

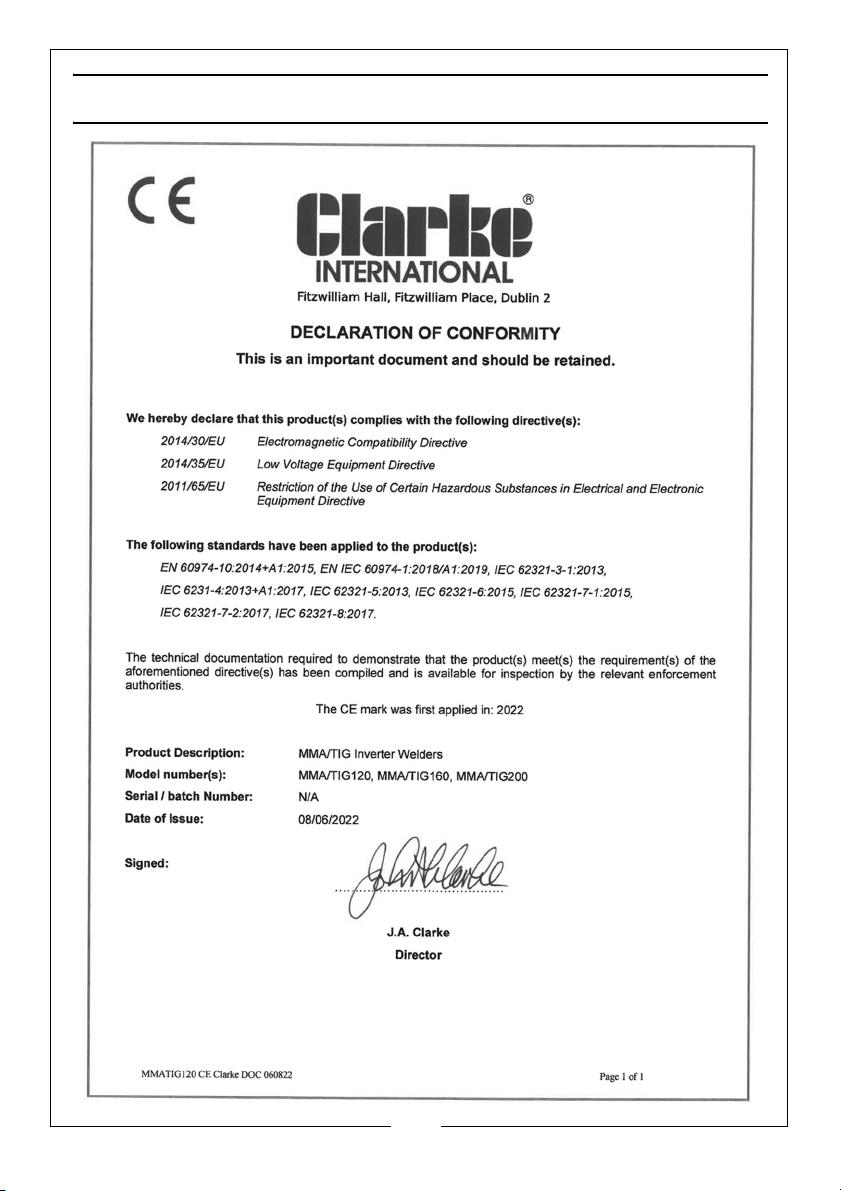

DECLARATION OF CONFORMITY -UK

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

Page 31

DECLARATION OF CONFORMITY - CE

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

Page 32
