Clarke CIR 13C, 4500610 User guide

12V DC IMPACT WRENCH

MODEL NO: CIR13C

PART NO: 4500610

OPERATING & MAINTENANCE

INSTRUCTIONS

ORIGINAL INSTRUCTIONS GC0518 ISS 2

INTRODUCTION

Thank you for purchasing this CLARKE Impact Wrench. The CIR13C must only
be used with 12V vehicle systems

This product includes the following items:

• Impact Wrench c/w Cigarette Lighter Adapter

• Battery Clamp set c/w Cigarette Lighter Socket

• Impact Socket 17/19 mm

• Impact Socket 23/21 mm

• Spare Fuse - 12V 15 Amp, 1¼” x ¼” Glass - Automotive type

IMPORTANT

WARNING: THIS SYMBOL IS USED THROUGHOUT THE USER GUIDE
WHEN THERE IS A RISK OF PERSONAL INJURY. MAKE SURE THAT THESE
WARNINGS ARE READ AND UNDERSTOOD AT ALL TIMES.

CAUTION: THIS SYMBOL IS USED THROUGHOUT THE USER GUIDE
WHEN THERE IS A RISK OF DAMAGING YOUR IMPACT WRENCH.
MAKE SURE THAT THESE CAUTIONS ARE READ AND UNDERSTOOD AT
ALL TIMES.

Please keep these instructions in a safe place for future reference.

2

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

GENERAL POWER TOOL SAFETY WARNINGS

WARNING: READ ALL SAFETY WARNINGS AND ALL INSTRUCTIONS.
FAILURE TO FOLLOW THE WARNINGS AND INSTRUCTIONS MAY RESULT IN
ELECTRIC SHOCK, FIRE AND/OR SERIOUS INJURY.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your impact wrench

WORK AREA SAFETY

1. Keep work area clean and well lit. Cluttered or dark areas invite accidents.

2. Do not operate power tools in explosive atmospheres, such as in the
presence of flammable liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.

3. Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.

ELECTRICAL SAFETY

1. Power tool plugs must match the outlet. Never modify the plug in any way.
Do not use any adapter plugs with earthed (grounded) power tools.

Unmodified plugs and matching outlets will reduce risk of electric shock.

2. Avoid body contact with earthed or grounded surfaces, such as pipes,
radiators, ranges and refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.

3. Do not expose power tools to rain or wet conditions. Water entering a
power tool will increase the risk of electric shock.

4. Do not abuse the cord. Never use the cord for carrying, pulling or

unplugging the power tool. Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase the risk of electric

shock.

5. When operating a power tool outdoors, use an extension cord suitable for
outdoor use. Use of a cord suitable for outdoor use reduces the risk of
electric shock.

6. If operating a power tool in a damp location is unavoidable, use a residual
current device (RCD) protected supply. Use of an RCD reduces the risk of
electric shock.

3

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

PERSONAL SAFETY

1. Stay alert, watch what you are doing and use common sense when
operating a power tool. Do not use a power tool while you are tired or
under the influence of drugs, alcohol or medication. A moment of

inattention while operating power tools may result in serious personal injury.

2. Use personal protective equipment. Always wear eye and ear protection.
Protective equipment such as dust mask, non-skid safety shoes, hard hat,
or hearing protection used for appropriate conditions will reduce personal
injuries.

3. Prevent unintentional starting. Ensure the switch is in the off position before
connecting to power source, picking up or carrying the tool. Carrying
power tools with your finger on the switch or energising power tools that
have the switch on invites accidents.

4. Remove any adjusting key or wrench before turning the power tool on. A
wrench or a key left attached to a rotating part of the power tool may
result in personal injury.

5. Do not overreach. Keep proper footing and balance at all times. This
enables better control of the power tool in unexpected situations.

6. Dress properly. Do not wear loose clothing or jewellery. Keep your hair,
clothing and gloves away from moving parts. Loose clothes, jewellery or
long hair can be caught in moving parts.

7. If devices are provided for the connection of dust extraction and collection
facilities, ensure these are connected and properly used. Use of dust
collection can reduce dust-related hazards.

8. Hold power tool by insulated gripping surfaces, when performing an
operation where the fastener may contact hidden wiring or its own cord.
Fasteners contacting a "Live" wire may make exposed metal parts of the
power tool "Live" and could give the operator an electric shock.

POWER TOOL USE AND CARE

1. Do not force the power tool. Use the correct power tool for your
application. The correct power tool will do the job better and safer at the

rate for which it was designed.

2. Do not use the power tool if the switch does not turn it on and off. Any
power tool that cannot be controlled with the switch is dangerous and
must be repaired.

3. Disconnect the plug from the power source and/or the battery pack from

the power tool before making any adjustments, changing accessories, or
storing power tools. Such preventive safety measures reduce the risk of

starting the power tool accidentally.

4

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

4. Store idle power tools out of the reach of children and do not allow persons
unfamiliar with the power tool or these instructions to operate the power
tool. Power tools are dangerous in the hands of untrained users.

5. Maintain power tools. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may affect the power tool's
operation. If damaged, have the power tool repaired before use. Many

accidents are caused by poorly maintained power tools.

6. Keep cutting tools sharp and clean. Properly maintained cutting tools with
sharp cutting edges are less likely to bind and are easier to control.

7. Use the power tool, accessories and tool bits etc. in accordance with these

instructions, taking into account the working conditions and the work to be
performed. Use of the power tool for operations different from those

intended could result in a hazardous situation.

SERVICE

1. Have your power tool serviced by a qualified repair person using only
identical replacement parts. This will ensure that the safety of the power

tool is maintained.

IMPACT WRENCH SAFETY WARNINGS

1. Only use sockets designed for use with an impact wrench. Standard
sockets could shatter and cause injury.

2. ALWAYS avoid excessive use of the wrench. When tightening a nut or bolt,
always avoid over tightening.

SAFETY SYMBOLS

The meaning of the symbol on the product is shown below.

Wear eye protection when using this product

5

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

CONNECTING TO THE VEHICLE POWER SUPPLY

Only use this wrench with 12 Volt vehicle systems.

CONNECTING TO THE CIGARETTE LIGHTER SOCKET

CAUTION: IF THE VEHICLE’S CIGARETTE LIGHTER FUSE IS LESS THAN 15
AMPS, YOU MUST CONNECT THE IMPACT WRENCH DIRECTLY TO THE
BATTERY.

1. Make sure that the ignition switch is in the off position.

2. Insert the plug into the cigarette lighter socket.

3. Turn the ignition on.

CONNECTING DIRECTLY TO THE BATTERY

1. Ensure the connections at the battery are firm and that the battery posts
are clean and free from corrosion.

2. Connect the clamp with the RED hand grips to the unearthed battery
terminal first, (on most vehicles this is the positive terminal and coloured
RED), then connect the clamp with the black hand grips to the chassis or
engine, away from moving engine parts.

NOTE: If the battery clamps are connected in reverse, the wrench will

operate in the reverse direction.

6

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

OPERATION

CAUTION: MAKE SURE THAT THE IMPACT WRENCH IS OFF AND
DISCONNECTED FROM THE POWER SUPPLY BEFORE ATTACHING OR
REMOVING A SOCKET. ALWAYS TAKE CARE TO USE THE CORRECT SIZE
SOCKET FOR BOLTS AND NUTS. AN INCORRECT SOCKET WILL CAUSE
DAMAGE TO THE BOLT OR NUT.

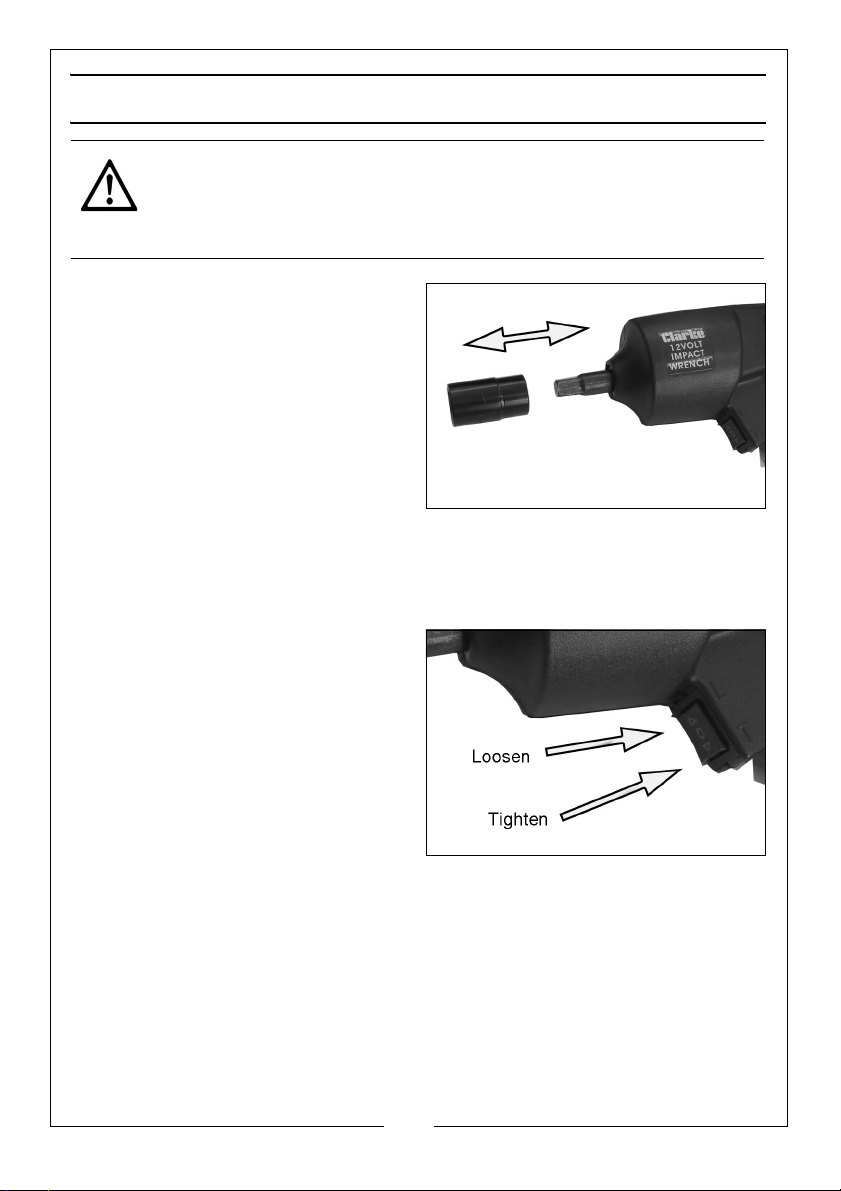

FITTING A SOCKET

1. Align the chosen socket and
simply push it onto the square
drive.

• Use only ½” square drive

impact sockets supplied or as
listed on page 8.

2. To remove a socket, pull it off of
the square drive.

LOOSENING A NUT

1. With the wrench connected to a power supply, place the socket over the
nut or bolt head.

2. Use two hands to hold the wrench
tightly and squeeze the direction
switch in the LOOSEN (L) position.

• The nut/bolt will be impacted

again and again until it is
loosened.

3. Release the switch when the nut
starts to loosen.

TIGHTENING A NUT

1. Start the nut or bolt by hand to make sure that it is not cross threaded, then
with the applicable socket installed on the wrench, place it over the nut or
bolt head.

2. Use two hands to hold the wrench tightly and squeeze the direction switch
in the TIGHTEN (T) position.

3. ALWAYS finish tightening with a torque wrench or suitable spanner.

7

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

MAINTENANCE

STORAGE

1. Make sure that the impact wrench is stored in a clean, dry place, out of
reach of children when not in use.

CLEANING

1. Always examine the tool before use and make sure it is in good condition.

2. Make sure that all air vents are clear, (use compressed air to clean the
impact wrench if possible).

3. Do not use solvents to clean plastic parts, most plastics are damaged by
solvents.

GENERAL MAINTENANCE

1. Make sure that all nuts, bolts and screws are tight.

2. Refer to your CLARKE dealer if internal maintenance is necessary.

3. Make sure that the power cable is free from cracks, bare wires etc.

4. If it is necessary to replace the power cable, this must be done by the
manufacturer.

5. The bearings in this tool are lubricated for the tools lifetime in usual
operating conditions, no more lubrication is necessary.

ENVIRONMENTAL PROTECTION

Do not dispose of this product with general household waste. All
tools, accessories and packaging should be sorted, taken to a
recycling centre and disposed of according to the laws governing
Waste Electrical and Electronic Equipment.

Through the purchase of this product, the customer is taking on the obligation
to deal with the WEEE in accordance with the WEEE regulations in relation to
the treatment, recycling & recovery and environmentally sound disposal of
the WEEE.

In effect, this means that this product must not be disposed of with general
household waste. It must be disposed of according to the laws governing
Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal
facility.

8

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

ACCESSORIES

A wide range of impact wrench accessories is available from your nearest
Clarke dealer. For further information contact your nearest dealer.

Suitable impact wrench compatible socket sets include the following:

Part No Model No Description

3110437 CIS12/11 11 piece 1/2”square drive (metric)

1700582 PRO182 4 piece thin wall deep impact

1700584 PRO184 3 piece thin wall deep impact

1700616 PRO216 4 piece impact spline set

1800305 CIS9/32 32 piece 3/8” & 1/2”square drive (metric/AF)

1700727 CIS12/9S 9 piece impact spline socket bit set

1700726 CIS12/6SB 6 piece impact spline socket bit set

1800356 CIS12/6HB 6 piece 1/2”square drive hex key set (metric)

1800361 CIS12/7SB 7 piece 1/2”square drive TRX-Star

1800311 CIS12/17B 16 piece 1/2”square drive (metric/AF)

1700732 CIS12/3M 3 piece1/2”square drive non-slip

3110875 CIS12/10 10 piece1/2”square drive 6 point sockets

1700723 CISSB12/6S 6 piece impact spline socket bit set

1700722 CIS12/8S 8 piece impact spline socket bit set

3110437 CIS12/11 11 piece 1/2”square drive (metric)

1800340 CIS12/35 35 piece 1/2”square drive (metric/AF)

GUARANTEE

The impact wrench is guaranteed against faulty manufacture for a period of
12 months from the date of purchase. Your receipt is required as proof of
purchase.

This guarantee is invalid if the impact wrench is found to have been abused,
tampered with, or not used for the purpose for which it was intended.

Faulty goods must be returned to their place of purchase, it must not be
returned to us without prior permission.

This guarantee does not effect your statutory rights

9

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

SPECIFICATIONS

Weight 1.8 kg

Dimensions (L x W x H) 210 x 85 x 165 mm

Size of square drive spindle 1/2”

Max rated tightening torque 250 ft/lbs (350 Nm)

Impacts / minute 4000

IP Rating IP20

Insulation class III

Input voltage 12V DC

Charger fuse rating 15 Amp

Sound pressure level 73.2 dB LpA

Sound power level 84.2 dB LWA

Uncertainty factor (K)

Vibration level

Uncertainty factor (K)

3 dB

3.601 m/s

1.5 m/s

2

2

10

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

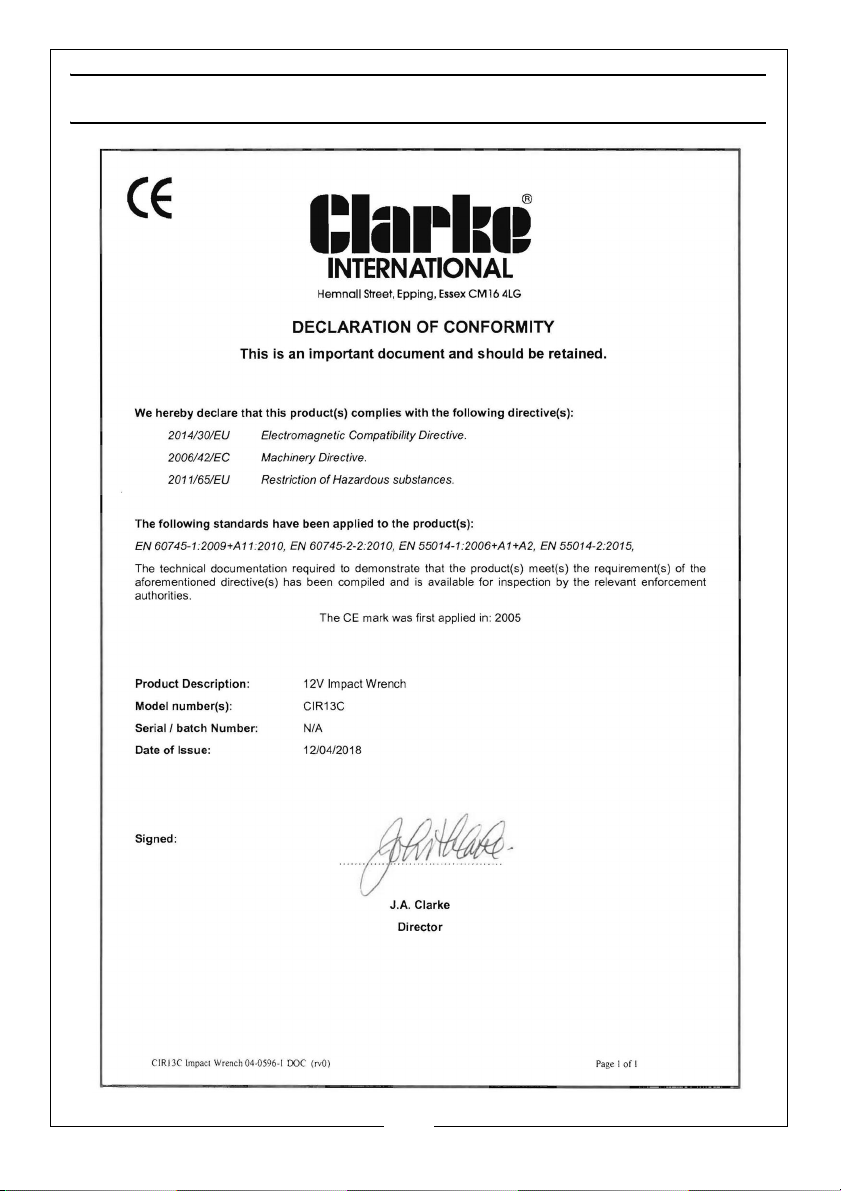

DECLARATION OF CONFORMITY

11

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
