Clarke SMD 42T, 4003625 User guide

LED WORKLIGHT(230V)

MODEL NO: SMD42T

PART NO: 4003625

ASSEMBLY & USER

INSTRUCTIONS

ORIGINAL INSTRUCTIONS GC1119 ISS 2

INTRODUCTION

Thank you for purchasing this CLARKE portable LED worklight which can be
used either indoors or outdoors. Before attempting to use this product, please
read this manual thoroughly and follow the instructions carefully. In doing so
you will ensure the safety of yourself and that of others around you, and you
can look forward to your purchase giving you long and satisfactory service.

TECHNICAL INFORMATION

Model SMD42T

Model type L3305SSJ

Dimensions (L x W x H) 58 x 870 x 1720 mm

Weight 3.5 kg

Tilt adjustment -90 to +90 degrees

Light Source SMD LED array

Operating Temperature -20 to + 50oC

Input power 21 W

Light Output (luminous flux) 1650 @ 1m (lumens)

Fuse Rating 3 A

Power Supply 230V 50 Hz

Insulation Class II

IP Rating IP54

Energy Efficiency Class A+

Efficiency 80 Lm/W

Colour Temperature 6500 K

Weighted Energy Consumption 21 kWh/1000 h

Life expectancy of LED 20,000 hours

2

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

SAFETY PRECAUTIONS

1. This worklight must not be immersed in water.

2. Do not look directly into the lamp when switched on as this can damage
the eyes.

3. If used with an extension cable always ensure that the extension cable is
fully unwound.

4. Do not use this worklight if it has a broken lens, casing or damaged cable.

5. Always unplug the worklight before moving it or performing maintenance.
Do not touch the lamp when your hands are wet.

6. Do not attempt to disassemble or repair the worklight.

7. Do not leave the worklight unattended when switched on. Always unplug
the worklight when it is not in use.

8. Never unplug by holding the cable. Unplug by holding the plug.

9. Never use the worklight if the cable or plug are damaged.

10. When assembling the tripod, ensure that the ground is level and firm.

11. Take extra care not to push or knock the tripod over when fully extended.

12. Ensure the lamp is a safe distance from other objects in the working space.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.

Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission. This guarantee does not effect your
statutory rights.

ENVIRONMENTAL RECYCLING POLICY

Through purchase of this product, the customer is taking on the obligation to
deal with WEEE in accordance with the WEEE regulations in relation to the
treatment, recycling, recovery & environmentally sound disposal of the WEEE.

This means that this product must not be disposed of with general household
waste. It must be disposed of according to the laws governing Waste
Electrical and Electronic Equipment (WEEE) at a recognised disposal facility

3

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

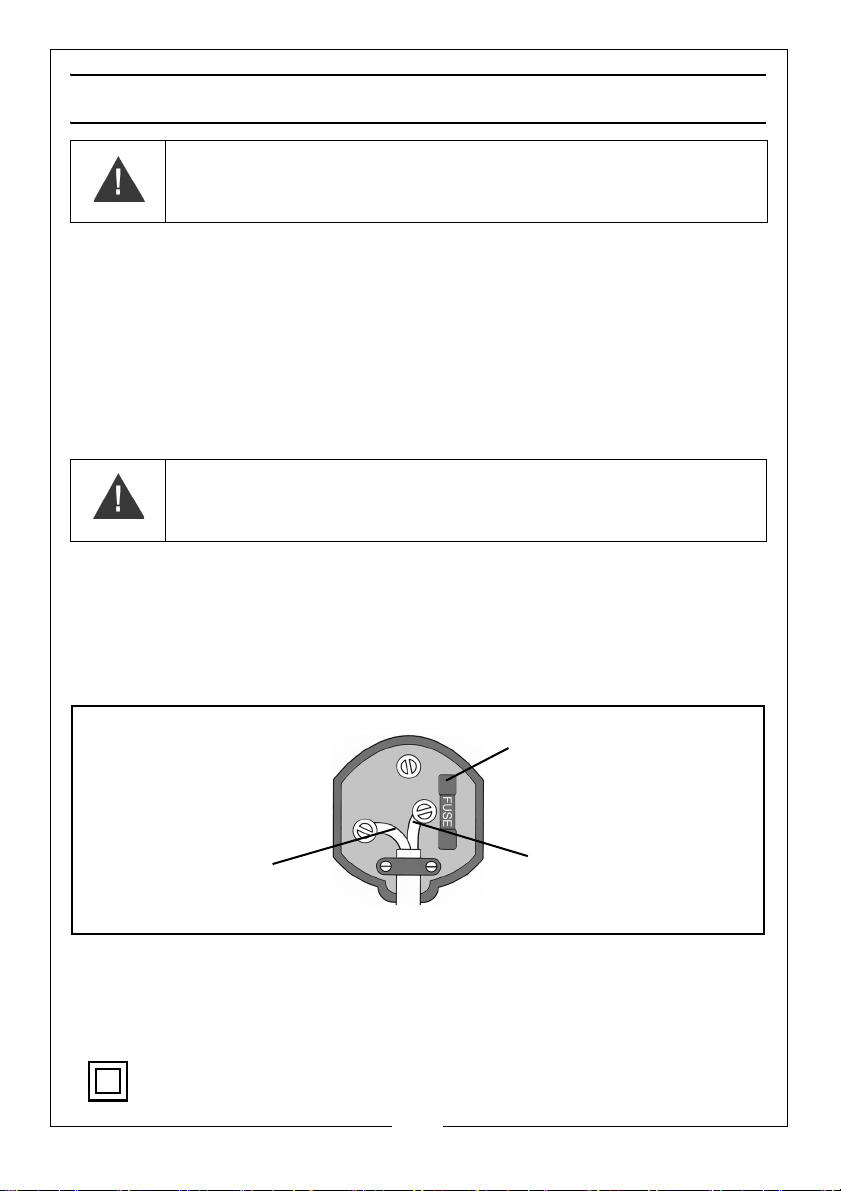

ELECTRICAL CONNECTIONS

Plug must be BS1363/A approved.

Always fit a 3 Amp fuse.

Ensure that the outer sheath of the cable is firmly held by the clamp

Neutral

(Blue)

Live

(Brown)

WARNING! READ THESE ELECTRICAL SAFETY INSTRUCTIONS
THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE
MAINS POWER SUPPLY.

Before switching the product on, make sure that the voltage of your electricity supply is
the same as that indicated on the rating plate. This product is designed to operate on
230VAC 50Hz. Connecting it to any other power source may cause damage.

This product may be fitted with a non-rewireable plug. If it is necessary to change the
fuse in the plug, the fuse cover must be refitted. If the fuse cover becomes lost or
damaged, the plug must not be used until a suitable replacement is obtained.

If the plug has to be changed because it is not suitable for your socket, or due to
damage, it should be cut off and a replacement fitted, following the wiring instructions
shown below. The old plug must be disposed of safely, as insertion into a mains socket
could cause an electrical hazard.

WARNING! THE WIRES IN THE POWER CABLE OF THIS PRODUCT
ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:
BLUE = NEUTRAL / BROWN = LIVE

If the colours of the wires in the power cable of this product do not correspond
with the markings on the terminals of your plug, proceed as follows.

• The wire which is coloured Blue must be connected to the terminal

which is marked N or coloured Black.

• The wire which is coloured Brown must be connected to the terminal

which is marked L or coloured Red.

We strongly recommend that this machine is connected to the mains supply
via a Residual Current Device (RCD).

If in any doubt, consult a qualified electrician. DO NOT attempt any repairs
yourself.

This symbol indicates that this is a Class II product, and does not require
an earth connection.

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

4

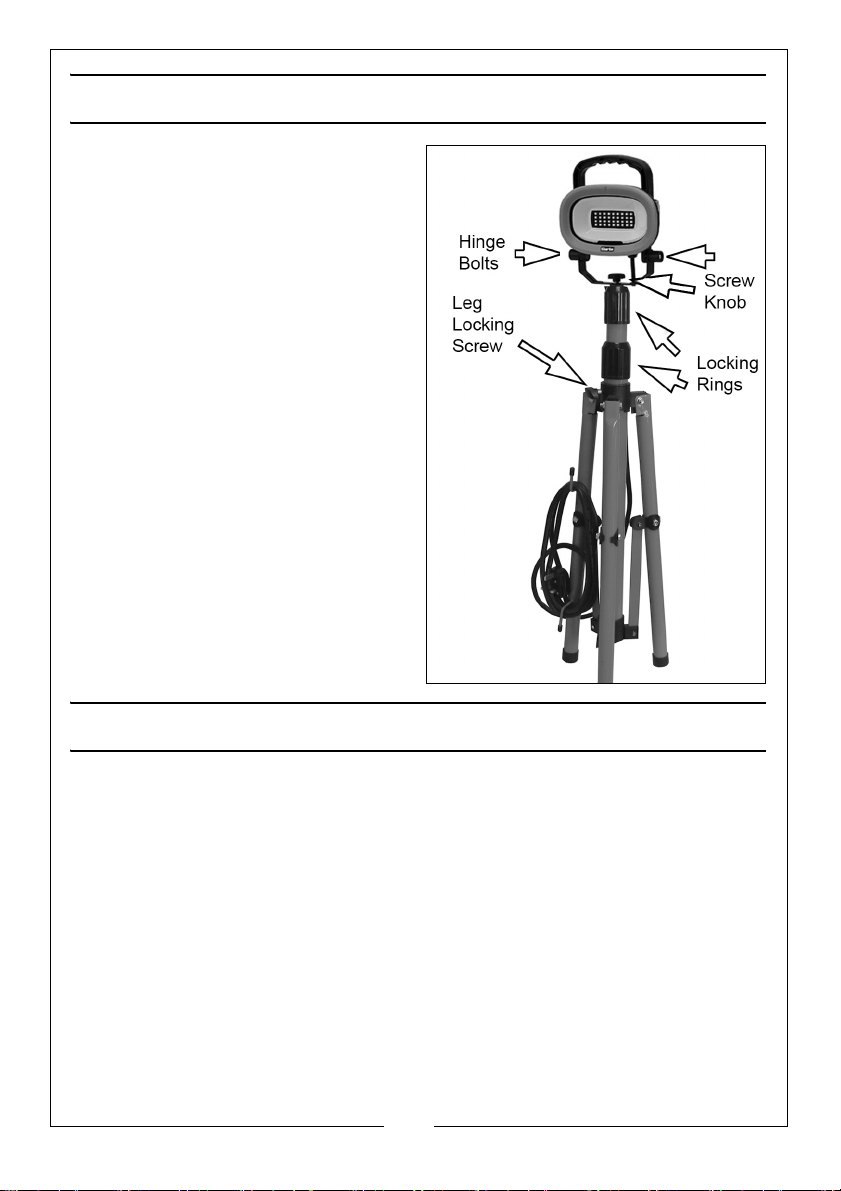

ASSEMBLY & MOUNTING

The tripod stand is supplied fully
assembled.

1. Pull the legs apart to erect the
tripod and set in position with the
leg locking screw.

2. Adjust the height of the tripod
column by twisting the locking
rings anti-clockwise to release,
and sliding the tubes to the
required height before twisting
clockwise to lock.

3. Attach the worklamp to the
column by securing with the
screw knob.

• The worklamp can be swivelled

if required by loosening the
knob.

4. Tighten the hinge bolts on either
side of the lamp to set the angle
of elevation as required.

CARE & STORAGE

1. When not in use, switch off & unplug from the power supply. Coil the cable
around the storage hooks provided on the tripod for tidy storage.

2. Store this product in a secure, dry place, out of the reach of children. DO
NOT leave it exposed to the elements and avoid direct sunlight, direct
heat, rain/moisture etc.

3. Keep the external surfaces clean. Avoid impact damage & do not allow
this product to come into contact with abrasive or corrosive materials.

4. Do not use solvents, thinners or alcohol for cleaning, as these chemicals will
damage the finish. With the lamp unplugged from the power supply, use a
dry cloth to wipe over the lamp components.

5

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

5. Only use extension leads that are of an appropriate power rating and
suitable for the work environment. Inspect the extension lead regularly and
replace if damaged.

6. The LED light source (Epistar LED chip) cannot be replaced but has a life
expectancy of approximately 20000 hours.

7. Never use unauthorised accessories or attachments which can cause
personal injury or damage to the product.

8. Do not attempt to repair or modify this product or attempt any electrical
repair yourself. Consult the Clarke Service Department on 020 8988 7400.

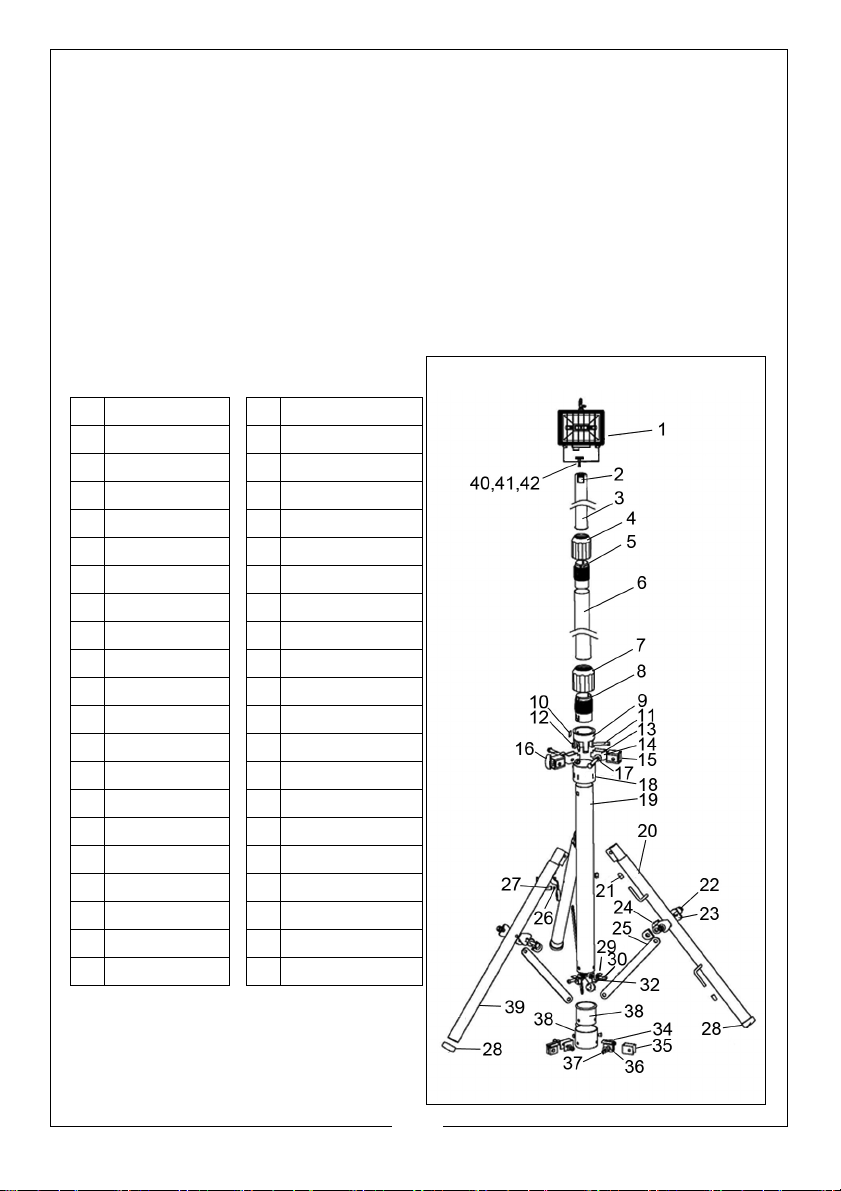

REPLACEMENT TRIPOD PARTS

1 Lamp Head 22 Bolt

2Top End 23Bracket

3 Upper Tube 24 Packer

4 Locking Ring 25 Connecting Arm

5 Screwed Tube 26 Open Washer

6 Middle Tube 27 Bolt

7 Locking Ring 28 End cap

8 Screwed Tube 29 Connection

9 Washer 30 Pan Head Screw

10 Washer 31 Nut

11 Outer Hex Bolt 32 Flat Washer

12 Locknut 33 Washer

13 Fixing Bracket 34 Plastic Cover

14 Flat Washer 35 Adapting Piece

15 Plastic Cover 36 Inner Bolt

16 Oval Screw 37 Cross Screws

17 Spring Washer 38 End Connection

18 Connector 39 Leg

19 Stand Tube 40 Screw Knob

20 Leg with Hook 41 Spring Washer

21 Hook End Cap 42 Flat Washer

6

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

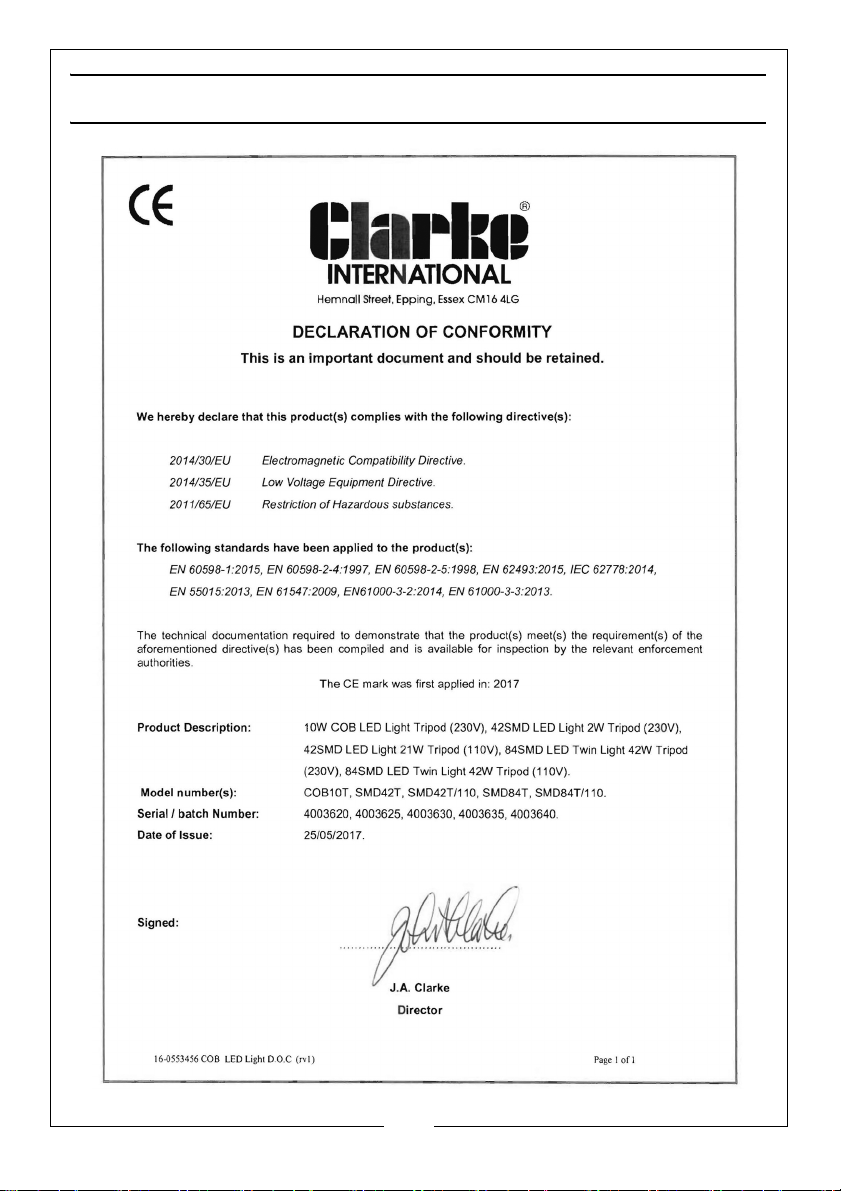

DECLARATION OF CONFORMITY

7
