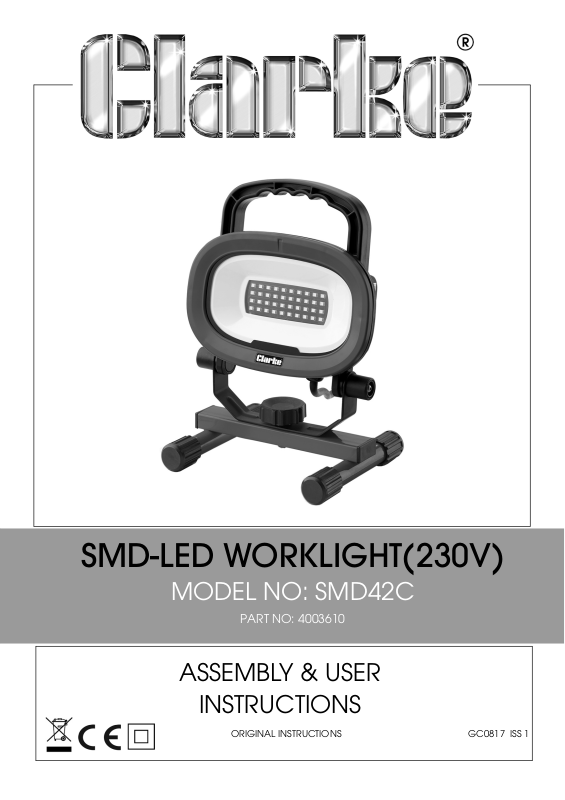

Clarke SMD 42C, 4003610 User guide

SMD-LED WORKLIGHT(230V)

MODEL NO: SMD42C

PART NO: 4003610

ASSEMBLY & USER

INSTRUCTIONS

ORIGINAL INSTRUCTIONS GC0817 ISS 1

INTRODUCTION

Thank you for purchasing this CLARKE portable worklight.

Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.

SPECIFICATIONS

Model SMD42C

Part No 4003610

Dimensions (L x W x H) 270 x 200 x 145 mm

Weight 1.2 kg

Light Source SMD LED array

Operating Temperature

Input power 21 W

Light Output (lumen) 1650

Fuse Rating 3 A

Power Supply 230V/ 50 Hz

Insulation Class II

IP Rating IP54

Energy Efficiency Class A+

Colour Temperature 6500 K

Weighted Energy Consumption 21 kWh/1000h

Efficiency 80 Lm/W

Life Expectancy of LED 20,000 hours

2

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

-20 to + 50oC

SAFETY PRECAUTIONS

1. This worklight must not be immersed in water.

2. Do not look directly into the lamp when switched on as this can damage
the eyes.

3. If used with an extension cable always ensure that the extension cable is
fully unwound.

4. Do not use this worklight if it has a broken lens, casing or damaged supply
cable.

5. Always unplug the worklight before moving it or performing maintenance.
Do not touch the lamp when your hands are wet.

6. Do not attempt to disassemble or repair the worklight.

7. Never unplug the worklight by holding the cable. Unplug by holding the
plug.

8. Never use the worklight if the cable or plug are damaged.

9. Do not leave the worklight unattended when switched on. Always unplug
the worklight when it is not in use.

10. Ensure the lamp is a safe distance from other objects in the working
environment.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.

Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.

This guarantee does not effect your statutory rights.

3

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

ELECTRICAL CONNECTIONS

Plug must be BS1363/A approved.

Always fit a 3 Amp fuse.

Ensure that the outer sheath of the cable is firmly held by the clamp

Neutral

(Blue)

Live

(Brown)

WARNING! READ THESE ELECTRICAL SAFETY INSTRUCTIONS
THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE
MAINS POWER SUPPLY.

Before switching the product on, make sure that the voltage of your electricity supply is
the same as that indicated on the rating plate. This product is designed to operate on
230VAC 50Hz. Connecting it to any other power source may cause damage.

This product may be fitted with a non-rewireable plug. If it is necessary to change the
fuse in the plug, the fuse cover must be refitted. If the fuse cover becomes lost or
damaged, the plug must not be used until a suitable replacement is obtained.

If the plug has to be changed because it is not suitable for your socket, or due to
damage, it should be cut off and a replacement fitted, following the wiring instructions
shown below. The old plug must be disposed of safely, as insertion into a mains socket
could cause an electrical hazard.

WARNING! THE WIRES IN THE POWER CABLE OF THIS PRODUCT
ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:
BLUE = NEUTRAL / BROWN = LIVE

If the colours of the wires in the power cable of this product do not correspond
with the markings on the terminals of your plug, proceed as follows.

• The wire which is coloured Blue must be connected to the terminal

which is marked N or coloured Black.

• The wire which is coloured Brown must be connected to the terminal

which is marked L or coloured Red.

We strongly recommend that this machine is connected to the mains supply
via a Residual Current Device (RCD).

If in any doubt, consult a qualified electrician.

This symbol indicates that this is a Class II product, and does not require
an earth connection.

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

4

ASSEMBLY & USE

Mount the lamp to the stand using
the hand screw as shown.

The worklamp can be tilted forward
and back as required.

Switch on/off using the rocker switch
on the rear of the lamp.

CARE & STORAGE

1. When not in use, switch off & unplug from the power supply.

2. Store this product in a secure, dry place, out of the reach of children. DO
NOT leave it exposed to the elements and avoid direct sunlight, direct
heat, rain/moisture etc.

3. Keep the external surfaces clean. Avoid impact damage & do not allow
this product to come into contact with abrasive or corrosive materials.

4. Do not use solvents, thinners or alcohol for cleaning, as these chemicals will
damage the finish. With the lamp unplugged from the power supply, use a
dry cloth to wipe over the lamp components.

5. Only use extension leads that are of an appropriate power rating and
suitable for the work environment. Inspect the extension lead regularly and
replace if damaged.

6. The LED light source cannot be replaced but has a life expectancy of
approximately 20,000 hours.

7. Never use unauthorised accessories or attachments which can cause
personal injury or damage to the product.

5

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

8. Do not attempt to repair or modify this product or attempt any electrical
repair yourself. Consult the Clarke Service Department on 020 8988 7400.

ENVIRONMENTAL RECYCLING POLICY

Through purchase of this product, the customer is taking on the
obligation to deal with the WEEE in accordance with the WEEE regulations in
relation to the treatment, recycling & recovery and environmentally sound
disposal of the WEEE.

In effect, this means that this product must not be disposed of with general
household waste. It must be disposed of according to the laws governing
Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal
facility.

6

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

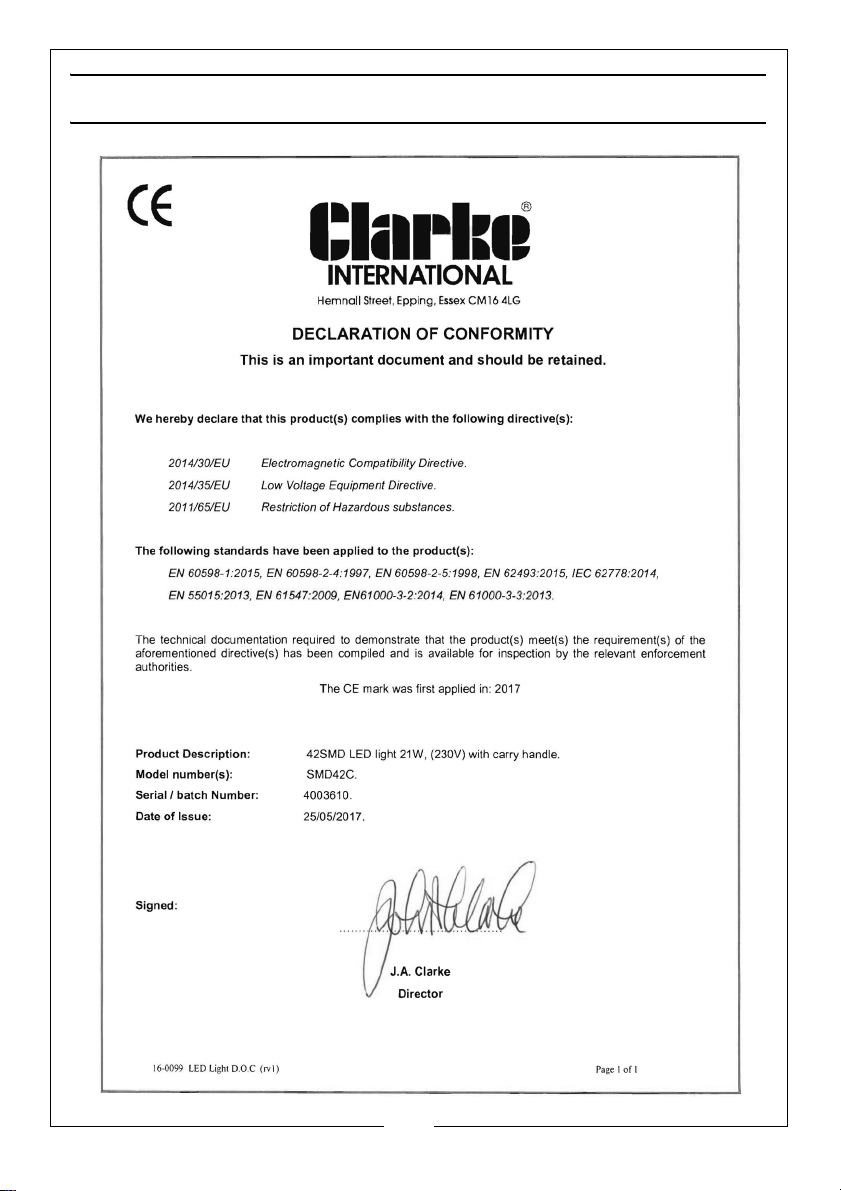

DECLARATION OF CONFORMITY
