Clarke 4003605 User guide

10W LED WORKLIGHT(230V)

MODEL NO: COB10C

PART NO: 4003605

ASSEMBLY & USER

INSTRUCTIONS

ORIGINAL INSTRUCTIONS GC1119 - ISS2

INTRODUCTION

Thank you for purchasing this CLARKE portable worklight with carry handle and
floor stand, suitable for indoor or outdoor use.

Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.

ENVIRONMENTAL RECYCLING POLICY

Through purchase of this product, the customer is taking on the
obligation to deal with the WEEE in accordance with the WEEE
regulations in relation to the treatment, recycling & recovery and
environmentally sound disposal of the WEEE.

In effect, this means that this product must not be disposed of with general
household waste. It must be disposed of according to the laws governing
Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal
facility.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.

Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.

This guarantee does not effect your statutory rights.

2

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

SAFETY PRECAUTIONS

1. This worklight must not be immersed in water.

2. Do not look directly into the lamp when switched on as this can damage
the eyes.

3. If used with an extension cable always ensure that the extension cable is
fully unwound.

4. Do not use this worklight if it has a broken lens, casing or damaged supply
cable.

5. Always unplug the worklight before moving it or performing maintenance.
Do not touch the lamp when your hands are wet.

6. Do not attempt to disassemble or repair the worklight.

7. Do not leave the worklight unattended when switched on. Always unplug
the worklight when it is not in use.

8. Never unplug the worklight by holding the cable. Unplug by holding the
plug.

9. Never use the worklight if the cable or plug are damaged.

3

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

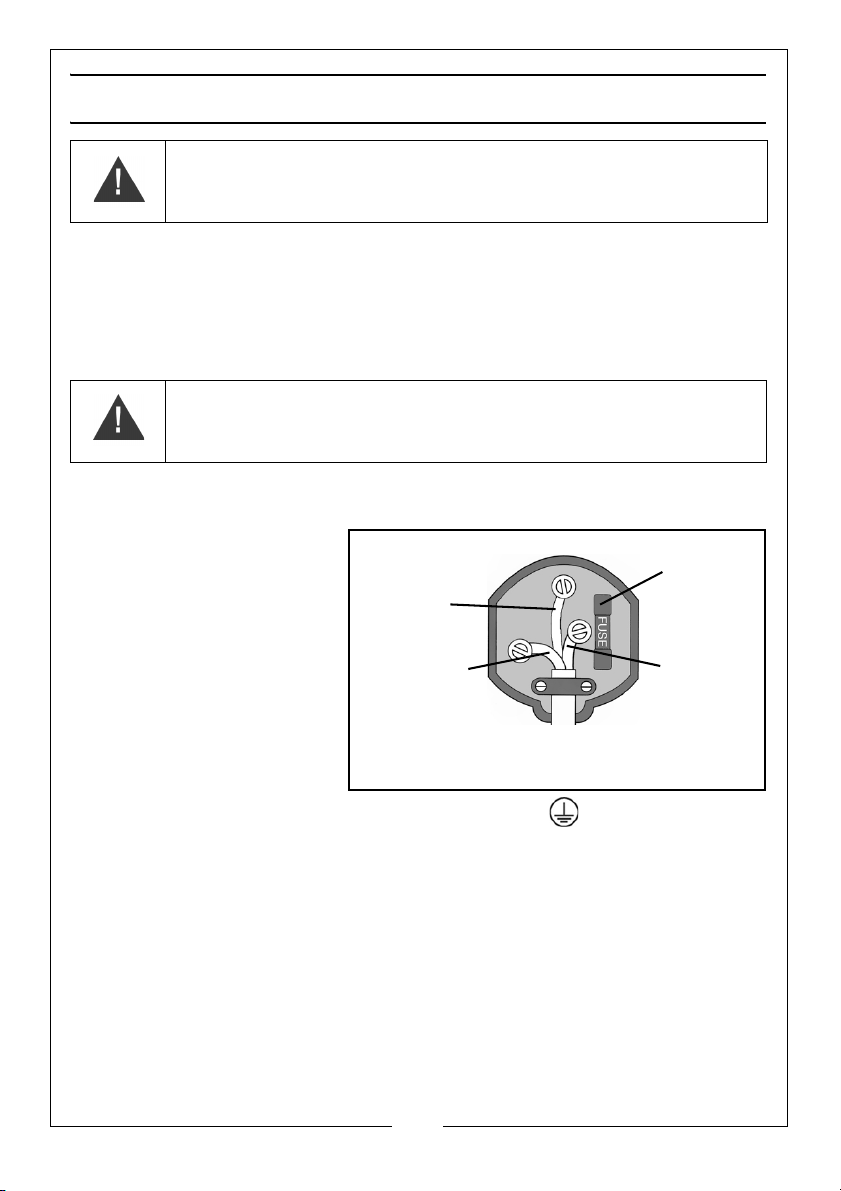

ELECTRICAL CONNECTION

Plug must be BS1363/A approved.

Always fit

Ensure that the outer sheath of

Neutral

(Blue)

Live

(Brown)

Earth

(Green and

a 3 Amp

the cable is firmly held by the clamp

fuse.

Yel low)

WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS
THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS
SUPPLY.

Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply
through an approved BS 1363 plug, or a suitably fused isolator switch.

If the plug has to be changed because it is not suitable for your socket, or
because of damage, it must be removed and a replacement fitted, following
the wiring instructions shown below. The old plug must be discarded safely, as
insertion into a power socket could cause an electrical hazard.

WARNING: THE WIRES IN THE POWER CABLE OF THIS PRODUCT ARE
COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:
BLUE = NEUTRAL BROWN = LIVE YELLOW AND GREEN = EARTH

If the colours of the wires in the power cable do not agree with the markings
on the plug.

• The BLUE wire must be

connected to the
terminal which is
marked N or coloured
black.

• The BROWN wire must

be connected to the
terminal which is
marked L or coloured
red.

• The YELLOW AND

GREEN wire must be
connected to the terminal which is marked E or or coloured green.

We strongly recommend that this product is connected to the mains supply
through a Residual Current Device (RCD)

If you are not sure, consult a qualified electrician.

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

4

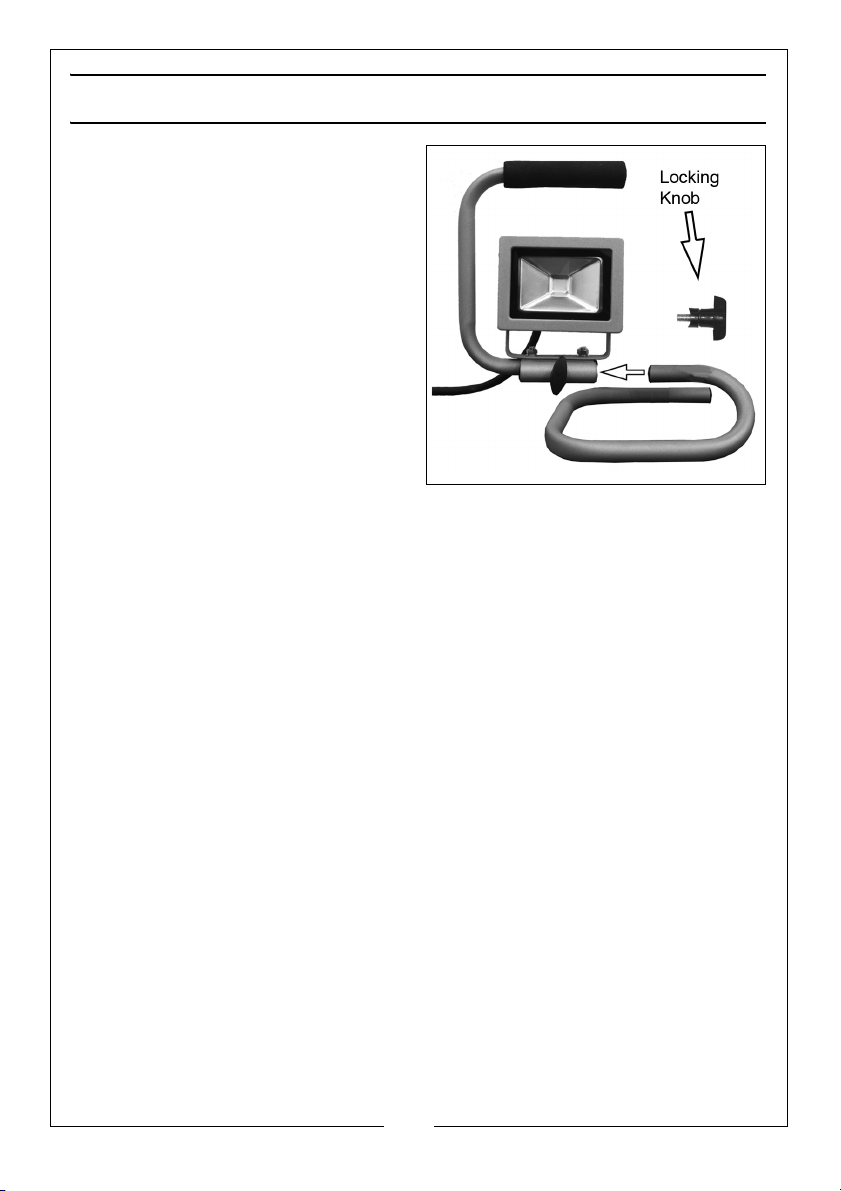

ASSEMBLY

The lamp is mounted on a carry
frame which is assembled as follows:

1. Remove the locking knob from
the base of the carry frame, then
insert the tubular base into the
frame attachment, as shown.

2. Line up the holes in the two
sections of the frame then
replace and tighten the locking
knob.

CARE & STORAGE

1. When not in use, switch off & unplug from the power supply.

2. Store this product in a secure, dry place, out of the reach of children. DO
NOT leave it exposed to the elements and avoid direct sunlight, direct
heat, rain/moisture etc.

3. Keep the external surfaces clean. Avoid impact damage & do not allow
this worklight to come into contact with abrasive or corrosive materials.

4. Do not use solvents, thinners or alcohol for cleaning, as these chemicals will
damage the finish. With the worklight unplugged from the power supply,
use a dry cloth to wipe over the components.

5. Only use extension leads that are of an appropriate power rating and
suitable for the work environment. Inspect the extension lead regularly and
replace if damaged.

6. The LED light source cannot be replaced but has a life expectancy of
approximately 20000 hours.

7. Never use unauthorized accessories or attachments which can cause
personal injury or damage to the worklight.

8. Do not attempt to repair or modify this product or attempt any electrical
repair yourself. Consult the Clarke Service Department on 020 8988 7400.

5

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

ERP TECHNICAL INFORMATION

Model COB10C

Part No 4003605

Model type L9601P

Dimensions (L x W x H) 180 x 156 x 250 mm

Weight 1.1 kg

Operating Temperature

-20oC to + 50oC

Light Source COB LED

Input power (LED Wattage consumption) 10W

Light Output (Luminous flux) 800 lumen @ 1m

Fuse Rating 3A

Power Supply 230V @50Hz

Insulation Class I

IP Rating IP65

Energy Efficiency Class A+

Colour Temperature 6500 K

Weighted Energy Consumption 10kWh /1000hr

Efficiency 80 Lm/W

Life expectancy of LED 20,000 hours

LED type Epistar LED chip

Tilt adjustment

-90

o

to +90

o

6

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

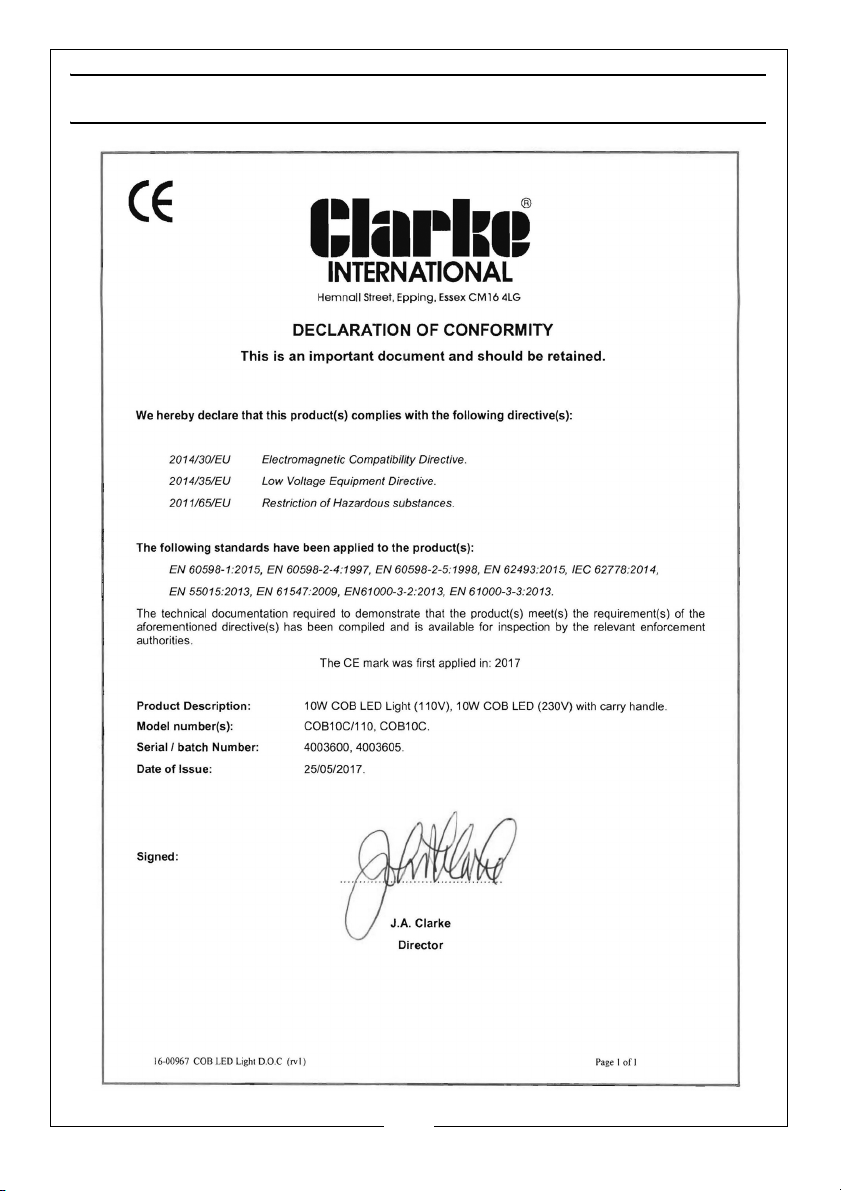

DECLARATION OF CONFORMITY
