PORTABLE WORK LIGHT
MODEL NO: CL6FS
PART NO: 4003530
OPERATION INSTRUCTIONS
GC0215
Page 2
INTRODUCTION
Thank you for purchasing this CLARKE Worklight.
Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission. This guarantee does not effect your
statutory rights.
SPECIFICATIONS
CL6FS
Voltage 230V -50Hz
Wattage 6W
Range of tilt 55-120 degrees
Weight 1.5 kg
Dimensions (L x W x H) 210 x 230 x 320 mm
Light Output (Lumens) 500
Efficiency 80 lm/w
Weighted Energy Consumption 6kWh/1000h
Energy Efficiency Class A++, A+,A
LED life expectancy 50,000 hours
Waterproof protection grade IP44 (splashproof)
Lens material Tempered Glass
2
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 3
SAFETY PRECAUTIONS
1. Do not use this worklight in hazardous locations, such as flammable or
explosive environments.
2. If used with an extension cable always ensure that the extension cable is
fully unwound.
3. Check that the power supply is compatable with the worklight as
indicated on the label. We recommend that a Residual Current Device
(RCD) is used in conjunction with this product.
4. Do not use this worklight if it has a broken lens, casing or damaged supply
cable. Have parts replaced by a qualified electrician.
5. Always ensure trailing cables do not cause a risk of tripping etc or pass over
sharp edges/objects.
6. Before moving your worklight or replacing a broken part, always ensure
that the power supply is disconnected at the mains.
7. Do not look directly into the lamp when switched on as this can damage
the eyes.
8. This unit must not be immersed in water.
9. Do not move your worklight or replace lamps or broken parts with wet
hands, or when standing on a wet or damp surface or in water. Always
ensure the power supply is disconnected at the mains.
10. Please read all of the safety and operating instructions carefully before
using this product. The following safety symbols may be found on the
product.
Read this instruction
booklet carefully
before use.
Always replace broken
glass.
3
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 4

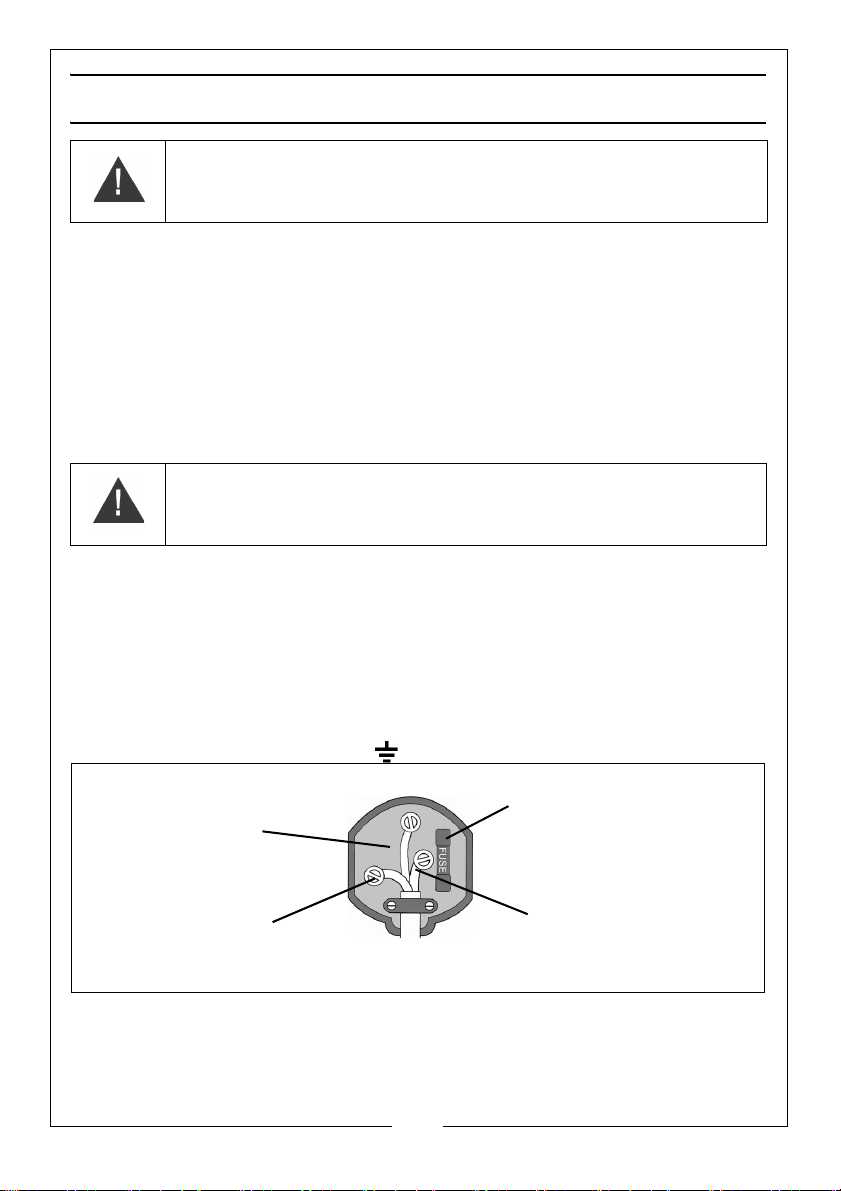

ELECTRICAL CONNECTIONS
Plug must be BS1363/A approved.
Always fit a 13 Amp fuse.
Ensure that the outer sheath of the cable is firmly held by the clamp
Neutral
(Blue)
Live
(Brown)
Earth
(Green and Yellow)
WARNING! Read these electrical safety instructions thoroughly
before connecting the product to the mains supply.
Before switching the product on, make sure that the voltage of your electricity supply is
the same as that indicated on the rating plate. This product is designed to operate on
230VAC 50Hz. Connecting it to any other power source may cause damage.
This product may be fitted with a non-rewireable plug. If it is necessary to change the
fuse in the plug, the fuse cover must be refitted. If the fuse cover becomes lost or
damaged, the plug must not be used until a suitable replacement is obtained.
If the plug has to be changed because it is not suitable for your socket, or due to
damage, it should be cut off and a replacement fitted, following the wiring instructions
shown below. The old plug must be disposed of safely, as insertion into a mains socket
could cause an electrical hazard
WARNING! The wires in the power cable of this product are
coloured in accordance with the following code:
Blue = Neutral Brown = Live Yellow and Green = Earth
If the colours of the wires in the power cable of this product do not correspond with the
markings on the terminals of your plug, proceed as follows.
• The wire which is coloured Blue must be connected to the terminal which is
marked N or coloured Black.
• The wire which is coloured Brown must be connected to the terminal which
is marked L or coloured Red.
• The wire which is coloured Yellow and Green must be connected to the
terminal which is marked E or or coloured Green.
.
We strongly recommend that this machine is connected to the mains supply
via a Residual Current Device (RCD)
If in any doubt, consult a qualified electrician. DO NOT attempt any repairs
yourself.
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
4
Page 5

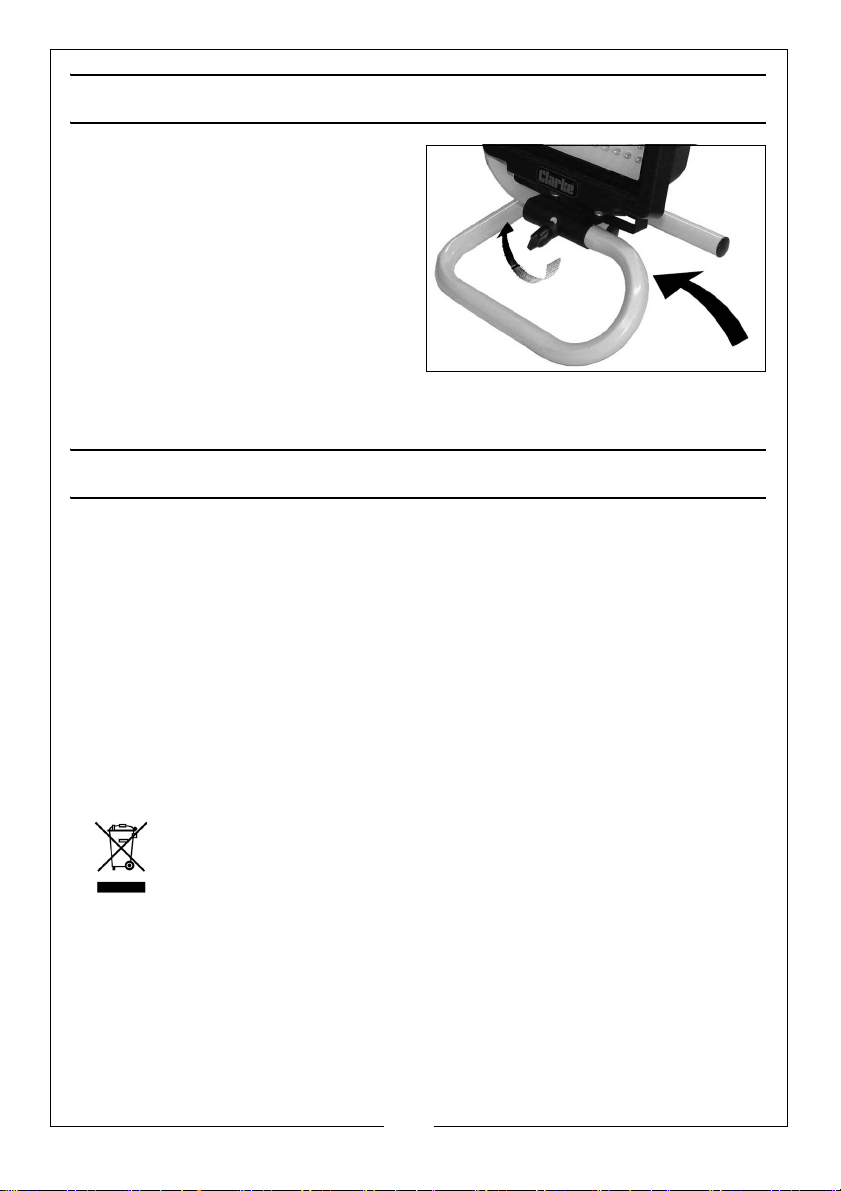

ASSEMBLY INSTRUCTIONS
The worklight is supplied within a carry
frame, which is assembled as follows:
Remove the locking screw from the
base of the carry frame, then insert
the tubular base into the frame
attachment, as shown.
Line up the holes in the two sections of
the frame then replace and tighten
the fixing screw.
Use the fixing screw to adjust the
angle of the worklight as required.
PARTS REPLACEMENT
Clean the lens at regular intervals using a non-abrasive glass cleaner.
Immediately replace a cracked or broken protective glass. Always use original
parts for this which can be purchased from your Clarke Spares Department.
There are no other user serviceable parts inside the light. DO NOT disassemble
the unit.
When re-assembling the lens assembly, ensuring the screws line up with the
screw holes in the back of the lens, and gently tighten all screws. DO NOT
force or overtighten. If the screws do not go back easily, remove and recheck
the alignment.
ENVIRONMENTAL RECYCLING POLICY
Through purchase of this product, the customer is taking on the
obligation to deal with the WEEE in accordance with the WEEE
regulations in relation to the treatment, recycling & recovery and
environmentally sound disposal of the WEEE.
In effect, this means that this product must not be disposed of with general
household waste. It must be disposed of according to the laws governing
Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal
facility.
5
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 6

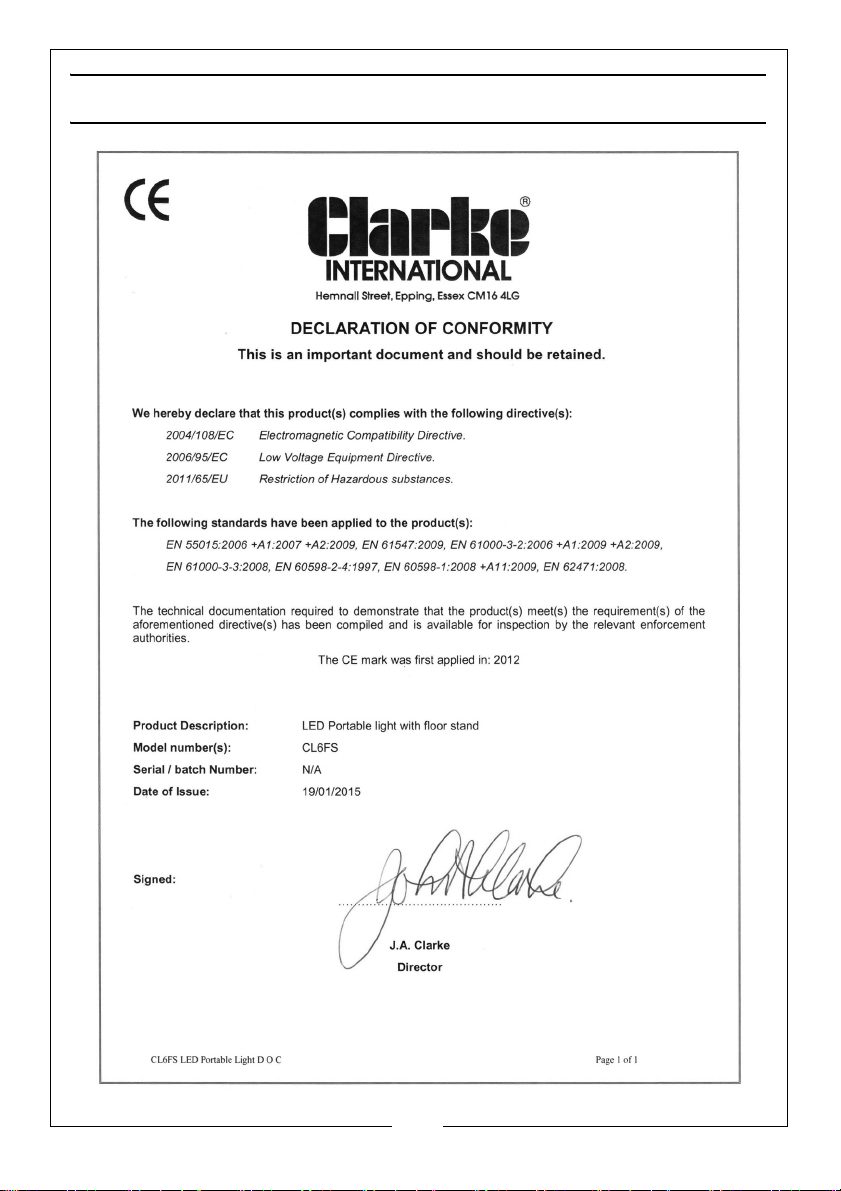

DECLARATION OF CONFORMITY
6
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 7
NOTES
_____________________________________________________________________________
_____________________________________________________________________________
_____________________________________________________________________________
_____________________________________________________________________________
_____________________________________________________________________________
_____________________________________________________________________________
_____________________________________________________________________________
_____________________________________________________________________________
_____________________________________________________________________________
_____________________________________________________________________________
_____________________________________________________________________________
_____________________________________________________________________________
_____________________________________________________________________________
_____________________________________________________________________________
7
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 8
_____________________________________________________________________________
