Page 1
RECHARGABLE WORKLIGHT
MODEL NO: RWL36LI
PART NO: 4003050
INSTRUCTIONS FOR USE
GC1114
Page 2
INTRODUCTION
Thank you for purchasing this CLARKE Worklight. Before attempting to use this
product, please read this manual thoroughly and follow the instructions
carefully. In doing so you will ensure the safety of yourself and that of others
around you, and you can look forward to your purchase giving you long and
satisfactory service.
CONTENTS
1 x 36 LED Worklight
1 x AC Mains Charging Adaptor
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for its intended purpose.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does not effect your statutory rights.
ENVIRONMENTAL RECYCLING POLICY
Through purchase of this product, the customer is taking on the
obligation to deal with the WEEE in accordance with the WEEE
regulations in relation to the treatment, recycling & recovery and
environmentally sound disposal of the WEEE.
In effect, this means that this product must not be disposed of with general
household waste but according to the laws governing Waste Electrical and
Electronic Equipment (WEEE) at a recognised disposal facility.
2
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 3
TECHNICAL SPECIFICATION
Dimensions 250 x 60 x 60 mm
Weight 0.5 kg
Power Source 2 x Li-ion battery (7.4 V in total)
Waterproof No
Shock Resistant No
Rechargable Yes
Power adaptor
Input
Output
Insulation Class II
Maximum Brightness 1600 lux
Charge Time 4.5 hours (nominal)
Approximate use from each charge 4 hours (single side)
AC:100-240V/0.3A 50/60Hz
DC: 12V/500mA
2 hours (double side)
OTHER WORKLIGHTS WITHIN THE CLARKE RANGE
3
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 4
SAFETY PRECAUTIONS
Please read and understand the following instructions before use.
1. Do not shine the worklight into the eyes.
2. Ensure the worklight is fully charged before initial use.
3. Do not use the worklight during recharging.
4. Do not use the worklight if you suspect that the battery or the casing is
damaged.
5. Inspect the charger plug, cable and connector for damage to ensure
items are safe before connecting to the mains power supply. If damaged
do not use.
6. Check that the input voltage marked on the charger plug is the same as
the mains power supply to be used.
7. Do not disassemble the worklight for any reason.
8. Do not leave the battery in a discharged state, recharge the battery after
use.
9. Do not pull the charger from the mains socket by the lead.
10. Do not get the charger wet, or use in wet, damp conditions (the charger is
for indoor use only).
11. Never use any charger other than the one supplied with this product when
connecting to the power supply.
THE FOLLOWING SAFETY SYMBOLS ARE SHOWN ON THE PRODUCT.
Read this instruction
booklet carefully
before use.
Do not immerse in
water.
4
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Suitable for indoor use
only.
Class II equipment with
no earth connection
Page 5
BATTERY CHARGING
1. Connect the AC charging
adaptor to the charging jack on
the worklight.
2. Connect the other end of the
charger to the 230V mains power
supply and charge until fully
charged.
• The LED will illuminate in red
when the lamp is charging.
• The LED will illuminate in green
when charging is complete.
• The worklight should not be
operated while using the
charger.
3. The battery must be re-charged
at least every 3 months. Failure to
re-charge the battery will lead to
reduced performance of the
worklight and to premature
battery failure.
NOTE: the batteries cannot be
replaced.
4. If you plan to store the worklight (e.g. for emergencies), we recommend
that the battery is fully charged before doing so, this will ensure the longest
possible battery life.
5. Never abuse the charger cable or yank the cable to disconnect it. Keep
the cable away from sharp edges/hot surfaces.
5
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 6
OPERATION
1. Press the red button once to
switch on one side of the
worklight.
2. Press the red button a second
time to switch on the other side.
3. Press the red button a third time to
switch on both sides of the
worklight together.
4. Press the red button again to
switch the worklight off.
5. Press and hold the red button at
any time to make both sides of
the light flash. Press and hold
again to stop the flashing.
6. Press the black button at any time
to temporally switch the active
lamp off.
7. Never shine the light directly into
the eyes.
• Up to 4 hours of light can be
obtained before the batteries
are drained.
NOTE: when the battery is almost depleted, the LED will illuminate in red
for approximately 30 minutes before the worklight turns off.
8. Attach the worklight to a suitable support using either the folding or
extending hook or attach to a ferrous metal surface using the magnetic
retainer.
• To keep your worklight clean, wipe with a damp cloth only, DO NOT
use detergents, chemicals or harmful abrasives. Never immerse in
water.
6
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 7

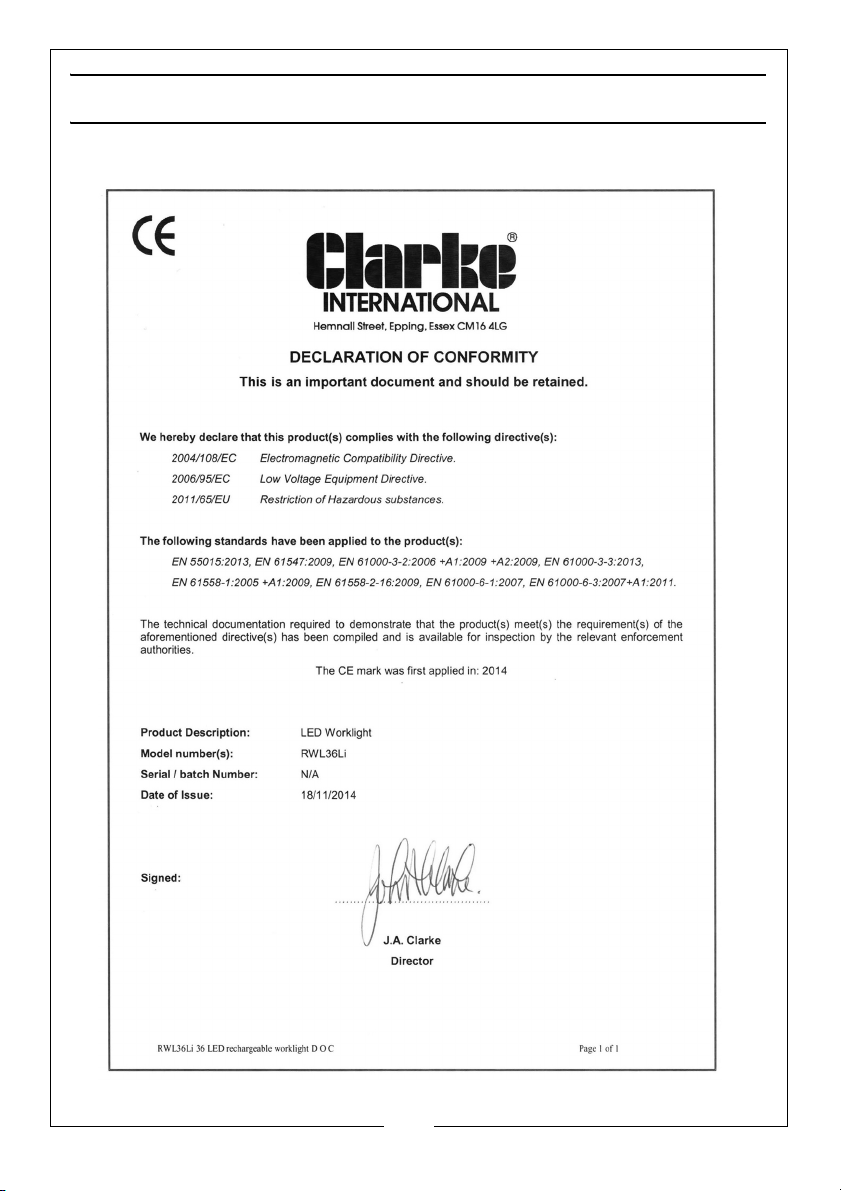

DECLARATION OF CONFORMITY
7
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
