Clarke ETC 8, 3400515 User guide

ELECTRIC TILE CUTTER

MODEL NO: ETC8

PART NO: 3400515

OPERATION & MAINTENANCE

INSTRUCTIONS

ORIGINAL INSTRUCTIONS GC0322 - REV 3

INTRODUCTION

Thank you for purchasing this CLARKE Electric tile cutter.

Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt as proof of
purchase.

This guarantee is invalid if the product is found to have been abused,
tampered with, or not used for the purpose for which it was intended. Faulty
goods must be returned to their place of purchase, no product can be
returned to us without prior permission.

This guarantee does not effect your statutory rights.

SPECIFICATIONS

Motor 230V, 50 Hz 1ph

Power Rating 450 Watts

Speed 2990 RPM

Ingress protection rating IP44

Weight (net) 7.9 kg

Cutting Angle 0 - 45 degrees

O

Cutting Depth at 90

Cutting Depth at 45

Cutting Disc Diameter 180 mm

Cutting Disc Bore 22.2 mm

Sound Power Level 105 Lw(A)

Sound Pressure Level 92 dB(A)

Table Dimensions 330 x 360 mm

O

35 mm

22 mm

2

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

GENERAL POWER TOOL SAFETY WARNINGS

WARNING: READ ALL INSTRUCTIONS. FAILURE TO FOLLOW ALL
INSTRUCTIONS LISTED BELOW MAY RESULT IN ELECTRIC SHOCK, FIRE AND/
OR SERIOUS INJURY. THE TERM “POWER TOOL” IN THE WARNINGS REFERS
TO YOUR SAW.

1) WORK AREA SAFETY

1. Keep work area clean and well lit. Cluttered or dark areas invite accidents.

2. Do not operate power tools in explosive atmospheres, such as in the

presence of flammable liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.

3. Keep children and bystanders away while operating a power tool.

Distractions can cause you to lose control.

2) ELECTRICAL SAFETY

1. Power tool plugs must match the outlet. Never modify the plug in any way.
Do not use any adapter plugs with earthed (grounded) power tools.

Unmodified plugs and matching outlets will reduce risk of electric shock.

2. Avoid body contact with earthed or grounded surfaces, such as pipes,
radiators, ranges and refrigerators. There is an increased risk of electric

shock if your body is earthed or grounded.

3. Do not expose power tools to rain or wet conditions. Water entering a
power tool will increase the risk of electric shock.

4. Do not abuse the cable. Never use the cable for carrying, pulling or
unplugging the power tool. Keep cable away from heat, oil, sharp edges or
moving parts. Damaged or entangled cables increase the risk of electric

shock.

5. When operating a power tool outdoors, use an extension cable suitable for
outdoor use. Use of a cable suitable for outdoor use reduces the risk of

electric shock.

6. If operating a power tool in a damp location is unavoidable, use a residual
current device (RCD) protected supply. Use of an RCD reduces the risk of

electric shock.

3) PERSONAL SAFETY

1. Stay alert, watch what you are doing and use common sense when
operating a power tool. Do not use a power tool while you are tired or

3

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

under the influence of drugs, alcohol or medication. A moment of
inattention while operating power tools may result in serious personal injury.

2. Use personal protective equipment. Always wear eye protection.

Protective equipment such as dust mask, gloves, non-skid safety shoes,
hard hat, protective apron and hearing protection used for appropriate
conditions will reduce personal injuries.

3. Prevent unintentional starting. Ensure the switch is in the off-position before

connecting to power source and/or battery pack, picking up or carrying
the tool. Carrying power tools with your finger on the switch or energising

power tools that have the switch on invites accidents.

4. Remove any adjusting key or wrench before turning the power tool on. A

wrench or a key left attached to a rotating part of the power tool may
result in personal injury.

5. Do not overreach. Keep proper footing and balance at all times. This
enables better control of the power tool in unexpected situations.

6. Dress properly. Do not wear loose clothing or jewellery. Keep your hair,
clothing and gloves away from moving parts. Loose clothes, jewellery or

long hair can be caught in moving parts.

7. If devices are provided for the connection of dust extraction and collection
facilities, ensure these are connected and properly used. Use of dust

collection can reduce dust-related hazards.

8. Power tool use and care

9. Do not force the power tool. Use the correct power tool for your

application. The correct power tool will do the job better and safer at the
rate for which it was designed.

10. Do not use the tool if the switch does not turn it on and off. A power tool
that cannot be controlled by the switch is dangerous & must be repaired.

11. Disconnect the plug from the power source and/or the battery pack from
the power tool before making any adjustments, changing accessories, or
storing power tools. Such preventive safety measures reduce the risk of

starting the power tool accidentally.

12. Maintain power tools. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may affect the power tool's
operation. If damaged, have the power tool repaired before use. Many

accidents are caused by poorly maintained power tools.

13. Store idle power tools out of the reach of children and do not allow persons
unfamiliar with the power tool or these instructions to operate the tool.

Power tools are dangerous in the hands of untrained users.

14. Keep cutting tools sharp and clean. Properly maintained cutting tools with
sharp cutting edges are less likely to bind and are easier to control.

4

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

15. Use the power tool, accessories and tool bits etc. in accordance with these

instructions, taking into account the working conditions and the work to be
performed. Use of the power tool for operations different from those

intended could result in a hazardous situation.

5) SERVICING

1. Have your power tool serviced by a qualified repair person using only

identical replacement parts. This will ensure that the safety of the power

tool is maintained.

6) ADDITIONAL WARNINGS FOR TILE CUTTERS

1. Ensure that the directional arrow marked on the disc corresponds with the
rotational direction of the motor.

2. With the machine disconnected from the power supply, rotate the disc by
hand to ensure it is free from obstruction.

3. Always keep the disc securing arbor and collars clean.

4. Never try to cut freehand. Always ensure that the tile to be cut is pressed
firmly against the parallel side fence.

5. Ensure that the work piece to be cut off has sufficient room to move
sideways. Failure to do so may result in the off cut binding against the disc.

6. Never cut more than one tile at a time.

7. Never cut pieces too small to be held securely against the fence without
leaving enough space for the hand to be a safe distance from the disc.

8. Ensure that the table and surrounding area are clear with the exception of
the tile to be cut.

9. Never fit sub-standard discs to the machine. Only fit correctly sized
diamond discs.

10. Before cutting a tile piece, let the saw disc run freely for a few seconds. If it
makes an unfamiliar sound or vibrates excessively, switch it off immediately
and disconnect from the power supply. Investigate the cause or consult a
qualified person for advice.

11. Let the disc reach full speed before commencing the cut.

12. Do not force the disc to cut the tile.

13. Let the disc come to a complete stop before removing any jammed or off
cut material from around the disc area.

14. Always use the appropriate safety equipment that is required for the
product. E.g. goggles / safety spectacles, ear defenders (essential with
tools with a noise rating of over 85 dbA), gloves and face masks. In all
cases ensure that the safety equipment is in good condition.

5

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

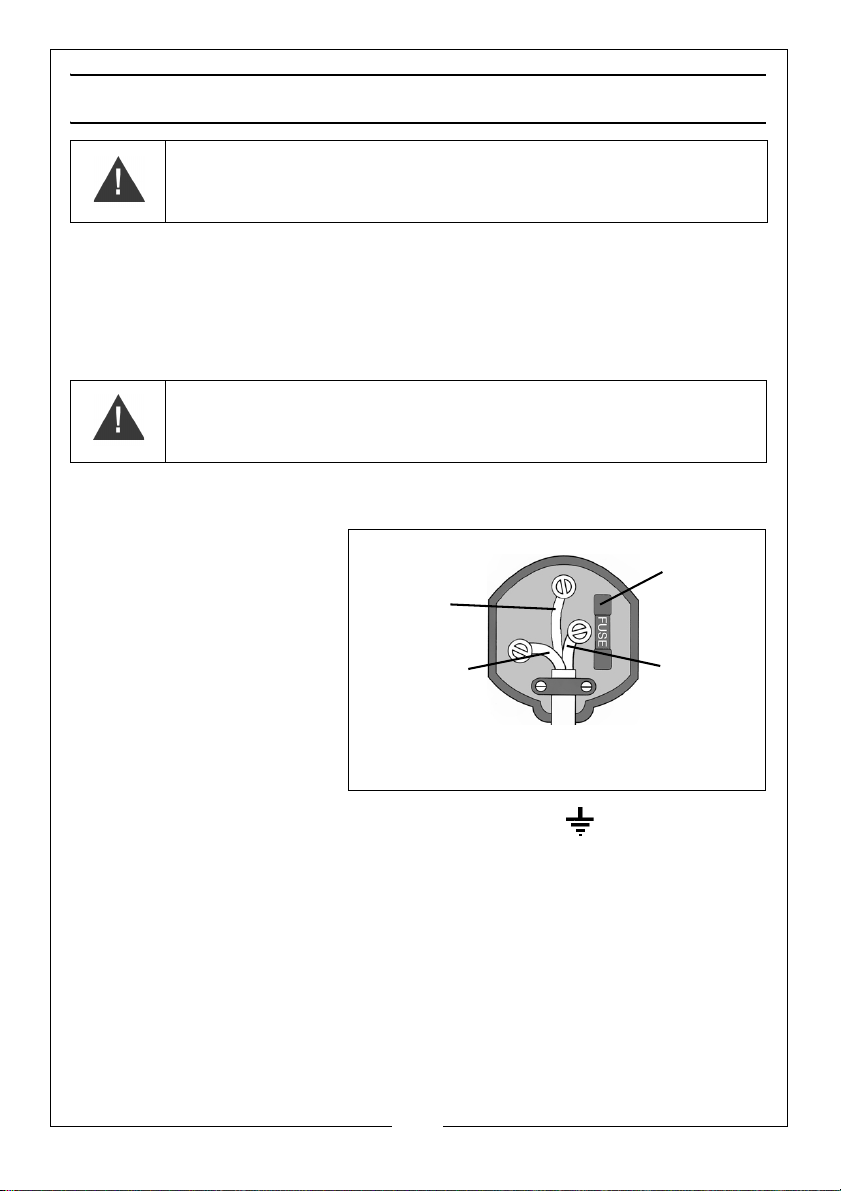

ELECTRICAL CONNECTIONS

Plug must be BS1363/A approved.

Always fit

Ensure that the outer sheath of

Neutral

(Blue)

Live

(Brown)

Earth

(Green and

a 5 Amp

the cable is firmly held by the clamp

fuse.

Yel low )

WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS
THOROUGHLY BEFORE CONNECTING THE HEATER TO THE MAINS
SUPPLY.

Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply
through an approved 13 amp BS 1363 plug, or a suitably fused isolator switch.

If the plug has to be changed because it is not suitable for your socket, or
because of damage, it must be removed and a replacement fitted, following
the wiring instructions shown below. The old plug must be discarded safely, as
insertion into a power socket could cause an electrical hazard.

WARNING: THE WIRES IN THE POWER CABLE OF THIS PRODUCT ARE
COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:
BLUE = NEUTRAL BROWN = LIVE YELLOW AND GREEN = EARTH

If the colours of the wires in the power cable do not agree with the markings
on the plug:

• The BLUE wire must be
connected to the
terminal which is
marked N or coloured
black.

• The BROWN wire must
be connected to the
terminal which is
marked L or coloured
red.

• The YELLOW AND
GREEN wire must be
connected to the terminal which is marked E or or coloured green.

We strongly recommend that this machine is connected to the mains supply
through a Residual Current Circuit Breaker (RCCB).

If you are not sure, consult a qualified electrician.

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

6

ASSEMBLY

WARNING: BEFORE USING YOUR TILE CUTTER BE SURE TO READ THE
INSTRUCTION MANUAL CAREFULLY.

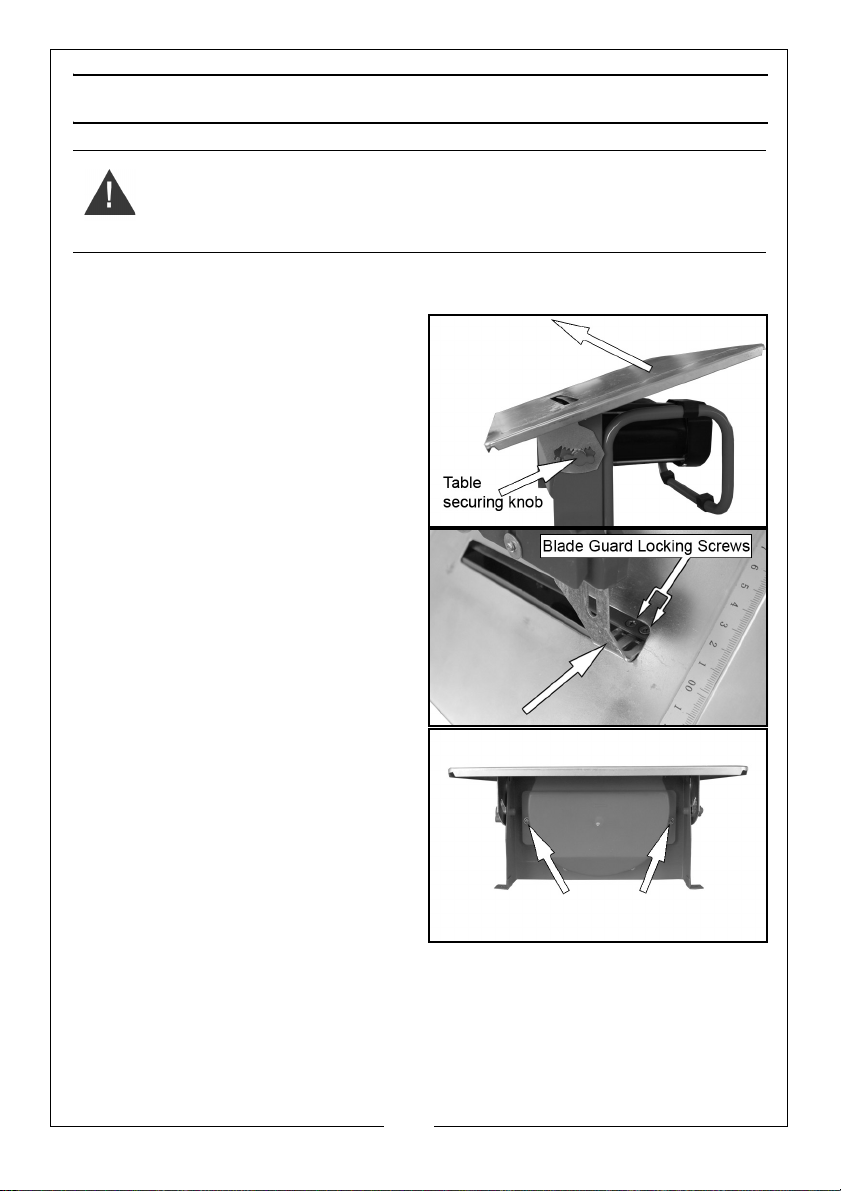

FITTING THE BLADE GUARD

1. Loosen the two table securing
knobs (Front and rear of the unit).

2. Tilt the table.

3. Slide the blade guard into position
as shown and secure using the
blade guard locking screws.

• The guard is held in position

between the frame and a small
bracket beneath.

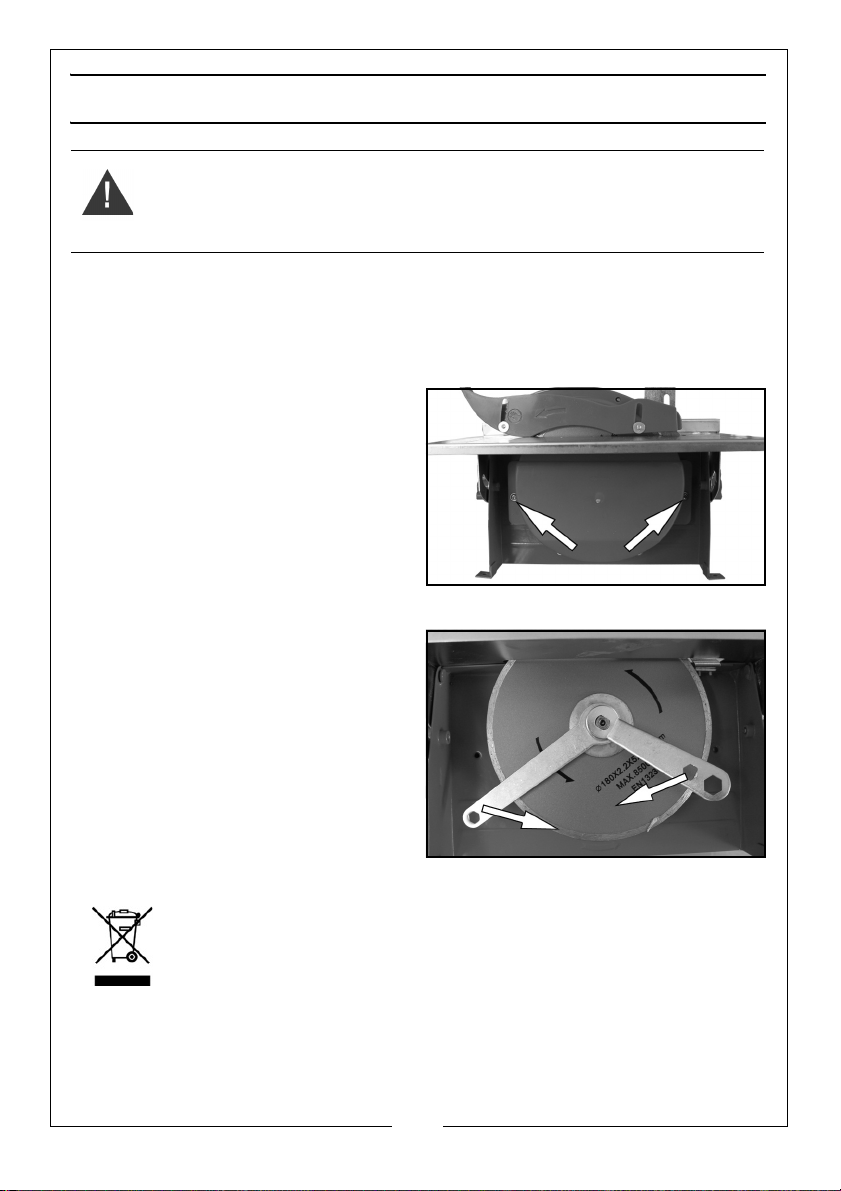

FITTING THE BLADE

1. Remove the disc cover by
loosening the two screws shown.

2. Loosen and remove the disc fixing
nut. Using the two spanners
supplied.

3. Remove the outer flange.

4. Mount the disc on the arbor and
replace the outer flange. Turn the
disc 360 degrees to make sure it
matches with the flange properly.

• The direction arrow on the disc should point in the same direction as the

marking on the side of the disc guard.

5. Fully tighten the disc fixing nut and replace the disc cover.

7

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

OPERATION

WARNING: BEFORE USING YOUR TILE CUTTER BE SURE TO READ THE
INSTRUCTION MANUAL CAREFULLY.

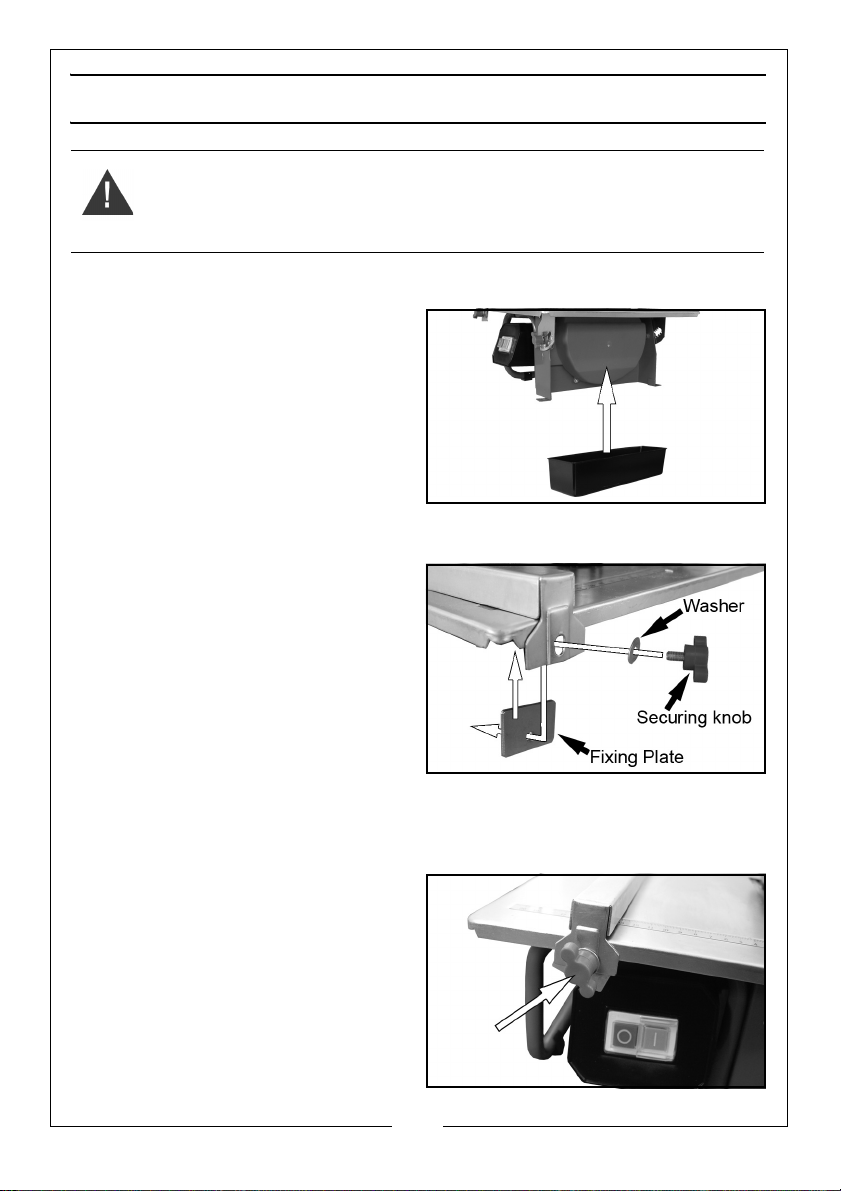

THE WATER

Position the tray as shown and fill 3/4
full with water.

• Do not add chemicals or
detergents to the water.

• Always maintain this level (3/4
full) to ensure that there is
sufficient water in the tray for
dust suppression and cooling.

FITTING THE PARALLEL GUIDE

1. Position the parallel guide on the
work table as shown.

2. Align the hole in the fixing plate
with the hole in the end of the
parallel guide.

• The fixing plate should be fitted

on the inside surface of the
work table edges.

3. Attach it with the washer and
securing knob provided, repeat on the other end of the parallel guide.

ADJUSTING THE PARALLEL GUIDE

1. Loosen the two securing knobs
provided.

2. Adjust the parallel guide to the
desired position using the scales
on the table.

3. Re-tighten the two securing knobs.

8

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

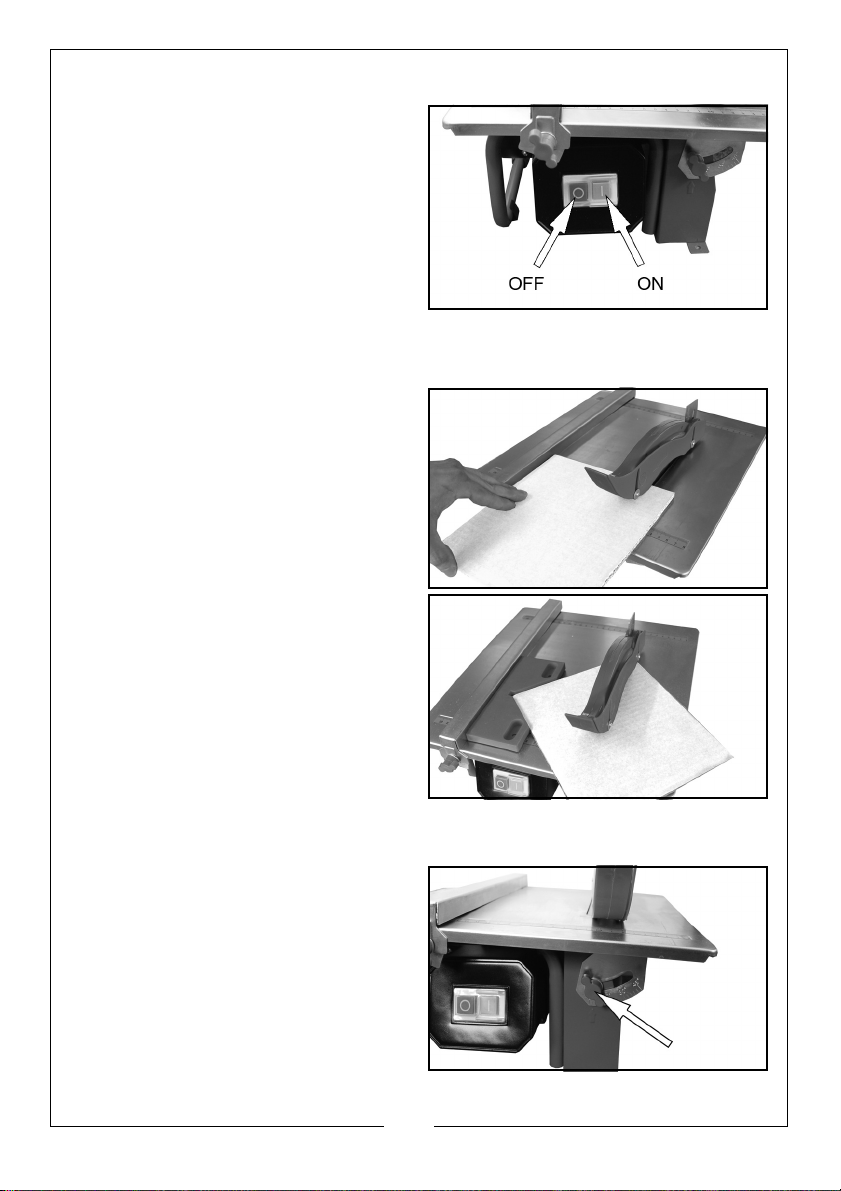

STARTING AND STOPPING

Press the ON Button (marked “I“) to
start the tile cutter.

• Allow the tile cutter to reach full
speed before cutting any tiles.

Press the OFF Button (marked “O“) to
stop the tile cutter.

NOTE: The disc will continue to

rotate for some time after
switching off.

MAKING A STRAIGHT CUT

Position the tile firmly against the
parallel guide and push the tile slowly
past the disc.

• Do not try to force the tile past
the disc too quickly.

MAKING A MITRE CUT

Follow the same procedure as for a
straight cut but use the mitre guide in
conjunction with the parallel guide.

• The mitre guide simply runs up
against the edge of the parallel
guide as shown.

• Ensure that the tile is held firmly
into the guide before making
the cut.

CUTTING WITH THE TABLE AT AN ANGLE

Use this facility if you wish to cut at an
angle.

1. Loosen the two table securing
knobs (one at each side of table).

2. Tilt the table to the desired angle
using the scale under the table.

3. Re-secure the table and make the
cut as before.

9

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

CHANGING THE CUTTING DISC

WARNING: BEFORE STARTING ANY CLEANING OR MAINTENANCE
PROCEDURES, DISCONNECT THE PLUG FROM MAINS SUPPLY.

• Replacement discs are available from your Clarke dealer.

• Only use discs with a diameter of 180 mm.

• The replacement discs speed rating must meet or exceed the RPM
rating of the tile cutter.

1. Remove the water tray.

2. Remove the disc cover by
loosening the two screws shown.

3. Loosen and remove the disc fixing
nut. Using the two spanners
supplied.

4. Remove the outer flange and the
disc, clean any dust and debris
from the arbor and disc securing flange.

5. Mount the disc on the arbor and
replace the outer flange. Turn the
disc 360 degrees to make sure it
matches with the flange properly.

• The direction arrow on the disc

should point in the same
direction as the marking on the
side of the disc guard.

6. Fully tighten the disc fixing nut.

ENVIRONMENTAL RECYCLING POLICY

By purchasing this product, the customer is taking on the obligation
to deal with its safe disposal in accordance with the Waste Electrical
and Electronic Equipment (WEEE).

This product must not be disposed of with general household waste
but be disposed of according to the laws governing Waste Electrical and
Electronic Equipment (WEEE) at a recognised disposal facility.

This product contains valuable raw materials. Metal products should be taken
to your local civic amenity site for recycling.

10

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

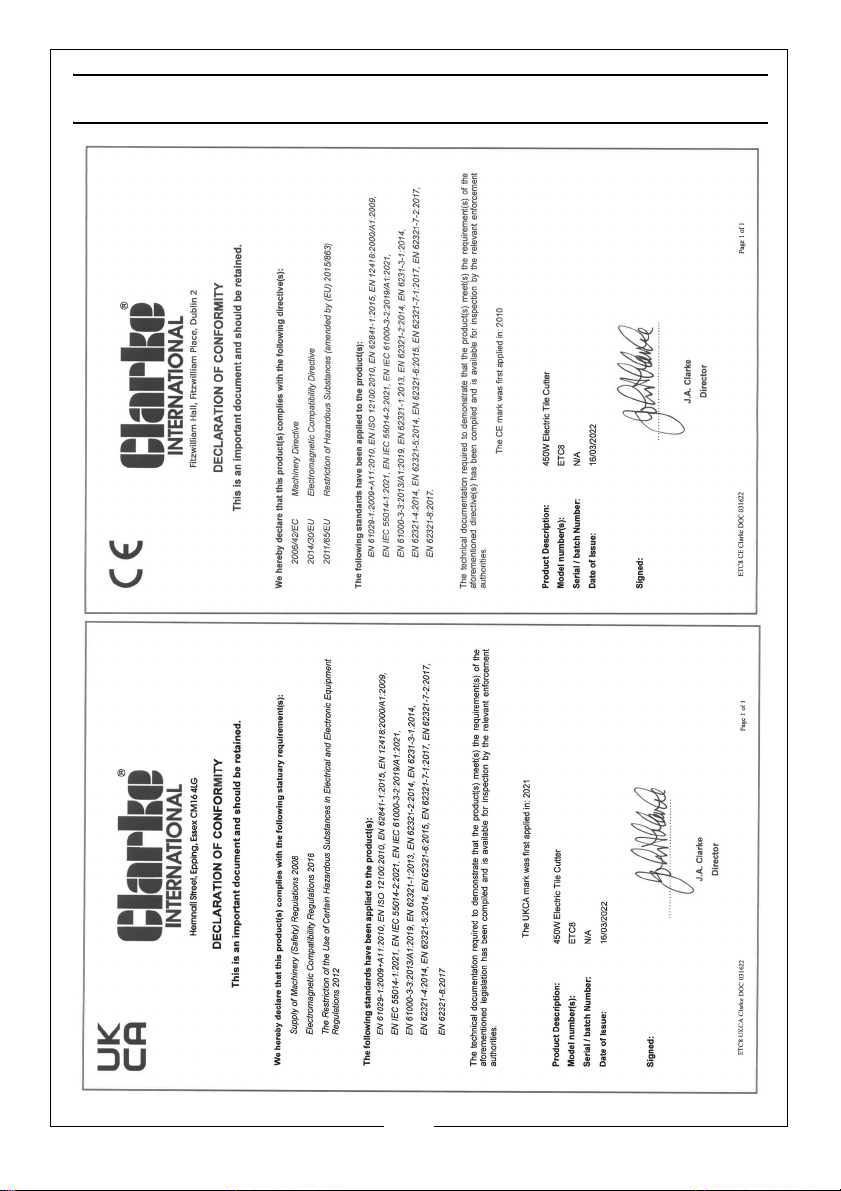

DECLARATIONS OF CONFORMITY

11

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
