30 INCH DRUM FAN
MODEL NO: CAM6000
PART NO: 3231555
OPERATION & MAINTENANCE
INSTRUCTIONS
GC1118 - ISS 5
Page 2
Thank you for purchasing this CLARKE 30 inch Drum Fan.
Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt which will be required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or tampered with in any way, or not used for the purpose for which it was intended.
Faulty goods should be returned to their place of purchase, no product can be returned to us without prior permission.
This guarantee does not effect your statutory rights.

ENVIRONMENTAL RECYCLING POLICY

Through purchase of this product, the customer is taking on the obligation to deal with the WEEE in accordance with the WEEE regulations in relation to the treatment, recycling & recovery and environmentally sound disposal of the WEEE.
In effect, this means that this product must not be disposed of with general household waste. It must be disposed of according to the laws governing Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal facility.
If disposing of this product or any damaged components, do not dispose of with general waste. This product contains valuable raw materials. Metal products should be taken to your local civic amenity site for recycling of metal products.
2
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 3

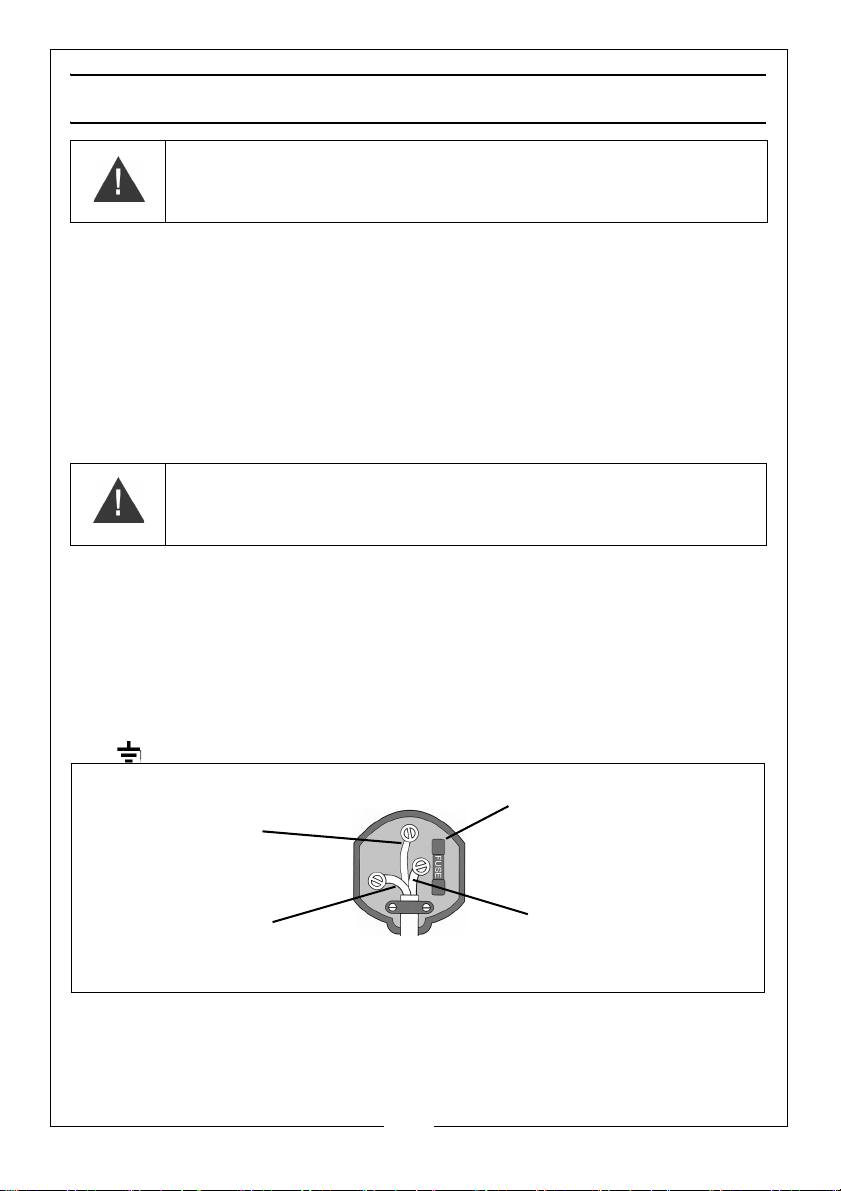

ELECTRICAL CONNECTIONS

Plug must be BS1363/A approved.
Always fit a 13 Amp fuse.
Ensure that the outer sheath of the cable is firmly held by the clamp
Neutral
(Blue)
Live
(Brown)
Earth
(Green and Yellow)
WARNING! Read these electrical safety instructions thoroughly before connecting the product to the mains supply.
Before switching the product on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate. This product is designed to operate on 230VAC 50Hz. Connecting it to any other power source may cause damage.
This product may be fitted with a non-rewireable plug. If it is necessary to change the fuse in the plug, the fuse cover must be refitted. If the fuse cover becomes lost or damaged, the plug must not be used until a suitable replacement is obtained.
If the plug has to be changed because it is not suitable for your socket, or due to damage, it should be cut off and a replacement fitted, following the wiring instructions shown below. The old plug must be disposed of safely, as insertion into a mains socket could cause an electrical hazard
WARNING! The wires in the power cable of this product are coloured in accordance with the following code: Blue = Neutral Brown = Live Yellow and Green = Earth
If the colours of the wires in the power cable of this product do not correspond with the markings on the terminals of your plug, proceed as follows.
•The Blue wire must be connected to the terminal marked N or coloured Black.
•The Brown wire must be connected to the terminal marked L or coloured Red.
•The Yellow and Green wire must be connected to the terminal marked E or
or coloured Green.
.
We strongly recommend that this machine is connected to the mains supply via a Residual Current Device (RCD)
If in any doubt, consult a qualified electrician. DO NOT attempt any repairs yourself.
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
3
Page 4

SAFETY PRECAUTIONS

• DO NOT use in dusty environments.
• Indoor use only.
• DO NOT use in environments with high fumes from chemicals etc.
• DO NOT use as an extractor fan.
• DO NOT use in areas of high humidity/water vapour, e.g. bathrooms.
• DO NOT connect fan to a ducting system.
• DO NOT cover the fan with any material that will restrict free airflow.
• Never touch the blades with your hand or any other object.

CONTENTS

Before commencing assembly, check for damage and or shortages etc, any damage or shortage should be reported to your Clarke dealer where the fan was originally purchased.
1 x Fan Assembly 2 x Rubber Feet With Mounting Brackets
2 x Moulded Wheels 1 x Handle

ASSEMBLY & OPERATION

Some assembly is required before using the fan. Refer to parts diagram on p6.
1. Fit handle (item 13) to the fan housing (item 11) using 2 x screws (item 12).
2. Fit both wheels (item 22) to the frame using 2 x shoulder screws (item 20) and washers (item 21).
3. Fit feet brackets x 2, (item 26) using 4 x screws (item 27) and 4x washers (item 28).
4. Fit both feet (item 25) onto the brackets using 2 x screws (item 27) and 2x washers (item 28).
5. Plug in and switch on; adjust the fan speed to suit.

TILTING THE FAN

You can adjust the angle of the fan by holding the base and grill and tilting the fan to the required angle.
4
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 5

ADJUSTING THE SPEED

WARNING: NEVER OPERATE THE FAN WITH EITHER FRONT OR REAR
GRILLS REMOVED.
Plug in the power cable to an appropriate power outlet and select the desired speed using the selector switch 0/1/2/3.
0Off
1Low speed
2 Medium speed
3 High speed

MAINTENANCE

• Always observe the safety precautions and remove the plug from
the power outlet before cleaning.
• Use a moist cloth and if required, a mild detergent to clean the
surfaces of the fan. Do not use solvents or thinners.
• The motor bearings are permanently sealed and do not require any
additional lubrication.
• Store the fan in a cool and dry place.
• Spare parts may be ordered with the prefix OT6000/number on p6.

SPECIFICATIONS

Voltage: 230 VAC (50Hz)
Wattage: 350 W
Fan Speeds Setting 1 670 RPM
Setting 2 820 RPM
Setting 3 935 RPM
Dimensions (D x W x H): 900 x 330 x 990 mm
Weight: 27.5 kg
Thermal Cut-out Yes
IP (ingress protection) IP20
Duty Cycle Classification S1 (continuous)
5
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 6

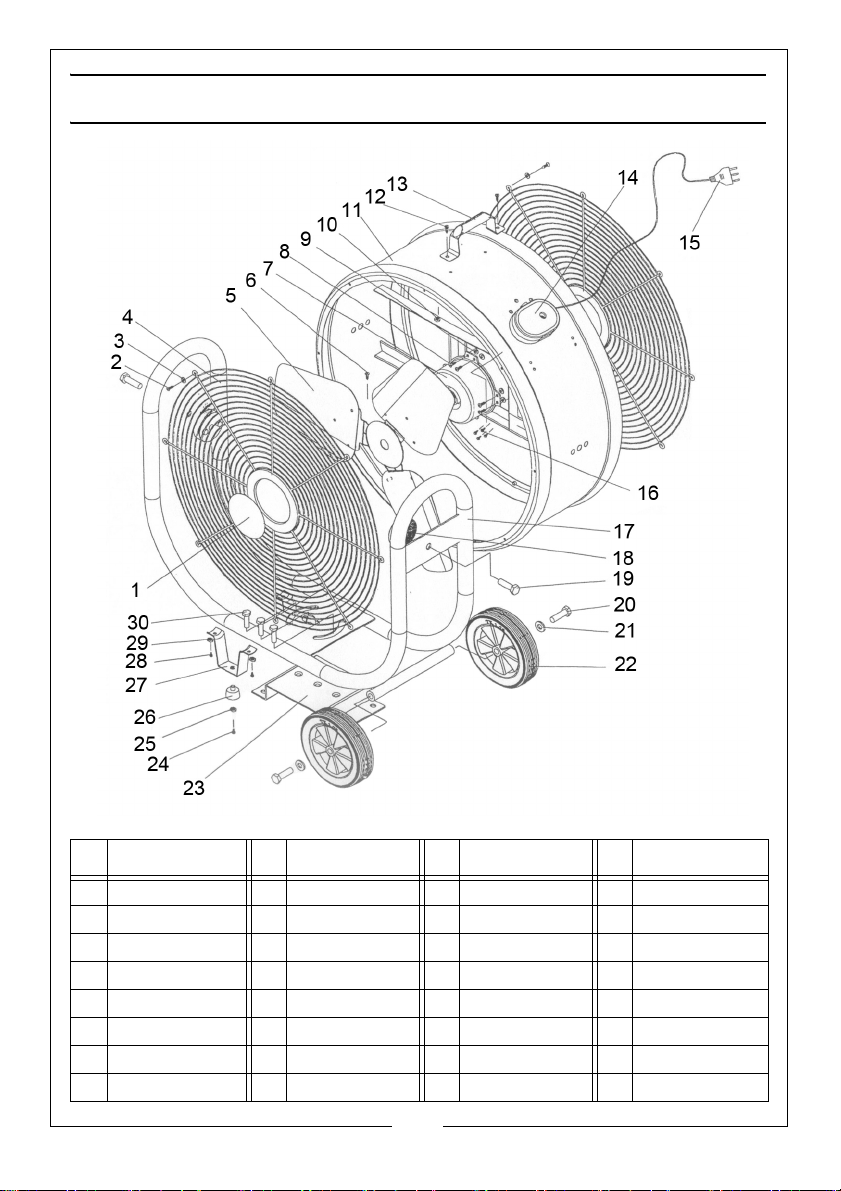

PART LIST AND DIAGRAM

NO DESCRIPTION NO PART NUMBER NO DESCRIPTION NO PART NUMBER
1 Name Plate 9 Nut M6 17 Frame 25 Washer 5mm
2 Screw M16 x 12 10 Nut M6 18 Shock Absorber 26 Foot
3 Washer 6mm 11 Fan Housing 19 Bolt M12 x 36 27 Foot Holder
4. Front & Rear Grill 12 Screw M6 x 10 20 Bolt M12 x 70 28 Screw M6 x 12
5 Fan Blade 13 Handle 21 Washer 12mm 29 Washer 6mm
6 Screw M10 x 13 14 Switch Box 22 Wheel 30 Bolt
7 Motor 15 Cable & Plug 23 Base Plate
8 Screw M10 x 13 16 Screw st4 x12 24 Screw M5 x 10
6
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 7

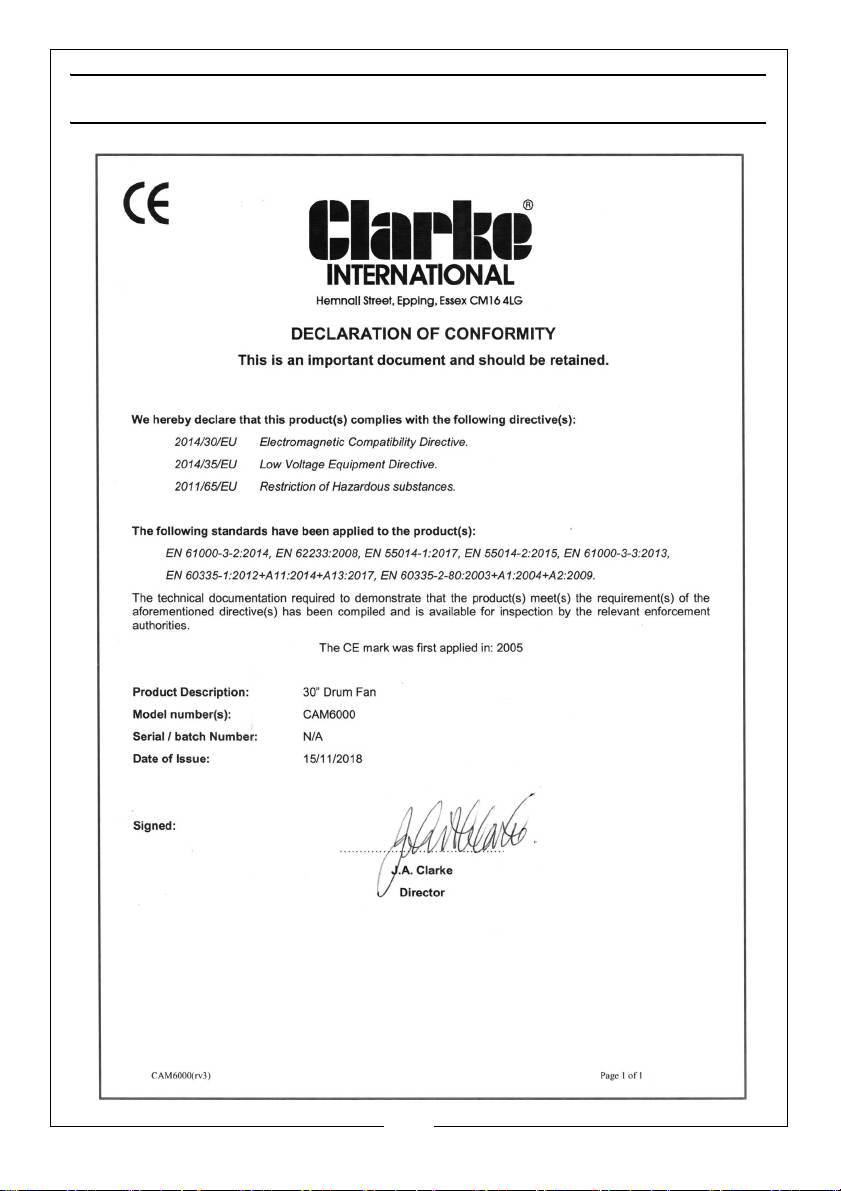

DECLARATION OF CONFORMITY

7
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
