Page 1
1
/2” REVERSIBLE AIR DRILL
MODEL NO: CAT123
PART NO: 3110879
OPERATION & MAINTENANCE
INSTRUCTIONS
ORIGINAL INSTRUCTIONS GC0220 - rev 1
Page 2

INTRODUCTION

Thank you for purchasing this CLARKE product.
Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt which will be required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or tampered with in any way, or not used for the purpose for which it was intended.
Faulty goods should be returned to their place of purchase, no product can be returned to us without prior permission.
This guarantee does not effect your statutory rights.

ENVIRONMENTAL PROTECTION

Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to a recycling centre and disposed of in a manner which is compatible with the environment.
2
Page 3

GENERAL SAFETY RULES

CAUTION: FAILURE TO FOLLOW THESE PRECAUTIONS COULD RESULT IN PERSONAL INJURY, AND/OR DAMAGE TO PROPERTY.

WORK ENVIRONMENT

1. Keep the work area clean and tidy.
2. Dress appropriately - Do not wear loose clothing or jewellery. Tie long hair out of the way.
3. Keep children and visitors away - Do not let children handle the air drill. Make sure that any other persons in the work area are dressed suitably and are wearing eye and ear protection.
4. Do not operate the drill where there are flammable vapours.
5. Keep the air supply hose away from heat, oil and sharp edges.
6. Do not fit the drill to any stand or clamping device that may damage it.
USE
1. Stay alert and use common sense - Do not operate the drill when you are tired or under the influence of alcohol, drugs or medication.
2. Always wear eye protection when using the drill - Eye protectors must provide protection from flying particles from the front and the side.
3. Always wear ear protection when using the drill.
4. Do not over reach - Keep proper footing and balance at all times.
5. Never use any type of bottled gas as a source of power for the drill.
6. Do not connect the air supply hose with your finger on the trigger.
7. Do not exceed the maximum pressure for the drill: 90 psi / 6.2 bar.
8. Check hoses for leaks or worn condition before use, and ensure that all connections are secure.
9. Do not use the drill for any other purpose than that described in this book.
10. Do not carry out any alterations or modifications to the drill.
11. Always disconnect from the air supply when:
• Performing any maintenance
• The drill is not in use.
3
Page 4
• The drill will be left unattended.
• Moving to another work area.
• Passing the drill to another person.
12. Never use the drill if it is defective or operating abnormally.
13. The drill should be serviced at regular intervals by qualified service personnel.
14. Avoid damaging the drill for example by applying excessive force of any kind.
15. Always maintain the drill with care. Keep it clean for best and safest performance.
16. Quick change couplings should not be located at the drill. They add weight and could fail due to vibration.
17. Do not force or misuse the drill. It will do a better and safer job at the rate for which it was designed.
18. Do not remove any labels. Damaged labels should be replaced.
19. This tool vibrates with use. Vibration may be harmful to your hands or arms. Stop using the tool if discomfort, a tingling feeling or pain occurs. Seek medical advice before resuming use.

TRANSPORTATION

1. Never carry the drill by the air supply hose.
2. Never carry the drill with your finger on the trigger.

STORAGE

1. When not in use the drill should be disconnected from the air supply and stored in a dry place out of the reach of children (preferably in a locked cabinet).
o
2. Avoid storing the drill in environments where the temperature is below 0
4
C.
Page 5

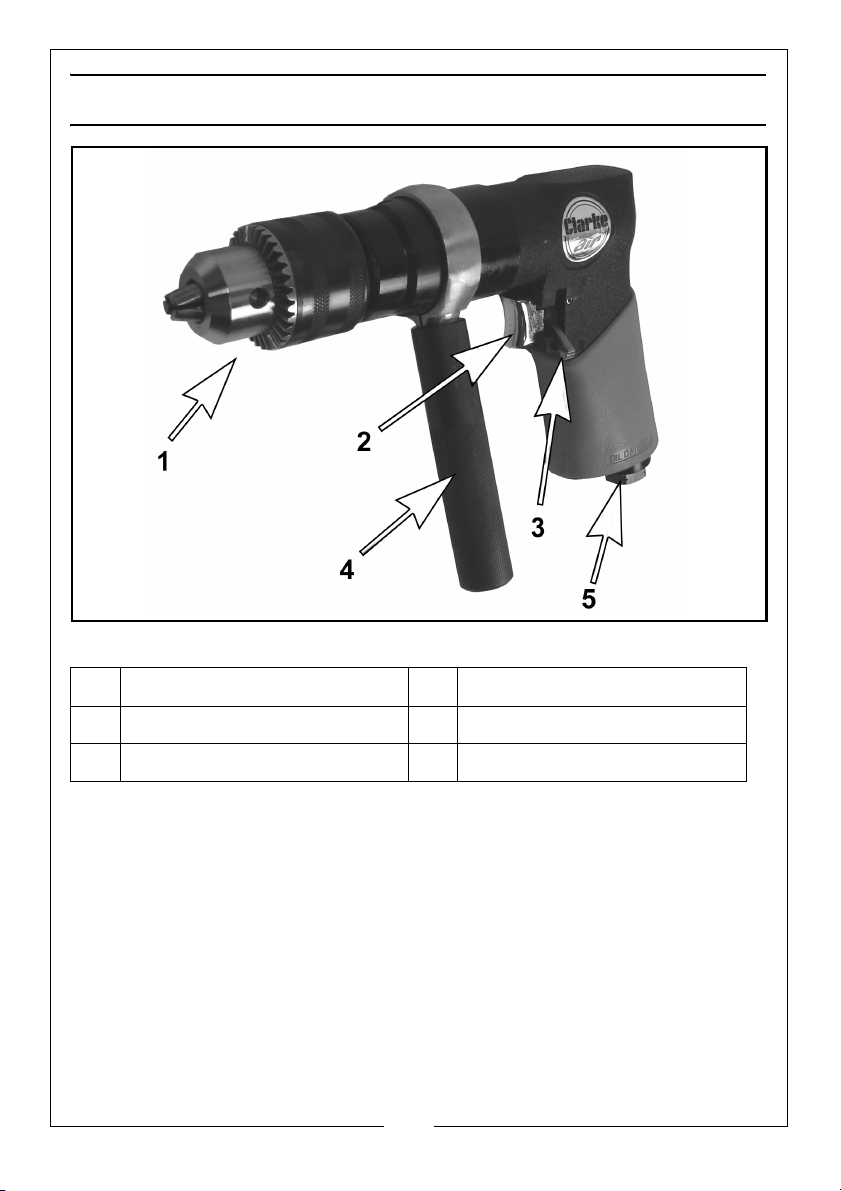

OVERVIEW

1Chuck 4Handle
2 Trigger 5 Air hose connector
3Forward/Reverse Switch
Unpack and lay out the components, checking against the following list. Any damage or deficiency should be reported to your CLARKE dealer.
• 1/2” Reversible Air Drill
• Male Snap Connector
• Bottle of Airline Oil
•Chuck Key
• Side Handle
• Side Handle Clamping Ring
• Operators Manual (this document)
5
Page 6

ACCESSORIES

A wide range of accessories are available, including Filter/Regulators, Airline Lubricators, High Pressure Hoses (5 to 50 Metres), adaptors and connectors etc.
Contact your CLARKE dealer for further information, or CLARKE International Sales Department on 01992 565 333.
6
Page 7

COMPRESSED AIR LINES

AIR SUPPLY REQUIREMENTS

WARNING: COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU ARE FAMILIAR WITH ALL PRECAUTIONS RELATING TO THE USE OF COMPRESSORS AND COMPRESSED AIR SUPPLY.
• Use only clean, dry, regulated compressed air as a power source.
• Air compressors used with the air drill must comply with the
appropriate European Community safety directives.
• A build-up of moisture or oil in the air compressor will accelerate
wear and corrosion in the air drill. Ensure any moisture is drained from the compressor daily and the inlet filter is kept clean.
• If an unusually long air hose is required, (over 8 metres), line pressure
may need to be increased.
• Never exceed the maximum operating pressure for the air drill.
• The air hose must be rated at least 150% of the maximum operating
pressure of the tool.

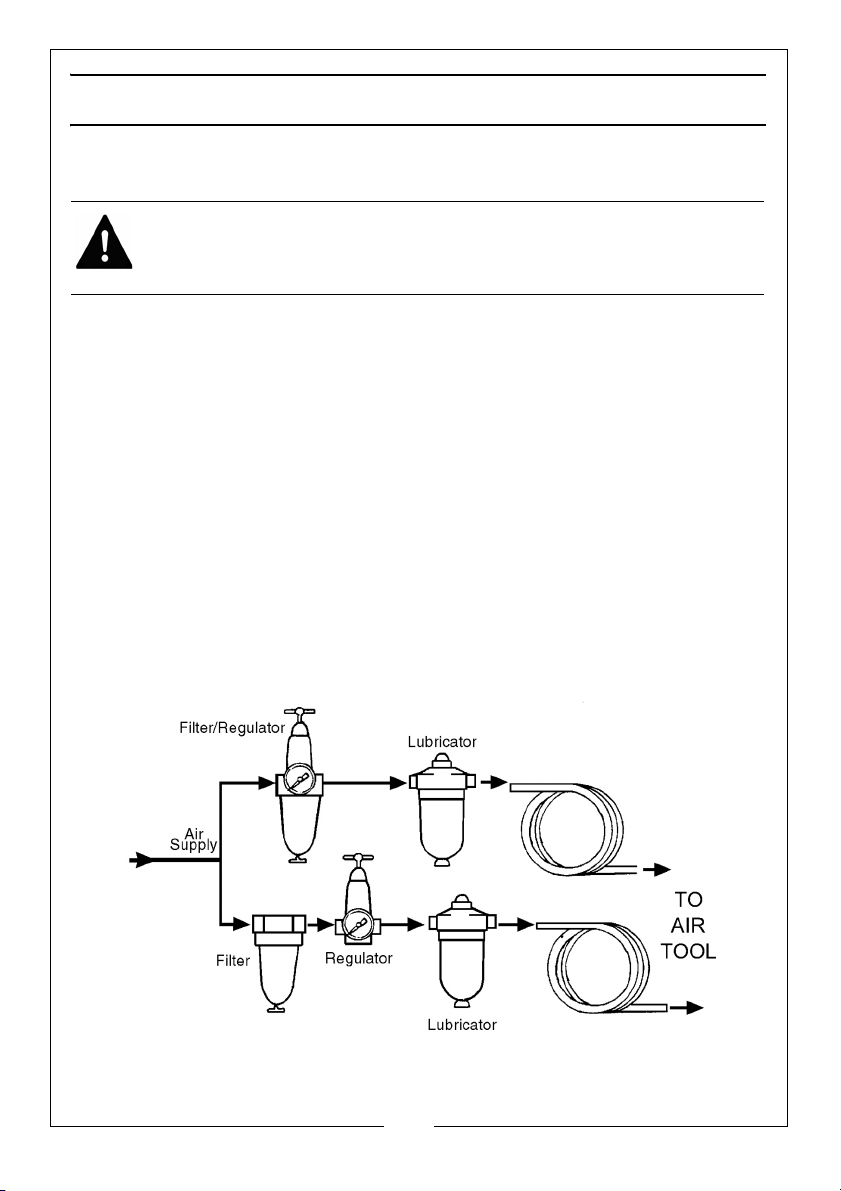

A typical airline layout is shown below. If an automatic in-line filter/regulator/ lubricator unit is used it will keep the tool in good condition, but should be regularly checked and topped up with oil.
7
Page 8
IMPORTANT: If a filter/lubricator unit is not used, the air tool should be lubricated with 2 to 6 drops of oil, at least once a day or after 2 hours work, depending upon the working environment. The oil can be inserted through the airline connection point.
AIRLINE SAFETY
• Never exceed the maximum operating pressure for the tool. A
pressure of 90 psi with a flow of 16 cfm is required. Too high an air pressure will shorten the life of the tool due to excessive wear.
• The air hose must be rated at least 150% of the maximum operating
pressure of the tool.

BEFORE USE

WARNING: COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU ARE FAMILIAR WITH ALL PRECAUTIONS RELATING TO THE USE OF COMPRESSORS AND COMPRESSED AIR SUPPLY.
NOTE: Ensure the compressor is turned off.
1. Remove the travel plug from the airline socket.
2. Pour 2-3 drops of CLARKE airline oil into the air inlet. This should be done regardless of whether or not a lubricated air supply is to be used.

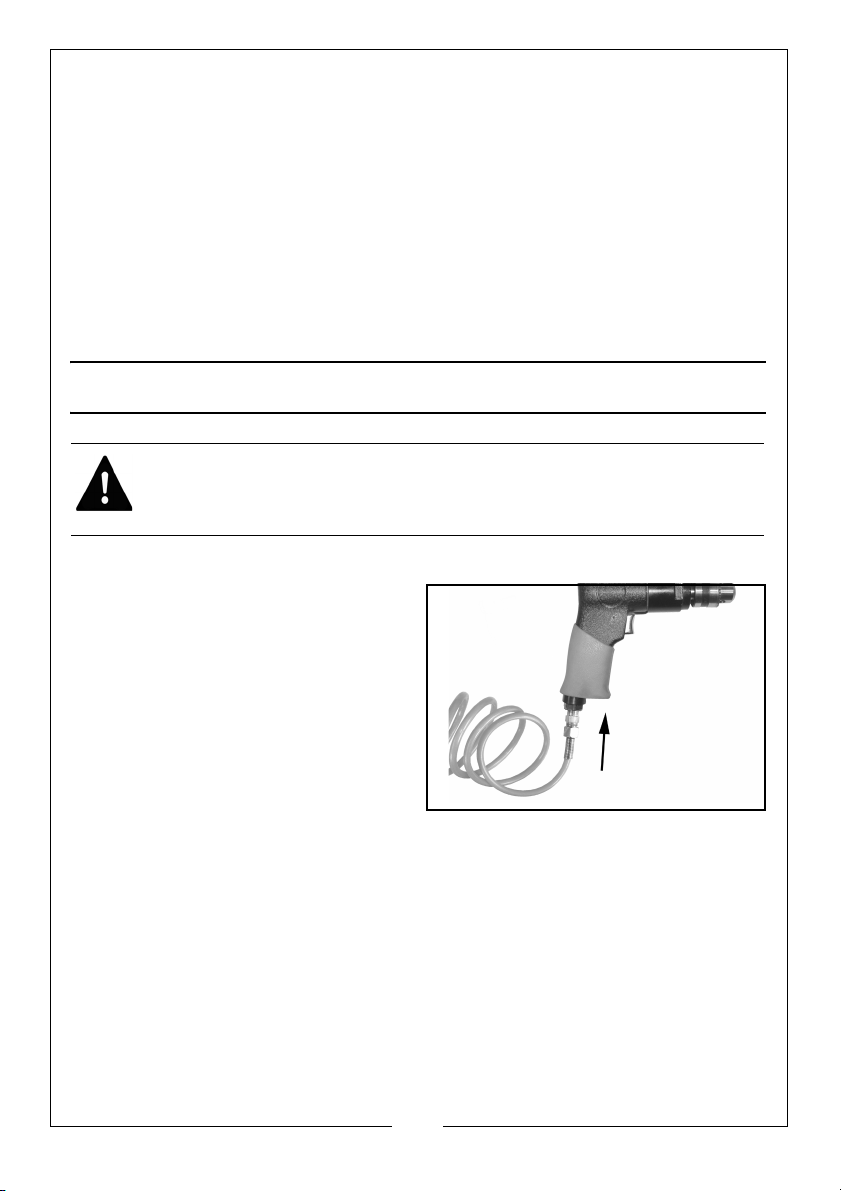

3. Connect a suitable hose to the air drill as shown, using the adapter supplied if required.
4. Connect the other end of the hose to the compressor.
5. Turn on the air supply and check for air leaks. Rectify any found before proceeding
You can fit a whip hose with a quick fit coupling if required (available from your Clarke dealer.)
8
Page 9

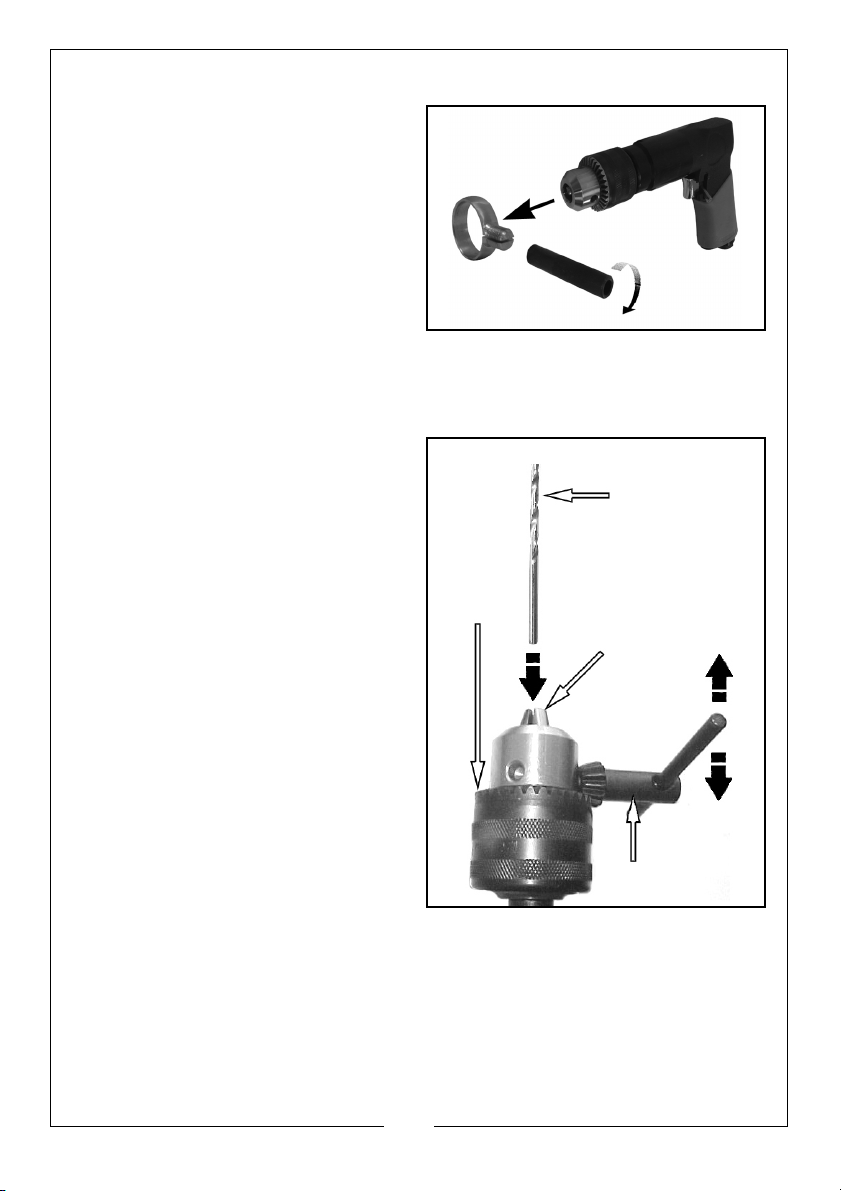

FITTING THE HANDLE

Drill bit
Chuck jaws
Close
Open
Chuck
key
jaws
jaws
Barrel
The CAT123 is supplied with a removable side handle. To install it proceed as follows.
1. Slide the clamping ring over the body of the drill.
2. Screw the handle onto the threaded part of the clamping ring until the handle assembly is tight.
The handle can be located at any position around the drill by loosening the handle grip and re-tightening to secure in position.

INSERTING/REMOVING THE DRILL BIT

1. Open the chuck jaws by inserting the chuck key in one of the holes in the chuck and turning it as shown.
2. Make sure that the head of the chuck key is located on the barrel of the chuck.
3. Turn the chuck key until the chuck jaws are open sufficiently to take the drill bit.
4. Place the drill bit in the jaws of the chuck as far as it will go.
5. Close the chuck jaws and tighten to grip the drill bit by turning the chuck key as shown.
6. Make sure that the chuck jaws are fully closed and that the drill bit is held firmly.
7. Your air drill is now ready for use.
9
Page 10

OPERATION

OPERATING THE AIR DRILL

WARNING: MAKE SURE THAT THE CHUCK KEY HAS BEEN REMOVED BEFORE USING THE DRILL.
1. Squeeze the trigger switch to start the drill.
2. Wait until the drill is running at its maximum speed before applying it carefully to the workpiece.
3. Release the trigger switch to stop the drill.

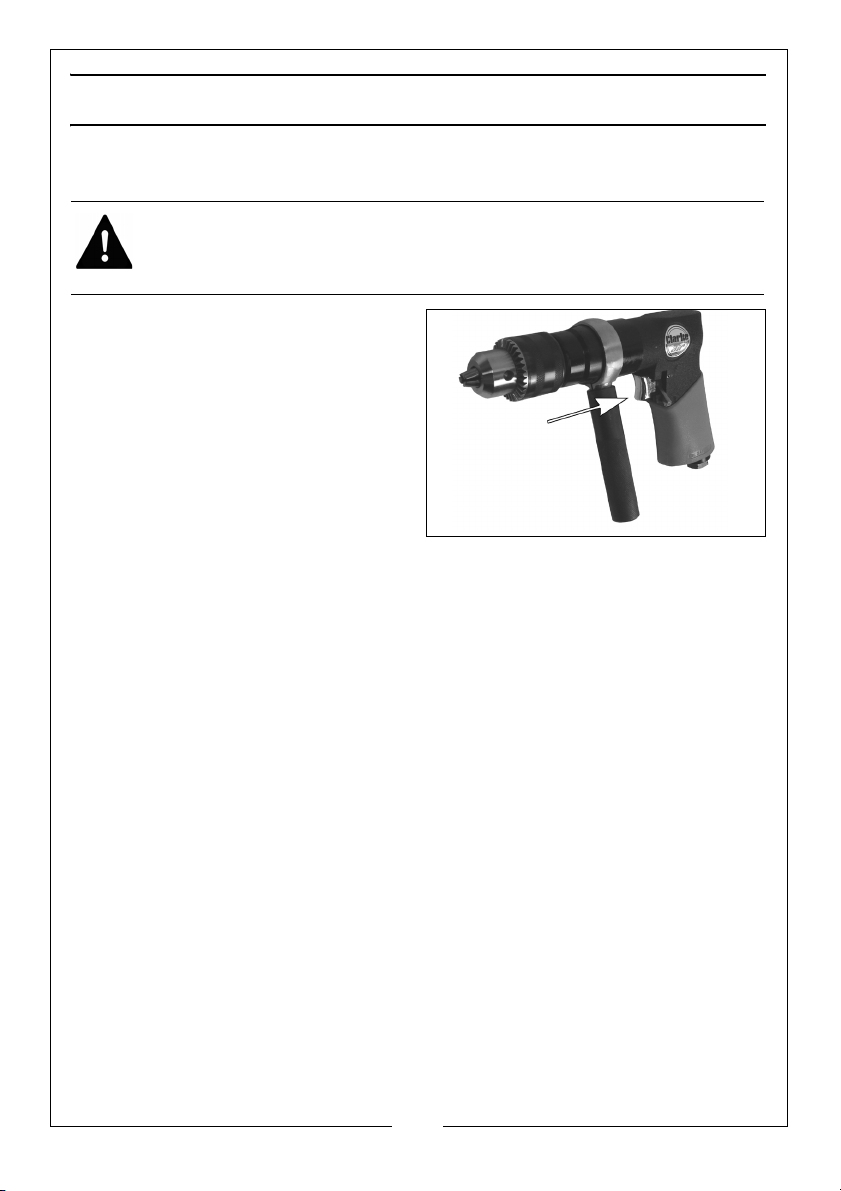

4. To change the direction of rotation move the lever on the left side of the drill body from F to R.
5. Always ensure the drill has stopped before putting it down.

DISCONNECTING THE AIR SUPPLY

Do not disconnect the air supply hose until the compressor has been shut down and the compressed air pressure released.
1. Refer to the compressor instruction book for the procedures to shut down and release the compressed air.
2. Once the pressure has been released, disconnect the air supply hose from the air drill.

STORAGE

1. Store the air drill safely in a dry, secure environment.
2. If the tool is not to be used for longer than 24 hours, run a few drops of CLARKE airline oil into the air inlet and run the tool for a few seconds to ensure that the oil has been well distributed throughout the tool.
3. When storing, ensure the blanking plug is replaced on the airline inlet connector once the airline has been disconnected.
10
Page 11

TROUBLESHOOTING

SYMPTOM PROBLEM SOLUTION
Tool runs at normal speed but slows down under any load.
Tool runs slowly. Air flows weakly from exhaust.
Tool will not run. Air flows freely from exhaust.
Tool will not shut off. 1. Throttle O-rings
1. Excessive pressure on drill.
2. Motor parts worn.
3. Worn or sticking mechanism due to lack of lubricant.
1. Motor parts jammed with gum/dirt.
2. Regulator in closed position.
3. General airflow blocked by dirt.
1. Motor vanes stuck due to buildup of foreign material.
damaged or ill-fitting in seat.
1. Reduce the force applied to the drill.
2. Return to Clarke dealer for repair.
3. Drip air tool lubricating oil into air inlet. Allow oil to soak moving parts before using.
1. Examine inlet air filter for cleanliness.
2. Adjust regulator to open position.
3. Operate tool in short bursts.
1. Disconnect air supply and rotate tool assembly manually.
2. Try operating tool in short bursts.
3. Tap motor housing gently with a rubber mallet.
4. Drip a few drops of air tool lubricating oil into air inlet to soak moving parts.
1. Return to Clarke dealer for repair.
11
Page 12

MAINTENANCE

WARNING: MAKE SURE THAT THE AIR DRILL IS DISCONNECTED FROM THE AIR SUPPLY BEFORE STARTING ANY CLEANING, OR MAINTENANCE PROCEDURES.

DAILY

• Drain any water from the air tank, airline, and compressor.
• Pour a few drops of CLARKE air line oil, into the air inlet. This should be
carried out regardless of whether or not an air line lubricator is used. If an airline lubricator is not used, this procedure should be repeated after every two to three hours of use.

WEEKLY

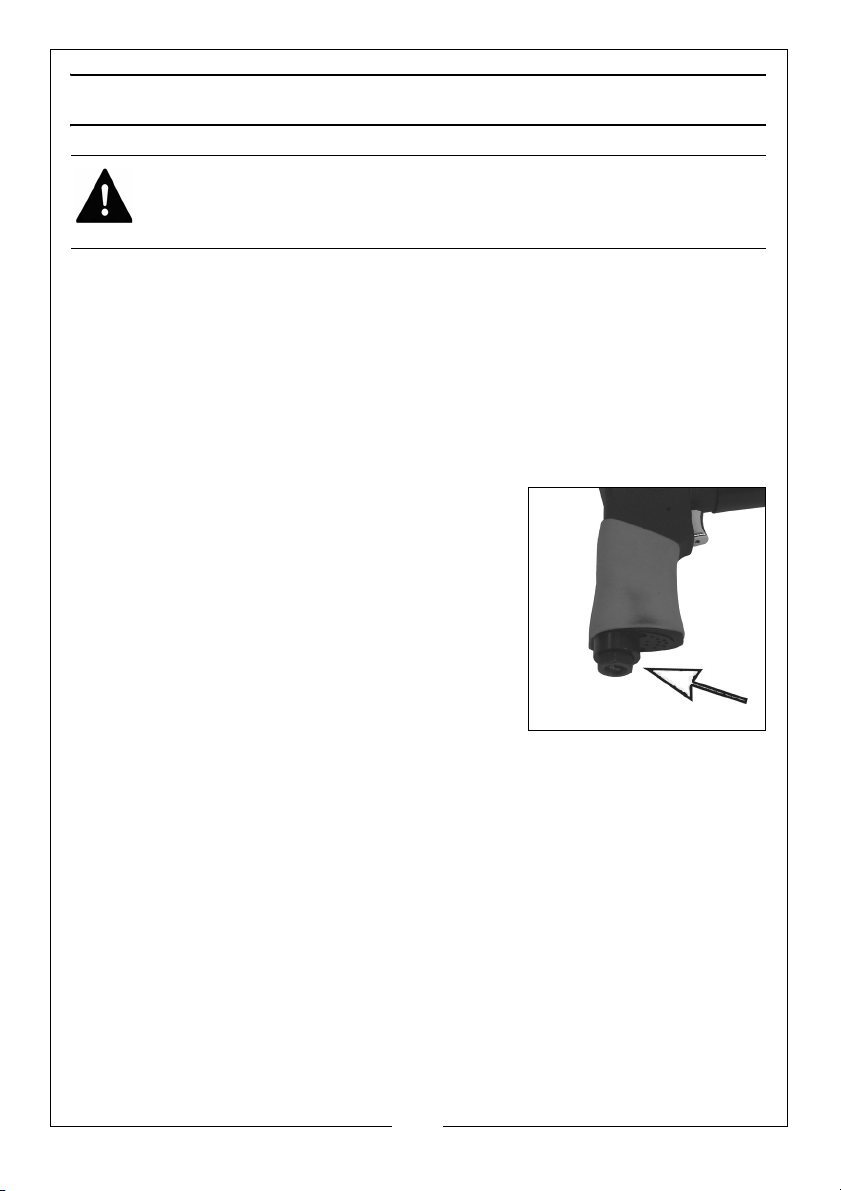

• Check the air inlet screen filter and clean if
necessary. It may be necessary to unscrew the air inlet connector to achieve this.

CLEANING

• Keep the body of the air drill clean and free
from debris, grit or gum deposits in the tool may reduce efficiency.
• After extensive use, remove the inlet screen
filter and flush out the mechanism with gum solvent oil or an equal mixture of SAE No10 oil and paraffin. Allow to dry before use.

SERVICE AND REPAIR

• Major servicing and repairs should be carried out by a qualified service
technician.

PERFORMANCE

• Please note that factors outside the tool may effect its operation and
efficiency such as reduced compressor output, excessive drain on the airline, moisture or restrictions in the line, or the use of connectors of improper size or poor condition which will reduce air supply.
• **Clarke air line oil (Part no. 3050825) is available from your CLARKE
dealer.
12
Page 13

SPECIFICATIONS

Feature Specification
Model Number CAT123
Min. Hose Size (ID) 10 mm
Average Air Consumption 16 cfm
Operating Air Pressure 90 psi (6.2 bar)
Chuck Size 1.5 - 13 mm
Maximum Speed 700 rpm
Sound Pressure Level (LpA dB) 81.9 dB(A)
Sound Power Level (LwA dB) 92.9 dB(A)
Vibration Levels
Dimensions (L x W x H) 208 x 49 x 150 mm
Weight 1.8 kg
1.2 m/s K = 34.44
2
at the Main Handle
13
Page 14

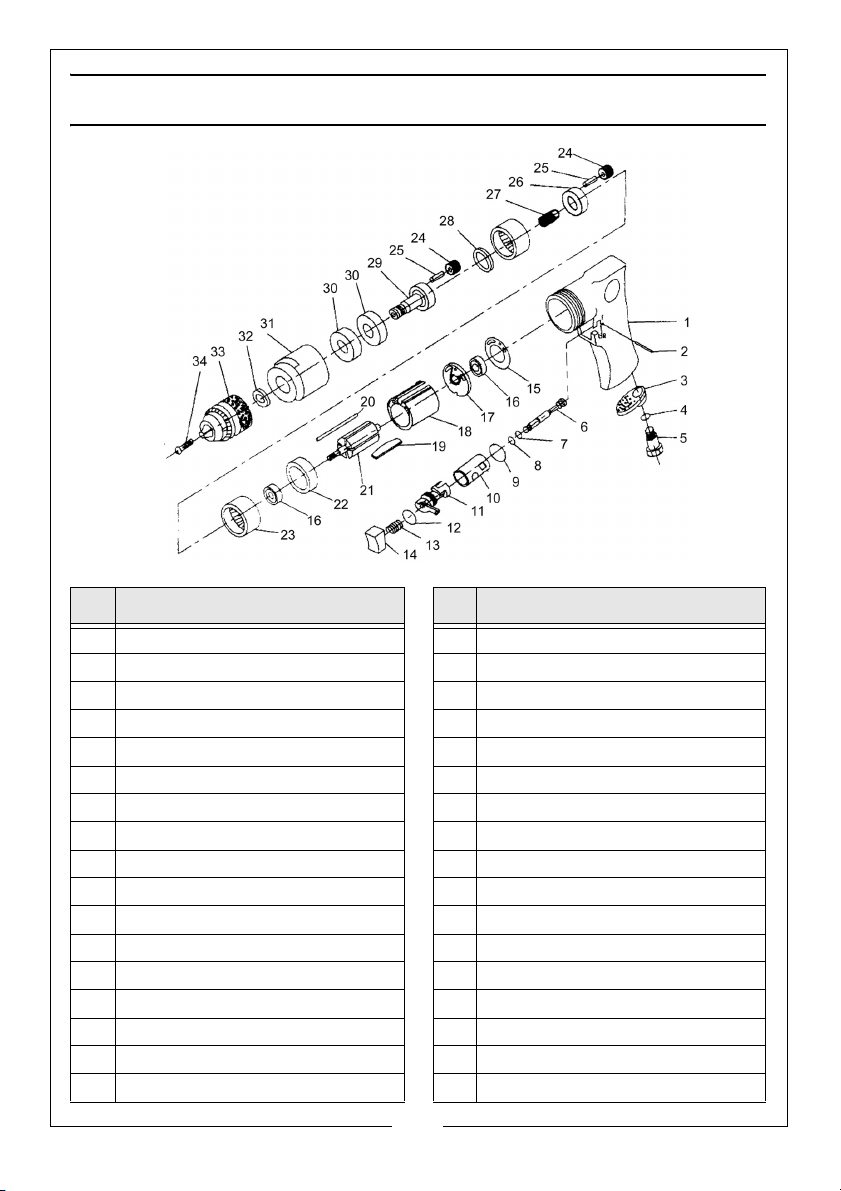

PARTS LIST & DIAGRAM

No Description No Description
1 Housing 18 Cylinder
2 Roll Pin 19 Rotor Blade
3 Exhaust Deflector 20 Steel Wire
4O-Ring 21Rotor
5 Air Inlet 22 Front Plate
6 Valve Stem 23 Gear Wheel
7O-Ring 24Idle Gear
8 O-Ring 25 Idler Gear Pin
9O-Ring 26Gear Shaft
10 Bushing 27 Wheel Pin
11 Reverse Gear 28 Washer
12 O-Ring 29 Gear Shaft
13 Spring 30 Bearing
14 Trigger 31 Clamp Nut
15 O-Ring 32 Washer
16 Bearing 33 Chuck
17 End Plate 34 Chuck Screw
14
Page 15

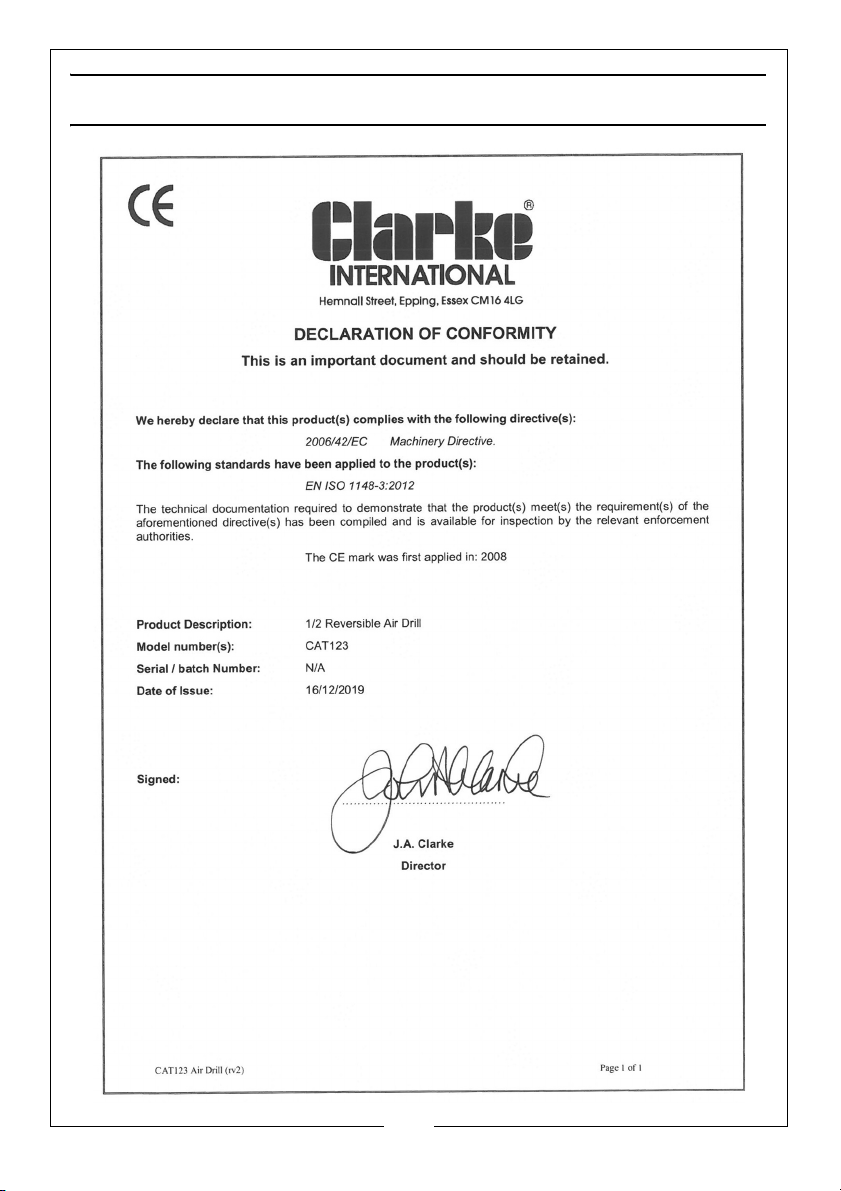

DECLARATION OF CONFORMITY

15
